Maintenance and care
74
If the throttle lever does not move smoothly or
if the throttle lever free play is not within the
specified range, have a Yamaha dealer ser-
vice the watercraft.
EJU37041Cleaning and adjusting the spark
plugs
WARNING
EWJ00350
Be careful not to damage the insulator
when removing or installing a spark plug.
A damaged insulator could allow sparks to
escape, which could result in a fire or ex-
plosion.
The spark plug is an important engine compo-
nent and is easy to inspect. The condition of
the spark plug can indicate something about
the condition of the engine. For example, if
one spark plug has a distinctly different color,
the engine could require servicing. Do not at-
tempt to diagnose any problems yourself.
Have a Yamaha dealer service the watercraft.
Remove and inspect the spark plugs periodi-
cally; heat and deposits will cause the spark
plugs to slowly break down and erode. If elec-
trode erosion becomes excessive, or if carbon
and other deposits are excessive, replace the
spark plug with the specified plug.
To remove a spark plug:
(1) Remove the seats. (See page 23 for seat
removal and installation procedures.)(2) Remove the engine cover screws, and
then remove the engine cover.
(3) Remove the spark plug cap bolts, and
then remove the spark plug cap.
NOTICE: Do not use any tools to re-
move or install the spark plug cap,
otherwise the ignition coil coupler
could be damaged. The spark plug
cap may be difficult to remove be-
cause the rubber seal on the end of
the cap fits tightly. To remove the
spark plug cap, simply twist it back
and forth while pulling it up; to install
it, twist it back and forth while pushing
it down.
[ECJ00211]
Specified spark plug:
LFR6A
1Engine cover screw
2Engine cover
1 2
UF2R70E0.book Page 74 Thursday, November 6, 2008 10:05 AM

Maintenance and care
75

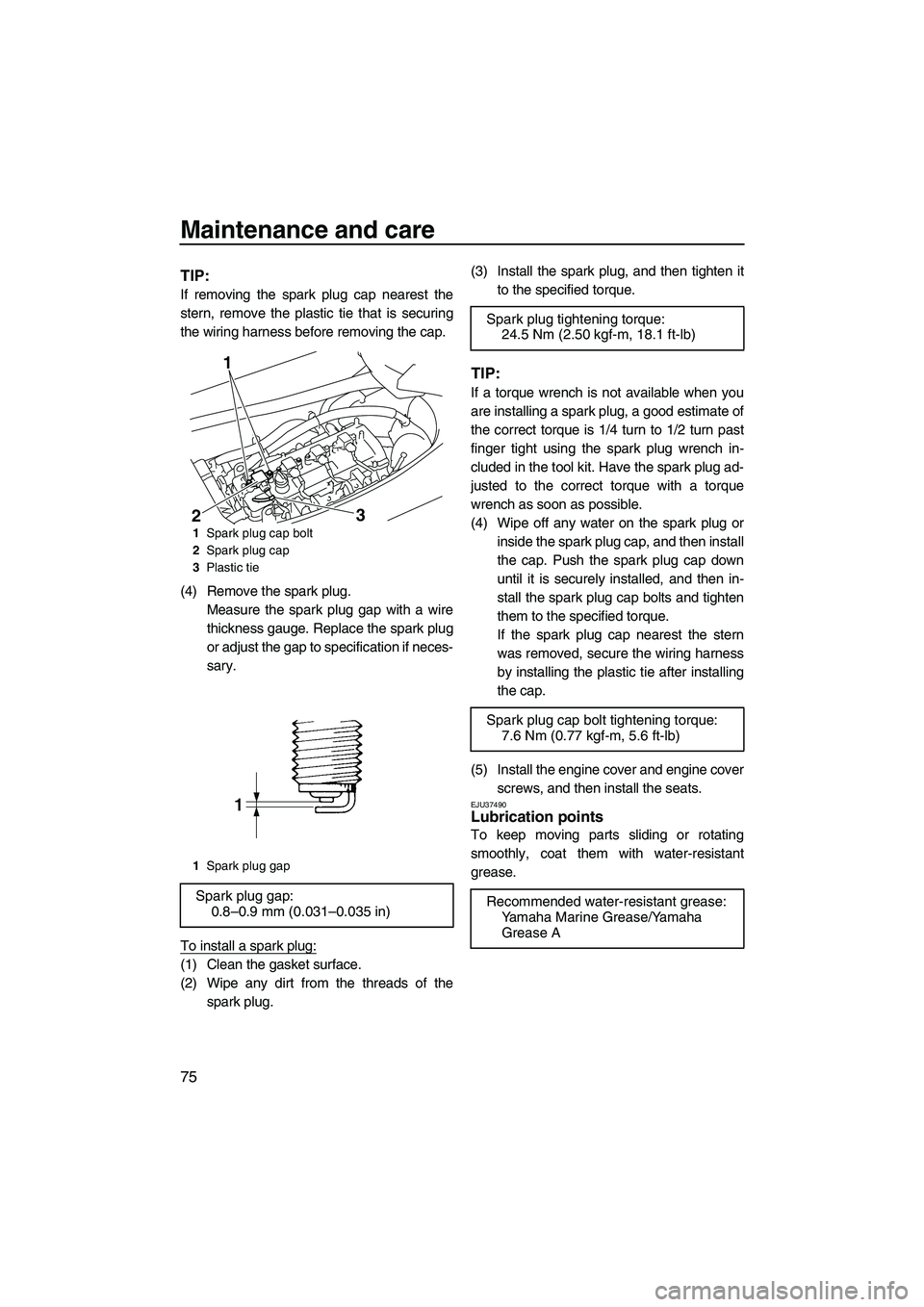

TIP:
If removing the spark plug cap nearest the
stern, remove the plastic tie that is securing
the wiring harness before removing the cap.
(4) Remove the spark plug.
Measure the spark plug gap with a wire
thickness gauge. Replace the spark plug
or adjust the gap to specification if neces-
sary.
To install a spark plug:
(1) Clean the gasket surface.
(2) Wipe any dirt from the threads of the
spark plug.(3) Install the spark plug, and then tighten it
to the specified torque.
TIP:
If a torque wrench is not available when you
are installing a spark plug, a good estimate of
the correct torque is 1/4 turn to 1/2 turn past
finger tight using the spark plug wrench in-
cluded in the tool kit. Have the spark plug ad-
justed to the correct torque with a torque
wrench as soon as possible.
(4) Wipe off any water on the spark plug or
inside the spark plug cap, and then install
the cap. Push the spark plug cap down
until it is securely installed, and then in-
stall the spark plug cap bolts and tighten
them to the specified torque.
If the spark plug cap nearest the stern
was removed, secure the wiring harness
by installing the plastic tie after installing
the cap.
(5) Install the engine cover and engine cover
screws, and then install the seats.
EJU37490Lubrication points
To keep moving parts sliding or rotating
smoothly, coat them with water-resistant
grease.
1Spark plug cap bolt
2Spark plug cap
3Plastic tie
1Spark plug gap
Spark plug gap:
0.8–0.9 mm (0.031–0.035 in)
1
2
3
Spark plug tightening torque:
24.5 Nm (2.50 kgf-m, 18.1 ft-lb)
Spark plug cap bolt tightening torque:
7.6 Nm (0.77 kgf-m, 5.6 ft-lb)
Recommended water-resistant grease:
Yamaha Marine Grease/Yamaha
Grease A
UF2R70E0.book Page 75 Thursday, November 6, 2008 10:05 AM

Maintenance and care
76

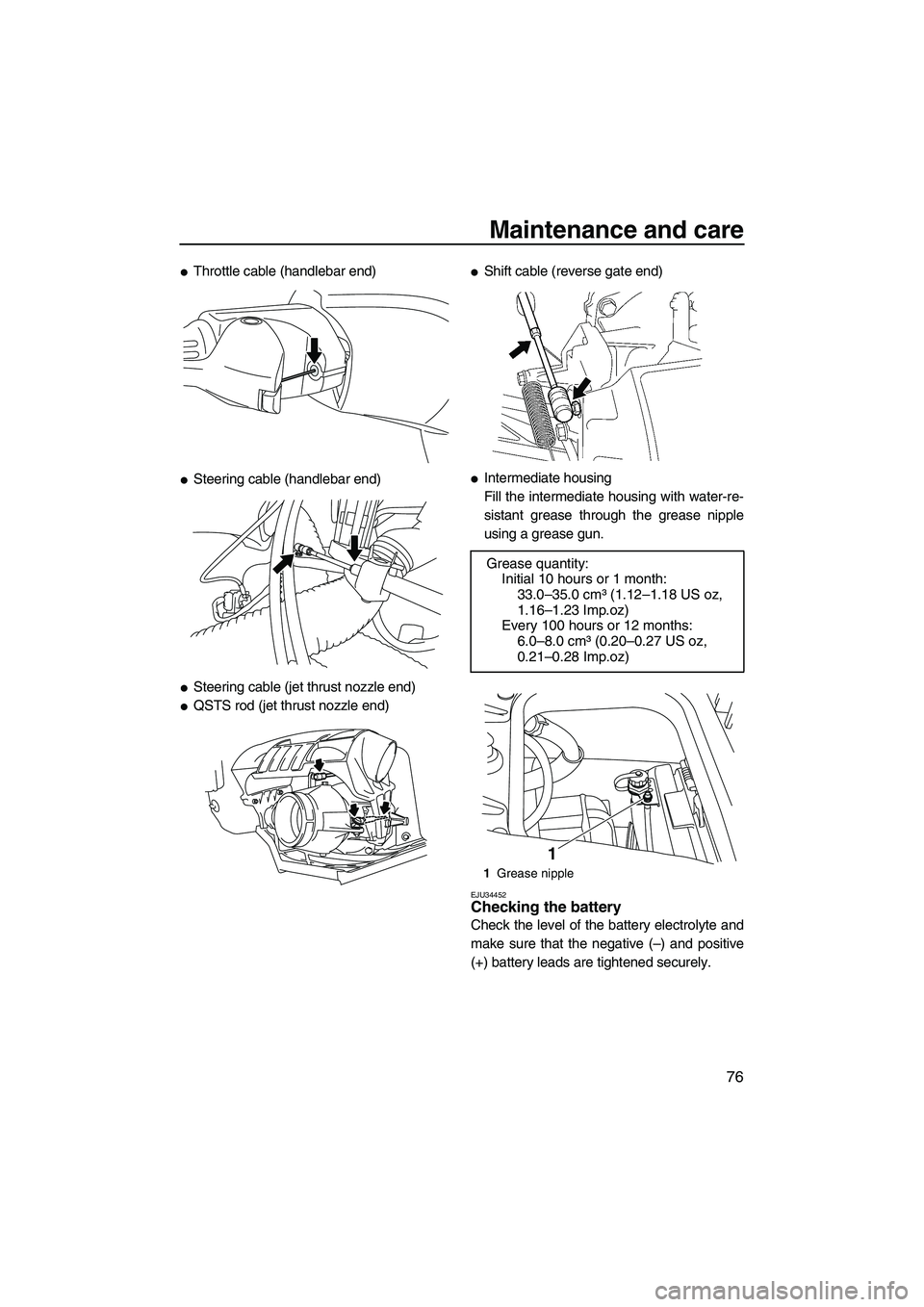

Throttle cable (handlebar end)

Steering cable (handlebar end)

Steering cable (jet thrust nozzle end)

QSTS rod (jet thrust nozzle end)

Shift cable (reverse gate end)

Intermediate housing
Fill the intermediate housing with water-re-
sistant grease through the grease nipple
using a grease gun.
EJU34452Checking the battery
Check the level of the battery electrolyte and
make sure that the negative (–) and positive
(+) battery leads are tightened securely.
Grease quantity:
Initial 10 hours or 1 month:
33.0–35.0 cm³ (1.12–1.18 US oz,
1.16–1.23 Imp.oz)
Every 100 hours or 12 months:
6.0–8.0 cm³ (0.20–0.27 US oz,
0.21–0.28 Imp.oz)
1Grease nipple
1
UF2R70E0.book Page 76 Thursday, November 6, 2008 10:05 AM

Maintenance and care
77

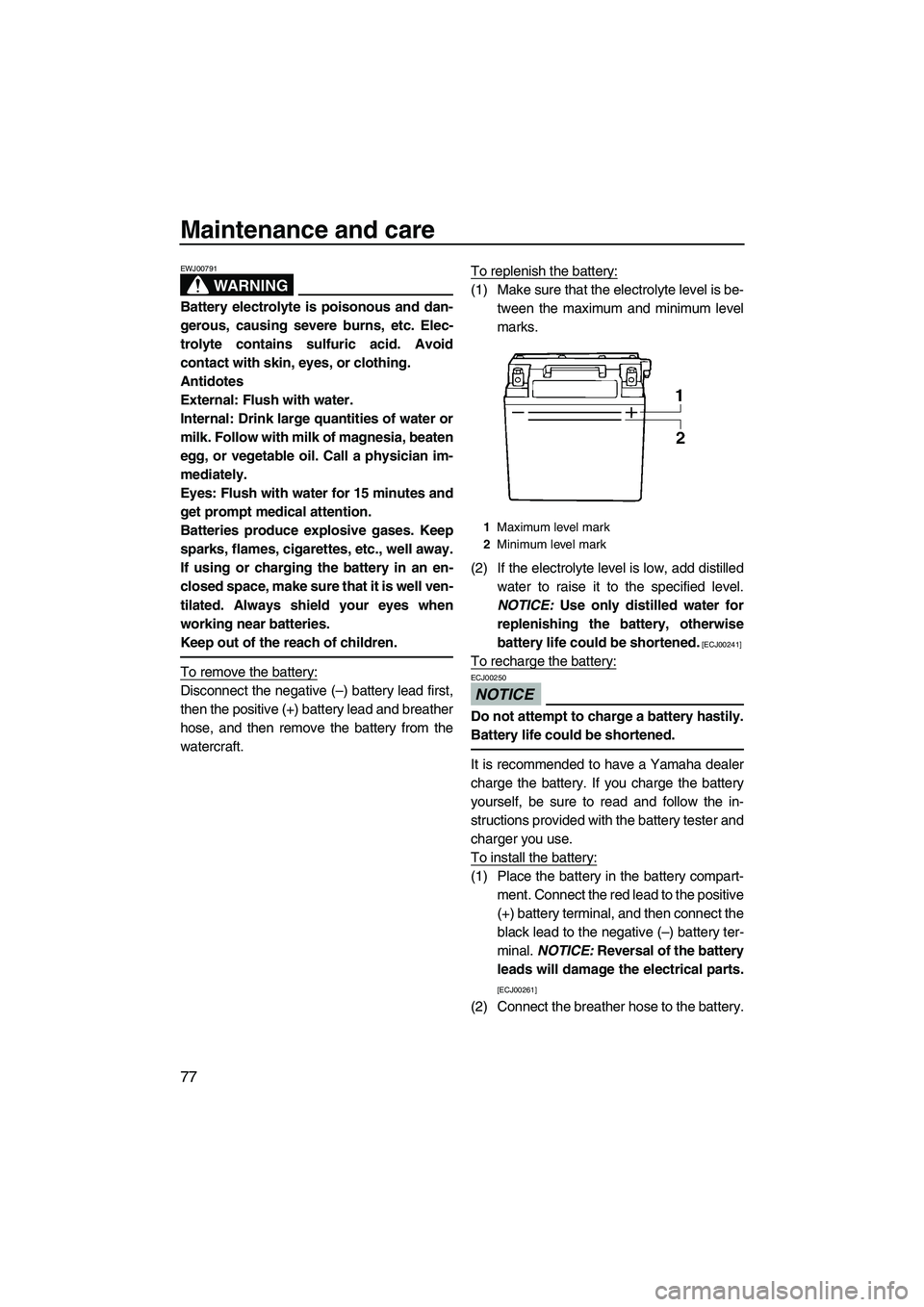

WARNING
EWJ00791
Battery electrolyte is poisonous and dan-
gerous, causing severe burns, etc. Elec-
trolyte contains sulfuric acid. Avoid
contact with skin, eyes, or clothing.
Antidotes
External: Flush with water.
Internal: Drink large quantities of water or
milk. Follow with milk of magnesia, beaten
egg, or vegetable oil. Call a physician im-
mediately.
Eyes: Flush with water for 15 minutes and
get prompt medical attention.
Batteries produce explosive gases. Keep
sparks, flames, cigarettes, etc., well away.
If using or charging the battery in an en-
closed space, make sure that it is well ven-
tilated. Always shield your eyes when
working near batteries.
Keep out of the reach of children.
To remove the battery:
Disconnect the negative (–) battery lead first,
then the positive (+) battery lead and breather
hose, and then remove the battery from the
watercraft.To replenish the battery:
(1) Make sure that the electrolyte level is be-
tween the maximum and minimum level
marks.
(2) If the electrolyte level is low, add distilled
water to raise it to the specified level.
NOTICE: Use only distilled water for
replenishing the battery, otherwise
battery life could be shortened.
[ECJ00241]
To recharge the battery:
NOTICE
ECJ00250
Do not attempt to charge a battery hastily.
Battery life could be shortened.
It is recommended to have a Yamaha dealer
charge the battery. If you charge the battery
yourself, be sure to read and follow the in-
structions provided with the battery tester and
charger you use.
To install the battery:
(1) Place the battery in the battery compart-
ment. Connect the red lead to the positive
(+) battery terminal, and then connect the
black lead to the negative (–) battery ter-
minal. NOTICE: Reversal of the battery
leads will damage the electrical parts.
[ECJ00261]
(2) Connect the breather hose to the battery.
1Maximum level mark
2Minimum level mark
UF2R70E0.book Page 77 Thursday, November 6, 2008 10:05 AM

Maintenance and care
78
(3) Secure the battery in place. WARNING!
Fire or explosion could result if the
breather hose is damaged, obstruct-
ed, or not connected properly.
[EWJ00451]
EJU34491
Fuel injection system
If the fuel injection system is malfunctioning,
have a Yamaha dealer service the watercraft.
EJU37500Checking the trolling speed
(1) Place the watercraft in the water.
(2) Start the engine and warm it up. Use the
tachometer in the dual analog meter unit
to check the trolling speed.
If the trolling speed is out of specification,
have a Yamaha dealer service the watercraft.
1Negative (–) battery terminal: Black lead
2Positive (+) battery terminal: Red lead
3Breather hose
Trolling speed:
1250 ±100 r/min
12
3
UF2R70E0.book Page 78 Thursday, November 6, 2008 10:05 AM

Specifications
79
EJU34542
Specifications
Watercraft capacity:
Maximum people on board:
2 person
Maximum load capacity:
160 kg (353 lb)
Dimensions:
Length:
3350 mm (131.9 in)
Width:
1230 mm (48.4 in)
Height:
1160 mm (45.7 in)
Dry weight:
366 kg (807 lb)
Performance:
Maximum output (according to ISO 8665/SAE
J1228):
154.50 kW@7500 r/min
Maximum fuel consumption:
67.3 L/h (17.8 US gal/h, 14.8 Imp.gal/h)
Cruising range at full throttle:
1.04 hour
Trolling speed:
1250 ±100 r/min
Engine:
Engine type:
Liquid cooled 4-stroke, DOHC
Number of cylinders:
4
Engine displacement:
1812 cm³
Bore & stroke:
86.0 × 78.0 mm (3.39 × 3.07 in)
Compression ratio:
8.6 : 1
Valve clearance-intake (cold):
0.14–0.23 mm (0.0055–0.0091 in)
Valve clearance-exhaust (cold):
0.28–0.37 mm (0.0110–0.0146 in)
Lubrication system:
Wet sump
Cooling system:
Water
Starting system:
Electric
Ignition system:
T.C.I.Spark plug:
LFR6A
Spark plug gap:
0.8–0.9 mm (0.031–0.035 in)
Battery capacity:
12 V, 19.0 Ah
Charging system:
Flywheel magneto
Drive unit:
Propulsion system:
Jet pump
Jet pump type:
Axial flow, single stage
Impeller rotation:
Counterclockwise
Jet thrust nozzle angle:
24.0+24.0 °
Jet thrust nozzle trim angle:
-10, -5, 0, 5, 10 °
Fuel and oil:
Recommended fuel:
Regular unleaded gasoline
Minimum octane rating (PON):
86
Minimum octane rating (RON):
90
Recommended engine oil type SAE:
SAE 10W-30, 10W-40, 20W-40, 20W-50
Recommended engine oil grade API:
API SE,SF,SG,SH,SJ,SL
Fuel tank total capacity:
70 L (18.5 US gal, 15.4 Imp.gal)
Engine oil quantity with oil filter replacement:
3.1 L (3.28 US qt, 2.73 Imp.qt)
Engine oil quantity without oil filter replacement:
3.0 L (3.17 US qt, 2.64 Imp.qt)
Engine oil total quantity:
4.3 L (4.55 US qt, 3.78 Imp.qt)
UF2R70E0.book Page 79 Thursday, November 6, 2008 10:05 AM

Trouble recovery
80
EJU34560
Troubleshooting
If you have any trouble with your watercraft, use this section to check for the possible cause.
If you cannot find the cause, or if the procedure for replacement or repair is not described in
this owner’s/operator’s manual, have a Yamaha dealer perform the necessary service.
EJU36982Troubleshooting chart
TROUBLE POSSIBLE CAUSE REMEDY PAGE
Engine does not
start (Starter motor
does not turn over)Yamaha Se-
curity SystemLock mode selected Select unlock mode
31
Engine shut-
off switchClip not in place Install clip
25
Fuse Burned out Replace fuse and
check wiring84
Battery Run down Recharge 76
Poor terminal con-
nectionsTighten as required
76
Terminal corroded Clean 68
Starter motor Faulty Have serviced by
Yamaha dealer—
Engine does not
start (Starter motor
turns over)Throttle lever Squeezed Release 26
Fuel Empty Refill as soon as pos-
sible41
Stale or contaminat-
edHave serviced by
Yamaha dealer72
Fuel tank Water or dirt present Have serviced by
Yamaha dealer72
Spark plug Fouled or defective Clean or replace 74
Spark plug
capNot connected or
looseConnect properly
74
Connected to wrong
cylinderConnect properly
74
Fuel injec-
tion systemFuel pump faulty Have serviced by
Yamaha dealer—
UF2R70E0.book Page 80 Thursday, November 6, 2008 10:05 AM

Trouble recovery
81
Engine runs irregu-
larly or stallsFuel Empty Refill as soon as pos-
sible41
Stale or contaminat-
edHave serviced by
Yamaha dealer72
Fuel tank Water or dirt present Have serviced by
Yamaha dealer72
Spark plug Fouled or defective Replace 74
Incorrect heat range Replace 74
Gap incorrect Adjust 74
Spark plug
capLoose Connect properly 74
Cracked, torn, or
damagedHave serviced by
Yamaha dealer—
Electrical wir-
ingLoose connection Have serviced by
Yamaha dealer—
Fuel injec-
tion systemFaulty or clogged in-
jectorsHave serviced by
Yamaha dealer—
Warning light or in-
dicator blinksFuel level Empty Refill as soon as pos-
sible41
Oil pressure
warningOil pressure dropped Have serviced by
Yamaha dealer35
Engine over-
heatedJet intake clogged Clean
83
Check engine
warningFaulty sensors Have serviced by
Yamaha dealer37 TROUBLE POSSIBLE CAUSE REMEDY PAGE
UF2R70E0.book Page 81 Thursday, November 6, 2008 10:05 AM

Trouble recovery
82
Watercraft slow or
loses powerShift lever Not completely shift-
ed into forward posi-
tionPush lever forward
until it stops 28
Yamaha Se-
curity SystemLow-RPM mode se-
lectedSelect normal mode
32
Cavitation Jet intake clogged Clean 83
Impeller damaged or
wornHave serviced by
Yamaha dealer83
Engine over-
heat warningEngine speed reduc-
tion control activatedClean jet intake and
cool engine36
Oil pressure
warningEngine speed reduc-
tion control activatedAdd oil
35
Spark plug Fouled or defective Replace 74
Incorrect heat range Replace 74
Gap incorrect Adjust 74
Spark plug
capLoose Connect properly
74
Electrical wir-
ingLoose connection Have serviced by
Yamaha dealer—
Fuel Stale or contaminat-
edHave serviced by
Yamaha dealer72
Air filter Clogged Have serviced by
Yamaha dealer72
Oil buildup Have serviced by
Yamaha dealer72 TROUBLE POSSIBLE CAUSE REMEDY PAGE
UF2R70E0.book Page 82 Thursday, November 6, 2008 10:05 AM

Trouble recovery
83
EJU34620
Emergency procedures EJU34631Cleaning the jet intake and impeller
WARNING
EWJ00780
Before attempting to remove weeds or de-
bris from the jet intake or impeller area,
shut the engine off and remove the clip
from the engine shut-off switch. Severe in-
jury or death could result from coming in
contact with the rotating parts of the jet
pump.
If weeds or debris gets caught in the jet intake
or impeller, cavitation can occur, causing jet
thrust to decrease even though engine speed
rises. If this condition is allowed to continue,
the engine will overheat and may seize.
NOTICE: If weeds or debris gets caught in
the jet intake, do not operate the watercraft
above trolling speed until they have been
removed.
[ECJ00651]
If there is any sign that the jet intake or impel-
ler is clogged with weeds or debris, return to
shore and check the intake and impeller. Al-ways stop the engine before beaching the wa-
tercraft.
(1) Place a suitable clean cloth or carpeting
underneath the watercraft to protect it
from abrasions and scratches. Turn the
watercraft on its side as shown. NOTICE:
Always turn the watercraft over onto
its port (left) side. When turning the
watercraft on its side, support the bow
so that the handlebars are not bent or
damaged.
[ECJ00661]
UF2R70E0.book Page 83 Thursday, November 6, 2008 10:05 AM
