Page 81 of 98

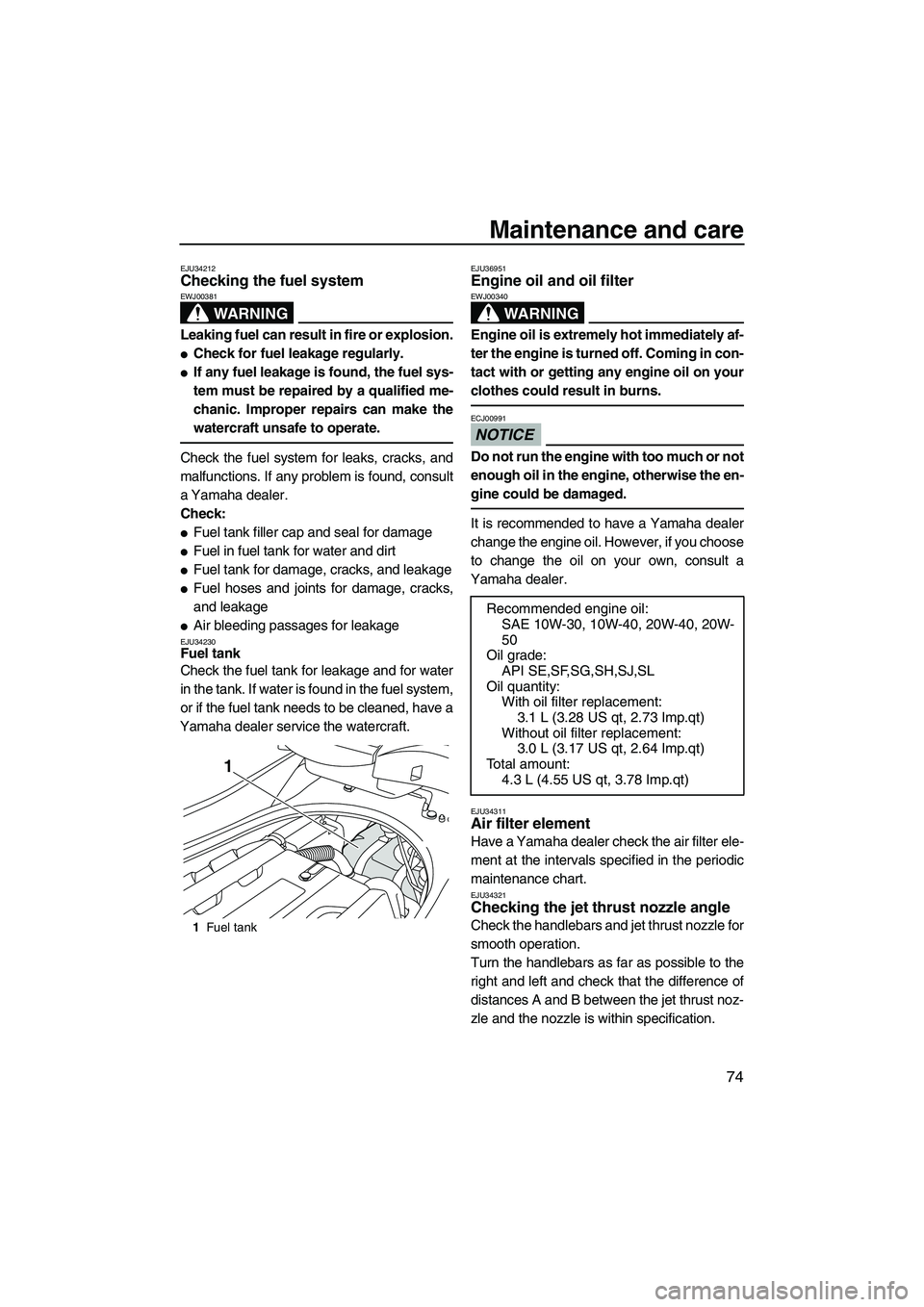

YAMAHA FZS 2009 Manual Online Maintenance and care
74
EJU34212Checking the fuel system
WARNING
EWJ00381
Leaking fuel can result in fire or explosion.
Check for fuel leakage regularly.
If any fuel leakage is found, the fuel sys-

Page 82 of 98

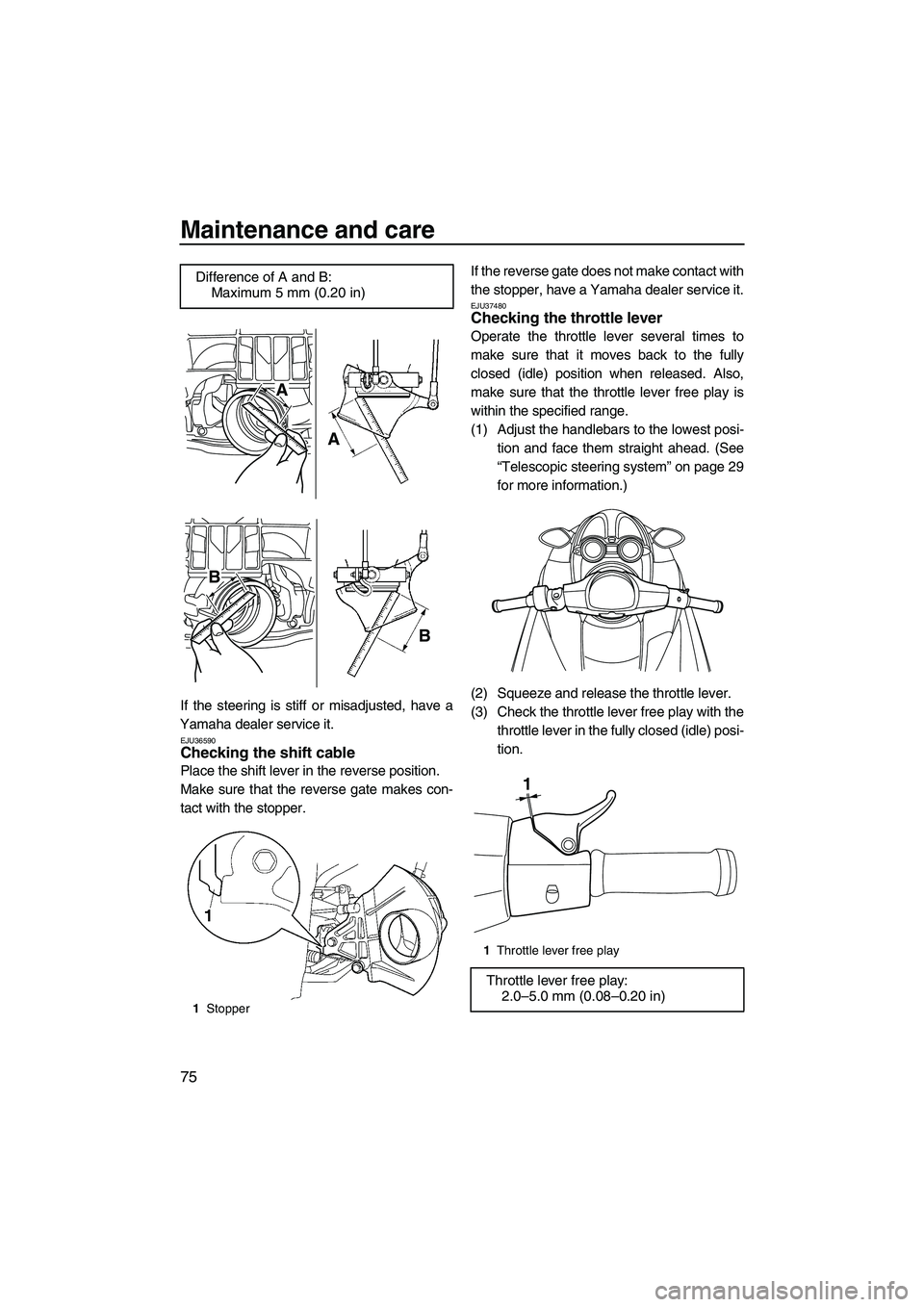

YAMAHA FZS 2009 Manual Online Maintenance and care
75
If the steering is stiff or misadjusted, have a
Yamaha dealer service it.
EJU36590Checking the shift cable
Place the shift lever in the reverse position.
Make sure that the re

Page 83 of 98

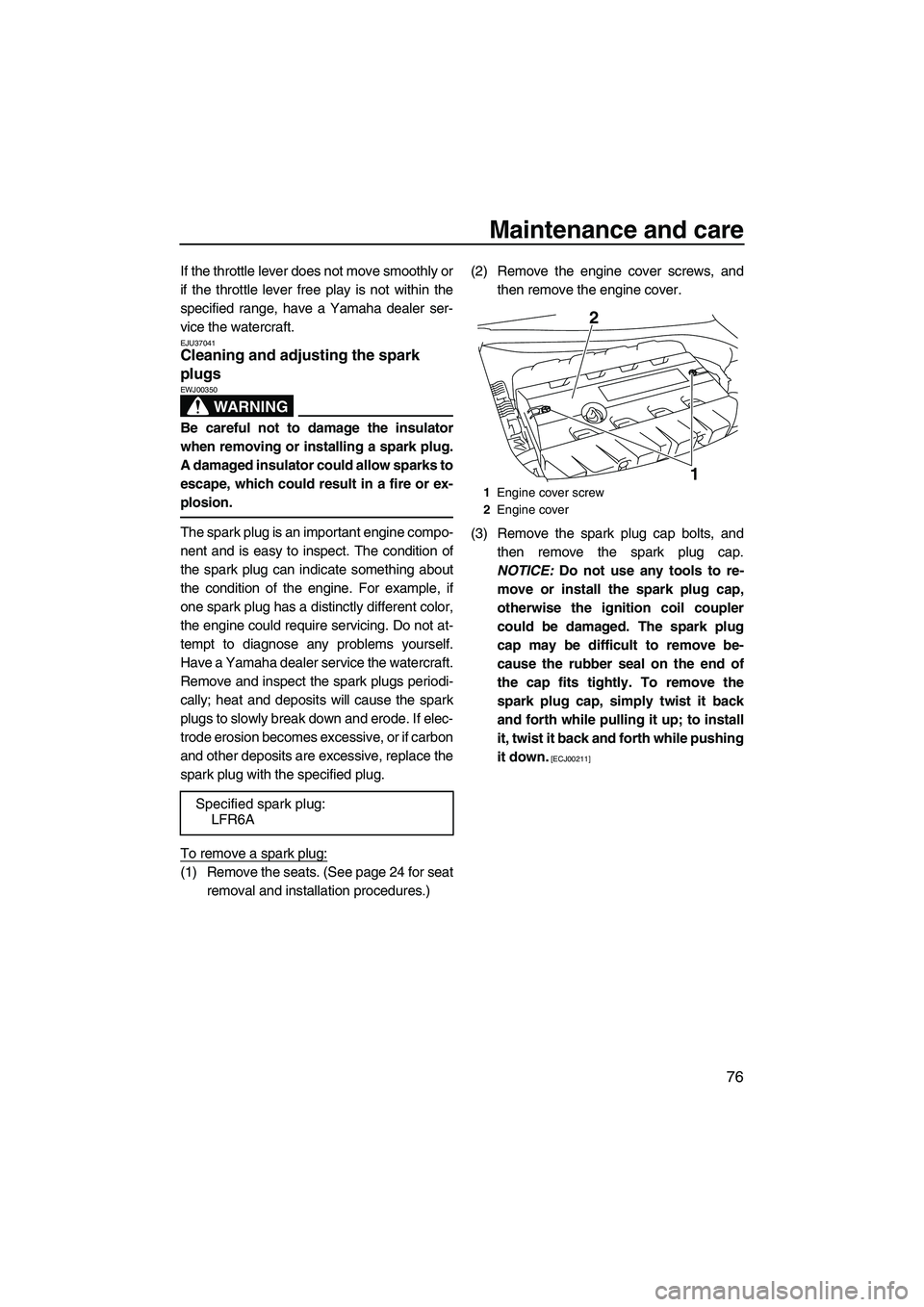

YAMAHA FZS 2009 Manual Online Maintenance and care
76
If the throttle lever does not move smoothly or
if the throttle lever free play is not within the
specified range, have a Yamaha dealer ser-
vice the watercraft.
EJU37041Cleani

Page 84 of 98

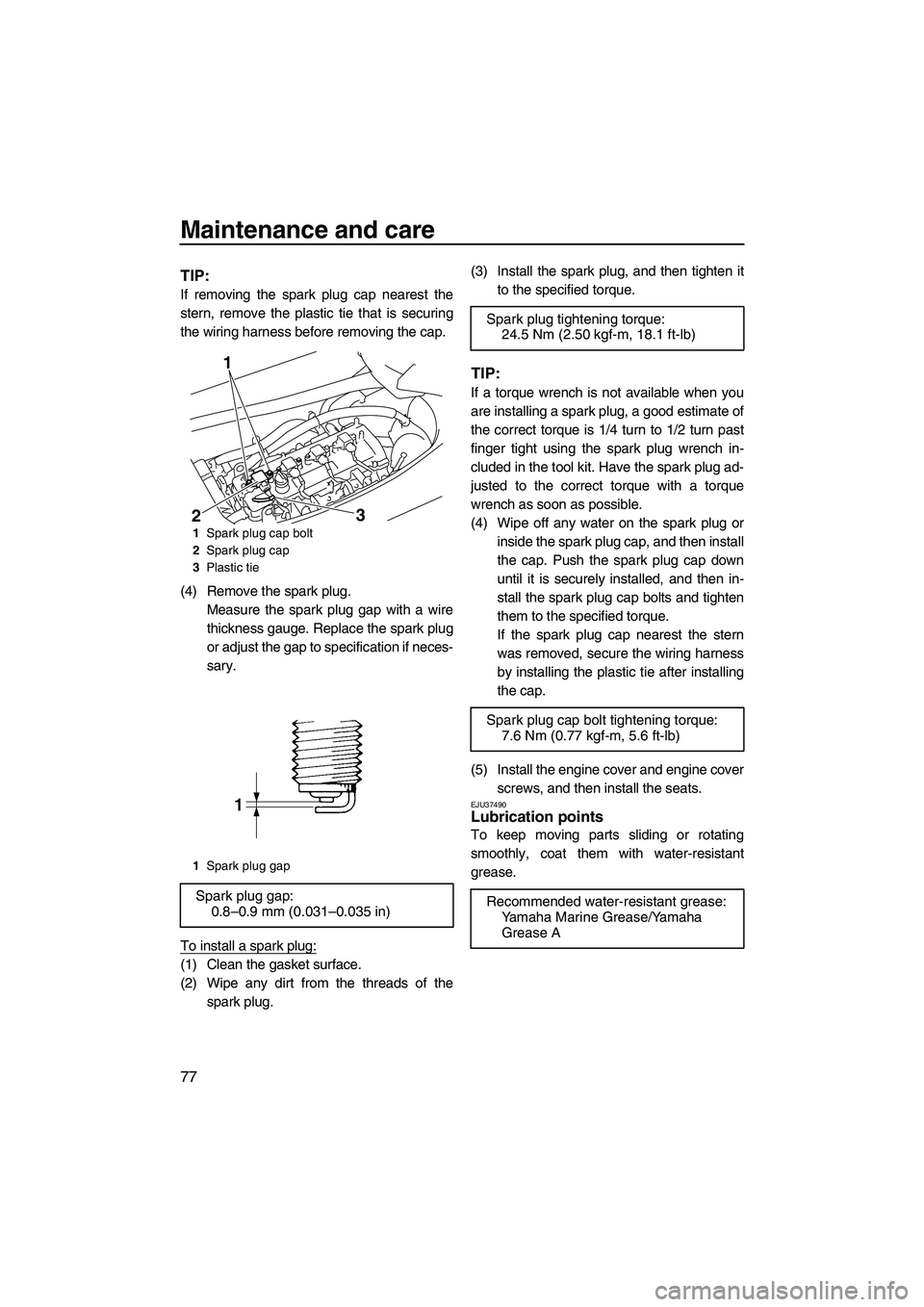

YAMAHA FZS 2009 Manual Online Maintenance and care
77
TIP:
If removing the spark plug cap nearest the
stern, remove the plastic tie that is securing
the wiring harness before removing the cap.
(4) Remove the spark plug.
Measure th

Page 85 of 98

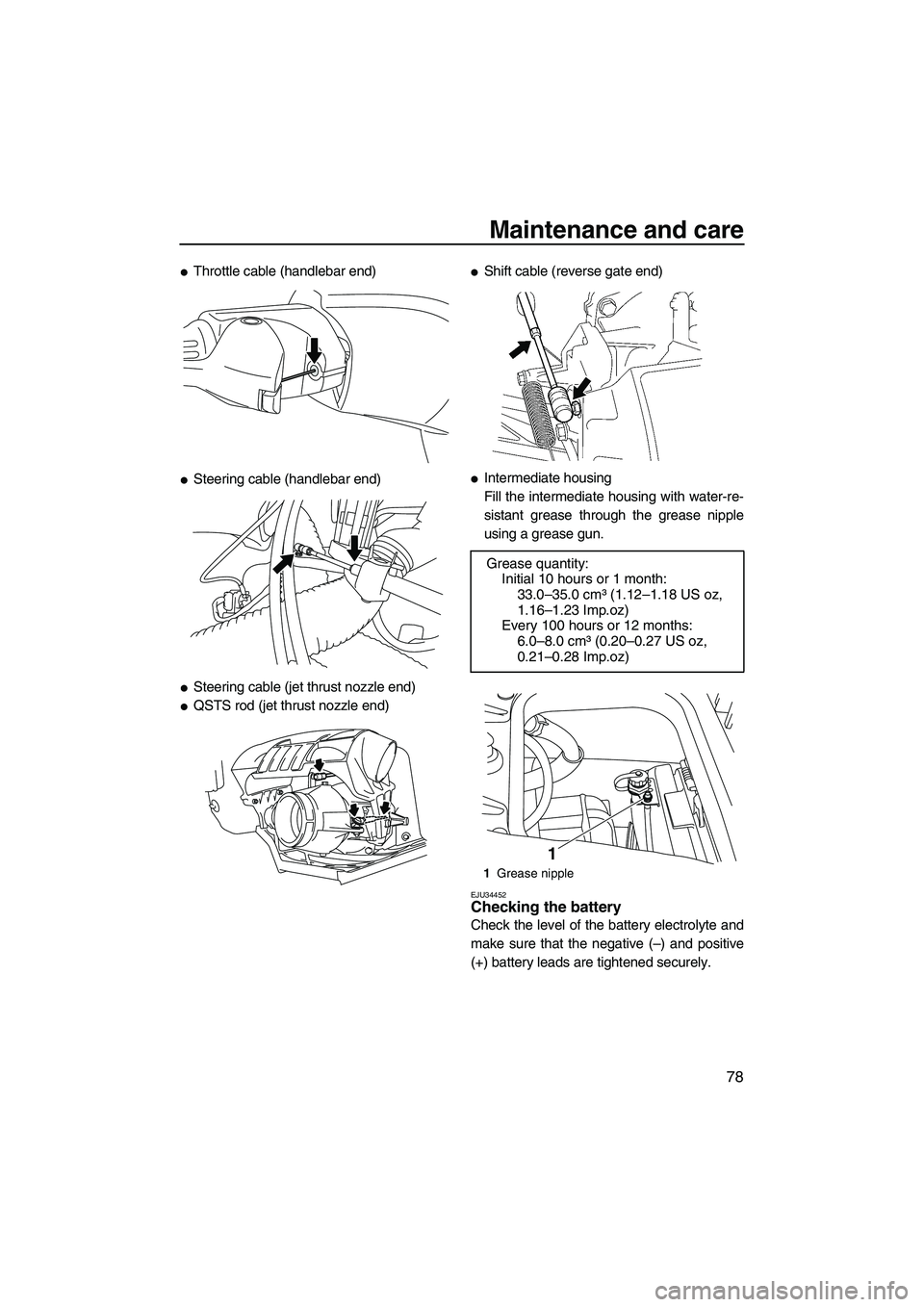

YAMAHA FZS 2009 Manual Online Maintenance and care
78
Throttle cable (handlebar end)
Steering cable (handlebar end)
Steering cable (jet thrust nozzle end)
QSTS rod (jet thrust nozzle end)
Shift cable (reverse gate end)
Inter

Page 86 of 98

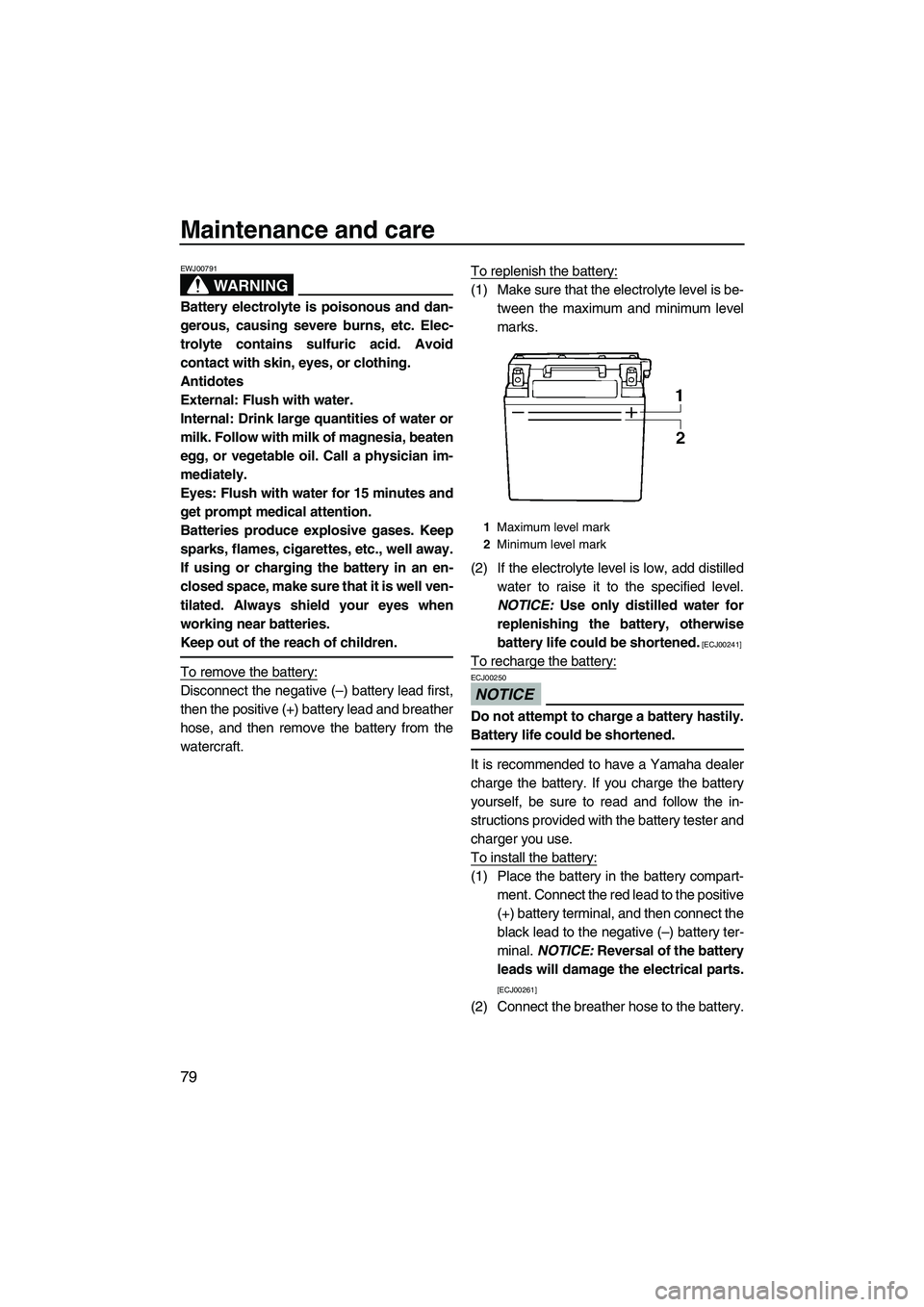

YAMAHA FZS 2009 Manual Online Maintenance and care
79
WARNING
EWJ00791
Battery electrolyte is poisonous and dan-
gerous, causing severe burns, etc. Elec-
trolyte contains sulfuric acid. Avoid
contact with skin, eyes, or clothing.

Page 87 of 98

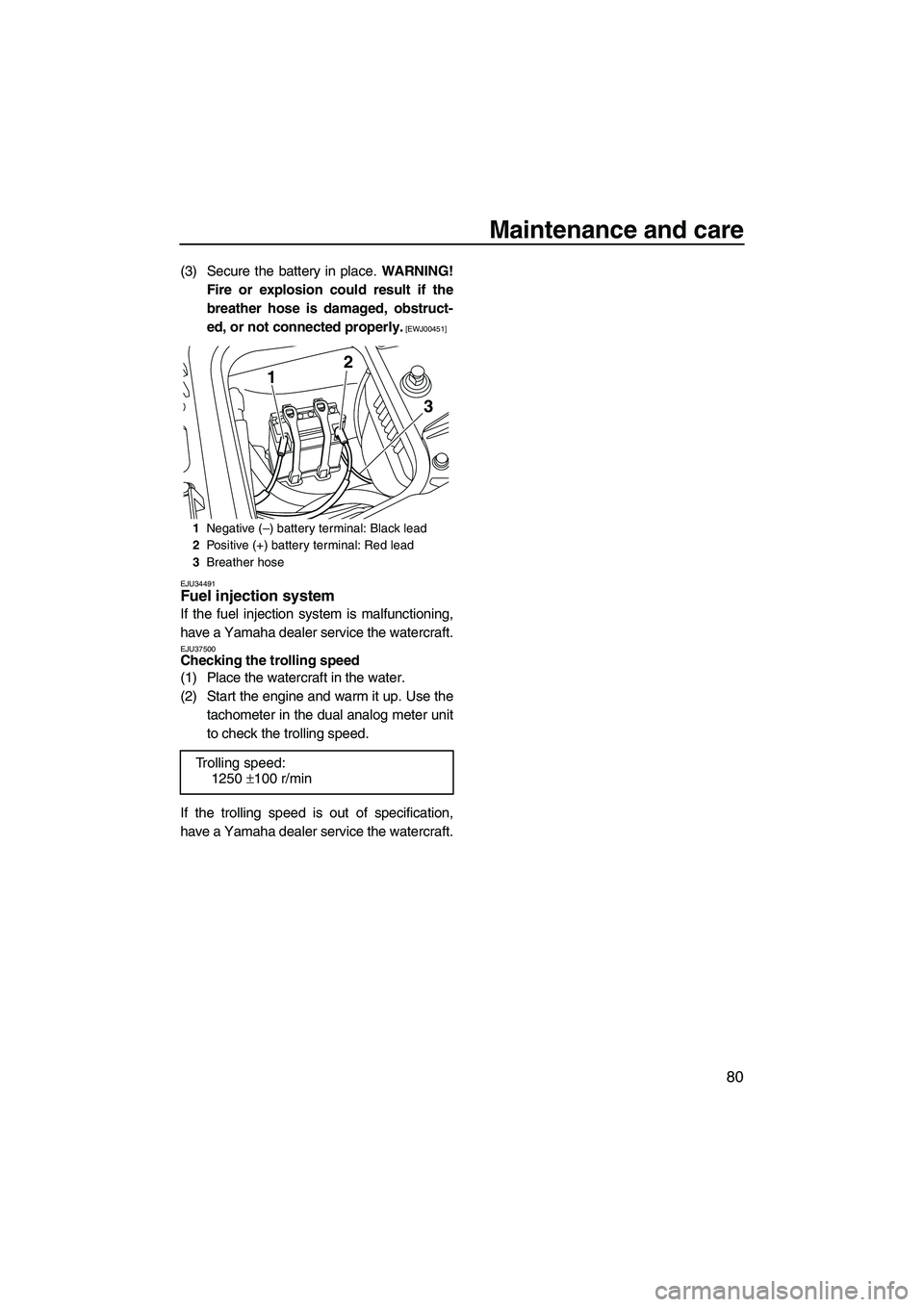

YAMAHA FZS 2009 Manual Online Maintenance and care
80
(3) Secure the battery in place. WARNING!
Fire or explosion could result if the
breather hose is damaged, obstruct-
ed, or not connected properly.
 [EWJ00451]
EJU34491
Fuel inj

Page 88 of 98

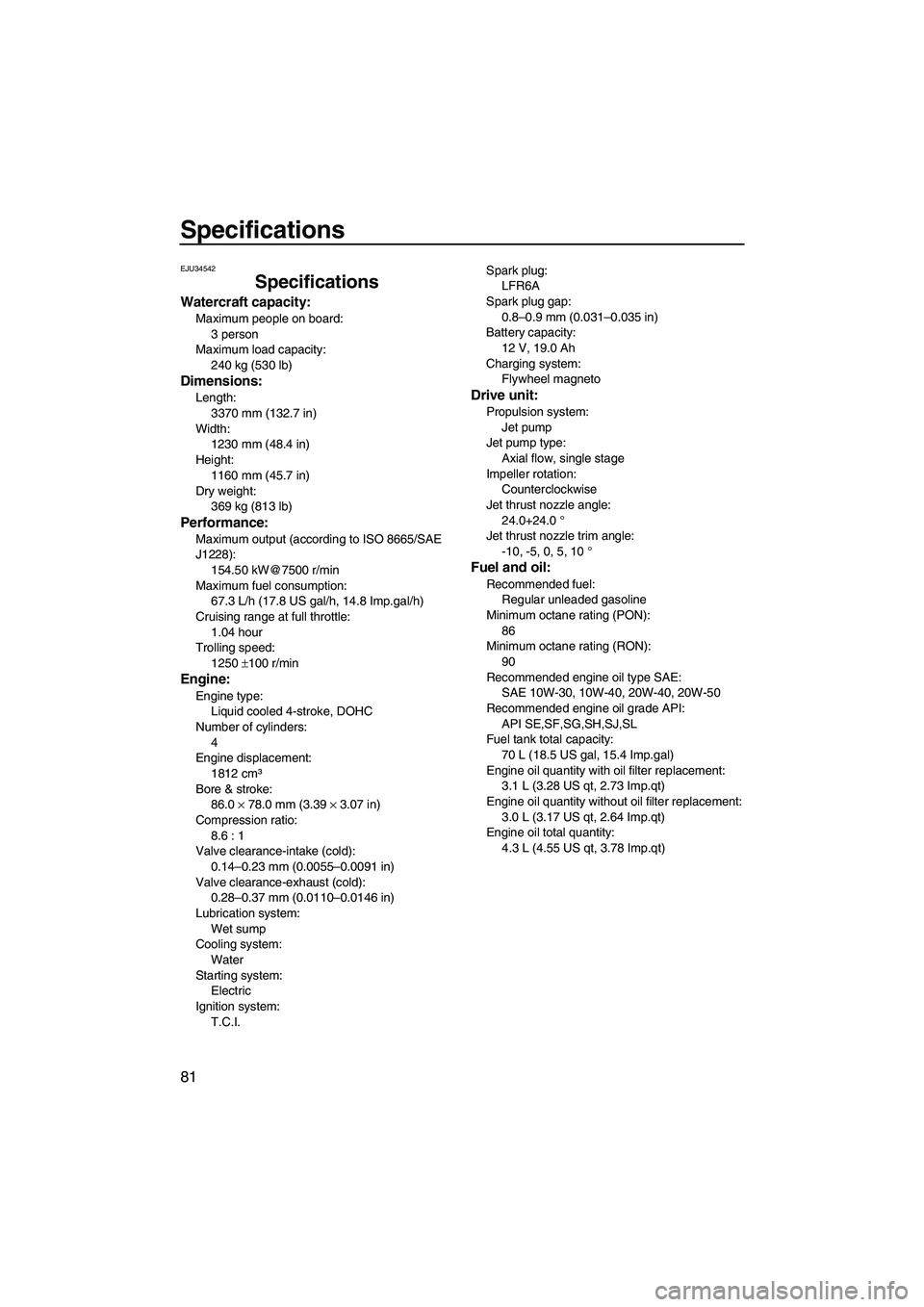

YAMAHA FZS 2009 Manual Online Specifications
81
EJU34542
Specifications
Watercraft capacity:
Maximum people on board:
3 person
Maximum load capacity:
240 kg (530 lb)
Dimensions:
Length:
3370 mm (132.7 in)
Width:
1230 mm (48.4 in)

Page 89 of 98

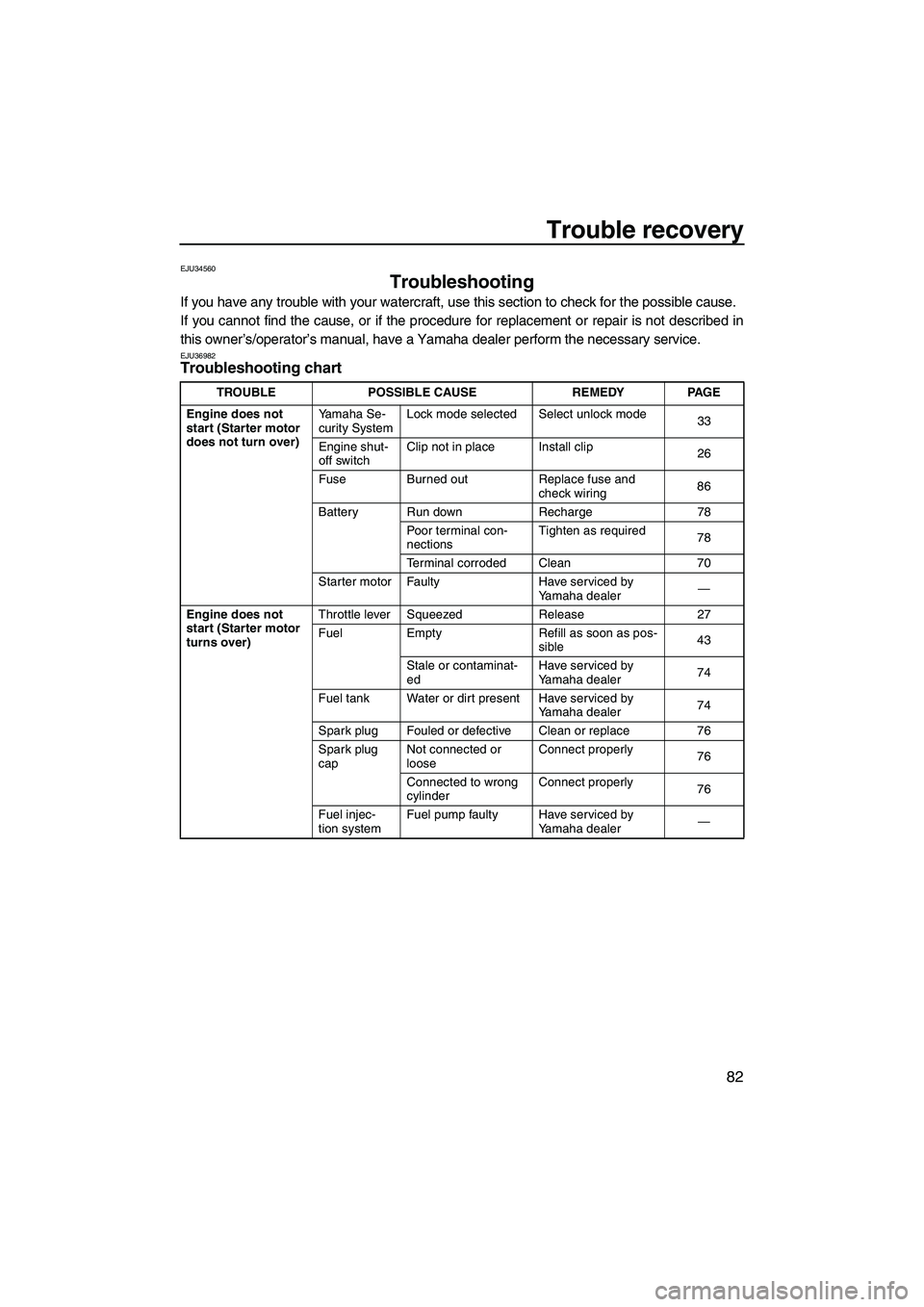

YAMAHA FZS 2009 Manual Online Trouble recovery
82
EJU34560
Troubleshooting
If you have any trouble with your watercraft, use this section to check for the possible cause.
If you cannot find the cause, or if the procedure for repl

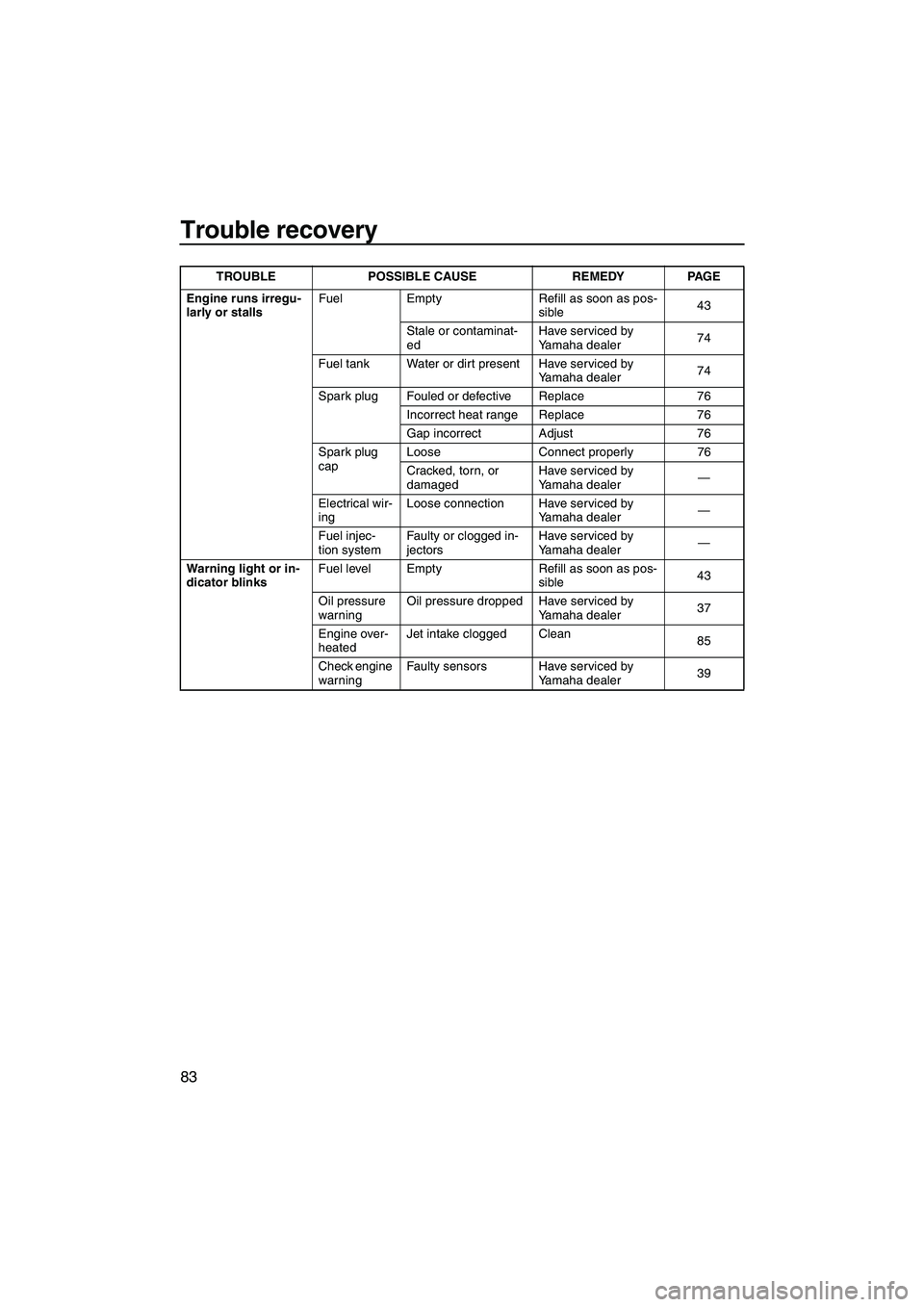

Page 90 of 98

YAMAHA FZS 2009 Manual Online Trouble recovery
83
Engine runs irregu-
larly or stallsFuel Empty Refill as soon as pos-
sible43
Stale or contaminat-
edHave serviced by
Yamaha dealer74
Fuel tank Water or dirt present Have serviced
