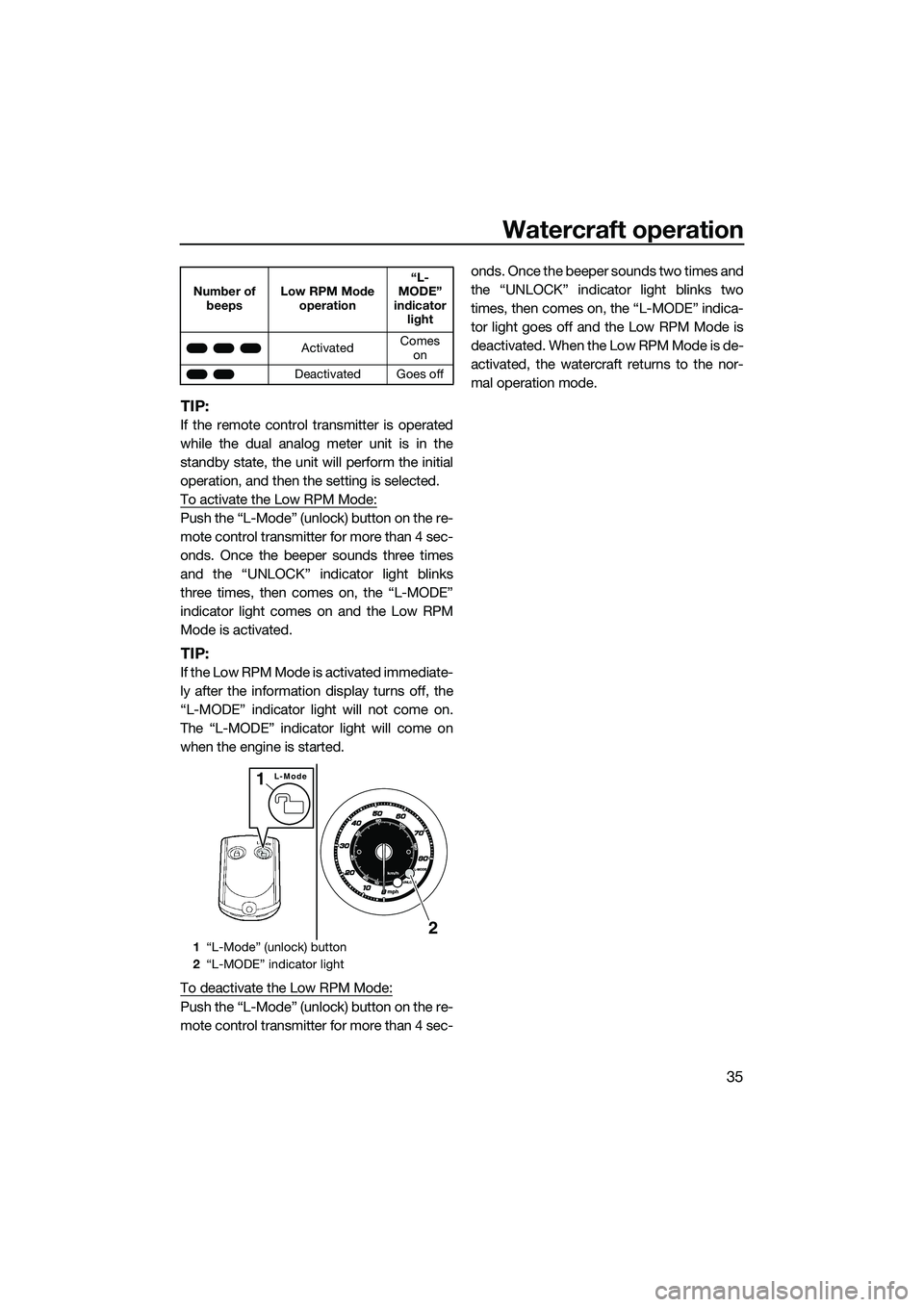

YAMAHA FZS SVHO 2014 Service Manual Watercraft operation
35
TIP:
If the remote control transmitter is operated
while the dual analog meter unit is in the
standby state, the unit will perform the initial
operation, and then the setting i

Page 42 of 108

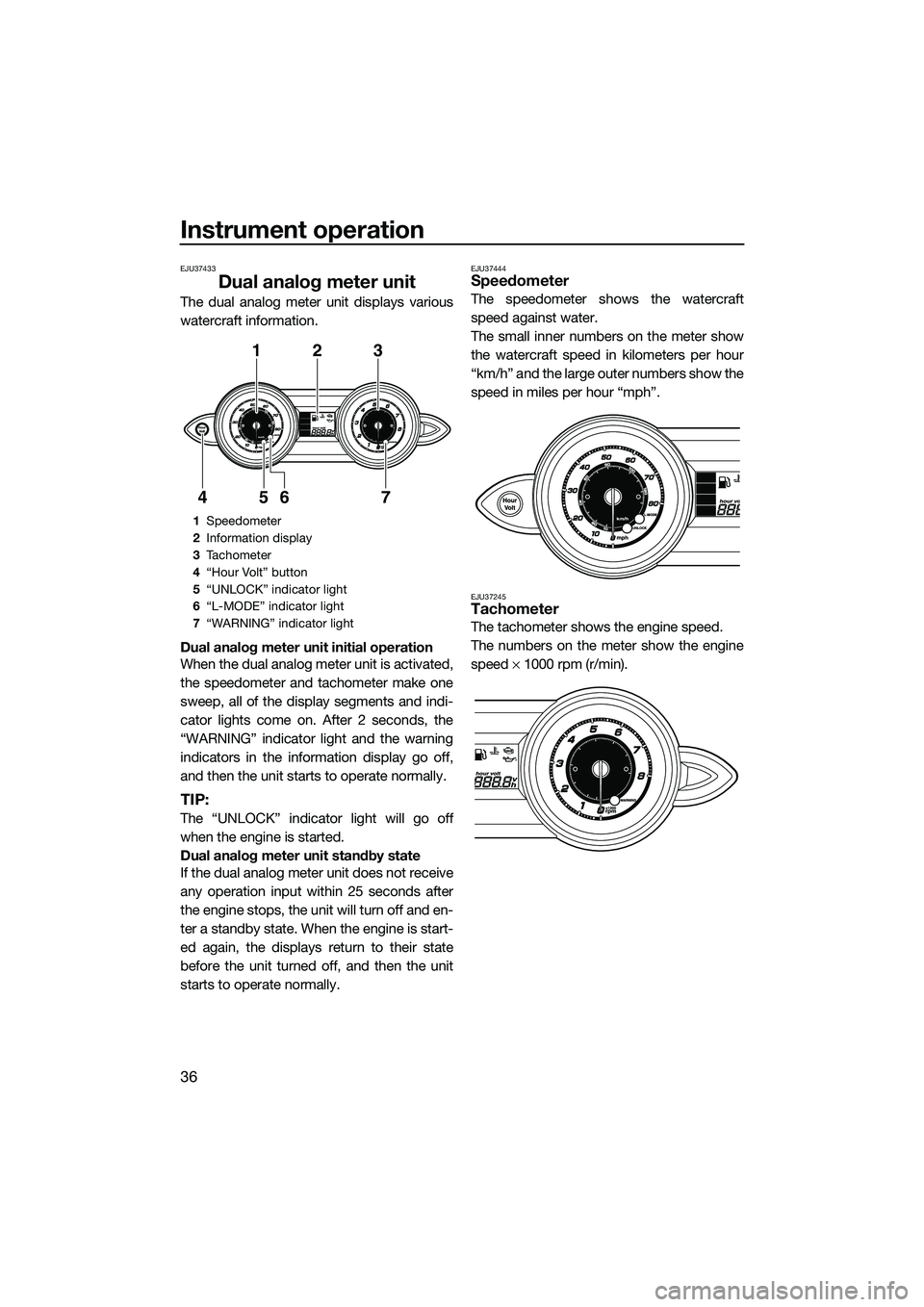

YAMAHA FZS SVHO 2014 Service Manual Instrument operation
36
EJU37433
Dual analog meter unit
The dual analog meter unit displays various
watercraft information.
Dual analog meter unit initial operation
When the dual analog meter unit is

Page 43 of 108

YAMAHA FZS SVHO 2014 Service Manual Instrument operation
37
EJU35025Information display

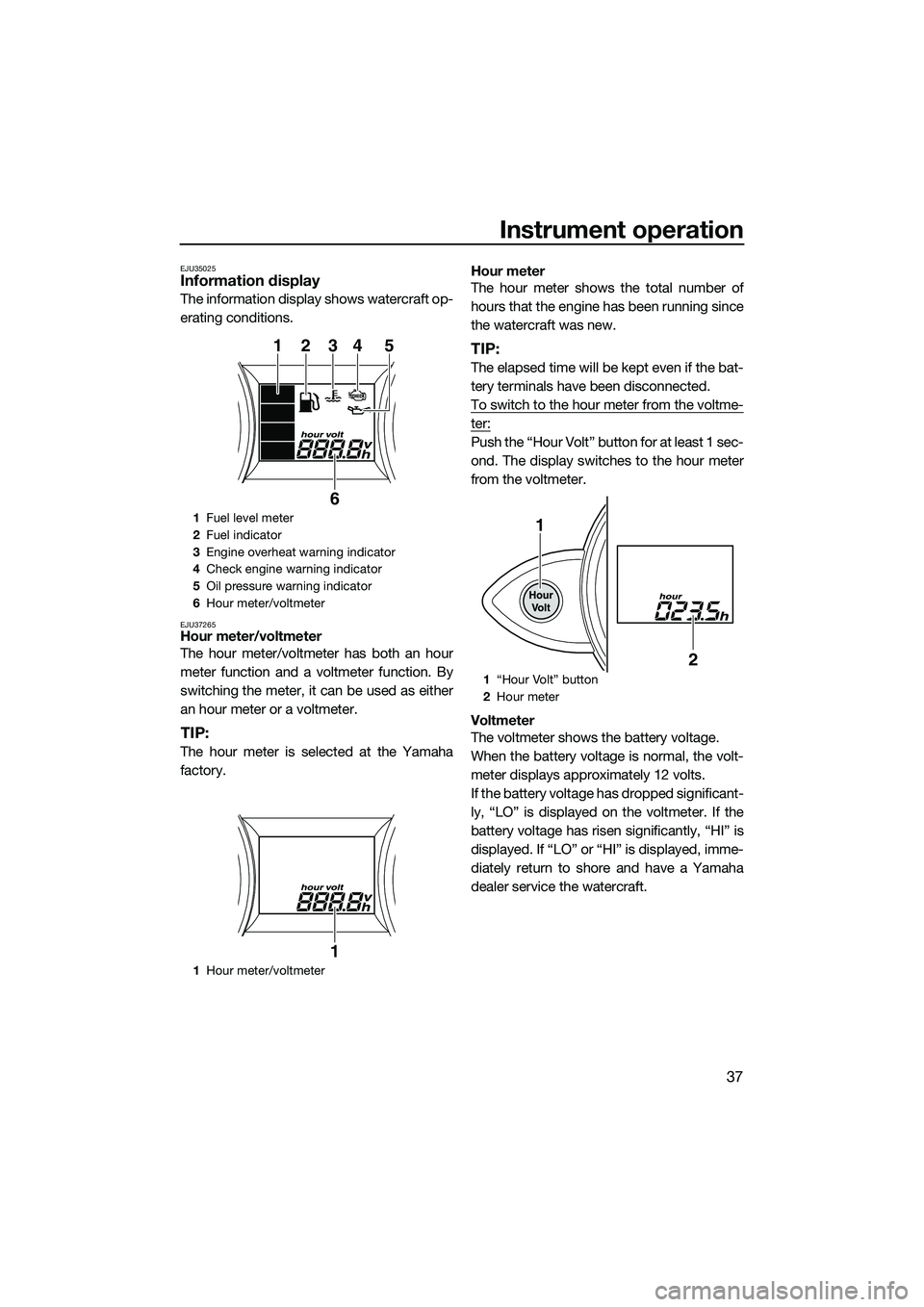

The information display shows watercraft op-
erating conditions.
EJU37265Hour meter/voltmeter
The hour meter/voltmeter has both an hour
meter functi

Page 44 of 108

YAMAHA FZS SVHO 2014 Service Manual Instrument operation
38

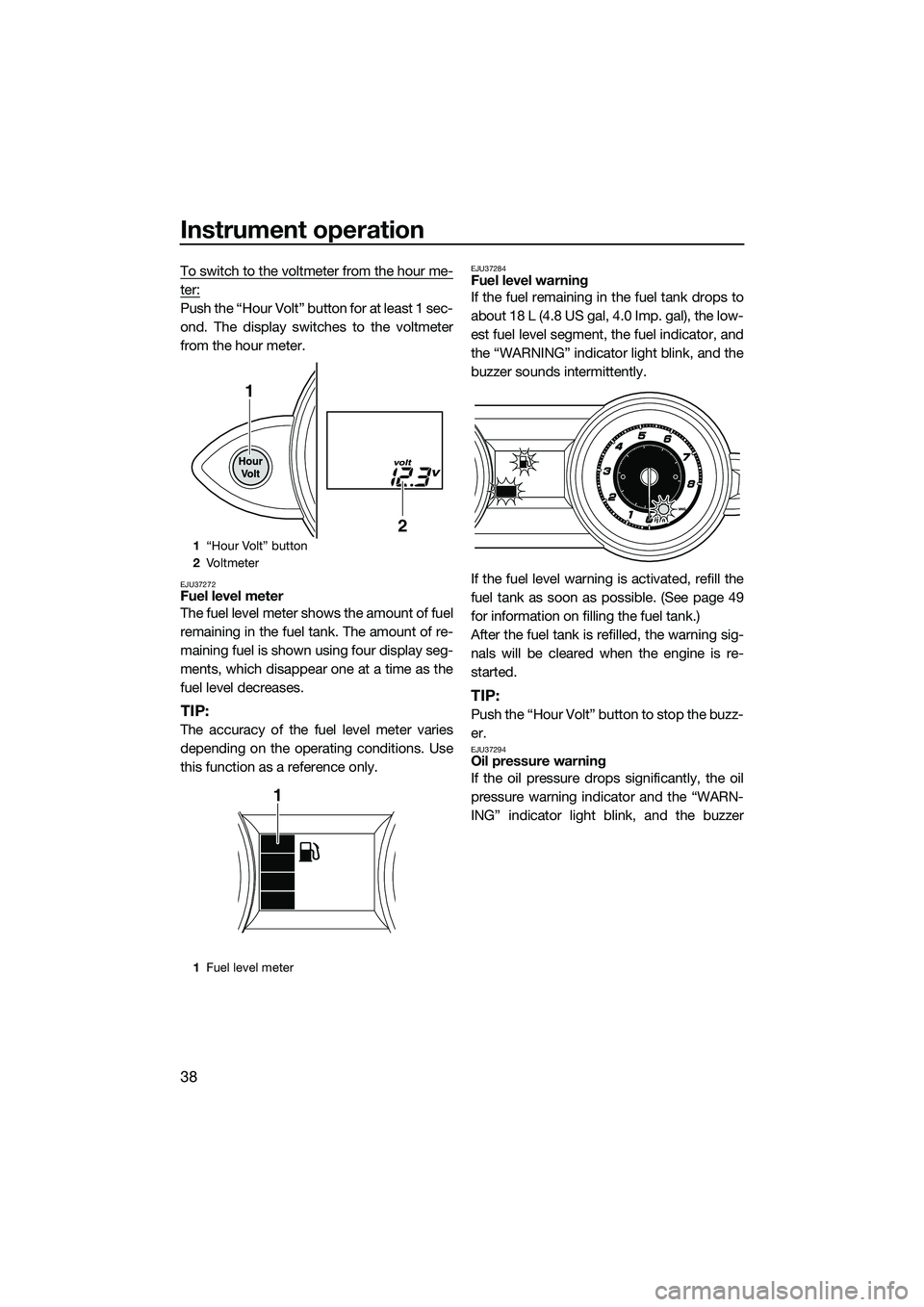

To switch to the voltmeter from the hour me-
ter:
Push the “Hour Volt” button for at least 1 sec-
ond. The display switches to the voltmeter
from the hour meter.
EJU37272Fu

Page 45 of 108

YAMAHA FZS SVHO 2014 Service Manual Instrument operation
39

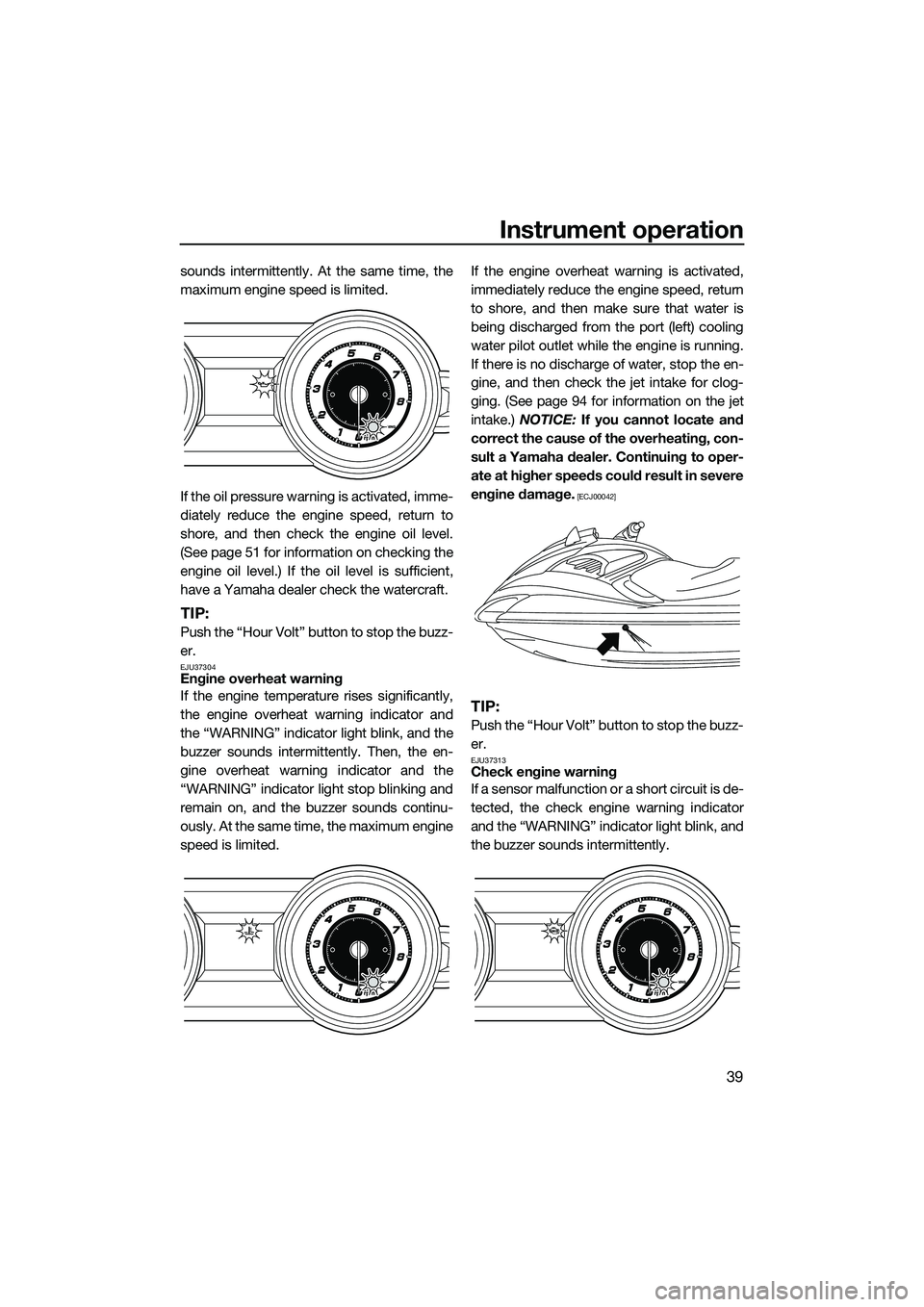

sounds intermittently. At the same time, the
maximum engine speed is limited.
If the oil pressure warning is activated, imme-
diately reduce the engine speed, return to
shore,

Page 46 of 108

YAMAHA FZS SVHO 2014 Service Manual Instrument operation
40

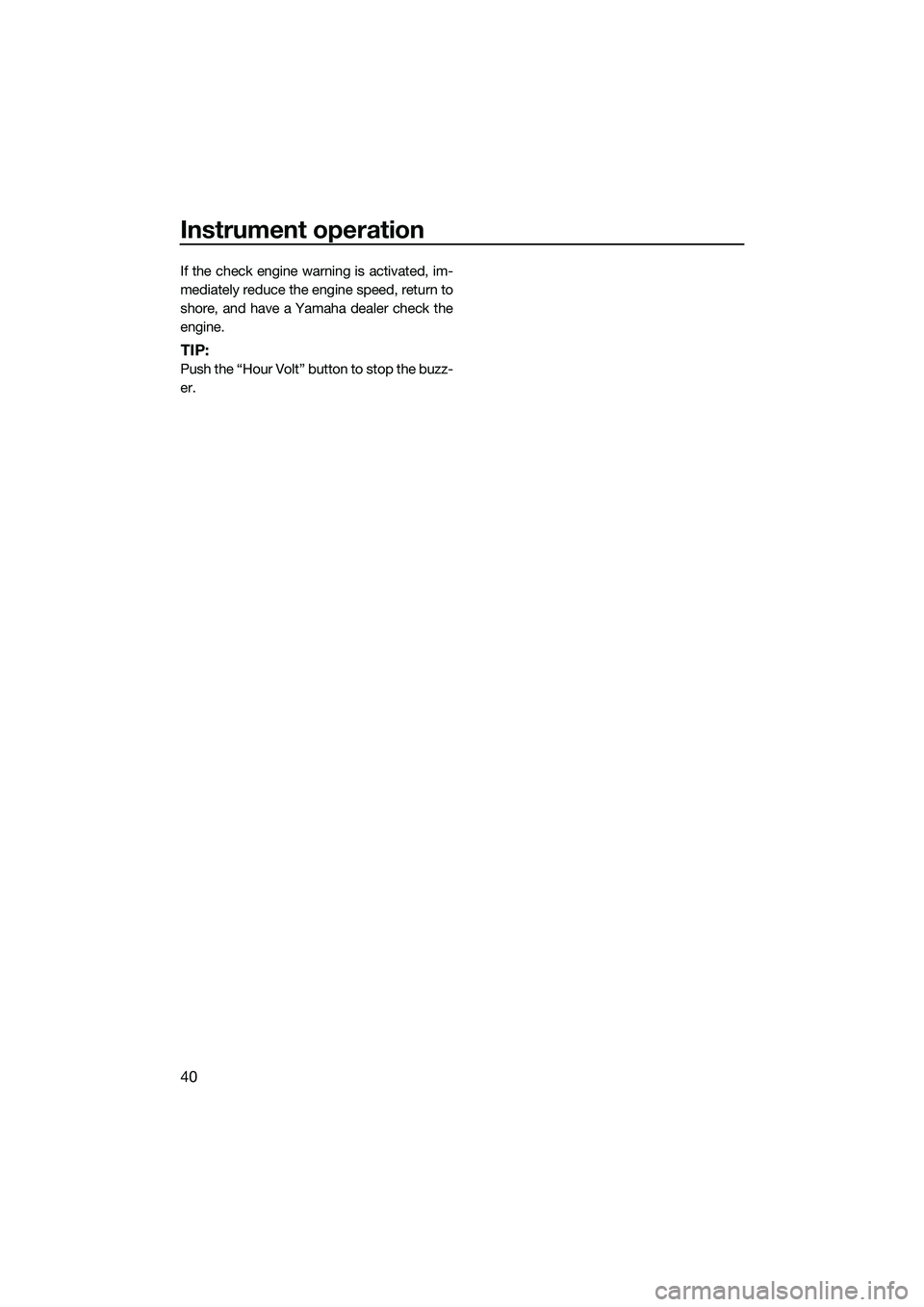

If the check engine warning is activated, im-
mediately reduce the engine speed, return to
shore, and have a Yamaha dealer check the
engine.
TIP:
Push the “Hour Volt” butto

Page 47 of 108

YAMAHA FZS SVHO 2014 Service Manual Equipment operation
41
EJU40334
EquipmentEJU41411Seats

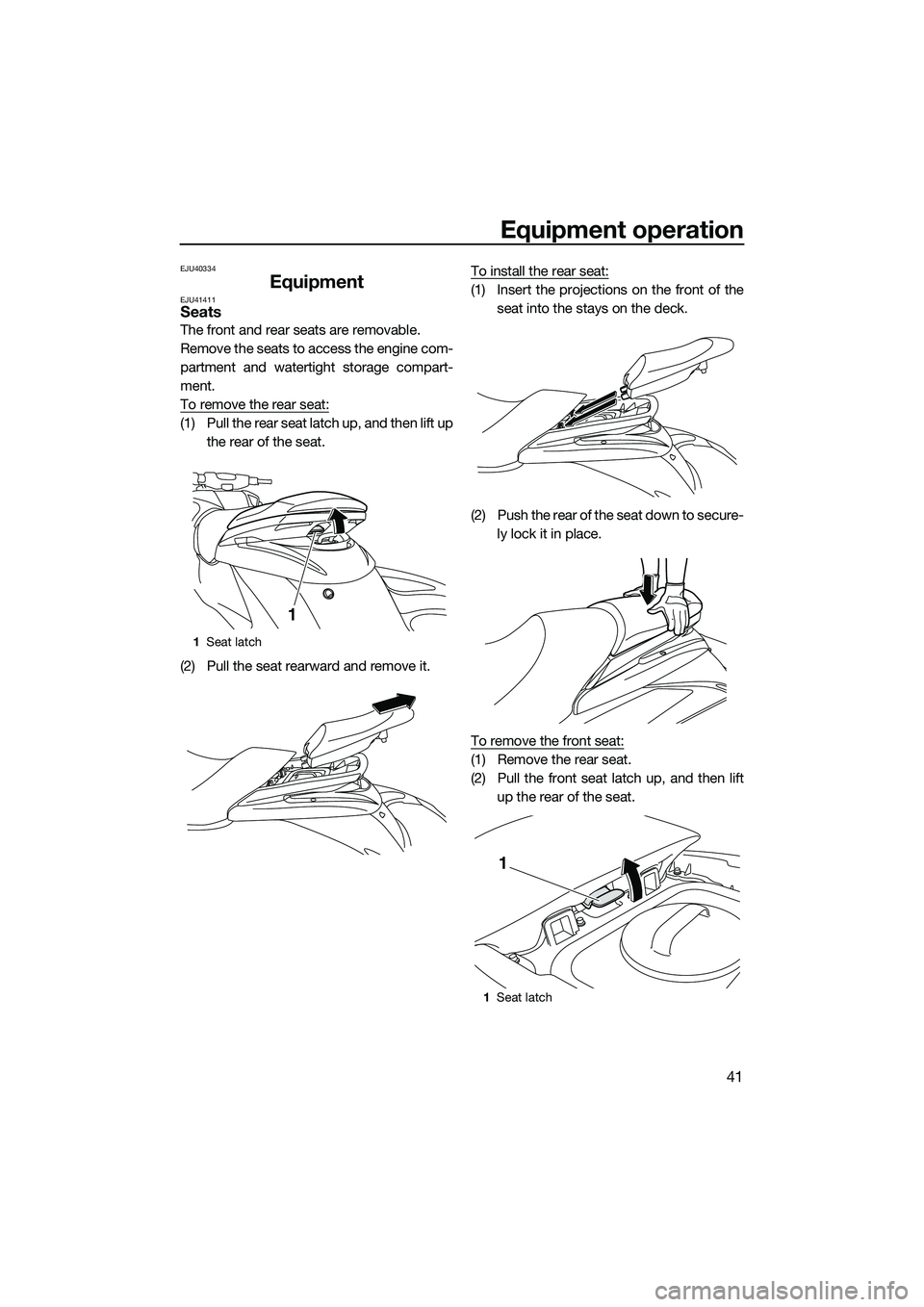

The front and rear seats are removable.
Remove the seats to access the engine com-
partment and watertight storage compart-
ment.
To remove the r

Page 48 of 108

YAMAHA FZS SVHO 2014 Service Manual Equipment operation
42

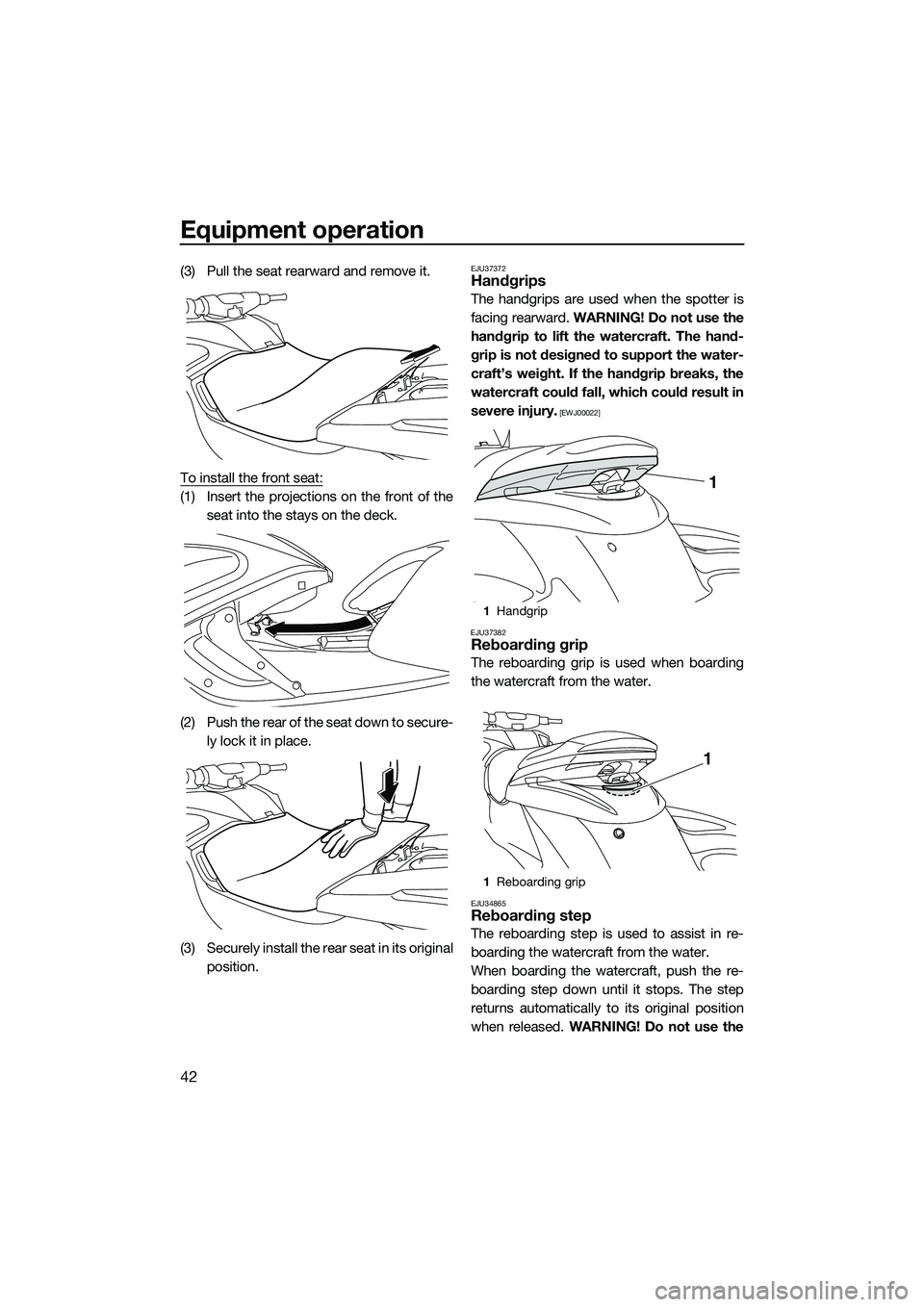

(3) Pull the seat rearward and remove it.
To install the front seat:
(1) Insert the projections on the front of theseat into the stays on the deck.
(2) Push the rear of the seat

Page 49 of 108

YAMAHA FZS SVHO 2014 Service Manual Equipment operation
43

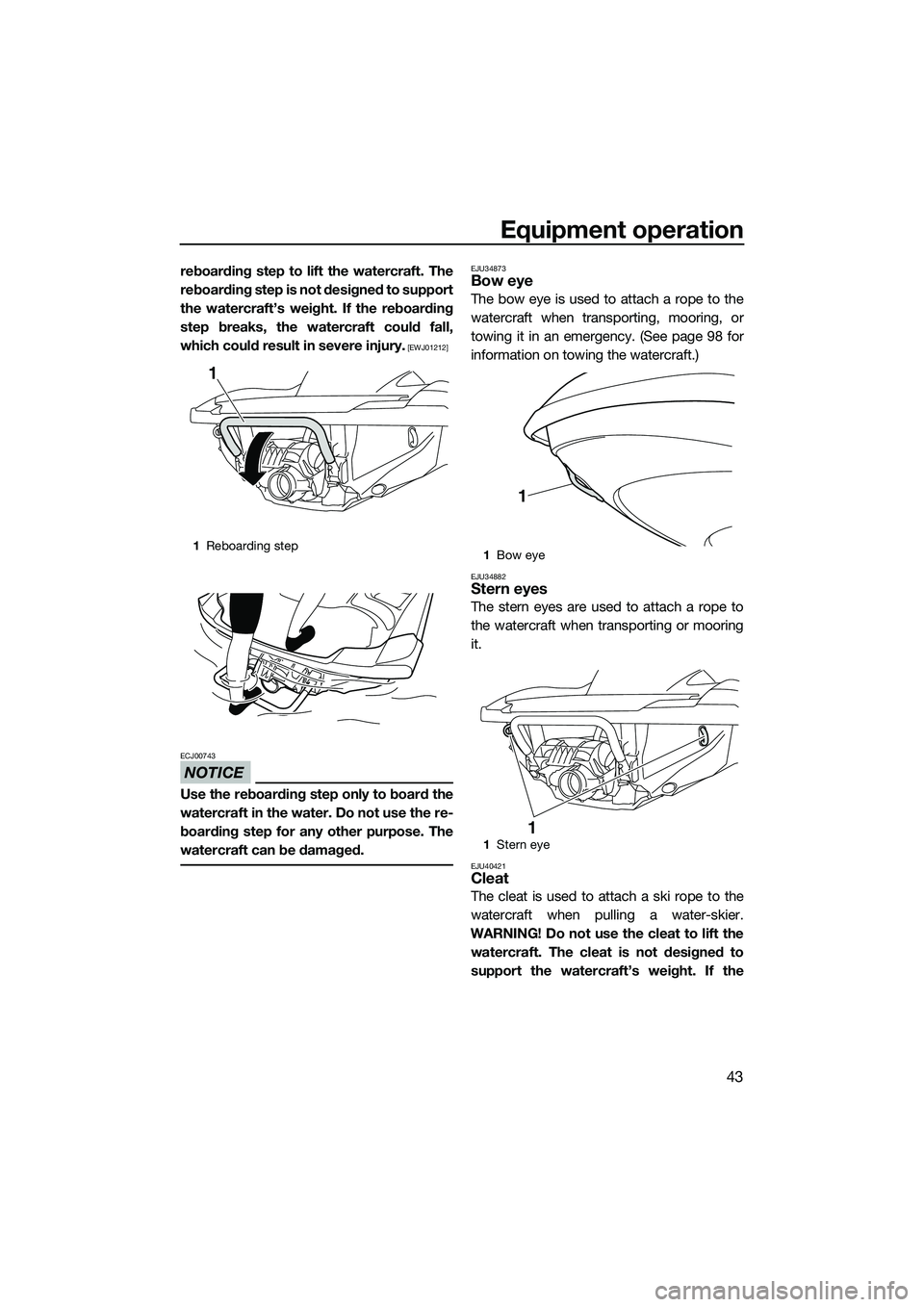

reboarding step to lift the watercraft. The
reboarding step is not designed to support
the watercraft’s weight. If the reboarding
step breaks, the watercraft could fall,
which

Page 50 of 108

YAMAHA FZS SVHO 2014 Service Manual Equipment operation
44

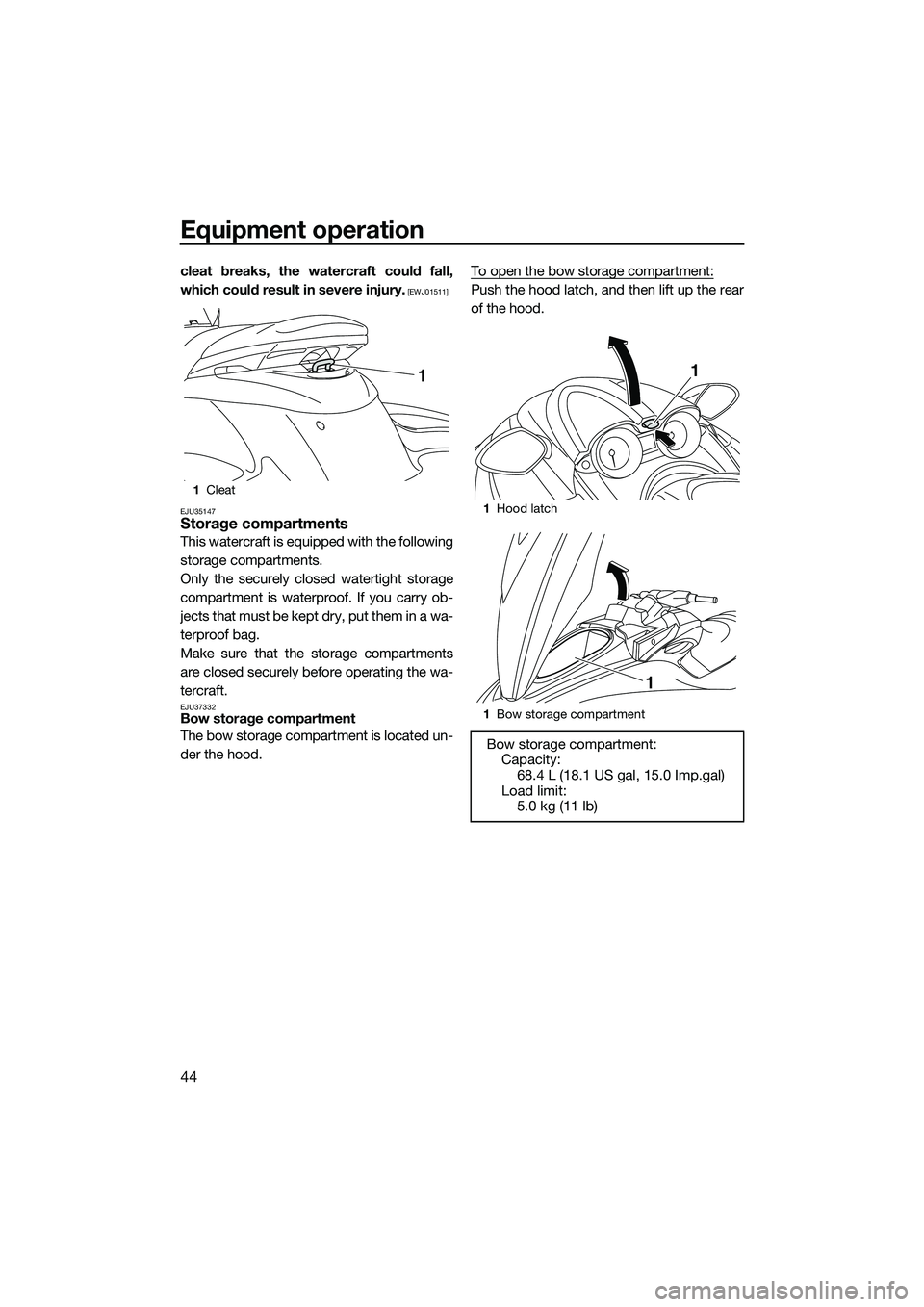

cleat breaks, the watercraft could fall,
which could result in severe injury.
 [EWJ01511]
EJU35147
Storage compartments
This watercraft is equipped with the following
storage co
