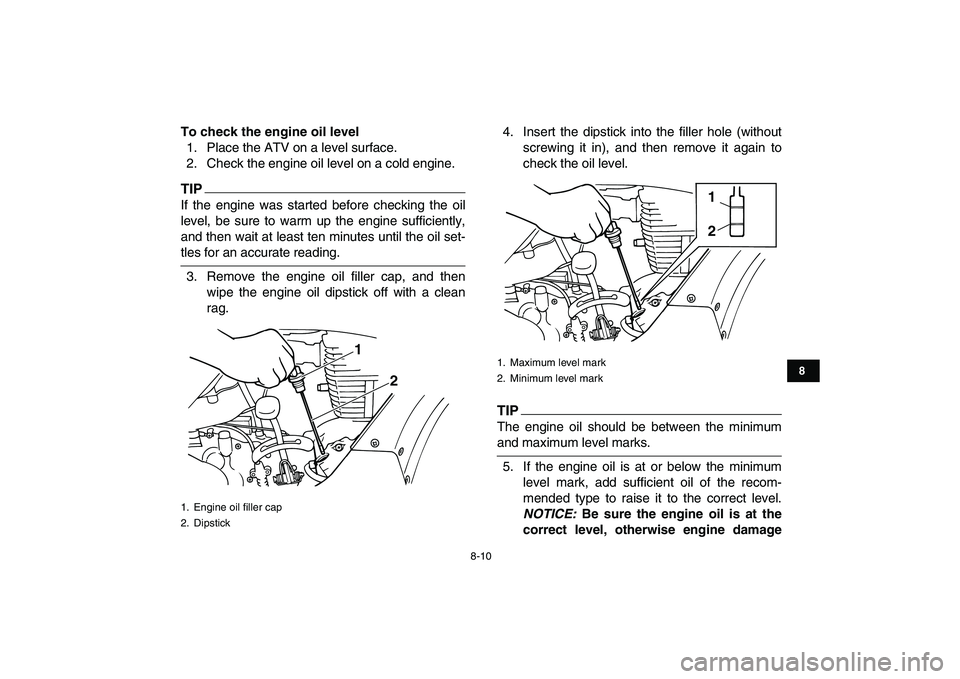

To check the engine oil level
1. Place the ATV on a level surface.
2. Check the engine oil level on a cold engine.
TIP
If the engine was started before checking the oil
level, be sure to warm up the engine sufficiently,
and then wait at least ten minutes until the oil set-
tles for an accurate reading.
3. Remove the engine oil filler cap, and then
wipe the engine oil dipstick off with a clean
rag.4. Insert the dipstick into the filler hole (without
screwing it in), and then remove it again to
check the oil level.TIP
The engine oil should be between the minimum
and maximum level marks.
5. If the engine oil is at or below the minimum
level mark, add sufficient oil of the recom-
mended type to raise it to the correct level.
NOTICE:
Be sure the engine oil is at the
correct level, otherwise engine damage
1. Engine oil filler cap
2. Dipstick
2
1
1. Maximum level mark
2. Minimum level mark
1
2
8-11
1
2
3
4
5
6
78
9
10
11

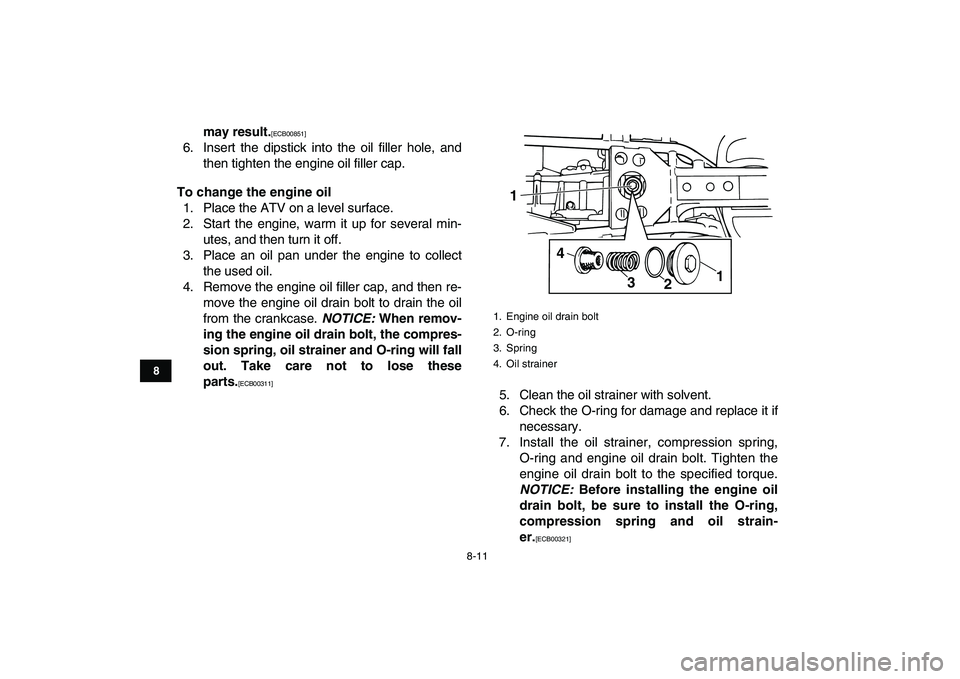

may result.
[ECB00851]
6. Insert the dipstick into the oil filler hole, and
then tighten the engine oil filler cap.
To change the engine oil
1. Place the ATV on a level surface.
2. Start the engine, warm it up for several min-
utes, and then turn it off.
3. Place an oil pan under the engine to collect
the used oil.
4. Remove the engine oil filler cap, and then re-
move the engine oil drain bolt to drain the oil
from the crankcase.
NOTICE:
When remov-
ing the engine oil drain bolt, the compres-
sion spring, oil strainer and O-ring will fall
out. Take care not to lose these
parts.
[ECB00311]
5. Clean the oil strainer with solvent.
6. Check the O-ring for damage and replace it if
necessary.
7. Install the oil strainer, compression spring,
O-ring and engine oil drain bolt. Tighten the
engine oil drain bolt to the specified torque.
NOTICE:
Before installing the engine oil
drain bolt, be sure to install the O-ring,
compression spring and oil strain-
er.
[ECB00321]
1. Engine oil drain bolt
2. O-ring
3. Spring
4. Oil strainer
1
4
3
21
