YAMAHA GRIZZLY 125 2012 Owner's Guide

4-9

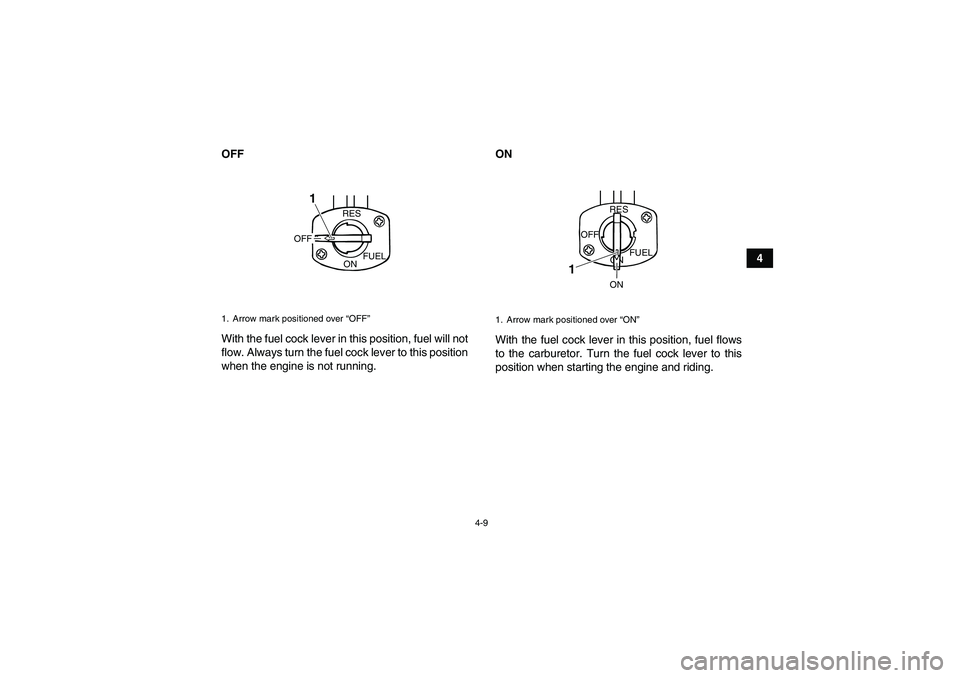

4 OFF
With the fuel cock lever in this position, fuel will not
flow. Always turn the fuel cock lever to this position
when the engine is not running.ON
With the fuel cock lever in this position, fuel flows
to the carburetor. Turn the fuel cock lever to this
position when starting the engine and riding.
1. Arrow mark positioned over “OFF”
RES
ONFUEL
OFF
1
1. Arrow mark positioned over “ON”
ON
FUEL
RES
OFF
ON
1
U1PY60E0.book Page 9 Friday, March 11, 2011 9:30 AM

4-10

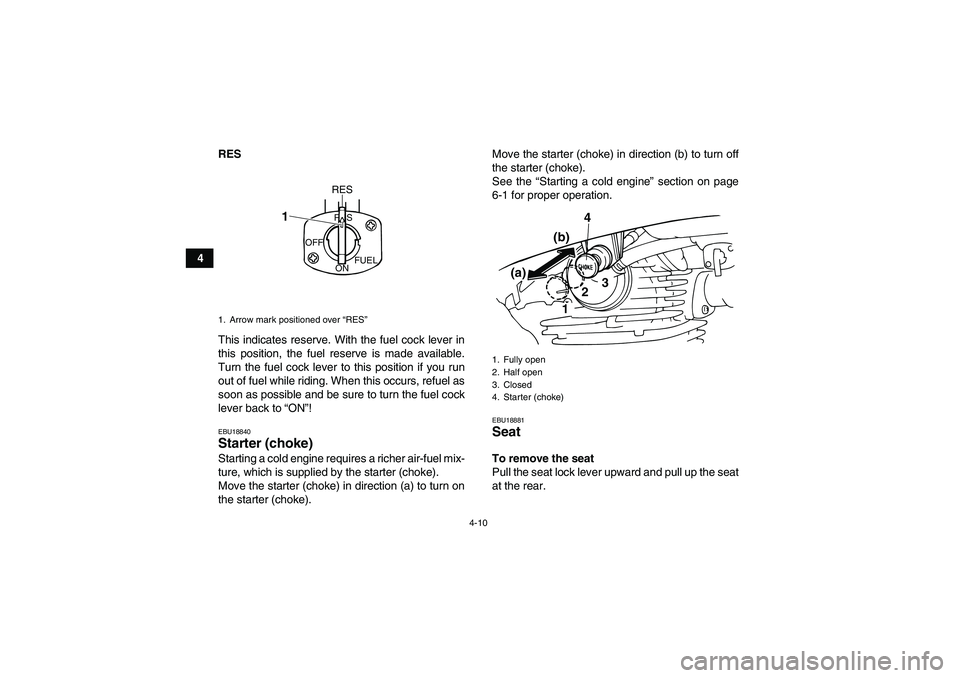

4RES
This indicates reserve. With the fuel cock lever in
this position, the fuel reserve is made available.
Turn the fuel cock lever to this position if you run
out of fuel while riding. When this occurs, refuel as
soon as possible and be sure to turn the fuel cock
lever back to “ON”!
EBU18840Starter (choke) Starting a cold engine requires a richer air-fuel mix-
ture, which is supplied by the starter (choke).
Move the starter (choke) in direction (a) to turn on
the starter (choke).Move the starter (choke) in direction (b) to turn off
the starter (choke).
See the “Starting a cold engine” section on page
6-1 for proper operation.
EBU18881Seat To remove the seat
Pull the seat lock lever upward and pull up the seat
at the rear.
1. Arrow mark positioned over “RES”
OFF
ONFUEL RES
RES
1
1. Fully open
2. Half open
3. Closed
4. Starter (choke)
(b)
(a)4
123
U1PY60E0.book Page 10 Friday, March 11, 2011 9:30 AM

4-11
4

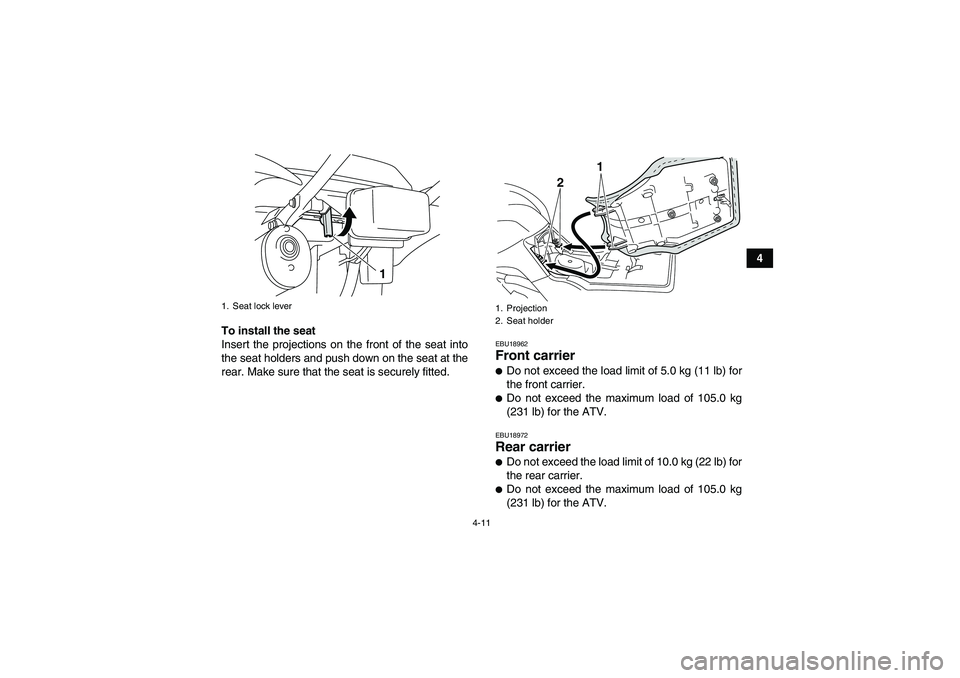

To install the seat
Insert the projections on the front of the seat into
the seat holders and push down on the seat at the
rear. Make sure that the seat is securely fitted.
EBU18962Front carrier
Do not exceed the load limit of 5.0 kg (11 lb) for
the front carrier.
Do not exceed the maximum load of 105.0 kg
(231 lb) for the ATV.EBU18972Rear carrier
Do not exceed the load limit of 10.0 kg (22 lb) for
the rear carrier.
Do not exceed the maximum load of 105.0 kg
(231 lb) for the ATV.
1. Seat lock lever
1
1. Projection
2. Seat holder
1
2
U1PY60E0.book Page 11 Friday, March 11, 2011 9:30 AM

5-1
5
EBU19201
PRE-OPERATION CHECKS
EBU19224Inspect your vehicle each time you use it to make sure the vehicle is in safe operating condition. Always
follow the inspection and maintenance procedures and schedules described in the Owner’s Manual.
WARNING
EWB00481Failure to inspect or maintain the vehicle properly increases the possibility of an accident or equip-
ment damage. Do not operate the vehicle if you find any problem. If a problem cannot be corrected
by the procedures provided in this manual, have the vehicle inspected by a Yamaha dealer.Before using this vehicle, check the following points:
ITEM ROUTINE PAGE
FuelCheck fuel level in fuel tank, and add recommended fuel if neces-
sary.
Check fuel line for leakage. Correct if necessary.4-7, 5-3
Engine oilCheck oil level in engine, and add recommended oil to specified lev-
el if necessary.
Check ATV for oil leakage. Correct if necessary.5-3, 8-11
Transmission oilCheck oil level in transmission case, and add recommended oil to
specified level if necessary.
Check ATV for oil leakage. Correct if necessary.5-3, 8-14
Front brakeCheck operation, and correct if necessary.
Lubricate cable if necessary.
Check lever free play, and adjust if necessary.5-3, 8-27, 8-28
U1PY60E0.book Page 1 Friday, March 11, 2011 9:30 AM

5-2
5
Rear brakeCheck operation, and correct if necessary.
Lubricate cable if necessary.
Check lever free play, and adjust if necessary.5-3, 8-27, 8-32
Throttle leverMake sure that operation is smooth. Lubricate cable and lever hous-
ing if necessary.
Check lever free play, and adjust if necessary.5-3, 8-26
Control cablesMake sure that operation is smooth. Lubricate if necessary. 8-37
Drive chainCheck chain slack, and adjust if necessary.
Check chain condition. Lubricate if necessary.5-3, 8-34, 8-36
Wheels and tiresCheck wheel condition, and replace if damaged.
Check tire condition and tread depth. Replace if necessary.
Check air pressure. Correct if necessary.5-3
Brake leversMake sure that operation is smooth. Lubricate lever pivoting points if
necessary.8-38
Chassis fastenersMake sure that all nuts, bolts and screws are properly tightened. 5-6
Instruments, lights and
switchesCheck operation, and correct if necessary. 5-6
BatteryCheck electrolyte level. Fill with distilled water if necessary. 5-6, 8-41 ITEM ROUTINE PAGE
U1PY60E0.book Page 2 Friday, March 11, 2011 9:30 AM

5-3
5
EBU19541Fuel Make sure that there is sufficient fuel in the tank.
(See page 4-7.)EBU19560Engine oil Make sure that the engine oil is at the specified lev-
el. Add oil as necessary. (See page 8-11.)EBU19580Transmission oil Make sure that the transmission oil is at the speci-
fied level. Add oil as necessary. (See page 8-14.)EBU19652Front and rear brakes Brake levers
Check for correct free play in the brake levers. If
the free play is incorrect, adjust it. (See pages
8-28 and 8-32.)
Check operation of the levers. They should
move smoothly and there should be a firm feel-
ing when the brake is applied. If not, have the
ATV checked by a Yamaha dealer.Brake operation
Test the brakes at slow speed after starting out to
make sure they are working properly. If the brakes
do not provide proper braking performance, check
the brake shoes for wear. (See page 8-27.)
EBU19761Throttle lever Check the operation of the throttle lever. It must
open smoothly and spring back to the idle position
when released. Have a Yamaha dealer correct if
necessary.EBU19770Drive chain Check the condition of the drive chain and check
the drive chain slack. Lubricate and adjust the
drive chain as necessary. (See page 8-34.)EBU19794Tires Check tire pressure regularly to make sure it is at
the recommended specifications. Also check for
wear and damage.
U1PY60E0.book Page 3 Friday, March 11, 2011 9:30 AM

5-4
5 Tire pressure
Use the low-pressure tire gauge to check and ad-
just tire pressures when the tires are cold. Tire
pressures must be equal on both sides.
WARNING! Operation of this vehicle with im-
proper tire pressure may cause severe injury
or death from loss of control or rollover. Tire
pressure below the minimum specified could
also cause the tire to dislodge from the rim un-
der severe riding conditions.
[EWB02541]
Set tire
pressures to the following specifications:
The low-pressure tire gauge is included as stan-
dard equipment. Make two measurements of the
tire pressure and use the second reading. Dust or
dirt in the gauge could cause the first reading to be
incorrect.Recommended tire pressure:
Fron t
20.0 kPa (0.200 kgf/cm², 2.9 psi)
Rear
25.0 kPa (0.250 kgf/cm², 3.6 psi)
Minimum tire pressure:
Fron t
17.0 kPa (0.170 kgf/cm², 2.5 psi)
Rear
22.0 kPa (0.220 kgf/cm², 3.2 psi)
Maximum tire seating pressure:
Fron t
250 kPa (2.5 kgf/cm², 36 psi)
Rear
250 kPa (2.5 kgf/cm², 36 psi)
U1PY60E0.book Page 4 Friday, March 11, 2011 9:30 AM

5-5
5
Tire wear limit
When the tire groove decreases to 3 mm (0.12 in)
due to wear, replace the tire.Tire information
This ATV is equipped with tubeless tires with
valves.
WARNING
EWB02551Use of improper tires on this ATV may cause
loss of control, increasing your risk of an acci-
dent.After extensive tests, only the tires listed below
have been approved for this model by Yamaha
Motor Co., Ltd.
1. Low-pressure tire gauge
1
1. Tire wear limit
U1PY60E0.book Page 5 Friday, March 11, 2011 9:30 AM

5-6
5
Aftermarket tires and rims
The tires and rims that came with your ATV were
designed to match the performance capabilities
and to provide the best combination of handling,
braking, and comfort. Other tires, rims, sizes, and
combinations may not be appropriate.
EBU19840Chassis fasteners Make sure that all nuts, bolts and screws are prop-
erly tightened.
EBU19850Instruments, lights and switches Check that all instruments, lights and switches are
working properly. Correct if necessary.EBU19860Battery Check the fluid level in the battery. Fill with distilled
water if necessary. (See page 8-41.) Fro nt:
Manufacturer/model:
DUNLOP/KT536A
Size:
AT20 x 7-8
Ty p e :
Tu b e l e s s
Rear:
Manufacturer/model:
DUNLOP/KT537A
Size:
AT22 x 10-8
Ty p e :
Tu b e l e s s
U1PY60E0.book Page 6 Friday, March 11, 2011 9:30 AM

6-1
6
EBU19881

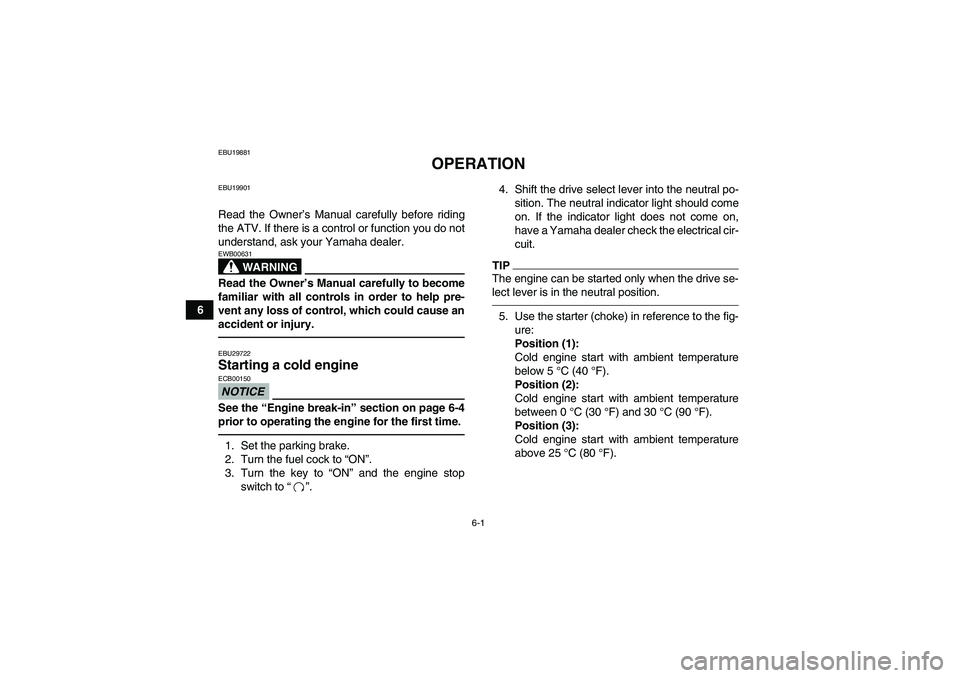

OPERATION
EBU19901Read the Owner’s Manual carefully before riding
the ATV. If there is a control or function you do not
understand, ask your Yamaha dealer.
WARNING
EWB00631Read the Owner’s Manual carefully to become
familiar with all controls in order to help pre-
vent any loss of control, which could cause an
accident or injury.EBU29722Starting a cold engine NOTICEECB00150See the “Engine break-in” section on page 6-4
prior to operating the engine for the first time.1. Set the parking brake.
2. Turn the fuel cock to “ON”.
3. Turn the key to “ON” and the engine stop
switch to“”.4. Shift the drive select lever into the neutral po-
sition. The neutral indicator light should come
on. If the indicator light does not come on,
have a Yamaha dealer check the electrical cir-
cuit.
TIPThe engine can be started only when the drive se-
lect lever is in the neutral position.5. Use the starter (choke) in reference to the fig-
ure:
Position (1):
Cold engine start with ambient temperature
below 5 °C (40 °F).
Position (2):
Cold engine start with ambient temperature
between 0 °C (30 °F) and 30 °C (90 °F).
Position (3):
Cold engine start with ambient temperature
above 25 °C (80 °F).
