oil YAMAHA GRIZZLY 125 2012 Owners Manual

EBU17420
TABLE OF CONTENTS
LOCATION OF THE WARNING AND
SPECIFICATION LABELS ............................ 1-1
SAFETY INFORMATION .............................. 2-1
DESCRIPTION .............................................. 3-1
Left view ...................................................... 3-1
Right view.................................................... 3-1
Controls and instruments ............................ 3-2
INSTRUMENT AND CONTROL
FUNCTIONS .................................................. 4-1
Main switch ................................................ 4-1
Indicator lights ............................................ 4-2
Handlebar switches .................................... 4-2
Throttle lever .............................................. 4-3
Speed limiter .............................................. 4-4
Front brake lever ........................................ 4-4
Rear brake lever ......................................... 4-5
Parking brake ............................................. 4-5
Drive select lever ........................................ 4-6
Fuel tank cap .............................................. 4-7
Fuel ............................................................ 4-7
Fuel cock .................................................... 4-8Starter (choke) ..........................................4-10
Seat ..........................................................4-10
Front carrier ..............................................4-11
Rear carrier ...............................................4-11
PRE-OPERATION CHECKS ..........................5-1
Fuel .............................................................5-3
Engine oil ....................................................5-3
Transmission oil ..........................................5-3
Front and rear brakes .................................5-3
Throttle lever ...............................................5-3
Drive chain ..................................................5-3
Tires ............................................................5-3
Chassis fasteners .......................................5-6
Instruments, lights and switches .................5-6
Battery ........................................................5-6
OPERATION...................................................6-1
Starting a cold engine .................................6-1
Starting a warm engine ...............................6-2
Operating the drive select lever and
driving in reverse ......................................6-3
Engine break-in ...........................................6-4
Parking ........................................................6-5U1PY60E0.book Page 1 Friday, March 11, 2011 9:30 AM

Parking on a slope ..................................... 6-5
Accessories and loading ............................ 6-6
RIDING YOUR ATV ...................................... 7-1
GETTING TO KNOW YOUR ATV............... 7-2
RIDE WITH CARE AND GOOD
JUDGMENT .............................................. 7-2
BE CAREFUL WHERE YOU RIDE ............. 7-9
TURNING YOUR ATV .............................. 7-12
CLIMBING UPHILL ................................... 7-14
RIDING DOWNHILL.................................. 7-16
CROSSING A SLOPE............................... 7-17
CROSSING THROUGH SHALLOW
WATER ................................................... 7-18
RIDING OVER ROUGH TERRAIN ........... 7-20
SLIDING AND SKIDDING ......................... 7-20
WHAT TO DO IF... .................................... 7-22
WHAT TO DO... ........................................ 7-22
PERIODIC MAINTENANCE AND
ADJUSTMENT ............................................... 8-1
Owner’s manual and tool kit ....................... 8-2
Periodic maintenance chart for
the emission control system ..................... 8-3
General maintenance and lubrication
chart ......................................................... 8-5
Checking the spark plug ............................. 8-9Engine oil ..................................................8-11
Transmission oil ........................................8-14
Cleaning the engine and V-belt case air
filter elements .........................................8-17
Cleaning the spark arrester ......................8-23
V-belt case drain screw ............................8-24
Adjusting the carburetor ............................8-25
Adjusting the engine idling speed .............8-25
Adjusting the throttle lever free play .........8-26
Valve clearance ........................................8-27
Brakes .......................................................8-27
Checking the front and rear brake
shoes ......................................................8-27
Adjusting the front brake lever free play ...8-28
Adjusting the rear brake lever free play ....8-32
Drive chain slack .......................................8-34
Lubricating the drive chain ........................8-36
Checking and lubricating the cables .........8-37
Checking and lubricating the front and
rear brake levers .....................................8-38
Checking the wheel hub bearings .............8-38
Lubricating the lower arm pivots ...............8-39
Lubricating the front knuckle pivots ..........8-40
Lubricating the steering shaft ....................8-40
Battery ......................................................8-41
Replacing the fuse ....................................8-44
Replacing a headlight bulb .......................8-44
U1PY60E0.book Page 2 Friday, March 11, 2011 9:30 AM

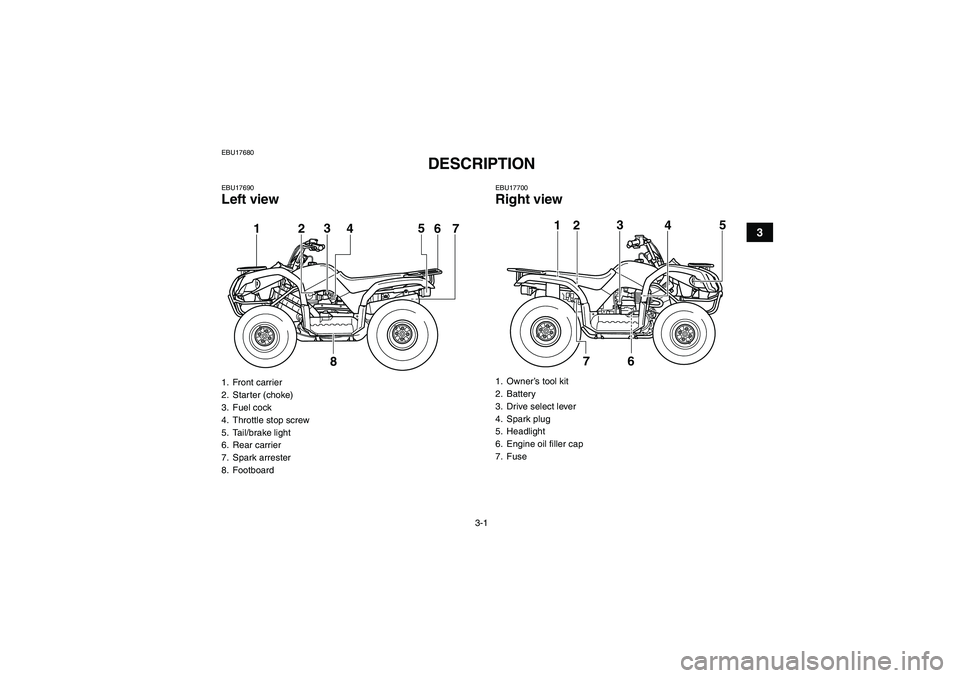

3-1
3
EBU17680
DESCRIPTION
EBU17690Left view
EBU17700Right view
1. Front carrier
2. Starter (choke)
3. Fuel cock
4. Throttle stop screw
5. Tail/brake light
6. Rear carrier
7. Spark arrester
8. Footboard
123
5
6
7
8
4
1. Owner’s tool kit
2. Battery
3. Drive select lever
4. Spark plug
5. Headlight
6. Engine oil filler cap
7. Fuse
23
5
6
7
1
4
U1PY60E0.book Page 1 Friday, March 11, 2011 9:30 AM

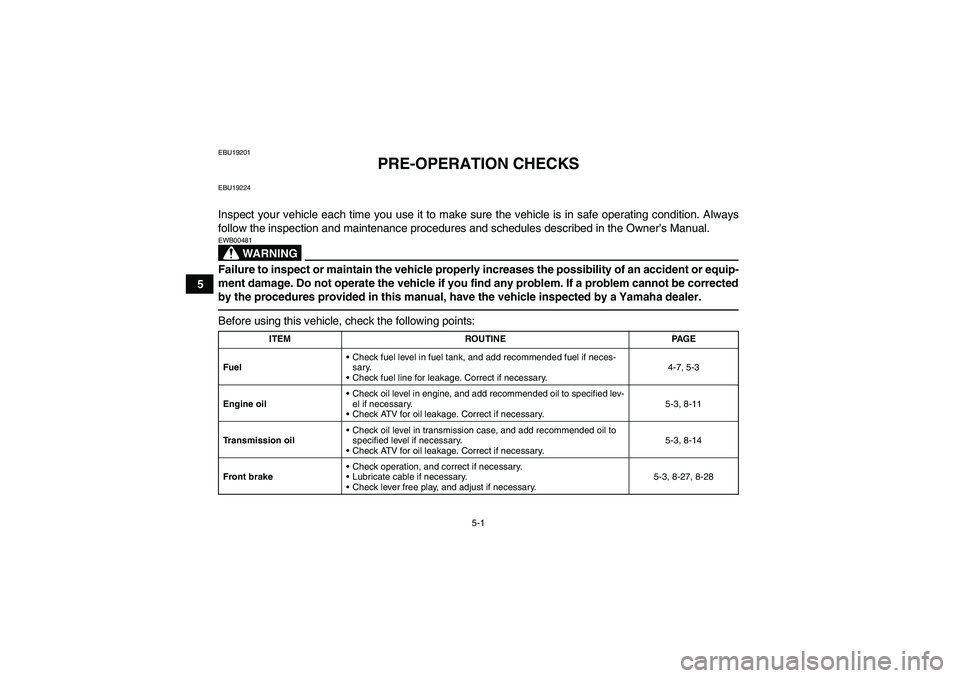

5-1
5
EBU19201
PRE-OPERATION CHECKS
EBU19224Inspect your vehicle each time you use it to make sure the vehicle is in safe operating condition. Always
follow the inspection and maintenance procedures and schedules described in the Owner’s Manual.
WARNING
EWB00481Failure to inspect or maintain the vehicle properly increases the possibility of an accident or equip-
ment damage. Do not operate the vehicle if you find any problem. If a problem cannot be corrected
by the procedures provided in this manual, have the vehicle inspected by a Yamaha dealer.Before using this vehicle, check the following points:
ITEM ROUTINE PAGE
FuelCheck fuel level in fuel tank, and add recommended fuel if neces-
sary.
Check fuel line for leakage. Correct if necessary.4-7, 5-3
Engine oilCheck oil level in engine, and add recommended oil to specified lev-
el if necessary.
Check ATV for oil leakage. Correct if necessary.5-3, 8-11
Transmission oilCheck oil level in transmission case, and add recommended oil to
specified level if necessary.
Check ATV for oil leakage. Correct if necessary.5-3, 8-14
Front brakeCheck operation, and correct if necessary.
Lubricate cable if necessary.
Check lever free play, and adjust if necessary.5-3, 8-27, 8-28
U1PY60E0.book Page 1 Friday, March 11, 2011 9:30 AM

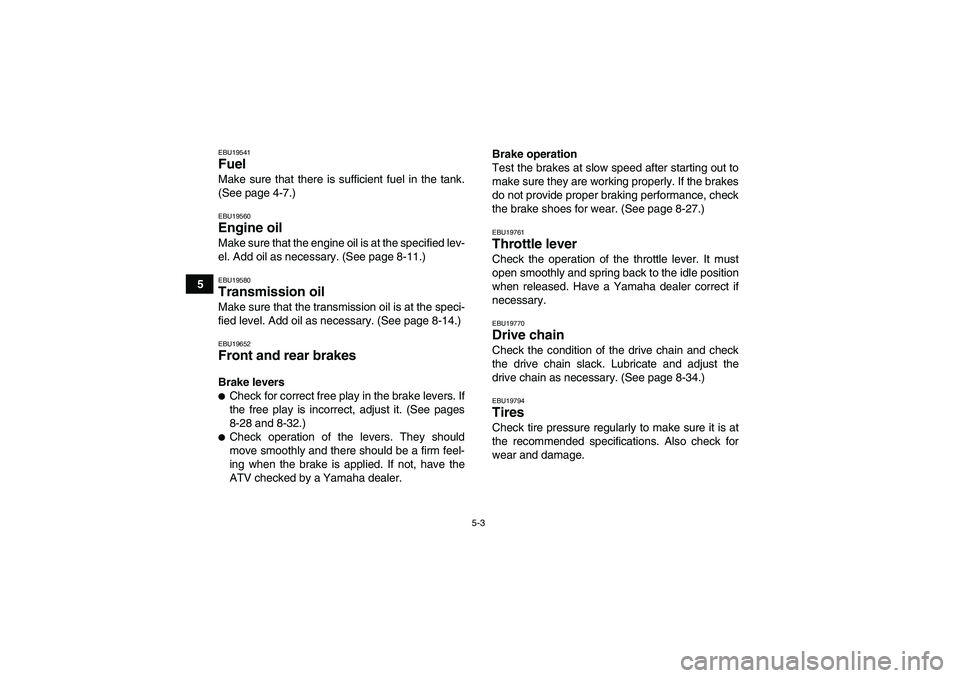

5-3
5
EBU19541Fuel Make sure that there is sufficient fuel in the tank.
(See page 4-7.)EBU19560Engine oil Make sure that the engine oil is at the specified lev-
el. Add oil as necessary. (See page 8-11.)EBU19580Transmission oil Make sure that the transmission oil is at the speci-
fied level. Add oil as necessary. (See page 8-14.)EBU19652Front and rear brakes Brake levers
Check for correct free play in the brake levers. If
the free play is incorrect, adjust it. (See pages
8-28 and 8-32.)
Check operation of the levers. They should
move smoothly and there should be a firm feel-
ing when the brake is applied. If not, have the
ATV checked by a Yamaha dealer.Brake operation
Test the brakes at slow speed after starting out to
make sure they are working properly. If the brakes
do not provide proper braking performance, check
the brake shoes for wear. (See page 8-27.)
EBU19761Throttle lever Check the operation of the throttle lever. It must
open smoothly and spring back to the idle position
when released. Have a Yamaha dealer correct if
necessary.EBU19770Drive chain Check the condition of the drive chain and check
the drive chain slack. Lubricate and adjust the
drive chain as necessary. (See page 8-34.)EBU19794Tires Check tire pressure regularly to make sure it is at
the recommended specifications. Also check for
wear and damage.
U1PY60E0.book Page 3 Friday, March 11, 2011 9:30 AM

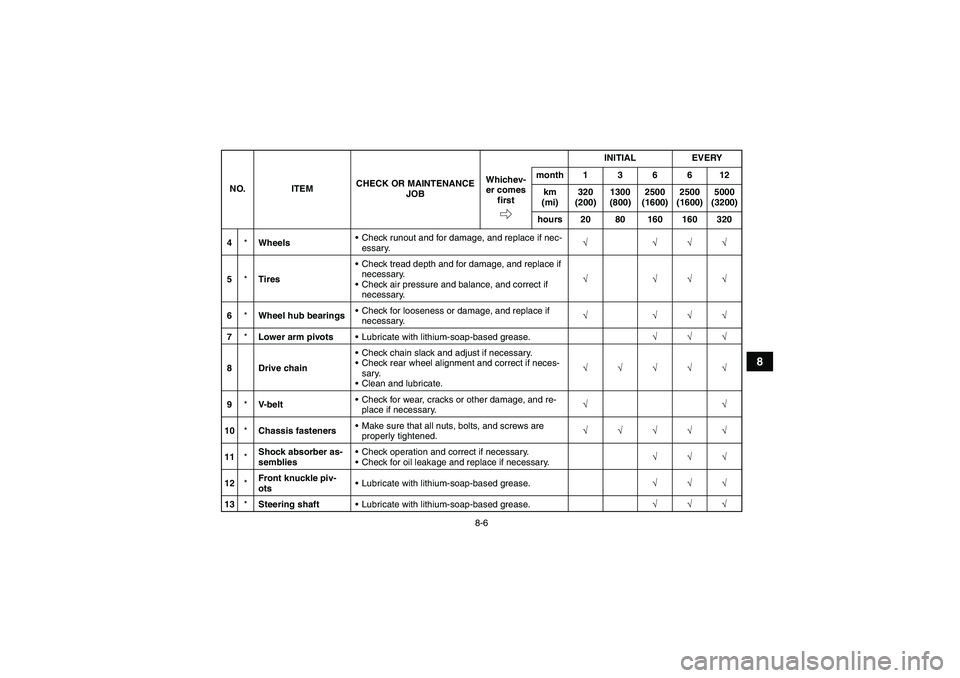

8-6
8
4*WheelsCheck runout and for damage, and replace if nec-
essary.√ √√√
5*TiresCheck tread depth and for damage, and replace if
necessary.
Check air pressure and balance, and correct if
necessary.√ √√√
6*Wheel hub bearingsCheck for looseness or damage, and replace if
necessary.√ √√√
7*Lower arm pivotsLubricate with lithium-soap-based grease.√√√
8 Drive chainCheck chain slack and adjust if necessary.
Check rear wheel alignment and correct if neces-
sary.
Clean and lubricate.√√√√√
9*V- b e l tCheck for wear, cracks or other damage, and re-
place if necessary.√√
10*Chassis fastenersMake sure that all nuts, bolts, and screws are
properly tightened.√√√√√
11*Shock absorber as-
sembliesCheck operation and correct if necessary.
Check for oil leakage and replace if necessary.√√√
12*Front knuckle piv-
otsLubricate with lithium-soap-based grease.√√√
13*Steering shaftLubricate with lithium-soap-based grease.√√√ NO. ITEMCHECK OR MAINTENANCE
JOBINITIAL EVERY
Whichev-
er comes
firstmonth136612
km
(mi)320
(200)1300
(800)2500
(1600)2500
(1600)5000
(3200)
hours 20 80 160 160 320
U1PY60E0.book Page 6 Friday, March 11, 2011 9:30 AM

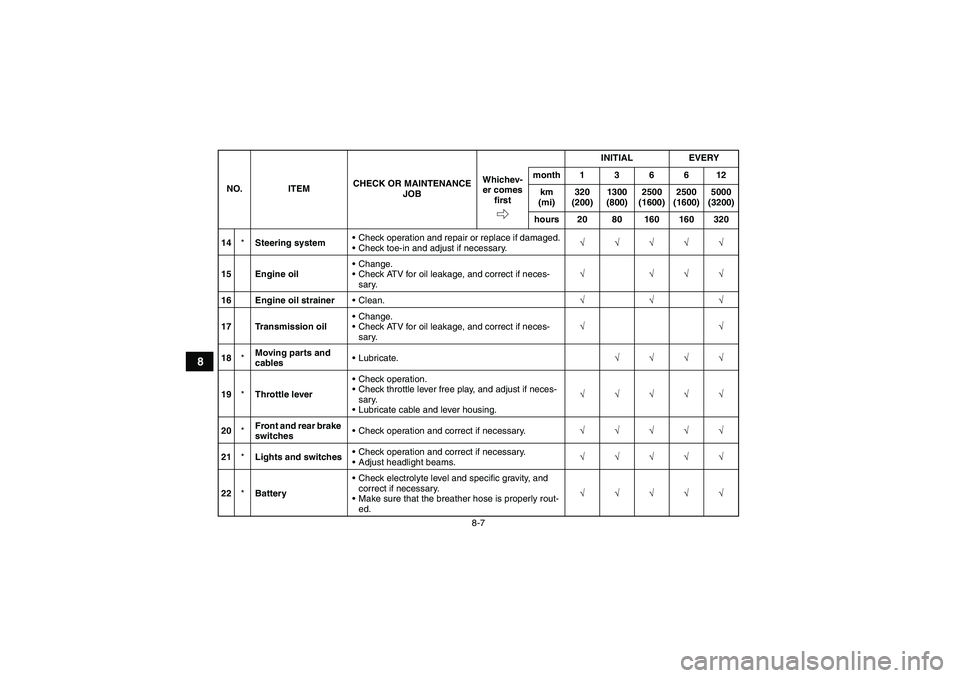

8-7
8
14*Steering systemCheck operation and repair or replace if damaged.
Check toe-in and adjust if necessary.√√√√√
15 Engine oilChange.
Check ATV for oil leakage, and correct if neces-
sary.√ √√√
16 Engine oil strainerClean.√√√
17 Transmission oilChange.
Check ATV for oil leakage, and correct if neces-
sary.√√
18*Moving parts and
cablesLubricate.√√√√
19*Throttle leverCheck operation.
Check throttle lever free play, and adjust if neces-
sary.
Lubricate cable and lever housing.√√√√√
20*Front and rear brake
switchesCheck operation and correct if necessary.√√√√√
21*Lights and switchesCheck operation and correct if necessary.
Adjust headlight beams.√√√√√
22*BatteryCheck electrolyte level and specific gravity, and
correct if necessary.
Make sure that the breather hose is properly rout-
ed.√√√√√ NO. ITEMCHECK OR MAINTENANCE
JOBINITIAL EVERY
Whichev-
er comes
firstmonth136612
km
(mi)320
(200)1300
(800)2500
(1600)2500
(1600)5000
(3200)
hours 20 80 160 160 320U1PY60E0.book Page 7 Friday, March 11, 2011 9:30 AM

8-11
8
TIPIf a torque wrench is not available when installing
the spark plug, a good estimate of the correct
torque is 1/4–1/2 turn past finger tight. However,
the spark plug should be tightened to the specified
torque as soon as possible.3. Install the spark plug cap.EBU23268Engine oil The engine oil level should be checked before
each ride. In addition, the oil must be changed at
the intervals specified in the periodic maintenance
and lubrication chart.

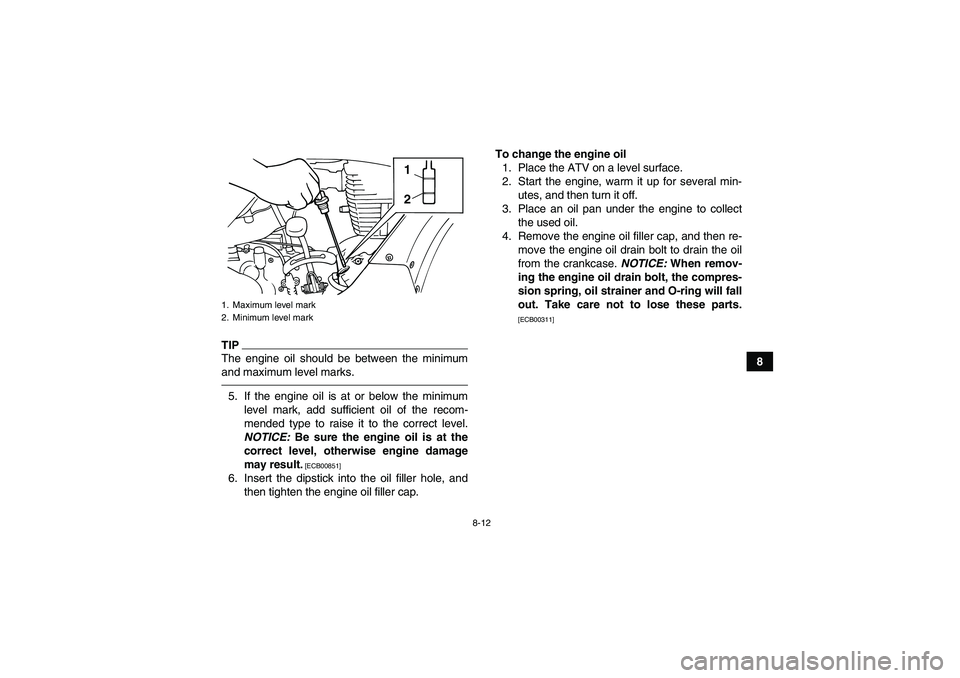

To check the engine oil level
1. Place the ATV on a level surface.
2. Check the engine oil level on a cold engine.
TIPIf the engine was started before checking the oil
level, be sure to warm up the engine sufficiently,
and then wait at least ten minutes until the oil set-
tles for an accurate reading.3. Remove the engine oil filler cap, and then
wipe the engine oil dipstick off with a clean
rag.
4. Insert the dipstick into the filler hole (without
screwing it in), and then remove it again to
check the oil level. Tightening torque:
Spark plug:
13 Nm (1.3 m·kgf, 9.4 ft·lbf)1. Engine oil filler cap
2. Engine oil dipstick
2
1
U1PY60E0.book Page 11 Friday, March 11, 2011 9:30 AM

8-12
8
TIPThe engine oil should be between the minimum
and maximum level marks.5. If the engine oil is at or below the minimum
level mark, add sufficient oil of the recom-
mended type to raise it to the correct level.
NOTICE: Be sure the engine oil is at the
correct level, otherwise engine damage
may result.
[ECB00851]
6. Insert the dipstick into the oil filler hole, and
then tighten the engine oil filler cap.To change the engine oil
1. Place the ATV on a level surface.
2. Start the engine, warm it up for several min-
utes, and then turn it off.
3. Place an oil pan under the engine to collect
the used oil.
4. Remove the engine oil filler cap, and then re-
move the engine oil drain bolt to drain the oil
from the crankcase. NOTICE: When remov-
ing the engine oil drain bolt, the compres-
sion spring, oil strainer and O-ring will fall
out. Take care not to lose these parts.
[ECB00311]
1. Maximum level mark
2. Minimum level mark
1
2
U1PY60E0.book Page 12 Friday, March 11, 2011 9:30 AM

8-13
8
5. Clean the oil strainer with solvent.
6. Apply a thin coat of clean engine oil to a new
O-ring.
7. Install the oil strainer, the compression spring,
the new O-ring and the engine oil drain bolt.
Tighten the engine oil drain bolt to the speci-
fied torque. NOTICE: Before installing the
engine oil drain bolt, be sure to install the
O-ring, compression spring and oil strain-
er.
[ECB00321]
8. Refill with the specified amount of the recom-
mended engine oil, and then install and tight-
en the engine oil filler cap.TIPBe sure to wipe off spilled oil on any parts after the
engine and exhaust system have cooled down.NOTICEECB00330
Do not use oils with a diesel specification of
“CD” or oils of a higher quality than speci-
fied. In addition, do not use oils labeled “EN-
ERGY CONSERVING II” or higher.
Make sure that no foreign material enters the
crankcase.
1. Engine oil drain bolt
2. O-ring
3. Spring
4. Oil strainer
4
3
2
1 1
Tightening torque:
Engine oil drain bolt:
32 Nm (3.2 m·kgf, 23 ft·lbf)
Recommended oil:
See page 10-1.
Oil quantity:
1.25 L (1.32 US qt, 1.10 Imp.qt)
U1PY60E0.book Page 13 Friday, March 11, 2011 9:30 AM
