2-1
2
EBU17431

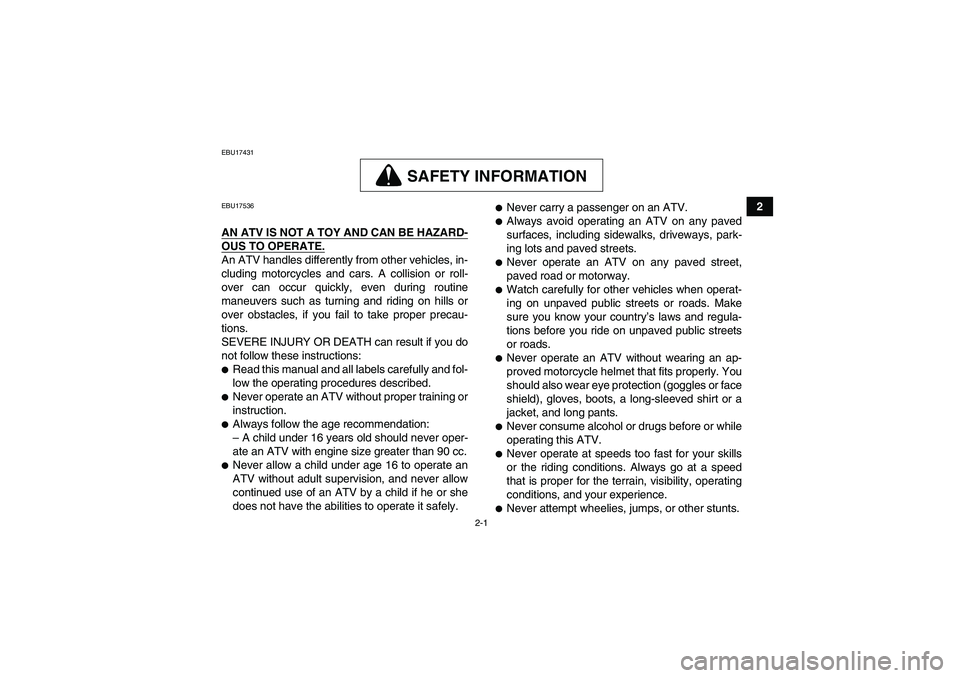

SAFETY INFORMATION
EBU17536AN ATV IS NOT A TOY AND CAN BE HAZARD-OUS TO OPERATE.An ATV handles differently from other vehicles, in-
cluding motorcycles and cars. A collision or roll-
over can occur quickly, even during routine
maneuvers such as turning and riding on hills or
over obstacles, if you fail to take proper precau-
tions.
SEVERE INJURY OR DEATH can result if you do
not follow these instructions:
Read this manual and all labels carefully and fol-
low the operating procedures described.
Never operate an ATV without proper training or
instruction.
Always follow the age recommendation:
– A child under 16 years old should never oper-
ate an ATV with engine size greater than 90 cc.
Never allow a child under age 16 to operate an
ATV without adult supervision, and never allow
continued use of an ATV by a child if he or she
does not have the abilities to operate it safely.

Never carry a passenger on an ATV.
Always avoid operating an ATV on any paved
surfaces, including sidewalks, driveways, park-
ing lots and paved streets.
Never operate an ATV on any paved street,
paved road or motorway.
Watch carefully for other vehicles when operat-
ing on unpaved public streets or roads. Make
sure you know your country’s laws and regula-
tions before you ride on unpaved public streets
or roads.
Never operate an ATV without wearing an ap-
proved motorcycle helmet that fits properly. You
should also wear eye protection (goggles or face
shield), gloves, boots, a long-sleeved shirt or a
jacket, and long pants.
Never consume alcohol or drugs before or while
operating this ATV.
Never operate at speeds too fast for your skills
or the riding conditions. Always go at a speed
that is proper for the terrain, visibility, operating
conditions, and your experience.
Never attempt wheelies, jumps, or other stunts.
U1PY60E0.book Page 1 Friday, March 11, 2011 9:30 AM

10-3
10

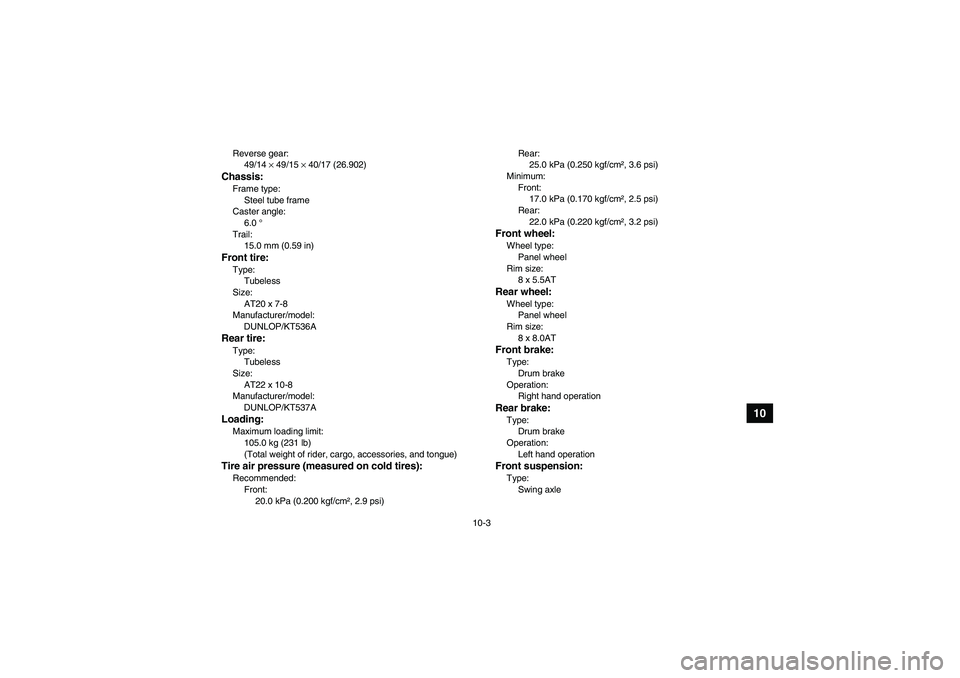

Reverse gear:
49/14 × 49/15 × 40/17 (26.902)Chassis:Frame type:
Steel tube frame
Caster angle:
6.0 °
Trail:
15.0 mm (0.59 in)Front tire:Type:
Tubeless
Size:
AT20 x 7-8
Manufacturer/model:
DUNLOP/KT536ARear tire:Type:
Tubeless
Size:
AT22 x 10-8
Manufacturer/model:
DUNLOP/KT537ALoading:Maximum loading limit:
105.0 kg (231 lb)
(Total weight of rider, cargo, accessories, and tongue)Tire air pressure (measured on cold tires):Recommended:
Front:
20.0 kPa (0.200 kgf/cm², 2.9 psi)Rear:
25.0 kPa (0.250 kgf/cm², 3.6 psi)
Minimum:
Front:
17.0 kPa (0.170 kgf/cm², 2.5 psi)
Rear:
22.0 kPa (0.220 kgf/cm², 3.2 psi)
Front wheel:Wheel type:
Panel wheel
Rim size:
8 x 5.5ATRear wheel:Wheel type:
Panel wheel
Rim size:
8 x 8.0ATFront brake:Type:
Drum brake
Operation:
Right hand operationRear brake:Type:
Drum brake
Operation:
Left hand operationFront suspension:Type:
Swing axle
