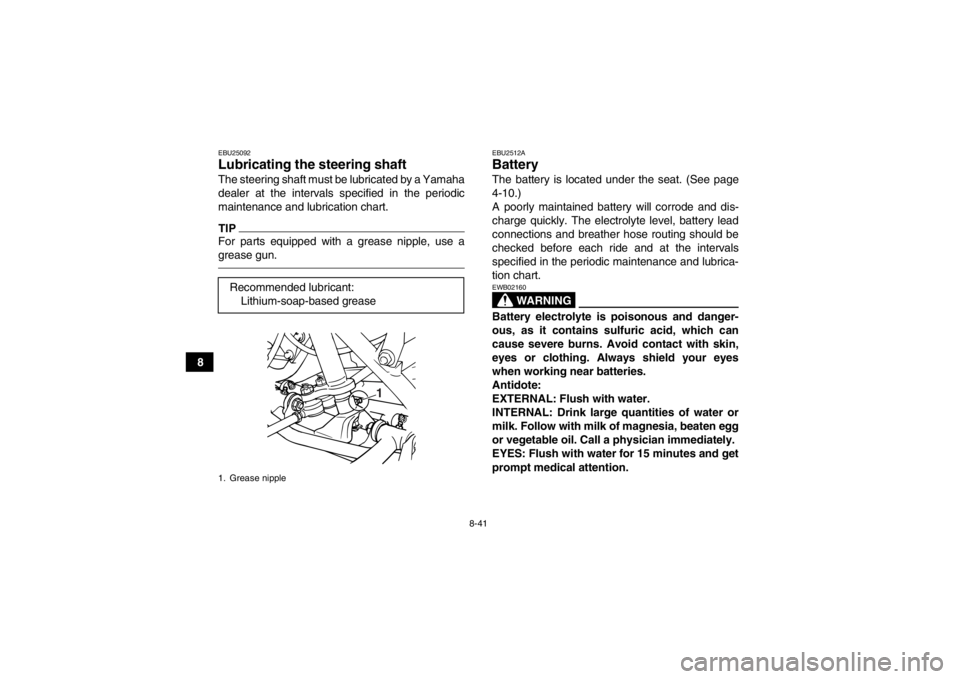

EBU28823Lubricating the front
knuckle pivots The front knuckle pivots must be lubricated at the
intervals specified in the periodic maintenance and
lubrication chart.TIPFor parts equipped with a grease nipple, use a
grease gun.

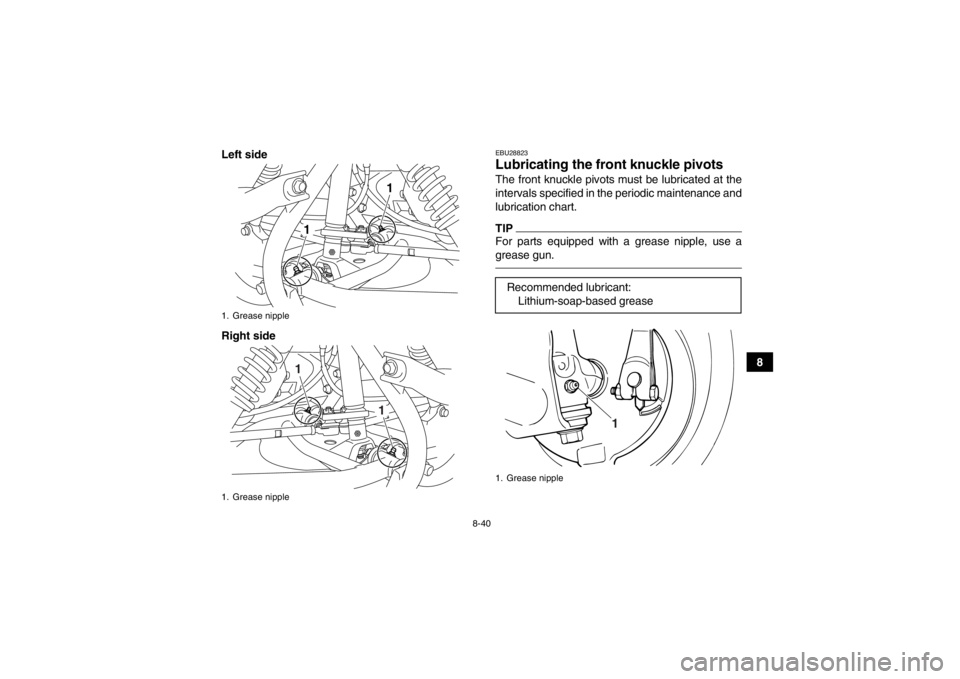

1. Grease nipple
1. Grease nipple
111
1
Recommended lubricant:Lithium-soap-based grease1. Grease nipple
1
U1PY61E0.book Page 40 Wednesday, March 14, 2012 5:22 PM

8-41
8
EBU25092Lubricating the steering shaft The steering shaft must be lubricated by a Yamaha
dealer at the intervals specified in the periodic
maintenance and lubrication chart.TIPFor parts equipped with a grease nipple, use a
grease gun.
EBU2512ABattery The battery is located under the seat. (See page
4-10.)
A poorly maintained battery will corrode and dis-
charge quickly. The electrolyte level, battery lead
connections and breather hose routing should be
checked before each ride and at the intervals
specified in the periodic maintenance and lubrica-
tion chart.
WARNING
EWB02160Battery electrolyte is poisonous and danger-
ous, as it contains sulfuric acid, which can
cause severe burns. Avoid contact with skin,
eyes or clothing. Always shield your eyes
when working near batteries.
Antidote:
EXTERNAL: Flush with water.
INTERNAL: Drink large quantities of water or
milk. Follow with milk of magnesia, beaten egg
or vegetable oil. Call a physician immediately.
EYES: Flush with water for 15 minutes and get
prompt medical attention.
Recommended lubricant:
Lithium-soap-based grease
1. Grease nipple
1
U1PY61E0.book Page 41 Wednesday, March 14, 2012 5:22 PM

8-42
8
Batteries produce explosive gases. Keep
sparks, flame, cigarettes or other sources of ig-
nition away. Ventilate when charging or using
in an enclosed space.
KEEP OUT OF REACH OF CHILDREN.
To check the electrolyte level
1. Place the ATV on a level surface.
2. Check the electrolyte level in the battery.TIPThe electrolyte should be between the minimum
and maximum level marks.
3. If the electrolyte is at or below the minimum level mark, add distilled water to raise it to the
maximum level mark. NOTICE: Use only dis-
tilled water, as tap water contains minerals
that are harmful to the battery.
[ECB00591]
4. Check and, if necessary, tighten the battery lead connections and correct the breather
hose routing.
To remove the battery 1. Unhook the battery band.
1. Maximum level mark
2. Minimum level mark
1
2
1. Battery
2. Battery breather hose
3. Guide
1
2
3
U1PY61E0.book Page 42 Wednesday, March 14, 2012 5:22 PM

8-43
82. Disconnect the negative lead first and then the
positive lead. NOTICE: When removing the
battery, the main switch must be off, and
the negative lead must be disconnected
before the positive lead.
[ECB01001]
3. Remove the battery.
To store the battery●If the ATV will not be used for more than one
month, remove the battery, fully charge it, and
then place it in a cool, dry place.
●If the battery will be stored for more than two
months, check the specific gravity of the electro-
lyte at least once a month and fully charge the
battery whenever necessary.NOTICEECB01100●Always keep the battery charged. Storing a
discharged battery can cause permanent
battery damage.●Do not leave or store the battery on its side.To install the batteryTIPBe sure the battery is fully charged.1. Install the battery.
2. Connect the positive lead first, and then con- nect the negative lead. NOTICE: When in-
stalling the battery, the main switch must
be off, and the positive lead must be con-
nected before the negative lead.
[ECB01110]

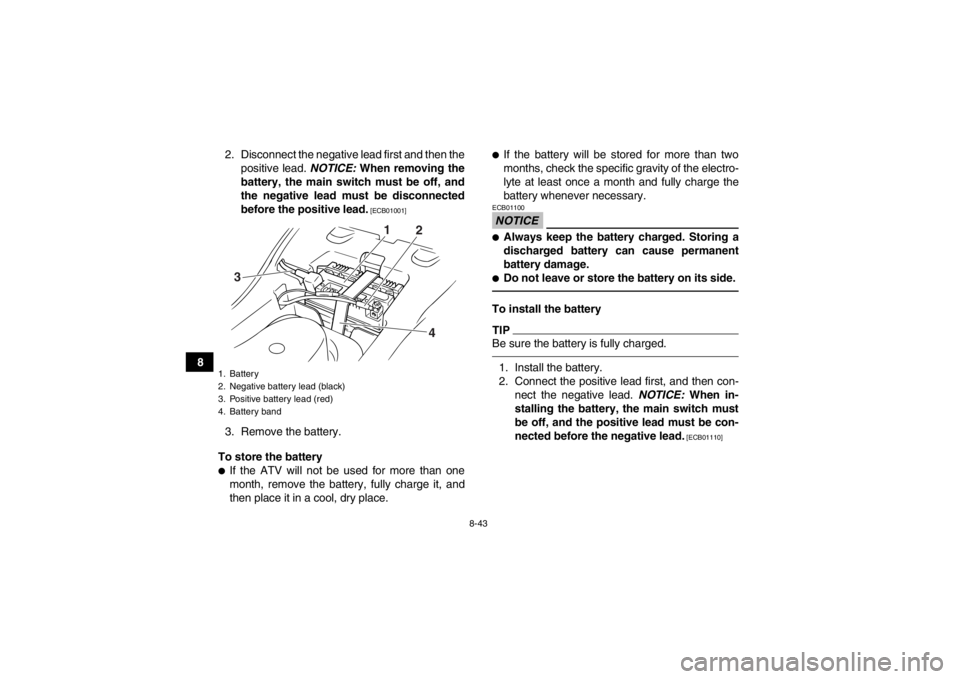

1. Battery
2. Negative battery lead (black)
3. Positive battery lead (red)
4. Battery band
1 2
4
3
U1PY61E0.book Page 43 Wednesday, March 14, 2012 5:22 PM

8-44
8
3. Make sure that the breather hose is properly
routed, in good condition, and not obstructed.
NOTICE: If the breather hose is positioned
in such a way that the frame is exposed to
electrolyte or gas expelled from the bat-
tery, the frame could suffer structural and
external damages.
[ECB00611]
4. Hook the battery band onto the holder.
EBU25263Replacing the fuse The fuse holder is located on the right side of the
ATV.
If the fuse is blown, replace it as follows. 1. Turn the key to “OFF” and turn off all electrical circuits.
1. Battery
2. Negative battery lead (black)
3. Positive battery lead (red)
4. Battery band
1 2
4
3
1. Fuse
2. Spare fuse
1 2
U1PY61E0.book Page 44 Wednesday, March 14, 2012 5:22 PM

8-45
8
NOTICEECB00640To prevent accidental short-circuiting, turn off
the main switch when checking or replacing a
fuse.2. Remove the blown fuse, and then install anew fuse of the specified amperage.
WARNING! Always use a fuse of the spec-
ified rating, and never use a substitute ob-
ject in place of the proper fuse. An
improper fuse or a substitute object can
cause damage to the electrical system,
which could lead to a fire.
[EWB02172]
3. Turn the key to “ON” and turn on the electricalcircuits to check if the devices operate.
4. If the fuse immediately blows again, have a Yamaha dealer check the electrical system.EBU25481Replacing a headlight bulb If a headlight bulb burns out, replace it as follows. 1. Remove the cover at the rear of the headlight
by pulling it off.
2. Remove the headlight bulb holder cover by pulling it off.
Specified fuse:
15.0 A
1. Cover at the rear of the headlight
1
U1PY61E0.book Page 45 Wednesday, March 14, 2012 5:22 PM

8-46
8
3. Remove the headlight bulb holder by pushing
it in and turning it counterclockwise.
4. Remove the burnt-out bulb by pulling it out.
5. Insert a new headlight bulb into the bulb hold- er by pushing it in. NOTICE: Do not touch
the glass part of the headlight bulb to keep
it free from oil, otherwise the transparency
of the glass, the luminosity of the bulb, and
the bulb life will be adversely affected.
Thoroughly clean off any dirt and finger-
prints on the headlight bulb using a cloth
moistened with alcohol or thinner.
[ECB00651]
6. Install the bulb holder by pushing it in and turn- ing it clockwise.
7. Install the bulb holder cover and the cover at the rear of the headlight. NOTICE: Make sure
the headlight bulb holder cover is securely
fitted over the bulb holder and seated
properly.
[ECB00671]
8. Adjust the headlight beam if necessary.

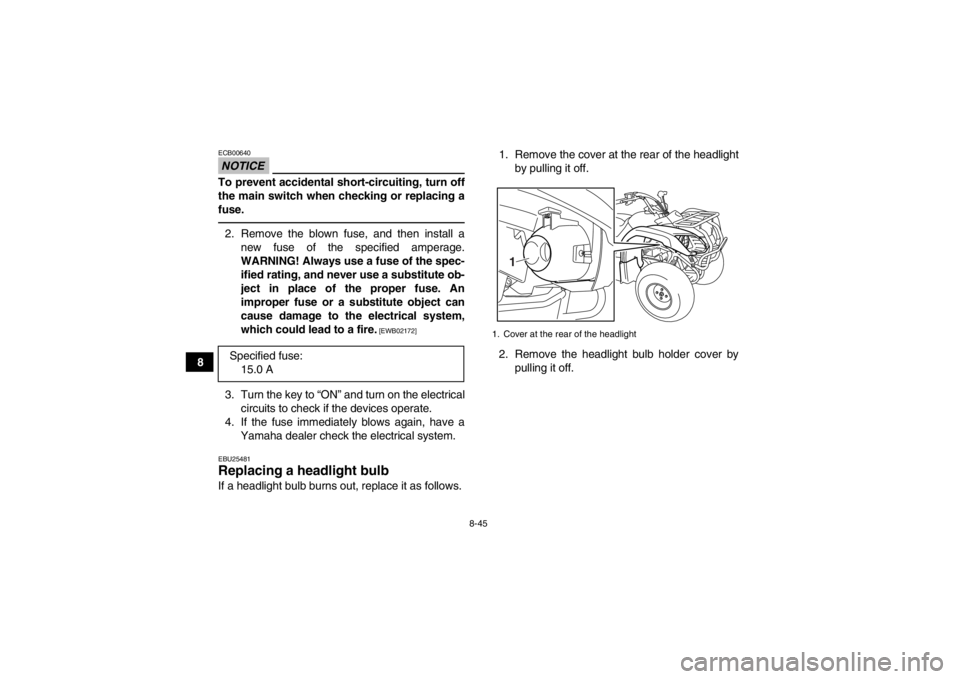

1. Headlight bulb holder cover
2. Headlight bulb holder
1 2
1. Headlight bulb
1
U1PY61E0.book Page 46 Wednesday, March 14, 2012 5:22 PM

8-47
8
EBU25551Adjusting a headlight beam NOTICEECB00690It is advisable to have a Yamaha dealer make
this adjustment.To raise a headlight beam, turn the headlight beam
adjusting screw in direction (a).
To lower a headlight beam, turn the adjusting
screw in direction (b).
EBU25613Replacing the tail/brake light bulb If the tail/brake light bulb burns out, replace it as
follows.1. Remove the tail/brake light bulb holder (to- gether with the bulb) by turning it counter-
clockwise.
2. Remove the burnt-out bulb by pushing it in and turning it counterclockwise.
3. Insert a new bulb into the bulb holder, push it in, and then turn it clockwise until it stops.

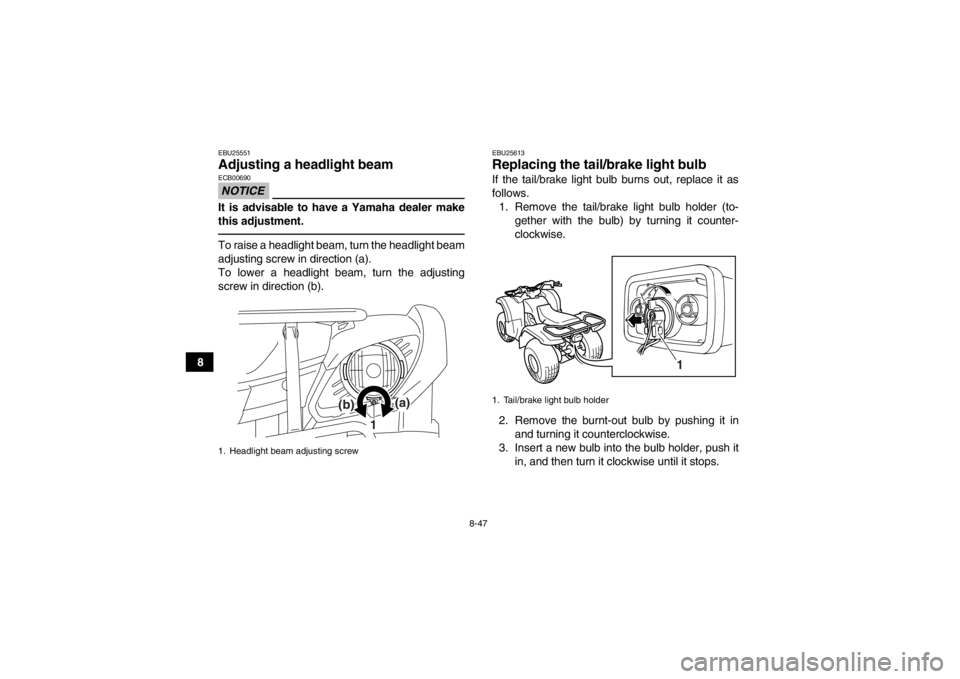

1. Headlight beam adjusting screw
1 (a)
(b)
1. Tail/brake light bulb holder
1
U1PY61E0.book Page 47 Wednesday, March 14, 2012 5:22 PM

8-48
8
4. Install the bulb holder (together with the bulb)
by turning it clockwise.
EBU25651Removing a wheel 1. Place the ATV on a level surface.
2. Loosen the wheel nuts. 3. Elevate the ATV and place a suitable stand
under the frame.
4. Remove the nuts from the wheel.
5. Remove the wheel.
EBU25692Installing a wheel 1. Place the ATV on a level surface.
2. Elevate the ATV and place a suitable stand under the frame.
3. Install the wheel and the nuts.
1. Tail/brake light bulb
2. Tail/brake light bulb holder
1 2
1. Wheel nut
1
1
U1PY61E0.book Page 48 Wednesday, March 14, 2012 5:22 PM

8-49
8
TIPTapered nuts are used for both the front and rear
wheels. Install the nuts with their tapered side to-
wards the wheel.4. Lower the ATV to the ground.
5. Tighten the wheel nuts to the specifiedtorques.
EBU25720Troubleshooting Although Yamaha ATVs receive a thorough in-
spection before shipment from the factory, trouble
may occur during operation. Any problem in the fu-
el, compression, or ignition systems, for example,
can cause poor starting and loss of power.
The following troubleshooting chart represents a
quick and easy procedure for checking these vital
systems yourself. However, should your ATV re-
quire any repair, take it to a Yamaha dealer, whose
skilled technicians have the necessary tools, expe-
rience, and know-how to service the ATV properly.
Use only genuine Yamaha replacement parts. Im-
itation parts may look like Yamaha parts, but they
are often inferior, have a shorter service life and
can lead to expensive repair bills.

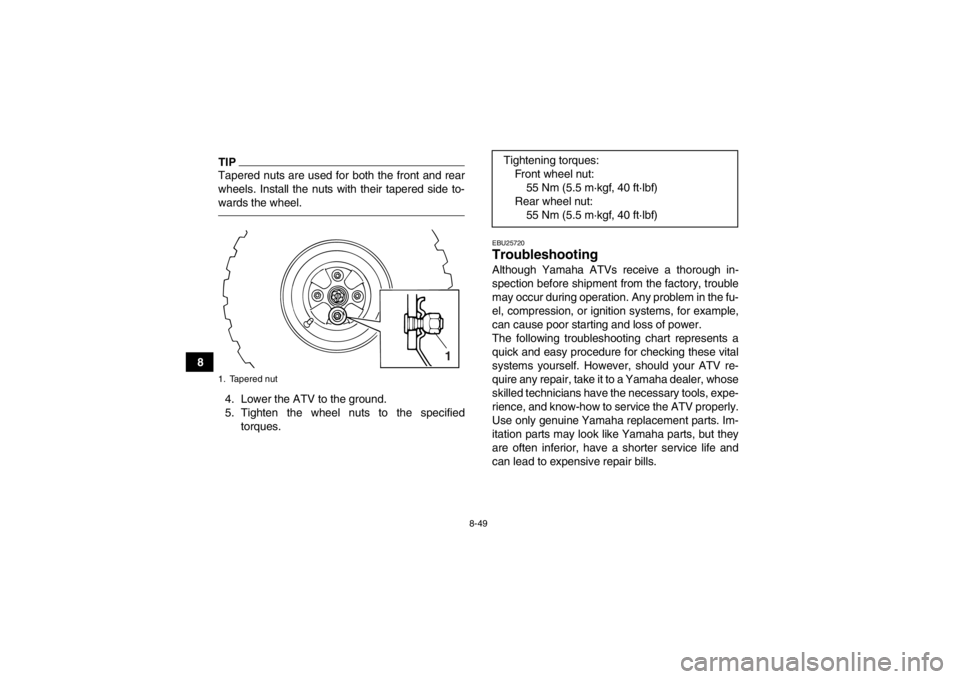

1. Tapered nut
1
Tightening torques:Fro nt wh ee l nu t:55 Nm (5.5 m·kgf, 40 ft·lbf)
Rear wheel nut: 55 Nm (5.5 m·kgf, 40 ft·lbf)
