YAMAHA GRIZZLY 350 2007 Owner's Manual

3-1
3
EBU17680

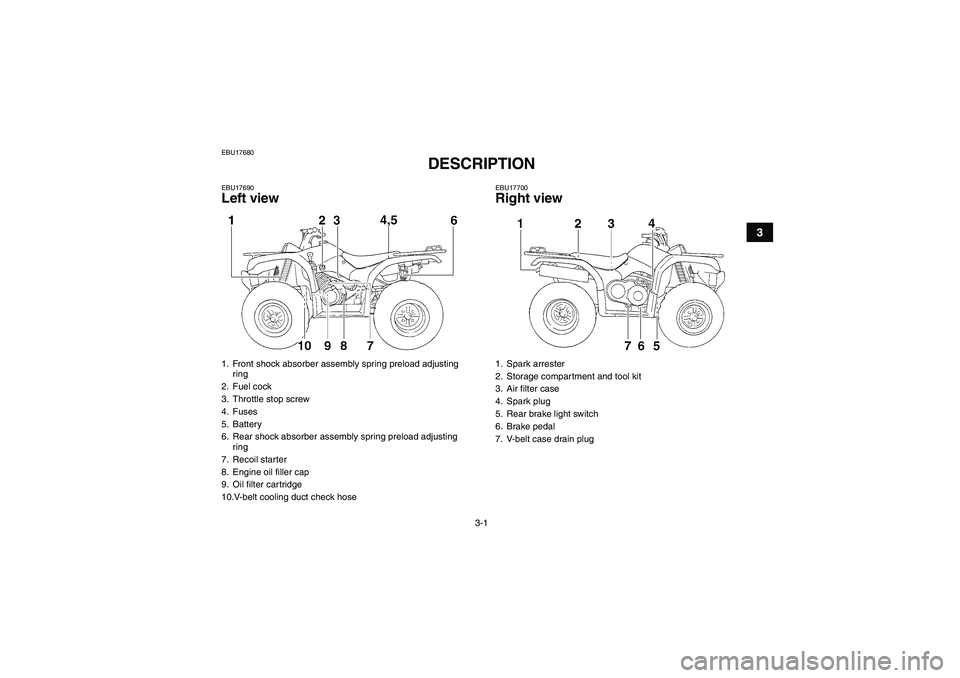

DESCRIPTION
EBU17690Left view
EBU17700Right view
1. Front shock absorber assembly spring preload adjusting
ring
2. Fuel cock
3. Throttle stop screw
4. Fuses
5. Battery
6. Rear shock absorber assembly spring preload adjusting
ring
7. Recoil starter
8. Engine oil filler cap
9. Oil filter cartridge
10.V-belt cooling duct check hose
1. Spark arrester
2. Storage compartment and tool kit
3. Air filter case
4. Spark plug
5. Rear brake light switch
6. Brake pedal
7. V-belt case drain plug
U4S260E0.book Page 1 Tuesday, October 3, 2006 1:53 PM

3-2
3

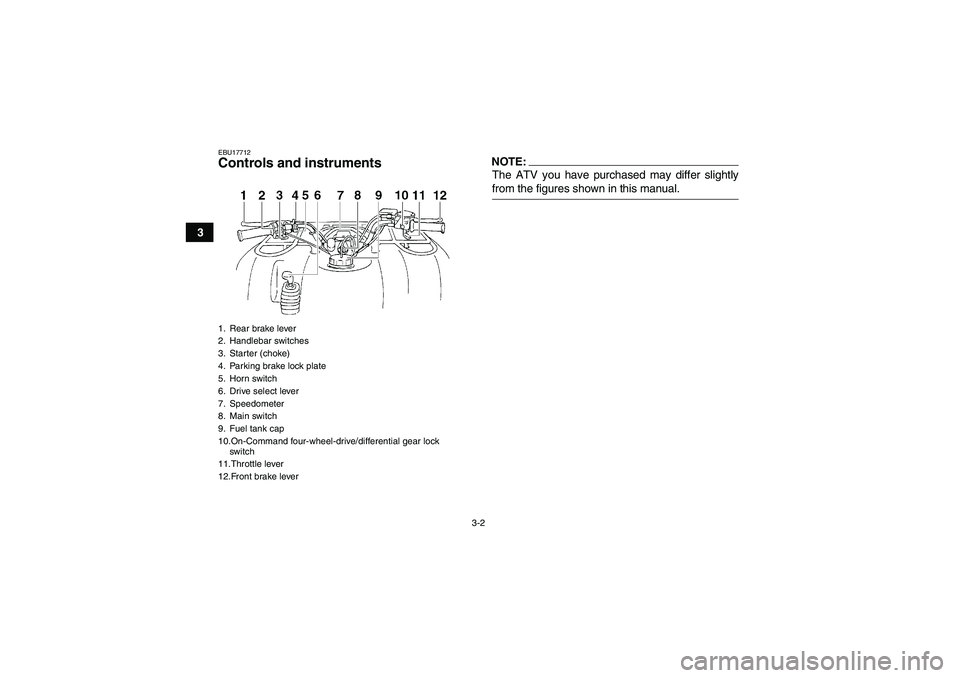

EBU17712Controls and instruments
NOTE:The ATV you have purchased may differ slightlyfrom the figures shown in this manual.
1. Rear brake lever
2. Handlebar switches
3. Starter (choke)
4. Parking brake lock plate
5. Horn switch
6. Drive select lever
7. Speedometer
8. Main switch
9. Fuel tank cap
10.On-Command four-wheel-drive/differential gear lock
switch
11.Throttle lever
12.Front brake leverU4S260E0.book Page 2 Tuesday, October 3, 2006 1:53 PM

4-1
4
EBU17731

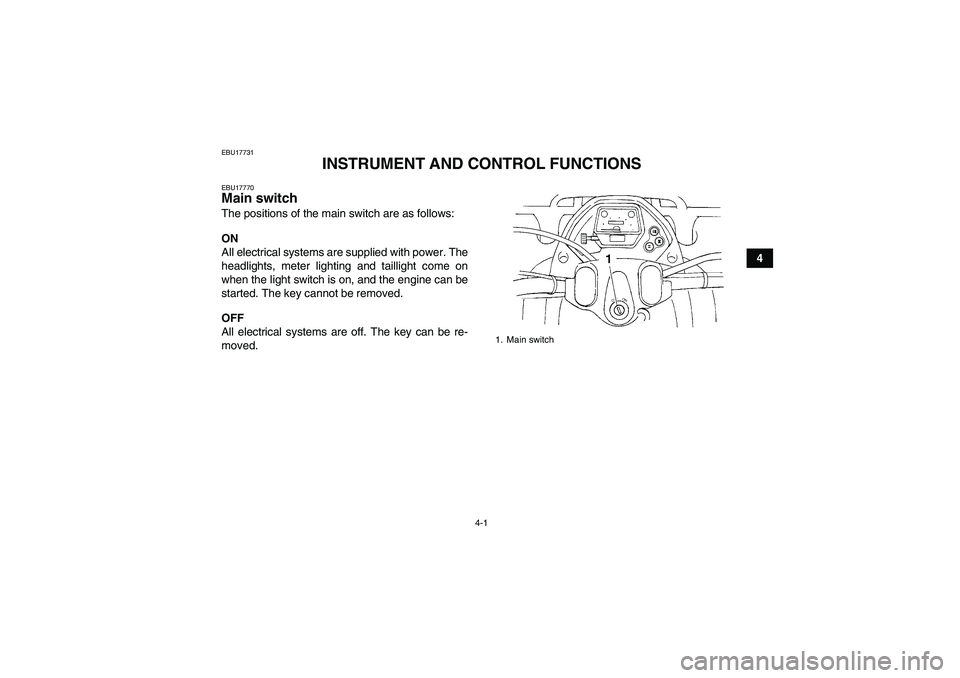

INSTRUMENT AND CONTROL FUNCTIONS
EBU17770Main switch The positions of the main switch are as follows:
ON
All electrical systems are supplied with power. The
headlights, meter lighting and taillight come on
when the light switch is on, and the engine can be
started. The key cannot be removed.
OFF
All electrical systems are off. The key can be re-
moved.
1. Main switch
U4S260E0.book Page 1 Tuesday, October 3, 2006 1:53 PM

4-2
4

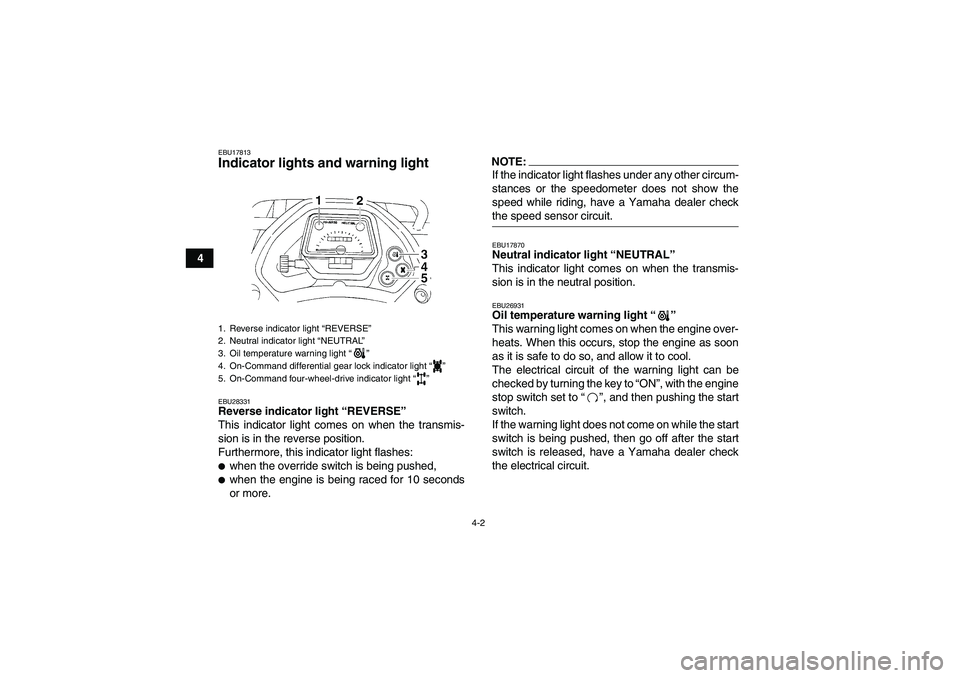

EBU17813Indicator lights and warning light EBU28331Reverse indicator light “REVERSE”
This indicator light comes on when the transmis-
sion is in the reverse position.
Furthermore, this indicator light flashes:
when the override switch is being pushed,
when the engine is being raced for 10 seconds
or more.
NOTE:If the indicator light flashes under any other circum-
stances or the speedometer does not show the
speed while riding, have a Yamaha dealer checkthe speed sensor circuit.EBU17870Neutral indicator light “NEUTRAL”
This indicator light comes on when the transmis-
sion is in the neutral position.EBU26931Oil temperature warning light “”
This warning light comes on when the engine over-
heats. When this occurs, stop the engine as soon
as it is safe to do so, and allow it to cool.
The electrical circuit of the warning light can be
checked by turning the key to “ON”, with the engine
stop switch set to “”, and then pushing the start
switch.
If the warning light does not come on while the start
switch is being pushed, then go off after the start
switch is released, have a Yamaha dealer check
the electrical circuit.
1. Reverse indicator light “REVERSE”
2. Neutral indicator light “NEUTRAL”
3. Oil temperature warning light “”
4. On-Command differential gear lock indicator light “”
5. On-Command four-wheel-drive indicator light “”U4S260E0.book Page 2 Tuesday, October 3, 2006 1:53 PM

4-3

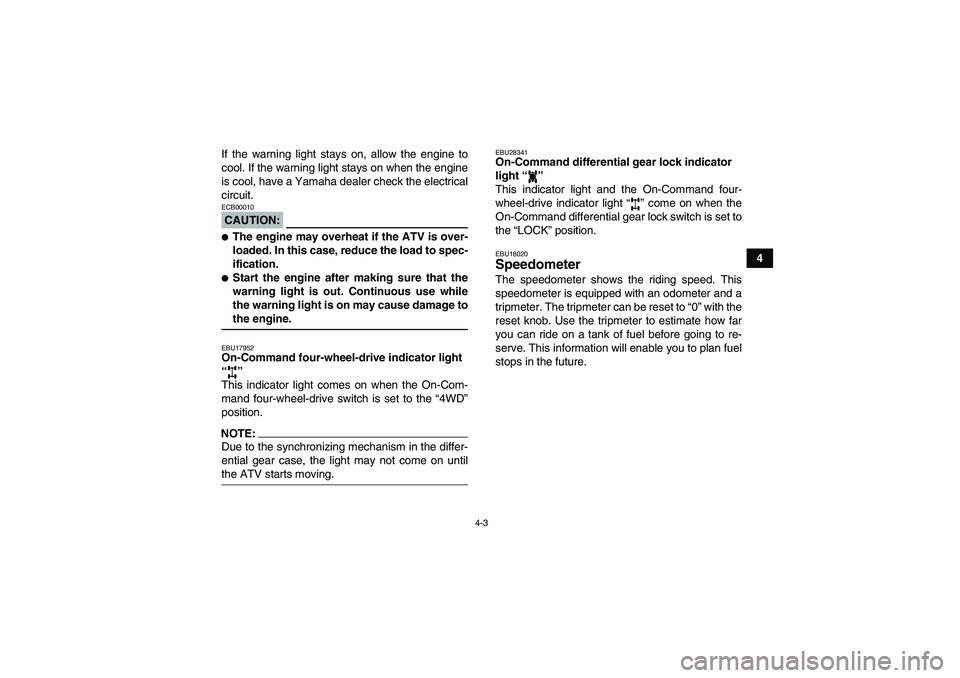

4 If the warning light stays on, allow the engine to
cool. If the warning light stays on when the engine
is cool, have a Yamaha dealer check the electrical
circuit.
CAUTION:ECB00010
The engine may overheat if the ATV is over-
loaded. In this case, reduce the load to spec-
ification.
Start the engine after making sure that the
warning light is out. Continuous use while
the warning light is on may cause damage tothe engine.EBU17952On-Command four-wheel-drive indicator light
“”
This indicator light comes on when the On-Com-
mand four-wheel-drive switch is set to the “4WD”
position.NOTE:Due to the synchronizing mechanism in the differ-
ential gear case, the light may not come on untilthe ATV starts moving.
EBU28341On-Command differential gear lock indicator
light “”
This indicator light and the On-Command four-
wheel-drive indicator light “” come on when the
On-Command differential gear lock switch is set to
the “LOCK” position.EBU18020Speedometer The speedometer shows the riding speed. This
speedometer is equipped with an odometer and a
tripmeter. The tripmeter can be reset to “0” with the
reset knob. Use the tripmeter to estimate how far
you can ride on a tank of fuel before going to re-
serve. This information will enable you to plan fuel
stops in the future.
U4S260E0.book Page 3 Tuesday, October 3, 2006 1:53 PM

4-4
4

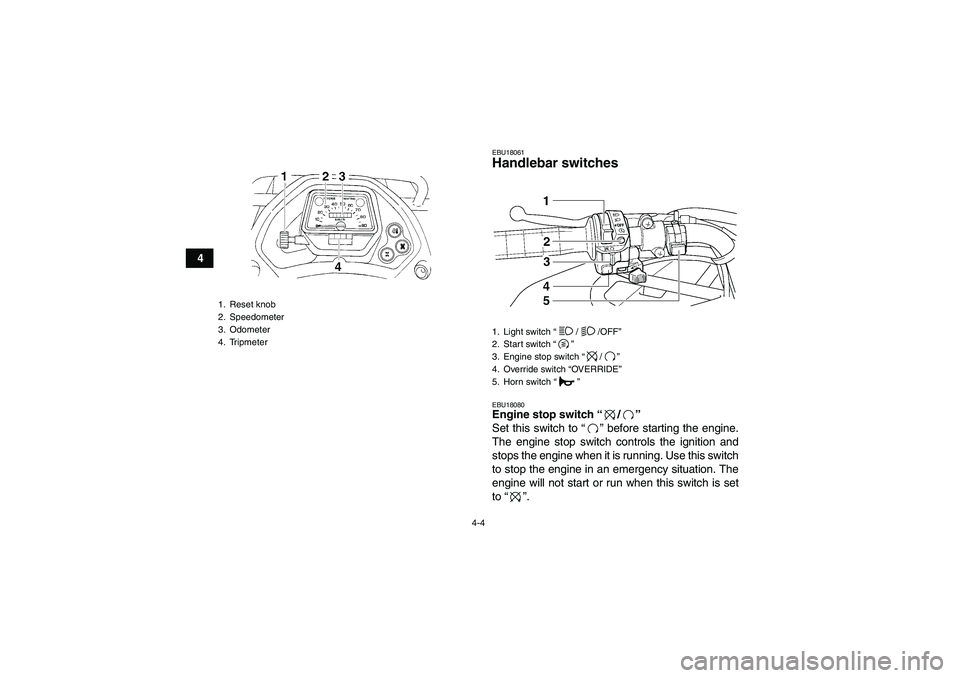

EBU18061Handlebar switches EBU18080Engine stop switch “/”
Set this switch to “” before starting the engine.
The engine stop switch controls the ignition and
stops the engine when it is running. Use this switch
to stop the engine in an emergency situation. The
engine will not start or run when this switch is set
to “”.
1. Reset knob
2. Speedometer
3. Odometer
4. Tripmeter
1. Light switch “/ /OFF”
2. Start switch “”
3. Engine stop switch “/”
4. Override switch “OVERRIDE”
5. Horn switch “”
U4S260E0.book Page 4 Tuesday, October 3, 2006 1:53 PM

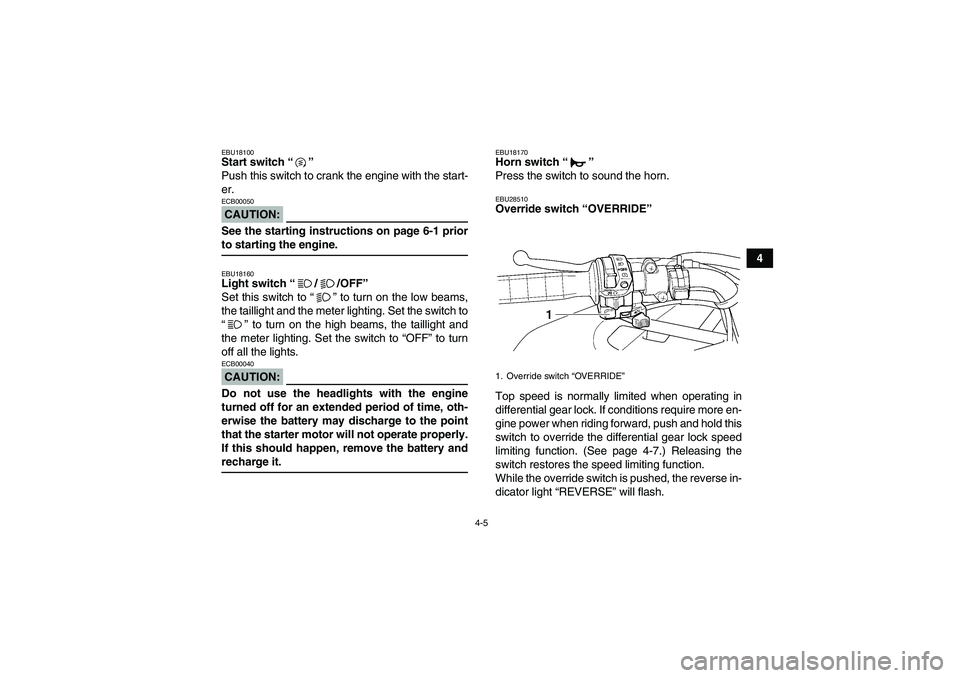

4-5
4
EBU18100Start switch “”
Push this switch to crank the engine with the start-
er.CAUTION:ECB00050See the starting instructions on page 6-1 priorto starting the engine.EBU18160Light switch “//OFF”
Set this switch to “” to turn on the low beams,
the taillight and the meter lighting. Set the switch to
“” to turn on the high beams, the taillight and
the meter lighting. Set the switch to “OFF” to turn
off all the lights.CAUTION:ECB00040Do not use the headlights with the engine
turned off for an extended period of time, oth-
erwise the battery may discharge to the point
that the starter motor will not operate properly.
If this should happen, remove the battery andrecharge it.
EBU18170Horn switch “”
Press the switch to sound the horn.EBU28510Override switch “OVERRIDE”
Top speed is normally limited when operating in
differential gear lock. If conditions require more en-
gine power when riding forward, push and hold this
switch to override the differential gear lock speed
limiting function. (See page 4-7.) Releasing the
switch restores the speed limiting function.
While the override switch is pushed, the reverse in-
dicator light “REVERSE” will flash.1. Override switch “OVERRIDE”
U4S260E0.book Page 5 Tuesday, October 3, 2006 1:53 PM

4-6
4

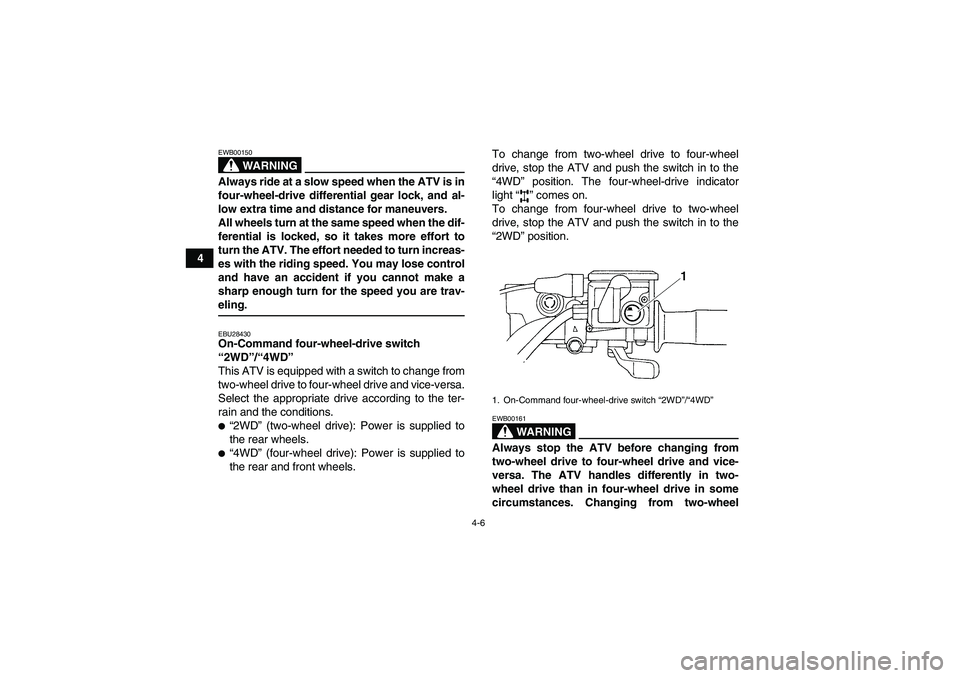

WARNING
EWB00150Always ride at a slow speed when the ATV is in
four-wheel-drive differential gear lock, and al-
low extra time and distance for maneuvers.
All wheels turn at the same speed when the dif-
ferential is locked, so it takes more effort to
turn the ATV. The effort needed to turn increas-
es with the riding speed. You may lose control
and have an accident if you cannot make a
sharp enough turn for the speed you are trav-eling.EBU28430On-Command four-wheel-drive switch
“2WD”/“4WD”
This ATV is equipped with a switch to change from
two-wheel drive to four-wheel drive and vice-versa.
Select the appropriate drive according to the ter-
rain and the conditions.
“2WD” (two-wheel drive): Power is supplied to
the rear wheels.
“4WD” (four-wheel drive): Power is supplied to
the rear and front wheels.To change from two-wheel drive to four-wheel
drive, stop the ATV and push the switch in to the
“4WD” position. The four-wheel-drive indicator
light “” comes on.
To change from four-wheel drive to two-wheel
drive, stop the ATV and push the switch in to the
“2WD” position.
WARNING
EWB00161Always stop the ATV before changing from
two-wheel drive to four-wheel drive and vice-
versa. The ATV handles differently in two-
wheel drive than in four-wheel drive in some
circumstances. Changing from two-wheel1. On-Command four-wheel-drive switch “2WD”/“4WD”
U4S260E0.book Page 6 Tuesday, October 3, 2006 1:53 PM

4-7

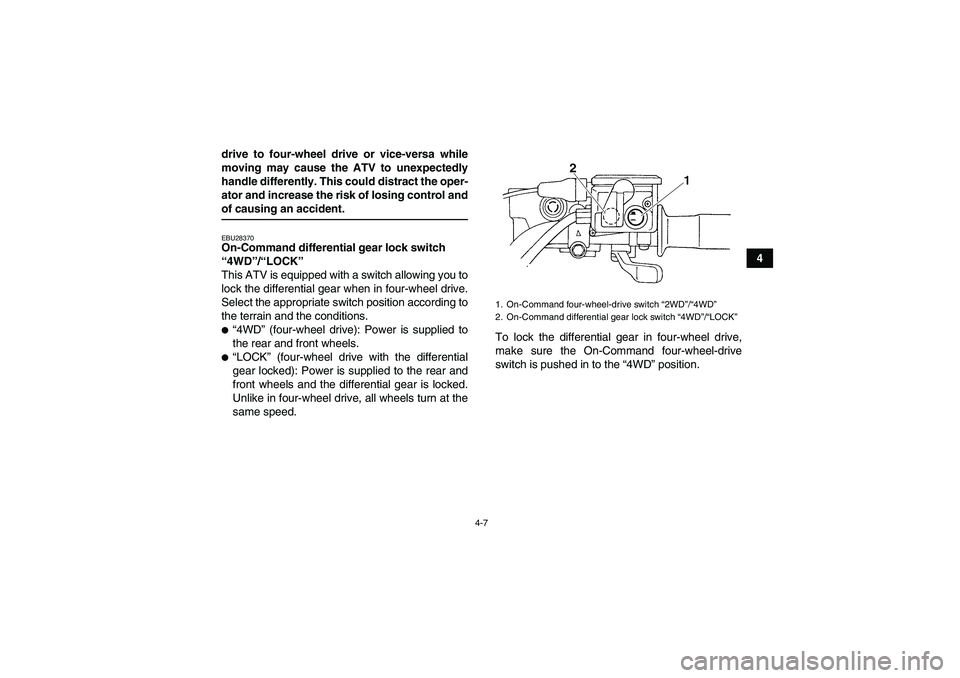

4 drive to four-wheel drive or vice-versa while
moving may cause the ATV to unexpectedly
handle differently. This could distract the oper-
ator and increase the risk of losing control and
of causing an accident.EBU28370On-Command differential gear lock switch
“4WD”/“LOCK”
This ATV is equipped with a switch allowing you to
lock the differential gear when in four-wheel drive.
Select the appropriate switch position according to
the terrain and the conditions.
“4WD” (four-wheel drive): Power is supplied to
the rear and front wheels.
“LOCK” (four-wheel drive with the differential
gear locked): Power is supplied to the rear and
front wheels and the differential gear is locked.
Unlike in four-wheel drive, all wheels turn at the
same speed.To lock the differential gear in four-wheel drive,
make sure the On-Command four-wheel-drive
switch is pushed in to the “4WD” position.
1. On-Command four-wheel-drive switch “2WD”/“4WD”
2. On-Command differential gear lock switch “4WD”/“LOCK”
U4S260E0.book Page 7 Tuesday, October 3, 2006 1:53 PM

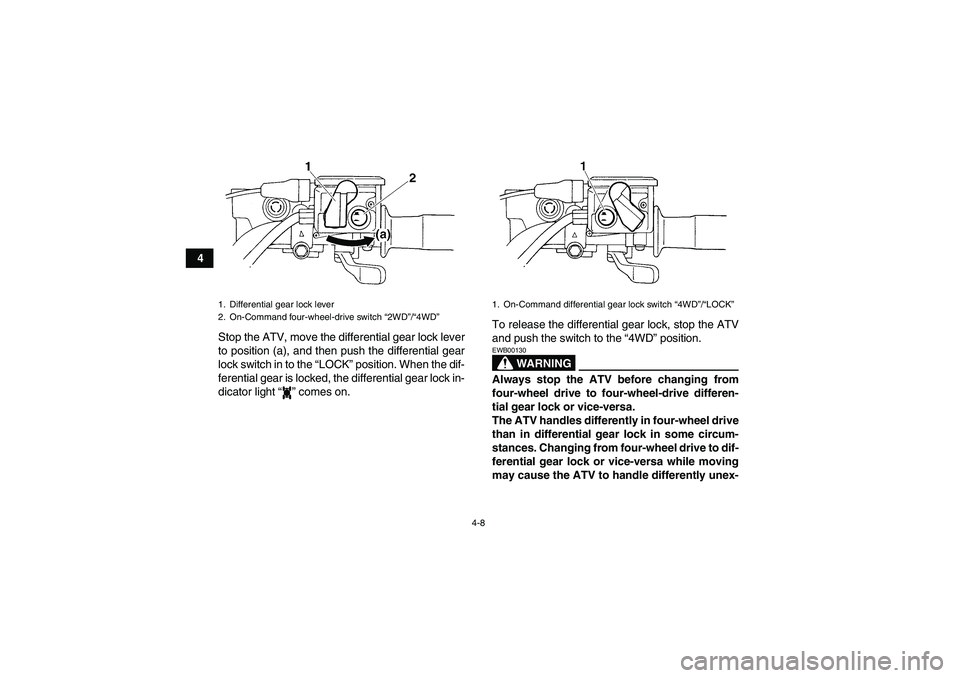

4-8
4
Stop the ATV, move the differential gear lock lever
to position (a), and then push the differential gear
lock switch in to the “LOCK” position. When the dif-
ferential gear is locked, the differential gear lock in-
dicator light “” comes on.To release the differential gear lock, stop the ATV
and push the switch to the “4WD” position.
WARNING
EWB00130Always stop the ATV before changing from
four-wheel drive to four-wheel-drive differen-
tial gear lock or vice-versa.
The ATV handles differently in four-wheel drive
than in differential gear lock in some circum-
stances. Changing from four-wheel drive to dif-
ferential gear lock or vice-versa while moving
may cause the ATV to handle differently unex-
1. Differential gear lock lever
2. On-Command four-wheel-drive switch “2WD”/“4WD”
1. On-Command differential gear lock switch “4WD”/“LOCK”
