INSTRUMENT AND CONTROL FUNCTIONS

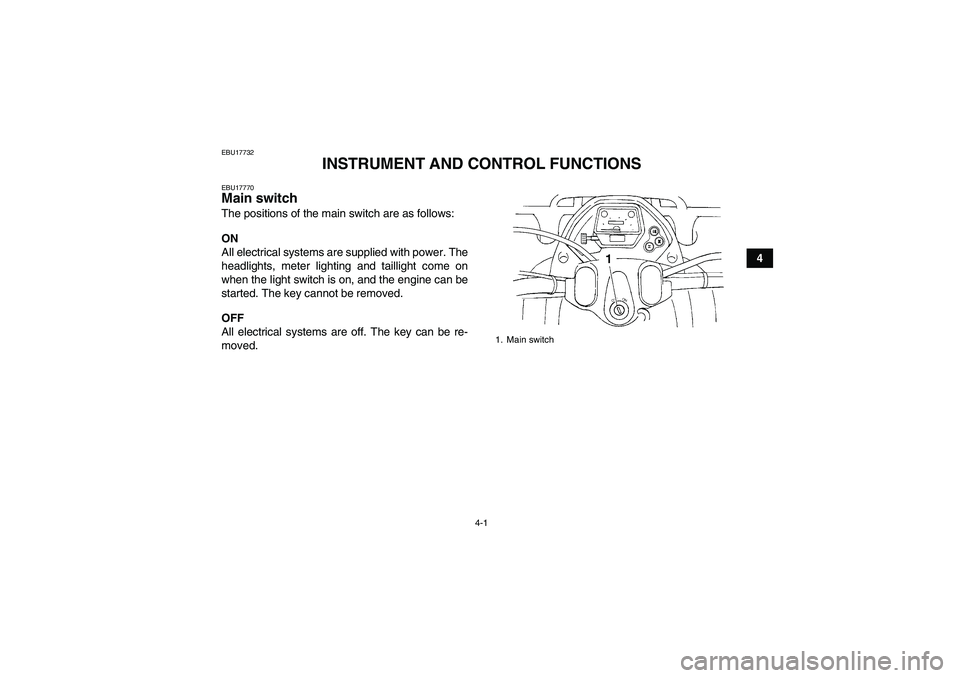

EBU17770Main switch The positions of the main switch are as follows:
ON
All electrical systems are supplied with power. The
headlights, meter lighting a

Page 22 of 144

YAMAHA GRIZZLY 350 2009 Owners Manual 4-2
4
EBU17813Indicator lights and warning light EBU28331Reverse indicator light “REVERSE”
This indicator light comes on when the transmis-
sion is in the reverse position.
Furthermore, this indi

Page 23 of 144

YAMAHA GRIZZLY 350 2009 Owners Manual 4-3

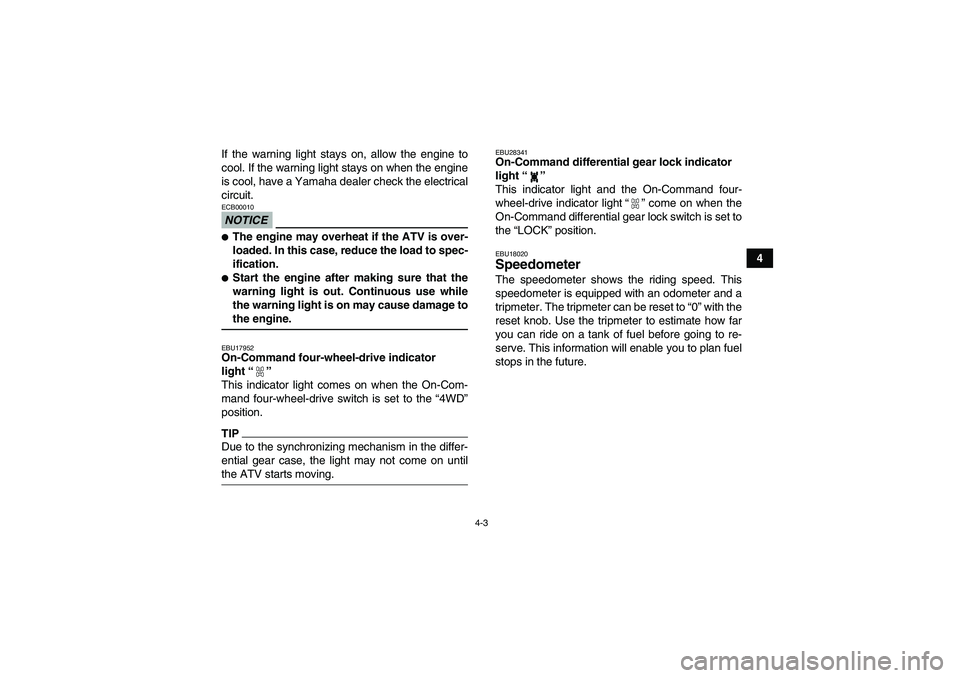

4 If the warning light stays on, allow the engine to
cool. If the warning light stays on when the engine
is cool, have a Yamaha dealer check the electrical
circuit.
NOTICEECB00010The engine may o

Page 24 of 144

YAMAHA GRIZZLY 350 2009 Owners Manual 4-4
4

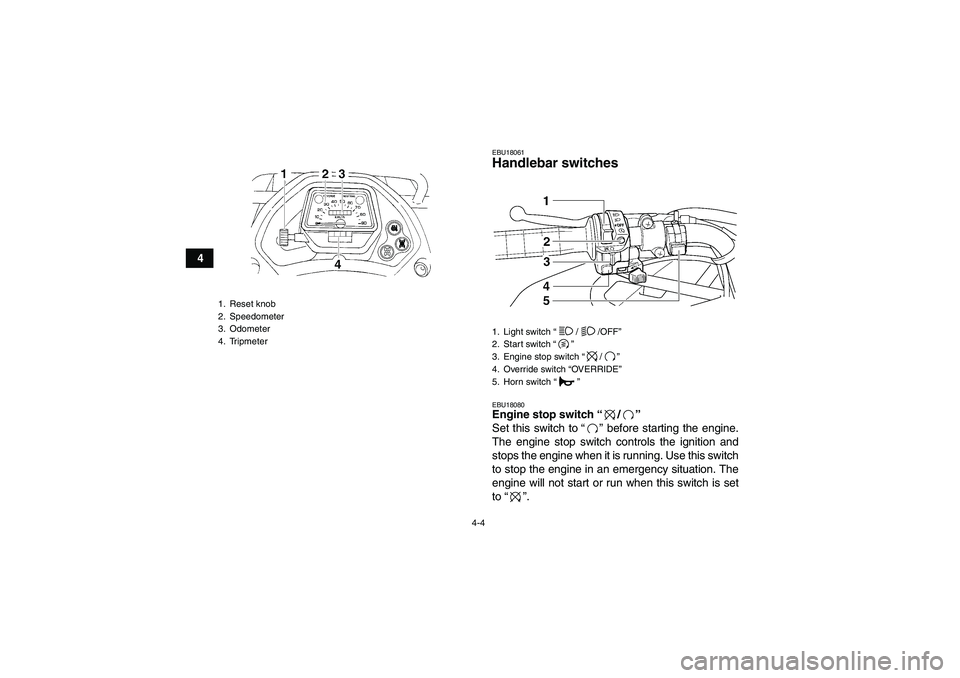

EBU18061Handlebar switches EBU18080Engine stop switch“/”
Set this switch to“” before starting the engine.
The engine stop switch controls the ignition and
stops the engine when it is ru

Page 25 of 144

YAMAHA GRIZZLY 350 2009 Owners Manual 4-5
4

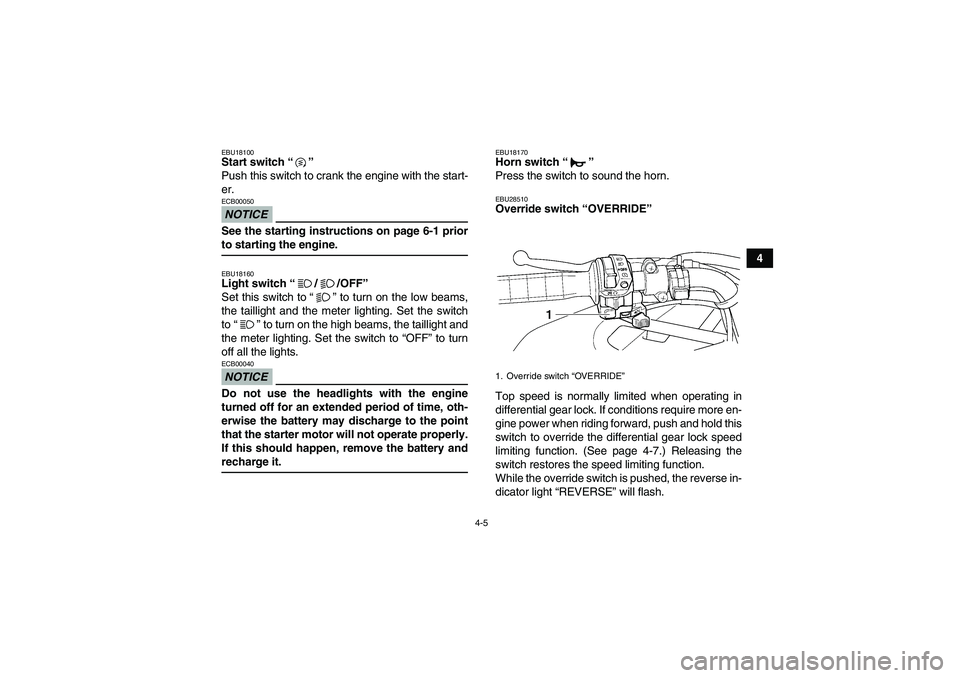

EBU18100Start switch“”
Push this switch to crank the engine with the start-
er.NOTICEECB00050See the starting instructions on page 6-1 priorto starting the engine.EBU18160Light switch“//O

Page 26 of 144

YAMAHA GRIZZLY 350 2009 Owners Manual 4-6
4

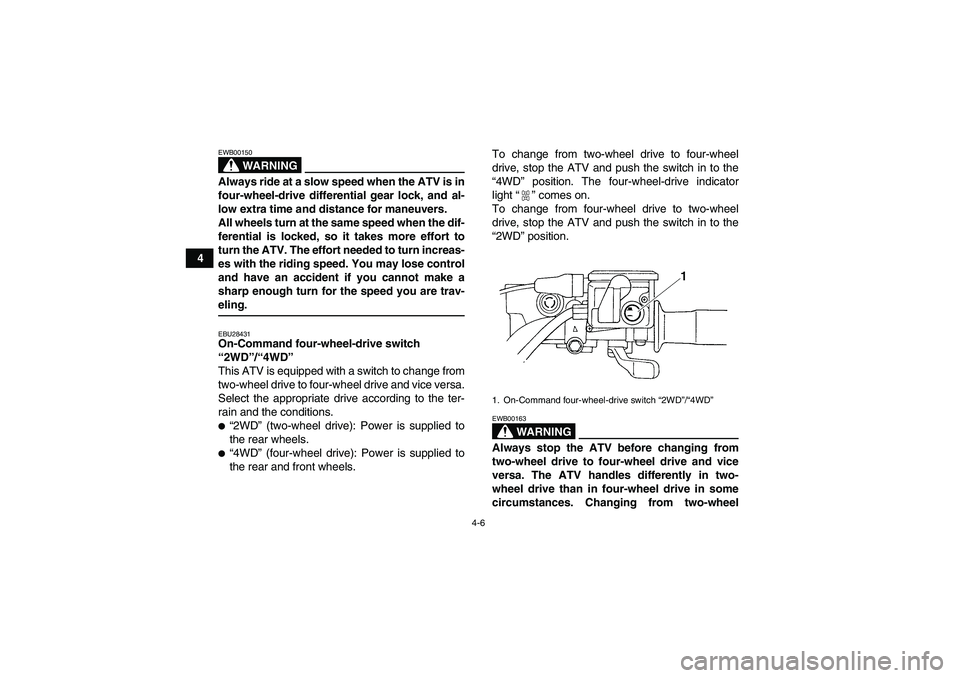

WARNING
EWB00150Always ride at a slow speed when the ATV is in
four-wheel-drive differential gear lock, and al-
low extra time and distance for maneuvers.
All wheels turn at the same speed when

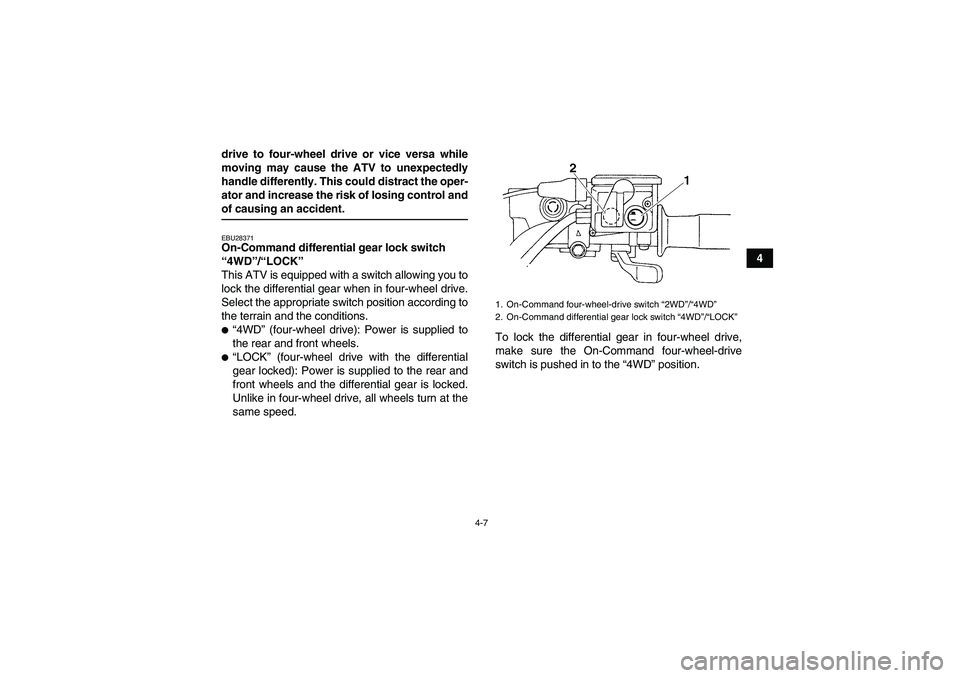

Page 27 of 144

YAMAHA GRIZZLY 350 2009 Owners Manual 4-7
4 drive to four-wheel drive or vice versa while
moving may cause the ATV to unexpectedly
handle differently. This could distract the oper-
ator and increase the risk of losing control and
of causi

Page 28 of 144

YAMAHA GRIZZLY 350 2009 Owners Manual 4-8
4

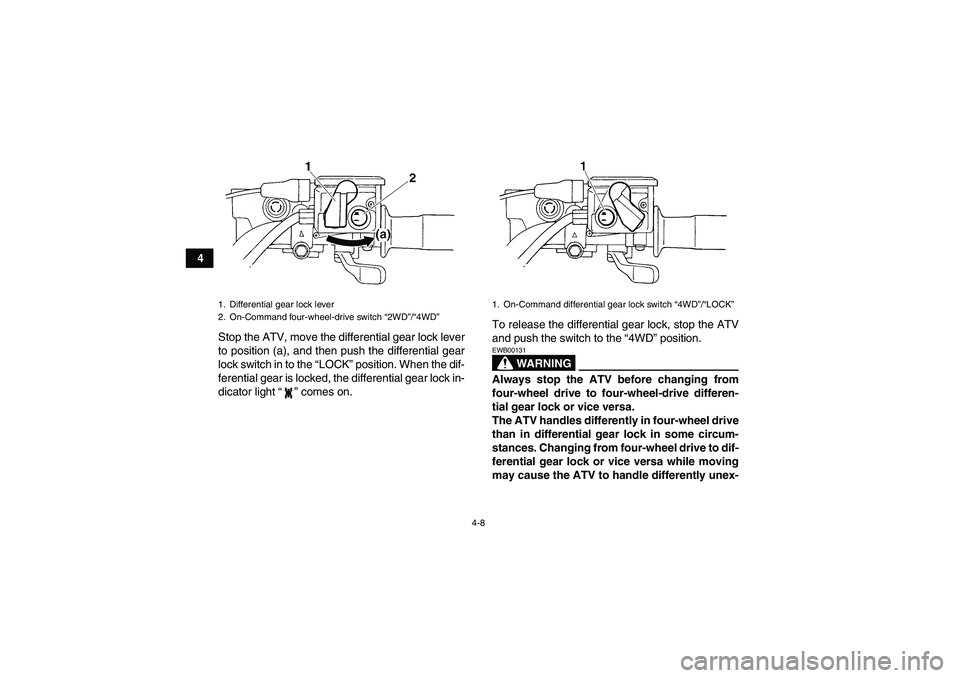

Stop the ATV, move the differential gear lock lever
to position (a), and then push the differential gear
lock switch in to the “LOCK” position. When the dif-
ferential gear is locked, the di

Page 29 of 144

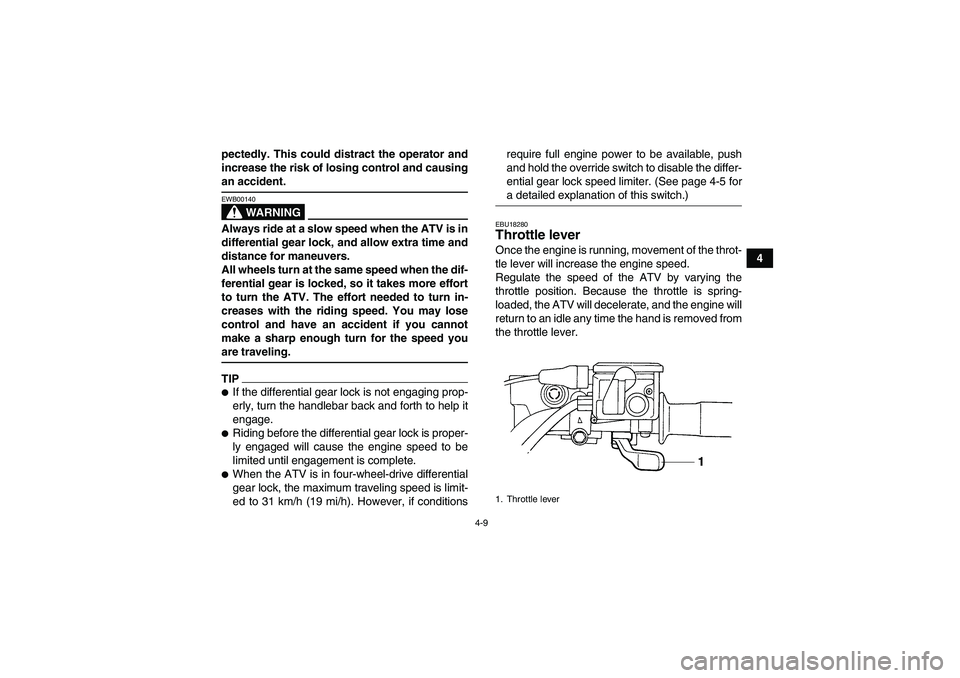

YAMAHA GRIZZLY 350 2009 Owners Manual 4-9
4 pectedly. This could distract the operator and
increase the risk of losing control and causing
an accident.
WARNING
EWB00140Always ride at a slow speed when the ATV is in
differential gear lock,

Page 30 of 144

YAMAHA GRIZZLY 350 2009 Owners Manual 4-10

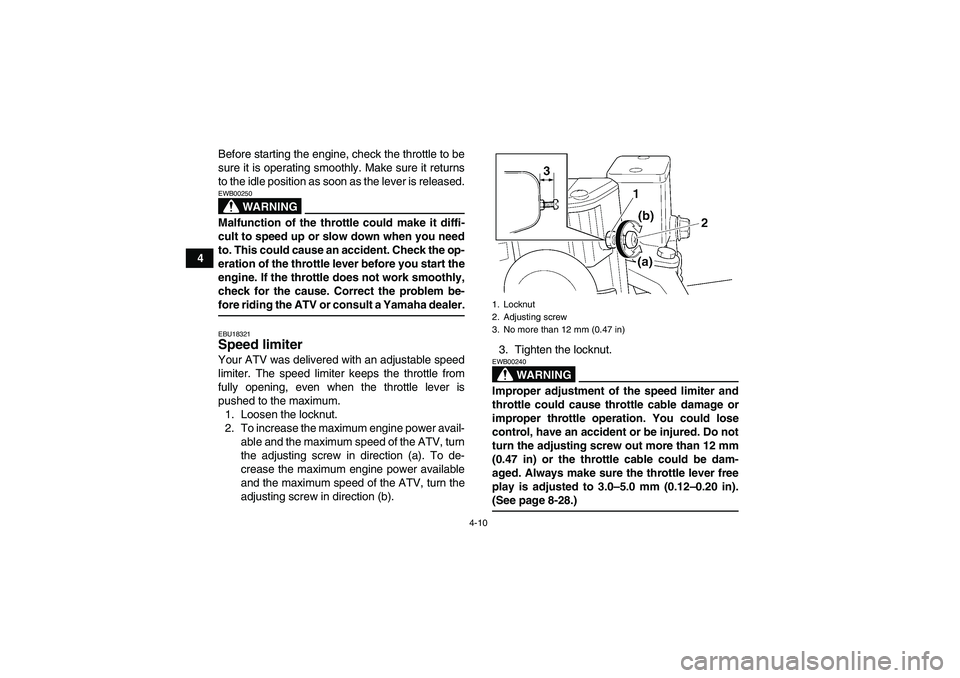

4Before starting the engine, check the throttle to be
sure it is operating smoothly. Make sure it returns
to the idle position as soon as the lever is released.
WARNING
EWB00250Malfunction of the
