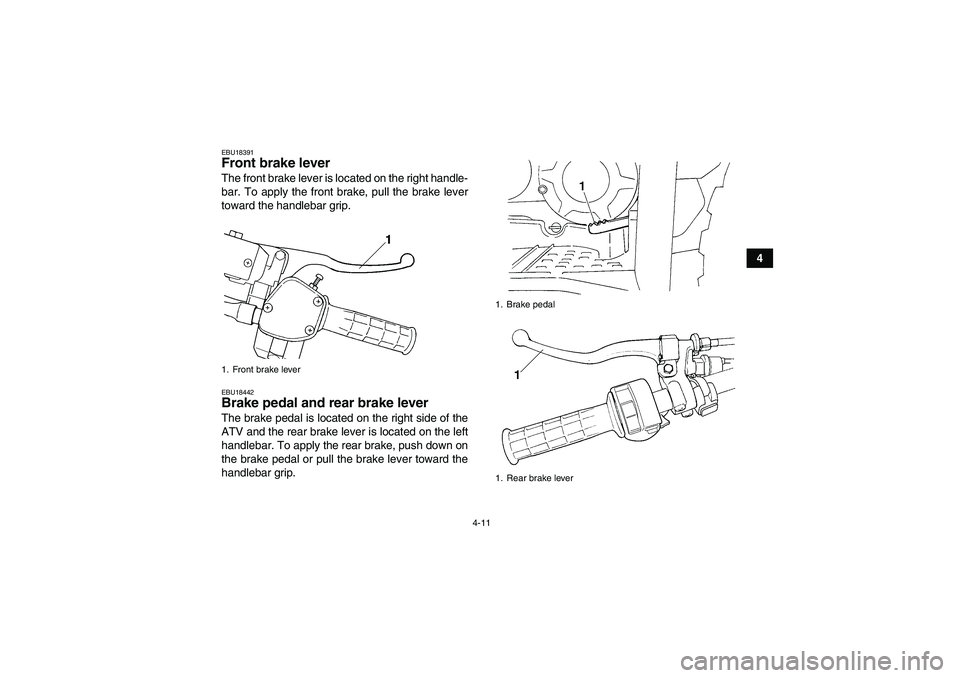

EBU18391Front brake lever The front brake lever is located on the right handle-
bar. To apply the front brake, pull the brake lever
toward the handlebar grip.EBU18442Brake pedal and rear brake lever The brake pedal is located on the right side of the
ATV and the rear brake lever is located on the left
handlebar. To apply the rear brake, push down on
the brake pedal or pull the brake lever toward the
handlebar grip.1. Front brake lever
1. Brake pedal
1. Rear brake lever
U4S262E0.book Page 11 Tuesday, June 10, 2008 11:40 AM

4-12
4

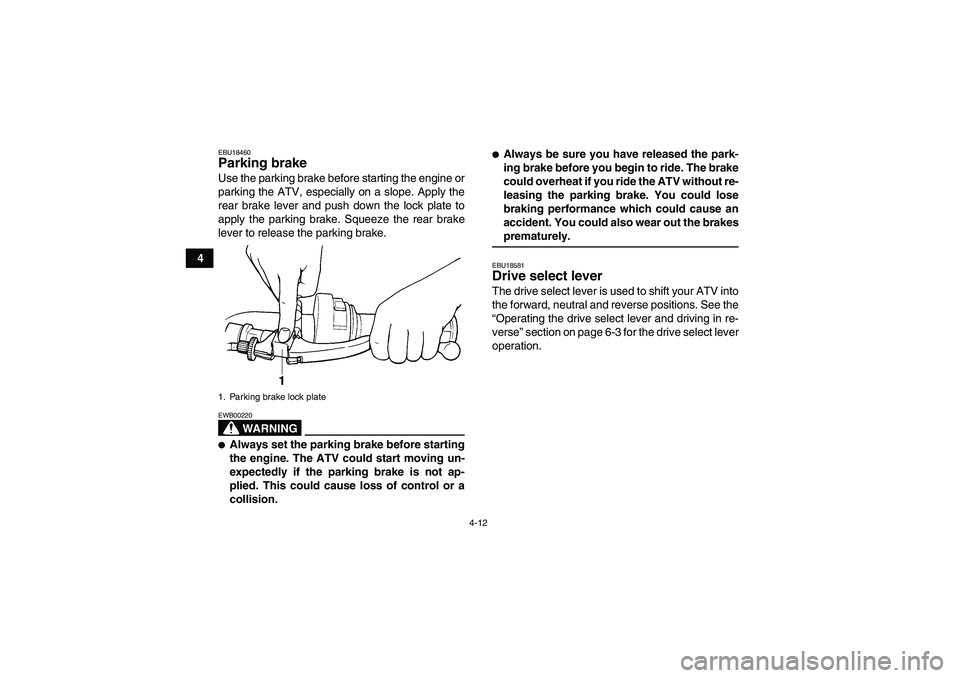

EBU18460Parking brake Use the parking brake before starting the engine or
parking the ATV, especially on a slope. Apply the
rear brake lever and push down the lock plate to
apply the parking brake. Squeeze the rear brake
lever to release the parking brake.
WARNING
EWB00220
Always set the parking brake before starting
the engine. The ATV could start moving un-
expectedly if the parking brake is not ap-
plied. This could cause loss of control or a
collision.

Always be sure you have released the park-
ing brake before you begin to ride. The brake
could overheat if you ride the ATV without re-
leasing the parking brake. You could lose
braking performance which could cause an
accident. You could also wear out the brakesprematurely.EBU18581Drive select lever The drive select lever is used to shift your ATV into
the forward, neutral and reverse positions. See the
“Operating the drive select lever and driving in re-
verse” section on page 6-3 for the drive select lever
operation.
1. Parking brake lock plateU4S262E0.book Page 12 Tuesday, June 10, 2008 11:40 AM

4-13
4

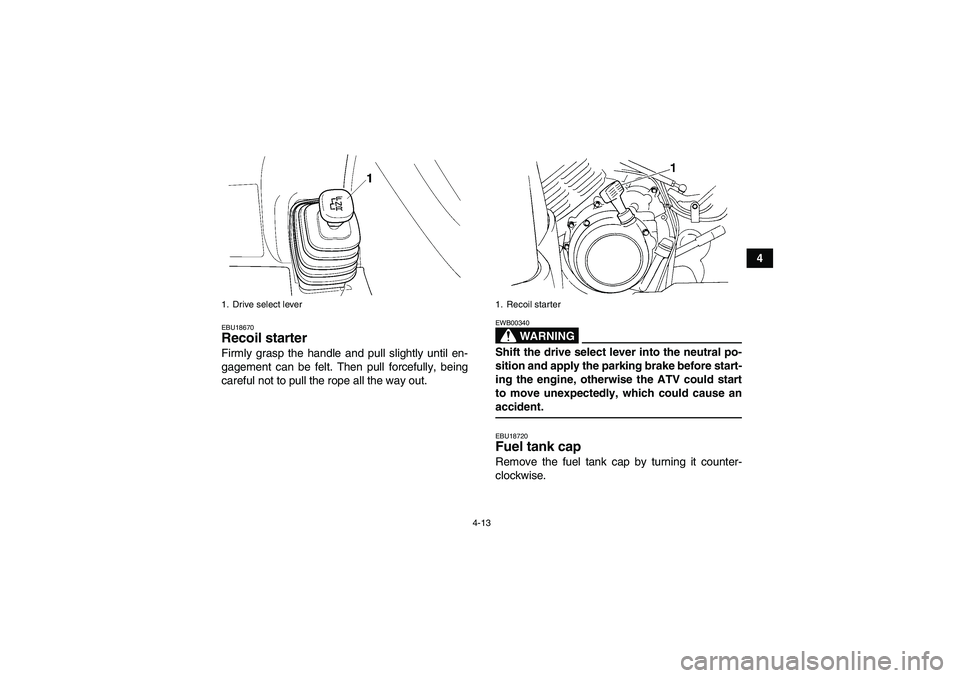

EBU18670Recoil starter Firmly grasp the handle and pull slightly until en-
gagement can be felt. Then pull forcefully, being
careful not to pull the rope all the way out.
WARNING
EWB00340Shift the drive select lever into the neutral po-
sition and apply the parking brake before start-
ing the engine, otherwise the ATV could start
to move unexpectedly, which could cause anaccident.EBU18720Fuel tank cap Remove the fuel tank cap by turning it counter-
clockwise.
1. Drive select lever
1. Recoil starter
U4S262E0.book Page 13 Tuesday, June 10, 2008 11:40 AM

4-14
4

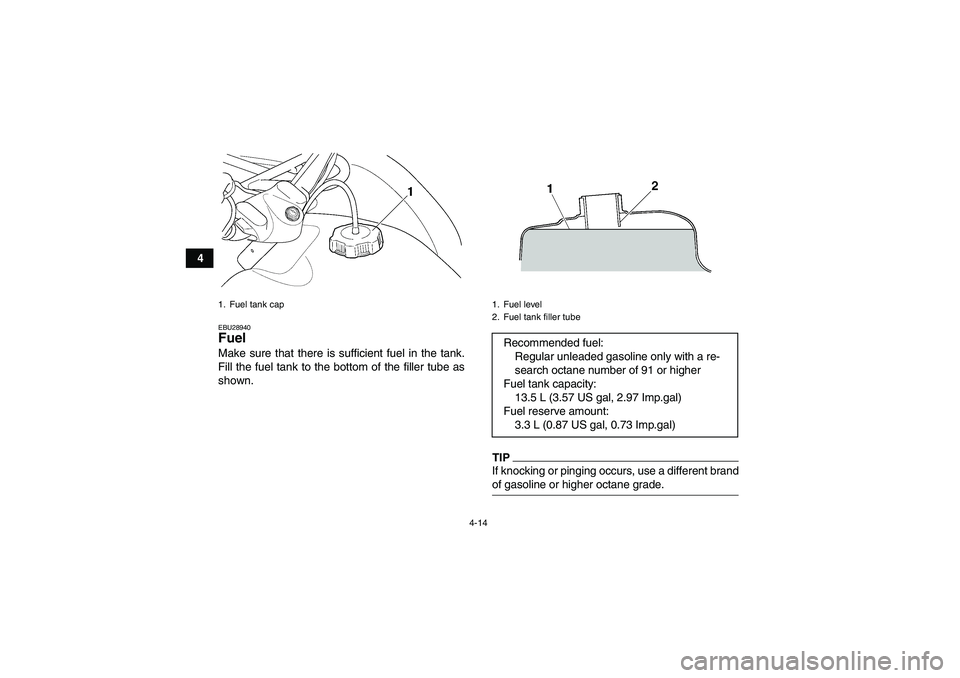

EBU28940Fuel Make sure that there is sufficient fuel in the tank.
Fill the fuel tank to the bottom of the filler tube as
shown.
TIPIf knocking or pinging occurs, use a different brandof gasoline or higher octane grade.
1. Fuel tank cap
1. Fuel level
2. Fuel tank filler tubeRecommended fuel:
Regular unleaded gasoline only with a re-
search octane number of 91 or higher
Fuel tank capacity:
13.5 L (3.57 US gal, 2.97 Imp.gal)
Fuel reserve amount:
3.3 L (0.87 US gal, 0.73 Imp.gal)
U4S262E0.book Page 14 Tuesday, June 10, 2008 11:40 AM

4-15
4

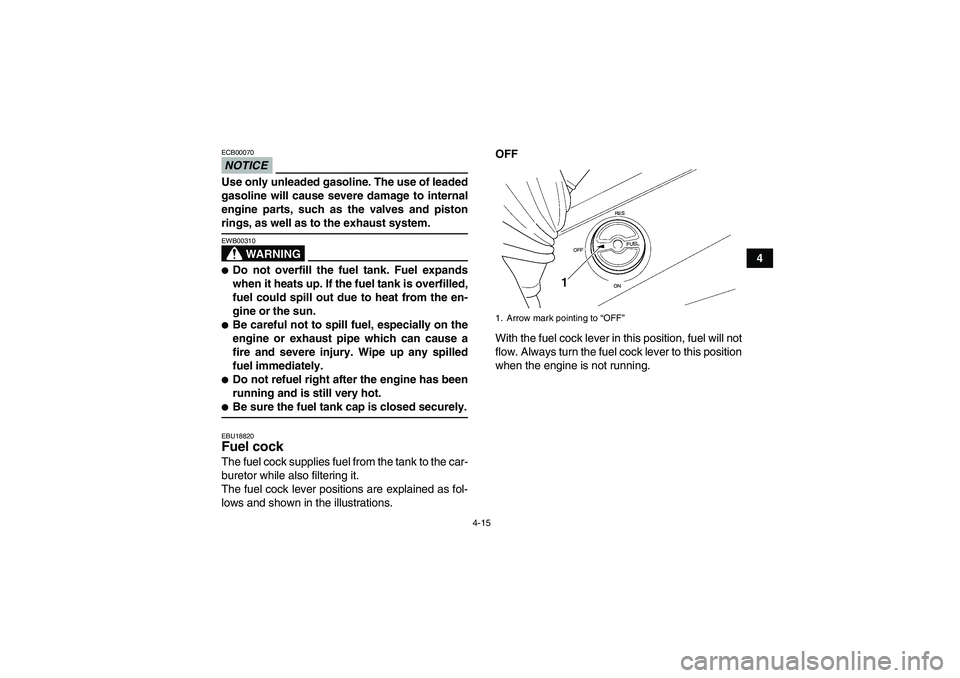

NOTICEECB00070Use only unleaded gasoline. The use of leaded
gasoline will cause severe damage to internal
engine parts, such as the valves and pistonrings, as well as to the exhaust system.
WARNING
EWB00310
Do not overfill the fuel tank. Fuel expands
when it heats up. If the fuel tank is overfilled,
fuel could spill out due to heat from the en-
gine or the sun.
Be careful not to spill fuel, especially on the
engine or exhaust pipe which can cause a
fire and severe injury. Wipe up any spilled
fuel immediately.
Do not refuel right after the engine has been
running and is still very hot.
Be sure the fuel tank cap is closed securely.EBU18820Fuel cock The fuel cock supplies fuel from the tank to the car-
buretor while also filtering it.
The fuel cock lever positions are explained as fol-
lows and shown in the illustrations.OFF
With the fuel cock lever in this position, fuel will not
flow. Always turn the fuel cock lever to this position
when the engine is not running.
1. Arrow mark pointing to “OFF”
U4S262E0.book Page 15 Tuesday, June 10, 2008 11:40 AM

4-16

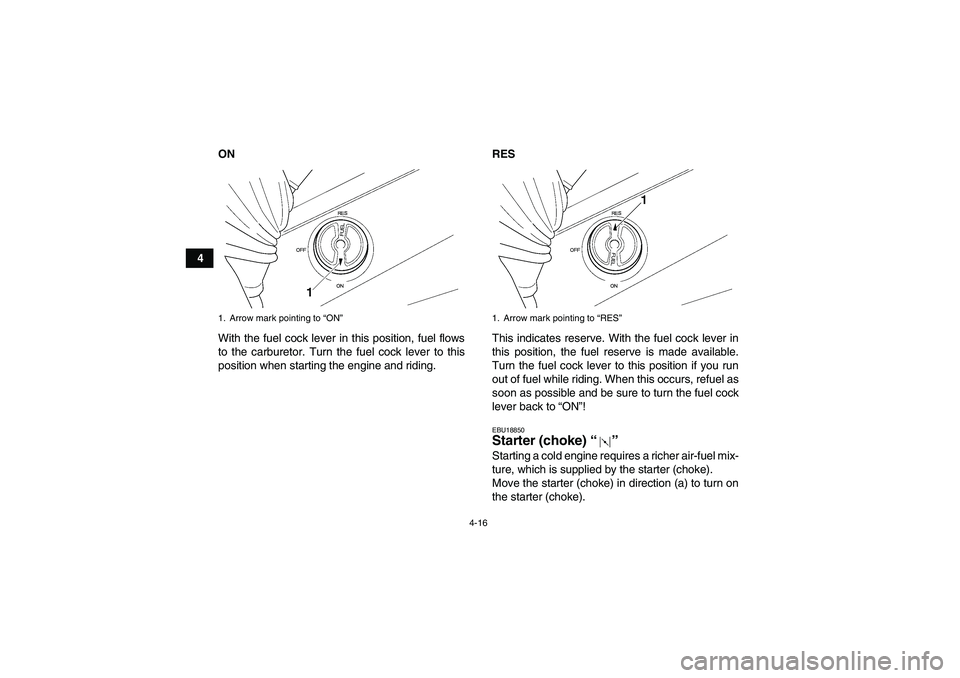

4ON
With the fuel cock lever in this position, fuel flows
to the carburetor. Turn the fuel cock lever to this
position when starting the engine and riding.RES
This indicates reserve. With the fuel cock lever in
this position, the fuel reserve is made available.
Turn the fuel cock lever to this position if you run
out of fuel while riding. When this occurs, refuel as
soon as possible and be sure to turn the fuel cock
lever back to “ON”!
EBU18850Starter (choke)“” Starting a cold engine requires a richer air-fuel mix-
ture, which is supplied by the starter (choke).
Move the starter (choke) in direction (a) to turn on
the starter (choke).
1. Arrow mark pointing to “ON”
1. Arrow mark pointing to “RES”
U4S262E0.book Page 16 Tuesday, June 10, 2008 11:40 AM

4-17

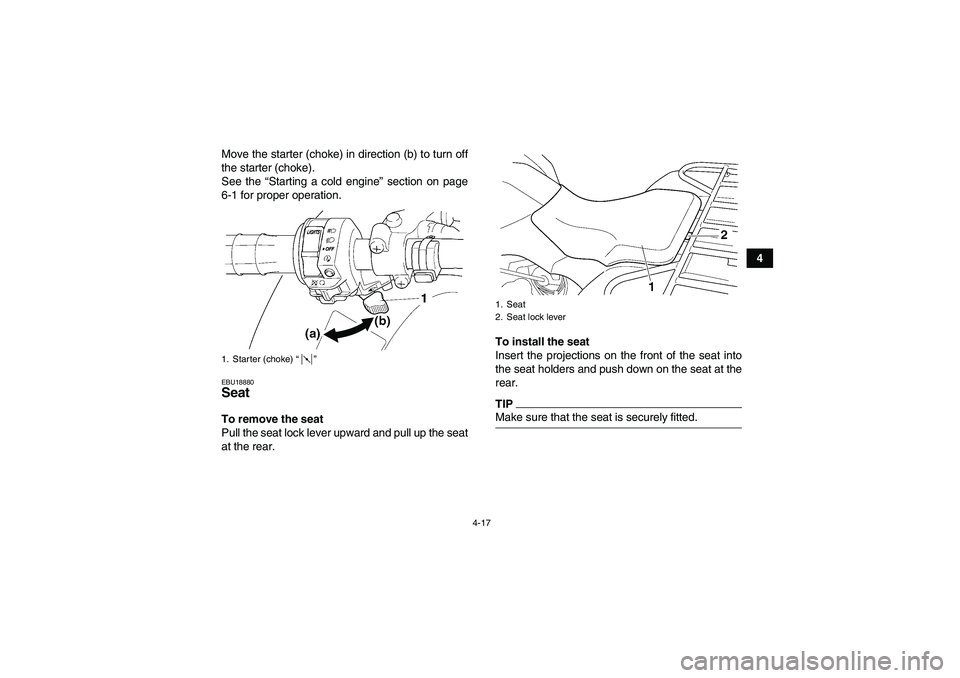

4 Move the starter (choke) in direction (b) to turn off
the starter (choke).
See the “Starting a cold engine” section on page
6-1 for proper operation.
EBU18880Seat To remove the seat
Pull the seat lock lever upward and pull up the seat
at the rear.To install the seat
Insert the projections on the front of the seat into
the seat holders and push down on the seat at the
rear.
TIPMake sure that the seat is securely fitted.
1. Starter (choke)“”
1. Seat
2. Seat lock lever
U4S262E0.book Page 17 Tuesday, June 10, 2008 11:40 AM

4-18
4

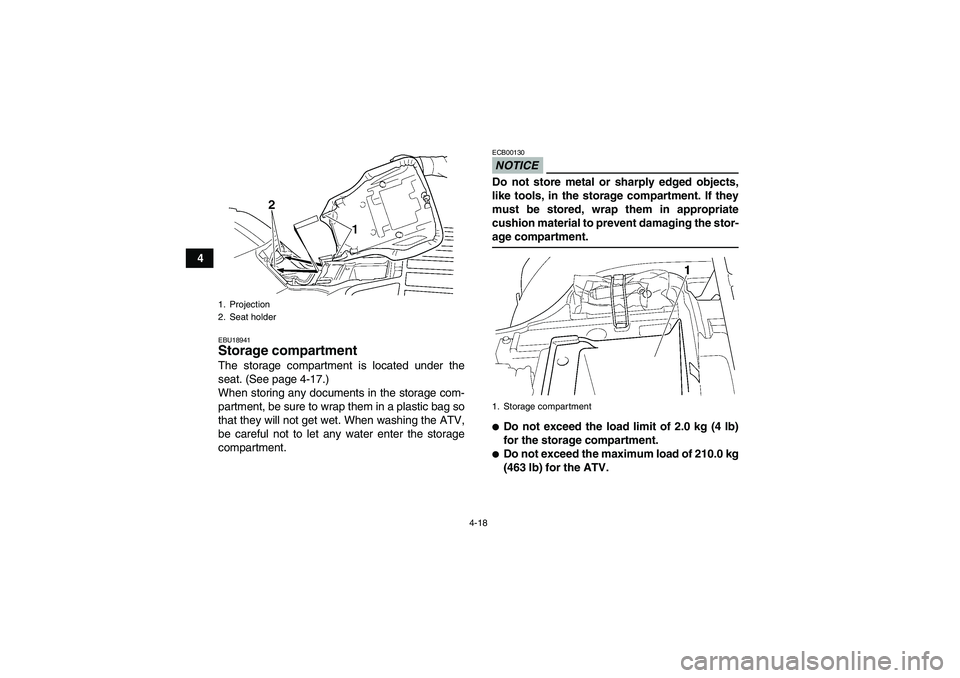

EBU18941Storage compartment The storage compartment is located under the
seat. (See page 4-17.)
When storing any documents in the storage com-
partment, be sure to wrap them in a plastic bag so
that they will not get wet. When washing the ATV,
be careful not to let any water enter the storage
compartment.
NOTICEECB00130Do not store metal or sharply edged objects,
like tools, in the storage compartment. If they
must be stored, wrap them in appropriate
cushion material to prevent damaging the stor-age compartment.
Do not exceed the load limit of 2.0 kg (4 lb)
for the storage compartment.
Do not exceed the maximum load of 210.0 kg
(463 lb) for the ATV.
1. Projection
2. Seat holder
1. Storage compartment
U4S262E0.book Page 18 Tuesday, June 10, 2008 11:40 AM

4-19
4

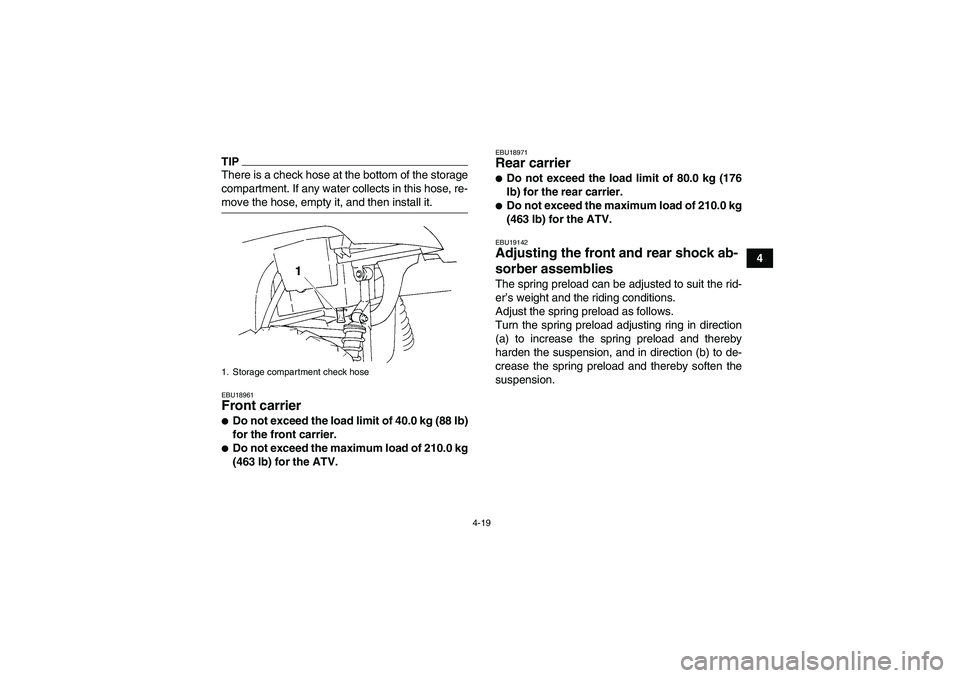

TIPThere is a check hose at the bottom of the storage
compartment. If any water collects in this hose, re-move the hose, empty it, and then install it.EBU18961Front carrier
Do not exceed the load limit of 40.0 kg (88 lb)
for the front carrier.
Do not exceed the maximum load of 210.0 kg
(463 lb) for the ATV.
EBU18971Rear carrier
Do not exceed the load limit of 80.0 kg (176
lb) for the rear carrier.
Do not exceed the maximum load of 210.0 kg
(463 lb) for the ATV.EBU19142Adjusting the front and rear shock ab-
sorber assemblies The spring preload can be adjusted to suit the rid-
er’s weight and the riding conditions.
Adjust the spring preload as follows.
Turn the spring preload adjusting ring in direction
(a) to increase the spring preload and thereby
harden the suspension, and in direction (b) to de-
crease the spring preload and thereby soften the
suspension.
1. Storage compartment check hoseU4S262E0.book Page 19 Tuesday, June 10, 2008 11:40 AM

4-20
4
TIPA special wrench can be obtained at a Yamahadealer to make this adjustment.1. Spring preload adjusting ring
2. Position indicator
1. Special wrenchSpring preload setting:
Minimum (soft):
1
Standard:
2
Maximum (hard):
5
