YAMAHA GRIZZLY 350 2017 Owners Manual

8-32
8
1. Fully loosen the brake lever free play adjust-
ing nut on the brake cable at the rear wheel
hub.
2. Turn the brake pedal free play adjusting nut on the brake cable at the rear wheel hub in di-
rection (a) to increase the free play, and in di-
rection (b) to decrease it. Adjusting the brake lever free play
The brake lever free play should measure 3.0–5.0
mm (0.12–0.20 in) as shown. If the free play is in-
correct, adjust it as follows.

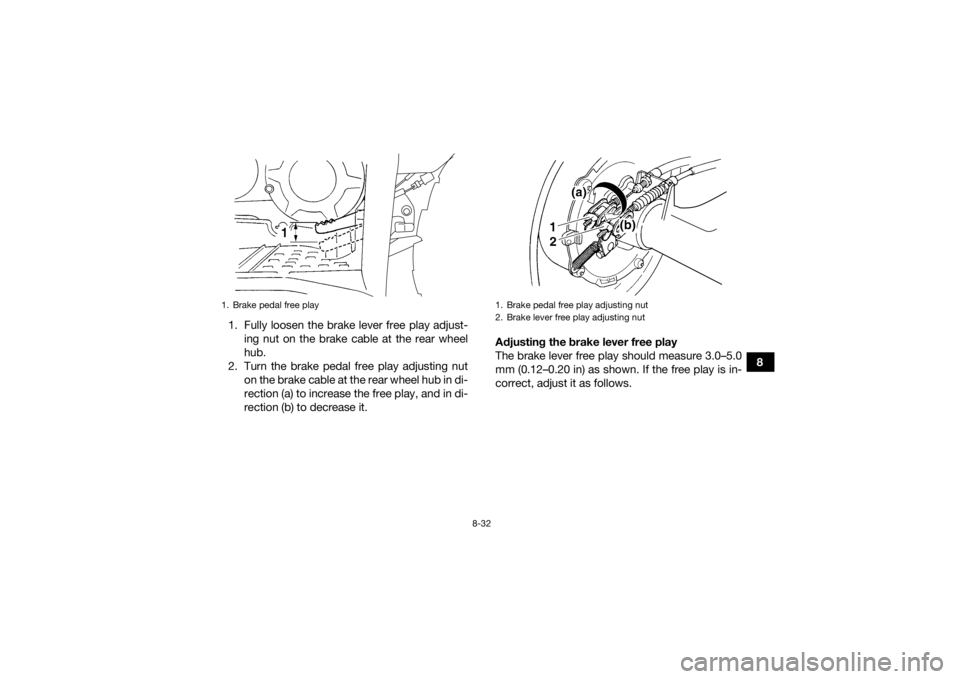

1. Brake pedal free play
1. Brake pedal free play adjusting nut
2. Brake lever free play adjusting nut
UB1463E0.book Page 32 Thursday, August 4, 2016 2:12 PM

8-33
81. Loosen the locknut at the brake lever and fully
turn in the brake lever free play adjusting bolt.
2. Turn the brake lever free play adjusting nut on the brake cable at the rear wheel hub so that
gap “A” measures 0–1 mm (0–0.04 in). 3. Turn the brake lever free play adjusting bolt at
the brake lever in direction (a) to increase the
free play, and in direction (b) to decrease it.

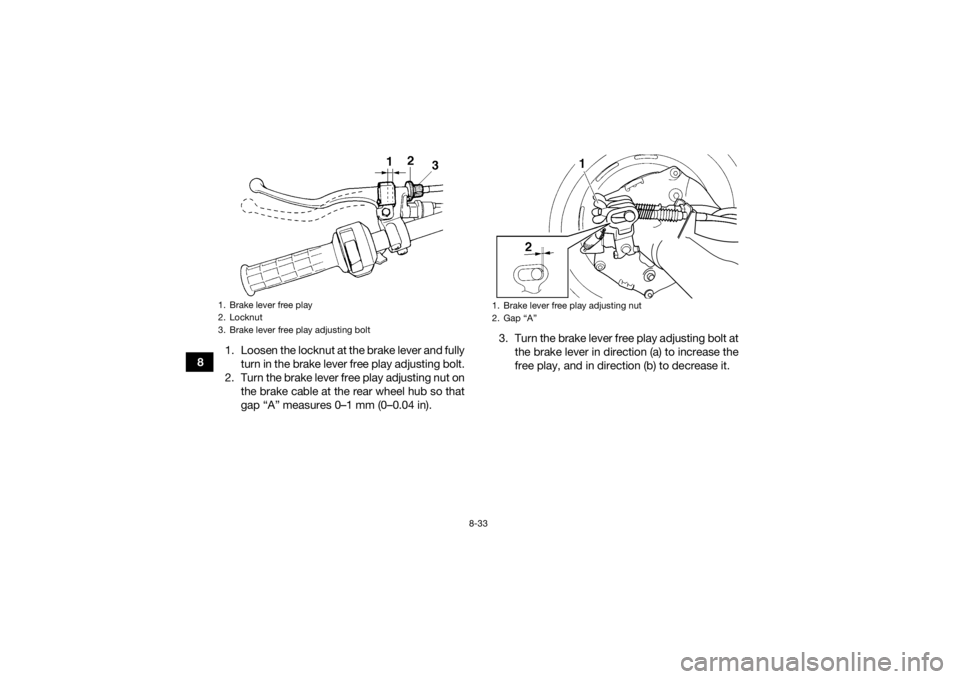

1. Brake lever free play
2. Locknut
3. Brake lever free play adjusting bolt
1. Brake lever free play adjusting nut
2. Gap “A”
UB1463E0.book Page 33 Thursday, August 4, 2016 2:12 PM

8-34
8
4. Tighten the locknut at the brake lever.
5. Check gap “A” again and, if necessary, adjust
it.
TIPWhen adjusting the rear brake lever free play:
Be sure not to step on the brake pedal.
 Make sure the brake pedal does not move.
EBU29882Brake light switchesThe brake light, which is activated by the brake
pedal and brake levers, should come on just be-
fore braking takes effect.
The rear brake light switch for the brake pedal can
be adjusted as follows, but the other brake light
switches should be adjusted by a Yamaha dealer.
Turn the rear brake light switch adjusting nut while
holding the brake light switch in place. To make
the brake light come on earlier, turn the adjusting
nut in direction (a). To make the brake light come
on later, turn the adjusting nut in direction (b).

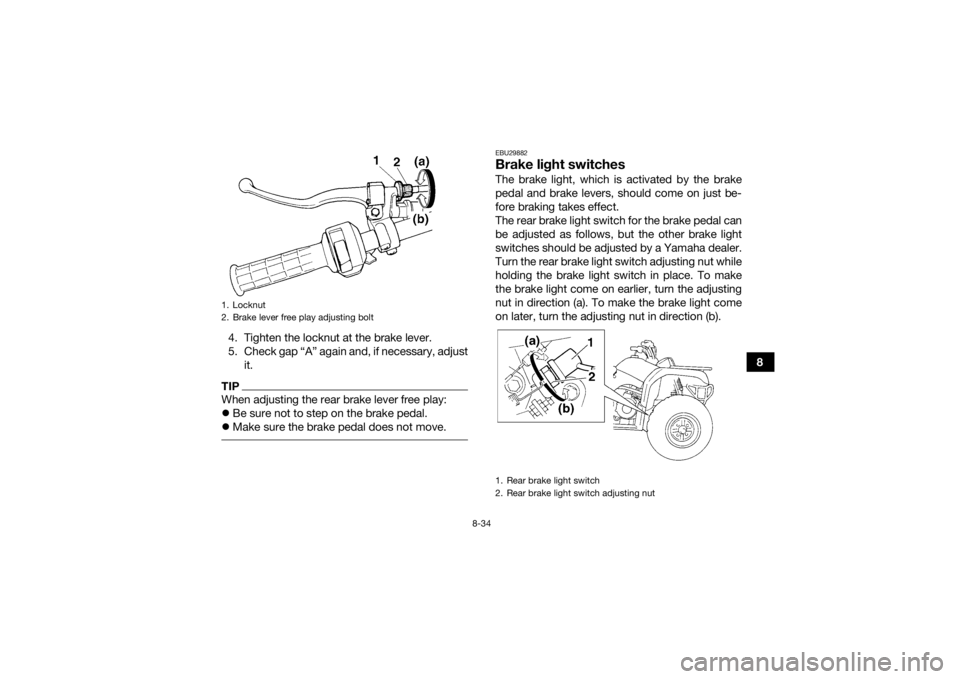

1. Locknut
2. Brake lever free play adjusting bolt
1. Rear brake light switch
2. Rear brake light switch adjusting nut
UB1463E0.book Page 34 Thursday, August 4, 2016 2:12 PM

8-35
8
EBU24905Checking and lubricating the cablesThe operation and the condition of all control ca-
bles should be checked before each ride, and the
cables and cable ends should be lubricated if nec-
essary. If a cable is damaged or does not move
smoothly, have a Yamaha dealer check or replace
it.
WARNING
EWB02582Inspect cables frequently and replace if
damaged. Corrosion can result when the ca-
ble sheaths become damaged, and cables
can also become frayed or kinked, which
could restrict the operation of controls and
lead to an accident or injury.
 Always make sure all control cables work
smoothly before you begin riding in cold
weather. If the control cables are frozen or do not work smoothly, you could be unable
to control the ATV, which could lead to an
accident or collision.
EBU28712Checking and lubricating the front and
rear brake leversThe operation of the front and rear brake levers
should be checked before each ride, and the lever
pivots should be lubricated if necessary.
Recommended lubricant:
Yamaha cable lubricant or other suitable cable lubricantRecommended lubricants: Front brake lever:Silicone grease
Rear brake lever: Lithium-soap-based grease
UB1463E0.book Page 35 Thursday, August 4, 2016 2:12 PM

8-36
8

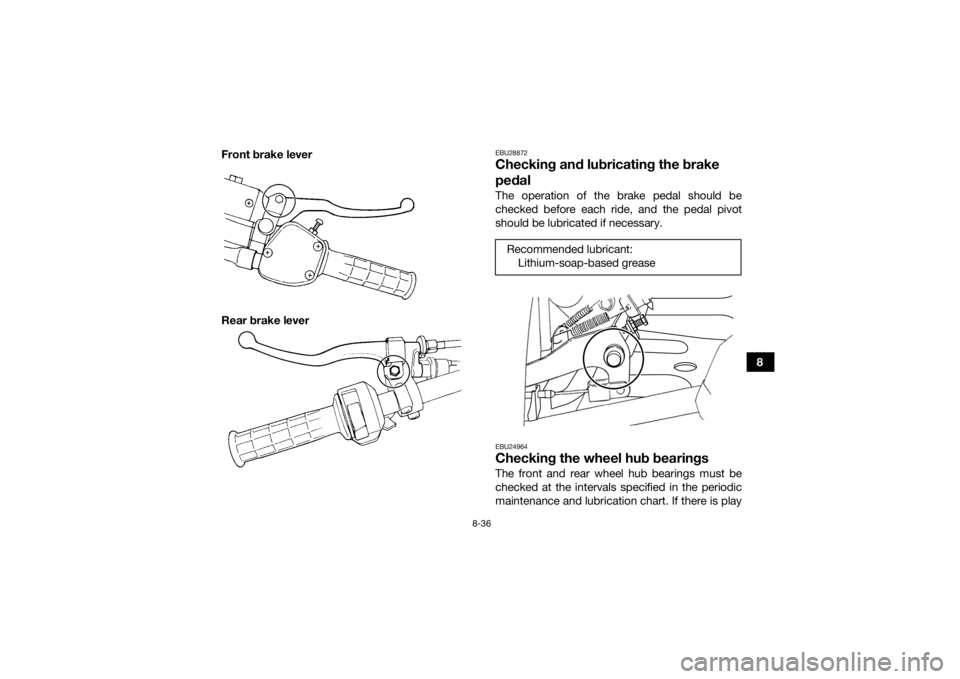

Front brake lever
Rear brake lever
EBU28872Checking and lubricating the brake
pedalThe operation of the brake pedal should be
checked before each ride, and the pedal pivot

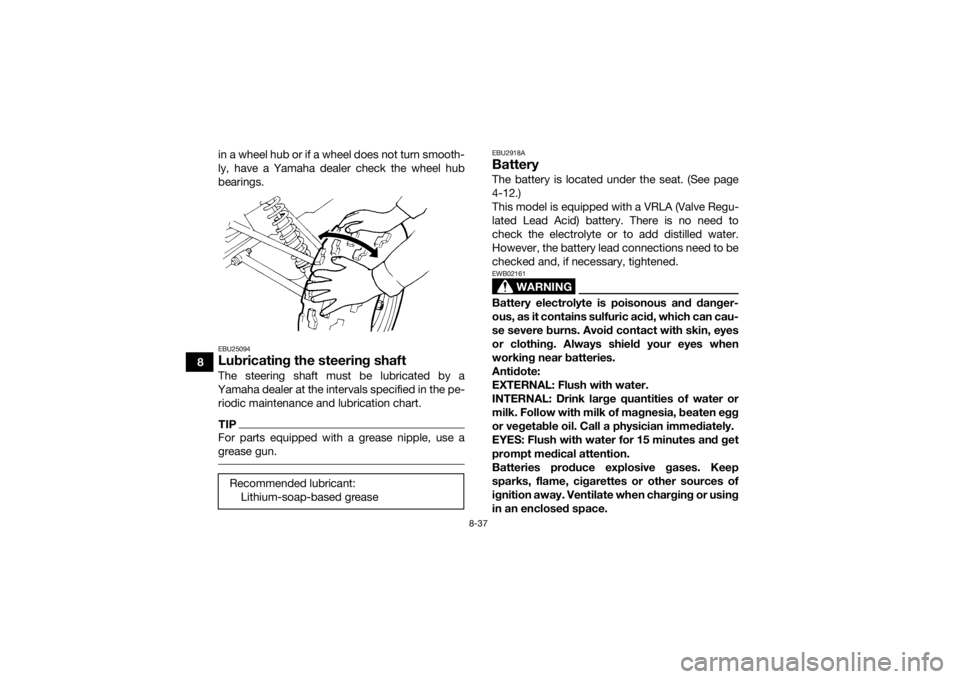

should be lubricated if necessary.EBU24964Checking the wheel hub bearingsThe front and rear wheel hub bearings must be
checked at the intervals specified in the periodic
maintenance and lubrication chart. If there is playRecommended lubricant:
Lithium-soap-based grease
UB1463E0.book Page 36 Thursday, August 4, 2016 2:12 PM

8-37
8in a wheel hub or if a wheel does not turn smooth-
ly, have a Yamaha dealer check the wheel hub
bearings.
EBU25094Lubricating the steering shaftThe steering shaft must be lubricated by a
Yamaha dealer at the intervals specified in the pe- riodic maintenance and lubrication chart.TIPFor parts equipped with a grease nipple, use a
grease gun.
EBU2918ABatteryThe battery is located under the seat. (See page
4-12.)
This model is equipped with a VRLA (Valve Regu-
lated Lead Acid) battery. There is no need to
check the electrolyte or to add distilled water.
However, the battery lead connections need to be
checked and, if necessary, tightened.
WARNING
EWB02161Battery electrolyte is poisonous and danger-
ous, as it contains sulfuric acid, which can cau-
se severe burns. Avoid contact with skin, eyes
or clothing. Always shield your eyes when
working near batteries.
Antidote:
EXTERNAL: Flush with water.
INTERNAL: Drink large quantities of water or
milk. Follow with milk of magnesia, beaten egg
or vegetable oil. Call a physician immediately.
EYES: Flush with water for 15 minutes and get
prompt medical attention.
Batteries produce explosive gases. Keep
sparks, flame, cigarettes or other sources of
ignition away. Ventilate when charging or using
in an enclosed space.
Recommended lubricant:
Lithium-soap-based grease
UB1463E0.book Page 37 Thursday, August 4, 2016 2:12 PM

8-38
8
KEEP OUT OF REACH OF CHILDREN.
NOTICEECB00621Never attempt to remove the battery cell seals,
as this would permanently damage the battery. To remove the battery
1. Remove the seat. (See page 4-12.)
2. Remove the battery holding plate by remov- ing the bolts.
3. Disconnect the negative battery lead first, then the positive battery lead by removing
their bolt. NOTICE: When removing the bat-
tery, the main switch must be off, and the
negative lead must be disconnected be-
fore the positive lead.
[ECB01002]
4. Pull the battery out of its compartment.
To charge the battery
Have a Yamaha dealer charge the battery as soon
as possible if it seems to have discharged. Keep
in mind that the battery tends to discharge more
quickly if the ATV is equipped with optional elec-

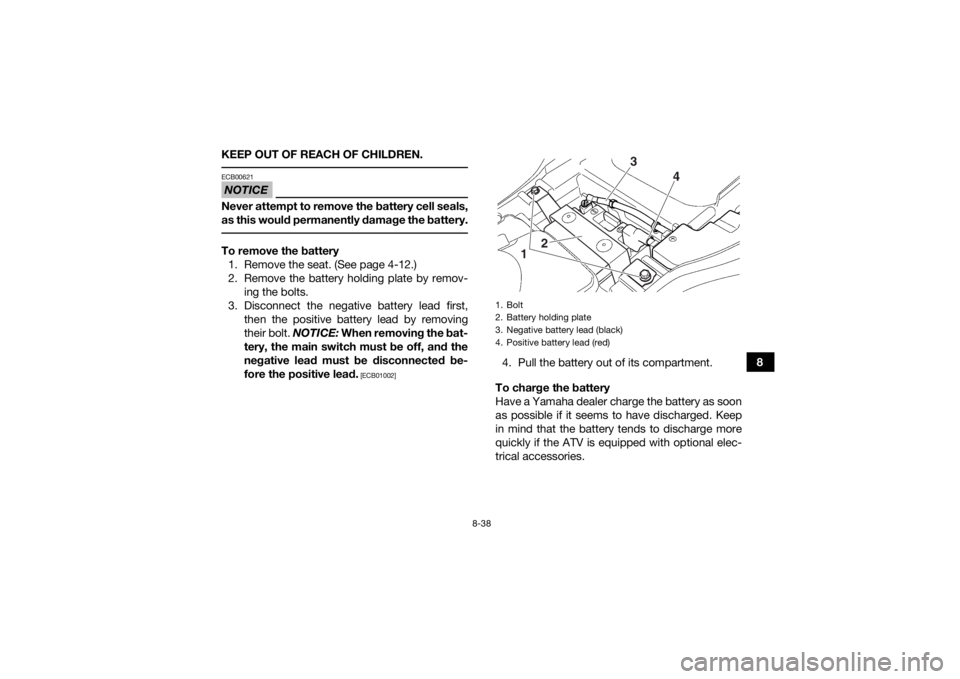

trical accessories.1. Bolt
2. Battery holding plate
3. Negative battery lead (black)
4. Positive battery lead (red)
1 2 3
4
UB1463E0.book Page 38 Thursday, August 4, 2016 2:12 PM

8-39
8
NOTICEECB00932To charge a VRLA (Valve Regulated Lead Acid)
battery, a special (constant-voltage) battery
charger is required. Using a conventional bat-
tery charger will damage the battery. To store the battery
If the ATV will not be used for more than one
month, remove the battery, fully charge it, and
then place it in a cool, dry place.
 If the battery will be stored for more than two
months, check it at least once a month and fully
charge it if necessary.NOTICEECB00941Always keep the battery charged. Storing a
discharged battery can cause permanent bat-
tery damage. To install the batteryTIPBe sure the battery is fully charged. 1. Place the battery in its compartment. 2. Connect the positive battery lead first, then
connect the negative battery lead by installing
their bolt. NOTICE: When installing the bat-
tery, the main switch must be off, and the
positive lead must be connected before
the negative lead.
[ECB01111]
3. Install the battery holding plate by installing the bolts.

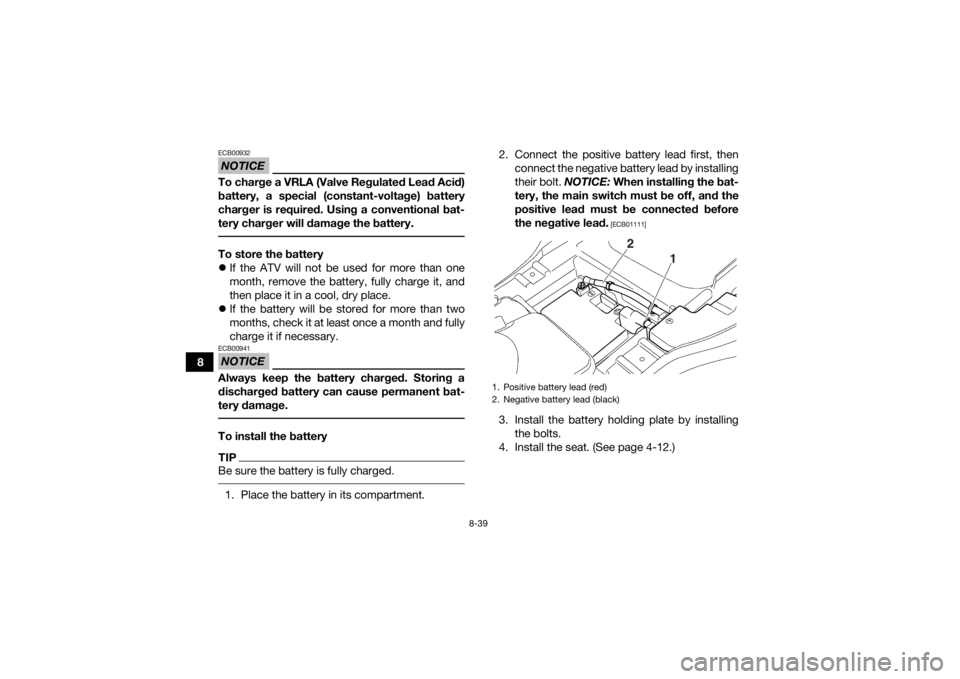

4. Install the seat. (See page 4-12.)1. Positive battery lead (red)
2. Negative battery lead (black)
2
1
UB1463E0.book Page 39 Thursday, August 4, 2016 2:12 PM

8-40
8
EBU30671Replacing a fuseThe main fuse and the fuse box are located under
the seat. (See page 4-12.)
TIPTo access the main fuse, remove the battery lead
cover by removing the screw.

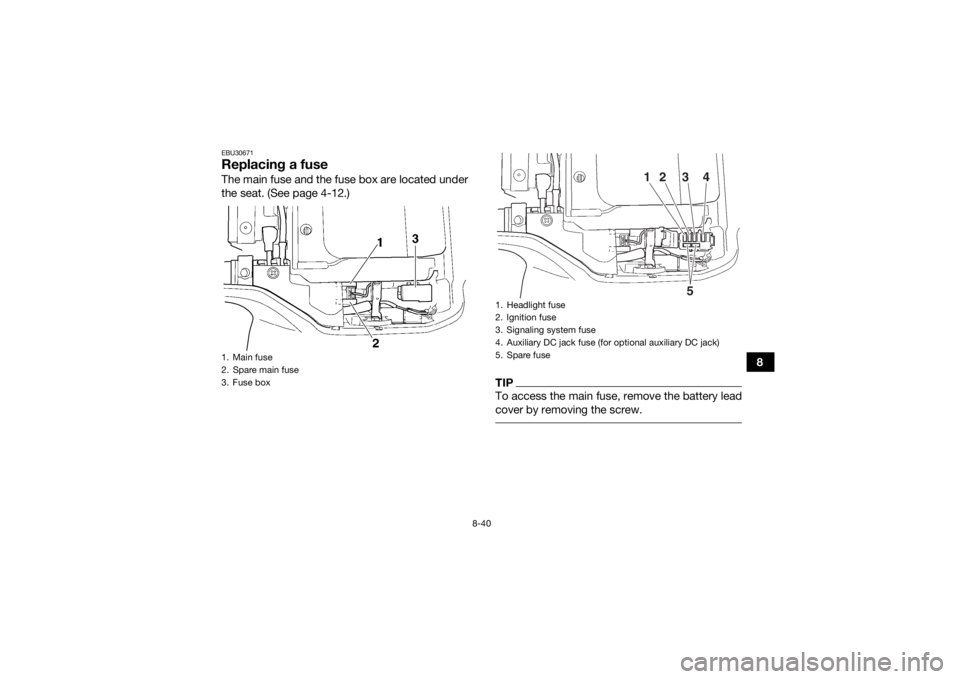

1. Main fuse
2. Spare main fuse
3. Fuse box
1. Headlight fuse
2. Ignition fuse
3. Signaling system fuse
4. Auxiliary DC jack fuse (for optional auxiliary DC jack)
5. Spare fuse
1
2
3
4
5
UB1463E0.book Page 40 Thursday, August 4, 2016 2:12 PM

8-41
8If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off all electrical circuits.
NOTICEECB00641To prevent accidental short-circuiting, turn off
the main switch when checking or replacing a
fuse.
2. Remove the blown fuse, and then install anew fuse of the specified amperage.
WARNING! Always use a fuse of the spec-
ified rating, and never use a substitute ob-
ject in place of the proper fuse. An
improper fuse or a substitute object can
cause damage to the electrical system,
which could lead to a fire.
[EWB02173]
3. Turn the key to “ON” and turn on the electricalcircuits to check if the devices operate.
4. If the fuse immediately blows again, have a Yamaha dealer check the electrical system.

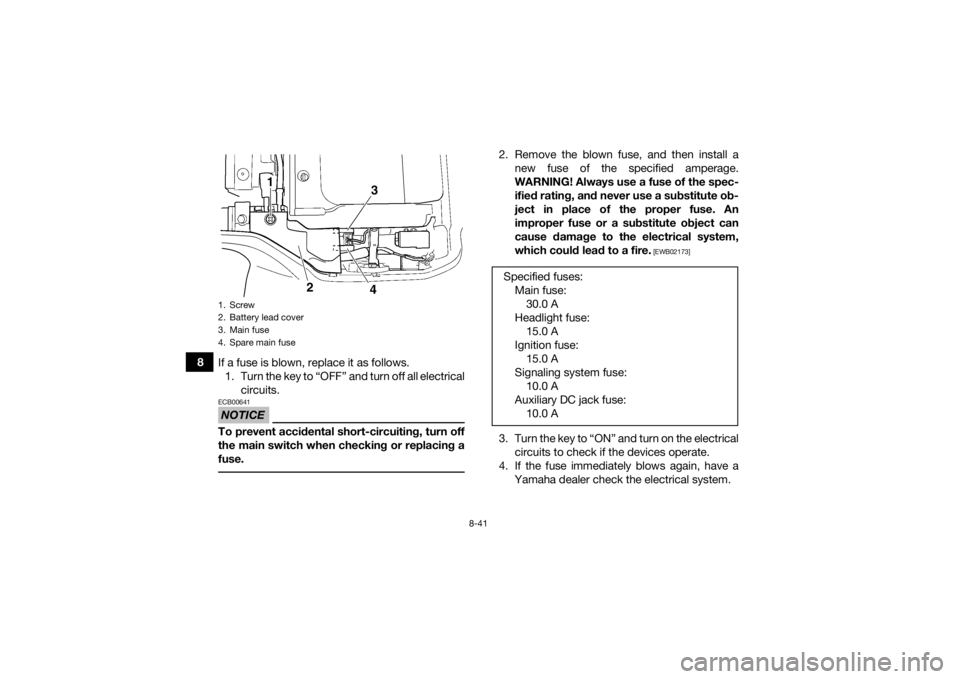

1. Screw
2. Battery lead cover
3. Main fuse
4. Spare main fuse
43
2
1
Specified fuses:Main fuse:30.0 A
Headlight fuse: 15.0 A
Ignition fuse: 15.0 A
Signaling system fuse: 10.0 A
Auxiliary DC jack fuse: 10.0 A
UB1463E0.book Page 41 Thursday, August 4, 2016 2:12 PM
