YAMAHA GRIZZLY 450 2012 Owners Manual

8-2
8

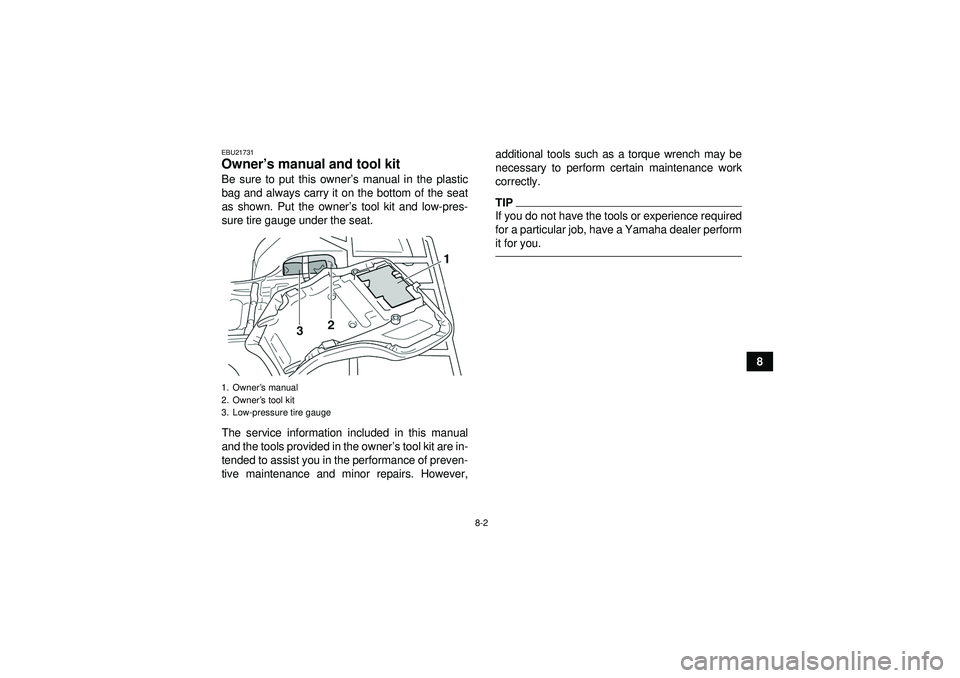

EBU21731Owner’s manual and tool kit Be sure to put this owner ’s manual in the plastic
bag and always carry it on the bottom of the seat
as shown. Put the owner ’s tool kit and low-pres-
sure tire gauge under the seat.
The service information included in this manual
and the tools provided in the owner ’s tool kit are in-
tended to assist you in the performance of preven-
tive maintenance and minor repairs. However, additional tools such as a torque wrench may be
necessary to perform certain maintenance work
correctly.
TIPIf you do not have the tools or experience required
for a particular job, have a Yamaha dealer perform
it for you.
1. Owner
’s manual
2. Owner ’s tool kit
3. Low-pressure tire gaugeU1CT61E0.book Page 2 Wednesday, April 20, 2011 6:36 PM

8-3
8

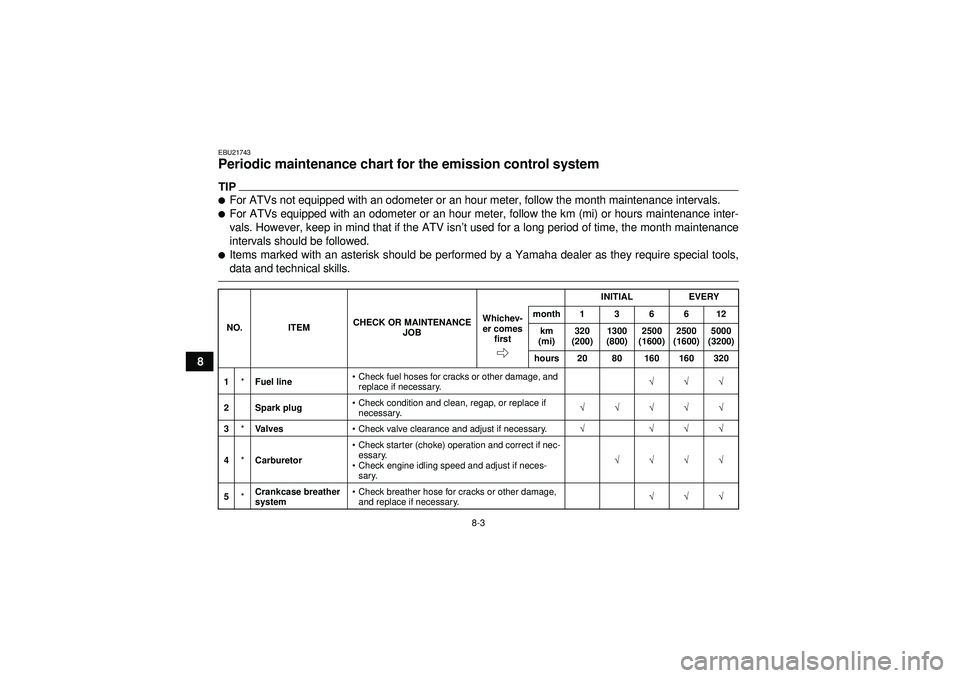

EBU21743Periodic maintenance chart for the emission control system TIP
For ATVs not equipped with an odometer or an hour meter, follow the month maintenance intervals.
For ATVs equipped with an odometer or an hour meter, follow the km (mi) or hours maintenance inter-
vals. However, keep in mind that if the ATV isn’t used for a long period of time, the month maintenance
intervals should be followed.
Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools,
data and technical skills.NO. ITEM CHECK OR MAINTENANCE
JOB INITIAL
EVERY
Whichev- er comes first month136612
km
(mi) 320
(200) 1300
(800) 2500
(1600) 2500
(1600) 5000
(3200)
hours 20 80 160 160 320
1 *Fuel line
Check fuel hoses for cracks or other damage, and
replace if necessary. √√√
2 Spark plug
Check condition and clean, regap, or replace if
necessary. √√√√√
3 *Valves Check valve clearance and adjust if necessary. √ √√√
4 *Carburetor
Check starter (choke) operation and correct if nec-
essary.
 Check engine idling speed and adjust if neces-
sary. √√√√
5 *Crankcase breather
system
Check breather hose for cracks or other damage,
and replace if necessary. √√√
U1CT61E0.book Page 3 Wednesday, April 20, 2011 6:36 PM

8-4
8

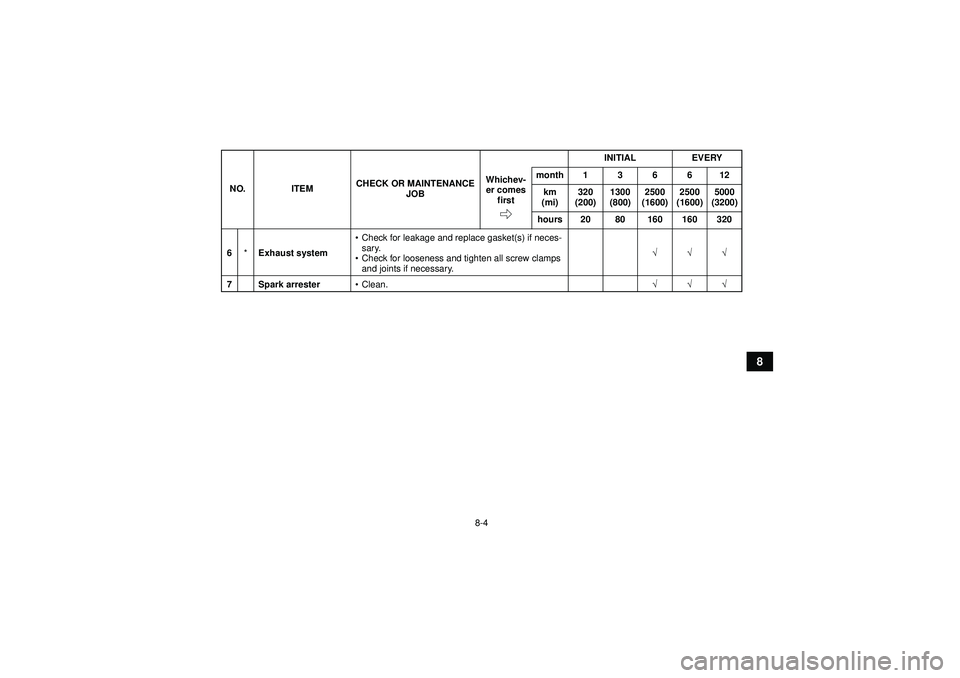

6*Exhaust system
Check for leakage and replace gasket(s) if neces-
sary.
 Check for looseness and tighten all screw clamps
and joints if necessary. √√√
7 Spark arrester Clean. √√√
NO. ITEM
CHECK OR MAINTENANCE
JOB INITIAL EVERY
Whichev- er comes first month136612
km
(mi) 320
(200) 1300
(800) 2500
(1600) 2500
(1600) 5000
(3200)
hours 20 80 160 160 320
U1CT61E0.book Page 4 Wednesday, April 20, 2011 6:36 PM

8-5
8

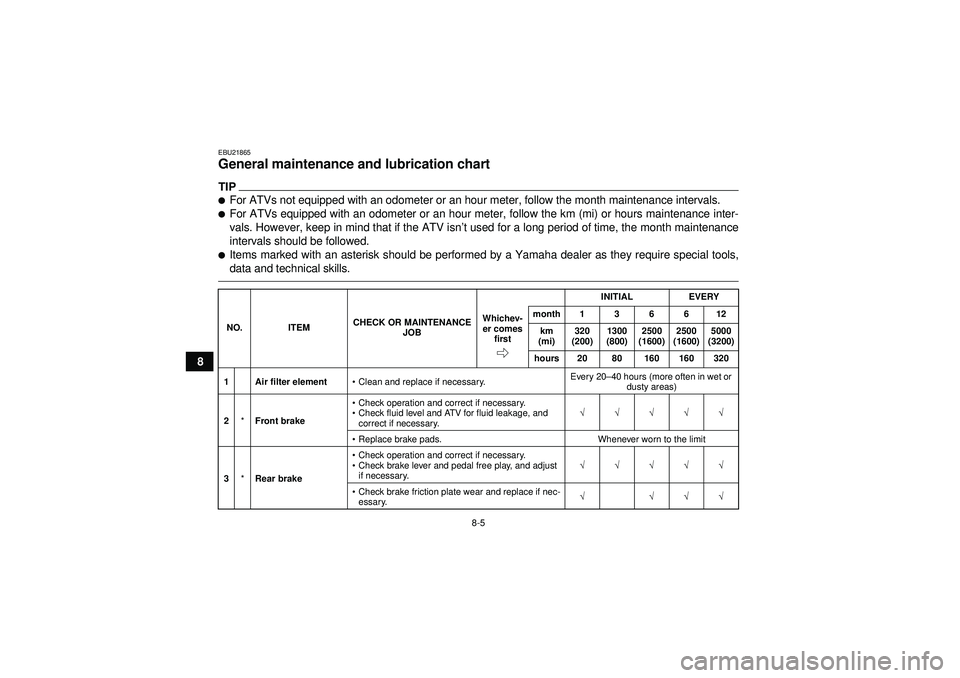

EBU21865General maintenance and lubrication chart TIP
For ATVs not equipped with an odometer or an hour meter, follow the month maintenance intervals.
For ATVs equipped with an odometer or an hour meter, follow the km (mi) or hours maintenance inter-
vals. However, keep in mind that if the ATV isn’t used for a long period of time, the month maintenance
intervals should be followed.
Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools,
data and technical skills.NO. ITEM CHECK OR MAINTENANCE
JOB INITIAL
EVERY
Whichev- er comes first month136612
km
(mi) 320
(200) 1300
(800) 2500
(1600) 2500
(1600) 5000
(3200)
hours 20 80 160 160 320
1 Air filter element Clean and replace if necessary. Every 20
–40 hours (more often in wet or
dusty areas)
2 *Front brake
Check operation and correct if necessary.
 Check fluid level and ATV for fluid leakage, and
correct if necessary. √√√√√
 Replace brake pads. Whenever worn to the limit
3 *Rear brake
Check operation and correct if necessary.
 Check brake lever and pedal free play, and adjust
if necessary. √√√√√
 Check brake friction plate wear and replace if nec-
essary. √ √√√
U1CT61E0.book Page 5 Wednesday, April 20, 2011 6:36 PM

8-6
8

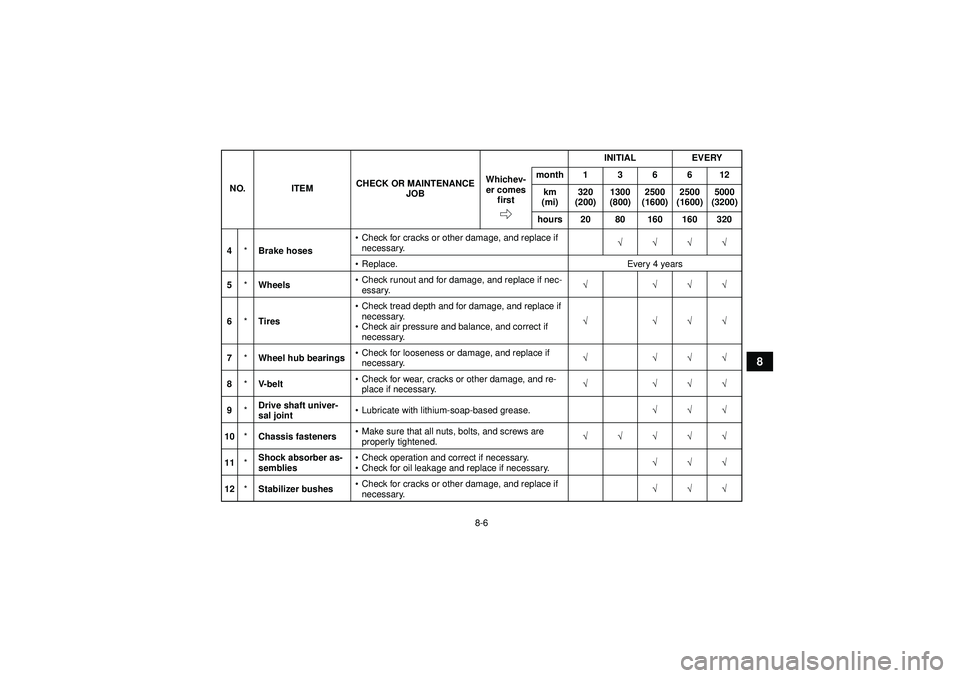

4*Brake hoses
Check for cracks or other damage, and replace if
necessary. √√√√
 Replace. Every 4 years
5 *Wheels
Check runout and for damage, and replace if nec-
essary. √ √√√
6 *Tires
Check tread depth and for damage, and replace if
necessary.
 Check air pressure and balance, and correct if
necessary. √ √√√
7 *Wheel hub bearings
Check for looseness or damage, and replace if
necessary. √ √√√
8 *V- b e l t
Check for wear, cracks or other damage, and re-
place if necessary. √ √√√
9 *Drive shaft univer-
sal joint
Lubricate with lithium-soap-based grease. √√√
10 *Chassis fasteners
Make sure that all nuts, bolts, and screws are
properly tightened. √√√√√
11 *Shock absorber as-
semblies
Check operation and correct if necessary.
 Check for oil leakage and replace if necessary. √√√
12 *Stabilizer bushes
Check for cracks or other damage, and replace if
necessary. √√√
NO. ITEM
CHECK OR MAINTENANCE
JOB INITIAL EVERY
Whichev- er comes first month136612
km
(mi) 320
(200) 1300
(800) 2500
(1600) 2500
(1600) 5000
(3200)
hours 20 80 160 160 320
U1CT61E0.book Page 6 Wednesday, April 20, 2011 6:36 PM

8-7
8

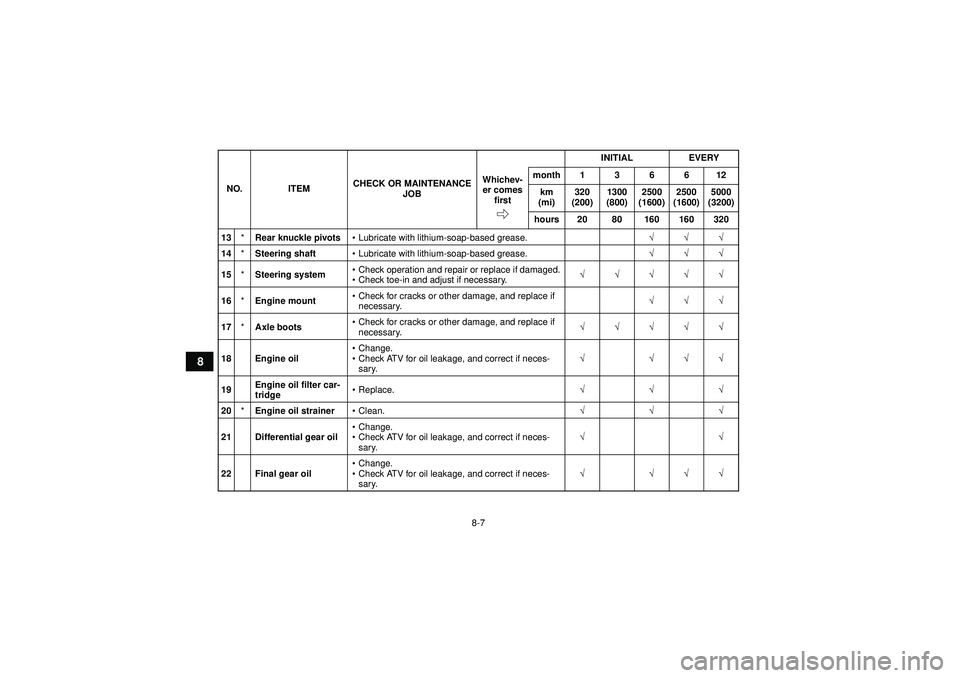

13*Rear knuckle pivots Lubricate with lithium-soap-based grease. √√√
14 *Steering shaft Lubricate with lithium-soap-based grease. √√√
15 *Steering system
Check operation and repair or replace if damaged.
 Check toe-in and adjust if necessary. √√√√√
16 *Engine mount
Check for cracks or other damage, and replace if
necessary. √√√
17 *Axle boots
Check for cracks or other damage, and replace if
necessary. √√√√√
18 Engine oil
Change.
 Check ATV for oil leakage, and correct if neces-
sary. √ √√√
19 Engine oil filter car-
tridge
Replace. √√√
20 *Engine oil strainer Clean. √√√
21 Differential gear oil
Change.
 Check ATV for oil leakage, and correct if neces-
sary. √√
22 Final gear oil
Change.
 Check ATV for oil leakage, and correct if neces-
sary. √ √√√
NO. ITEM
CHECK OR MAINTENANCE
JOB INITIAL EVERY
Whichev- er comes first month136612
km
(mi) 320
(200) 1300
(800) 2500
(1600) 2500
(1600) 5000
(3200)
hours 20 80 160 160 320U1CT61E0.book Page 7 Wednesday, April 20, 2011 6:36 PM

8-8
8

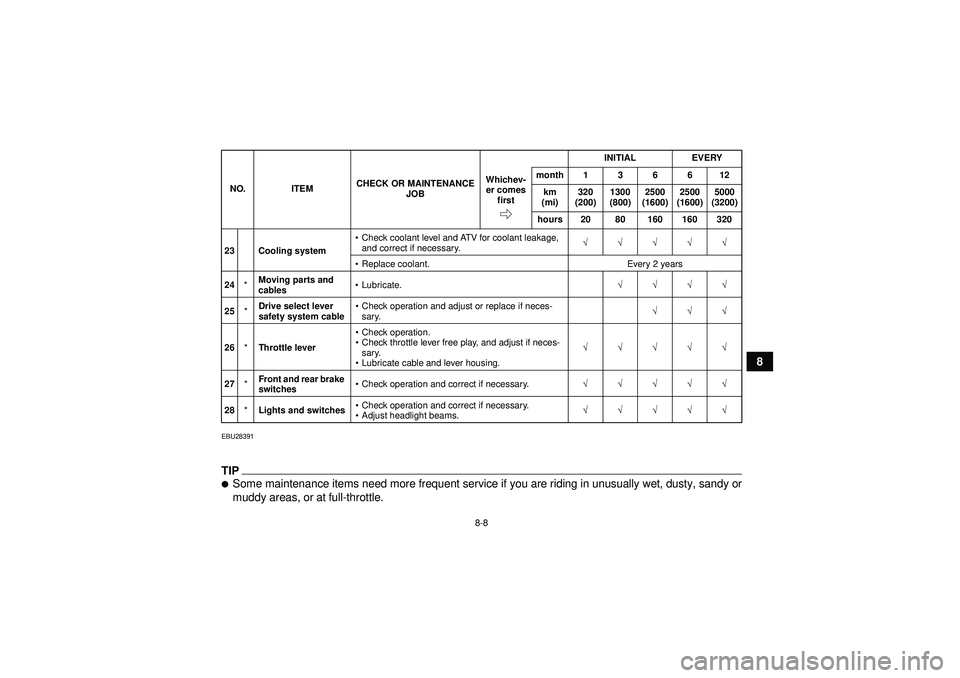

EBU28391TIP
Some maintenance items need more frequent service if you are riding in unusually wet, dusty, sandy or
muddy areas, or at full-throttle.23 Cooling system
Check coolant level and ATV for coolant leakage,
and correct if necessary. √√√√√
 Replace coolant. Every 2 years
24 *Moving parts and
cables
Lubricate. √√√√
25 *Drive select lever
safety system cable
Check operation and adjust or replace if neces-
sary. √√√
26 *Throttle lever
Check operation.
 Check throttle lever free play, and adjust if neces-
sary.
 Lubricate cable and lever housing. √√√√√
27 *Front and rear brake
switches
Check operation and correct if necessary. √√√√√
28 *Lights and switches
Check operation and correct if necessary.
 Adjust headlight beams. √√√√√
NO. ITEM
CHECK OR MAINTENANCE
JOB INITIAL EVERY
Whichev- er comes first month136612
km
(mi) 320
(200) 1300
(800) 2500
(1600) 2500
(1600) 5000
(3200)
hours 20 80 160 160 320U1CT61E0.book Page 8 Wednesday, April 20, 2011 6:36 PM

8-9
8

Hydraulic brake service
Regularly check and, if necessary, correct the brake fluid level.
 Every two years replace the internal components of the brake master cylinder and calipers, and change
the brake fluid.
 Replace the brake hoses every four years and if cracked or damaged.
U1CT61E0.book Page 9 Wednesday, April 20, 2011 6:36 PM

8-10
8

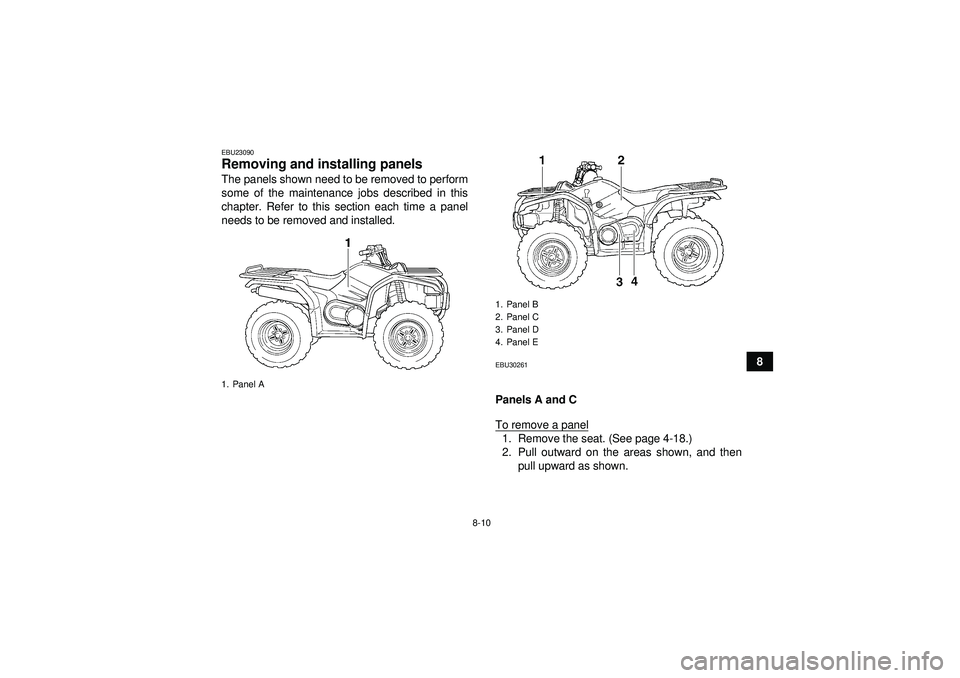

EBU23090Removing and installing panels The panels shown need to be removed to perform
some of the maintenance jobs described in this
chapter. Refer to this section each time a panel
needs to be removed and installed.
EBU30261Panels A and C
To remove a panel1. Remove the seat. (See page 4-18.)
2. Pull outward on the areas shown, and thenpull upward as shown.
1. Panel A
1. Panel B
2. Panel C
3. Panel D
4. Panel E
U1CT61E0.book Page 10 Wednesday, April 20, 2011 6:36 PM

8-11

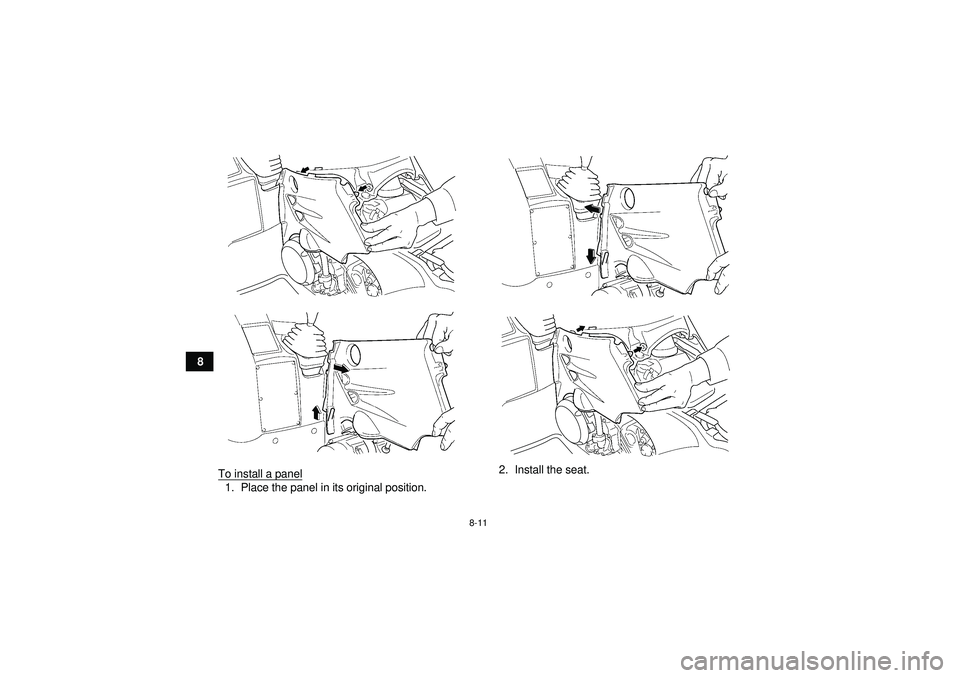

8To install a panel
1. Place the panel in its original position. 2. Install the seat.
