YAMAHA GRIZZLY 450 2012 Owner's Guide

4-4
4
TIP
If the engine is stopped using the engine stop
switch and the key is in the “ON ” position, the
EPS warning light comes on to indicate that the
power assistance for the steering is not function-
ing.
If the steering load is too heavy (i.e., excessive
steering use when the ATV is traveling at a slow
speed), the power assist is reduced to protect

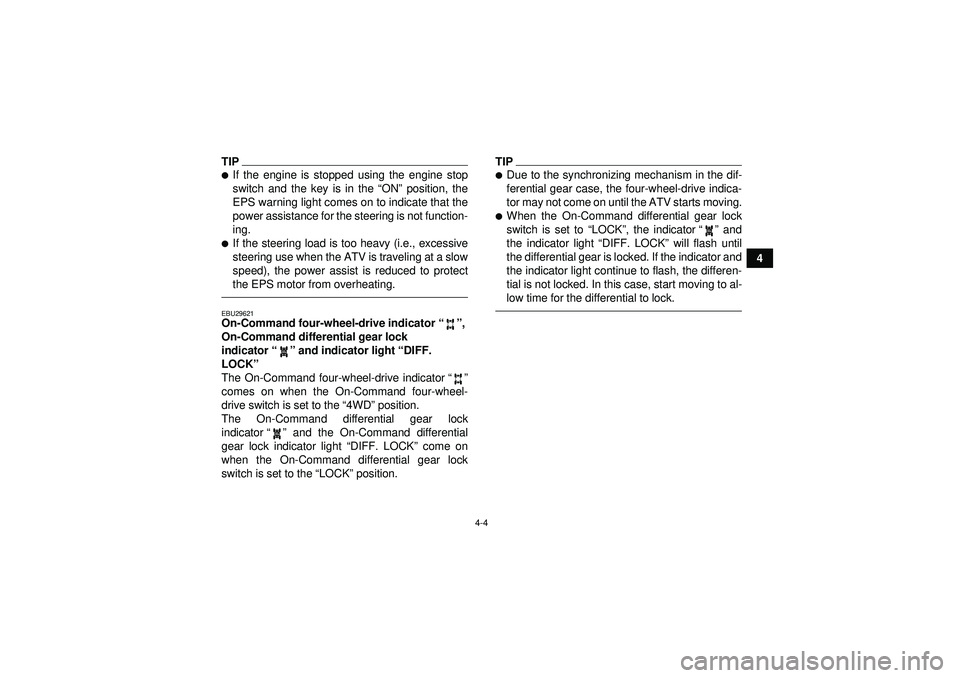

the EPS motor from overheating.EBU29621On-Command four-wheel-drive indicator “”,
On-Command differential gear lock
indicator “” and indicator light “DIFF.
LOCK”
The On-Command four-wheel-drive indicator “”
comes on when the On-Command four-wheel-
drive switch is set to the “4WD ” position.
The On-Command differential gear lock
indicator “” and the On-Command differential
gear lock indicator light “DIFF. LOCK ” come on
when the On-Command differential gear lock
switch is set to the “LOCK ” position.
TIP
Due to the synchronizing mechanism in the dif-
ferential gear case, the four-wheel-drive indica-
tor may not come on until the ATV starts moving.
When the On-Command differential gear lock
switch is set to “LOCK ”, the indicator “” and
the indicator light “DIFF. LOCK ” will flash until
the differential gear is locked. If the indicator and
the indicator light continue to flash, the differen-
tial is not locked. In this case, start moving to al-
low time for the differential to lock.
U1CT61E0.book Page 4 Wednesday, April 20, 2011 6:36 PM

4-5
4

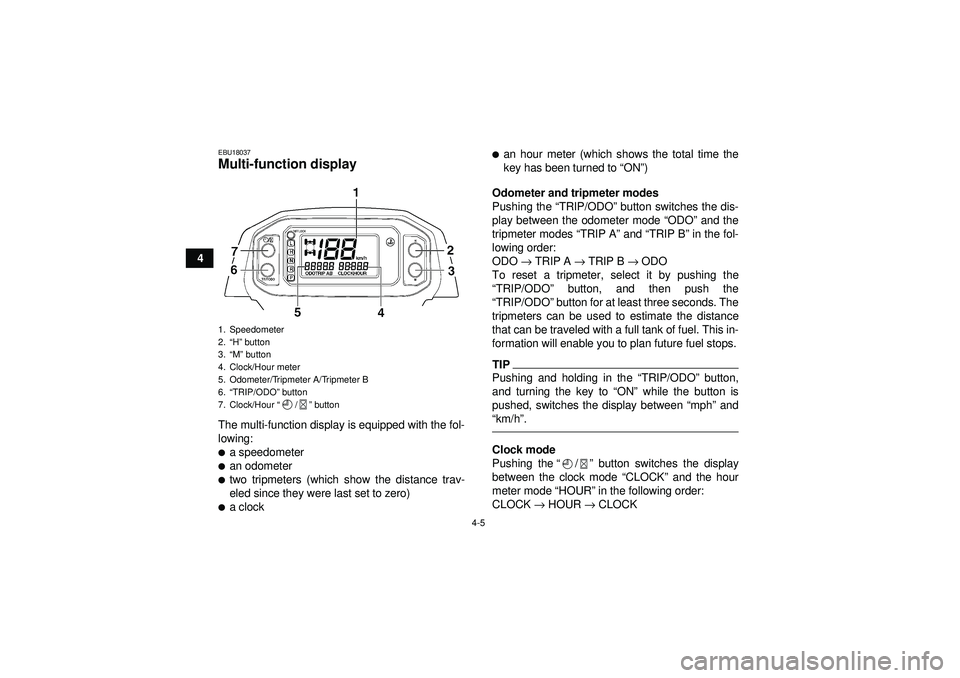

EBU18037Multi-function display The multi-function display is equipped with the fol-
lowing:
a speedometer
an odometer
two tripmeters (which show the distance trav-
eled since they were last set to zero)
a clock

an hour meter (which shows the total time the
key has been turned to “ON ”)
Odometer and tripmeter modes
Pushing the “ TRIP/ODO” button switches the dis-
play between the odometer mode “ ODO” and the
tripmeter modes “TRIP A ” and “ TRIP B ” in the fol-
lowing order:
ODO → TRIP A → TRIP B → ODO
To reset a tripmeter, select it by pushing the
“ TRIP/ODO ” button, and then push the
“ TRIP/ODO ” button for at least three seconds. The
tripmeters can be used to estimate the distance
that can be traveled with a full tank of fuel. This in-
formation will enable you to plan future fuel stops.TIPPushing and holding in the “TRIP/ODO ” button,
and turning the key to “ON ” while the button is
pushed, switches the display between “mph” and
“ km/h ”.Clock mode
Pushing the “/” button switches the display
between the clock mode “ CLOCK” and the hour
meter mode “ HOUR” in the following order:
CLOCK → HOUR → CLOCK
1. Speedometer
2. “H” button
3. “M” button
4. Clock/Hour meter
5. Odometer/Tripmeter A/Tripmeter B
6. “TRIP/ODO ” button
7. Clock/Hour “/” buttonU1CT61E0.book Page 5 Wednesday, April 20, 2011 6:36 PM

4-6
4

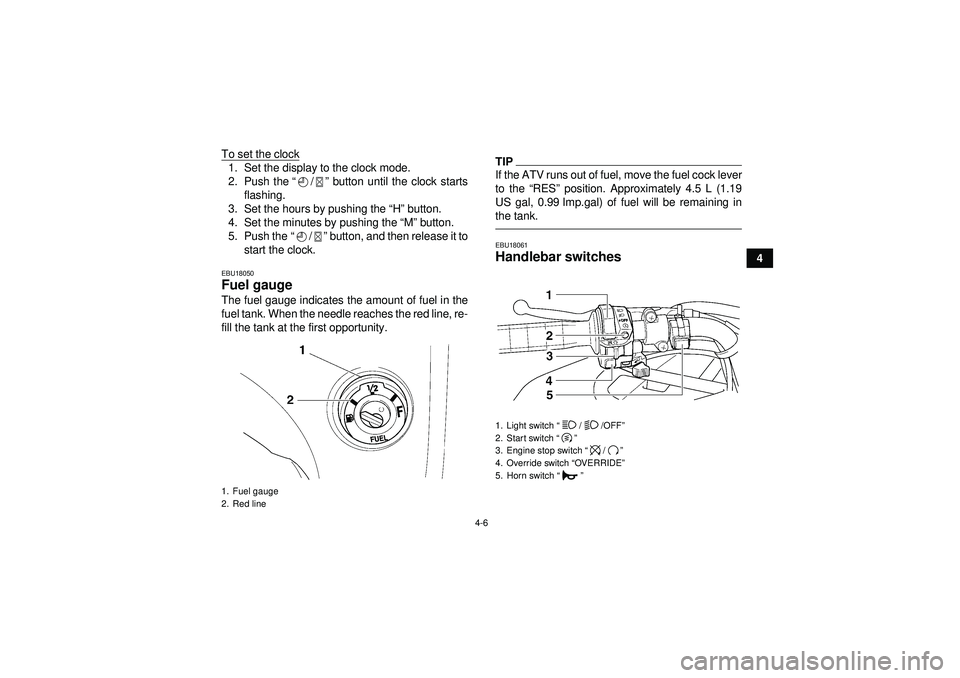

To set the clock
1. Set the display to the clock mode.
2. Push the
“/” button until the clock starts
flashing.
3. Set the hours by pushing the “ H” button.
4. Set the minutes by pushing the “M ” button.
5. Push the “/” button, and then release it to
start the clock.EBU18050Fuel gauge The fuel gauge indicates the amount of fuel in the
fuel tank. When the needle reaches the red line, re-
fill the tank at the first opportunity.
TIPIf the ATV runs out of fuel, move the fuel cock lever
to the “RES ” position. Approximately 4.5 L (1.19
US gal, 0.99 Imp.gal) of fuel will be remaining in
the tank.EBU18061Handlebar switches
1. Fuel gauge
2. Red line
1. Light switch “//OFF ”
2. Start switch “”
3. Engine stop switch “/”
4. Override switch “OVERRIDE”
5. Horn switch “”
U1CT61E0.book Page 6 Wednesday, April 20, 2011 6:36 PM

4-7
4

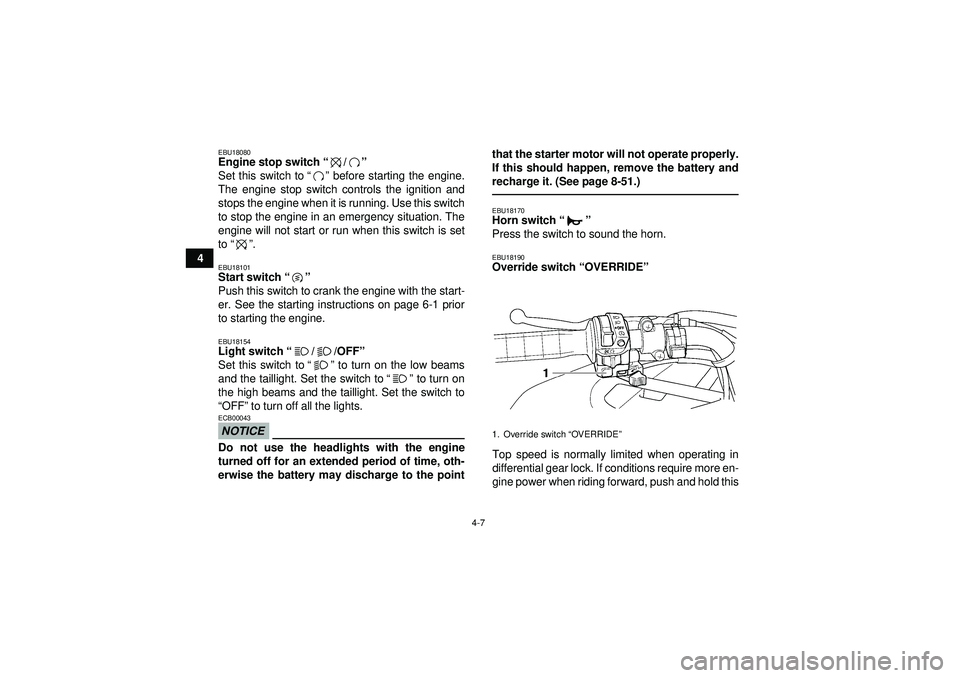

EBU18080Engine stop switch“/”
Set this switch to “” before starting the engine.
The engine stop switch controls the ignition and
stops the engine when it is running. Use this switch
to stop the engine in an emergency situation. The
engine will not start or run when this switch is set
to “” .EBU18101Start switch “”
Push this switch to crank the engine with the start-
er. See the starting instructions on page 6-1 prior
to starting the engine.EBU18154Light switch “//OFF ”
Set this switch to “” to turn on the low beams
and the taillight. Set the switch to “” to turn on
the high beams and the taillight. Set the switch to
“ OFF ” to turn off all the lights.NOTICEECB00043Do not use the headlights with the engine
turned off for an extended period of time, oth-
erwise the battery may discharge to the point that the starter motor will not operate properly.
If this should happen, remove the battery and
recharge it. (See page 8-51.)
EBU18170Horn switch
“”
Press the switch to sound the horn.EBU18190Override switch “OVERRIDE ”
Top speed is normally limited when operating in
differential gear lock. If conditions require more en-
gine power when riding forward, push and hold this1. Override switch “OVERRIDE”
U1CT61E0.book Page 7 Wednesday, April 20, 2011 6:36 PM

4-8
4
switch to override the differential gear lock speed
limiting function. (See page 4-9.) Releasing the
switch restores the speed limiting function.

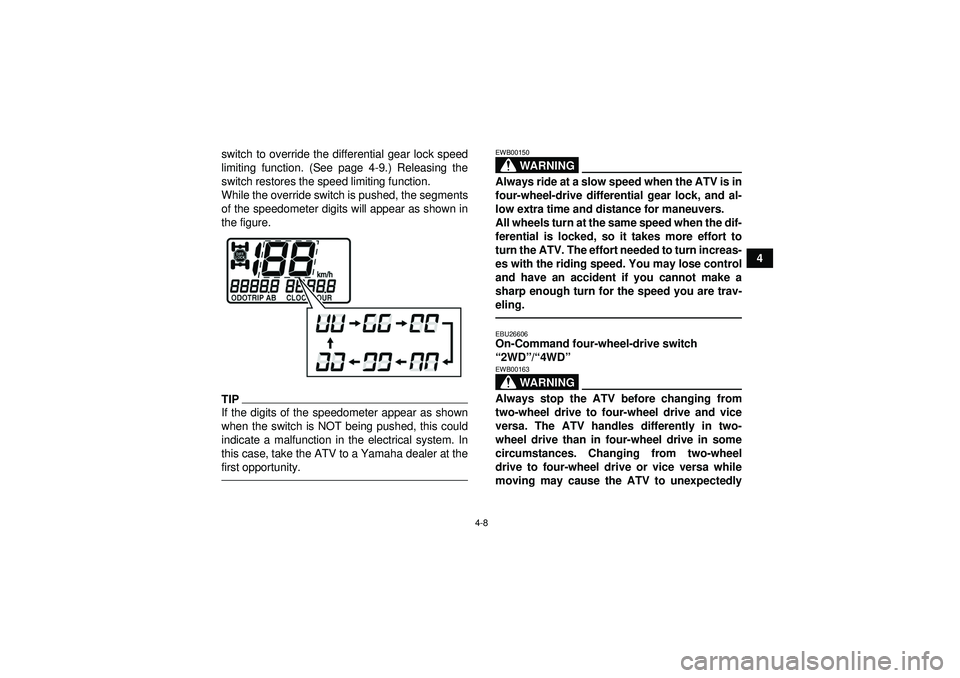

While the override switch is pushed, the segments
of the speedometer digits will appear as shown in
the figure.
TIPIf the digits of the speedometer appear as shown
when the switch is NOT being pushed, this could
indicate a malfunction in the electrical system. In
this case, take the ATV to a Yamaha dealer at the
first opportunity.
WARNING
EWB00150Always ride at a slow speed when the ATV is in
four-wheel-drive differential gear lock, and al-
low extra time and distance for maneuvers.
All wheels turn at the same speed when the dif-
ferential is locked, so it takes more effort to
turn the ATV. The effort needed to turn increas-
es with the riding speed. You may lose control
and have an accident if you cannot make a
sharp enough turn for the speed you are trav-
eling.EBU26606On-Command four-wheel-drive switch
“
2WD ”/“ 4WD ”
WARNING
EWB00163Always stop the ATV before changing from
two-wheel drive to four-wheel drive and vice
versa. The ATV handles differently in two-
wheel drive than in four-wheel drive in some
circumstances. Changing from two-wheel
drive to four-wheel drive or vice versa while
moving may cause the ATV to unexpectedly
U1CT61E0.book Page 8 Wednesday, April 20, 2011 6:36 PM

4-9
4handle differently. This could distract the oper-
ator and increase the risk of losing control and
of causing an accident.

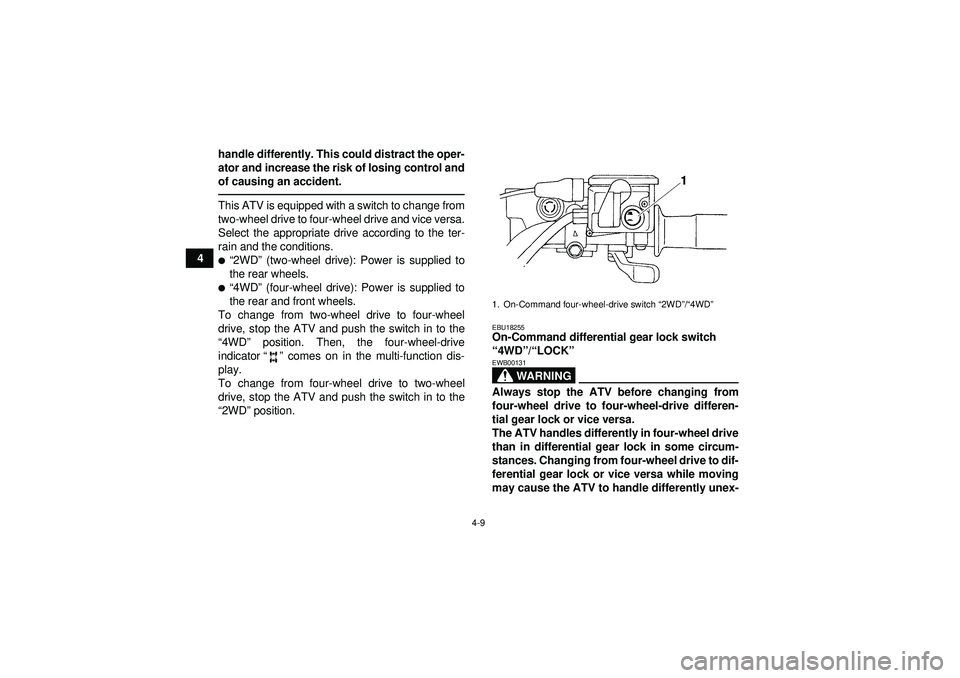

This ATV is equipped with a switch to change from
two-wheel drive to four-wheel drive and vice versa.
Select the appropriate drive according to the ter-
rain and the conditions.
“
2WD ” (two-wheel drive): Power is supplied to
the rear wheels.
“ 4WD ” (four-wheel drive): Power is supplied to
the rear and front wheels.
To change from two-wheel drive to four-wheel
drive, stop the ATV and push the switch in to the
“ 4WD ” position. Then, the four-wheel-drive
indicator “” comes on in the multi-function dis-
play.
To change from four-wheel drive to two-wheel
drive, stop the ATV and push the switch in to the
“ 2WD ” position.
EBU18255On-Command differential gear lock switch
“ 4WD ”/“ LOCK ”
WARNING
EWB00131Always stop the ATV before changing from
four-wheel drive to four-wheel-drive differen-
tial gear lock or vice versa.
The ATV handles differently in four-wheel drive
than in differential gear lock in some circum-
stances. Changing from four-wheel drive to dif-
ferential gear lock or vice versa while moving
may cause the ATV to handle differently unex-1. On-Command four-wheel-drive switch “2WD”/“4WD ”
U1CT61E0.book Page 9 Wednesday, April 20, 2011 6:36 PM

4-10
4
pectedly. This could distract the operator and
increase the risk of losing control and causing
an accident.
WARNING
EWB00140Always ride at a slow speed when the ATV is in
differential gear lock, and allow extra time and
distance for maneuvers.
All wheels turn at the same speed when the dif-
ferential gear is locked, so it takes more effort
to turn the ATV. The effort needed to turn in-
creases with the riding speed. You may lose
control and have an accident if you cannot
make a sharp enough turn for the speed you
are traveling.This ATV is equipped with a switch allowing you to
lock the differential gear when in four-wheel drive.
Select the appropriate switch position according to
the terrain and the conditions.
“
4WD ” (four-wheel drive): Power is supplied to
the rear and front wheels.

“ LOCK ” (four-wheel drive with the differential
gear locked): Power is supplied to the rear and
front wheels and the differential gear is locked.
Unlike in four-wheel drive, all wheels turn at the
same speed.
To lock the differential gear in four-wheel drive,
make sure the On-Command four-wheel-drive

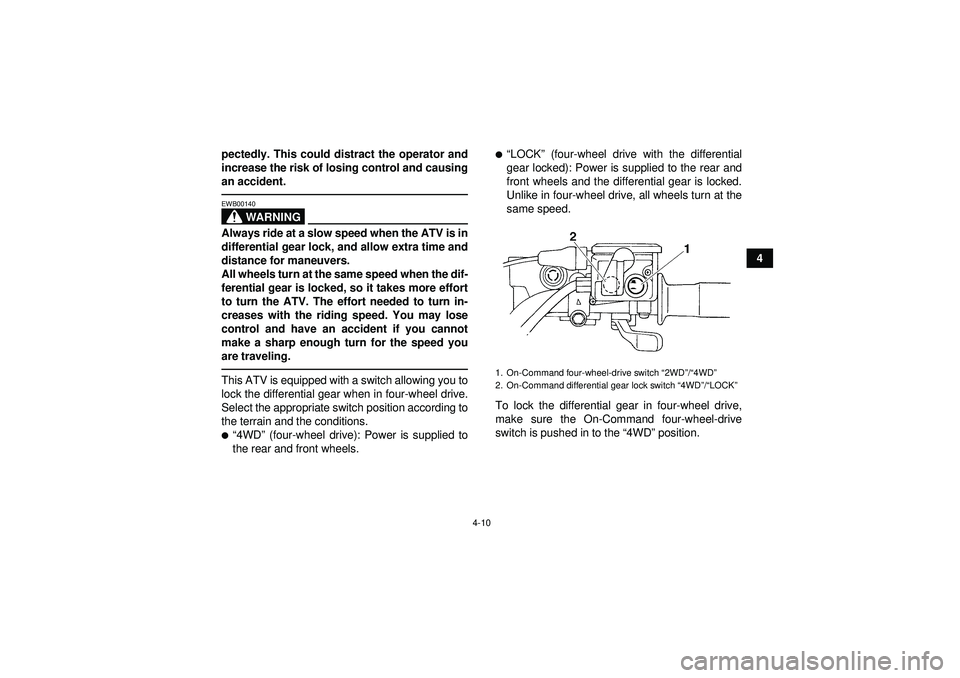

switch is pushed in to the “4WD ” position.1. On-Command four-wheel-drive switch “2WD ”/“4WD ”
2. On-Command differential gear lock switch “4WD”/“LOCK ”
U1CT61E0.book Page 10 Wednesday, April 20, 2011 6:36 PM

4-11

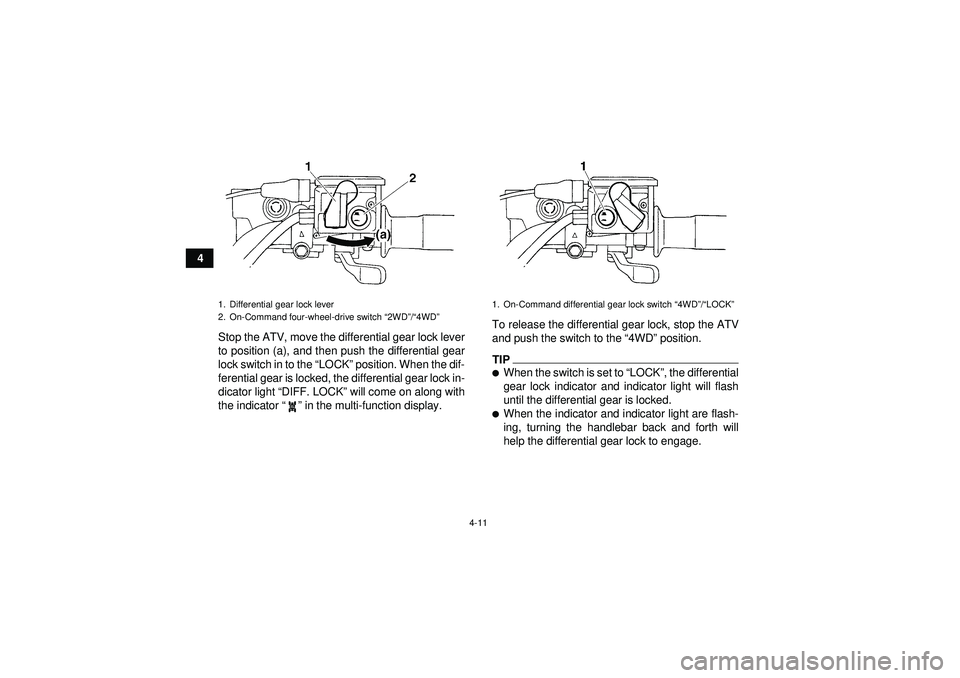

4Stop the ATV, move the differential gear lock lever
to position (a), and then push the differential gear
lock switch in to the “LOCK ” position. When the dif-
ferential gear is locked, the differential gear lock in-
dicator light “ DIFF. LOCK” will come on along with
the indicator “” in the multi-function display. To release the differential gear lock, stop the ATV
and push the switch to the
“4WD ” position.
TIP
When the switch is set to “LOCK ”, the differential
gear lock indicator and indicator light will flash
until the differential gear is locked.
When the indicator and indicator light are flash-
ing, turning the handlebar back and forth will
help the differential gear lock to engage.
1. Differential gear lock lever
2. On-Command four-wheel-drive switch “2WD”/“4WD ”
1. On-Command differential gear lock switch “4WD”/“LOCK ”
U1CT61E0.book Page 11 Wednesday, April 20, 2011 6:36 PM

4-12
4

Riding before the differential gear lock is proper-
ly engaged (e.g., when the indicator and indica-
tor light are flashing) will cause the vehicle
speed to be limited until engagement is com-
plete.
When the ATV is in four-wheel-drive differential
gear lock, the maximum traveling speed is limit-
ed to 35 km/h (22 mi/h). However, if conditions
require full engine power to be available, push
and hold the override switch to disable the differ-
ential gear lock speed limiter. (See page 4-7 for
a detailed explanation of this switch.)EBU18282Throttle lever Once the engine is running, pushing the throttle le-
ver will increase the engine speed.
Regulate the speed of the ATV by varying the
throttle position. Because the throttle is spring-
loaded, the ATV will decelerate, and the engine will
return to an idle any time the throttle lever is re-
leased.Before starting the engine, check the throttle to be
sure it is operating smoothly. Make sure it returns
to the idle position as soon as the lever is released.
EBU18323Speed limiter Your ATV is equipped with an adjustable speed
limiter. The speed limiter keeps the throttle from
fully opening, even when the throttle lever is
pushed to the maximum.

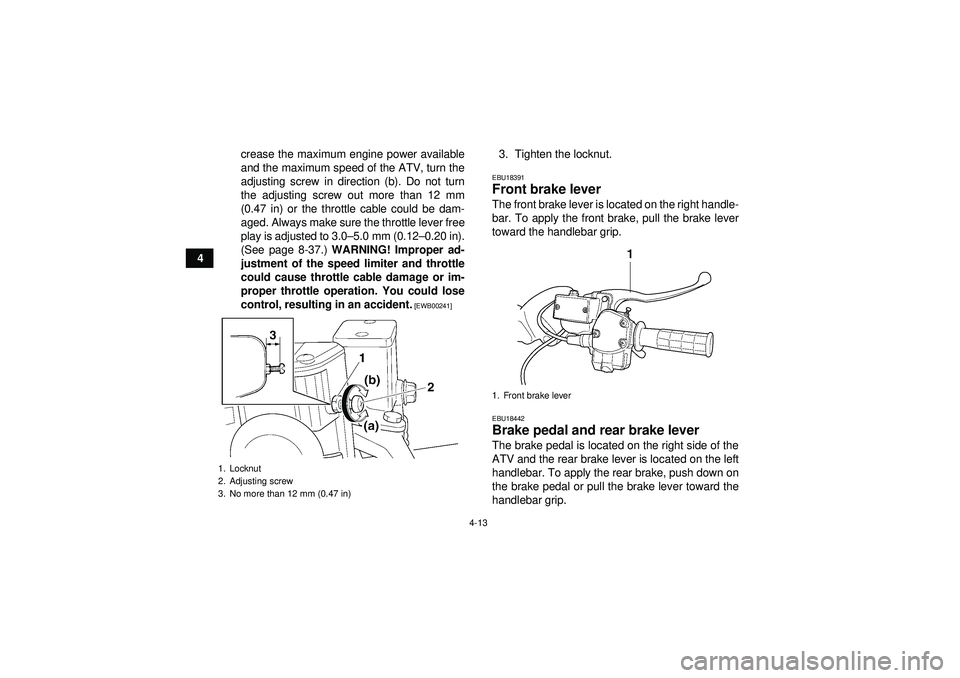

1. Loosen the locknut.
2. To increase the maximum engine power avail- able and the maximum speed of the ATV, turn
the adjusting screw in direction (a). To de-1. Throttle lever
U1CT61E0.book Page 12 Wednesday, April 20, 2011 6:36 PM

4-13
4crease the maximum engine power available
and the maximum speed of the ATV, turn the
adjusting screw in direction (b). Do not turn
the adjusting screw out more than 12 mm
(0.47 in) or the throttle cable could be dam-
aged. Always make sure the throttle lever free
play is adjusted to 3.0–
5.0 mm (0.12–0.20 in).
(See page 8-37.) WARNING! Improper ad-
justment of the speed limiter and throttle
could cause throttle cable damage or im-
proper throttle operation. You could lose
control, resulting in an accident.
[EWB00241]
3. Tighten the locknut.EBU18391Front brake lever The front brake lever is located on the right handle-
bar. To apply the front brake, pull the brake lever
toward the handlebar grip.EBU18442Brake pedal and rear brake lever The brake pedal is located on the right side of the
ATV and the rear brake lever is located on the left
handlebar. To apply the rear brake, push down on
the brake pedal or pull the brake lever toward the
handlebar grip.
1. Locknut
2. Adjusting screw
3. No more than 12 mm (0.47 in)
1. Front brake lever
U1CT61E0.book Page 13 Wednesday, April 20, 2011 6:36 PM
