YAMAHA GRIZZLY 450 2014 Owners Manual

9-3
9
ly, turn the wheels a little every month in order
to prevent the tires from becoming degraded
in one spot.
8. Cover the muffler outlet with a plastic bag to prevent moisture from entering it.
9. Remove the battery and fully charge it. Store it in a cool, dry place and charge it once a
month. Do not store the battery in an exces-
sively cold or warm place [less than 0 °C (30
°F) or more than 30 °C (90 °F)]. For more in-
formation on storing the battery, see page
8-53.
TIPMake any necessary repairs before storing the
ATV.U2LC60E0.book Page 3 Friday, March 8, 2013 1:18 PM

10-1
10
EBU25961
SPECIFICATIONS
Dimensions:Overall length:1993 mm (78.5 in)
Overall width: 1093 mm (43.0 in)
Overall height:
1120 mm (44.1 in)
Seat height: 840 mm (33.1 in)
Wheelbase: 1233 mm (48.5 in)
Ground clearance:
245 mm (9.6 in)
Minimum turning radius: 3000 mm (118 in)Weight:With oil and fuel:
YFM450DE 275.0 kg (606 lb) (AUS)(NZL)
YFM450DE 276.0 kg (608 lb) (EUR)(FRA)(GBR)
YFM450PE 281.0 kg (619 lb) (AUS)(NZL)
YFM450PE 282.0 kg (622 lb) (EUR)(FRA)(GBR)
YFM450PHE 282.0 kg (622 lb)Noise and vibration level:Noise level (77/311/EEC):YFM450DE 78.3 dB(A) (EUR)(FRA)(GBR)
YFM450PE 78.3 dB(A) (EUR)(FRA)(GBR)
YFM450PHE 78.3 dB(A) Vibration on seat (EN1032, ISO5008):
YFM450DE 0.6 m/s² (EUR)(FRA)(GBR)
YFM450PE 0.6 m/s² (EUR)(FRA)(GBR)
YFM450PHE 0.6 m/s²
Vibration on handlebar (EN1032, ISO5008): YFM450DE Will not exceed 2.5 m/s² (EUR)(FRA)(GBR)
YFM450PE Will not exceed 2.5 m/s² (EUR)(FRA)(GBR)
YFM450PHE Will not exceed 2.5 m/s²
Engine:Engine type:Liquid cooled 4-stroke, SOHC
Cylinder arrangement:
Single cylinder
Displacement: 421 cm³
Bore × stroke:
84.5 × 75.0 mm (3.33 × 2.95 in)
Compression ratio:
10.00 : 1
Starting system: Electric starter
Lubrication system: Wet sumpEngine oil:Recommended brand:YAMALUBE
U2LC60E0.book Page 1 Friday, March 8, 2013 1:18 PM

10-2
10
Type:SAE 5W-30, 10W-30, 10W-40, 15W-40, 20W-40 or 20W-
50
Recommended engine oil grade: API service SG type or higher, JASO standard MA
Engine oil quantity: Without oil filter cartridge replacement:
2.30 L (2.43 US qt, 2.02 Imp.qt)
With oil filter cartridge replacement: 2.40 L (2.54 US qt, 2.11 Imp.qt)Final gear oil:Type:
Yamaha Friction Modified Shaft Drive Gear Oil
Quantity: 0.38 L (0.40 US qt, 0.33 Imp.qt)
Differential gear oil:Type:Yamaha Friction Modified Shaft Drive Gear Oil or SAE 80 API GL-4 Hypoid gear oil
Quantity: 0.23 L (0.24 US qt, 0.20 Imp.qt)Cooling system:Coolant reservoir capacity (up to the maximum level mark):0.25 L (0.26 US qt, 0.22 Imp.qt)
Radiator capacity (including all routes): 1.32 L (1.40 US qt, 1.16 Imp.qt)Air filter:Air filter element:Wet elementFuel:Recommended fuel:
YFM450DE Regular unleaded gasoline only
(EUR)(FRA)(GBR)
YFM450DE Unleaded gasoline only (AUS)(NZL)
YFM450PE Regular unleaded gasoline only
(EUR)(FRA)(GBR)
YFM450PE Unleaded gasoline only (AUS)(NZL)
YFM450PHE Regular unleaded gasoline only
Fuel tank capacity: 15.0 L (3.96 US gal, 3.30 Imp.gal)
Fuel reserve amount: 4.5 L (1.19 US gal, 0.99 Imp.gal)Carburetor:Type × quantity:
BSR33 x 1
0 10 30 50 70 90 110 130 F
–20 –10 0 10 20 30 40 50 CSAE 5W-30
SAE 10W-30
SAE 10W-40
SAE 15W-40
SAE 20W-40SAE 20W-50
U2LC60E0.book Page 2 Friday, March 8, 2013 1:18 PM

10-3
10
Spark plug (s):Manufacturer/model:NGK/DR8EA
Spark plug gap:
0.6–0.7 mm (0.024–0.028 in)Clutch:Clutch type:Wet, centrifugal automaticTransmission:Primary reduction system:V-belt
Secondary reduction system: Shaft drive
Secondary reduction ratio:
39/24 × 24/18 × 33/9 (7.944)
Transmission type: V-belt automatic
Operation: Left hand operation
Reverse gear:
29/17 (1.706)
Low range: 45/16 (2.813)
High range: 38/23 (1.652)Chassis:Frame type:Steel tube frame
Caster angle: 2.5 ° Trail:
8.5 mm (0.33 in)
Front tire:Type:
Tubeless
Size: AT25 x 8-12
Manufacturer/model: YFM450DE CHENG SHIN/C-828 (AUS)(NZL)
YFM450DE MAXXIS/MU13 (EUR)(FRA)(GBR)
YFM450PE CHENG SHIN/C-828 (AUS)(NZL)
YFM450PE MAXXIS/MU13 (EUR)(FRA)(GBR)
YFM450PHE MAXXIS/MU13Rear tire:Type:
Tubeless
Size: AT25 x 10-12
Manufacturer/model: YFM450DE CHENG SHIN/C-828 (AUS)(NZL)
YFM450DE MAXXIS/MU14 (EUR)(FRA)(GBR)
YFM450PE CHENG SHIN/C-828 (AUS)(NZL)
YFM450PE MAXXIS/MU14 (EUR)(FRA)(GBR)
YFM450PHE MAXXIS/MU14Loading:Maximum loading limit:
210.0 kg (463 lb)
(Total weight of rider, cargo, accessories, and tongue)
U2LC60E0.book Page 3 Friday, March 8, 2013 1:18 PM

10-4
10
Tire air pressure (measured on cold tires):Recommended:Front:25.0 kPa (0.250 kgf/cm², 3.6 psi)
Rear: 25.0 kPa (0.250 kgf/cm², 3.6 psi)
Minimum:
Front:22.0 kPa (0.220 kgf/cm², 3.2 psi)
Rear:
22.0 kPa (0.220 kgf/cm², 3.2 psi)Front wheel:Wheel type:Panel wheel
Rim size:
12 x 6.0ATRear wheel:Wheel type:Panel wheel
Rim size:
12 x 7.5ATFront brake:Type:Disc brake
Operation:
Right hand operation
Specified brake fluid: DOT 4Rear brake:Type:
Wet multiple disc brake Operation:
Left hand and right foot operation
Front suspension:Type:
Double wishbone
Spring/shock absorber type: Coil spring/oil damper
Wheel travel: 160 mm (6.3 in)Rear suspension:Type:Double wishbone
Spring/shock absorber type: Coil spring/oil damper
Wheel travel:
180 mm (7.1 in)Electrical system:Ignition system:DC CDI
Charging system:
AC magnetoBattery:Model:YTX20L-BS
Voltage, capacity:
12 V, 18.0 AhHeadlight:Bulb type:Krypton bulb
U2LC60E0.book Page 4 Friday, March 8, 2013 1:18 PM

10-5
10
Bulb voltage, wattage × quantity:Headlight:
12 V, 30.0/30.0 W × 2
Tail/brake light:
12 V, 5.0/21.0 W × 1
Meter lighting: EL (Electroluminescent)
Neutral indicator light: LED
Reverse indicator light:
LED
Coolant temperature warning light: LED
Park indicator light: LED
On-Command four-wheel-drive/differential gear lock
indicator: LCD
High-range indicator light:
LED
Low-range indicator light: LED
Differential gear lock indicator light: LED
EPS warning light:
YFM450PE 12 V, 1.7 W
YFM450PHE 12 V, 1.7 WFuses:Main fuse:30.0 A EPS fuse:
YFM450PE 40.0 A
YFM450PHE 40.0 A
Headlight fuse: 15.0 A
Signaling system fuse: 10.0 A
Ignition fuse:
10.0 A
Auxiliary DC jack fuse: 10.0 A
Backup fuse: YFM450DE 10.0 A
YFM450PE 5.0 A
YFM450PHE 5.0 A
Four-wheel-drive motor fuse: 10.0 A
U2LC60E0.book Page 5 Friday, March 8, 2013 1:18 PM

10-6
10
EBU30401For Europe only
The figures quoted are emission levels and are not
necessarily safe working levels. Whilst there is a
correlation between the emission and exposure
levels, this cannot be used reliably to determine
whether or not further precautions are required.
Factors that influence the actual level of exposure
of work-force include the characteristics of the
work room, the other sources of noise, etc. i.e. the
number of machines and other adjacent process-
es, and the length of time for which an operator is
exposed to the noise. Also the permissible expo-
sure level can vary from country. This information,
however, will enable the user of the machine to
make a better evaluation of the hazard and risk.U2LC60E0.book Page 6 Friday, March 8, 2013 1:18 PM

11-1
11
EBU26000
CONSUMER INFORMATION
EBU28201Identification numbers Record the vehicle identification number and mod-
el label information in the spaces provided below
for assistance when ordering spare parts from a
Yamaha dealer or for reference in case the ATV is stolen.
VEHICLE IDENTIFICATION NUMBER:

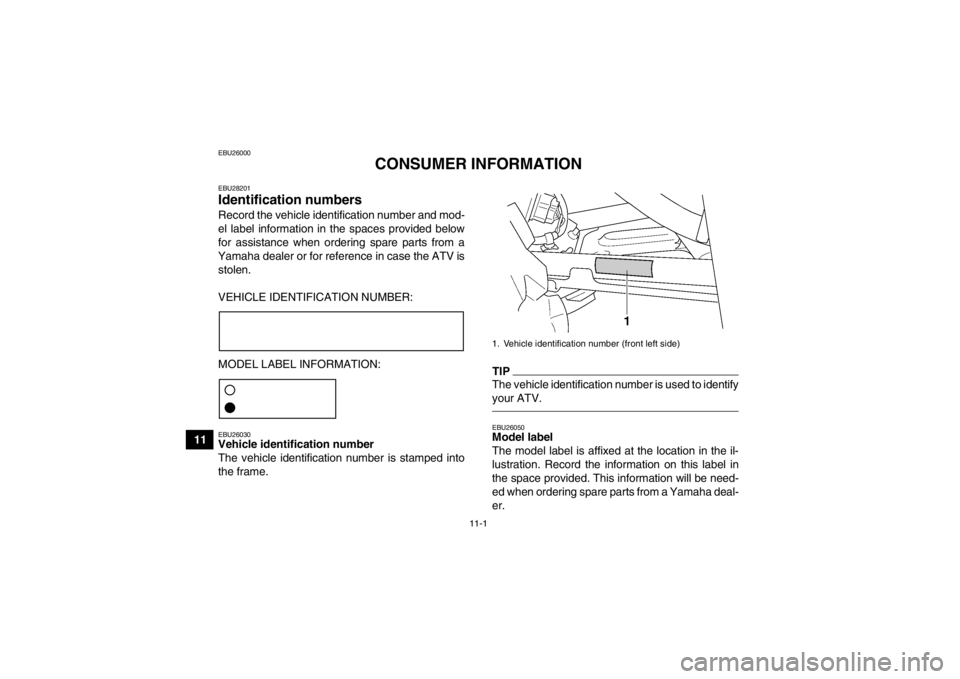

MODEL LABEL INFORMATION:EBU26030Vehicle identification number
The vehicle identification number is stamped into
the frame.
TIPThe vehicle identification number is used to identify
your ATV.EBU26050Model label
The model label is affixed at the location in the il-
lustration. Record the information on this label in
the space provided. This information will be need-
ed when ordering spare parts from a Yamaha deal-
er.1. Vehicle identification number (front left side)
U2LC60E0.book Page 1 Friday, March 8, 2013 1:18 PM

11-2
11
1. Model labelU2LC60E0.book Page 2 Friday, March 8, 2013 1:18 PM
