YAMAHA GRIZZLY 450 2016 Owner's Guide

4-1
4
EBU17737
INSTRUMENT AND CONTROL FUNCTIONS
EBU17761Main switchThe positions of the main switch are as follows:
ON
All electrical systems are supplied with power. The
headlights and taillight come on when the light
switch is on, and the engine can be started. The
key cannot be removed.
OFF
All electrical systems are off. The key can be re-
moved.
1. Main switch
EPS
1
U2LC62E0.book Page 1 Monday, May 11, 2015 2:28 PM

4-2
4
EBU26697Indicator lights and warning lights
EBU17992Low-range indicator light “ ”
This indicator light comes on when the transmis-
sion is in the low-range position.EBU17982High-range indicator light “ ”
This indicator light comes on when the transmis-
sion is in the high-range position.EBU17861Neutral indicator light “ ”
This indicator light comes on when the transmis-
sion is in the neutral position.

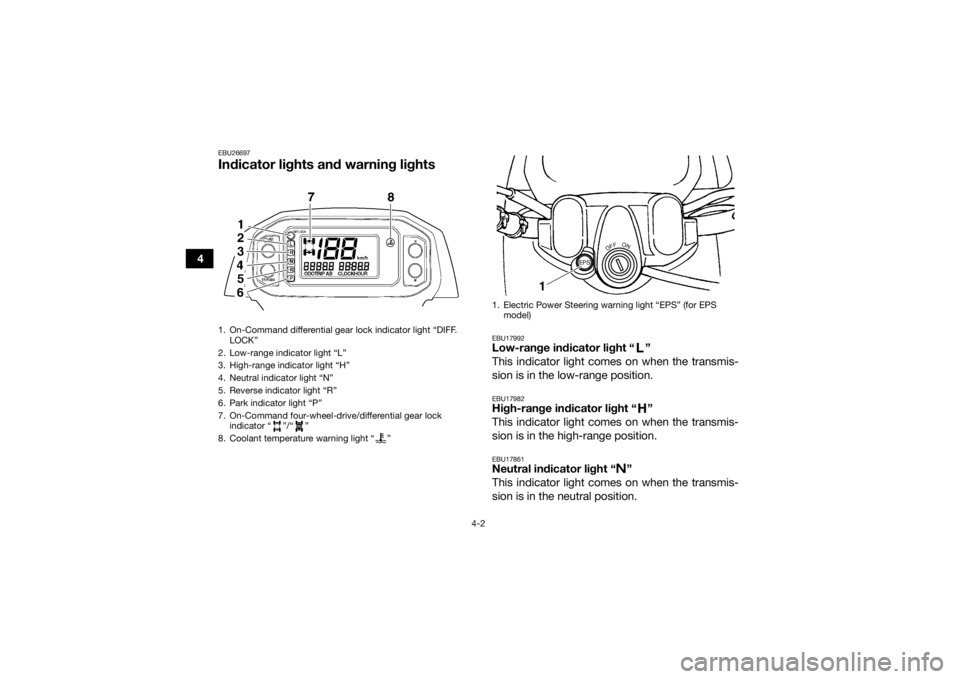

1. On-Command differential gear lock indicator light “DIFF. LOCK”
2. Low-range indicator light “L”
3. High-range indicator light “H”
4. Neutral indicator light “N”
5. Reverse indicator light “R”
6. Park indicator light “P”
7. On-Command four-wheel-drive/differential gear lock indicator “ ”/“ ”
8. Coolant temperature warning light “ ”
1. Electric Power Steering warning light “EPS” (for EPS model)
EPS
1
U2LC62E0.book Page 2 Monday, May 11, 2015 2:28 PM

4-3
4
EBU17843Reverse indicator light “ ”
This indicator light comes on when the transmis-
sion is in the reverse position.
Furthermore, this indicator light flashes when the
engine is being raced for 10 seconds or more.TIPIf the indicator light flashes under any other cir-
cumstances or the speedometer does not show
the speed while riding, have a Yamaha dealer
check the speed sensor circuit. EBU17971Park indicator light “ ”
This indicator light comes on when the transmis-
sion is in the park position.EBU17921Coolant temperature warning light “ ”
This warning light comes on when the engine
overheats. When this occurs during operation,
stop the engine as soon as it is safe to do so and
allow it to cool down for about 10 minutes.
NOTICEECB00011The engine may overheat if the ATV is over-
loaded. In this case, reduce the load to spec-
ification.
 Start the engine after making sure that the
warning light is out. Continuous use while
the warning light is on may cause damage to
the engine. EBU29062Electric Power Steering warning light “EPS”
(for EPS model)
This warning light comes on when the key is
turned to “ON”, and then goes off once the engine
is started. If the warning light remains on or comes
on after the engine is started, the EPS system may
not be working correctly. When this occurs, have
a Yamaha dealer check the EPS system.
The electrical circuit of the warning light can be
checked by turning the key to “ON”. If the warning
light does not come on, have a Yamaha dealer
check the electrical circuit.
U2LC62E0.book Page 3 Monday, May 11, 2015 2:28 PM

4-4
4
TIPIf the engine is stopped using the engine stop
switch and the key is in the “ON” position, the
EPS warning light comes on to indicate that the
power assistance for the steering is not func-
tioning.
 If the steering load is too heavy (i.e., excessive
steering use when the ATV is traveling at a slow
speed), the power assist is reduced to protect
the EPS motor from overheating. EBU29622On-Command four-wheel-drive indicator “ ”,
On-Command differential gear lock
indicator “ ” and indicator light “DIFF. LOCK”
The On-Command four-wheel-drive indicator “ ”
comes on when the On-Command four-wheel-
drive switch is set to the “4WD” position.
The On-Command differential gear lock
indicator “ ” and the On-Command differential
gear lock indicator light “DIFF. LOCK” come on
when the On-Command differential gear lock
switch is set to the “LOCK” position.
TIPDue to the synchronizing mechanism in the dif-
ferential gear case, the four-wheel-drive indica-
tor may not come on until the ATV starts
moving.
 When the On-Command differential gear lock
switch is set to “LOCK”, the indicator “ ” and
the indicator light “DIFF. LOCK” will flash until
the differential gear is locked. If the indicator
and the indicator light continue to flash, the dif-
ferential is not locked. In this case, start moving
to allow time for the differential to lock.
U2LC62E0.book Page 4 Monday, May 11, 2015 2:28 PM

4-5
4
EBU18038Multi-function displayThe multi-function display is equipped with the
following:
a speedometer
 an odometer
 two tripmeters (which show the distance trav-
eled since they were last set to zero)
 a clock 
an hour meter (which shows the total time the
key has been turned to “ON”)
Odometer and tripmeter modes
Pushing the “TRIP/ODO” button switches the dis-
play between the odometer mode “ODO” and the
tripmeter modes “TRIP A” and “TRIP B” in the fol-
lowing order:
ODO → TRIP A → TRIP B → ODO
To reset a tripmeter, select it by pushing the
“TRIP/ODO” button, and then push the
“TRIP/ODO” button for at least three seconds.
The tripmeters can be used to estimate the dis-
tance that can be traveled with a full tank of fuel.
This information will enable you to plan future fuel
stops.
TIPPushing and holding in the “TRIP/ODO” button,
and turning the key to “ON” while the button is
pushed, switches the display between “mph” and
“km/h”. Clock mode
Pushing the “ / ” button switches the display
between the clock mode “CLOCK” and the hour
meter mode “HOUR” in the following order:
1. Speedometer
2. “H” button
3. “M” button
4. Clock/Hour meter
5. Odometer/Tripmeter A/Tripmeter B
6. “TRIP/ODO” button
7. Clock/Hour “ / ” buttonU2LC62E0.book Page 5 Monday, May 11, 2015 2:28 PM

4-6
4CLOCK
→ HOUR → CLOCK
To set the clock
1. Set the display to the clock mode.
2. Push the “ / ” button until the clock starts flashing.
3. Set the hours by pushing the “H” button.
4. Set the minutes by pushing the “M” button.
5. Push the “ / ” button, and then release it to start the clock.EBU18051Fuel gaugeThe fuel gauge indicates the amount of fuel in the
fuel tank. When the needle reaches the red line,
refill the tank at the first opportunity.
TIPIf the ATV runs out of fuel, move the fuel cock lever
to the “RES” position. Approximately 4.5 L (1.19
US gal, 0.99 Imp.gal) of fuel will be remaining in
the tank. 1. Fuel gauge
2. Red line
U2LC62E0.book Page 6 Monday, May 11, 2015 2:28 PM

4-7
4
EBU18065Handlebar switchesEBU18081Engine stop switch “ / ”
Set this switch to “ ” before starting the engine.
The engine stop switch controls the ignition and
stops the engine when it is running. Use this
switch to stop the engine in an emergency situa-
tion. The engine will not start or run when this
switch is set to “ ”.
EBU18102Start switch “ ”
Push this switch to crank the engine with the start-
er. See the starting instructions on page 6-1 prior
to starting the engine.EBU18155Light switch “ / /OFF”
Set this switch to “ ” to turn on the low beams
and the taillight. Set the switch to “ ” to turn on
the high beams and the taillight. Set the switch to
“OFF” to turn off all the lights.NOTICEECB00044Do not use the headlights with the engine
turned off for an extended period of time, oth-
erwise the battery may discharge to the point
that the starter motor will not operate properly.
If this should happen, remove the battery and
recharge it. (See page 8-52.) EBU18171Horn switch “ ”
Press the switch to sound the horn.

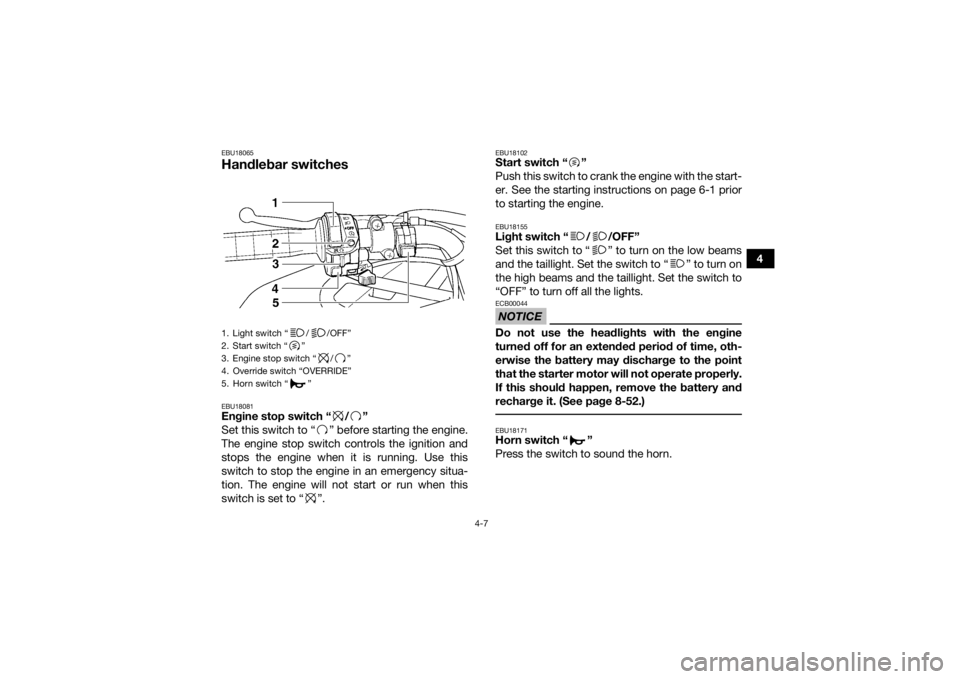

1. Light switch “ / /OFF”
2. Start switch “ ”
3. Engine stop switch “ / ”
4. Override switch “OVERRIDE”
5. Horn switch “ ”U2LC62E0.book Page 7 Monday, May 11, 2015 2:28 PM

4-8
4

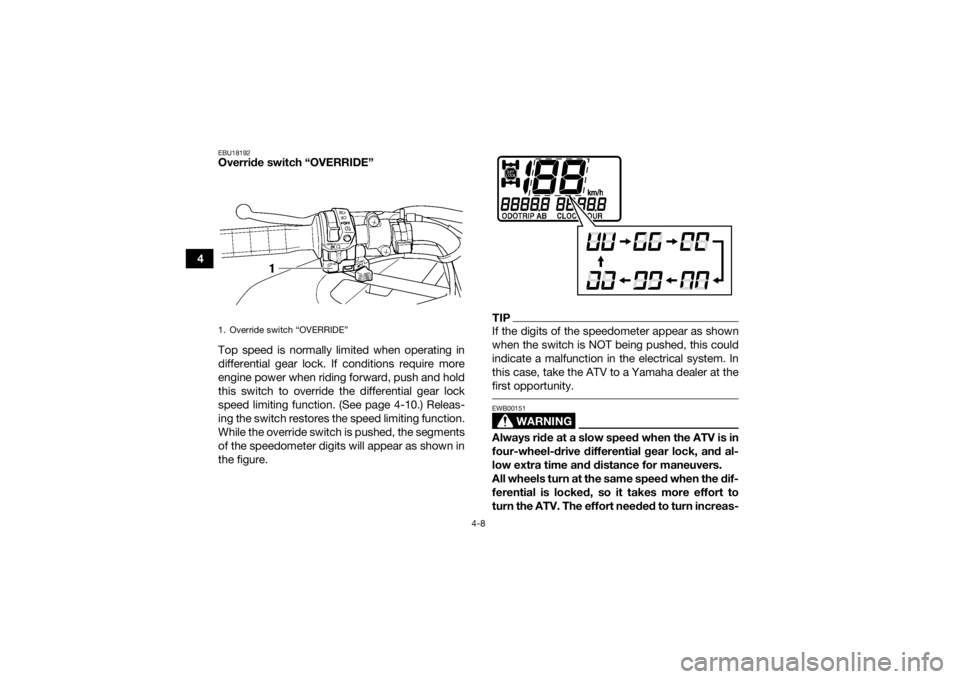

EBU18192Override switch “OVERRIDE”
Top speed is normally limited when operating in
differential gear lock. If conditions require more
engine power when riding forward, push and hold
this switch to override the differential gear lock
speed limiting function. (See page 4-10.) Releas-
ing the switch restores the speed limiting function.
While the override switch is pushed, the segments
of the speedometer digits will appear as shown in
the figure.
TIPIf the digits of the speedometer appear as shown
when the switch is NOT being pushed, this could
indicate a malfunction in the electrical system. In
this case, take the ATV to a Yamaha dealer at the
first opportunity.
WARNING
EWB00151Always ride at a slow speed when the ATV is in
four-wheel-drive differential gear lock, and al-
low extra time and distance for maneuvers.
All wheels turn at the same speed when the dif-
ferential is locked, so it takes more effort to
turn the ATV. The effort needed to turn increas-
1. Override switch “OVERRIDE”U2LC62E0.book Page 8 Monday, May 11, 2015 2:28 PM

4-9
4
es with the riding speed. You may lose control
and have an accident if you cannot make a
sharp enough turn for the speed you are trav-
eling.
EBU26608On-Command four-wheel-drive switch
“2WD”/“4WD”
WARNING
EWB00164Always stop the ATV before changing from
two-wheel drive to four-wheel drive and vice
versa. The ATV handles differently in two-
wheel drive than in four-wheel drive in some
circumstances. Changing from two-wheel
drive to four-wheel drive or vice versa while
moving may cause the ATV to unexpectedly
handle differently. This could distract the oper-
ator and increase the risk of losing control and
of causing an accident. This ATV is equipped with a switch to change from
two-wheel drive to four-wheel drive and vice ver-
sa. Select the appropriate drive according to the
terrain and the conditions.

“2WD” (two-wheel drive): Power is supplied to
the rear wheels. 
“4WD” (four-wheel drive): Power is supplied to
the rear and front wheels.
To change from two-wheel drive to four-wheel
drive, stop the ATV and push the switch in to the
“4WD” position. Then, the four-wheel-drive
indicator “ ” comes on in the multi-function dis-
play.
To change from four-wheel drive to two-wheel
drive, stop the ATV and push the switch in to the
“2WD” position.

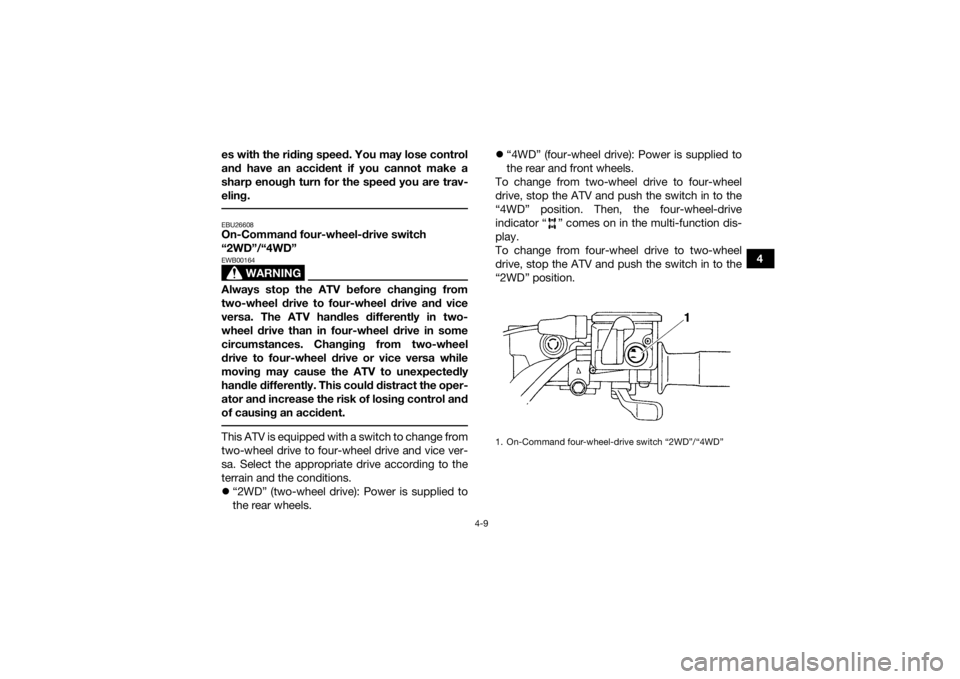

1. On-Command four-wheel-drive switch “2WD”/“4WD”
U2LC62E0.book Page 9 Monday, May 11, 2015 2:28 PM

4-10
4
EBU18256On-Command differential gear lock switch
“4WD”/“LOCK”
WARNING
EWB00132Always stop the ATV before changing from
four-wheel drive to four-wheel-drive differen-
tial gear lock or vice versa.
The ATV handles differently in four-wheel drive
than in differential gear lock in some circum-
stances. Changing from four-wheel drive to
differential gear lock or vice versa while mov-
ing may cause the ATV to handle differently un-
expectedly. This could distract the operator
and increase the risk of losing control and
causing an accident.
WARNING
EWB00141Always ride at a slow speed when the ATV is in
differential gear lock, and allow extra time and
distance for maneuvers.
All wheels turn at the same speed when the dif-
ferential gear is locked, so it takes more effort
to turn the ATV. The effort needed to turn in-
creases with the riding speed. You may losecontrol and have an accident if you cannot
make a sharp enough turn for the speed you
are traveling.
This ATV is equipped with a switch allowing you to
lock the differential gear when in four-wheel drive.
Select the appropriate switch position according
to the terrain and the conditions.

“4WD” (four-wheel drive): Power is supplied to
the rear and front wheels.
 “LOCK” (four-wheel drive with the differential
gear locked): Power is supplied to the rear and
front wheels and the differential gear is locked.
Unlike in four-wheel drive, all wheels turn at the
same speed.
U2LC62E0.book Page 10 Monday, May 11, 2015 2:28 PM
