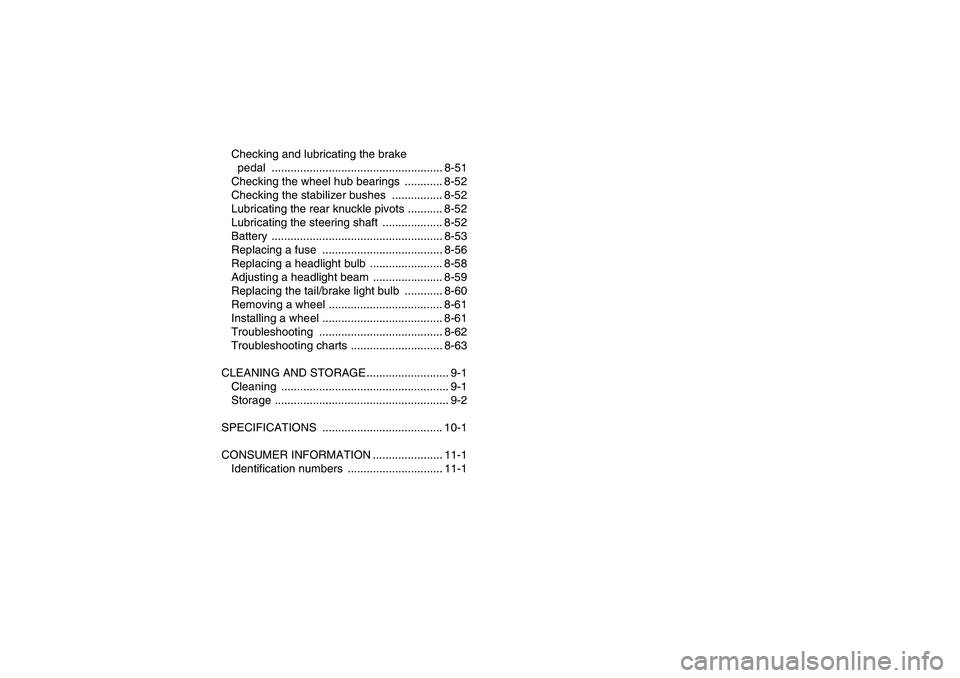

Checking and lubricating the brake
pedal ...................................................... 8-51
Checking the wheel hub bearings ............ 8-52
Checking the stabilizer bushes ................ 8-52
Lubricating the rear knuckle pivots ........... 8-52
Lubricating the steering shaft ................... 8-52
Battery ...................................................... 8-53
Replacing a fuse ...................................... 8-56
Replacing a headlight bulb ....................... 8-58
Adjusting a headlight beam ...................... 8-59
Replacing the tail/brake light bulb ............ 8-60
Removing a wheel .................................... 8-61
Installing a wheel ...................................... 8-61
Troubleshooting ....................................... 8-62
Troubleshooting charts ............................. 8-63
CLEANING AND STORAGE .......................... 9-1
Cleaning ..................................................... 9-1
Storage ....................................................... 9-2
SPECIFICATIONS ...................................... 10-1
CONSUMER INFORMATION ...................... 11-1
Identification numbers .............................. 11-1
U28P61E0.book Page 3 Wednesday, March 18, 2009 9:25 AM

8-58
8

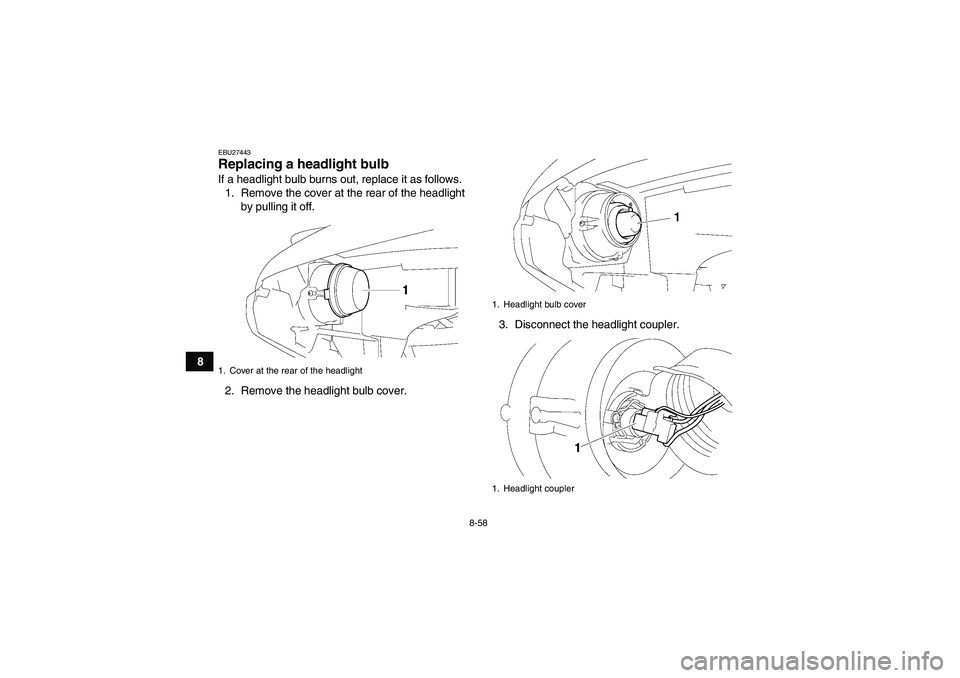

EBU27443Replacing a headlight bulb If a headlight bulb burns out, replace it as follows.
1. Remove the cover at the rear of the headlight
by pulling it off.
2. Remove the headlight bulb cover.3. Disconnect the headlight coupler.1. Cover at the rear of the headlight
1. Headlight bulb cover
1. Headlight coupler
U28P61E0.book Page 58 Wednesday, March 18, 2009 9:25 AM

8-59

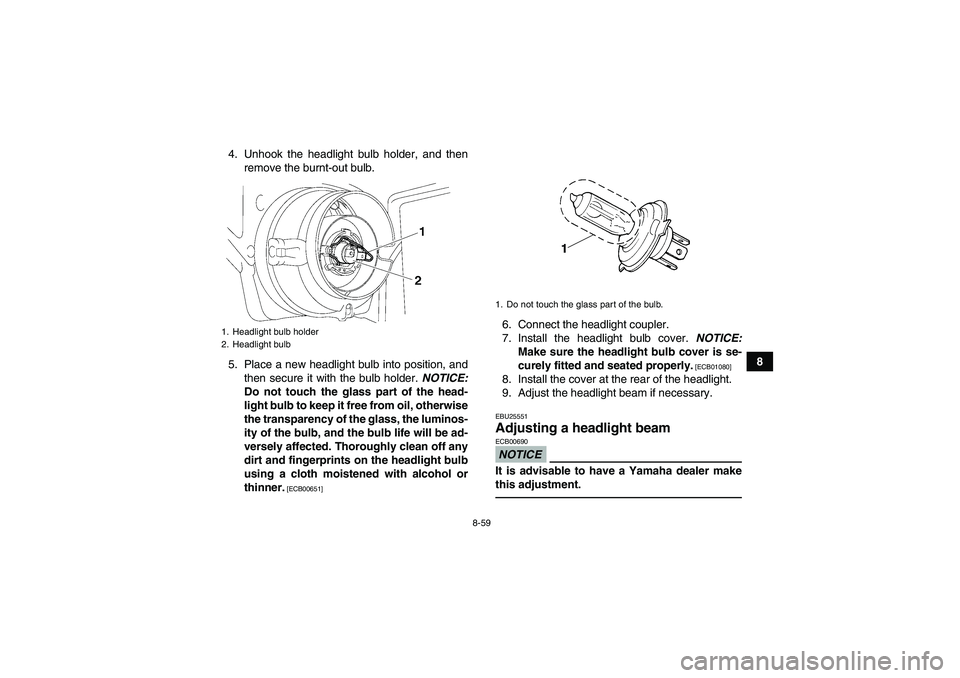

8 4. Unhook the headlight bulb holder, and then
remove the burnt-out bulb.
5. Place a new headlight bulb into position, and
then secure it with the bulb holder. NOTICE:
Do not touch the glass part of the head-
light bulb to keep it free from oil, otherwise
the transparency of the glass, the luminos-
ity of the bulb, and the bulb life will be ad-
versely affected. Thoroughly clean off any
dirt and fingerprints on the headlight bulb
using a cloth moistened with alcohol or
thinner.
[ECB00651]
6. Connect the headlight coupler.
7. Install the headlight bulb cover. NOTICE:
Make sure the headlight bulb cover is se-
curely fitted and seated properly.
[ECB01080]
8. Install the cover at the rear of the headlight.
9. Adjust the headlight beam if necessary.EBU25551Adjusting a headlight beam NOTICEECB00690It is advisable to have a Yamaha dealer make
this adjustment.
1. Headlight bulb holder
2. Headlight bulb
1. Do not touch the glass part of the bulb.
U28P61E0.book Page 59 Wednesday, March 18, 2009 9:25 AM

8-60

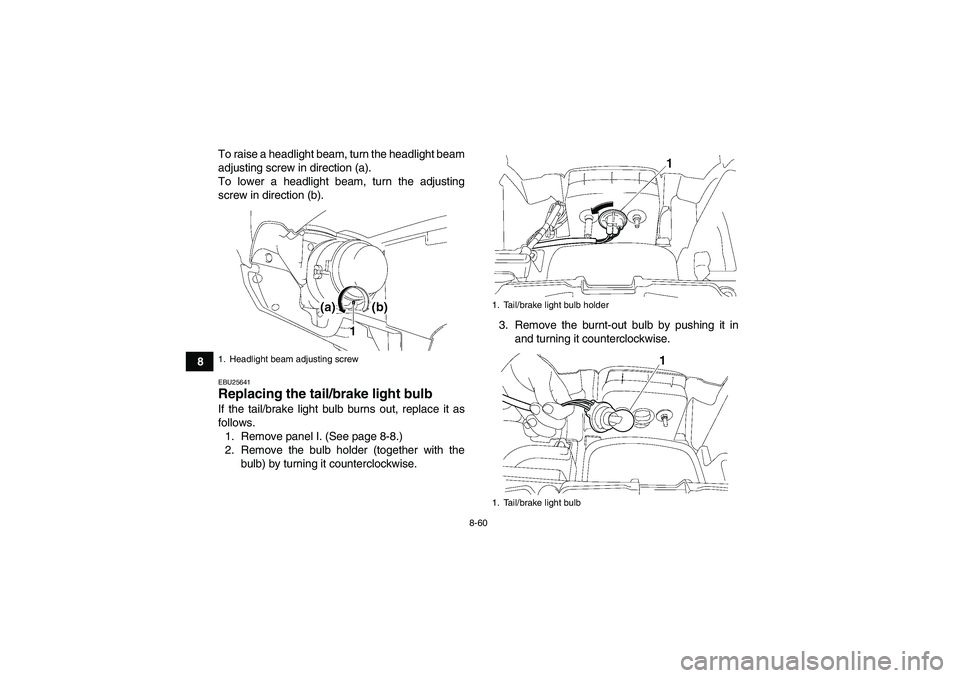

8To raise a headlight beam, turn the headlight beam
adjusting screw in direction (a).
To lower a headlight beam, turn the adjusting
screw in direction (b).
EBU25641Replacing the tail/brake light bulb If the tail/brake light bulb burns out, replace it as
follows.
1. Remove panel I. (See page 8-8.)
2. Remove the bulb holder (together with the
bulb) by turning it counterclockwise.3. Remove the burnt-out bulb by pushing it in
and turning it counterclockwise.1. Headlight beam adjusting screw
1. Tail/brake light bulb holder
1. Tail/brake light bulb
U28P61E0.book Page 60 Wednesday, March 18, 2009 9:25 AM

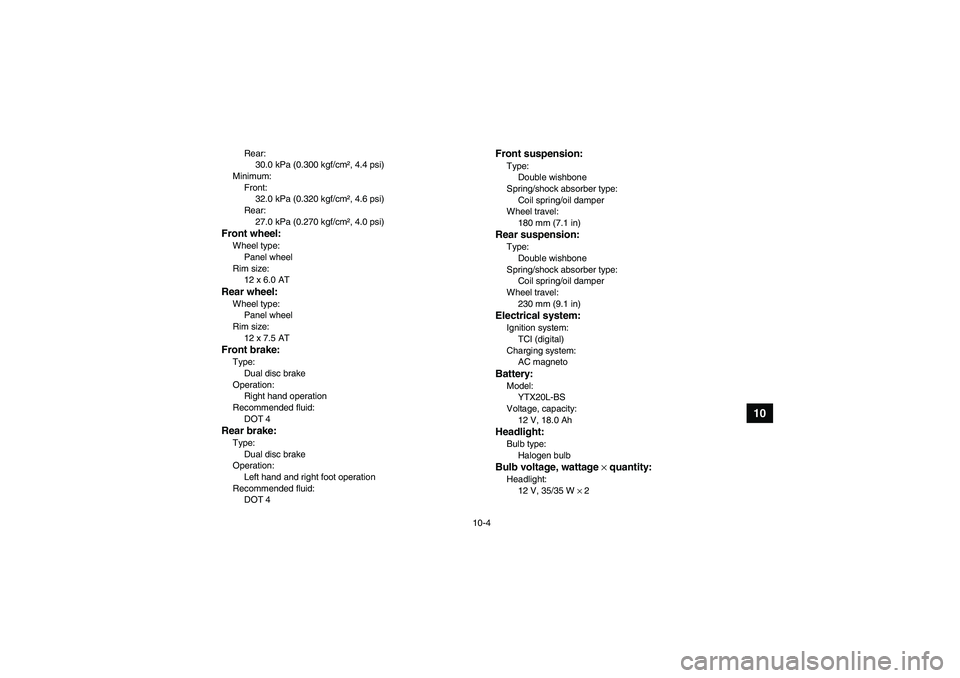

10-4
10
Rear:
30.0 kPa (0.300 kgf/cm², 4.4 psi)
Minimum:
Front:
32.0 kPa (0.320 kgf/cm², 4.6 psi)
Rear:
27.0 kPa (0.270 kgf/cm², 4.0 psi)
Front wheel:Wheel type:
Panel wheel
Rim size:
12 x 6.0 ATRear wheel:Wheel type:
Panel wheel
Rim size:
12 x 7.5 ATFront brake:Type:
Dual disc brake
Operation:
Right hand operation
Recommended fluid:
DOT 4Rear brake:Type:
Dual disc brake
Operation:
Left hand and right foot operation
Recommended fluid:
DOT 4
Front suspension:Type:
Double wishbone
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
180 mm (7.1 in)Rear suspension:Type:
Double wishbone
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
230 mm (9.1 in)Electrical system:Ignition system:
TCI (digital)
Charging system:
AC magnetoBattery:Model:
YTX20L-BS
Voltage, capacity:
12 V, 18.0 AhHeadlight:Bulb type:
Halogen bulbBulb voltage, wattage × quantity:Headlight:
12 V, 35/35 W × 2
U28P61E0.book Page 4 Wednesday, March 18, 2009 9:25 AM

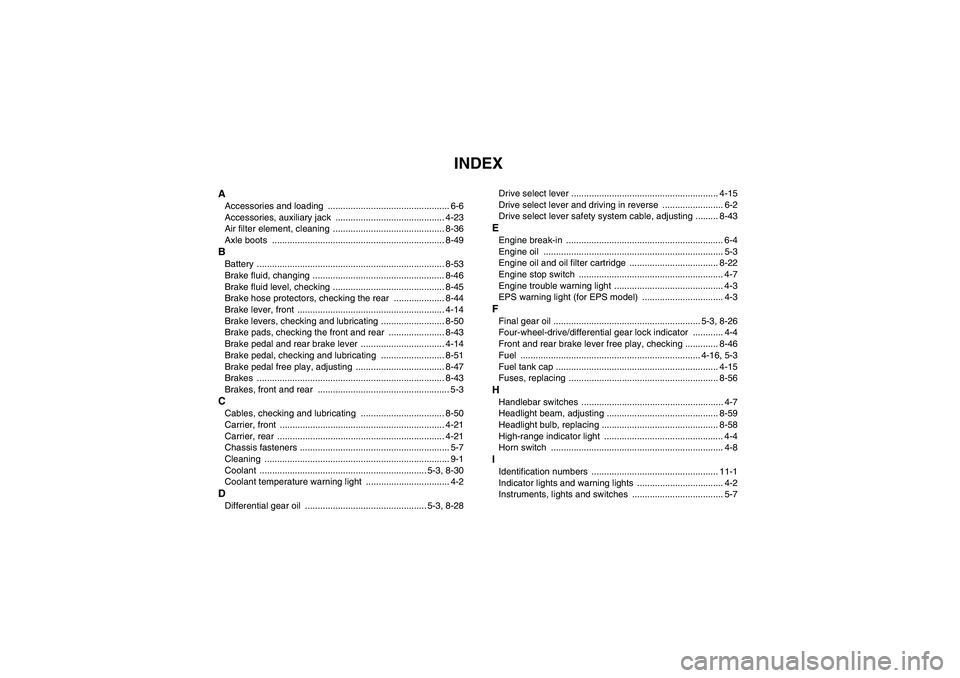

INDEX
