Page 91 of 170

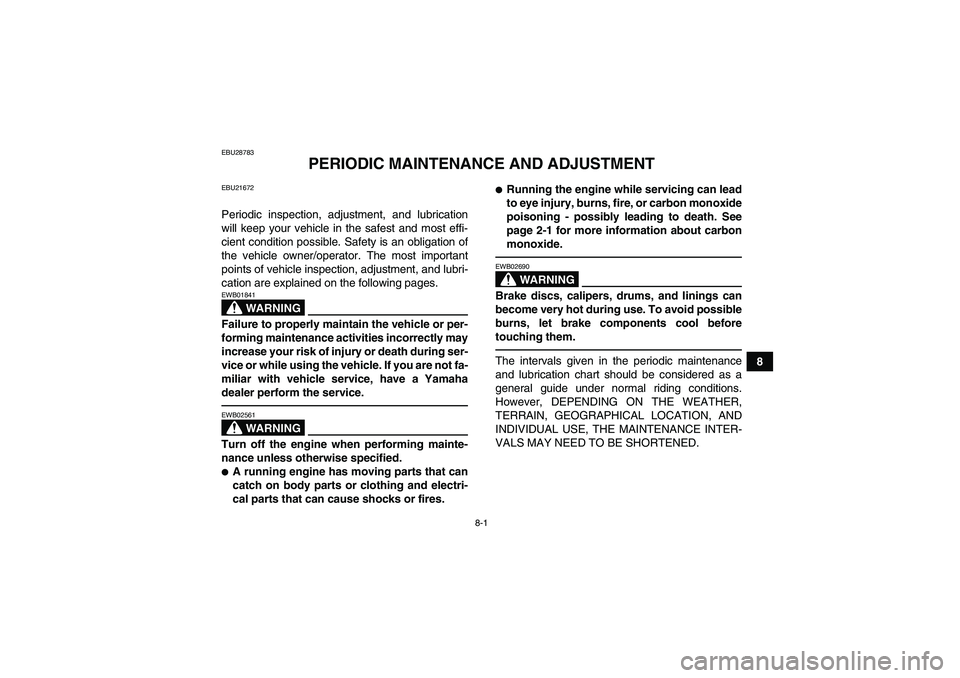

YAMAHA GRIZZLY 550 2011  Owners Manual 8-1
8
EBU28783
PERIODIC MAINTENANCE AND ADJUSTMENT
EBU21672Periodic inspection, adjustment, and lubrication
will keep your vehicle in the safest and most effi-
cient condition possible. Safety is an o

Page 92 of 170

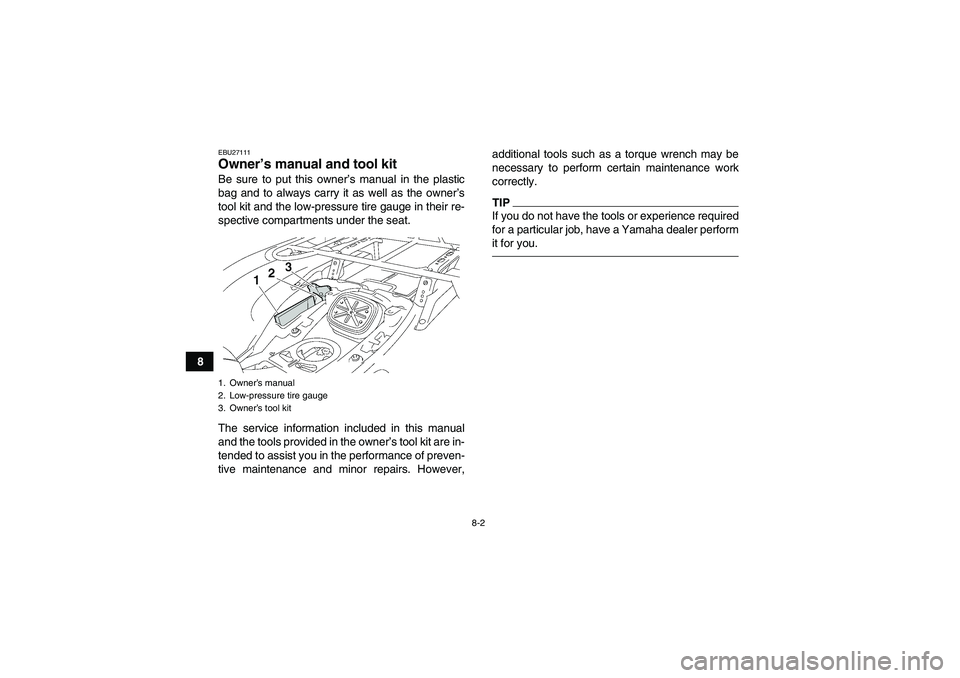

YAMAHA GRIZZLY 550 2011  Owners Manual 8-2
8
EBU27111Owner’s manual and tool kit Be sure to put this owner’s manual in the plastic
bag and to always carry it as well as the owner’s
tool kit and the low-pressure tire gauge in their re

Page 93 of 170

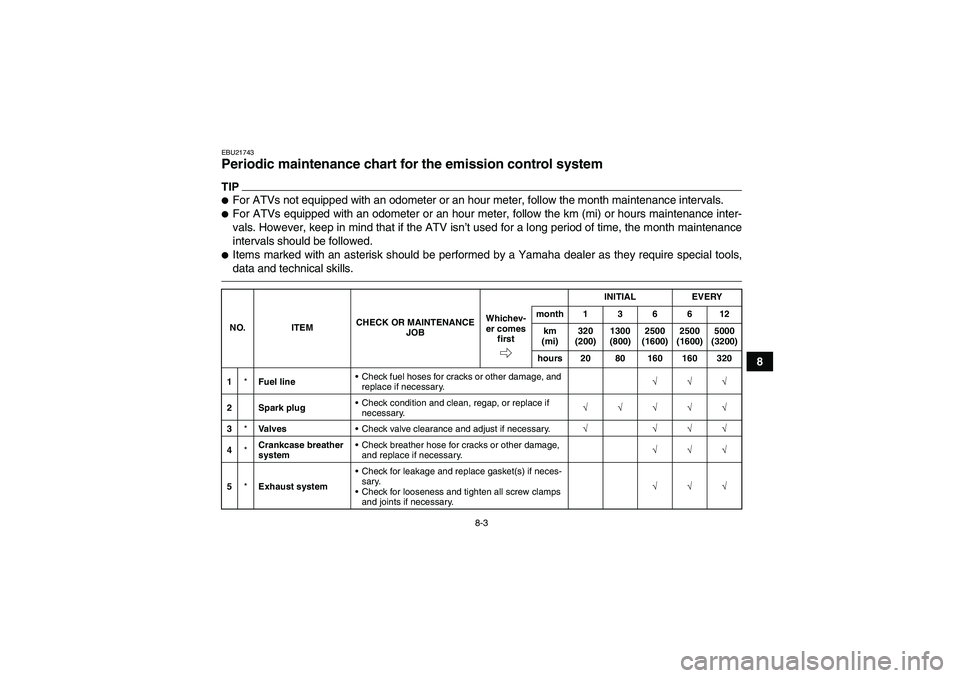

YAMAHA GRIZZLY 550 2011  Owners Manual 8-3
8
EBU21743Periodic maintenance chart for the emission control system TIPFor ATVs not equipped with an odometer or an hour meter, follow the month maintenance intervals.For ATVs equipped with an

Page 94 of 170

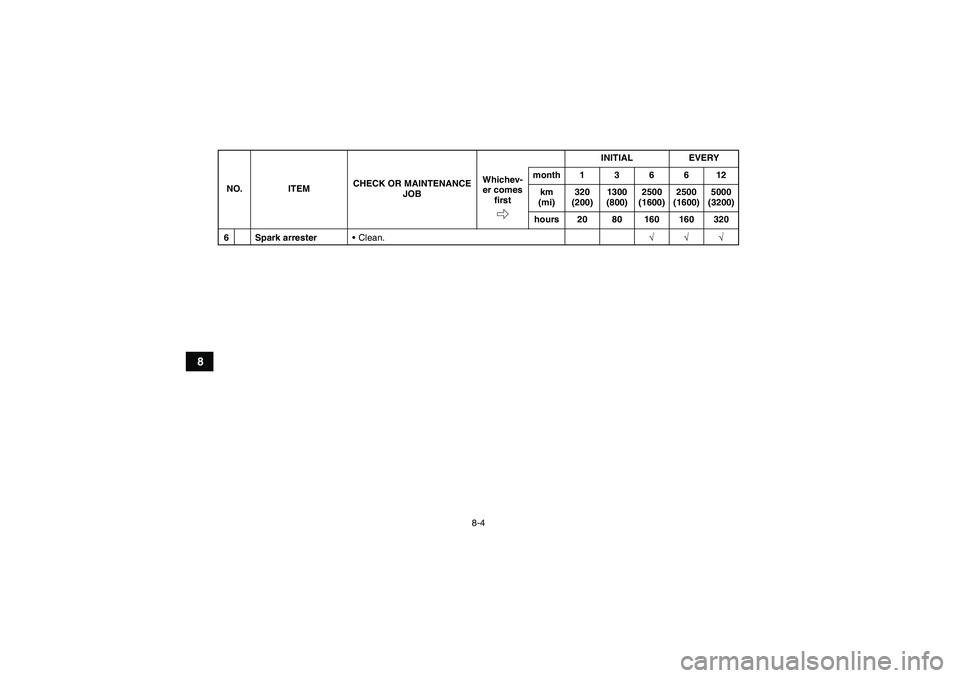

YAMAHA GRIZZLY 550 2011  Owners Manual 8-4
8
6 Spark arresterClean.√√√ NO. ITEMCHECK OR MAINTENANCE
JOBINITIAL EVERY
Whichev-
er comes
firstmonth136612
km
(mi)320
(200)1300
(800)2500
(1600)2500
(1600)5000
(3200)
hours 20 80

Page 95 of 170

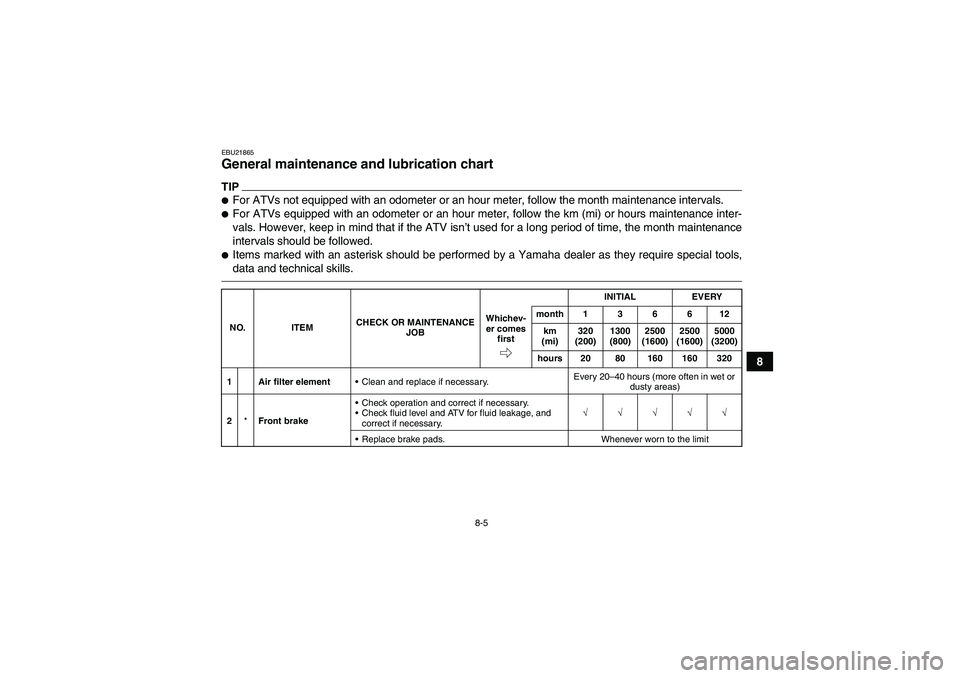

YAMAHA GRIZZLY 550 2011  Owners Manual 8-5
8
EBU21865General maintenance and lubrication chart TIPFor ATVs not equipped with an odometer or an hour meter, follow the month maintenance intervals.For ATVs equipped with an odometer or an ho

Page 96 of 170

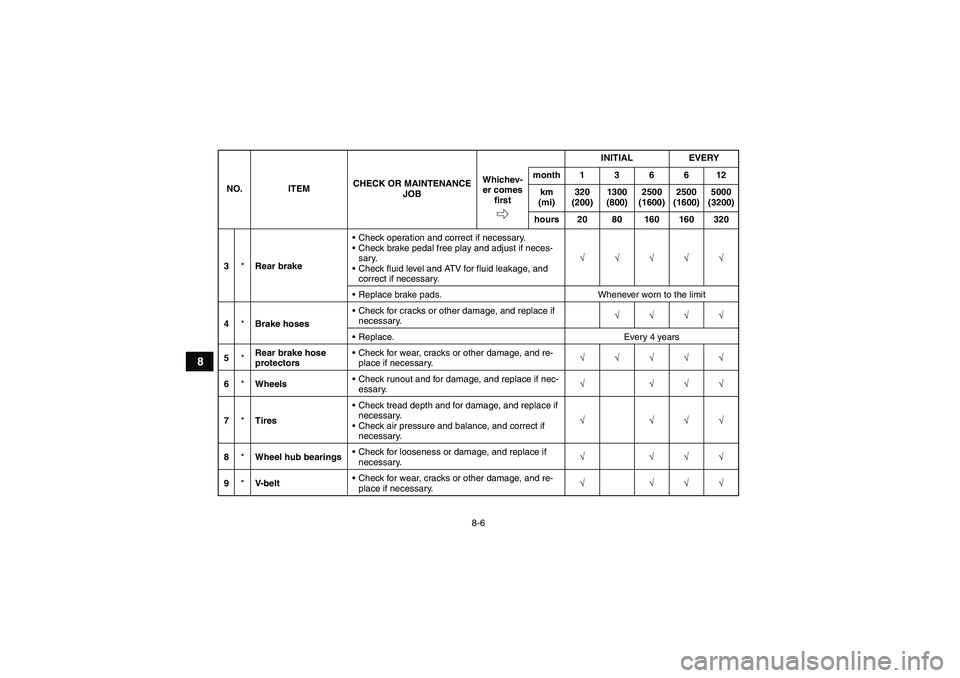

YAMAHA GRIZZLY 550 2011  Owners Manual 8-6
8
3*Rear brakeCheck operation and correct if necessary.
Check brake pedal free play and adjust if neces-
sary.
Check fluid level and ATV for fluid leakage, and
correct if necessary.√√√âˆ

Page 97 of 170

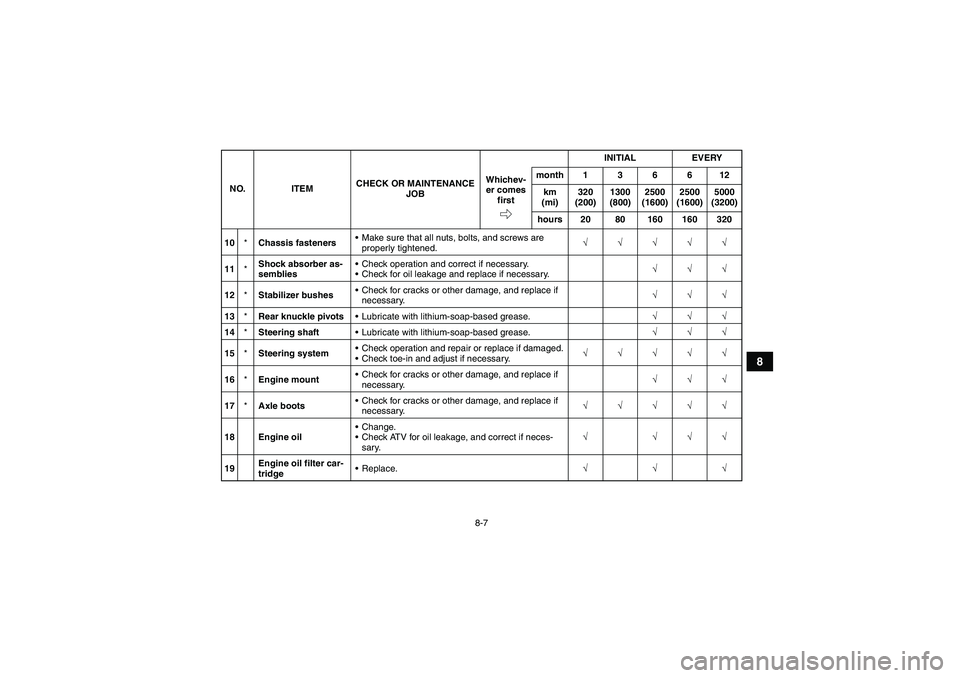

YAMAHA GRIZZLY 550 2011  Owners Manual 8-7
8
10*Chassis fastenersMake sure that all nuts, bolts, and screws are
properly tightened.√√√√√
11*Shock absorber as-
sembliesCheck operation and correct if necessary.
Check for oil le

Page 98 of 170

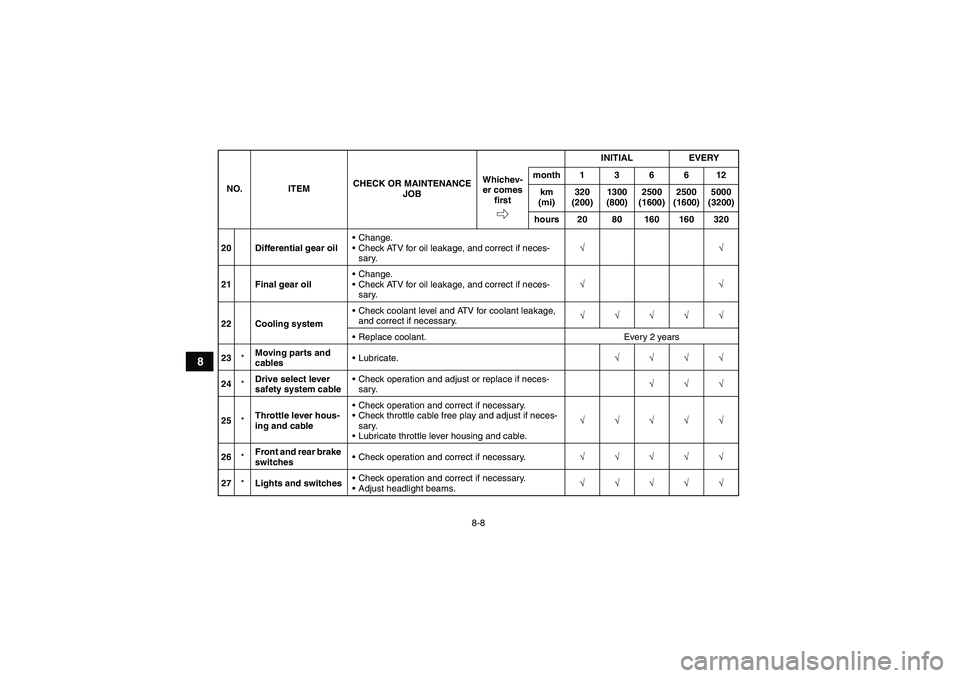

YAMAHA GRIZZLY 550 2011  Owners Manual 8-8
8
20 Differential gear oilChange.
Check ATV for oil leakage, and correct if neces-
sary.√√
21 Final gear oilChange.
Check ATV for oil leakage, and correct if neces-
sary.√√
22 Cooling

Page 99 of 170

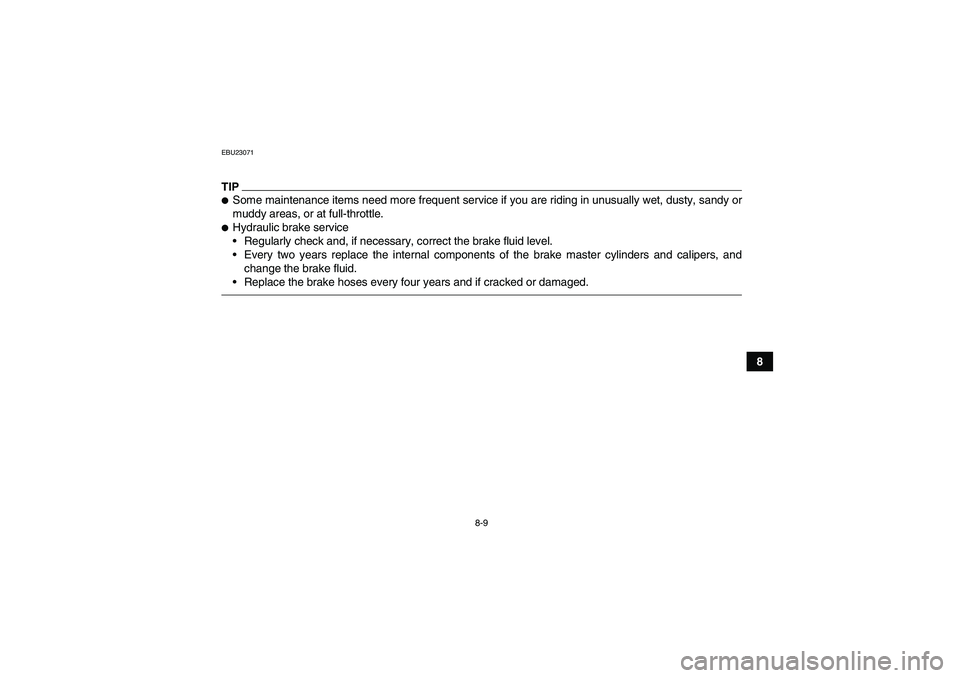

YAMAHA GRIZZLY 550 2011  Owners Manual 8-9
8
EBU23071TIPSome maintenance items need more frequent service if you are riding in unusually wet, dusty, sandy or
muddy areas, or at full-throttle.Hydraulic brake service
Regularly check and,

Page 100 of 170

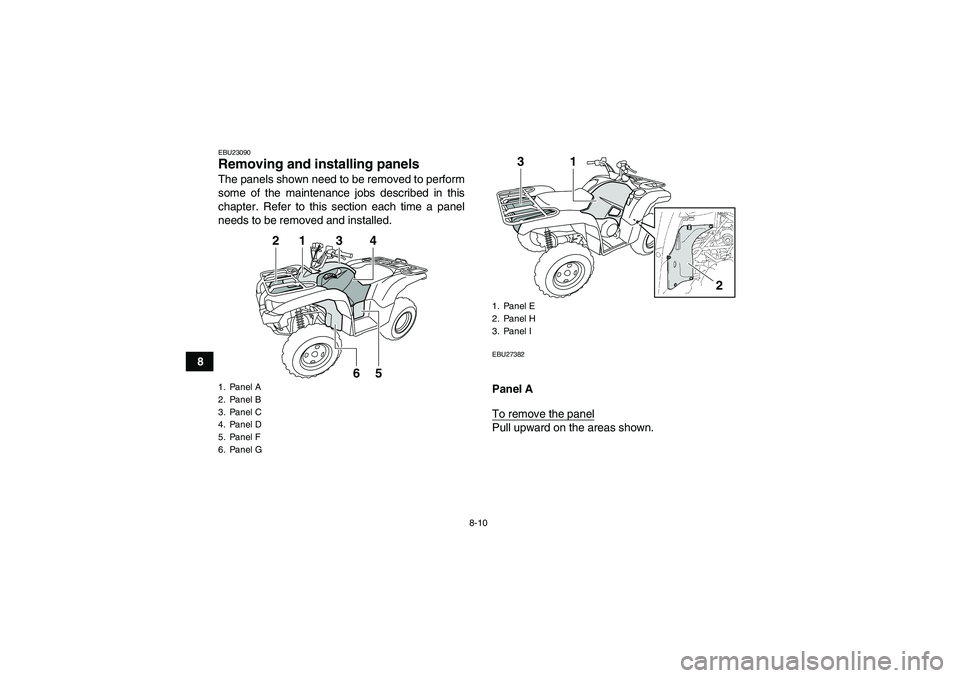

YAMAHA GRIZZLY 550 2011  Owners Manual 8-10
8
EBU23090Removing and installing panels The panels shown need to be removed to perform
some of the maintenance jobs described in this
chapter. Refer to this section each time a panel
needs to be
