Page 101 of 170

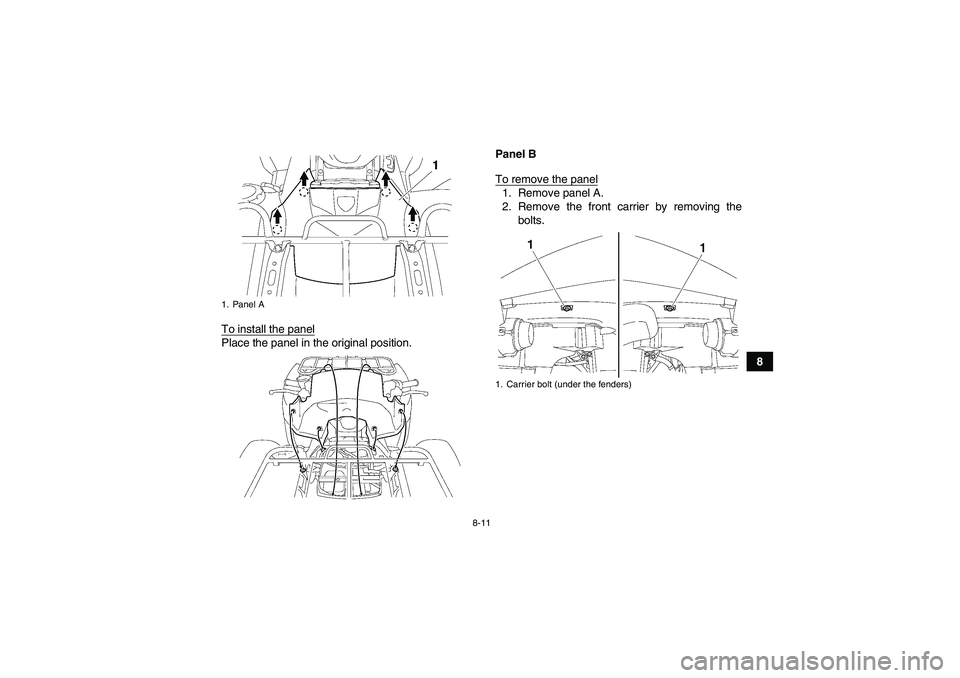

8-11
8 To install the panel
Place the panel in the original position.Panel B
To remove the panel
1. Remove panel A.
2. Remove the front carrier by removing the
bolts.
1. Panel A
1. Carrier bolt (under the fenders)
U28P62E0.book Page 11 Thursday, March 11, 2010 3:25 PM
Page 102 of 170

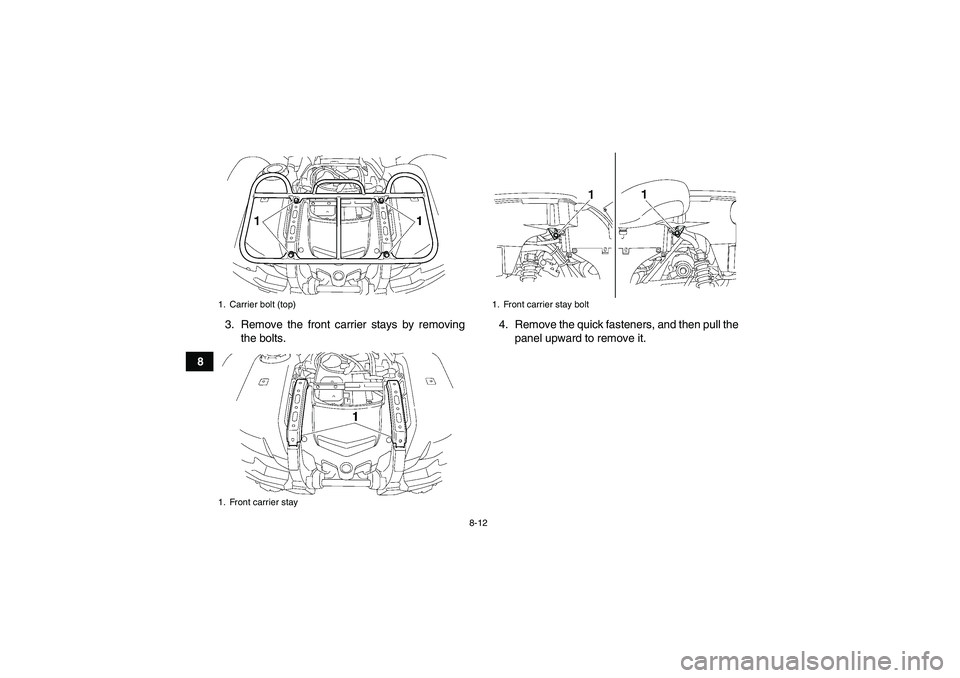

8-12
83. Remove the front carrier stays by removing
the bolts.4. Remove the quick fasteners, and then pull the
panel upward to remove it.
1. Carrier bolt (top)
1. Front carrier stay
1. Front carrier stay bolt
U28P62E0.book Page 12 Thursday, March 11, 2010 3:25 PM
Page 103 of 170
8-13
8 To install the panel
1. Place the panel in the original position, and
then install the quick fasteners.2. Install the front carrier stays by installing the
bolts and tightening them to the specified
torque.
3. Install the front carrier by installing the bolts
and tightening them to the specified torques.1. Panel B
2. Quick fastener
Tightening torque:
Front carrier stay bolt:
34 Nm (3.4 m·kgf, 25 ft·lbf)
U28P62E0.book Page 13 Thursday, March 11, 2010 3:25 PM
Page 104 of 170

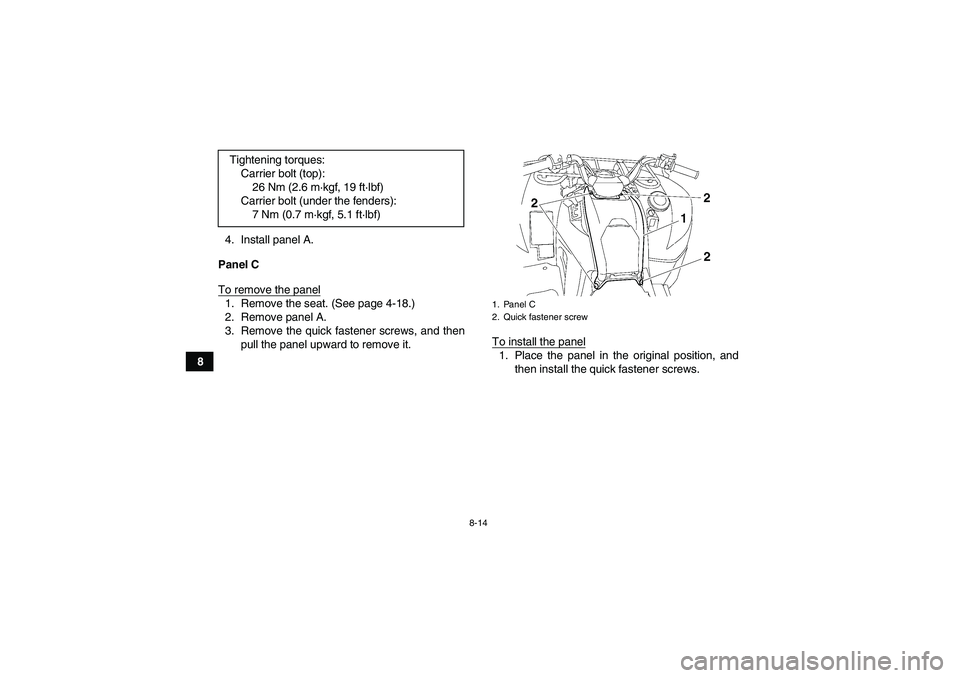

8-14
84. Install panel A.
Panel C
To remove the panel
1. Remove the seat. (See page 4-18.)
2. Remove panel A.
3. Remove the quick fastener screws, and then
pull the panel upward to remove it.To install the panel
1. Place the panel in the original position, and
then install the quick fastener screws. Tightening torques:
Carrier bolt (top):
26 Nm (2.6 m·kgf, 19 ft·lbf)
Carrier bolt (under the fenders):
7 Nm (0.7 m·kgf, 5.1 ft·lbf)1. Panel C
2. Quick fastener screw
U28P62E0.book Page 14 Thursday, March 11, 2010 3:25 PM
Page 105 of 170

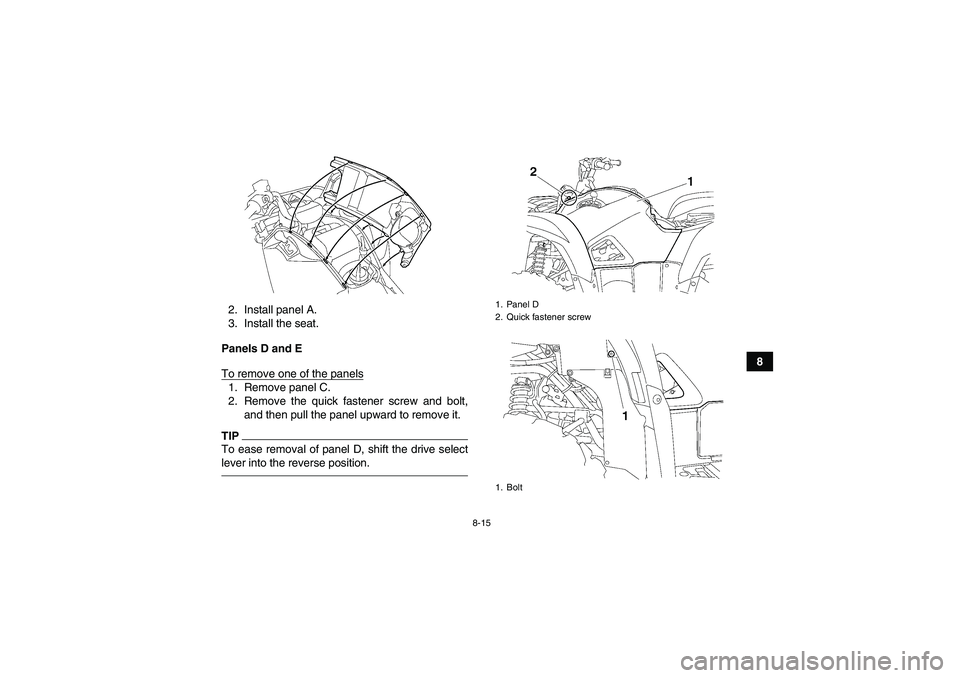

8-15
8 2. Install panel A.
3. Install the seat.
Panels D and E
To remove one of the panels
1. Remove panel C.
2. Remove the quick fastener screw and bolt,
and then pull the panel upward to remove it.TIPTo ease removal of panel D, shift the drive select
lever into the reverse position.
1. Panel D
2. Quick fastener screw
1. Bolt
U28P62E0.book Page 15 Thursday, March 11, 2010 3:25 PM
Page 106 of 170
8-16
8To install one of the panels
1. Place the panel in the original position, and
then install the bolt and quick fastener screw.
2. Install panel C.
1. Panel E
2. Quick fastener screw
1. BoltU28P62E0.book Page 16 Thursday, March 11, 2010 3:25 PM
Page 107 of 170

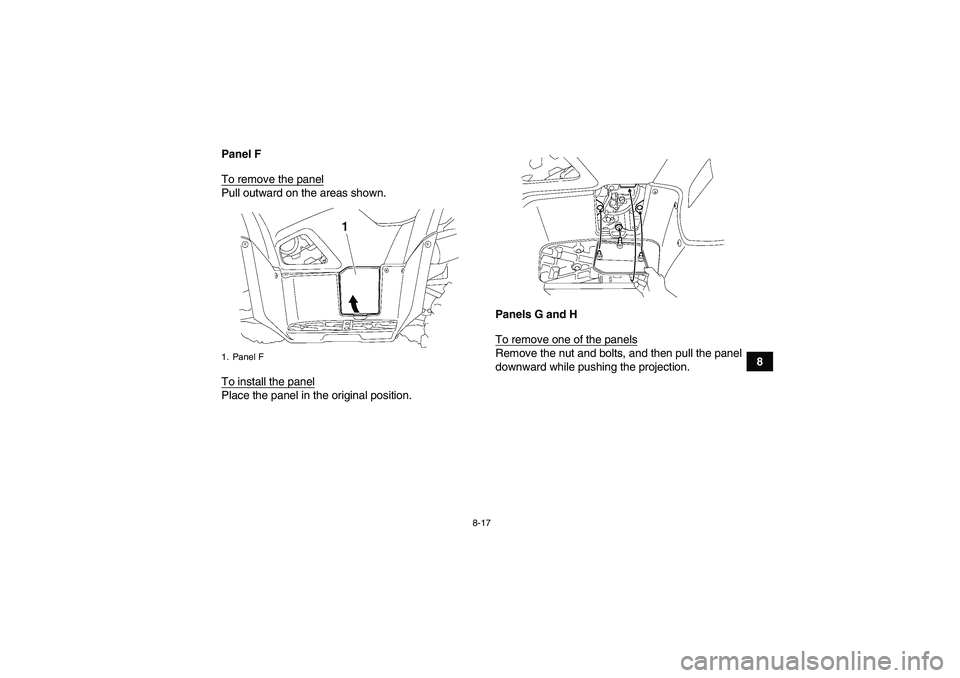

8-17
8 Panel F
To remove the panel
Pull outward on the areas shown.
To install the panelPlace the panel in the original position.Panels G and H
To remove one of the panels
Remove the nut and bolts, and then pull the panel
downward while pushing the projection.
1. Panel FU28P62E0.book Page 17 Thursday, March 11, 2010 3:25 PM
Page 108 of 170

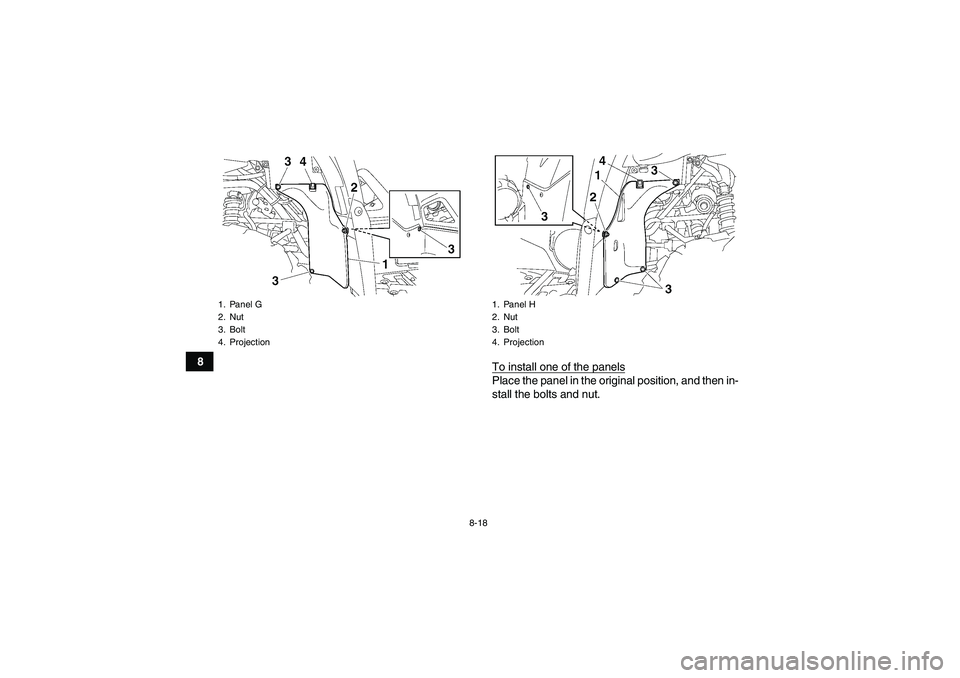

8-18
8
To install one of the panels
Place the panel in the original position, and then in-
stall the bolts and nut.
1. Panel G
2. Nut
3. Bolt
4. Projection
1. Panel H
2. Nut
3. Bolt
4. Projection
U28P62E0.book Page 18 Thursday, March 11, 2010 3:25 PM
Page 109 of 170

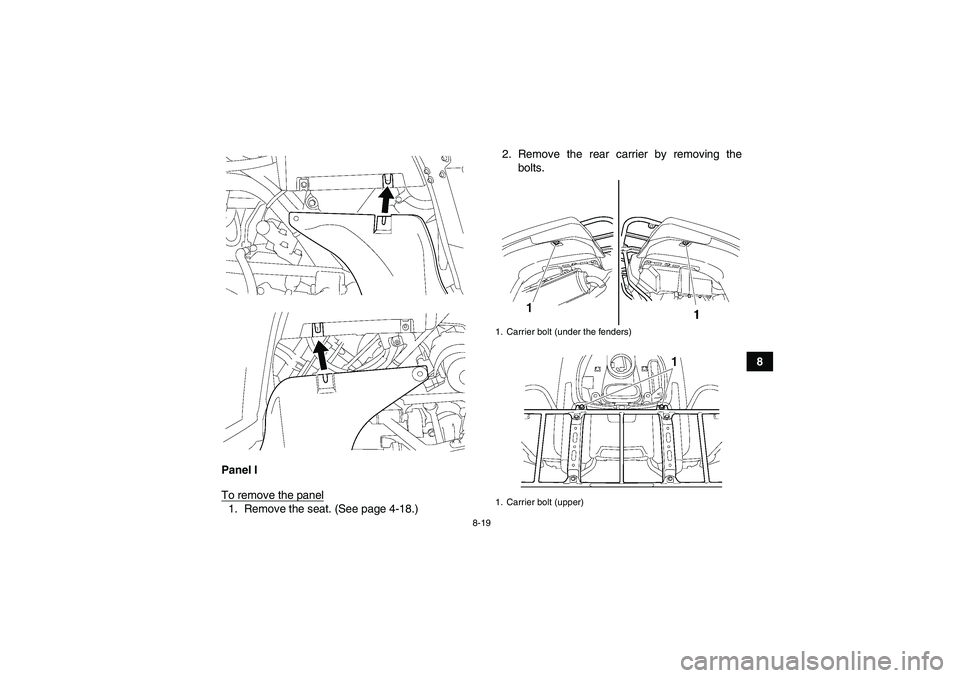

8-19
8
Panel I
To remove the panel
1. Remove the seat. (See page 4-18.)2. Remove the rear carrier by removing the
bolts.
1. Carrier bolt (under the fenders)
1. Carrier bolt (upper)
U28P62E0.book Page 19 Thursday, March 11, 2010 3:25 PM
Page 110 of 170

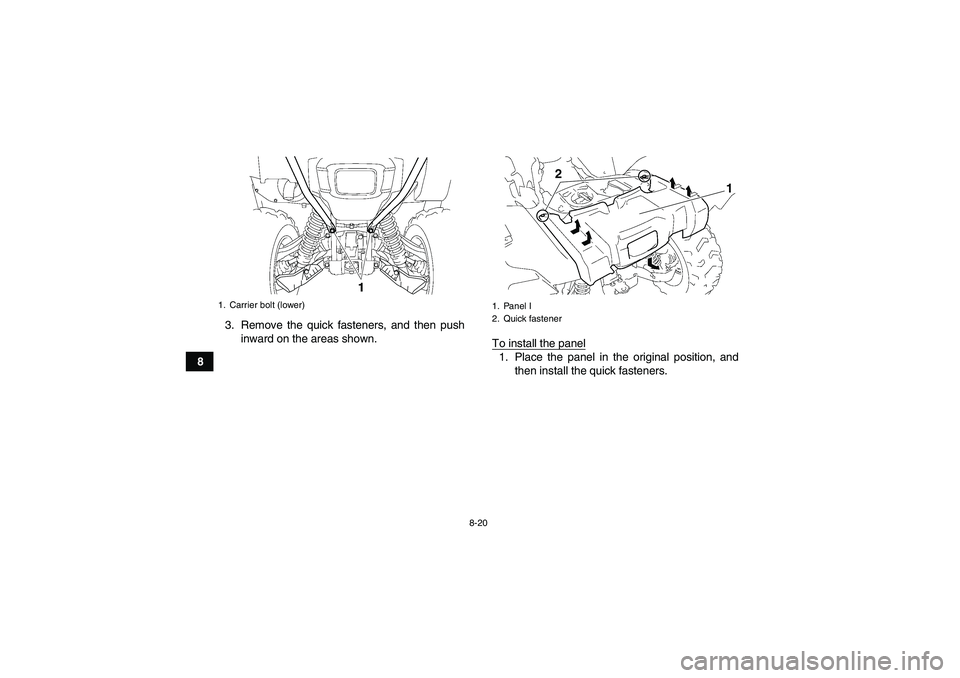

8-20
83. Remove the quick fasteners, and then push
inward on the areas shown.
To install the panel
1. Place the panel in the original position, and
then install the quick fasteners.
1. Carrier bolt (lower)
1. Panel I
2. Quick fastener
2
1
U28P62E0.book Page 20 Thursday, March 11, 2010 3:25 PM
