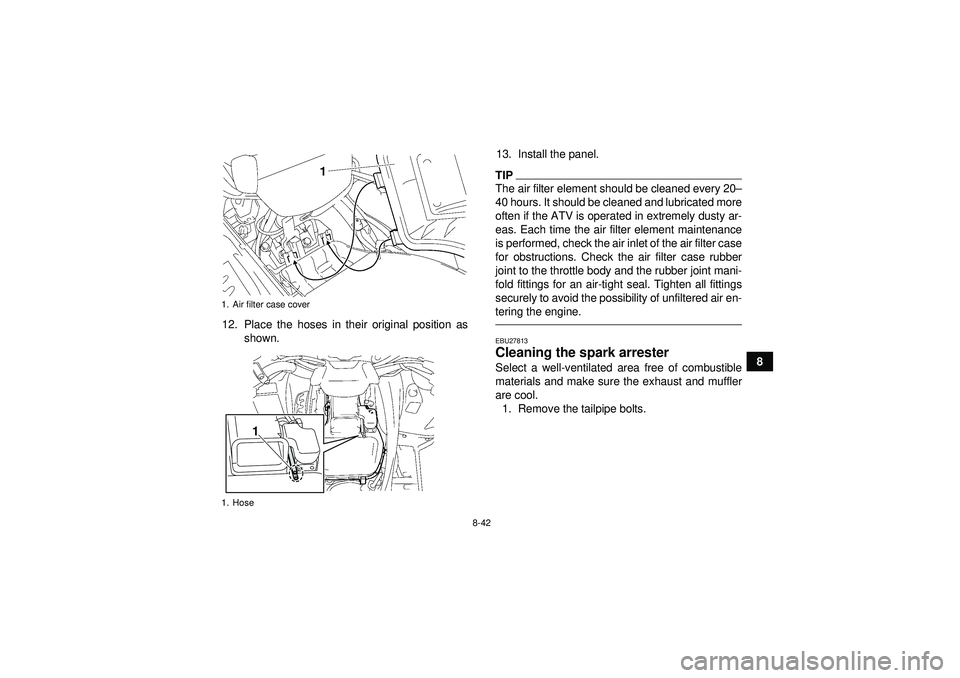

12. Place the hoses in their original position as
shown. 13. Install the panel.
TIPThe air filter element should be cleaned every 20
–
40 hours. It should be cleaned and lubricated more
often if the ATV is operated in extremely dusty ar-
eas. Each time the air filter element maintenance
is performed, check the air inlet of the air filter case
for obstructions. Check the air filter case rubber
joint to the throttle body and the rubber joint mani-
fold fittings for an air-tight seal. Tighten all fittings
securely to avoid the possibility of unfiltered air en-
tering the engine.EBU27813Cleaning the spark arrester Select a well-ventilated area free of combustible
materials and make sure the exhaust and muffler
are cool. 1. Remove the tailpipe bolts.
1. Air filter case cover
1. Hose
1
U1HS60E0.book Page 42 Tuesday, April 26, 2011 7:53 PM

8-43

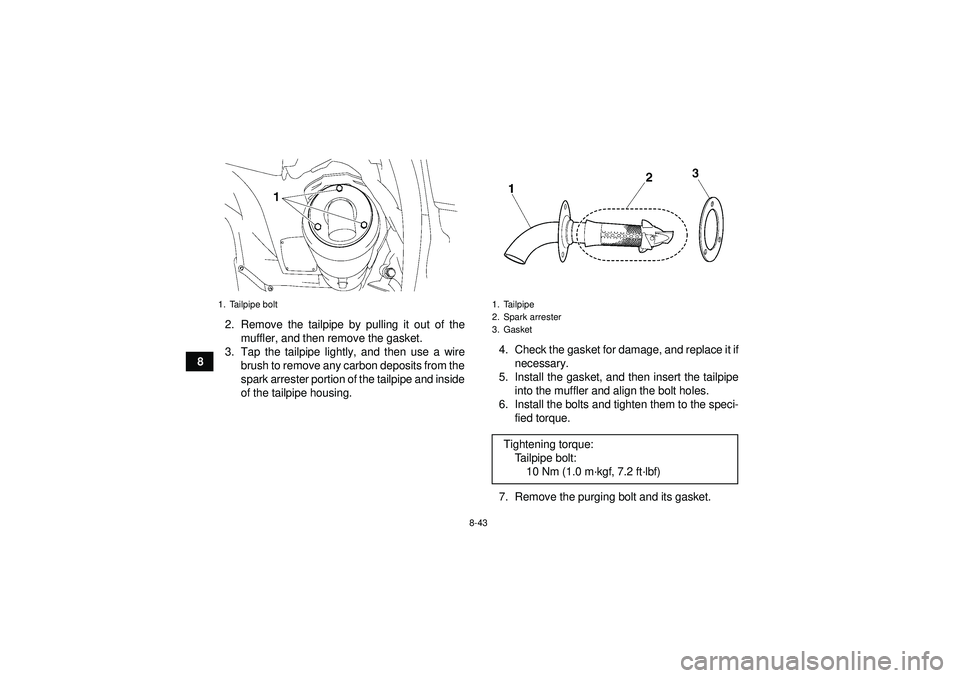

82. Remove the tailpipe by pulling it out of the
muffler, and then remove the gasket.
3. Tap the tailpipe lightly, and then use a wire brush to remove any carbon deposits from the
spark arrester portion of the tailpipe and inside
of the tailpipe housing. 4. Check the gasket for damage, and replace it if
necessary.
5. Install the gasket, and then insert the tailpipe into the muffler and align the bolt holes.
6. Install the bolts and tighten them to the speci- fied torque.
7. Remove the purging bolt and its gasket.
1. Tailpipe bolt
1. Tailpipe
2. Spark arrester
3. GasketTightening torque: Tailpipe bolt:10 Nm (1.0 m ·kgf, 7.2 ft ·lbf)
U1HS60E0.book Page 43 Tuesday, April 26, 2011 7:53 PM

8-44
8

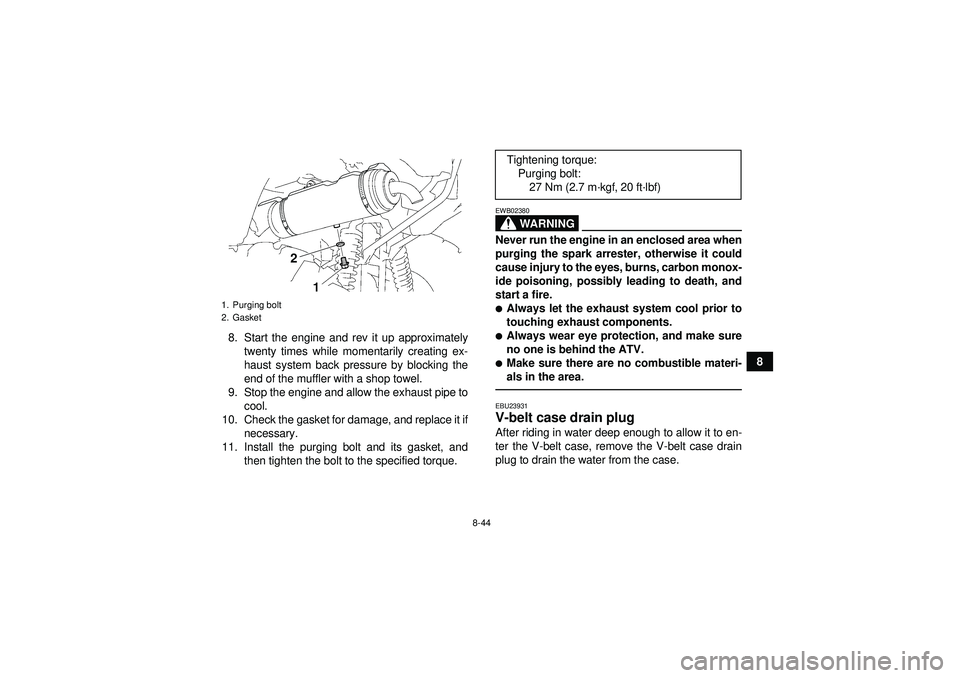

8. Start the engine and rev it up approximately
twenty times while momentarily creating ex-
haust system back pressure by blocking the
end of the muffler with a shop towel.
9. Stop the engine and allow the exhaust pipe to cool.
10. Check the gasket for damage, and replace it if necessary.
11. Install the purging bolt and its gasket, and then tighten the bolt to the specified torque.
WARNING
EWB02380Never run the engine in an enclosed area when
purging the spark arrester, otherwise it could
cause injury to the eyes, burns, carbon monox-
ide poisoning, possibly leading to death, and
start a fire.
Always let the exhaust system cool prior to
touching exhaust components.
Always wear eye protection, and make sure
no one is behind the ATV.
Make sure there are no combustible materi-
als in the area.EBU23931V-belt case drain plug After riding in water deep enough to allow it to en-
ter the V-belt case, remove the V-belt case drain
plug to drain the water from the case.
1. Purging bolt
2. Gasket
2
Tightening torque:Purging bolt:27 Nm (2.7 m ·kgf, 20 ft ·lbf)
U1HS60E0.book Page 44 Tuesday, April 26, 2011 7:53 PM

8-45
8
TIPIf water drains from the V-belt case after removing
the plug, have a Yamaha dealer check the ATV as
the water may affect other engine parts.EBU29702Adjusting the throttle lever free play The throttle lever free play should be checked and,
if necessary, adjusted at the intervals specified in
the periodic maintenance and lubrication chart.

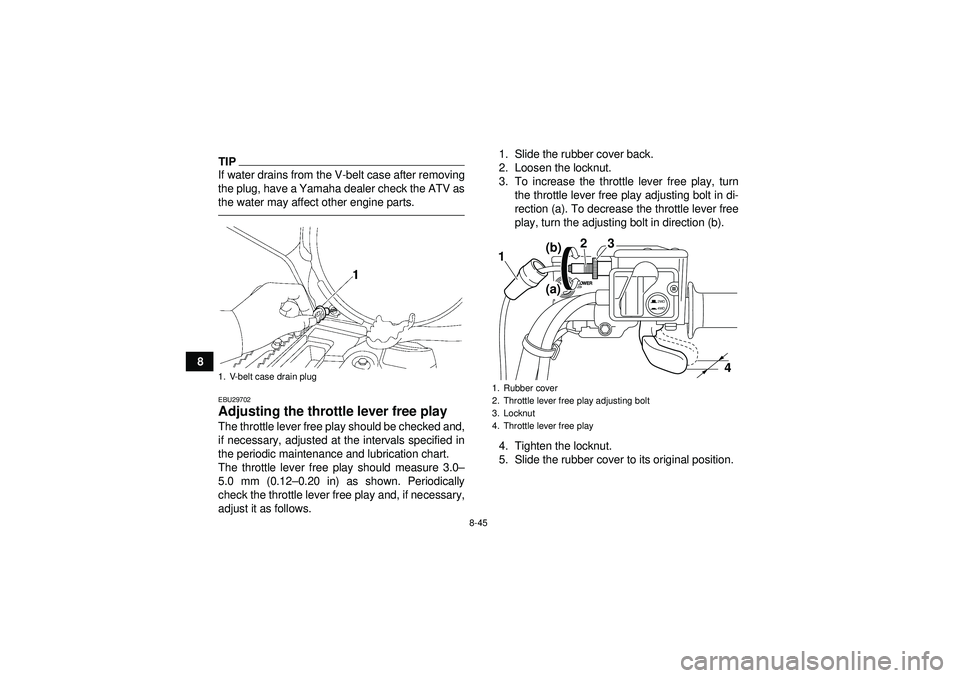

The throttle lever free play should measure 3.0–
5.0 mm (0.12– 0.20 in) as shown. Periodically
check the throttle lever free play and, if necessary,
adjust it as follows. 1. Slide the rubber cover back.
2. Loosen the locknut.
3. To increase the throttle lever free play, turn
the throttle lever free play adjusting bolt in di-
rection (a). To decrease the throttle lever free
play, turn the adjusting bolt in direction (b).
4. Tighten the locknut.
5. Slide the rubber cover to its original position.1. V-belt case drain plug
1. Rubber cover
2. Throttle lever free play adjusting bolt
3. Locknut
4. Throttle lever free play
2WD
4WD
3
2
1
4
(b)
(a)
U1HS60E0.book Page 45 Tuesday, April 26, 2011 7:53 PM

8-46
8
EBU24060Valve clearance The valve clearance changes with use, resulting in
improper air-fuel mixture and/or engine noise. To
prevent this from occurring, the valve clearance
must be adjusted by a Yamaha dealer at the inter-
vals specified in the periodic maintenance and lu-
brication chart.EBU24071Adjusting the drive select lever safety
system cable The drive select lever safety system cable stretch-
es with use, which can result in improper function.
Therefore, the safety system cable should be
checked and adjusted by a Yamaha dealer at the
intervals specified in the periodic maintenance and
lubrication chart.EBU29601Brakes Replacement of brake components requires pro-
fessional knowledge. Brake service should be per-
formed by a Yamaha dealer.
WARNING
EWB02571Operating with improperly serviced or adjust-
ed brakes could lead to a loss in braking ability
and an accident.EBU27470Checking the front and rear brake pads The front and rear brake pads must be checked for
wear at the intervals specified in the periodic main-
tenance and lubrication chart. Each brake pad is
provided with a wear indicator groove, which al-
lows you to check the brake pad wear without hav-
ing to disassemble the brake. If a brake pad has
worn to the point that the wear indicator groove has
almost disappeared, have a Yamaha dealer re-
place the brake pads as a set.TIPThe wheels need to be removed to check the
brake pads. (See page 8-64.)
U1HS60E0.book Page 46 Tuesday, April 26, 2011 7:53 PM

8-47

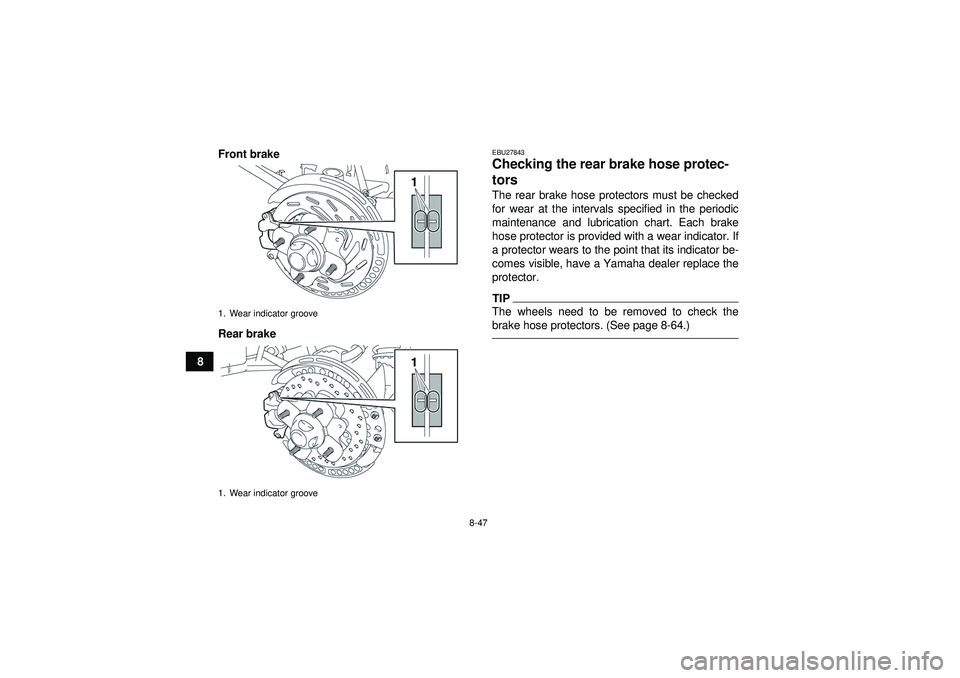

8Front brake
Rear brake
EBU27843Checking the rear brake hose protec-
tors The rear brake hose protectors must be checked
for wear at the intervals specified in the periodic
maintenance and lubrication chart. Each brake
hose protector is provided with a wear indicator. If
a protector wears to the point that its indicator be-
comes visible, have a Yamaha dealer replace the
protector.TIPThe wheels need to be removed to check the
brake hose protectors. (See page 8-64.)
1. Wear indicator groove
1. Wear indicator grooveU1HS60E0.book Page 47 Tuesday, April 26, 2011 7:53 PM

8-48
8

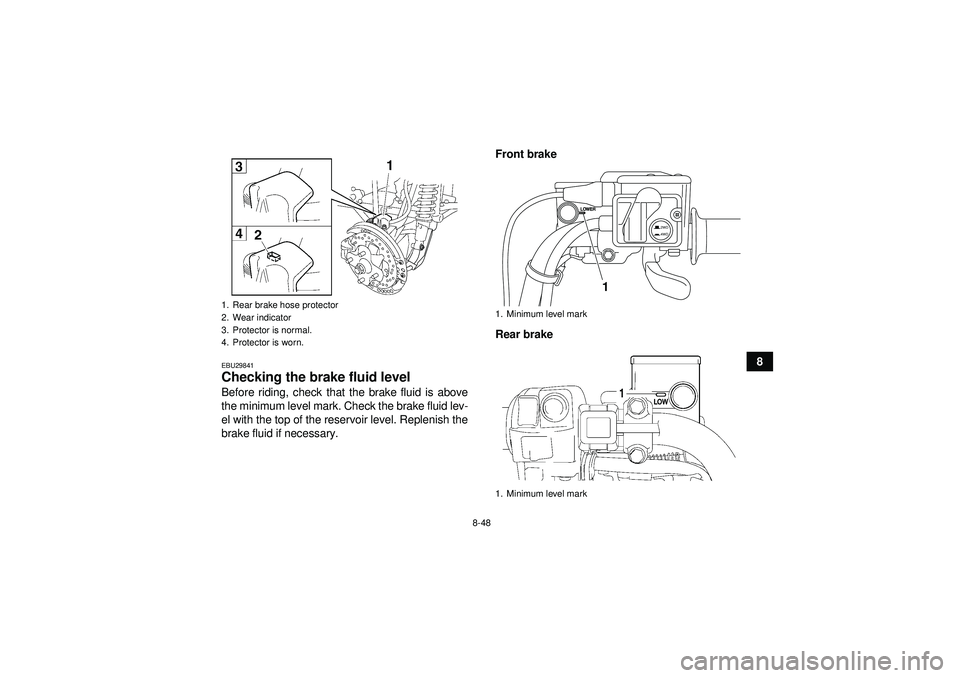

EBU29841Checking the brake fluid level Before riding, check that the brake fluid is above
the minimum level mark. Check the brake fluid lev-
el with the top of the reservoir level. Replenish the
brake fluid if necessary.Front brake
Rear brake1. Rear brake hose protector
2. Wear indicator
3. Protector is normal.
4. Protector is worn.
1. Minimum level mark
1. Minimum level mark
2WD
4WD
1
U1HS60E0.book Page 48 Tuesday, April 26, 2011 7:53 PM

8-49
8

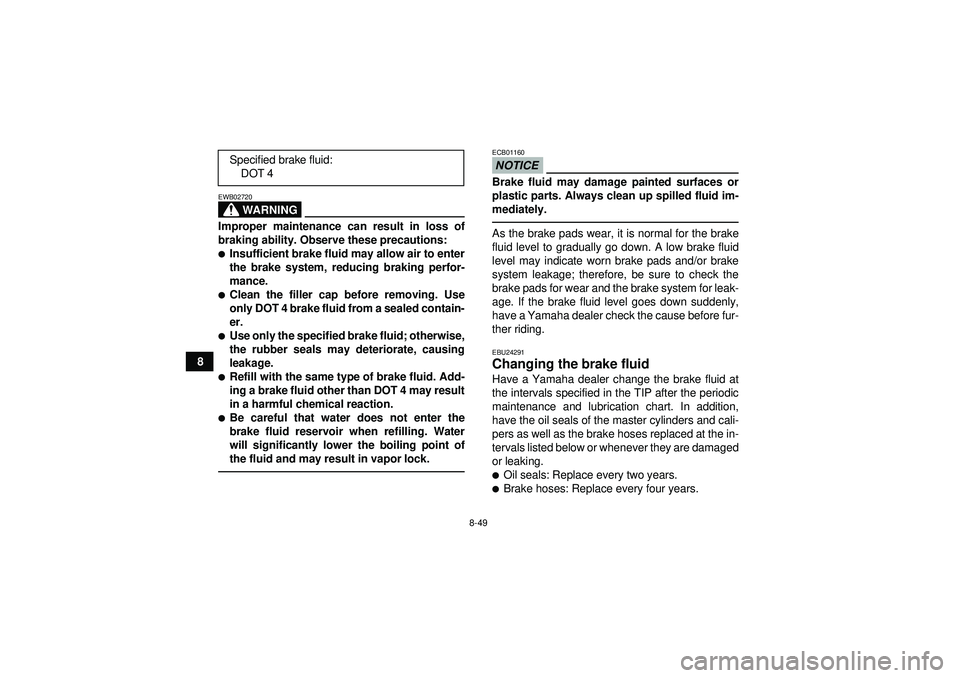

WARNING
EWB02720Improper maintenance can result in loss of
braking ability. Observe these precautions:
Insufficient brake fluid may allow air to enter
the brake system, reducing braking perfor-
mance.
Clean the filler cap before removing. Use
only DOT 4 brake fluid from a sealed contain-
er.
Use only the specified brake fluid; otherwise,
the rubber seals may deteriorate, causing
leakage.
Refill with the same type of brake fluid. Add-
ing a brake fluid other than DOT 4 may result
in a harmful chemical reaction.
Be careful that water does not enter the
brake fluid reservoir when refilling. Water
will significantly lower the boiling point of
the fluid and may result in vapor lock.
NOTICEECB01160Brake fluid may damage painted surfaces or
plastic parts. Always clean up spilled fluid im-
mediately.As the brake pads wear, it is normal for the brake
fluid level to gradually go down. A low brake fluid
level may indicate worn brake pads and/or brake
system leakage; therefore, be sure to check the
brake pads for wear and the brake system for leak-
age. If the brake fluid level goes down suddenly,
have a Yamaha dealer check the cause before fur-
ther riding.EBU24291Changing the brake fluid Have a Yamaha dealer change the brake fluid at
the intervals specified in the TIP after the periodic
maintenance and lubrication chart. In addition,
have the oil seals of the master cylinders and cali-
pers as well as the brake hoses replaced at the in-
tervals listed below or whenever they are damaged
or leaking.
Oil seals: Replace every two years.
Brake hoses: Replace every four years.
Specified brake fluid:
DOT 4
U1HS60E0.book Page 49 Tuesday, April 26, 2011 7:53 PM

8-50
8

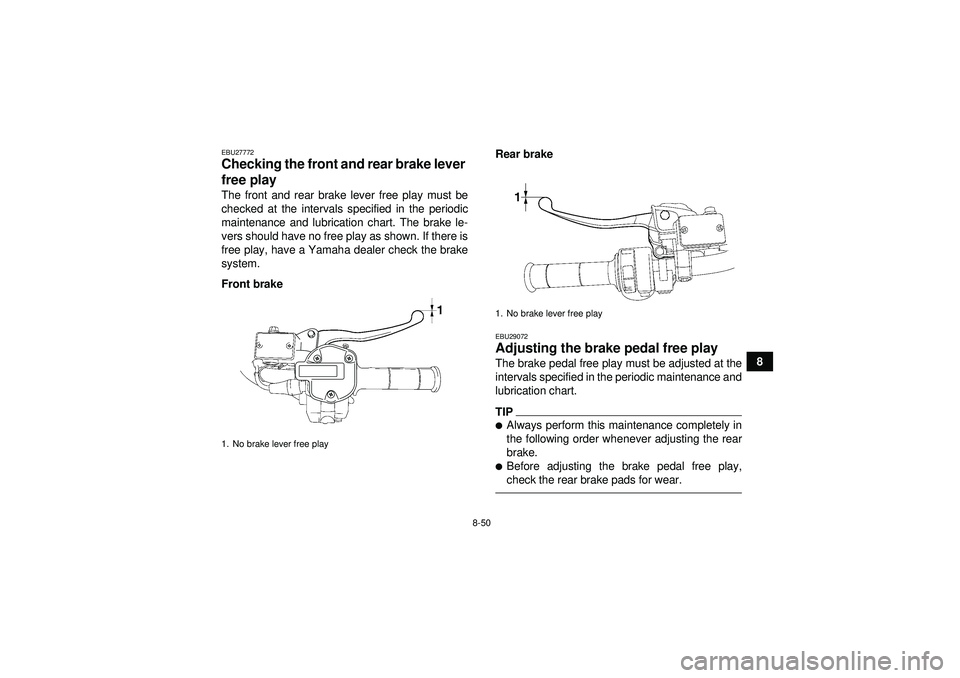

EBU27772Checking the front and rear brake lever
free play The front and rear brake lever free play must be
checked at the intervals specified in the periodic
maintenance and lubrication chart. The brake le-
vers should have no free play as shown. If there is
free play, have a Yamaha dealer check the brake
system.
Front brakeRear brake
EBU29072Adjusting the brake pedal free play The brake pedal free play must be adjusted at the
intervals specified in the periodic maintenance and
lubrication chart.TIP
Always perform this maintenance completely in
the following order whenever adjusting the rear
brake.
Before adjusting the brake pedal free play,
check the rear brake pads for wear.
1. No brake lever free play
1. No brake lever free play
U1HS60E0.book Page 50 Tuesday, April 26, 2011 7:53 PM

8-51

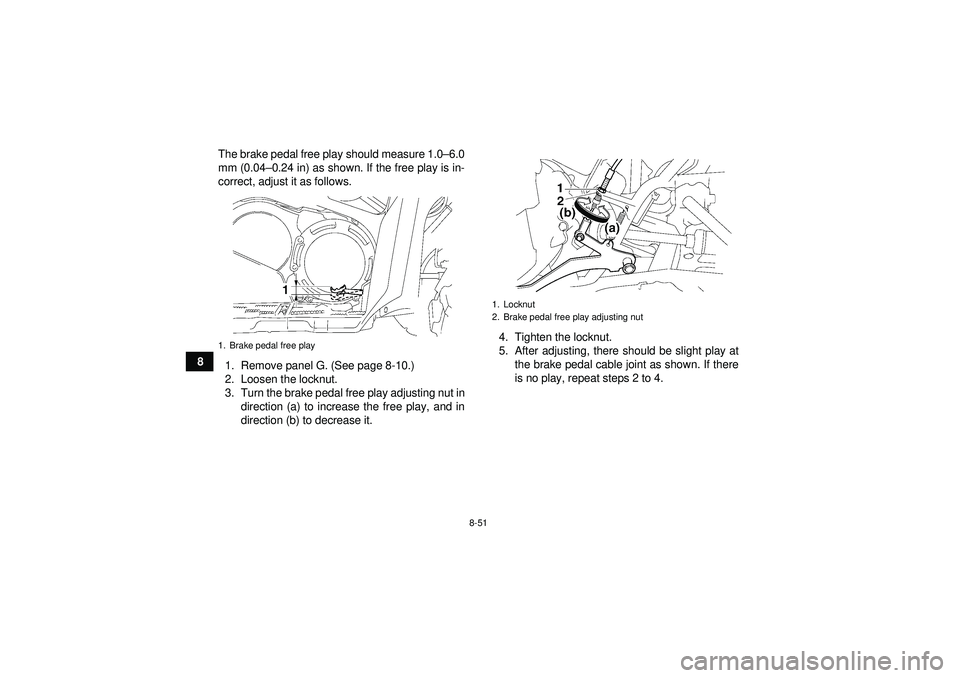

8The brake pedal free play should measure 1.0
–6.0
mm (0.04 –0.24 in) as shown. If the free play is in-
correct, adjust it as follows.
1. Remove panel G. (See page 8-10.)
2. Loosen the locknut.
3. Turn the brake pedal free play adjusting nut in direction (a) to increase the free play, and in
direction (b) to decrease it. 4. Tighten the locknut.
5. After adjusting, there should be slight play at
the brake pedal cable joint as shown. If there
is no play, repeat steps 2 to 4.
1. Brake pedal free play
1. Locknut
2. Brake pedal free play adjusting nut
