YAMAHA GRIZZLY 550 2012 User Guide

1-1
1
EBU29680

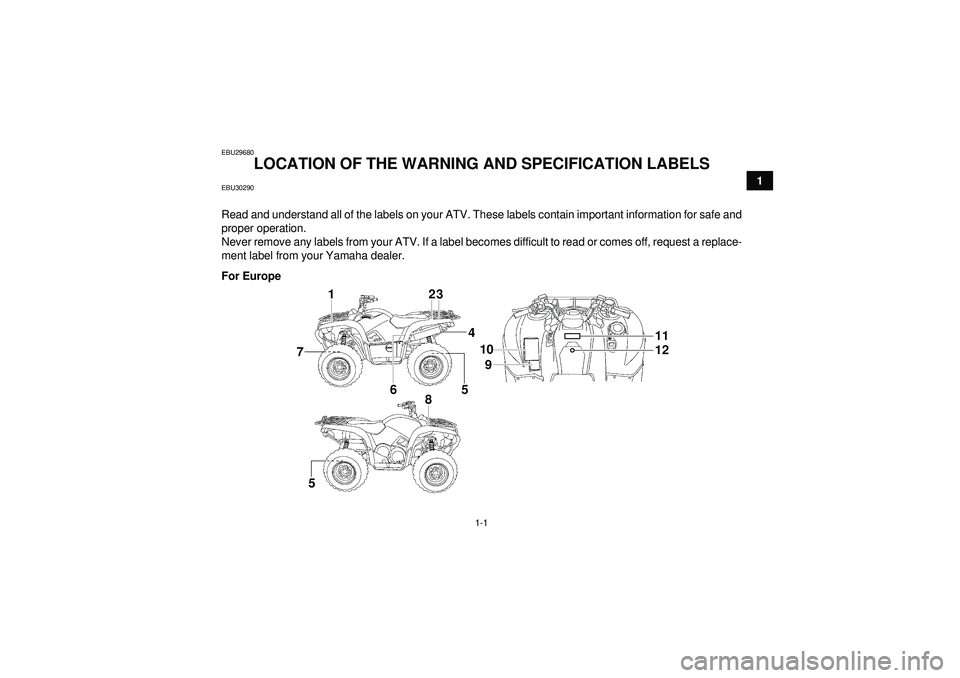

LOCATION OF THE WARNING AND SPECIFICATION LABELS
EBU30290Read and understand all of the labels on your ATV. These labels contain important information for safe and
proper operation.
Never remove any labels from your ATV. If a label becomes difficult to read or comes off, request a replace-
ment label from your Yamaha dealer.
For Europe
123
4
65
7
810
9 11
12
5
U1HS60E0.book Page 1 Tuesday, April 26, 2011 7:53 PM

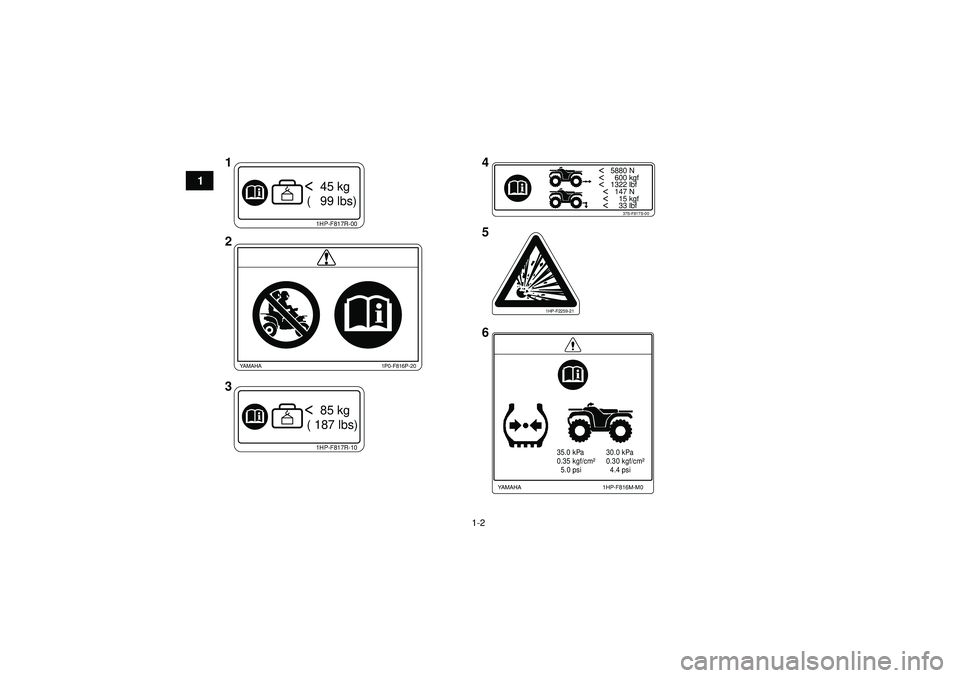

1-2
1
< 5880 N< 600 kgf< 1322 lbf
< 147 N
< 15 kgf
< 33 lbf
37S-F817S-00
1HP-F817R-10< 85 kg
( 187 lbs)
35.0 kPa
0.35 kgf/cm²
5.0 psi 30.0 kPa
0.30 kgf/cm²
4.4 psi
1HP-F816M-M0
YAMAHA
1HP-F817R-00< 45 kg
( 99 lbs)
1P0-F816P-20
YAMAHA
1HP-F2259-21
1
2
3 4
5
6
U1HS60E0.book Page 2 Tuesday, April 26, 2011 7:53 PM

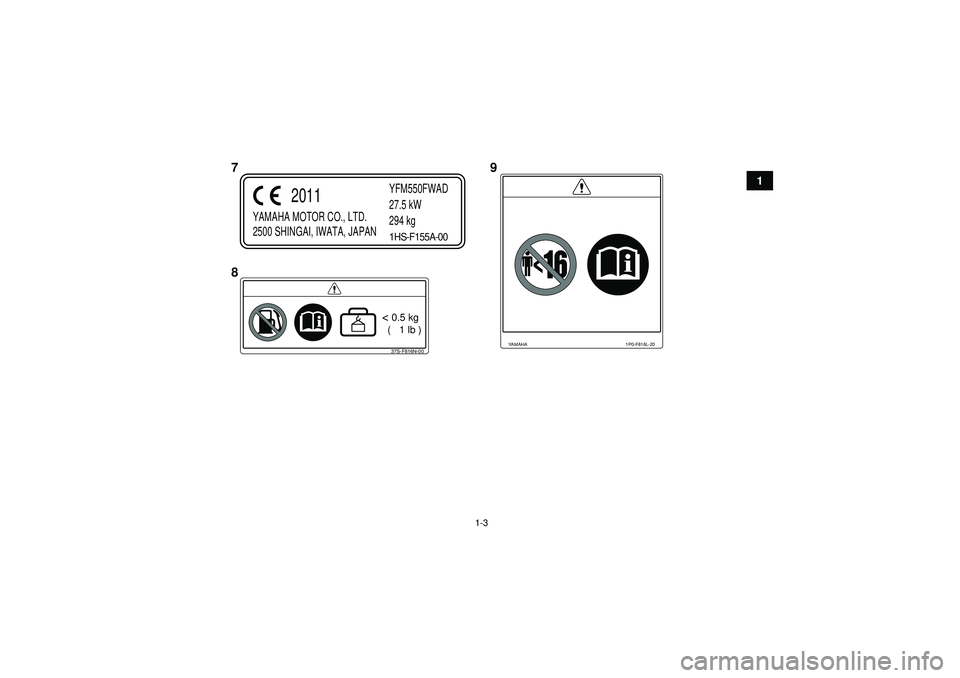

1-3
1
37S-F816N-00< 0.5 kg
( 1 lb )
YAMAHA MOTOR CO., LTD.
2500 SHINGAI, IWATA, JAPAN YFM550FWAD
27.5 kW
294 kg
2011
1HS-F155A-00
1P0-F816L-20
YAMAHA
7
8 9
U1HS60E0.book Page 3 Tuesday, April 26, 2011 7:53 PM

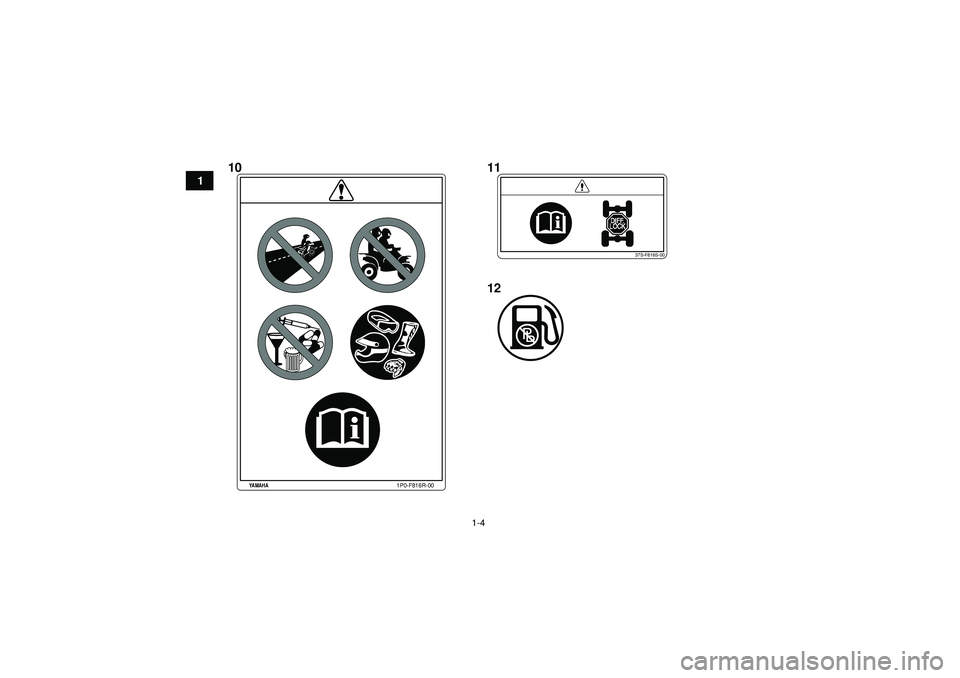

1-4
1
37S-F816S-00
1P0-F816R-00
YAMAHA
1011
12
U1HS60E0.book Page 4 Tuesday, April 26, 2011 7:53 PM

1-5
1

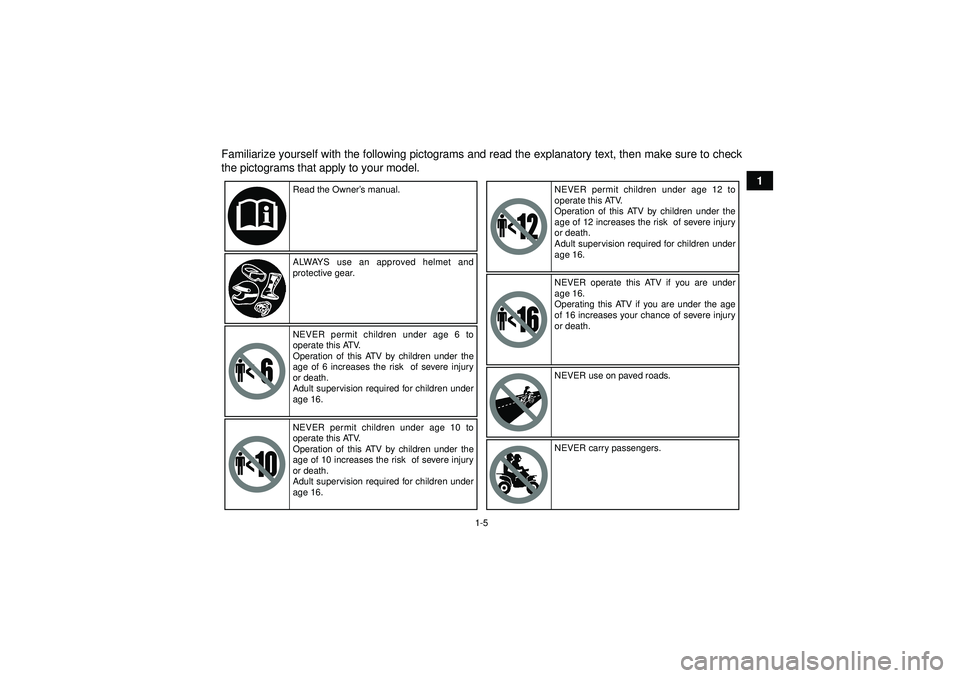

Familiarize yourself with the following pictograms and read the explanatory text, then make sure to check
the pictograms that apply to your model.
Read the Owner’
s manual.
ALWAYS use an approved helmet and
protective gear.
NEVER permit children under age 6 to
operate this ATV.
Operation of this ATV by children under the
age of 6 increases the risk of severe injury
or death.
Adult supervision required for children under
age 16.
NEVER permit children under age 10 to
operate this ATV.
Operation of this ATV by children under the
age of 10 increases the risk of severe injury
or death.
Adult supervision required for children under
age 16. NEVER permit children under age 12 to
operate this ATV.
Operation of this ATV by children under the
age of 12 increases the risk of severe injury
or death.
Adult supervision required for children under
age 16.
NEVER operate this ATV if you are under
age 16.
Operating this ATV if you are under the age
of 16 increases your chance of severe injury
or death.
NEVER use on paved roads.
NEVER carry passengers.
U1HS60E0.book Page 5 Tuesday, April 26, 2011 7:53 PM

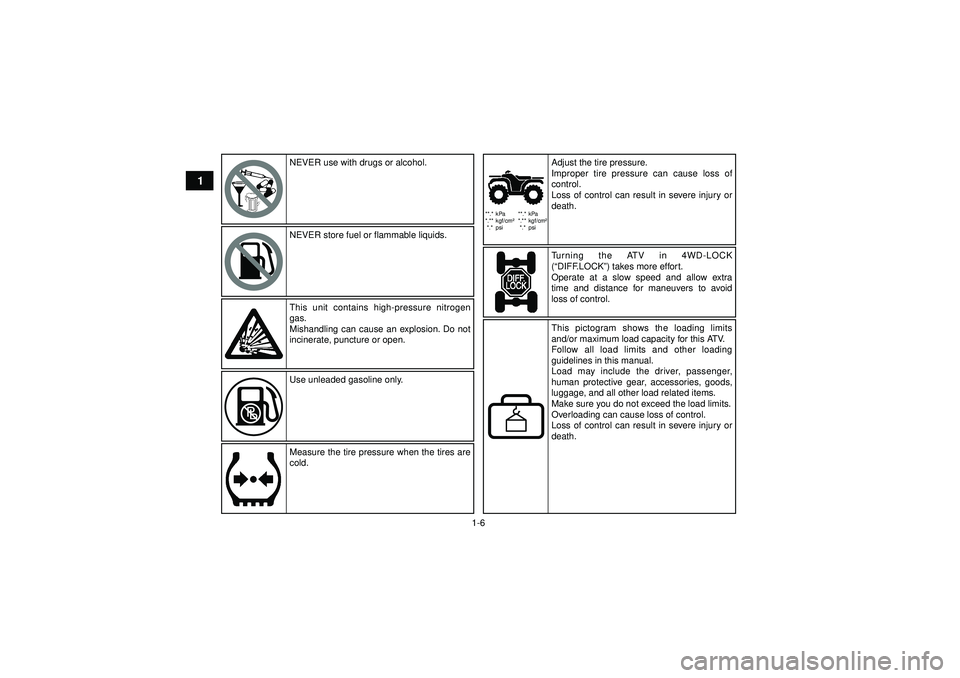

1-6
1
**.* kPa
*.** kgf/cm²*.* psi **.* kPa
*.** kgf/cm²
*.* psi
NEVER use with drugs or alcohol.
NEVER store fuel or flammable liquids.
This unit contains high-pressure nitrogen
gas.
Mishandling can cause an explosion. Do not
incinerate, puncture or open.
Use unleaded gasoline only.
Measure the tire pressure when the tires are
cold. Adjust the tire pressure.
Improper tire pressure can cause loss of
control.
Loss of control can result in severe injury or
death.
Turning the ATV in 4WD-LOCK
(“DIFF.LOCK”) takes more effort.
Operate at a slow speed and allow extra
time and distance for maneuvers to avoid
loss of control.
This pictogram shows the loading limits
and/or maximum load capacity for this ATV.
Follow all load limits and other loading
guidelines in this manual.
Load may include the driver, passenger,
human protective gear, accessories, goods,
luggage, and all other load related items.
Make sure you do not exceed the load limits.
Overloading can cause loss of control.
Loss of control can result in severe injury or
death.
U1HS60E0.book Page 6 Tuesday, April 26, 2011 7:53 PM

1-7
1
YAMAHA MOTOR CO., LTD.
2500 SHINGAI, IWATA, JAPAN
******
*** kW
*** kg
****1
2
34

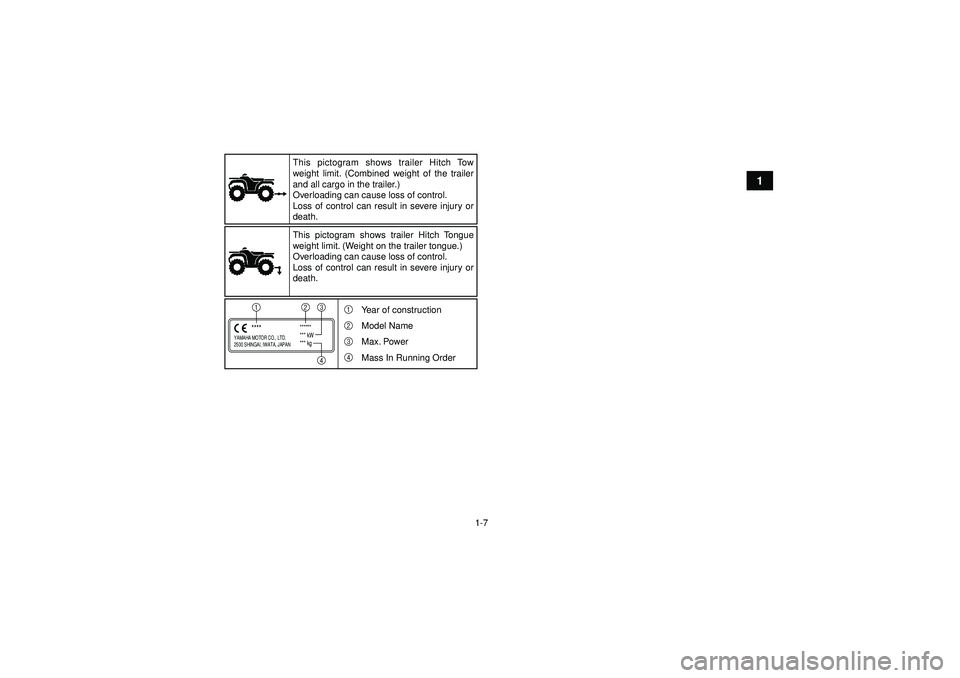

This pictogram shows trailer Hitch Tow
weight limit. (Combined weight of the trailer
and all cargo in the trailer.)
Overloading can cause loss of control.
Loss of control can result in severe injury or
death.
This pictogram shows trailer Hitch Tongue
weight limit. (Weight on the trailer tongue.)
Overloading can cause loss of control.
Loss of control can result in severe injury or
death.
1
2
3
4Year of construction
Model Name
Max. Power
Mass In Running Order
U1HS60E0.book Page 7 Tuesday, April 26, 2011 7:53 PM

1-8

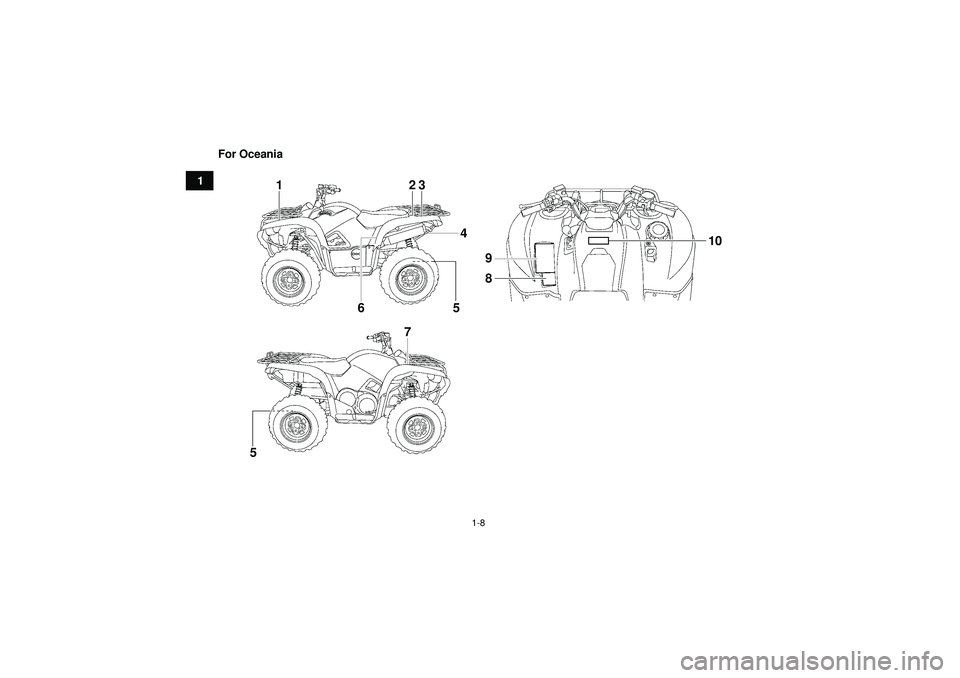

1For Oceania
12
3
4
6 7 9
8
10
5
5
U1HS60E0.book Page 8 Tuesday, April 26, 2011 7:53 PM

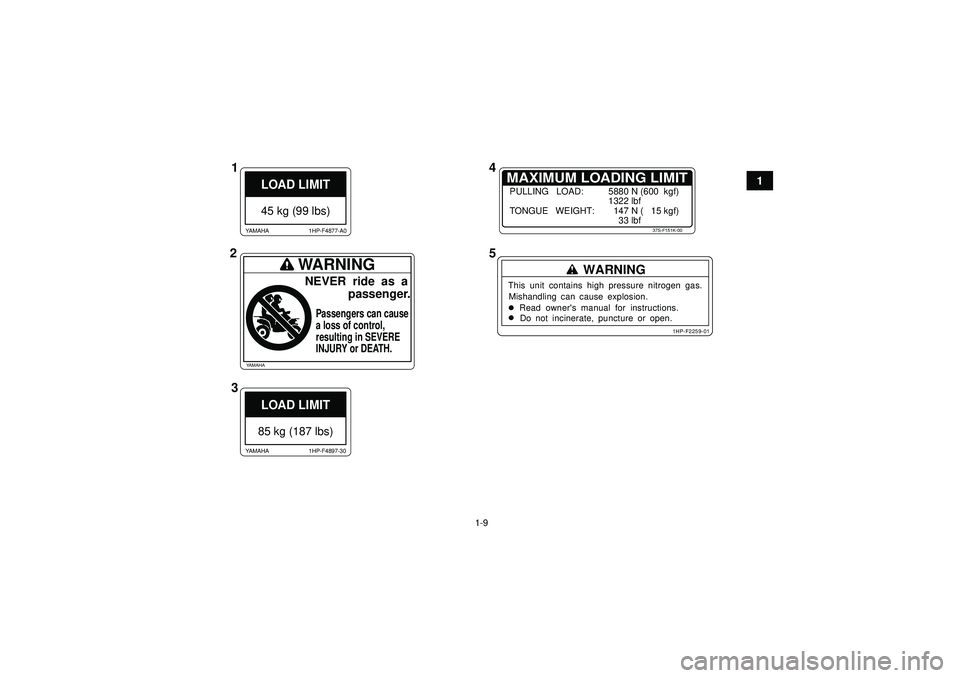

1-9
1
LOAD LIMIT45 kg (99 lbs)
1HP-F4877-A0
YAMAHA
LOAD LIMIT85 kg (187 lbs)
1HP-F4897-30
YAMAHA
MAXIMUM LOADING LIMIT
37S-F151K-00
PULLING LOAD: 5880 N (600 kgf)
1322 lbf
TONGUE WEIGHT: 147 N ( 15 kgf) 33 lbf
YAMAHA
WARNINGNEVER ride as a
passenger.Passengers can cause
a loss of control,
resulting in SEVERE
INJURY or DEATH.
WARNING
This unit contains high pressure nitrogen gas.
Mishandling can cause explosion. Read owner's manual for instructions.Do not incinerate, puncture or open.
1HP-F2259-01
1
3
2
4
5
U1HS60E0.book Page 9 Tuesday, April 26, 2011 7:53 PM

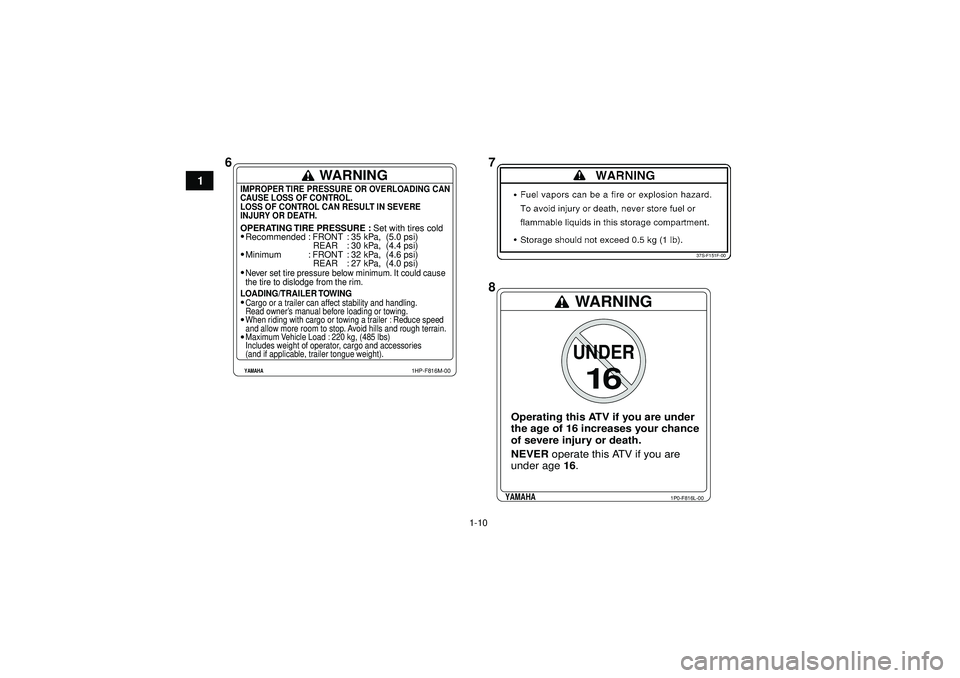

1-10
1
37S-F151F-00
Recommended
Minimum: FRONT
REAR
: FRONT
REAR: 35 kPa, (5.0 psi)
: 30 kPa, (4.4 psi)
: 32 kPa, (4.6 psi)
: 27 kPa, (4.0 psi)Never set tire pressure below minimum. It could cause
the tire to dislodge from the rim.Cargo or a trailer can affect stability and handling.
Read owner’
s manual before loading or towing.
When riding with cargo or towing a trailer : Reduce speed
and allow more room to stop. Avoid hills and rough terrain.
Maximum Vehicle Load : 220 kg, (485 lbs)
Includes weight of operator, cargo and accessories
(and if applicable, trailer tongue weight).
WARNING
1HP-F816M-00
YAMAHAIMPROPER TIRE PRESSURE OR OVERLOADING CAN
CAUSE LOSS OF CONTROL.
LOSS OF CONTROL CAN RESULT IN SEVERE
INJURY OR DEATH.OPERATING TIRE PRESSURE : Set with tires coldLOADING/TRAILER TOWING
WARNINGUNDER
16
Operating this ATV if you are under
the age of 16 increases your chance
of severe injury or death.
NEVER operate this ATV if you are
under age 16.
1P0-F816L-00
YAMAHA
67
8
U1HS60E0.book Page 10 Tuesday, April 26, 2011 7:53 PM
