YAMAHA GRIZZLY 550 2012 Workshop Manual

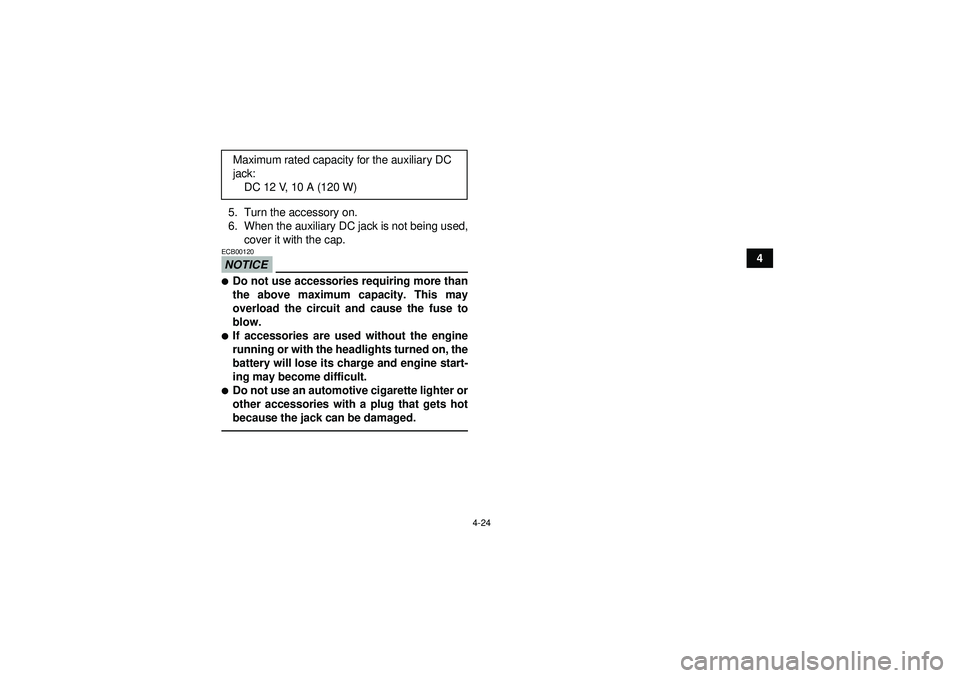

4-24
4
5. Turn the accessory on.
6. When the auxiliary DC jack is not being used,
cover it with the cap.
NOTICEECB00120
Do not use accessories requiring more than
the above maximum capacity. This may
overload the circuit and cause the fuse to
blow.
If accessories are used without the engine
running or with the headlights turned on, the
battery will lose its charge and engine start-
ing may become difficult.
Do not use an automotive cigarette lighter or
other accessories with a plug that gets hot
because the jack can be damaged.Maximum rated capacity for the auxiliary DC
jack:DC 12 V, 10 A (120 W)
U1HS60E0.book Page 24 Tuesday, April 26, 2011 7:53 PM

5-1
5
EBU19201
PRE-OPERATION CHECKS
EBU19224Inspect your vehicle each time you use it to make sure the vehicle is in safe operating condition. Always
follow the inspection and maintenance procedures and schedules described in the Owner’s Manual.
WARNING
EWB00481Failure to inspect or maintain the vehicle properly increases the possibility of an accident or equip-
ment damage. Do not operate the vehicle if you find any problem. If a problem cannot be corrected
by the procedures provided in this manual, have the vehicle inspected by a Yamaha dealer.Before using this vehicle, check the following points:
ITEM ROUTINE PAGE
Fuel
Check fuel level in fuel tank, and add recommended fuel if neces-
sary.
 Check fuel line for leakage. Correct if necessary. 4-16, 5-3
Engine oil
Check oil level in engine, and add recommended oil to specified lev-
el if necessary.
 Check ATV for oil leakage. Correct if necessary. 5-3, 8-22
Final gear oil Check ATV for oil leakage. Correct if necessary. 5-3, 8-27
Differential gear oil Check ATV for oil leakage. Correct if necessary. 5-3, 8-29
Coolant
Check coolant level in reservoir, and add recommended coolant to
specified level if necessary.
 Check cooling system for leakage. Correct if necessary. 5-3, 8-32
U1HS60E0.book Page 1 Tuesday, April 26, 2011 7:53 PM

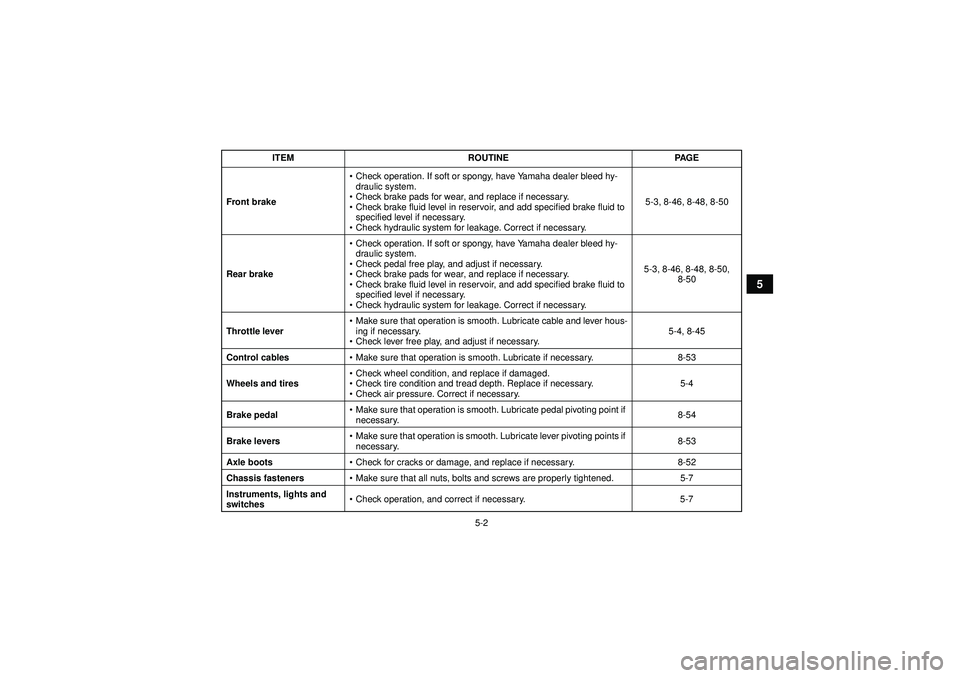

5-2
5
Front brake
Check operation. If soft or spongy, have Yamaha dealer bleed hy-
draulic system.
 Check brake pads for wear, and replace if necessary.
 Check brake fluid level in reservoir, and add specified brake fluid to
specified level if necessary.
 Check hydraulic system for leakage. Correct if necessary. 5-3, 8-46, 8-48, 8-50
Rear brake
Check operation. If soft or spongy, have Yamaha dealer bleed hy-
draulic system.
 Check pedal free play, and adjust if necessary.
 Check brake pads for wear, and replace if necessary.
 Check brake fluid level in reservoir, and add specified brake fluid to
specified level if necessary.
 Check hydraulic system for leakage. Correct if necessary. 5-3, 8-46, 8-48, 8-50,
8-50
Throttle lever
Make sure that operation is smooth. Lubricate cable and lever hous-
ing if necessary.
 Check lever free play, and adjust if necessary. 5-4, 8-45
Control cables Make sure that operation is smooth. Lubricate if necessary. 8-53
Wheels and tires
Check wheel condition, and replace if damaged.
 Check tire condition and tread depth. Replace if necessary.
 Check air pressure. Correct if necessary. 5-4
Brake pedal
Make sure that operation is smooth. Lubricate pedal pivoting point if
necessary. 8-54
Brake levers
Make sure that operation is smooth. Lubricate lever pivoting points if
necessary. 8-53
Axle boots Check for cracks or damage, and replace if necessary. 8-52
Chassis fasteners Make sure that all nuts, bolts and screws are properly tightened. 5-7
Instruments, lights and
switches
Check operation, and correct if necessary. 5-7
ITEM ROUTINE PAGE
U1HS60E0.book Page 2 Tuesday, April 26, 2011 7:53 PM

5-3
5
EBU19541Fuel Make sure that there is sufficient fuel in the tank.
(See page 4-16.)EBU19560Engine oil Make sure that the engine oil is at the specified lev-
el. Add oil as necessary. (See page 8-22.)EBU19590Final gear oil Make sure that the final gear oil is at the specified
level. Add oil as necessary. (See page 8-27.)EBU19600Differential gear oil Make sure that the differential gear oil is at the
specified level. Add oil as necessary. (See page
8-29.)EBU19631Coolant Make sure that the coolant is at the specified level.
Add coolant as necessary. (See page 8-32.)
TIPThe coolant level must be checked on a cold en-
gine since the level varies with engine tempera-
ture.EBU29082Front and rear brakes Brake levers and brake pedal
Check that there is no free play in the front and
rear brake levers. If there is free play, have a
Yamaha dealer check the brake system.
Check for correct free play in the brake pedal. If
the free play is incorrect, adjust it. (See page
8-50.)
Check the operation of the brake levers and
pedal. They should move smoothly and there
should be a firm feeling when the brakes are ap-
plied. If not, have a Yamaha dealer check the
brake system.
Brake fluid level
Check the brake fluid level. Add fluid if necessary.
(See page 8-48.)
U1HS60E0.book Page 3 Tuesday, April 26, 2011 7:53 PM

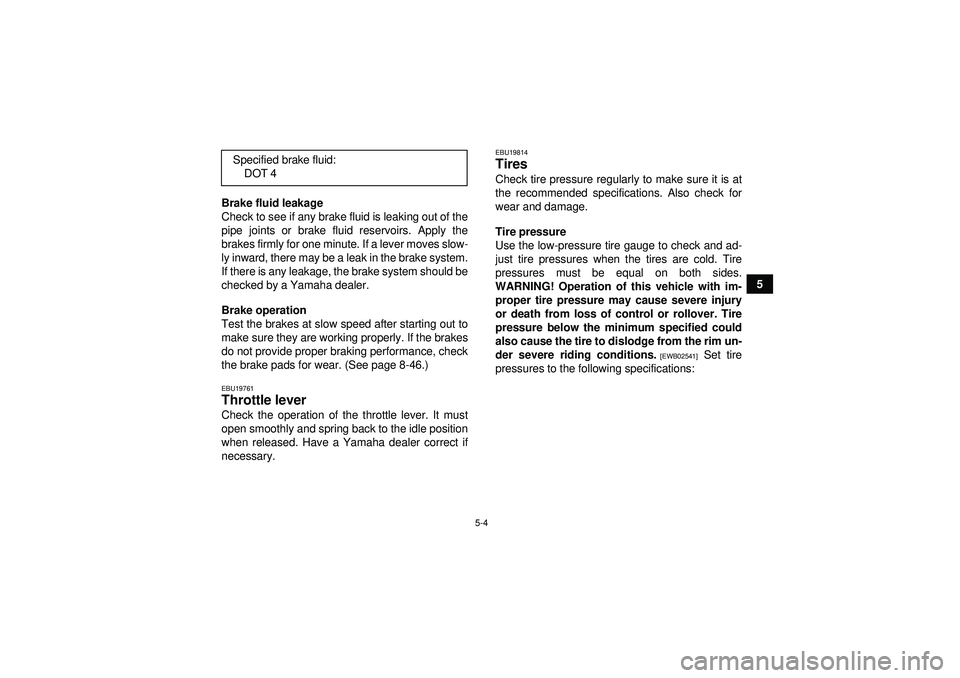

5-4
5
Brake fluid leakage
Check to see if any brake fluid is leaking out of the
pipe joints or brake fluid reservoirs. Apply the
brakes firmly for one minute. If a lever moves slow-
ly inward, there may be a leak in the brake system.
If there is any leakage, the brake system should be
checked by a Yamaha dealer.
Brake operation
Test the brakes at slow speed after starting out to
make sure they are working properly. If the brakes
do not provide proper braking performance, check
the brake pads for wear. (See page 8-46.)
EBU19761Throttle lever Check the operation of the throttle lever. It must
open smoothly and spring back to the idle position
when released. Have a Yamaha dealer correct if
necessary.
EBU19814Tires Check tire pressure regularly to make sure it is at
the recommended specifications. Also check for
wear and damage.
Tire pressure
Use the low-pressure tire gauge to check and ad-
just tire pressures when the tires are cold. Tire
pressures must be equal on both sides.
WARNING! Operation of this vehicle with im- proper tire pressure may cause severe injury
or death from loss of control or rollover. Tire
pressure below the minimum specified could
also cause the tire to dislodge from the rim un-
der severe riding conditions.
[EWB02541]
Set tire
pressures to the following specifications:
Specified brake fluid:
DOT 4
U1HS60E0.book Page 4 Tuesday, April 26, 2011 7:53 PM

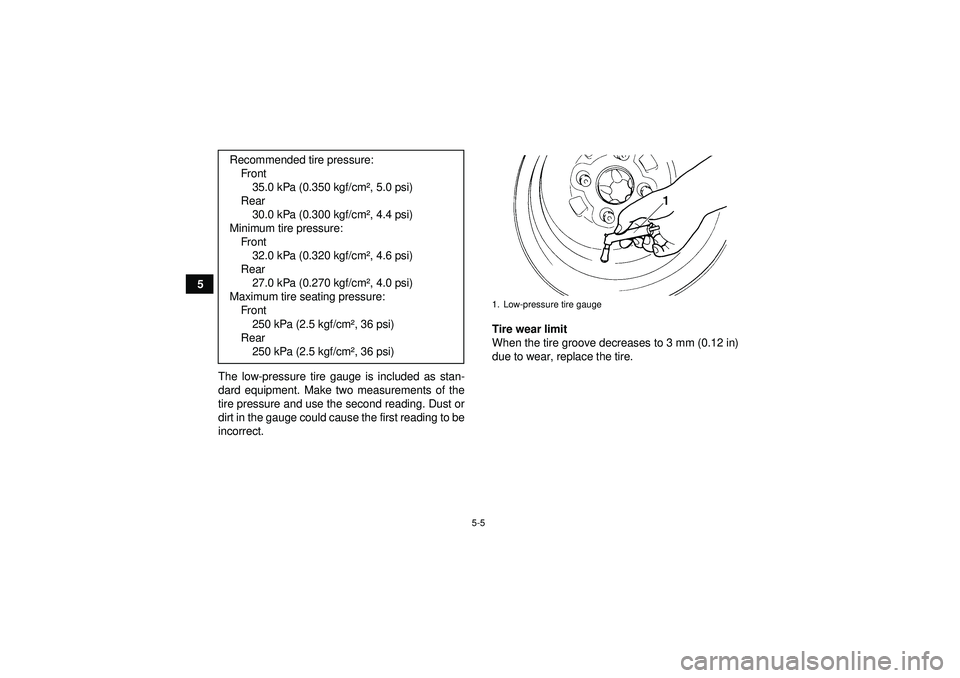

5-5
5The low-pressure tire gauge is included as stan-
dard equipment. Make two measurements of the
tire pressure and use the second reading. Dust or
dirt in the gauge could cause the first reading to be
incorrect. Tire wear limit
When the tire groove decreases to 3 mm (0.12 in)
due to wear, replace the tire.
Recommended tire pressure:
Fro nt35.0 kPa (0.350 kgf/cm ², 5.0 psi)
Rear 30.0 kPa (0.300 kgf/cm ², 4.4 psi)
Minimum tire pressure: Fro nt32.0 kPa (0.320 kgf/cm ², 4.6 psi)
Rear 27.0 kPa (0.270 kgf/cm ², 4.0 psi)
Maximum tire seating pressure: Fro nt250 kPa (2.5 kgf/cm ², 36 psi)
Rear 250 kPa (2.5 kgf/cm ², 36 psi)
1. Low-pressure tire gauge
U1HS60E0.book Page 5 Tuesday, April 26, 2011 7:53 PM

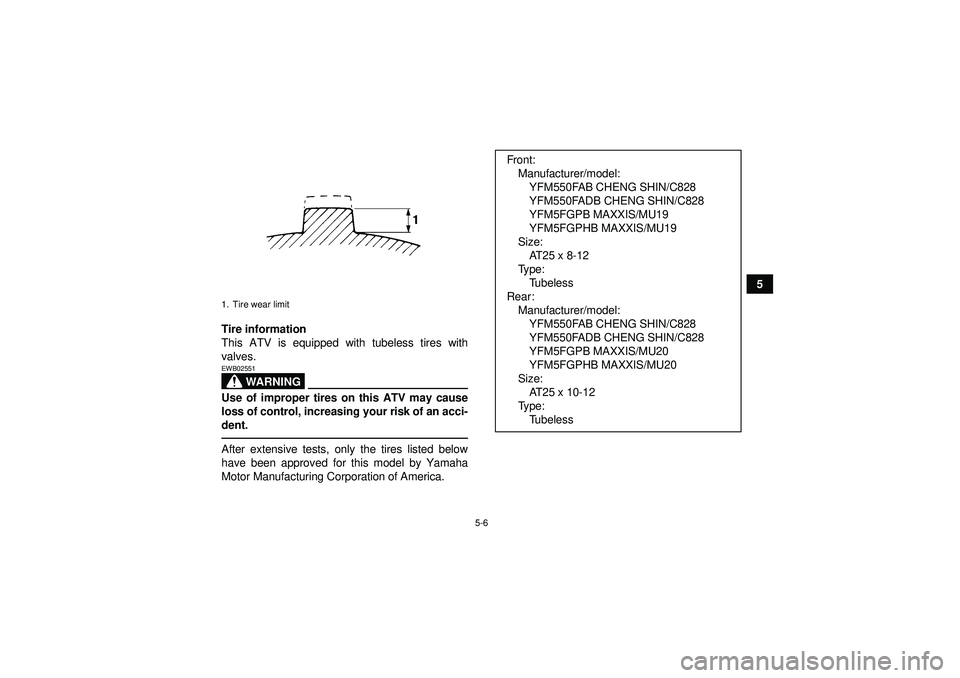

5-6
5
Tire information
This ATV is equipped with tubeless tires with
valves.
WARNING
EWB02551Use of improper tires on this ATV may cause
loss of control, increasing your risk of an acci-
dent.After extensive tests, only the tires listed below
have been approved for this model by Yamaha
Motor Manufacturing Corporation of America.1. Tire wear limit
Fro nt: Manufacturer/model:YFM550FAB CHENG SHIN/C828
YFM550FADB CHENG SHIN/C828
YFM5FGPB MAXXIS/MU19
YFM5FGPHB MAXXIS/MU19
Size: AT25 x 8-12
Type: Tu b e l e s s
Rear: Manufacturer/model:YFM550FAB CHENG SHIN/C828
YFM550FADB CHENG SHIN/C828
YFM5FGPB MAXXIS/MU20
YFM5FGPHB MAXXIS/MU20
Size: AT25 x 10-12
Type: Tu b e l e s s
U1HS60E0.book Page 6 Tuesday, April 26, 2011 7:53 PM

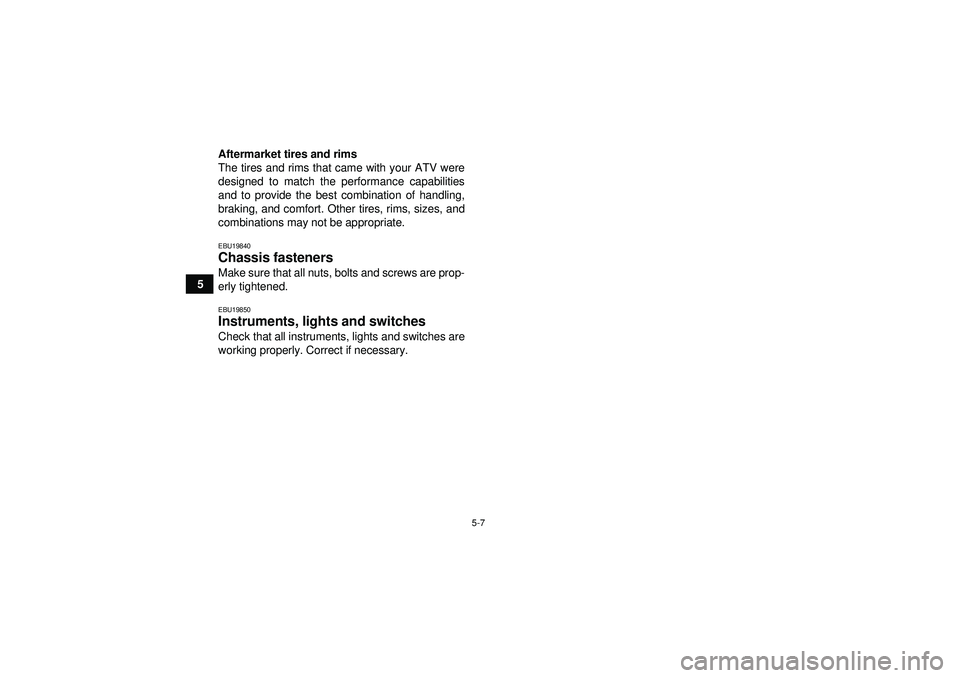

5-7
5Aftermarket tires and rims
The tires and rims that came with your ATV were
designed to match the performance capabilities
and to provide the best combination of handling,
braking, and comfort. Other tires, rims, sizes, and
combinations may not be appropriate.
EBU19840Chassis fasteners Make sure that all nuts, bolts and screws are prop-
erly tightened.EBU19850Instruments, lights and switches Check that all instruments, lights and switches are
working properly. Correct if necessary.U1HS60E0.book Page 7 Tuesday, April 26, 2011 7:53 PM

6-1
6
EBU19881
OPERATION
EBU19901Read the Owner’s Manual carefully before riding
the ATV. If there is a control or function you do not
understand, ask your Yamaha dealer.
WARNING
EWB00631Read the Owner ’s Manual carefully to become
familiar with all controls in order to help pre-
vent any loss of control, which could cause an
accident or injury.EBU30560Starting the engine NOTICEECB00150See the “Engine break-in ” section on page 6-4
prior to operating the engine for the first time.1. Turn the key to “” (on) and the engine stop
switch to “”.
The following warning lights should come on
for a few seconds, then go off.

Coolant temperature warning light

Engine trouble warning light
The EPS warning light should come on, then
go off when the engine is started. (for EPS
model)
NOTICEECB00824If a warning light does not go off, see page 4-2
for the corresponding warning light circuit
check. To avoid possible damage, do not oper-
ate the ATV if a warning light stays on.2. Apply the brake pedal, and then shift the drive select lever into the neutral or park position.
The corresponding indicator light should
come on. If the indicator light does not come
on, have a Yamaha dealer check the electrical
circuit.TIPThis model is equipped with an ignition circuit cut-
off system. The engine can be started under the
following conditions:
The drive select lever is in the neutral or park po-
sition.
U1HS60E0.book Page 1 Tuesday, April 26, 2011 7:53 PM

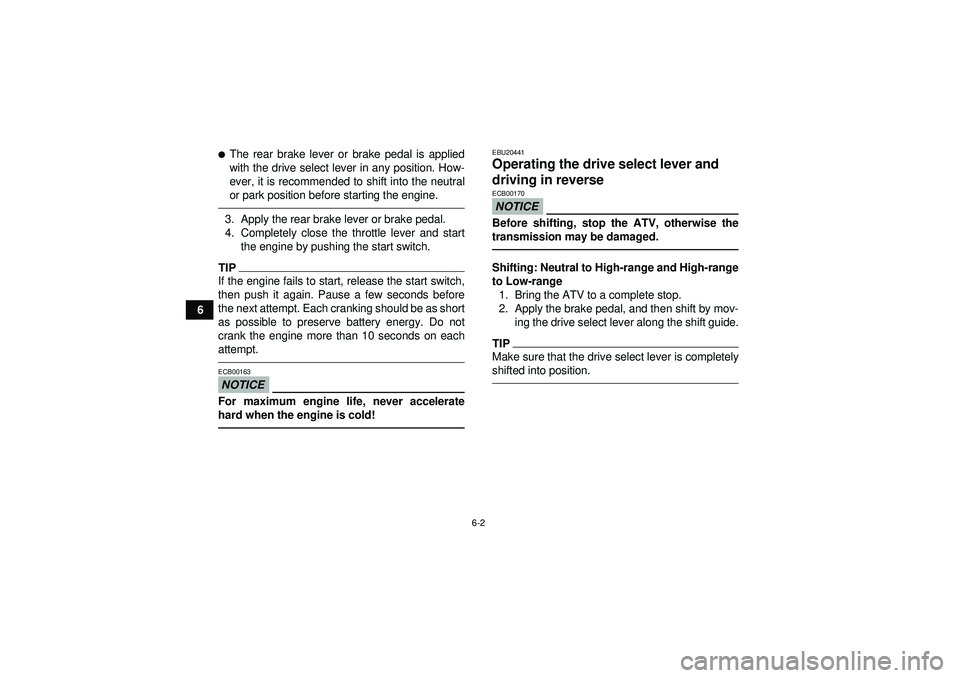

6-2
6

The rear brake lever or brake pedal is applied
with the drive select lever in any position. How-
ever, it is recommended to shift into the neutral
or park position before starting the engine.3. Apply the rear brake lever or brake pedal.
4. Completely close the throttle lever and startthe engine by pushing the start switch.TIPIf the engine fails to start, release the start switch,
then push it again. Pause a few seconds before
the next attempt. Each cranking should be as short
as possible to preserve battery energy. Do not
crank the engine more than 10 seconds on each
attempt.NOTICEECB00163For maximum engine life, never accelerate
hard when the engine is cold!
EBU20441Operating the drive select lever and
driving in reverse NOTICEECB00170Before shifting, stop the ATV, otherwise the
transmission may be damaged.Shifting: Neutral to High-range and High-range
to Low-range1. Bring the ATV to a complete stop.
2. Apply the brake pedal, and then shift by mov- ing the drive select lever along the shift guide.TIPMake sure that the drive select lever is completely
shifted into position.
