Adjusting the rear brake lever and
brake pedal .................................... 8-111
Adjusting the rear brake light
switch ............................................. 8-115
Cable inspection and lubrication ...... 8-117
Lubricating the brake levers and
brake pedal .................................... 8-119
Rear knuckle upper and lower pivot
lubrication ....................................... 8-121
Wheel removal ................................. 8-123
Wheel installation ............................. 8-125
Battery .............................................. 8-127
Battery maintenance ........................ 8-131
Fuse replacement............................. 8-133
Replacing a headlight bulb ............... 8-137
Headlight beam adjustment.............. 8-141
Tail/brake light bulb replacement ..... 8-141
Troubleshooting................................ 8-145
Troubleshooting chart....................... 8-147
CLEANING AND STORAGE ................... 9-1
A. Cleaning ........................................... 9-1
B. Storage ............................................ 9-7
SPECIFICATIONS ................................. 10-1
910
CONVERSION TABLE .......................... 11-1
11
U2C660.book Page 3 Monday, April 11, 2005 10:29 AM

4-19 1. Lights switch “//OFF”
2. Start switch “”
3. Engine stop switch “/”
4. Override switch “OVERRIDE”
5. Horn switch “”
1. Contacteur d’éclairage “//OFF”
2. Contacteur du démarreur “”
3. Coupe-circuit du moteur “/”
4. Contacteur de désactivation “OVERRIDE”
5. Contacteur de l’avertisseur “”
1. Interruptor de luces “//OFF”
2. Interruptor de arranque “”
3. Interruptor de paro del motor “/”
4. Interruptor de cancelación “OVERRIDE”
5. Interruptor de la bocina “”
EBU00053
Handlebar switches
EBU01204
Light switch “/ /OFF”
Set the switch to “” to turn on the low beam and
the taillight.
Set the switch to “” to turn on the high beam
and the taillight.
Set the switch to “OFF” to turn off all the lights.CAUTION:_ Do not use the headlights with the engine
turned off for more than thirty minutes. The
battery may discharge to the point that the
starter motor will not operate properly. If this
should happen, remove the battery and re-
charge it. _
EBU01205
Engine stop switch “/”
Make sure that the engine stop switch is set to
“” before starting the engine. The engine stop
switch controls ignition and can be used at all
times to stop the engine, especially in an emer-
gency. The engine will not start or run when the
engine stop switch is set to “”.
U2C660.book Page 19 Monday, April 11, 2005 10:29 AM

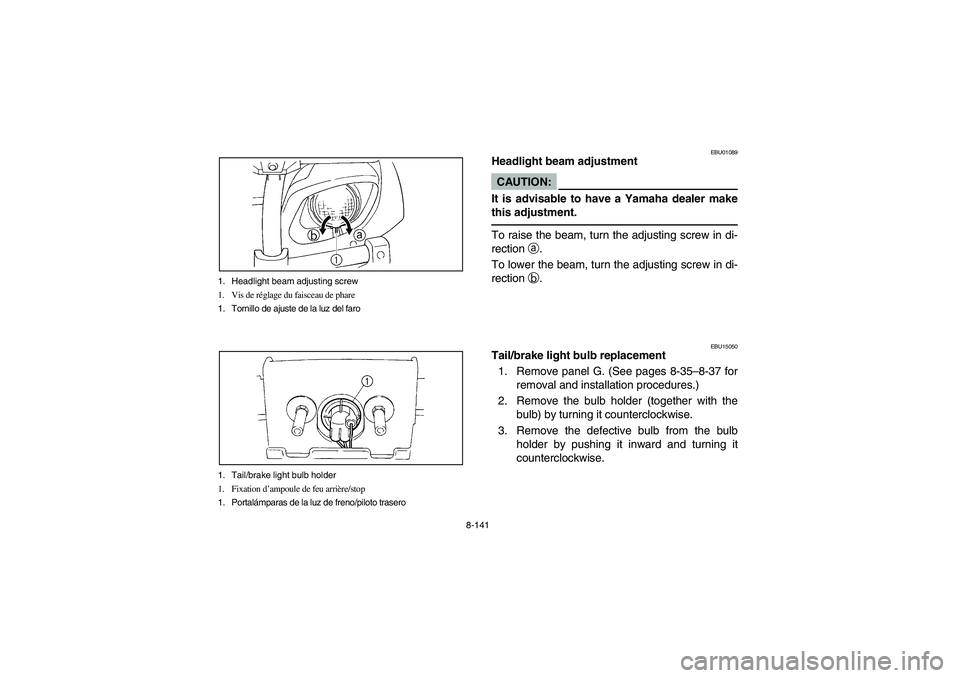

8-141 1. Headlight beam adjusting screw
1. Vis de réglage du faisceau de phare
1. Tornillo de ajuste de la luz del faro
1. Tail/brake light bulb holder
1. Fixation d’ampoule de feu arrière/stop
1. Portalámparas de la luz de freno/piloto trasero
EBU01089
Headlight beam adjustmentCAUTION:_ It is advisable to have a Yamaha dealer make
this adjustment. _To raise the beam, turn the adjusting screw in di-
rection
a.
To lower the beam, turn the adjusting screw in di-
rection
b.
EBU15050
Tail/brake light bulb replacement
1. Remove panel G. (See pages 8-35–8-37 for
removal and installation procedures.)
2. Remove the bulb holder (together with the
bulb) by turning it counterclockwise.
3. Remove the defective bulb from the bulb
holder by pushing it inward and turning it
counterclockwise.
