YAMAHA GRIZZLY 660 2007 Owner's Manual

2-7

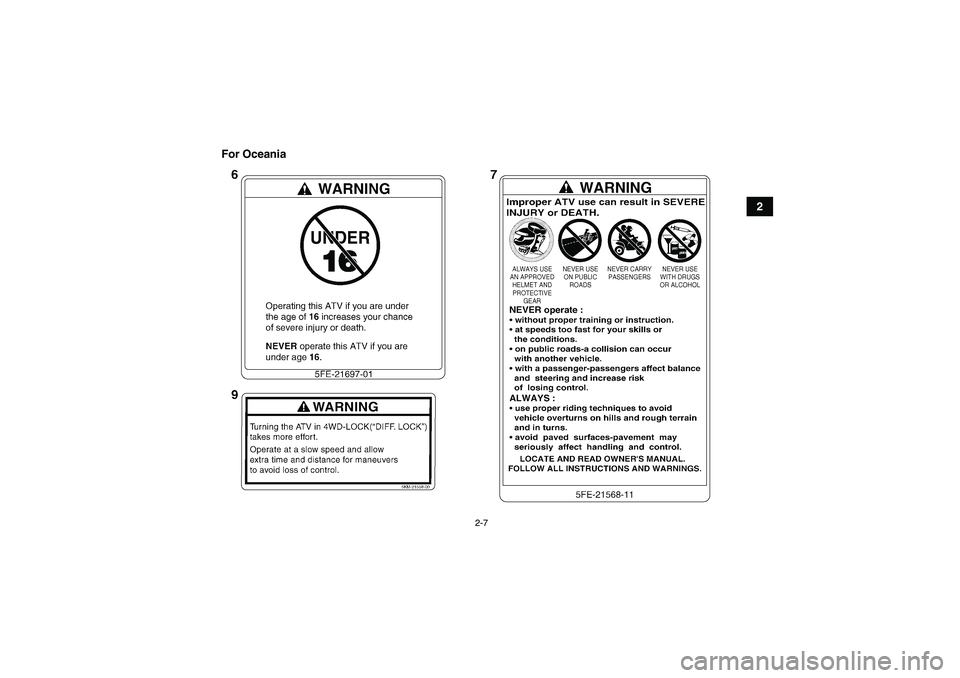

2 For Oceania
U2C661E0.book Page 7 Thursday, March 16, 2006 10:45 AM

3-1
3
EBU17680

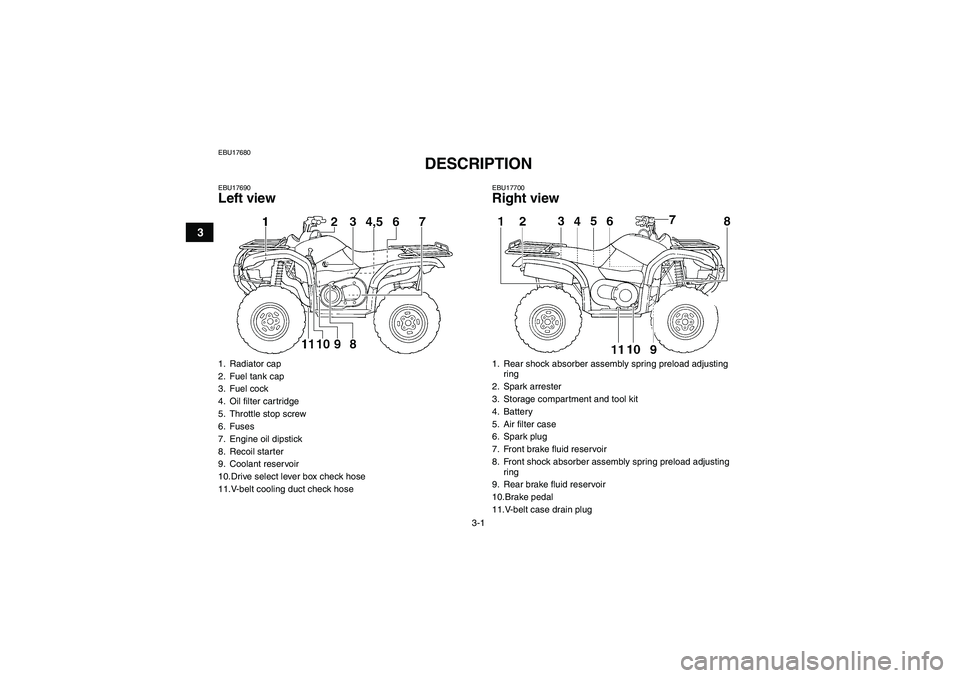

DESCRIPTION
EBU17690Left view
EBU17700Right view
1. Radiator cap
2. Fuel tank cap
3. Fuel cock
4. Oil filter cartridge
5. Throttle stop screw
6. Fuses
7. Engine oil dipstick
8. Recoil starter
9. Coolant reservoir
10.Drive select lever box check hose
11.V-belt cooling duct check hose
1. Rear shock absorber assembly spring preload adjusting
ring
2. Spark arrester
3. Storage compartment and tool kit
4. Battery
5. Air filter case
6. Spark plug
7. Front brake fluid reservoir
8. Front shock absorber assembly spring preload adjusting
ring
9. Rear brake fluid reservoir
10.Brake pedal
11.V-belt case drain plug
U2C661E0.book Page 1 Thursday, March 16, 2006 10:45 AM

3-2
3

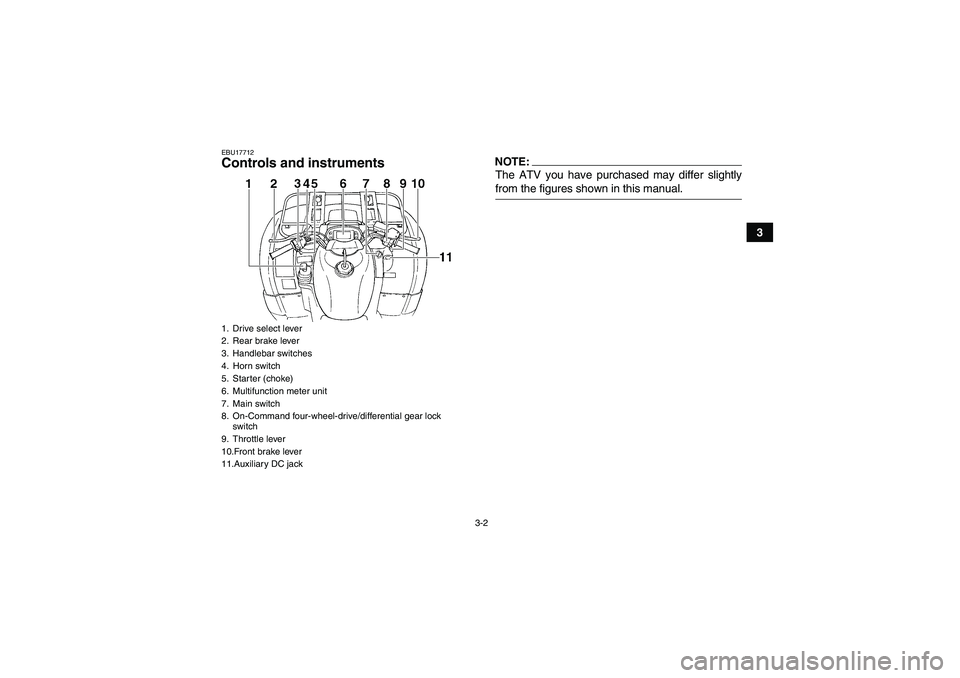

EBU17712Controls and instruments
NOTE:The ATV you have purchased may differ slightlyfrom the figures shown in this manual.
1. Drive select lever
2. Rear brake lever
3. Handlebar switches
4. Horn switch
5. Starter (choke)
6. Multifunction meter unit
7. Main switch
8. On-Command four-wheel-drive/differential gear lock
switch
9. Throttle lever
10.Front brake lever
11.Auxiliary DC jackU2C661E0.book Page 2 Thursday, March 16, 2006 10:45 AM

4-1
4
EBU17730

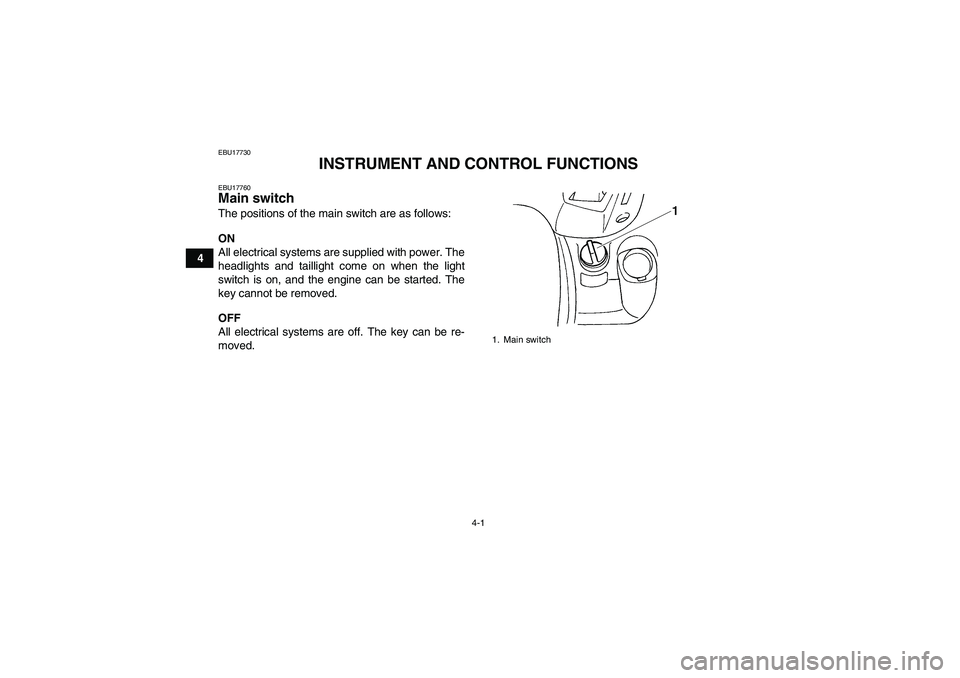

INSTRUMENT AND CONTROL FUNCTIONS
EBU17760Main switch The positions of the main switch are as follows:
ON
All electrical systems are supplied with power. The
headlights and taillight come on when the light
switch is on, and the engine can be started. The
key cannot be removed.
OFF
All electrical systems are off. The key can be re-
moved.
1. Main switch
U2C661E0.book Page 1 Thursday, March 16, 2006 10:45 AM

4-2
4
EBU17811Indicator lights and warning light EBU17840Reverse indicator light “”
This indicator light comes on when the transmis-
sion is in the reverse position.
NOTE:If the indicator light flashes or the speedometer
does not show the speed while riding, have aYamaha dealer check the speed sensor circuit.EBU17860Neutral indicator light “”
This indicator light comes on when the transmis-
sion is in the neutral position.EBU17920Coolant temperature warning light “”
This warning light comes on when the engine over-
heats. When this occurs during operation, stop the
engine as soon as it is safe to do so and allow it to
cool down for about 10 minutes.CAUTION:ECB00010
The engine may overheat if the ATV is over-
loaded. In this case, reduce the load to spec-
ification.
Start the engine after making sure that the
warning light is out. Continuous use while
the warning light is on may cause damage tothe engine.
1. On-Command differential gear lock indicator light “DIFF.
LOCK”
2. Low-range indicator light “L”
3. High-range indicator light “H”
4. Neutral indicator light “N”
5. Reverse indicator light “R”
6. Park indicator light “P”
7. On-Command four-wheel-drive/differential gear lock
indicator “”/“”
8. Coolant temperature warning light “”
DIFF.
LOCK
U2C661E0.book Page 2 Thursday, March 16, 2006 10:45 AM

4-3
4
EBU17961On-Command four-wheel-drive/differential
gear lock indicator “”/“”
The On-Command four-wheel-drive indicator “”
comes on when the On-Command four-wheel-
drive switch is set to the “4WD” position.
The On-Command differential gear lock indicator
“” in the On-Command four-wheel-drive indica-
tor also comes on when the On-Command differ-
ential gear lock switch is set to the “LOCK”
position.NOTE:
Due to the synchronizing mechanism in the dif-
ferential gear case, the four-wheel-drive indica-
tor may not come on until the ATV starts moving.
When the On-Command differential gear lock
switch is set to “LOCK”, the indicator “” willflash until the differential gear is locked.EBU17970Park indicator light “”
This indicator light comes on when the transmis-
sion is in the park position.
EBU17980High-range indicator light “”
This indicator light comes on when the transmis-
sion is in the high-range position.EBU17990Low-range indicator light “”
This indicator light comes on when the transmis-
sion is in the low-range position.EBU18001On-Command differential gear lock indicator
light “DIFF. LOCK”
This indicator light and the On-Command differen-
tial gear lock indicator in the display come on when
the On-Command differential gear lock switch is
set to the “LOCK” position.NOTE:When the switch is set to “LOCK”, the On-Com-
mand differential gear lock indicator light will flashuntil the differential gear is locked.
DIFF.
LOCK
DIFF.
LOCK
DIFF.
LOCK
U2C661E0.book Page 3 Thursday, March 16, 2006 10:45 AM

4-4
4
EBU18040Multifunction display The multifunction display is equipped with the fol-
lowing:
a speedometer (which shows the riding speed)
an odometer (which shows the total distance
traveled)

two tripmeters (which show the distance trav-
eled since they were last set to zero)
a clock
an hour meter (which shows the total time the
key has been turned to “ON”)
a fuel meter
Odometer and tripmeter modes
Pushing the “TRIP/ODO” button switches the dis-
play between the odometer mode “ODO” and the
tripmeter modes “A” and “B” in the following order:
ODO → TRIP A → TRIP B → ODO
To reset a tripmeter, select it by pushing the
“TRIP/ODO” button, and then push the
“TRIP/ODO” button for at least three seconds. The
tripmeters can be used to estimate the distance
that can be traveled with a full tank of fuel. This in-
formation will enable you to plan future fuel stops.
NOTE:Holding in the “TRIP/ODO” button and then turning
the key to “ON” switches the display between“mph” and “km/h”.
1. Speedometer
2. Fuel meter
3.“H” button
4.“M” button
5. Clock/Hour meter
6. Odometer/Tripmeter A/Tripmeter B
7. TRIP/ODO button
8. Clock/Hour “”/“” buttonU2C661E0.book Page 4 Thursday, March 16, 2006 10:45 AM

4-5
4Clock mode
Pushing the “”/“” button switches the display
between the clock mode “CLOCK” and the hour
meter mode “HOUR” in the following order:
CLOCK → HOUR → CLOCK
To set the clock
1. Set the display to the clock mode.
2. Push the “”/“” button until the clock starts
flashing.
3. Set the hours by pushing the “H” button.
4. Set the minutes by pushing the “M” button.
5. Push the “”/“” button, and then release it
to start the clock.
Fuel meter
The fuel meter indicates the amount of fuel in the
fuel tank. The display segments of the fuel meter
disappear from “F” (full) towards “E” (empty) as the
fuel level decreases. When the “E” segment disap-
pears and the fuel level warning indicator flashes,
set the fuel cock to reserve and refuel as soon as
possible.
1. Fuel level warning indicator
2. Fuel meter
3.“E” segment
U2C661E0.book Page 5 Thursday, March 16, 2006 10:45 AM

4-6
4

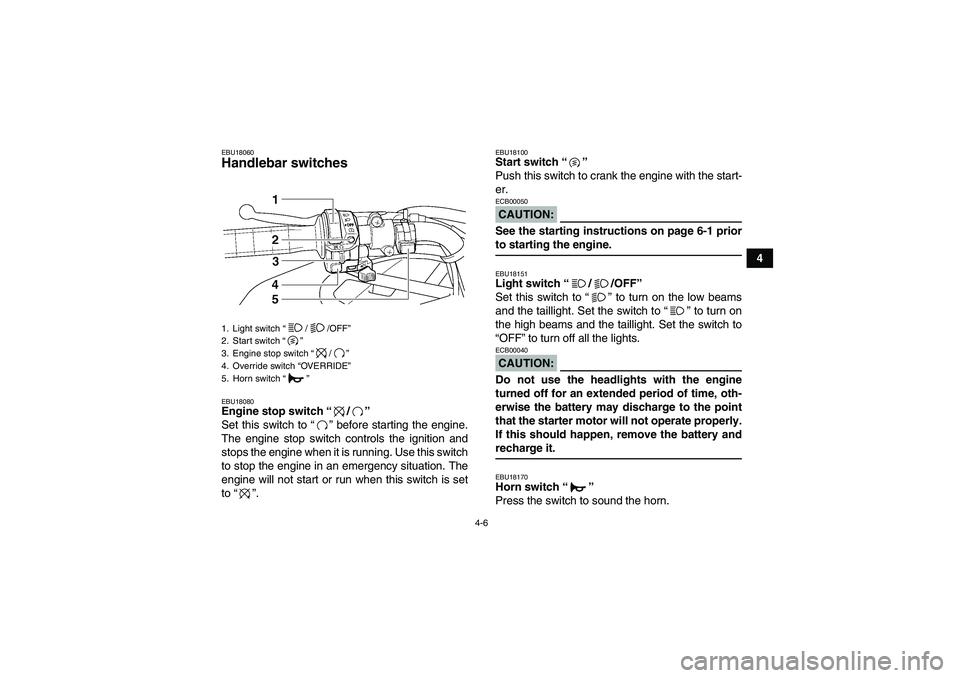

EBU18060Handlebar switches EBU18080Engine stop switch “/”
Set this switch to “” before starting the engine.
The engine stop switch controls the ignition and
stops the engine when it is running. Use this switch
to stop the engine in an emergency situation. The
engine will not start or run when this switch is set
to “”.
EBU18100Start switch “”
Push this switch to crank the engine with the start-
er.CAUTION:ECB00050See the starting instructions on page 6-1 priorto starting the engine.EBU18151Light switch “//OFF”
Set this switch to “” to turn on the low beams
and the taillight. Set the switch to “” to turn on
the high beams and the taillight. Set the switch to
“OFF” to turn off all the lights.CAUTION:ECB00040Do not use the headlights with the engine
turned off for an extended period of time, oth-
erwise the battery may discharge to the point
that the starter motor will not operate properly.
If this should happen, remove the battery andrecharge it.EBU18170Horn switch “”
Press the switch to sound the horn.
1. Light switch “//OFF”
2. Start switch “”
3. Engine stop switch “/”
4. Override switch “OVERRIDE”
5. Horn switch “”U2C661E0.book Page 6 Thursday, March 16, 2006 10:45 AM

4-7
4

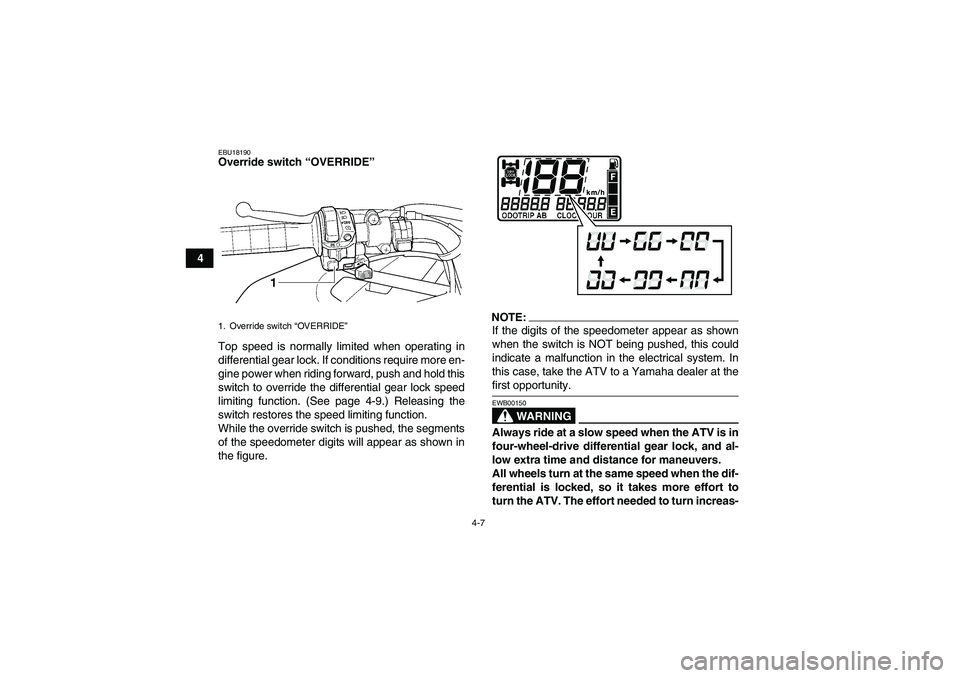

EBU18190Override switch “OVERRIDE”
Top speed is normally limited when operating in
differential gear lock. If conditions require more en-
gine power when riding forward, push and hold this
switch to override the differential gear lock speed
limiting function. (See page 4-9.) Releasing the
switch restores the speed limiting function.
While the override switch is pushed, the segments
of the speedometer digits will appear as shown in
the figure.
NOTE:If the digits of the speedometer appear as shown
when the switch is NOT being pushed, this could
indicate a malfunction in the electrical system. In
this case, take the ATV to a Yamaha dealer at thefirst opportunity.
WARNING
EWB00150Always ride at a slow speed when the ATV is in
four-wheel-drive differential gear lock, and al-
low extra time and distance for maneuvers.
All wheels turn at the same speed when the dif-
ferential is locked, so it takes more effort to
turn the ATV. The effort needed to turn increas-
1. Override switch “OVERRIDE”U2C661E0.book Page 7 Thursday, March 16, 2006 10:45 AM
