YAMAHA GRIZZLY 660 2008 Owners Manual

8-7
8

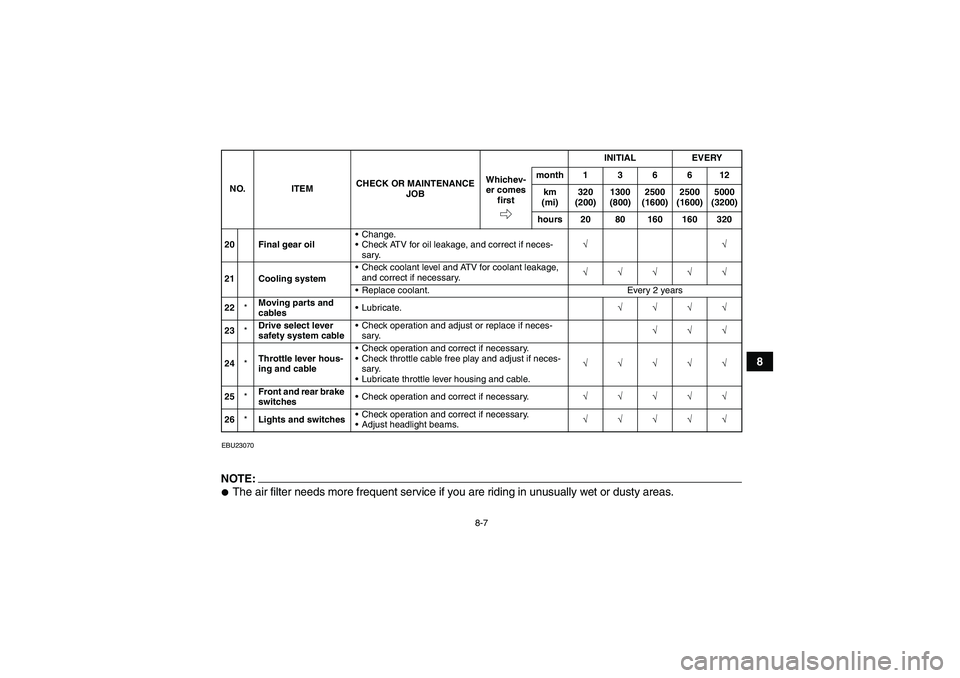

EBU23070NOTE:
The air filter needs more frequent service if you are riding in unusually wet or dusty areas.20 Final gear oilChange.
Check ATV for oil leakage, and correct if neces-
sary.√√
21 Cooling systemCheck coolant level and ATV for coolant leakage,
and correct if necessary.√√√√√
Replace coolant. Every 2 years
22*Moving parts and
cablesLubricate.√√√√
23*Drive select lever
safety system cableCheck operation and adjust or replace if neces-
sary.√√√
24*Throttle lever hous-
ing and cableCheck operation and correct if necessary.
Check throttle cable free play and adjust if neces-
sary.
Lubricate throttle lever housing and cable.√√√√√
25*Front and rear brake
switchesCheck operation and correct if necessary.√√√√√
26*Lights and switchesCheck operation and correct if necessary.
Adjust headlight beams.√√√√√ NO. ITEMCHECK OR MAINTENANCE
JOBINITIAL EVERY
Whichev-
er comes
firstmonth136612
km
(mi)320
(200)1300
(800)2500
(1600)2500
(1600)5000
(3200)
hours 20 80 160 160 320U23D60E0.book Page 7 Thursday, March 15, 2007 7:59 PM

8-8
8

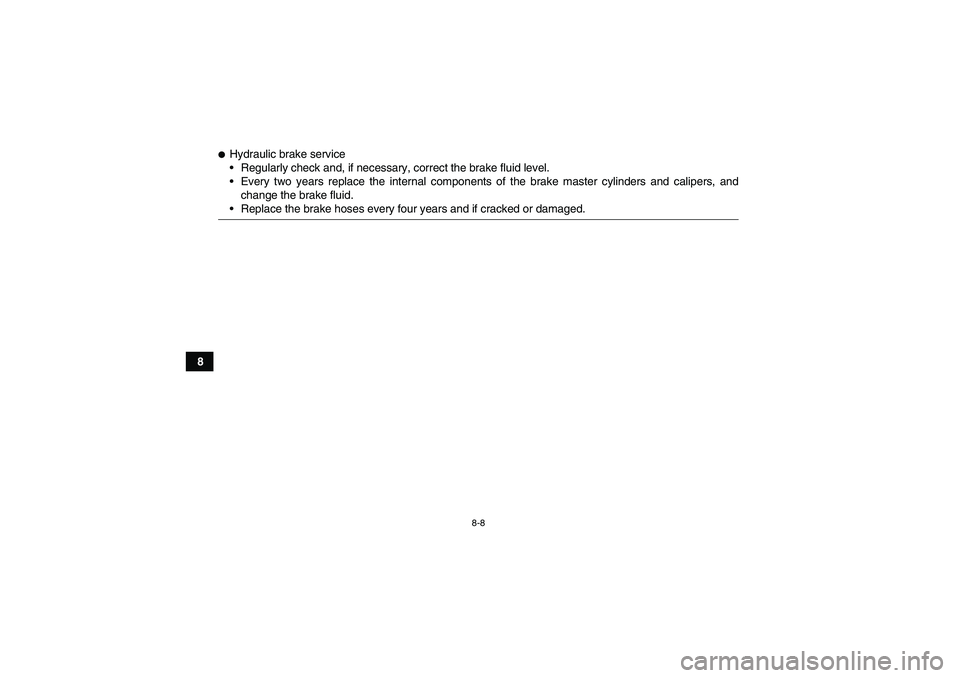

Hydraulic brake service
Regularly check and, if necessary, correct the brake fluid level.
Every two years replace the internal components of the brake master cylinders and calipers, and
change the brake fluid.Replace the brake hoses every four years and if cracked or damaged.
U23D60E0.book Page 8 Thursday, March 15, 2007 7:59 PM

8-9
8

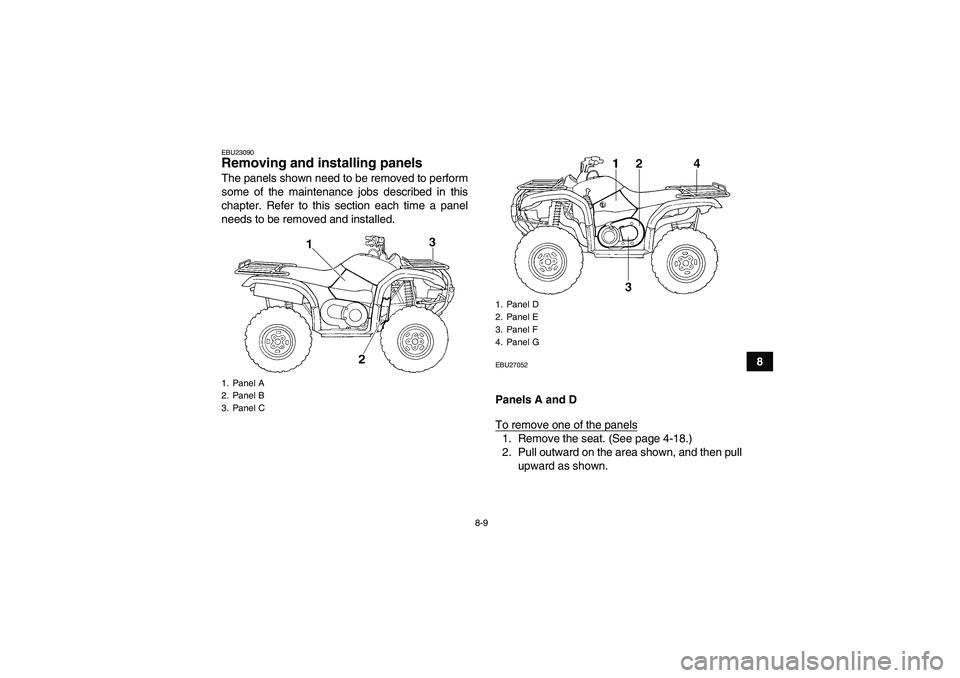

EBU23090Removing and installing panels The panels shown need to be removed to perform
some of the maintenance jobs described in this
chapter. Refer to this section each time a panel
needs to be removed and installed.
EBU27052Panels A and D
To remove one of the panels1. Remove the seat. (See page 4-18.)
2. Pull outward on the area shown, and then pull
upward as shown.
1. Panel A
2. Panel B
3. Panel C
1. Panel D
2. Panel E
3. Panel F
4. Panel G
U23D60E0.book Page 9 Thursday, March 15, 2007 7:59 PM

8-10

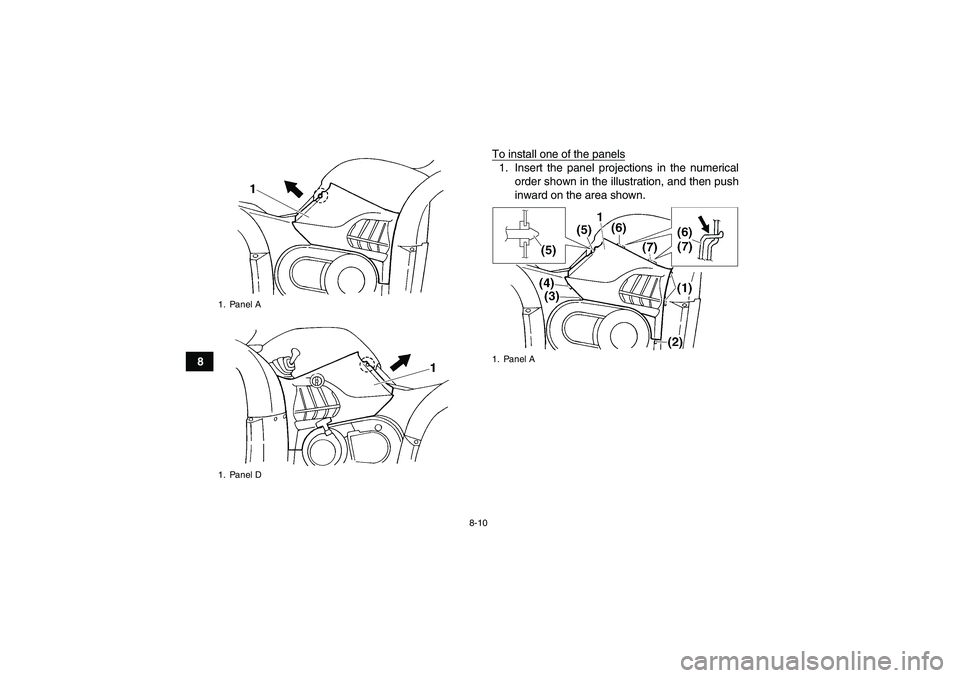

8To install one of the panels
1. Insert the panel projections in the numerical
order shown in the illustration, and then push
inward on the area shown.
1. Panel A
1. Panel D
1. Panel A
U23D60E0.book Page 10 Thursday, March 15, 2007 7:59 PM

8-11

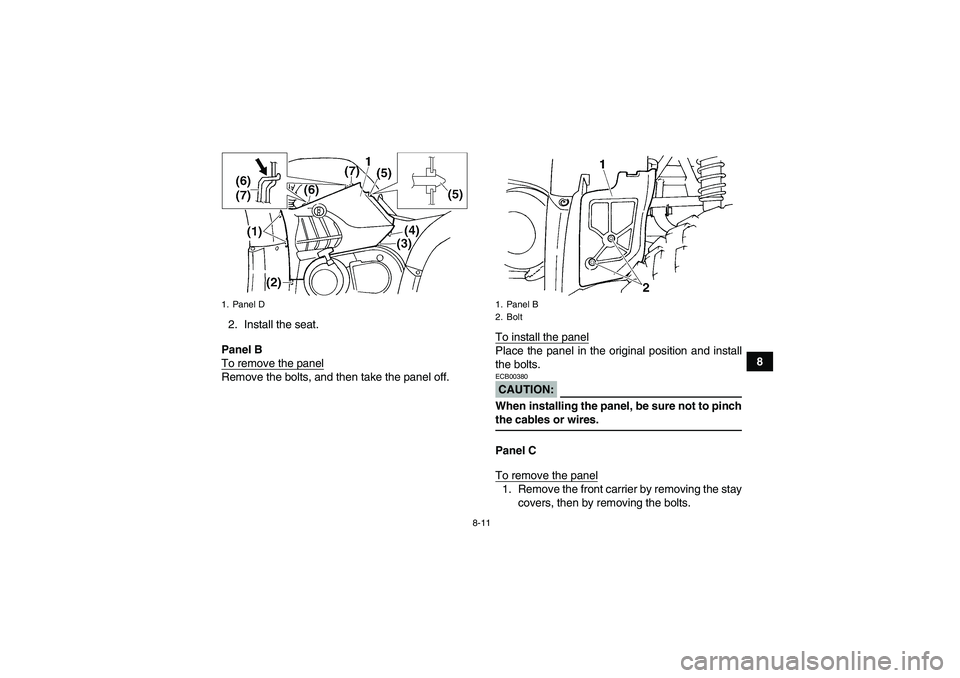

8 2. Install the seat.
Panel B
To remove the panel
Remove the bolts, and then take the panel off.To install the panel
Place the panel in the original position and install
the bolts.CAUTION:ECB00380When installing the panel, be sure not to pinchthe cables or wires.
Panel C
To remove the panel1. Remove the front carrier by removing the stay
covers, then by removing the bolts.
1. Panel D
1. Panel B
2. Bolt
U23D60E0.book Page 11 Thursday, March 15, 2007 7:59 PM

8-12
8

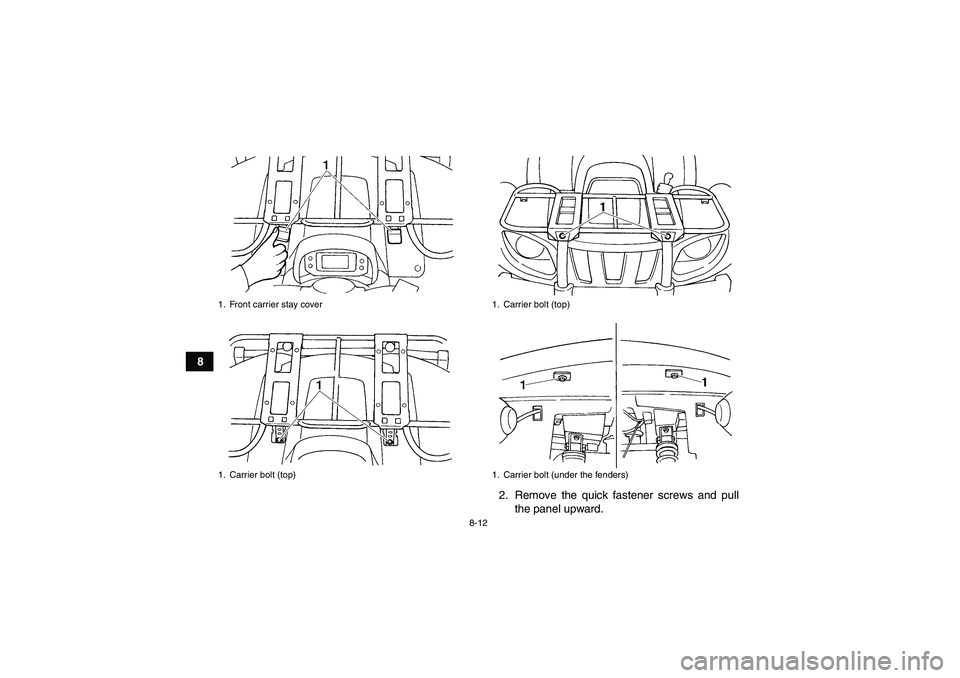

2. Remove the quick fastener screws and pull
the panel upward.
1. Front carrier stay cover
1. Carrier bolt (top)
1. Carrier bolt (top)
1. Carrier bolt (under the fenders)
U23D60E0.book Page 12 Thursday, March 15, 2007 7:59 PM

8-13

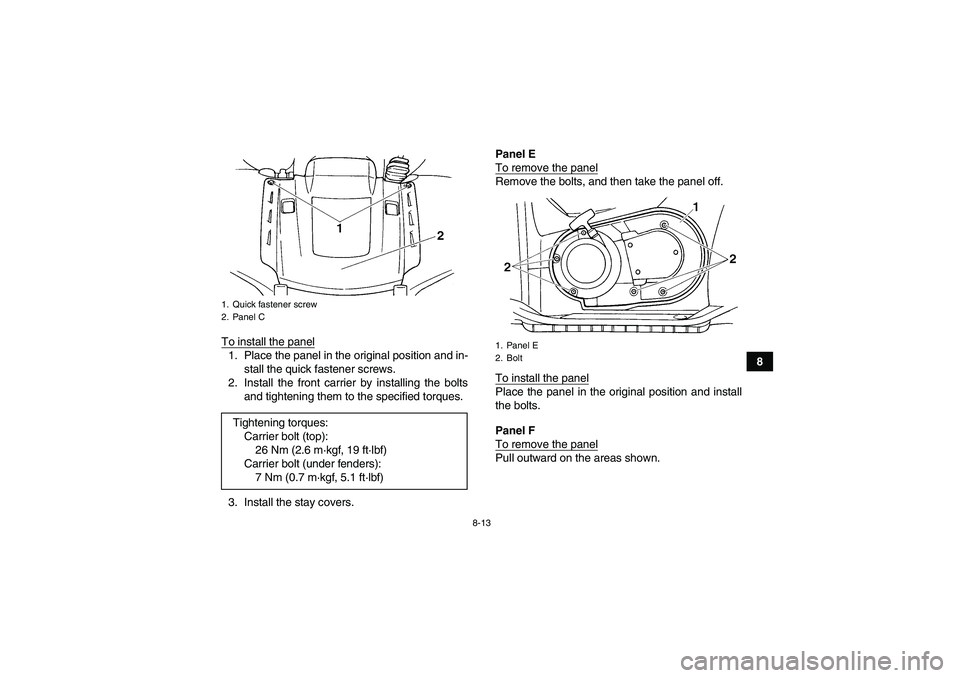

8 To install the panel
1. Place the panel in the original position and in-
stall the quick fastener screws.
2. Install the front carrier by installing the bolts
and tightening them to the specified torques.
3. Install the stay covers.Panel E
To remove the panel
Remove the bolts, and then take the panel off.
To install the panelPlace the panel in the original position and install
the bolts.
Panel F
To remove the panelPull outward on the areas shown.
1. Quick fastener screw
2. Panel CTightening torques:
Carrier bolt (top):
26 Nm (2.6 m·kgf, 19 ft·lbf)
Carrier bolt (under fenders):
7 Nm (0.7 m·kgf, 5.1 ft·lbf)
1. Panel E
2. Bolt
U23D60E0.book Page 13 Thursday, March 15, 2007 7:59 PM

8-14

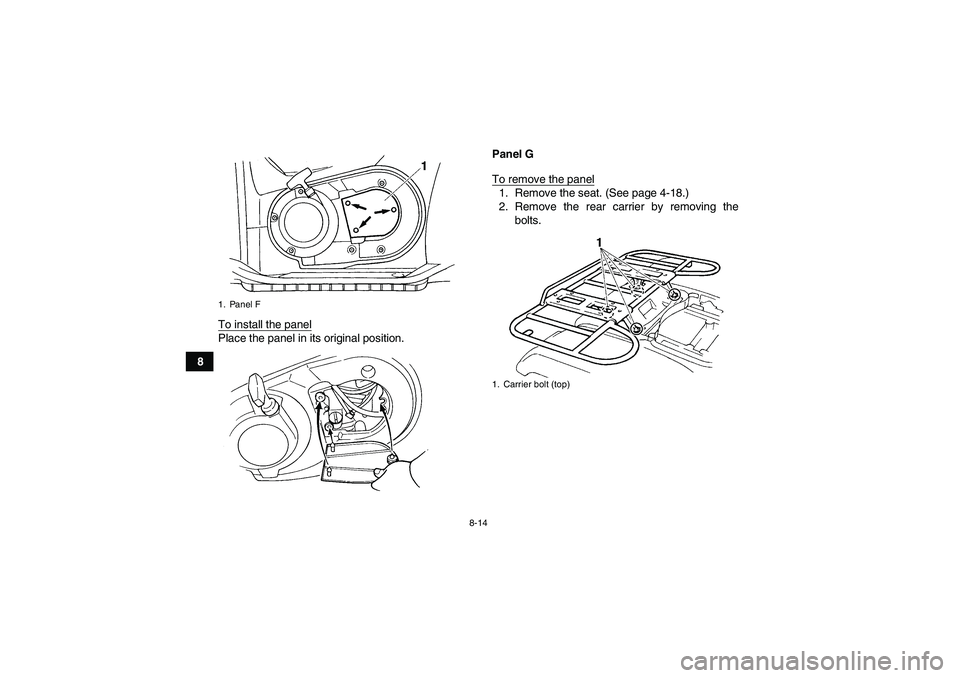

8To install the panel
Place the panel in its original position.Panel G
To remove the panel
1. Remove the seat. (See page 4-18.)
2. Remove the rear carrier by removing the
bolts.
1. Panel F
1. Carrier bolt (top)
U23D60E0.book Page 14 Thursday, March 15, 2007 7:59 PM

8-15

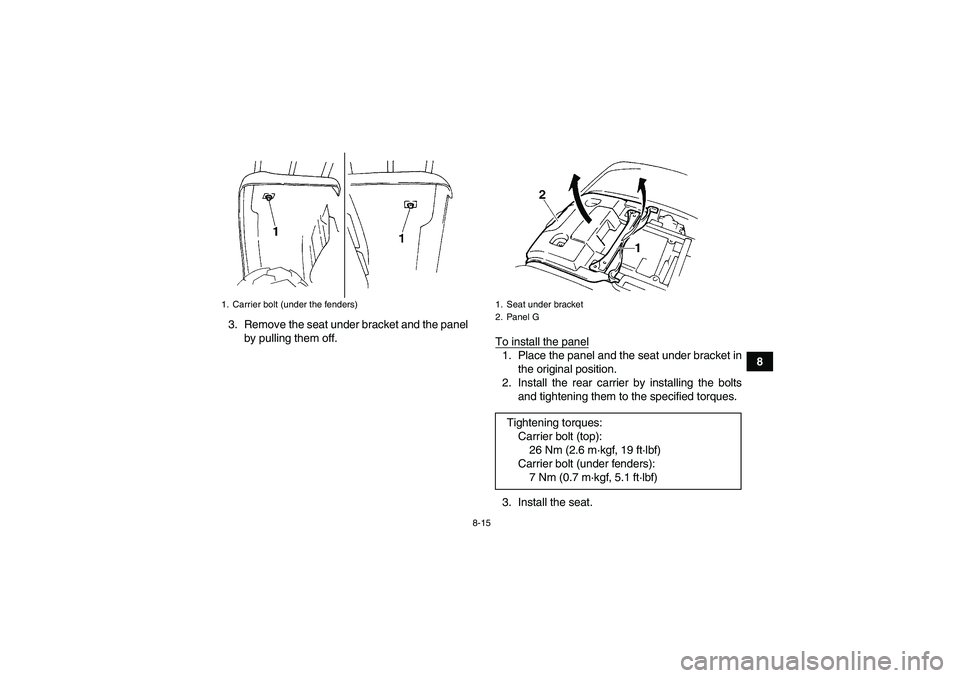

8 3. Remove the seat under bracket and the panel
by pulling them off.
To install the panel
1. Place the panel and the seat under bracket in
the original position.
2. Install the rear carrier by installing the bolts
and tightening them to the specified torques.
3. Install the seat.
1. Carrier bolt (under the fenders)
1. Seat under bracket
2. Panel GTightening torques:
Carrier bolt (top):
26 Nm (2.6 m·kgf, 19 ft·lbf)
Carrier bolt (under fenders):
7 Nm (0.7 m·kgf, 5.1 ft·lbf)
U23D60E0.book Page 15 Thursday, March 15, 2007 7:59 PM

8-16
8

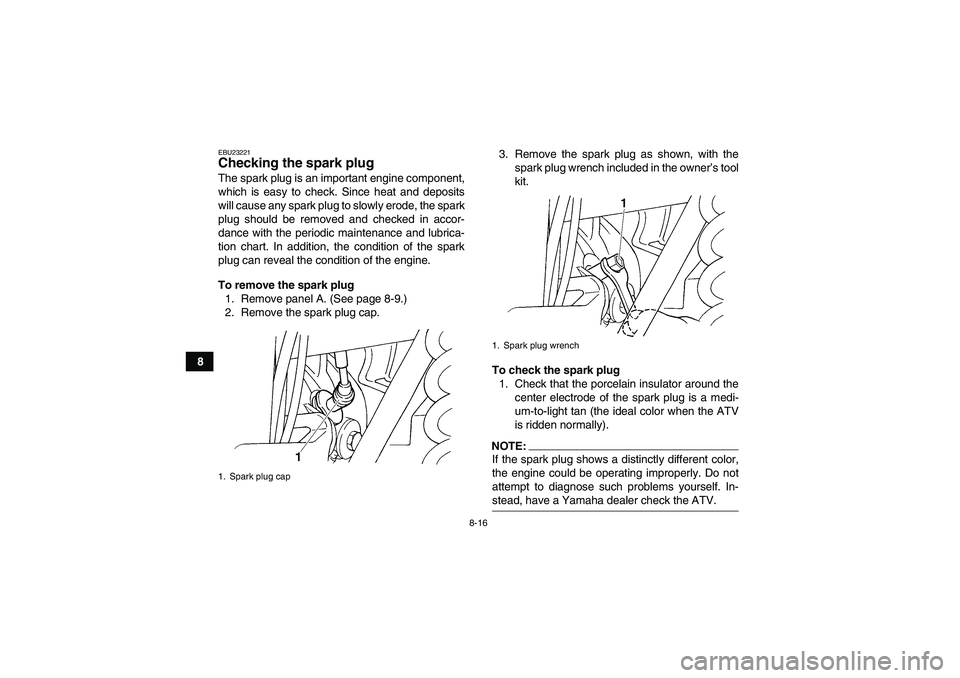

EBU23221Checking the spark plug The spark plug is an important engine component,
which is easy to check. Since heat and deposits
will cause any spark plug to slowly erode, the spark
plug should be removed and checked in accor-
dance with the periodic maintenance and lubrica-
tion chart. In addition, the condition of the spark
plug can reveal the condition of the engine.
To remove the spark plug
1. Remove panel A. (See page 8-9.)
2. Remove the spark plug cap.3. Remove the spark plug as shown, with the
spark plug wrench included in the owner’s tool
kit.
To check the spark plug
1. Check that the porcelain insulator around the
center electrode of the spark plug is a medi-
um-to-light tan (the ideal color when the ATV
is ridden normally).
NOTE:If the spark plug shows a distinctly different color,
the engine could be operating improperly. Do not
attempt to diagnose such problems yourself. In-stead, have a Yamaha dealer check the ATV.
1. Spark plug cap
1. Spark plug wrench
U23D60E0.book Page 16 Thursday, March 15, 2007 7:59 PM
