YAMAHA GRIZZLY 660 2008 Owners Manual

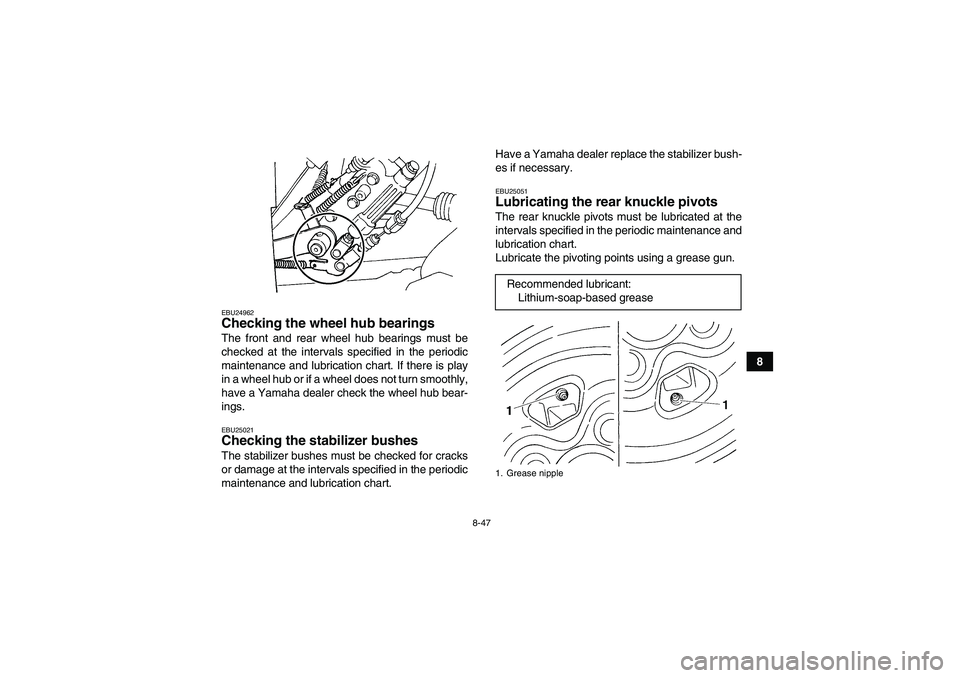

8-47
8
EBU24962Checking the wheel hub bearings The front and rear wheel hub bearings must be
checked at the intervals specified in the periodic
maintenance and lubrication chart. If there is play
in a wheel hub or if a wheel does not turn smoothly,
have a Yamaha dealer check the wheel hub bear-
ings.EBU25021Checking the stabilizer bushes The stabilizer bushes must be checked for cracks
or damage at the intervals specified in the periodic
maintenance and lubrication chart.Have a Yamaha dealer replace the stabilizer bush-
es if necessary.
EBU25051Lubricating the rear knuckle pivots The rear knuckle pivots must be lubricated at the
intervals specified in the periodic maintenance and
lubrication chart.
Lubricate the pivoting points using a grease gun.Recommended lubricant:
Lithium-soap-based grease1. Grease nipple
U23D60E0.book Page 47 Thursday, March 15, 2007 7:59 PM

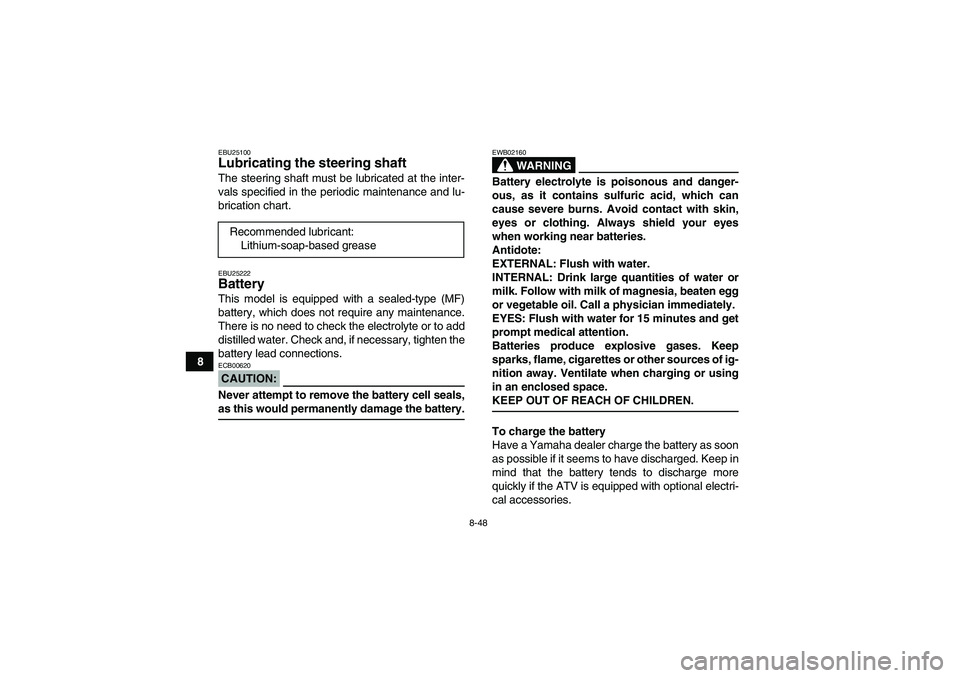

8-48
8
EBU25100Lubricating the steering shaft The steering shaft must be lubricated at the inter-
vals specified in the periodic maintenance and lu-
brication chart.EBU25222Battery This model is equipped with a sealed-type (MF)
battery, which does not require any maintenance.
There is no need to check the electrolyte or to add
distilled water. Check and, if necessary, tighten the
battery lead connections.CAUTION:ECB00620Never attempt to remove the battery cell seals,as this would permanently damage the battery.
WARNING
EWB02160Battery electrolyte is poisonous and danger-
ous, as it contains sulfuric acid, which can
cause severe burns. Avoid contact with skin,
eyes or clothing. Always shield your eyes
when working near batteries.
Antidote:
EXTERNAL: Flush with water.
INTERNAL: Drink large quantities of water or
milk. Follow with milk of magnesia, beaten egg
or vegetable oil. Call a physician immediately.
EYES: Flush with water for 15 minutes and get
prompt medical attention.
Batteries produce explosive gases. Keep
sparks, flame, cigarettes or other sources of ig-
nition away. Ventilate when charging or using
in an enclosed space.KEEP OUT OF REACH OF CHILDREN.
To charge the battery
Have a Yamaha dealer charge the battery as soon
as possible if it seems to have discharged. Keep in
mind that the battery tends to discharge more
quickly if the ATV is equipped with optional electri-
cal accessories. Recommended lubricant:
Lithium-soap-based grease
U23D60E0.book Page 48 Thursday, March 15, 2007 7:59 PM

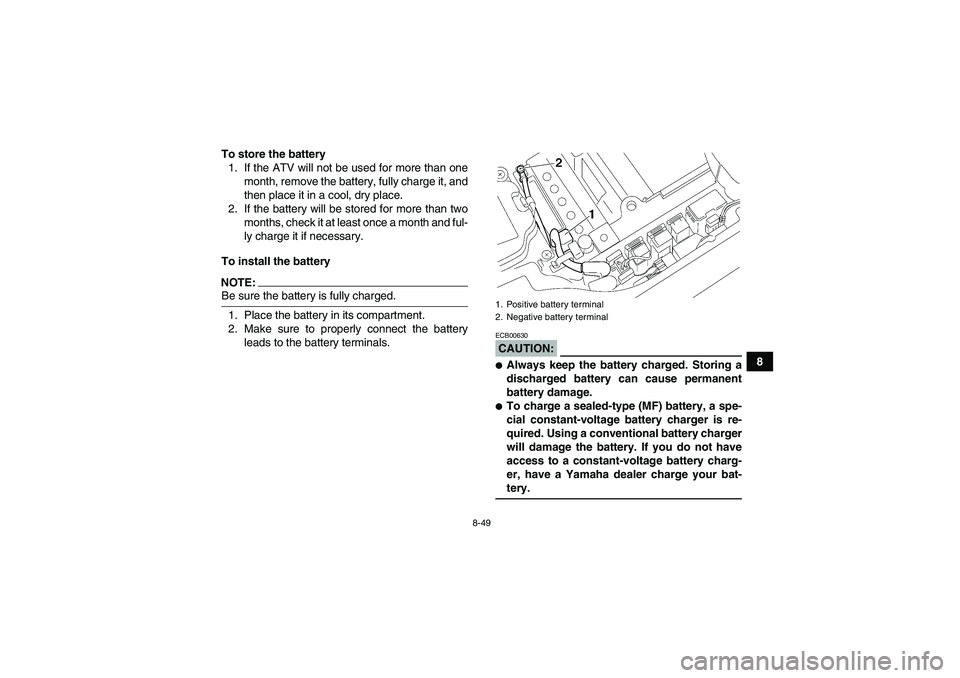

8-49
8 To store the battery
1. If the ATV will not be used for more than one
month, remove the battery, fully charge it, and
then place it in a cool, dry place.
2. If the battery will be stored for more than two
months, check it at least once a month and ful-
ly charge it if necessary.
To install the battery
NOTE:Be sure the battery is fully charged.
1. Place the battery in its compartment.
2. Make sure to properly connect the battery
leads to the battery terminals.
CAUTION:ECB00630
Always keep the battery charged. Storing a
discharged battery can cause permanent
battery damage.
To charge a sealed-type (MF) battery, a spe-
cial constant-voltage battery charger is re-
quired. Using a conventional battery charger
will damage the battery. If you do not have
access to a constant-voltage battery charg-
er, have a Yamaha dealer charge your bat-tery.1. Positive battery terminal
2. Negative battery terminal
U23D60E0.book Page 49 Thursday, March 15, 2007 7:59 PM

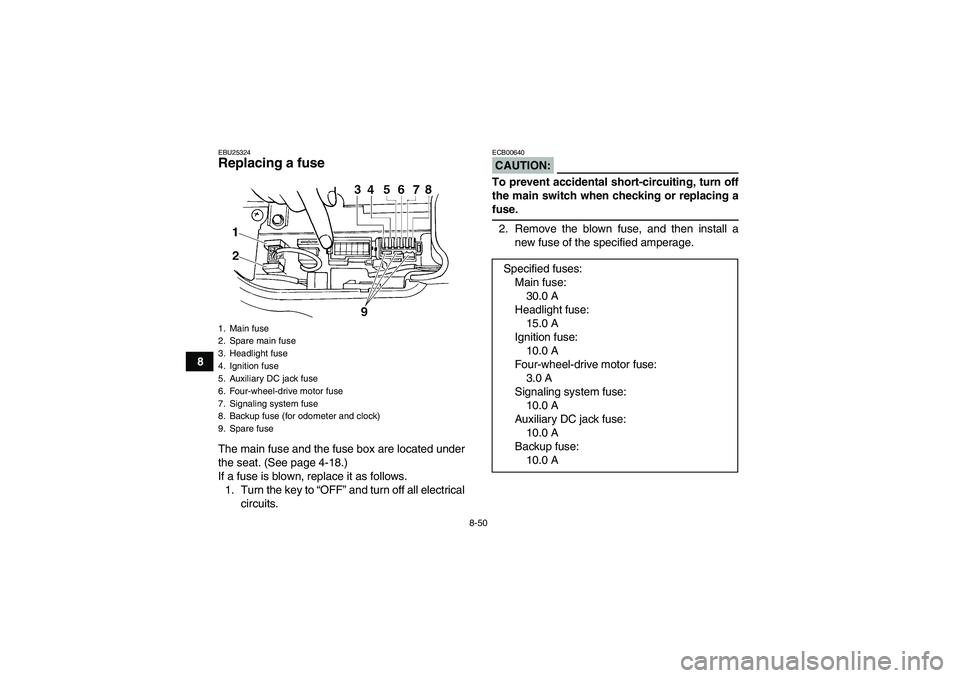

8-50
8
EBU25324Replacing a fuse The main fuse and the fuse box are located under
the seat. (See page 4-18.)
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off all electrical
circuits.
CAUTION:ECB00640To prevent accidental short-circuiting, turn off
the main switch when checking or replacing afuse.
2. Remove the blown fuse, and then install a
new fuse of the specified amperage.
1. Main fuse
2. Spare main fuse
3. Headlight fuse
4. Ignition fuse
5. Auxiliary DC jack fuse
6. Four-wheel-drive motor fuse
7. Signaling system fuse
8. Backup fuse (for odometer and clock)
9. Spare fuse
Specified fuses:
Main fuse:
30.0 A
Headlight fuse:
15.0 A
Ignition fuse:
10.0 A
Four-wheel-drive motor fuse:
3.0 A
Signaling system fuse:
10.0 A
Auxiliary DC jack fuse:
10.0 A
Backup fuse:
10.0 A
U23D60E0.book Page 50 Thursday, March 15, 2007 7:59 PM

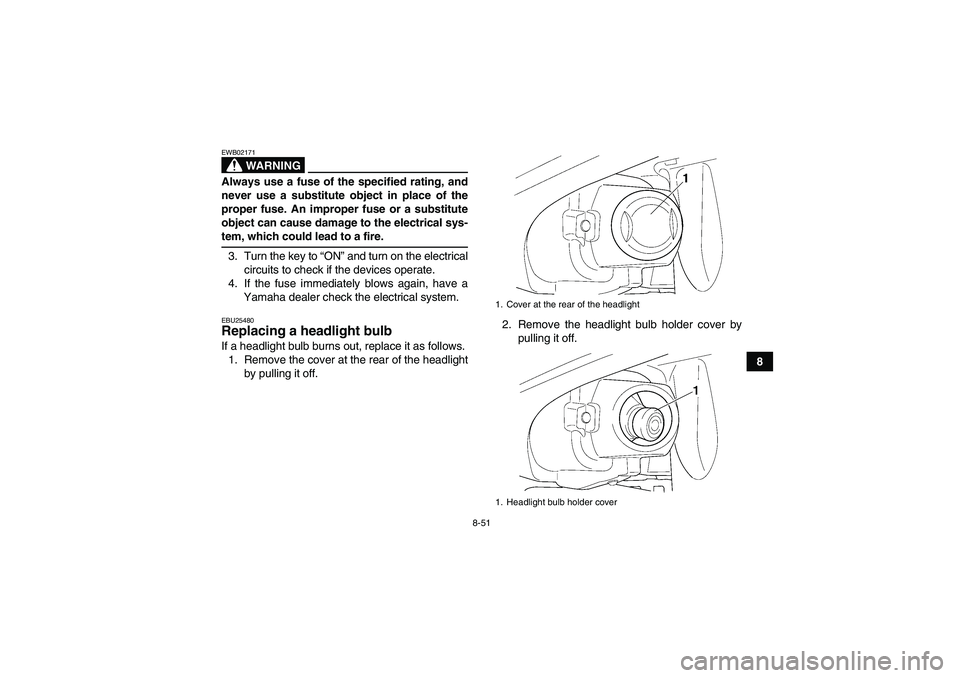

8-51
8
WARNING
EWB02171Always use a fuse of the specified rating, and
never use a substitute object in place of the
proper fuse. An improper fuse or a substitute
object can cause damage to the electrical sys-tem, which could lead to a fire.
3. Turn the key to “ON” and turn on the electrical
circuits to check if the devices operate.
4. If the fuse immediately blows again, have a
Yamaha dealer check the electrical system.EBU25480Replacing a headlight bulb If a headlight bulb burns out, replace it as follows.
1. Remove the cover at the rear of the headlight
by pulling it off.2. Remove the headlight bulb holder cover by
pulling it off.
1. Cover at the rear of the headlight
1. Headlight bulb holder cover
U23D60E0.book Page 51 Thursday, March 15, 2007 7:59 PM

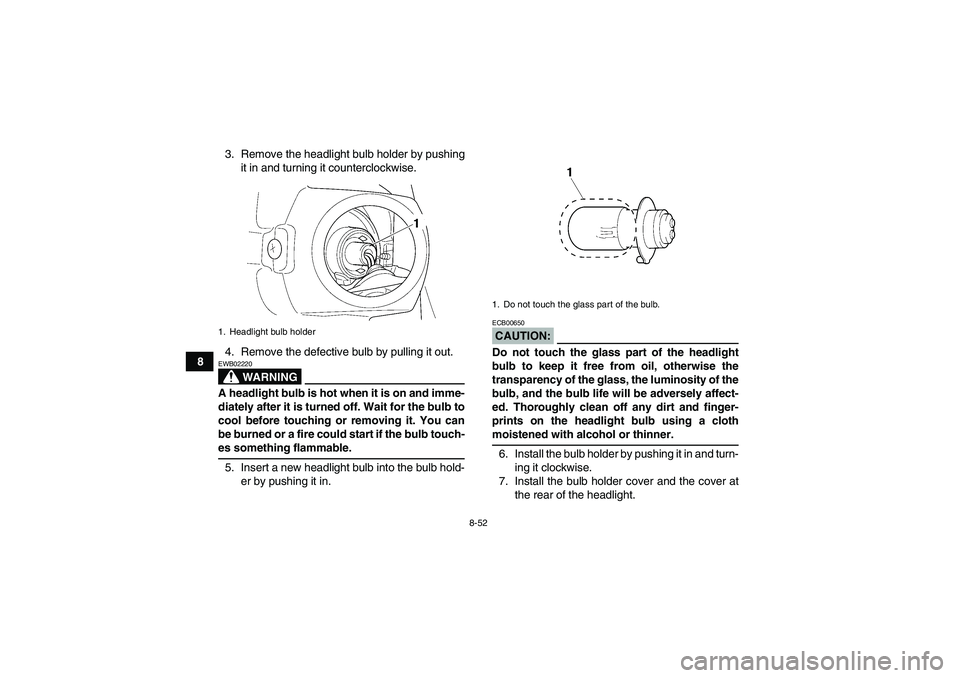

8-52
83. Remove the headlight bulb holder by pushing
it in and turning it counterclockwise.
4. Remove the defective bulb by pulling it out.
WARNING
EWB02220A headlight bulb is hot when it is on and imme-
diately after it is turned off. Wait for the bulb to
cool before touching or removing it. You can
be burned or a fire could start if the bulb touch-es something flammable.
5. Insert a new headlight bulb into the bulb hold-
er by pushing it in.
CAUTION:ECB00650Do not touch the glass part of the headlight
bulb to keep it free from oil, otherwise the
transparency of the glass, the luminosity of the
bulb, and the bulb life will be adversely affect-
ed. Thoroughly clean off any dirt and finger-
prints on the headlight bulb using a clothmoistened with alcohol or thinner.
6. Install the bulb holder by pushing it in and turn-
ing it clockwise.
7. Install the bulb holder cover and the cover at
the rear of the headlight.
1. Headlight bulb holder
1. Do not touch the glass part of the bulb.
U23D60E0.book Page 52 Thursday, March 15, 2007 7:59 PM

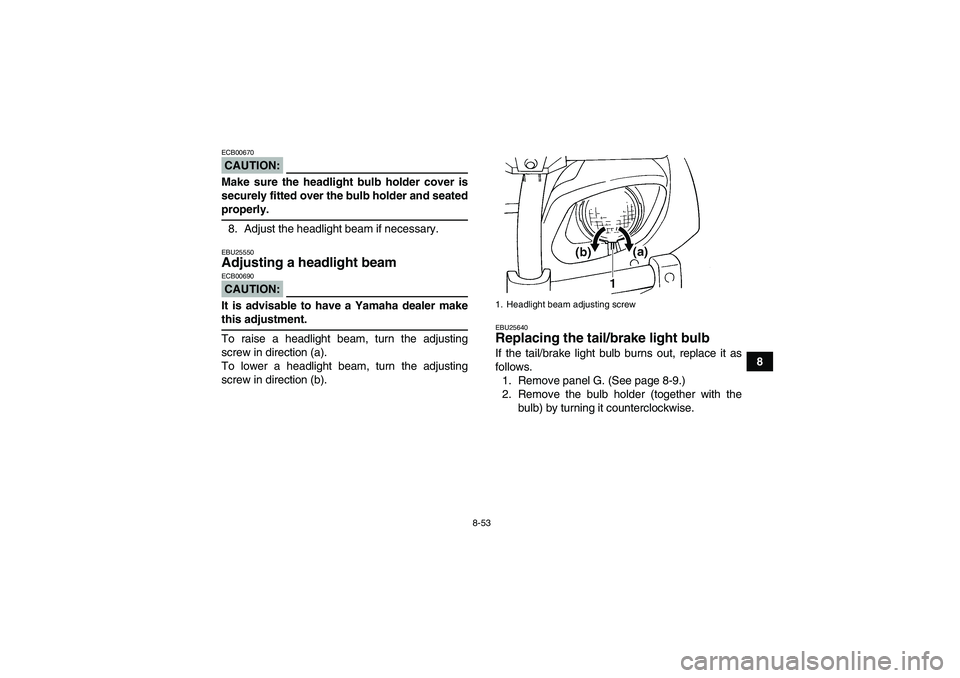

8-53
8
CAUTION:ECB00670Make sure the headlight bulb holder cover is
securely fitted over the bulb holder and seatedproperly.
8. Adjust the headlight beam if necessary.EBU25550Adjusting a headlight beam CAUTION:ECB00690It is advisable to have a Yamaha dealer makethis adjustment.
To raise a headlight beam, turn the adjusting
screw in direction (a).
To lower a headlight beam, turn the adjusting
screw in direction (b).
EBU25640Replacing the tail/brake light bulb If the tail/brake light bulb burns out, replace it as
follows.
1. Remove panel G. (See page 8-9.)
2. Remove the bulb holder (together with the
bulb) by turning it counterclockwise.1. Headlight beam adjusting screw
U23D60E0.book Page 53 Thursday, March 15, 2007 7:59 PM

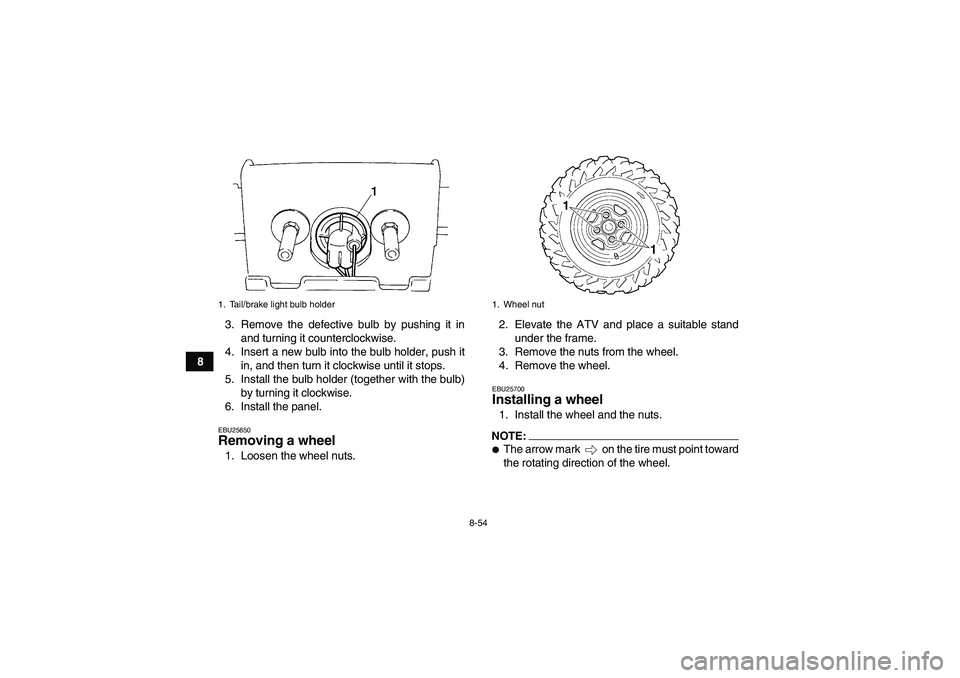

8-54
83. Remove the defective bulb by pushing it in
and turning it counterclockwise.
4. Insert a new bulb into the bulb holder, push it
in, and then turn it clockwise until it stops.
5. Install the bulb holder (together with the bulb)
by turning it clockwise.
6. Install the panel.
EBU25650Removing a wheel 1. Loosen the wheel nuts.2. Elevate the ATV and place a suitable stand
under the frame.
3. Remove the nuts from the wheel.
4. Remove the wheel.
EBU25700Installing a wheel 1. Install the wheel and the nuts.NOTE:
The arrow mark on the tire must point toward
the rotating direction of the wheel.
1. Tail/brake light bulb holder
1. Wheel nut
U23D60E0.book Page 54 Thursday, March 15, 2007 7:59 PM

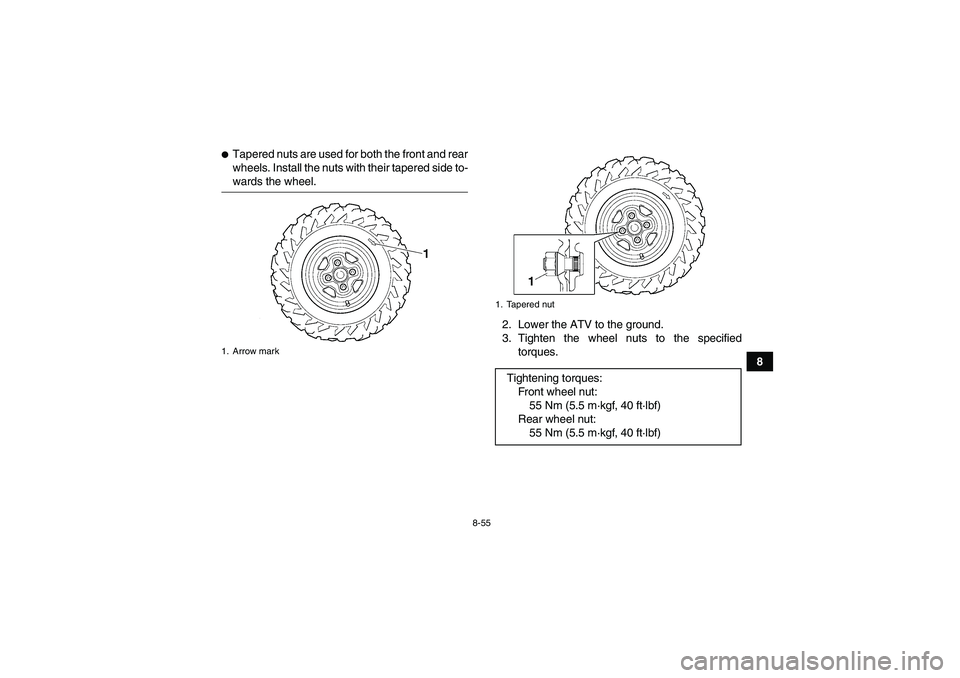

8-55
8

Tapered nuts are used for both the front and rear
wheels. Install the nuts with their tapered side to-wards the wheel.
2. Lower the ATV to the ground.
3. Tighten the wheel nuts to the specified
torques.1. Arrow mark
1. Tapered nutTightening torques:
Front wheel nut:
55 Nm (5.5 m·kgf, 40 ft·lbf)
Rear wheel nut:
55 Nm (5.5 m·kgf, 40 ft·lbf)
U23D60E0.book Page 55 Thursday, March 15, 2007 7:59 PM

8-56
8
EBU25740Troubleshooting Although Yamaha ATVs receive a thorough in-
spection before shipment from the factory, trouble
may occur during operation. Any problem in the fu-
el, compression, or ignition systems, for example,
can cause poor starting and loss of power.
The following troubleshooting charts represent
quick and easy procedures for checking these vital
systems yourself. However, should your ATV re-
quire any repair, take it to a Yamaha dealer, whose
skilled technicians have the necessary tools, expe-
rience, and know-how to service the ATV properly.
Use only genuine Yamaha replacement parts. Im-
itation parts may look like Yamaha parts, but they
are often inferior, have a shorter service life and
can lead to expensive repair bills.
WARNING
EWB02280Do not smoke when checking the fuel system.
Fuel can ignite or explode, causing severe inju-
ry or property damage. Make sure there are no
open flames or sparks in the area, including pi-lot lights from water heaters or furnaces.U23D60E0.book Page 56 Thursday, March 15, 2007 7:59 PM
