6-4
6
NOTE:
When in reverse, the reverse indicator light
should come on. If the indicator light does not
come on, have a Yamaha dealer check the elec-
trical circuit.
Due to the synchronizing mechanism in the en-
gine, the indicator light may not come on until theATV starts moving.4. Check behind for people or obstacles, and
then release the brake pedal.
5. Open the throttle lever gradually and continue
to watch to the rear while backing.
WARNING
EWB00720Improper operation in reverse could make you
hit an obstacle or even a person behind you,
resulting in serious injury. When you shift into
reverse, make sure there are no people or ob-
stacles behind you. When it is safe to proceed,go slowly.EBU20681Engine break-in There is never a more important period in the life of
your engine than the first 20 hours of riding. For
this reason, you should read the following material
carefully.
Since the engine is brand new, do not put an ex-
cessive load on it for the first 20 hours. The various
parts in the engine wear and polish themselves to
the correct operating clearances. During this peri-
od, prolonged full-throttle operation or any condi-
tion that might result in engine overheating must be
avoided.

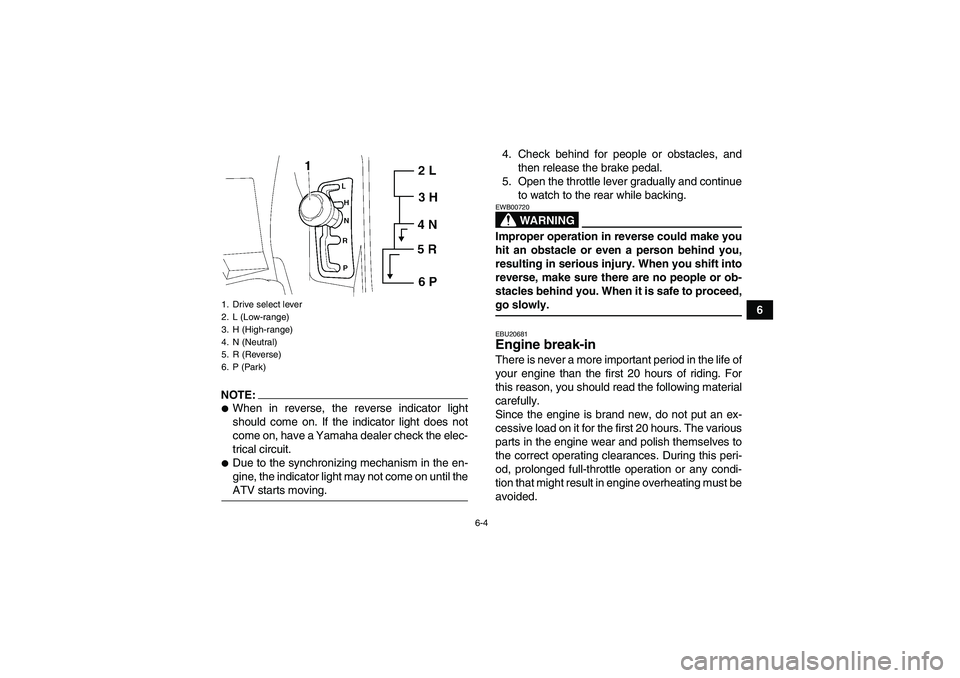

1. Drive select lever
2. L (Low-range)
3. H (High-range)
4. N (Neutral)
5. R (Reverse)
6. P (Park)U3B460E0.book Page 4 Friday, May 12, 2006 2:51 PM

6-5

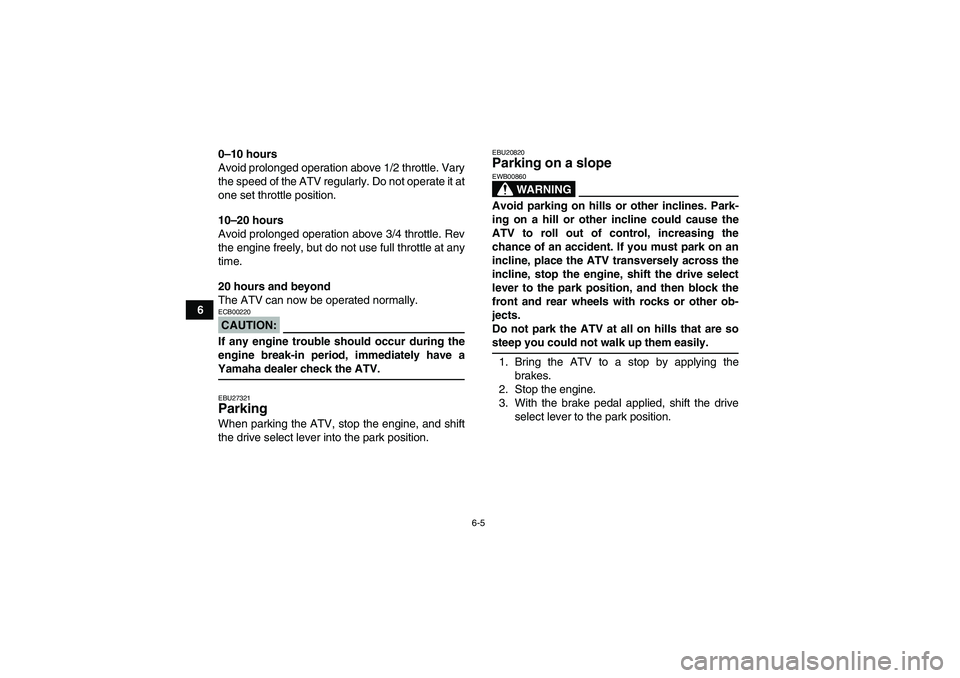

60–10 hours
Avoid prolonged operation above 1/2 throttle. Vary
the speed of the ATV regularly. Do not operate it at
one set throttle position.
10–20 hours
Avoid prolonged operation above 3/4 throttle. Rev
the engine freely, but do not use full throttle at any
time.
20 hours and beyond
The ATV can now be operated normally.
CAUTION:ECB00220If any engine trouble should occur during the
engine break-in period, immediately have aYamaha dealer check the ATV.EBU27321Parking When parking the ATV, stop the engine, and shift
the drive select lever into the park position.
EBU20820Parking on a slope
WARNING
EWB00860Avoid parking on hills or other inclines. Park-
ing on a hill or other incline could cause the
ATV to roll out of control, increasing the
chance of an accident. If you must park on an
incline, place the ATV transversely across the
incline, stop the engine, shift the drive select
lever to the park position, and then block the
front and rear wheels with rocks or other ob-
jects.
Do not park the ATV at all on hills that are sosteep you could not walk up them easily.
1. Bring the ATV to a stop by applying the
brakes.
2. Stop the engine.
3. With the brake pedal applied, shift the drive
select lever to the park position.
U3B460E0.book Page 5 Friday, May 12, 2006 2:51 PM

8-5
8
15*Chassis fastenersMake sure that all nuts, bolts, and screws are
properly tightened.√√√√√
16*Shock absorber as-
sembliesCheck operation and correct if necessary.
Check for oil leakage and replace if necessary.√√√
17*Stabilizer bushesCheck for cracks or other damage, and replace if
necessary.√√√
18*Knuckle pivotsLubricate with lithium-soap-based grease.√√√
19*Knuckle shaftsLubricate with lithium-soap-based grease.√√√
20*Steering shaftLubricate with lithium-soap-based grease.√√√
21*Steering systemCheck operation and repair or replace if damaged.
Check toe-in and adjust if necessary.√√√√√
22*Engine mountCheck for cracks or other damage, and replace if
necessary.√√√
23*Axle bootsCheck for cracks or other damage, and replace if
necessary.√√√√√
24*Fuel injectionCheck and adjust engine idle speed.√√√√√
25*Crankcase breather
systemCheck breather hose for cracks or other damage,
and replace if necessary.√√√
26 Engine oilChange.
Check ATV for oil leakage, and correct if neces-
sary.√ √√√
27Engine oil filter car-
tridgeReplace.√√√ NO. ITEMCHECK OR MAINTENANCE
JOBINITIAL EVERY
Whichev-
er comes
firstmonth136612
km
(mi)320
(200)1200
(750)2400
(1500)2400
(1500)4800
(3000)
hours 20 75 150 150 300U3B460E0.book Page 5 Friday, May 12, 2006 2:51 PM

8-20
8
EBU23211Checking the spark plug The spark plug is an important engine component,
which is easy to check. Since heat and deposits
will cause any spark plug to slowly erode, the spark
plug should be removed and checked in accor-
dance with the periodic maintenance and lubrica-
tion chart. In addition, the condition of the spark
plug can reveal the condition of the engine.
To remove the spark plug
1. Remove the spark plug cap.2. Remove the spark plug as shown, with the
spark plug wrench included in the owner’s tool
kit.
To check the spark plug
1. Check that the porcelain insulator around the
center electrode of the spark plug is a medi-
um-to-light tan (the ideal color when the ATV
is ridden normally).
NOTE:If the spark plug shows a distinctly different color,
the engine could be operating improperly. Do not
attempt to diagnose such problems yourself. In-stead, have a Yamaha dealer check the ATV.
1. Spark plug cap
1. Spark plug wrench
U3B460E0.book Page 20 Friday, May 12, 2006 2:51 PM

8-22
8
NOTE:If a torque wrench is not available when installing
a spark plug, a good estimate of the correct torque
is 1/4–1/2 turn past finger tight. However, the spark
plug should be tightened to the specified torque assoon as possible.
4. Install the spark plug cap.EBU27460Engine oil and oil filter cartridge The engine oil level should be checked before
each ride. In addition, the oil must be changed and
the oil filter cartridge replaced at the intervals spec-
ified in the periodic maintenance and lubrication
chart.
To check the engine oil level
1. Place the ATV on a level surface.
2. Check the engine oil level on a cold engine.NOTE:If the engine was started before checking the oil
level, be sure to warm up the engine sufficiently,
and then wait at least 10 minutes until the oil settlesfor an accurate reading.
3. Remove panel F. (See page 8-8.)4. Remove the dipstick, and then wipe it off with
a clean rag.
5. Insert the dipstick completely into the oil filler
hole, and then remove it again to check the oil
level.
1. Dipstick
U3B460E0.book Page 22 Friday, May 12, 2006 2:51 PM

8-26
8 12. Start the engine, and then let it idle for several
minutes while checking it for oil leakage. If oil
is leaking, immediately turn the engine off and
check for the cause.
13. Turn the engine off, wait at least ten minutes,
and then check the oil level and correct it if
necessary.
14. Install panel F.
EBU27302Final gear oil The final gear case must be checked for oil leak-
age before each ride. If any leakage is found, have
a Yamaha dealer check and repair the ATV. In ad-
dition, the final gear oil level must be checked and
the oil changed as follows at the intervals specified
in the periodic maintenance and lubrication chart.
To check the final gear oil level
1. Place the ATV on a level surface.NOTE:The final gear oil level must be checked on a coldengine.
2. Remove the final gear oil level check bolt, and
then check the oil level in the final gear case.
NOTE:The oil level should be at the brim of the checkhole.
3. If the oil is below the brim of the check hole,
remove the final gear oil filler bolt, and then
add sufficient oil of the recommended type to
raise it to the correct level.1. Final gear oil
2. Final gear oil level check bolt
3. Correct oil level
U3B460E0.book Page 26 Friday, May 12, 2006 2:51 PM

8-28
8
CAUTION:ECB00420Be sure no foreign material enters the finalgear case.
6. Install the oil level check bolt and oil filler bolt,
and then tighten them to the specified torques.7. Check the final gear case for oil leakage. If oil
is leaking, check for the cause.
EBU23421Differential gear oil The differential gear case must be checked for oil
leakage before each ride. If any leakage is found,
have a Yamaha dealer check and repair the ATV.
In addition, the differential gear oil level must be
checked and the oil changed as follows at the in-
tervals specified in the periodic maintenance and
lubrication chart.
To check the differential gear oil level
1. Place the ATV on a level surface.NOTE:The differential gear oil level must be checked ona cold engine.
1. Final gear oil
2. Final gear oil level check bolt
3. Correct oil levelRecommended final gear oil:
See page 10-1.
Tightening torques:
Final gear oil level check bolt:
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
Final gear oil filler bolt:
23 Nm (2.3 m·kgf, 17 ft·lbf)
U3B460E0.book Page 28 Friday, May 12, 2006 2:51 PM

8-31
8
NOTE:The coolant level must be checked on a cold en-
gine since the level varies with engine tempera-ture.
2. Check the coolant level in the coolant reser-
voir.NOTE:The coolant should be between the minimum andmaximum level marks.
3. If the coolant is at or below the minimum level
mark, remove panel D. (See page 8-8.)4. Remove the reservoir cap, add coolant or dis-
tilled water to the maximum level mark, install
the reservoir cap, and then install the panel.1. Maximum level mark
2. Minimum level mark
1. Coolant reservoir cap
2. Maximum level mark
3. Minimum level markCoolant reservoir capacity (up to the maximum
level mark):
0.17 L (0.18 US qt) (0.15 Imp.qt)
U3B460E0.book Page 31 Friday, May 12, 2006 2:51 PM

8-32
8
CAUTION:ECB00401
If coolant is not available, use distilled water
or soft tap water instead. Do not use hard wa-
ter or salt water since it is harmful to the en-
gine.
If water has been used instead of coolant, re-
place it with coolant as soon as possible,
otherwise the cooling system will not be pro-
tected against frost and corrosion.
If water has been added to the coolant, have
a Yamaha dealer check the antifreeze con-
tent of the coolant as soon as possible, oth-
erwise the effectiveness of the coolant willbe reduced.
NOTE:
The radiator fan is automatically switched on or
off according to the coolant temperature in the
radiator.
If the engine overheats, see page 8-65 for fur-ther instructions.
EBU27761To change the coolant
WARNING
EWB01890Wait for the engine and radiator to cool before
removing the radiator cap. You could be
burned by hot fluid and steam blown out under
pressure. Always place a thick rag over the cap
when opening. Allow any remaining pressureto escape before completely removing the cap.
1. Place the ATV on a level surface.
2. Remove panels D and F. (See page 8-8.)
3. Place a container under the engine, and then
remove the coolant drain bolt. (Use a trough
or a similar object as shown to prevent coolant
from spilling on the engine guard.)
U3B460E0.book Page 32 Friday, May 12, 2006 2:51 PM

8-36
8 18. When coolant begins to flow out of the bolt
hole, tighten the cylinder head air bleed bolt to
the specified torque.
19. Start the engine and let it idle for ten minutes.
20. Rev the engine five times.
21. Pour the recommended coolant into the radia-
tor until it is full.22. Stop the engine and allow it to cool. If the cool-
ant level has dropped after the engine has
cooled, add sufficient coolant until it reaches
the top of the radiator, and then install the ra-
diator cap.
23. Start the engine, and then check for coolant
leakage.
NOTE:If any leakage is found, have a Yamaha dealercheck the cooling system.
24. Install the V-belt cooling duct, and then tighten
the clamp screw.
25. Install the panels.EBU27800Cleaning the air filter element The air filter element should be cleaned at the in-
tervals specified in the periodic maintenance and
lubrication chart. Clean the air filter element more
frequently if you are riding in unusually wet or dusty
areas.NOTE:There are two check hoses at the bottom of the air
filter case, which are located behind panels D and
E. (See page 8-8 for an explanation on removing
1. Cylinder head air bleed boltTightening torque:
Cylinder head air bleed bolt:
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
U3B460E0.book Page 36 Friday, May 12, 2006 2:51 PM
