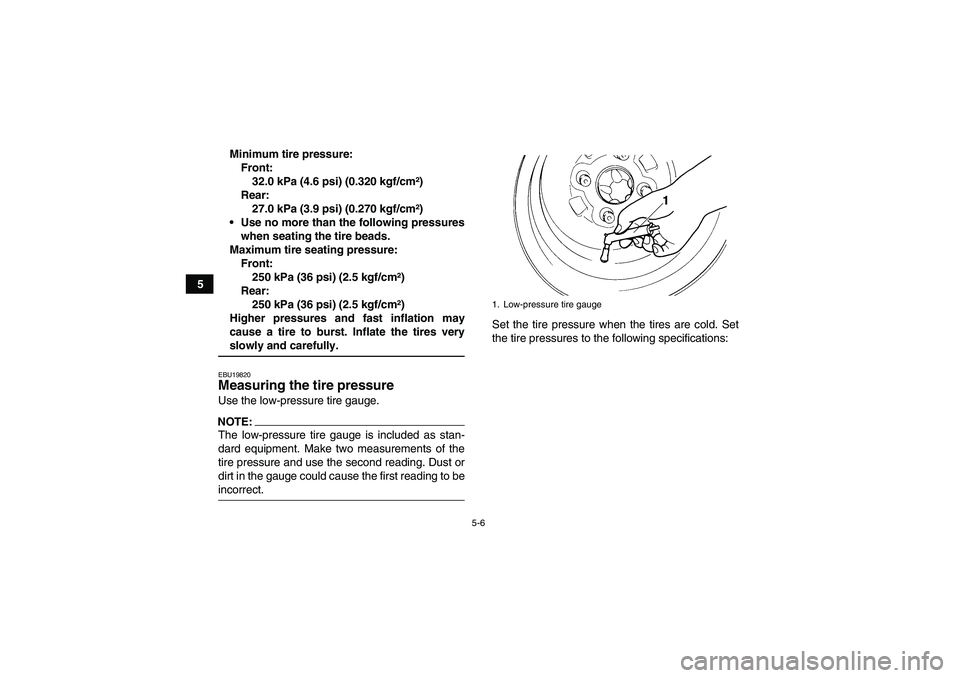

5-6
5Minimum tire pressure:
Front:
32.0 kPa (4.6 psi) (0.320 kgf/cm²)
Rear:
27.0 kPa (3.9 psi) (0.270 kgf/cm²)
Use no more than the following pressures
when seating the tire beads.
Maximum tire seating pressure:
Front:
250 kPa (36 psi) (2.5 kgf/cm²)
Rear:
250 kPa (36 psi) (2.5 kgf/cm²)
Higher pressures and fast inflation may
cause a tire to burst. Inflate the tires very
slowly and carefully.EBU19820Measuring the tire pressure Use the low-pressure tire gauge.NOTE:The low-pressure tire gauge is included as stan-
dard equipment. Make two measurements of the
tire pressure and use the second reading. Dust or
dirt in the gauge could cause the first reading to beincorrect.Set the tire pressure when the tires are cold. Set
the tire pressures to the following specifications:
1. Low-pressure tire gauge
