steering YAMAHA GRIZZLY 700 2007 Owners Manual

Checking and lubricating the front and
rear brake levers .................................... 8-52
Checking and lubricating the brake
pedal ...................................................... 8-53
Checking the wheel bearings ................... 8-53
Lubricating the drive shaft universal
joint ......................................................... 8-53
Checking the stabilizer bushes ................ 8-53
Lubricating the upper and lower arm
pivots ...................................................... 8-54
Lubricating the knuckle pivots .................. 8-54
Lubricating the knuckle shafts .................. 8-54
Lubricating the steering shaft ................... 8-54
Battery ...................................................... 8-55
Replacing a fuse ...................................... 8-56
Replacing a headlight bulb ....................... 8-58
Adjusting a headlight beam ...................... 8-61
Replacing the tail/brake light bulb ............ 8-61
Removing a wheel .................................... 8-62
Installing a wheel ...................................... 8-63
Troubleshooting ....................................... 8-64
Troubleshooting charts ............................. 8-65
CLEANING AND STORAGE .......................... 9-1
Cleaning ..................................................... 9-1
Storage ....................................................... 9-2SPECIFICATIONS .......................................10-1
CONSUMER INFORMATION.......................11-1
Identification numbers ...............................11-1
U3B460E0.book Page 3 Friday, May 12, 2006 2:51 PM

4-2
4
EBU26691Indicator lights and warning lights
EBU17830Reverse indicator light “”
This indicator light comes on when the transmis-
sion is in the reverse position.EBU17860Neutral indicator light “”
This indicator light comes on when the transmis-
sion is in the neutral position.EBU17900Coolant temperature warning light “”
This warning light comes on when the engine over-
heats. When this occurs during operation, stop the
engine as soon as it is safe to do so and allow it to
cool down for about 10 minutes.
The electrical circuit of the warning light can be
checked by turning the key to “ON”. If the light does
not come on, have a Yamaha dealer inspect the
electrical circuit.CAUTION:ECB00010
The engine may overheat if the ATV is over-
loaded. In this case, reduce the load to spec-
ification.
1. On-Command differential gear lock indicator light “DIFF.
LOCK”
2. Low-range indicator light “L”
3. High-range indicator light “H”
4. Neutral indicator light “N”
5. Reverse indicator light “R”
6. Park indicator light “P”
7. On-Command four-wheel-drive/differential gear lock
indicator “”/“”
8. Engine trouble warning light “”
9. Coolant temperature warning light “”
10.Electric Power Steering warning light “EPS”
DIFF.
LOCK
U3B460E0.book Page 2 Friday, May 12, 2006 2:51 PM

4-3
4

Start the engine after making sure that the
warning light is out. Continuous use while
the warning light is on may cause damage tothe engine.EBU27280Engine trouble warning light “”
This warning light comes on or flashes when an
electrical circuit monitoring the engine is defective.
When this occurs, have a Yamaha dealer check
the self-diagnosis system. (See page 4-5 for an ex-
planation of the self-diagnosis device.)
The electrical circuit of the warning light can be
checked by turning the key to “ON”. If the warning
light does not come on, then go off, have a
Yamaha dealer check the electrical circuit.EBU27542Electric Power Steering warning light “EPS”
This warning light comes on when the key is turned
to “ON”, and then goes off once the engine is start-
ed. If the warning light remains on or comes on af-
ter the engine is started, the EPS system may be
defective. When this occurs, have a Yamaha deal-
er check the EPS system.The electrical circuit of the warning light can be
checked by turning the key to “ON”. If the warning
light does not come on, have a Yamaha dealer
check the electrical circuit.
NOTE:
If the engine is stopped using the engine stop
switch and the key is in the “ON” position, the
EPS warning light comes on to indicate that the
power assistance for the steering is not function-
ing.
If the steering load is too heavy (i.e., excessive
steering use when the ATV is traveling at a slow
speed), the power assist is reduced to protectthe EPS motor from overheating.EBU17961On-Command four-wheel-drive/differential
gear lock indicator “”/“”
The On-Command four-wheel-drive indicator “”
comes on when the On-Command four-wheel-
drive switch is set to the “4WD” position.
The On-Command differential gear lock indicator
“” in the On-Command four-wheel-drive indica-
tor also comes on when the On-Command differ-
ential gear lock switch is set to the “LOCK”
position.
DIFF.
LOCK
DIFF.
LOCK
U3B460E0.book Page 3 Friday, May 12, 2006 2:51 PM

6-6
6
EBU20910Accessories and loading EBU20920Accessories
Accessories can affect the handling and control of
your ATV. Keep the following in mind when consid-
ering an accessory or operating an ATV which has
accessories.
Choose only accessories designed for your
ATV. Your Yamaha dealer has a variety of gen-
uine Yamaha accessories. Other accessories
may also be available on the market. However,
it is not possible for Yamaha to test all non-
Yamaha accessories, nor control over their qual-ity or suitability. Choose a genuine Yamaha ac-
cessory, or one that is equivalent in design and
quality.

Accessories should be rigidly and securely
mounted. An accessory which can shift position
or come off while you are riding could affect your
ability to control the ATV.
Do not mount an accessory where it could inter-
fere with your ability to control the ATV. Exam-
ples include (but are not limited to) a heavy or
bulky object attached to the handlebars which
could make steering difficult, an accessory that
limits your ability to move around on the seat, or
one that limits your view.
Use extra caution when riding an ATV with ac-
cessories. The ATV may handle differently than
it does without accessories.EBU27570Loading
Cargo or a trailer can change the stability and han-
dling of an ATV.
You must use common sense and good judgment
when carrying cargo or towing a trailer. Keep the
following points in mind:
Never exceed the weight limits shown. An over-
loaded ATV can be unstable.
U3B460E0.book Page 6 Friday, May 12, 2006 2:51 PM

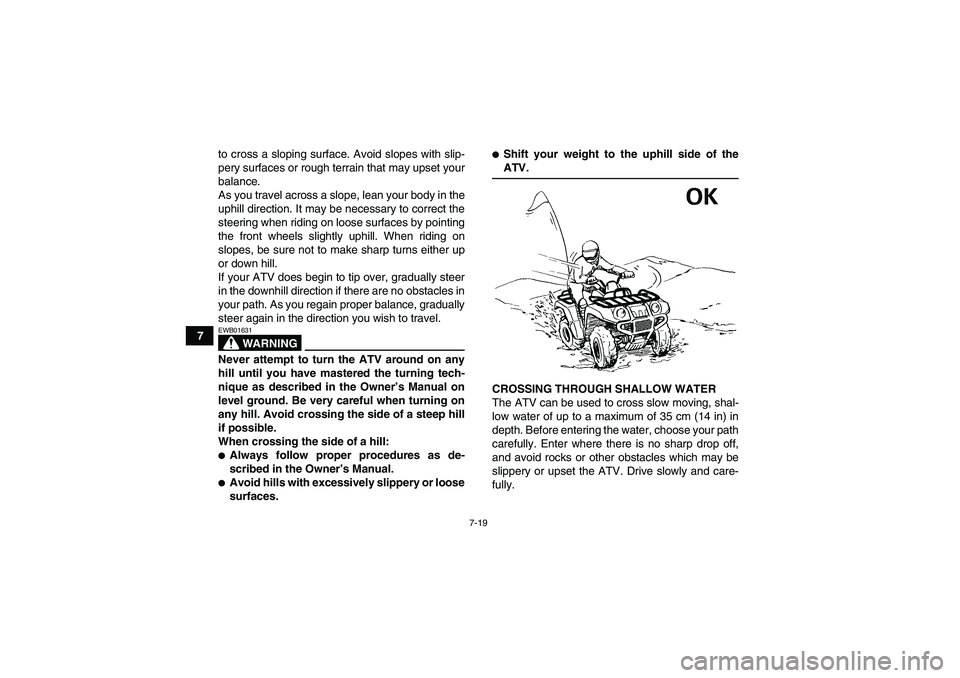

7-19
7to cross a sloping surface. Avoid slopes with slip-
pery surfaces or rough terrain that may upset your
balance.
As you travel across a slope, lean your body in the
uphill direction. It may be necessary to correct the
steering when riding on loose surfaces by pointing
the front wheels slightly uphill. When riding on
slopes, be sure not to make sharp turns either up
or down hill.
If your ATV does begin to tip over, gradually steer
in the downhill direction if there are no obstacles in
your path. As you regain proper balance, gradually
steer again in the direction you wish to travel.
WARNING
EWB01631Never attempt to turn the ATV around on any
hill until you have mastered the turning tech-
nique as described in the Owner’s Manual on
level ground. Be very careful when turning on
any hill. Avoid crossing the side of a steep hill
if possible.
When crossing the side of a hill:
Always follow proper procedures as de-
scribed in the Owner’s Manual.
Avoid hills with excessively slippery or loose
surfaces.

Shift your weight to the uphill side of theATV.
CROSSING THROUGH SHALLOW WATER
The ATV can be used to cross slow moving, shal-
low water of up to a maximum of 35 cm (14 in) in
depth. Before entering the water, choose your path
carefully. Enter where there is no sharp drop off,
and avoid rocks or other obstacles which may be
slippery or upset the ATV. Drive slowly and care-
fully.
U3B460E0.book Page 19 Friday, May 12, 2006 2:51 PM

7-23
7If the rear wheels of your ATV start to slide side-
ways, control can usually be regained (if there is
room to do so) by steering in the direction of the
slide. Applying the brakes or accelerating is not
recommended until you have corrected the slide.
With practice, over a period of time, skill at con-
trolled sliding can be developed. The terrain
should be chosen carefully before attempting such
maneuvers, since both stability and control are re-
duced. Bear in mind that sliding maneuvers should
always be avoided on extremely slippery surfaces
such as ice, since all control may be lost.
WARNING
EWB01661Learn to safely control skidding or sliding by
practicing at low speeds and on level, smooth
terrain.
On extremely slippery surfaces, such as ice,
go slowly and be very cautious in order to re-
duce the chance of skidding or sliding out ofcontrol.
WHAT TO DO IF...
This section is designed to be a reference guide
only. Be sure to read each section on riding tech-
niques completely.
WHAT TO DO...
If your ATV doesn’t turn when you want it to:
Bring the ATV to a stop and practice the turning
maneuvers again. Be sure you are putting your
weight on the footboard to the outside of the
turn. Position your weight over the front wheels
for better control. (See page 7-13.)
If your ATV begins to tip while turning:
Lean more into the turn to regain balance. If nec-
essary, gradually let off the throttle and/or steer
to the outside of the turn. (See page 7-13.)
U3B460E0.book Page 23 Friday, May 12, 2006 2:51 PM

8-5
8
15*Chassis fastenersMake sure that all nuts, bolts, and screws are
properly tightened.√√√√√
16*Shock absorber as-
sembliesCheck operation and correct if necessary.
Check for oil leakage and replace if necessary.√√√
17*Stabilizer bushesCheck for cracks or other damage, and replace if
necessary.√√√
18*Knuckle pivotsLubricate with lithium-soap-based grease.√√√
19*Knuckle shaftsLubricate with lithium-soap-based grease.√√√
20*Steering shaftLubricate with lithium-soap-based grease.√√√
21*Steering systemCheck operation and repair or replace if damaged.
Check toe-in and adjust if necessary.√√√√√
22*Engine mountCheck for cracks or other damage, and replace if
necessary.√√√
23*Axle bootsCheck for cracks or other damage, and replace if
necessary.√√√√√
24*Fuel injectionCheck and adjust engine idle speed.√√√√√
25*Crankcase breather
systemCheck breather hose for cracks or other damage,
and replace if necessary.√√√
26 Engine oilChange.
Check ATV for oil leakage, and correct if neces-
sary.√ √√√
27Engine oil filter car-
tridgeReplace.√√√ NO. ITEMCHECK OR MAINTENANCE
JOBINITIAL EVERY
Whichev-
er comes
firstmonth136612
km
(mi)320
(200)1200
(750)2400
(1500)2400
(1500)4800
(3000)
hours 20 75 150 150 300U3B460E0.book Page 5 Friday, May 12, 2006 2:51 PM

8-54
8
EBU25040Lubricating the upper and lower arm
pivots The upper and lower arm pivots must be lubricated
at the intervals specified in the periodic mainte-
nance and lubrication chart.EBU25050Lubricating the knuckle pivots The knuckle pivots must be lubricated at the inter-
vals specified in the periodic maintenance and lu-
brication chart.
Lubricate the pivoting points using a grease gun.
EBU25080Lubricating the knuckle shafts The knuckle shafts must be lubricated at the inter-
vals specified in the periodic maintenance and lu-
brication chart.EBU25100Lubricating the steering shaft The steering shaft must be lubricated at the inter-
vals specified in the periodic maintenance and lu-
brication chart. Recommended lubricant:
Lithium-soap-based grease
Recommended lubricant:
Lithium-soap-based grease1. Grease nippleRecommended lubricant:
Lithium-soap-based grease
U3B460E0.book Page 54 Friday, May 12, 2006 2:51 PM

Indicator lights and warning lights .................................. 4-2
Instruments, lights and switches .................................... 5-7KKey identification number ............................................. 11-1
Knuckle pivots, lubricating ............................................ 8-54
Knuckle shafts, lubricating ........................................... 8-54LLabel locations ............................................................... 2-1
Light switch .................................................................... 4-8
Low-range indicator light ................................................ 4-4MMain switch .................................................................... 4-1
Model label ................................................................... 11-2
Multifunction display ....................................................... 4-5NNeutral indicator light ..................................................... 4-2OOn-Command differential gear lock switch .................. 4-10
On-Command four-wheel-drive switch ........................... 4-9
Override switch .............................................................. 4-8
Owner’s manual and tool kit ........................................... 8-1PPanels, removing and installing ..................................... 8-8
Park indicator light .......................................................... 4-4
Parking ........................................................................... 6-5
Parking on a slope ......................................................... 6-5
Part locations ................................................................. 3-1
Periodic maintenance and lubrication chart ................... 8-3
Pre-operation check list .................................................. 5-1RReverse indicator light .................................................... 4-2
Riding your ATV ............................................................. 7-1
SSafety information .......................................................... 1-1
Seat .............................................................................. 4-17
Shock absorber assemblies, adjusting the front and
rear ............................................................................ 4-21
Spark arrester, cleaning ............................................... 8-40
Spark plug, checking .................................................... 8-20
Specifications ............................................................... 10-1
Speed limiter ................................................................ 4-13
Stabilizer bushes, checking .......................................... 8-53
Starting the engine ......................................................... 6-1
Start switch ..................................................................... 4-8
Steering shaft, lubricating ............................................. 8-54
Storage ........................................................................... 9-2
Storage compartments ................................................. 4-18
Suspension, lubricating the upper and lower arm
pivots ......................................................................... 8-54TTail/brake light bulb, replacing ..................................... 8-61
Throttle cable free play, adjusting ................................ 8-43
Throttle lever ......................................................... 4-12, 5-5
Tire pressure, measuring ............................................... 5-6
Tires ............................................................................... 5-5
Tire wear limit ................................................................. 5-7
Troubleshooting ........................................................... 8-64
Troubleshooting charts ................................................. 8-65VValve clearance ............................................................ 8-44
V-belt case drain plug .................................................. 8-42
Vehicle identification number ....................................... 11-1WWheel bearings, checking ............................................ 8-53
U3B460E0.book Page 2 Friday, May 12, 2006 2:51 PM
