engine YAMAHA GRIZZLY 700 2008 Owners Manual

EBU27850
declare in sole responsibility, that the product
EC Declaration of Conformity
conforming to Directive 98/37/ECYAMAHA MOTOR CO., LTD.
(Name of supplier)
2500 Shingai, Iwata, Shizuoka, Japan
(Make, model)
to which this declaration applies, conforms to the essential
health and safety requirements of Directive 98/37/EC,
(If applicable)
and to the other relevant Directives of EEC
89/336/EEC
(Title and/or number and date of issue of the other
Directives of EEC
)
(If applicable)
To effect correct application of the essential health and safety
requirements stated in the Directives of EEC, the following
standards and/or technical specifications were consulted:
(Title and/or number and date of issue of standards and/or specifications)
2500 Shingai Iwata, Japan (Place and date of issue)
Takaharu Ishima
(Name and job function of authorized person)RV Engineering Division RV Company
We
YFM700FWAD (JY4AM09W060000001~)
EN292, ANSI/SVIA-1-2001
General Manager
MARCH, 2006
U3B462E0.book Page 1 Tuesday, March 20, 2007 11:46 AM

EBU17420
TABLE OF CONTENTS
SAFETY INFORMATION .............................. 1-1
LOCATION OF THE WARNING AND
SPECIFICATION LABELS ............................ 2-1
DESCRIPTION .............................................. 3-1
Left view ...................................................... 3-1
Right view.................................................... 3-1
Controls and instruments ............................ 3-2
INSTRUMENT AND CONTROL
FUNCTIONS .................................................. 4-1
Main switch ................................................ 4-1
Indicator lights and warning lights .............. 4-2
Multifunction display ................................... 4-5
Handlebar switches .................................... 4-7
Throttle lever ............................................ 4-12
Speed limiter ............................................ 4-13
Front brake lever ...................................... 4-14
Brake pedal and rear brake lever ............. 4-14
Drive select lever ...................................... 4-15
Fuel tank cap ............................................ 4-15
Fuel .......................................................... 4-16
Seat .......................................................... 4-17Storage compartments .............................4-18
Front carrier ..............................................4-21
Rear carrier ...............................................4-21
Adjusting the front and rear shock
absorber assemblies ...............................4-21
Auxiliary DC jack .......................................4-22
PRE-OPERATION CHECKS ..........................5-1
Pre-operation check list ..............................5-1
Fuel .............................................................5-3
Engine oil ....................................................5-3
Final gear oil ...............................................5-3
Differential gear oil ......................................5-3
Coolant .......................................................5-3
Front and rear brakes .................................5-4
Throttle lever ...............................................5-5
Tires ............................................................5-5
Measuring the tire pressure ........................5-6
Tire wear limit .............................................5-7
Chassis fasteners .......................................5-7
Instruments, lights and switches .................5-7
OPERATION...................................................6-1
Starting the engine ......................................6-1U3B462E0.book Page 1 Tuesday, March 20, 2007 11:46 AM

Operating the drive select lever and
driving in reverse ...................................... 6-2
Engine break-in .......................................... 6-4
Parking ....................................................... 6-5
Parking on a slope ..................................... 6-5
Accessories and loading ............................ 6-6
RIDING YOUR ATV ...................................... 7-1
GETTING TO KNOW YOUR ATV............... 7-2
RIDE WITH CARE AND GOOD
JUDGEMENT ............................................ 7-2
BE CAREFUL WHERE YOU RIDE ............. 7-9
TURNING YOUR ATV .............................. 7-13
CLIMBING UPHILL ................................... 7-14
RIDING DOWNHILL.................................. 7-17
CROSSING A SLOPE............................... 7-18
CROSSING THROUGH SHALLOW
WATER ................................................... 7-19
RIDING OVER ROUGH TERRAIN ........... 7-22
SLIDING AND SKIDDING ......................... 7-22
WHAT TO DO IF... .................................... 7-23
WHAT TO DO... ........................................ 7-23
PERIODIC MAINTENANCE AND MINOR
REPAIR .......................................................... 8-1
Owner’s manual and tool kit ....................... 8-1Periodic maintenance chart for the
emission control system ...........................8-3
General maintenance and lubrication
chart ..........................................................8-4
Removing and installing panels ..................8-8
Removing the radiator grills ......................8-19
Checking the spark plug ...........................8-20
Engine oil and oil filter cartridge ................8-22
Final gear oil .............................................8-26
Differential gear oil ....................................8-28
Coolant .....................................................8-30
Cleaning the air filter element ...................8-36
Cleaning the spark arrester ......................8-40
V-belt case drain plug ...............................8-42
Adjusting the engine idling speed .............8-42
Adjusting the throttle cable free play .........8-43
Valve clearance ........................................8-44
Adjusting the drive select lever safety
system cable ...........................................8-44
Checking the front and rear brake pads ...8-44
Checking the rear brake hose
protectors ................................................8-45
Checking the brake fluid level ...................8-46
Changing the brake fluid ...........................8-47
Checking the front and rear brake lever
free play ..................................................8-48
U3B462E0.book Page 2 Tuesday, March 20, 2007 11:46 AM

1-1
1
EBU17430
SAFETY INFORMATION
EBU27250AN ATV IS NOT A TOY AND CAN BE HAZARD-OUS TO OPERATE.An ATV handles differently from other vehicles, in-
cluding motorcycles and cars. A collision or roll-
over can occur quickly, even during routine
maneuvers such as turning and riding on hills or
over obstacles, if you fail to take proper precau-
tions.
SEVERE INJURY OR DEATH can result if you do
not follow these instructions:
Read this manual and all labels carefully and fol-
low the operating procedures described.
Never operate an ATV without proper training or
instruction.
Always follow the age recommendation:
– A child under 16 years old should never oper-
ate an ATV with engine size greater than 90 cc.
Never allow a child under age 16 to operate an
ATV without adult supervision, and never allow
continued use of an ATV by a child if he or she
does not have the abilities to operate it safely.

Never carry a passenger on an ATV.
Always avoid operating an ATV on any paved
surfaces, including sidewalks, driveways, park-
ing lots and paved streets.
Never operate an ATV on any paved street,
paved road or motorway.
Watch carefully for other vehicles when operat-
ing on unpaved public streets or roads. Make
sure you know your country’s laws and regula-
tions before you ride on unpaved public streets
or roads.
Never operate an ATV without wearing an ap-
proved motorcycle helmet that fits properly. You
should also wear eye protection (goggles or face
shield), gloves, boots, a long-sleeved shirt or a
jacket, and long pants.
Never consume alcohol or drugs before or while
operating this ATV.
Never operate at speeds too fast for your skills
or the riding conditions. Always go at a speed
that is proper for the terrain, visibility, operating
conditions, and your experience.
Never attempt wheelies, jumps, or other stunts.
U3B462E0.book Page 1 Tuesday, March 20, 2007 11:46 AM

1-3
1 steady speed when climbing a hill. If you stall or
roll backwards, follow the special procedure for
braking described in this manual. Dismount on
the uphill side or to a side if pointed straight up-
hill. Turn the ATV around and remount, following
the procedure described in this manual.

Always check for obstacles before operating in a
new area.
Never attempt to operate over large obstacles,
such as large rocks or fallen trees. Always follow
proper procedures when operating over obsta-
cles as described in this manual.
Always be careful when skidding or sliding.
Learn to safely control skidding or sliding by
practicing at low speeds and on level, smooth
terrain. On extremely slippery surfaces, such as
ice, go slowly and be very cautious in order to re-
duce the chance of skidding or sliding out of con-
trol.
Never operate an ATV in fast flowing water or in
water deeper than that recommended in this
manual. Remember that wet brakes may have
reduced stopping ability. Test your brakes after
leaving water. If necessary, apply them several
times to let friction dry out the linings.

Always be sure there are no obstacles or people
behind you when you operate in reverse. When
it is safe to proceed in reverse, go slowly.
Always use the size and type of tires specified in
this manual.
Always maintain proper tire pressure as de-
scribed in this manual.
Never modify an ATV through improper installa-
tion or use of accessories.
Never exceed the stated load capacity for an
ATV. Cargo should be properly distributed and
securely attached. Reduce speed and follow in-
structions in this manual for carrying cargo or
pulling a trailer. Allow greater distance for brak-
ing.
WARNING
EWB02330
Always turn off the engine when refueling.
Do not refuel right after the engine has been
running and is still very hot.
Do not spill gasoline on the engine or ex-
haust pipe/muffler when refueling. Never re-
fuel while smoking, or in the vicinity of
sparks, open flames, or other sources of ig-
U3B462E0.book Page 3 Tuesday, March 20, 2007 11:46 AM

1-4
1nition such as the pilot lights of water heat-
ers and clothes dryers. Gasoline can catch
fire and you could be burned.

When transporting the ATV in another vehi-
cle, be sure it is kept upright. Otherwise, fuel
may leak out of the fuel tank.
Gasoline is poisonous. If you should swal-
low some gasoline or inhale a lot of gasoline
vapor, or get some gasoline in your eyes,
seek medical help immediately. If gasoline
spills on your skin, wash with soap and wa-
ter. If gasoline spills on your clothing,change your clothes.
WARNING
EWB00070Always operate your ATV in an area with ade-
quate ventilation. Never start or run the engine
in a closed area. Exhaust fumes are poisonous
and may cause loss of consciousness anddeath within a short time.U3B462E0.book Page 4 Tuesday, March 20, 2007 11:46 AM

3-1
3
EBU17680
DESCRIPTION
EBU17690Left view
EBU17700Right view
1. Radiator cap
2. Battery
3. Fuses
4. Air filter case
5. Spark arrester
6. Engine oil dipstick
7. Oil filter cartridge
8. Coolant reservoir
1. Rear shock absorber assembly spring preload adjusting
ring
2. Rear storage compartment and tool kit
3. Fuel tank cap cover
4. Idle adjusting screw
5. Front shock absorber assembly spring preload adjusting
ring
6. Spark plug
7. Brake pedal
8. V-belt case drain plug
U3B462E0.book Page 1 Tuesday, March 20, 2007 11:46 AM

4-1
4
EBU17731

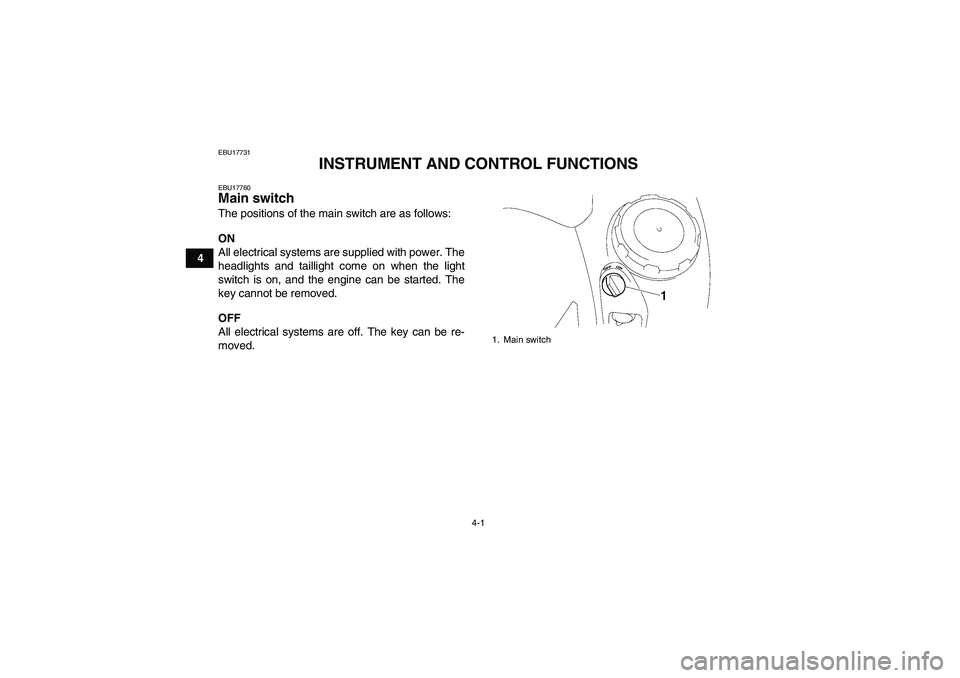

INSTRUMENT AND CONTROL FUNCTIONS
EBU17760Main switch The positions of the main switch are as follows:
ON
All electrical systems are supplied with power. The
headlights and taillight come on when the light
switch is on, and the engine can be started. The
key cannot be removed.
OFF
All electrical systems are off. The key can be re-
moved.
1. Main switch
U3B462E0.book Page 1 Tuesday, March 20, 2007 11:46 AM

4-2
4

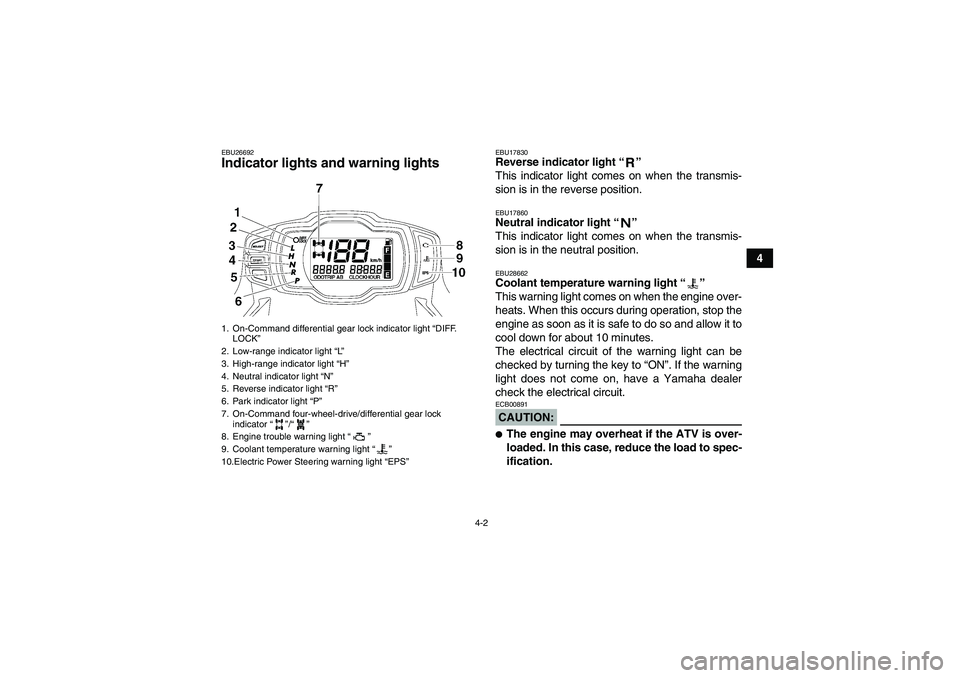

EBU26692Indicator lights and warning lights
EBU17830Reverse indicator light “”
This indicator light comes on when the transmis-
sion is in the reverse position.EBU17860Neutral indicator light “”
This indicator light comes on when the transmis-
sion is in the neutral position.EBU28662Coolant temperature warning light “”
This warning light comes on when the engine over-
heats. When this occurs during operation, stop the
engine as soon as it is safe to do so and allow it to
cool down for about 10 minutes.
The electrical circuit of the warning light can be
checked by turning the key to “ON”. If the warning
light does not come on, have a Yamaha dealer
check the electrical circuit.CAUTION:ECB00891
The engine may overheat if the ATV is over-
loaded. In this case, reduce the load to spec-
ification.
1. On-Command differential gear lock indicator light “DIFF.
LOCK”
2. Low-range indicator light “L”
3. High-range indicator light “H”
4. Neutral indicator light “N”
5. Reverse indicator light “R”
6. Park indicator light “P”
7. On-Command four-wheel-drive/differential gear lock
indicator “”/“”
8. Engine trouble warning light “”
9. Coolant temperature warning light “”
10.Electric Power Steering warning light “EPS”U3B462E0.book Page 2 Tuesday, March 20, 2007 11:46 AM

4-3
4

The engine may also overheat if mud or dirt
has accumulated on the radiator (i.e., after
riding in wet terrain). In this case, see page
8-19 for an explanation on how to access the
radiator.
Start the engine after making sure that the
warning light is out. Continuous use while
the warning light is on may cause damage tothe engine.EBU27280Engine trouble warning light “”
This warning light comes on or flashes when an
electrical circuit monitoring the engine is defective.
When this occurs, have a Yamaha dealer check
the self-diagnosis system. (See page 4-5 for an ex-
planation of the self-diagnosis device.)
The electrical circuit of the warning light can be
checked by turning the key to “ON”. If the warning
light does not come on, then go off, have a
Yamaha dealer check the electrical circuit.EBU27542Electric Power Steering warning light “EPS”
This warning light comes on when the key is turned
to “ON”, and then goes off once the engine is start-
ed. If the warning light remains on or comes on af-ter the engine is started, the EPS system may be
defective. When this occurs, have a Yamaha deal-
er check the EPS system.
The electrical circuit of the warning light can be
checked by turning the key to “ON”. If the warning
light does not come on, have a Yamaha dealer
check the electrical circuit.
NOTE:
If the engine is stopped using the engine stop
switch and the key is in the “ON” position, the
EPS warning light comes on to indicate that the
power assistance for the steering is not function-
ing.
If the steering load is too heavy (i.e., excessive
steering use when the ATV is traveling at a slow
speed), the power assist is reduced to protectthe EPS motor from overheating.EBU17961On-Command four-wheel-drive/differential
gear lock indicator “”/“”
The On-Command four-wheel-drive indicator “”
comes on when the On-Command four-wheel-
drive switch is set to the “4WD” position.
U3B462E0.book Page 3 Tuesday, March 20, 2007 11:46 AM
