YAMAHA GRIZZLY 700 2009 Service Manual

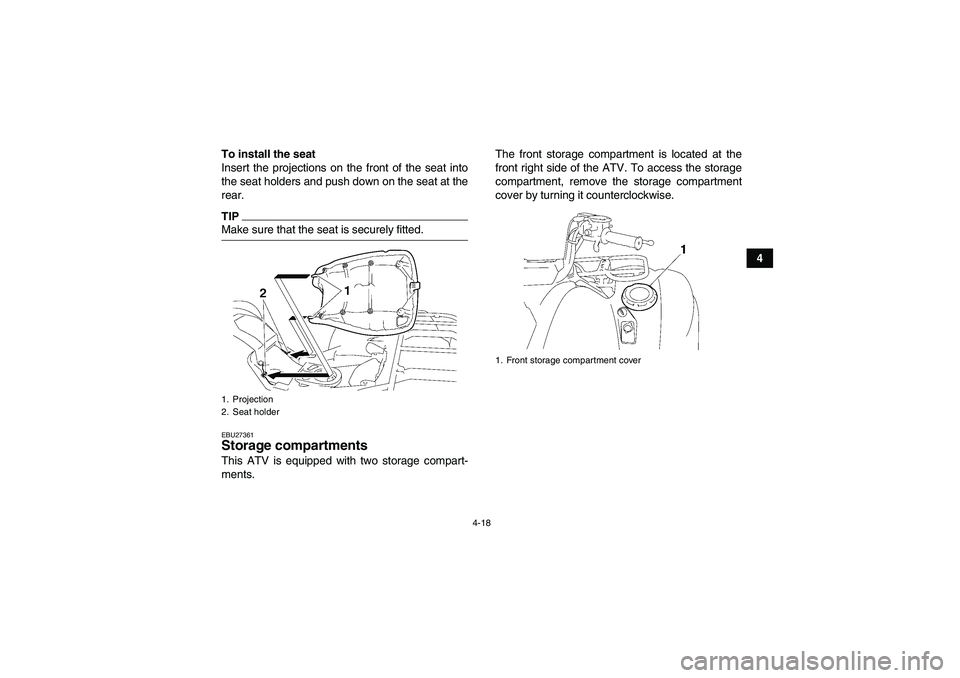

4-18
4 To install the seat
Insert the projections on the front of the seat into
the seat holders and push down on the seat at the
rear.
TIPMake sure that the seat is securely fitted.EBU27361Storage compartments This ATV is equipped with two storage compart-
ments.The front storage compartment is located at the
front right side of the ATV. To access the storage
compartment, remove the storage compartment
cover by turning it counterclockwise.1. Projection
2. Seat holder
1. Front storage compartment cover
U43P60E0.book Page 18 Tuesday, May 20, 2008 5:33 PM

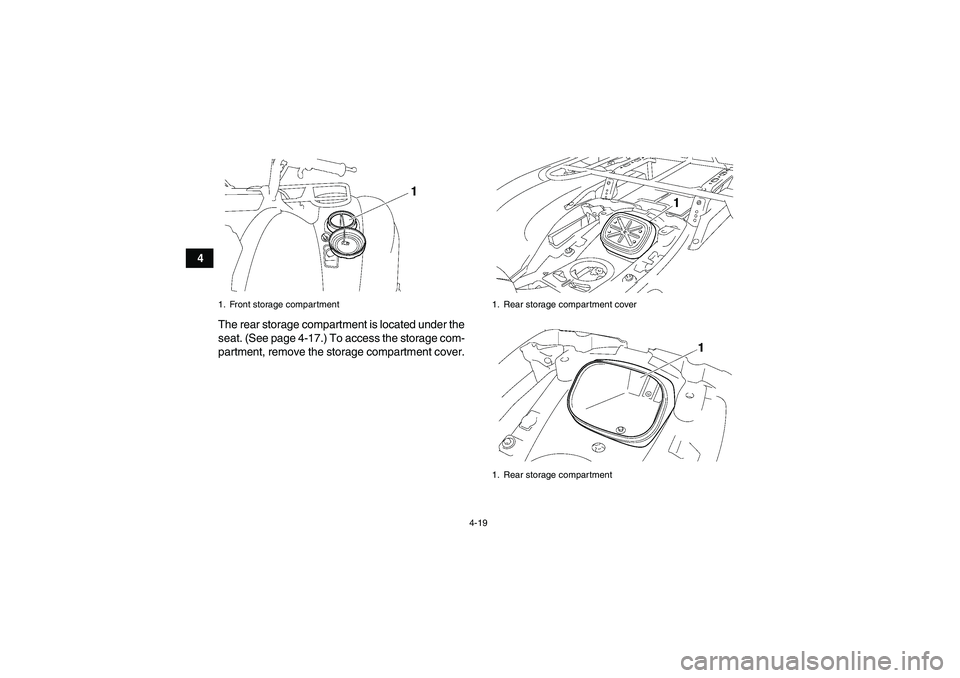

4-19
4
The rear storage compartment is located under the
seat. (See page 4-17.) To access the storage com-
partment, remove the storage compartment cover.
1. Front storage compartment
1. Rear storage compartment cover
1. Rear storage compartment
U43P60E0.book Page 19 Tuesday, May 20, 2008 5:33 PM

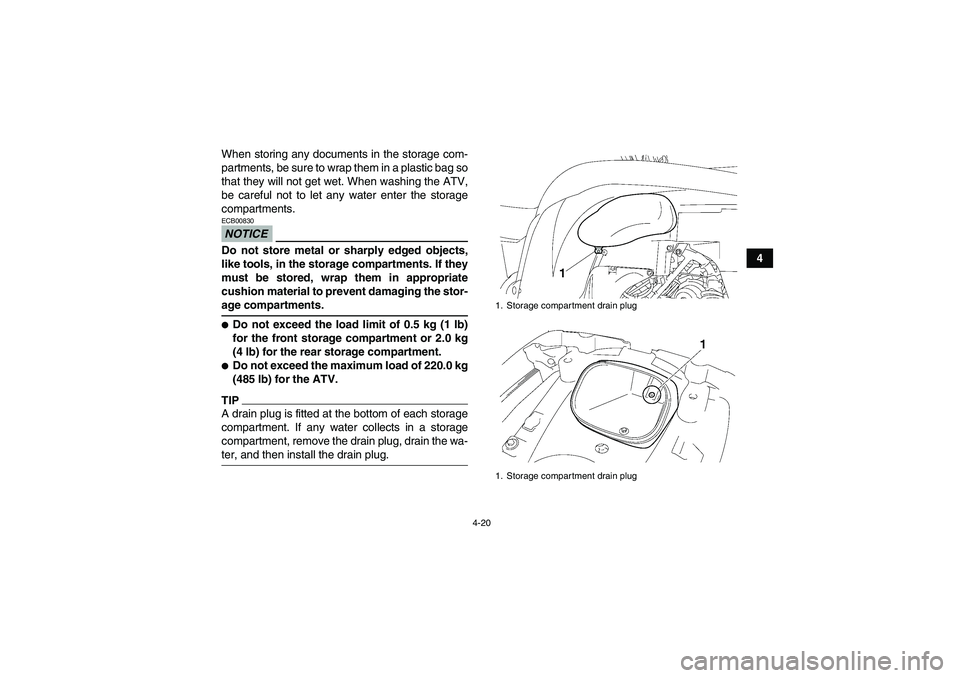

4-20
4 When storing any documents in the storage com-
partments, be sure to wrap them in a plastic bag so
that they will not get wet. When washing the ATV,
be careful not to let any water enter the storage
compartments.
NOTICEECB00830Do not store metal or sharply edged objects,
like tools, in the storage compartments. If they
must be stored, wrap them in appropriate
cushion material to prevent damaging the stor-age compartments.
Do not exceed the load limit of 0.5 kg (1 lb)
for the front storage compartment or 2.0 kg
(4 lb) for the rear storage compartment.
Do not exceed the maximum load of 220.0 kg
(485 lb) for the ATV.TIPA drain plug is fitted at the bottom of each storage
compartment. If any water collects in a storage
compartment, remove the drain plug, drain the wa-ter, and then install the drain plug.
1. Storage compartment drain plug
1. Storage compartment drain plug
U43P60E0.book Page 20 Tuesday, May 20, 2008 5:33 PM

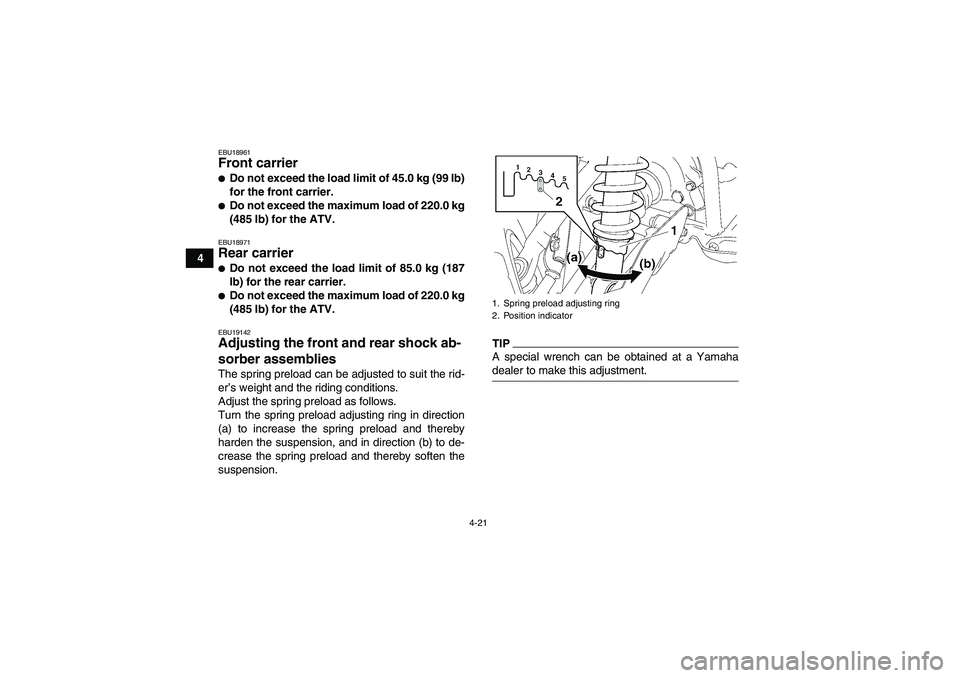

4-21
4
EBU18961Front carrier
Do not exceed the load limit of 45.0 kg (99 lb)
for the front carrier.
Do not exceed the maximum load of 220.0 kg
(485 lb) for the ATV.EBU18971Rear carrier
Do not exceed the load limit of 85.0 kg (187
lb) for the rear carrier.
Do not exceed the maximum load of 220.0 kg
(485 lb) for the ATV.EBU19142Adjusting the front and rear shock ab-
sorber assemblies The spring preload can be adjusted to suit the rid-
er’s weight and the riding conditions.
Adjust the spring preload as follows.
Turn the spring preload adjusting ring in direction
(a) to increase the spring preload and thereby
harden the suspension, and in direction (b) to de-
crease the spring preload and thereby soften the
suspension.
TIPA special wrench can be obtained at a Yamahadealer to make this adjustment.1. Spring preload adjusting ring
2. Position indicator
U43P60E0.book Page 21 Tuesday, May 20, 2008 5:33 PM

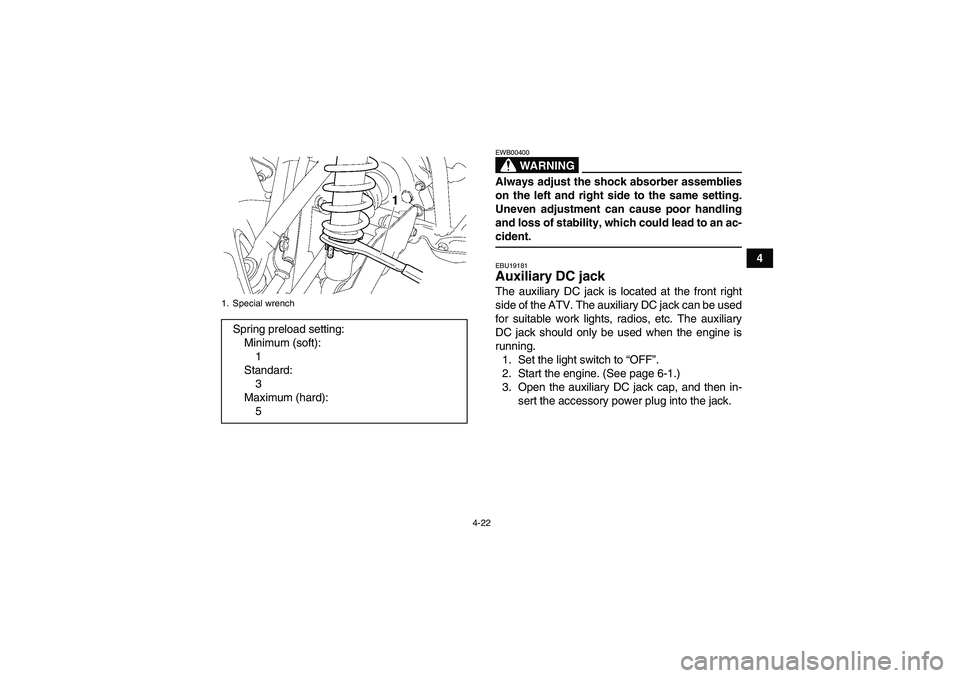

4-22
4
WARNING
EWB00400Always adjust the shock absorber assemblies
on the left and right side to the same setting.
Uneven adjustment can cause poor handling
and loss of stability, which could lead to an ac-cident.EBU19181Auxiliary DC jack The auxiliary DC jack is located at the front right
side of the ATV. The auxiliary DC jack can be used
for suitable work lights, radios, etc. The auxiliary
DC jack should only be used when the engine is
running.
1. Set the light switch to “OFF”.
2. Start the engine. (See page 6-1.)
3. Open the auxiliary DC jack cap, and then in-
sert the accessory power plug into the jack.
1. Special wrenchSpring preload setting:
Minimum (soft):
1
Standard:
3
Maximum (hard):
5
U43P60E0.book Page 22 Tuesday, May 20, 2008 5:33 PM

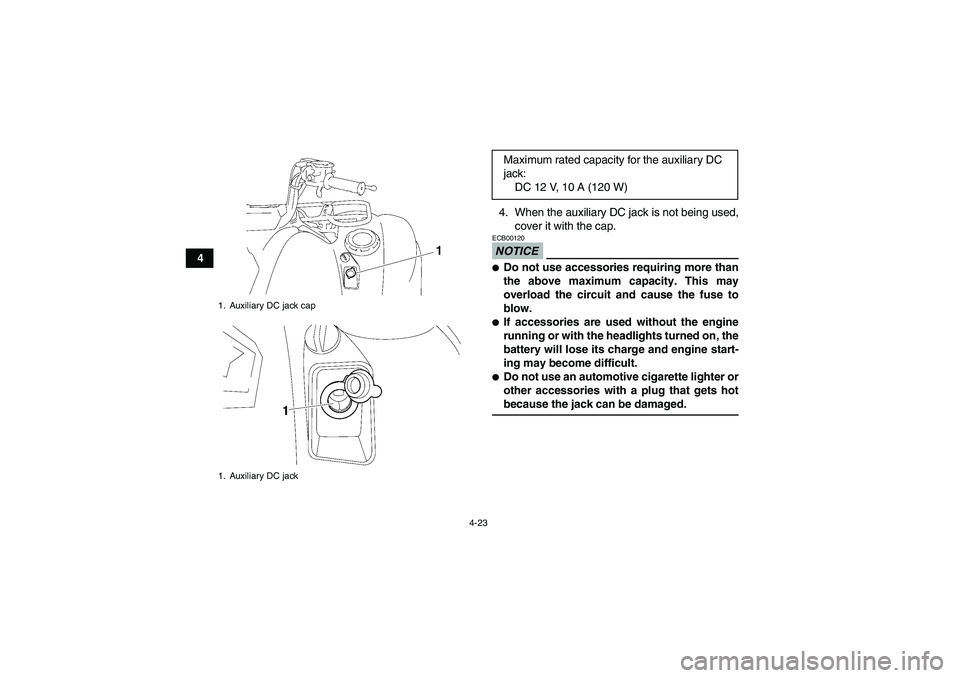

4-23
44. When the auxiliary DC jack is not being used,
cover it with the cap.
NOTICEECB00120
Do not use accessories requiring more than
the above maximum capacity. This may
overload the circuit and cause the fuse to
blow.
If accessories are used without the engine
running or with the headlights turned on, the
battery will lose its charge and engine start-
ing may become difficult.
Do not use an automotive cigarette lighter or
other accessories with a plug that gets hotbecause the jack can be damaged.
1. Auxiliary DC jack cap
1. Auxiliary DC jack
Maximum rated capacity for the auxiliary DC
jack:
DC 12 V, 10 A (120 W)
U43P60E0.book Page 23 Tuesday, May 20, 2008 5:33 PM

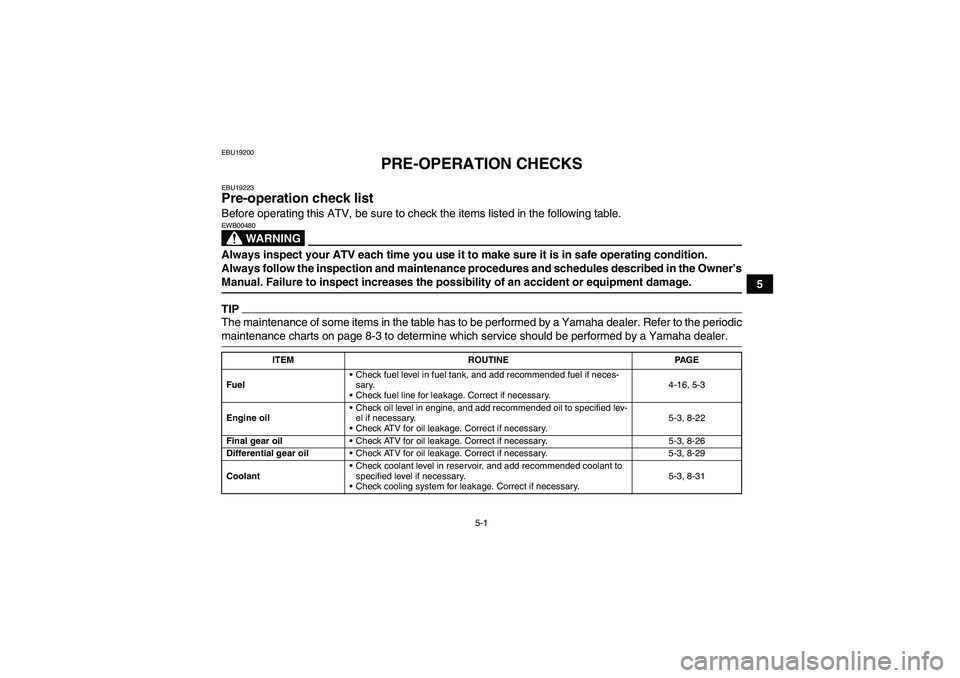

5-1
5
EBU19200
PRE-OPERATION CHECKS
EBU19223Pre-operation check list Before operating this ATV, be sure to check the items listed in the following table.
WARNING
EWB00480Always inspect your ATV each time you use it to make sure it is in safe operating condition.
Always follow the inspection and maintenance procedures and schedules described in the Owner’sManual. Failure to inspect increases the possibility of an accident or equipment damage.TIPThe maintenance of some items in the table has to be performed by a Yamaha dealer. Refer to the periodicmaintenance charts on page 8-3 to determine which service should be performed by a Yamaha dealer.
ITEM ROUTINE PAGE
FuelCheck fuel level in fuel tank, and add recommended fuel if neces-
sary.
Check fuel line for leakage. Correct if necessary.4-16, 5-3
Engine oilCheck oil level in engine, and add recommended oil to specified lev-
el if necessary.
Check ATV for oil leakage. Correct if necessary.5-3, 8-22
Final gear oilCheck ATV for oil leakage. Correct if necessary. 5-3, 8-26
Differential gear oilCheck ATV for oil leakage. Correct if necessary. 5-3, 8-29
CoolantCheck coolant level in reservoir, and add recommended coolant to
specified level if necessary.
Check cooling system for leakage. Correct if necessary.5-3, 8-31
U43P60E0.book Page 1 Tuesday, May 20, 2008 5:33 PM

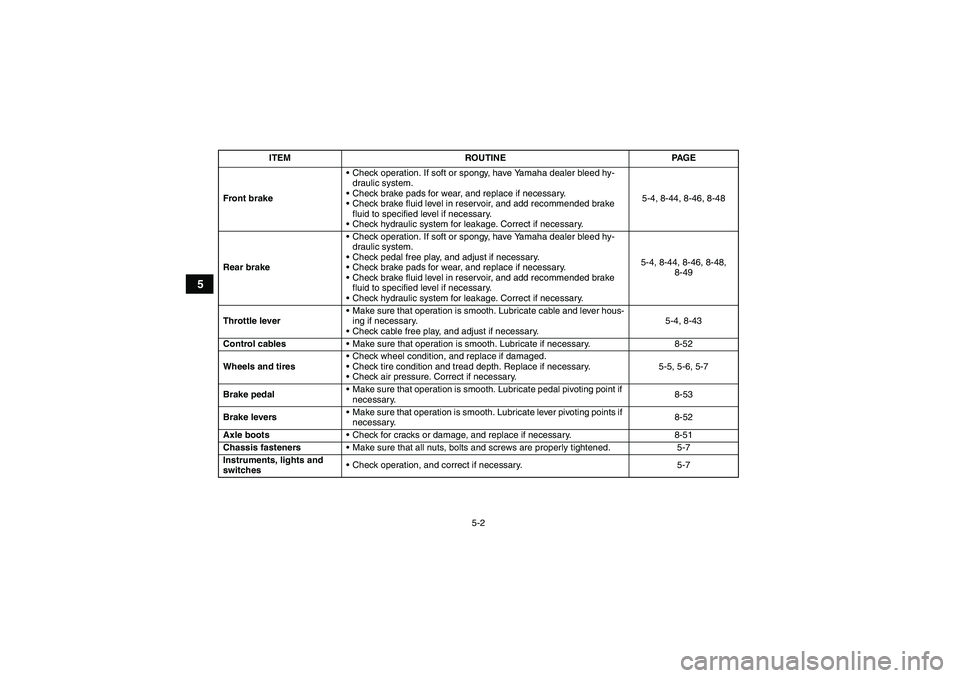

5-2
5
Front brakeCheck operation. If soft or spongy, have Yamaha dealer bleed hy-
draulic system.
Check brake pads for wear, and replace if necessary.
Check brake fluid level in reservoir, and add recommended brake
fluid to specified level if necessary.
Check hydraulic system for leakage. Correct if necessary.5-4, 8-44, 8-46, 8-48
Rear brakeCheck operation. If soft or spongy, have Yamaha dealer bleed hy-
draulic system.
Check pedal free play, and adjust if necessary.
Check brake pads for wear, and replace if necessary.
Check brake fluid level in reservoir, and add recommended brake
fluid to specified level if necessary.
Check hydraulic system for leakage. Correct if necessary.5-4, 8-44, 8-46, 8-48,
8-49
Throttle leverMake sure that operation is smooth. Lubricate cable and lever hous-
ing if necessary.
Check cable free play, and adjust if necessary.5-4, 8-43
Control cablesMake sure that operation is smooth. Lubricate if necessary. 8-52
Wheels and tiresCheck wheel condition, and replace if damaged.
Check tire condition and tread depth. Replace if necessary.
Check air pressure. Correct if necessary.5-5, 5-6, 5-7
Brake pedal Make sure that operation is smooth. Lubricate pedal pivoting point if
necessary.8-53
Brake leversMake sure that operation is smooth. Lubricate lever pivoting points if
necessary.8-52
Axle bootsCheck for cracks or damage, and replace if necessary. 8-51
Chassis fastenersMake sure that all nuts, bolts and screws are properly tightened. 5-7
Instruments, lights and
switchesCheck operation, and correct if necessary. 5-7 ITEM ROUTINE PAGEU43P60E0.book Page 2 Tuesday, May 20, 2008 5:33 PM

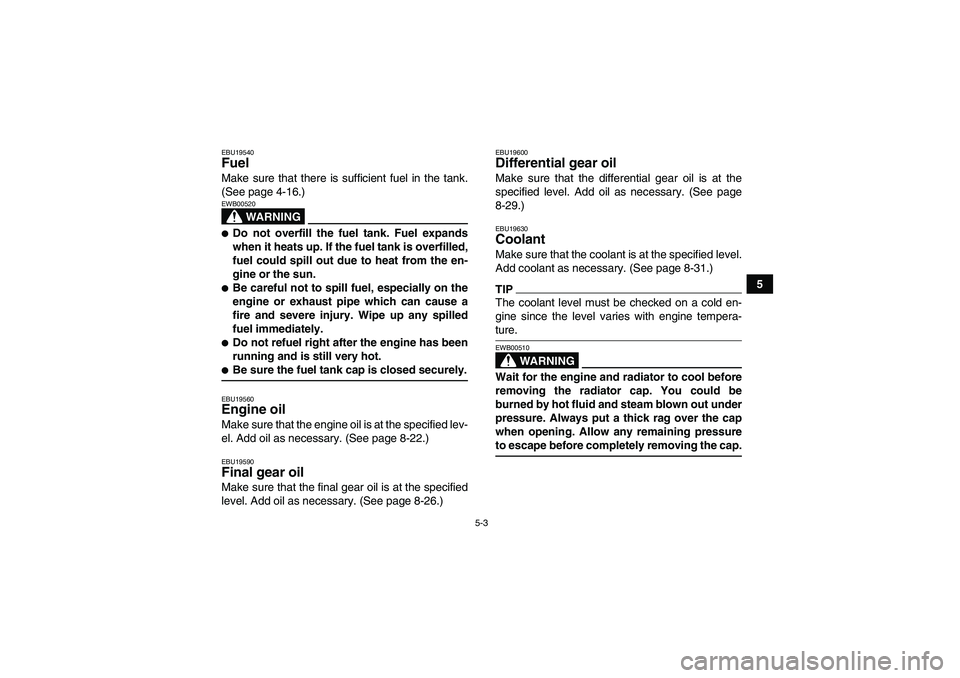

5-3
5
EBU19540Fuel Make sure that there is sufficient fuel in the tank.
(See page 4-16.)
WARNING
EWB00520
Do not overfill the fuel tank. Fuel expands
when it heats up. If the fuel tank is overfilled,
fuel could spill out due to heat from the en-
gine or the sun.
Be careful not to spill fuel, especially on the
engine or exhaust pipe which can cause a
fire and severe injury. Wipe up any spilled
fuel immediately.
Do not refuel right after the engine has been
running and is still very hot.
Be sure the fuel tank cap is closed securely.EBU19560Engine oil Make sure that the engine oil is at the specified lev-
el. Add oil as necessary. (See page 8-22.)EBU19590Final gear oil Make sure that the final gear oil is at the specified
level. Add oil as necessary. (See page 8-26.)
EBU19600Differential gear oil Make sure that the differential gear oil is at the
specified level. Add oil as necessary. (See page
8-29.)EBU19630Coolant Make sure that the coolant is at the specified level.
Add coolant as necessary. (See page 8-31.)TIPThe coolant level must be checked on a cold en-
gine since the level varies with engine tempera-ture.
WARNING
EWB00510Wait for the engine and radiator to cool before
removing the radiator cap. You could be
burned by hot fluid and steam blown out under
pressure. Always put a thick rag over the cap
when opening. Allow any remaining pressureto escape before completely removing the cap.
U43P60E0.book Page 3 Tuesday, May 20, 2008 5:33 PM

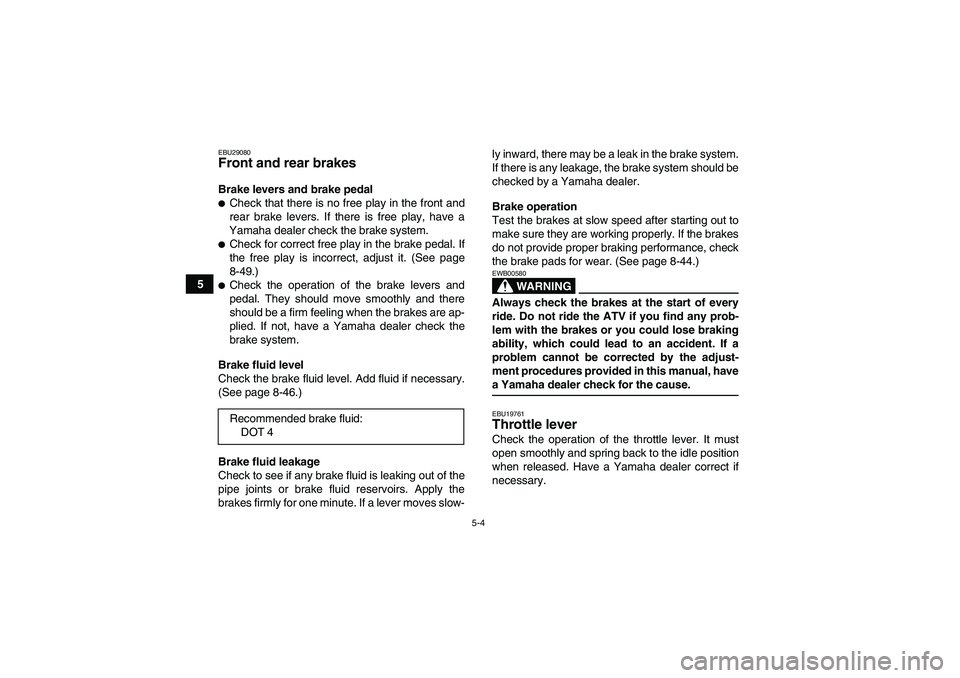

5-4
5
EBU29080Front and rear brakes Brake levers and brake pedal
Check that there is no free play in the front and
rear brake levers. If there is free play, have a
Yamaha dealer check the brake system.
Check for correct free play in the brake pedal. If
the free play is incorrect, adjust it. (See page
8-49.)
Check the operation of the brake levers and
pedal. They should move smoothly and there
should be a firm feeling when the brakes are ap-
plied. If not, have a Yamaha dealer check the
brake system.
Brake fluid level
Check the brake fluid level. Add fluid if necessary.
(See page 8-46.)
Brake fluid leakage
Check to see if any brake fluid is leaking out of the
pipe joints or brake fluid reservoirs. Apply the
brakes firmly for one minute. If a lever moves slow-ly inward, there may be a leak in the brake system.
If there is any leakage, the brake system should be
checked by a Yamaha dealer.
Brake operation
Test the brakes at slow speed after starting out to
make sure they are working properly. If the brakes
do not provide proper braking performance, check
the brake pads for wear. (See page 8-44.)
WARNING
EWB00580Always check the brakes at the start of every
ride. Do not ride the ATV if you find any prob-
lem with the brakes or you could lose braking
ability, which could lead to an accident. If a
problem cannot be corrected by the adjust-
ment procedures provided in this manual, havea Yamaha dealer check for the cause.EBU19761Throttle lever Check the operation of the throttle lever. It must
open smoothly and spring back to the idle position
when released. Have a Yamaha dealer correct if
necessary. Recommended brake fluid:
DOT 4
U43P60E0.book Page 4 Tuesday, May 20, 2008 5:33 PM
