7-20
7
WARNING
EWB01640Never operate this ATV in fast flowing water or
in water deeper than that specified in your
Owner’s Manual. Remember that wet brakes
may have reduced stopping ability. Test your
brakes after leaving water. If necessary, apply
them several times to let friction dry out the lin-
ings. If the ATV is operated through deep or
fast flowing water, the tires may float, causing
loss of traction and loss of control, whichcould lead to an accident.Test your brakes after leaving the water. Do not
continue to ride your ATV without verifying that you
have regained proper braking ability.
NOTICEECB00840After riding your ATV in water, be sure to drain
the trapped water by removing the check hos-
es at the bottom of the air filter case. Also, re-
move the drain plugs from the front and rear
storage compartments and the V-belt case to
drain any water that may have accumulated.
Wash the ATV with fresh water if it has beenoperated in salt water or muddy conditions.
U43P60E0.book Page 20 Tuesday, May 20, 2008 5:33 PM

7-21
7

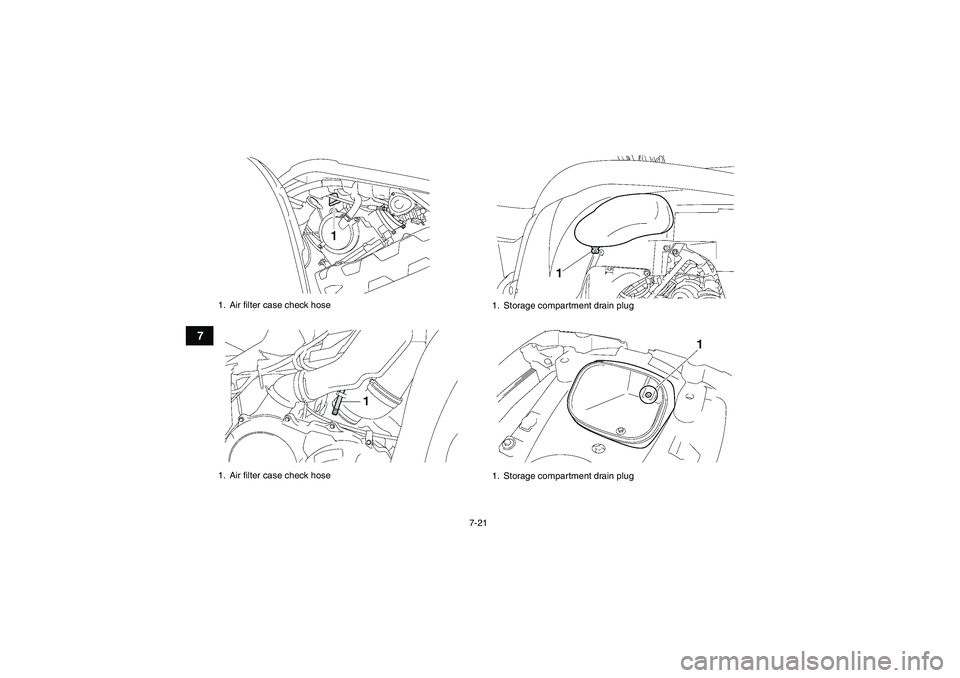

1. Air filter case check hose
1. Air filter case check hose
1. Storage compartment drain plug
1. Storage compartment drain plug
U43P60E0.book Page 21 Tuesday, May 20, 2008 5:33 PM

7-22

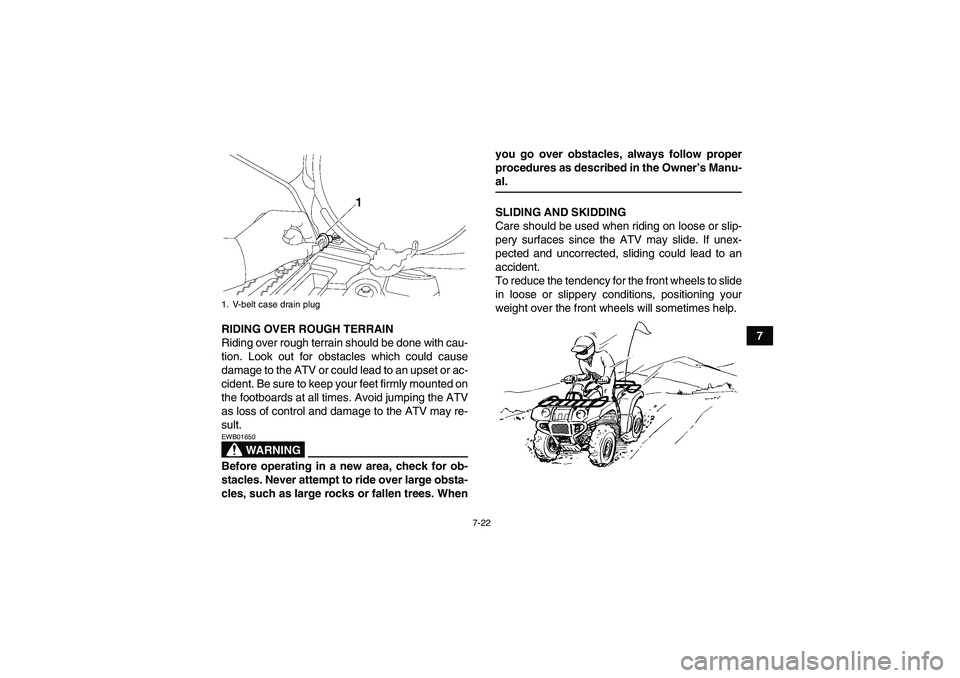

7 RIDING OVER ROUGH TERRAIN
Riding over rough terrain should be done with cau-
tion. Look out for obstacles which could cause
damage to the ATV or could lead to an upset or ac-
cident. Be sure to keep your feet firmly mounted on
the footboards at all times. Avoid jumping the ATV
as loss of control and damage to the ATV may re-
sult.
WARNING
EWB01650Before operating in a new area, check for ob-
stacles. Never attempt to ride over large obsta-
cles, such as large rocks or fallen trees. Whenyou go over obstacles, always follow proper
procedures as described in the Owner’s Manu-
al.
SLIDING AND SKIDDING
Care should be used when riding on loose or slip-
pery surfaces since the ATV may slide. If unex-
pected and uncorrected, sliding could lead to an
accident.
To reduce the tendency for the front wheels to slide
in loose or slippery conditions, positioning your
weight over the front wheels will sometimes help.
1. V-belt case drain plugU43P60E0.book Page 22 Tuesday, May 20, 2008 5:33 PM

7-23

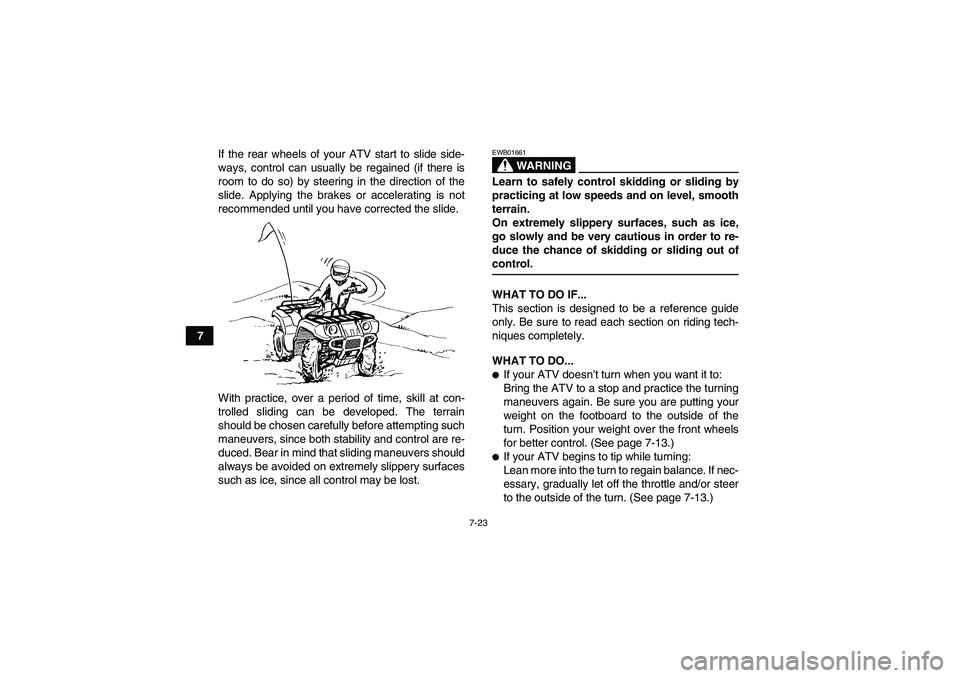

7If the rear wheels of your ATV start to slide side-
ways, control can usually be regained (if there is
room to do so) by steering in the direction of the
slide. Applying the brakes or accelerating is not
recommended until you have corrected the slide.
With practice, over a period of time, skill at con-
trolled sliding can be developed. The terrain
should be chosen carefully before attempting such
maneuvers, since both stability and control are re-
duced. Bear in mind that sliding maneuvers should
always be avoided on extremely slippery surfaces
such as ice, since all control may be lost.
WARNING
EWB01661Learn to safely control skidding or sliding by
practicing at low speeds and on level, smooth
terrain.
On extremely slippery surfaces, such as ice,
go slowly and be very cautious in order to re-
duce the chance of skidding or sliding out ofcontrol.
WHAT TO DO IF...
This section is designed to be a reference guide
only. Be sure to read each section on riding tech-
niques completely.
WHAT TO DO...
If your ATV doesn’t turn when you want it to:
Bring the ATV to a stop and practice the turning
maneuvers again. Be sure you are putting your
weight on the footboard to the outside of the
turn. Position your weight over the front wheels
for better control. (See page 7-13.)
If your ATV begins to tip while turning:
Lean more into the turn to regain balance. If nec-
essary, gradually let off the throttle and/or steer
to the outside of the turn. (See page 7-13.)
U43P60E0.book Page 23 Tuesday, May 20, 2008 5:33 PM

7-24
7

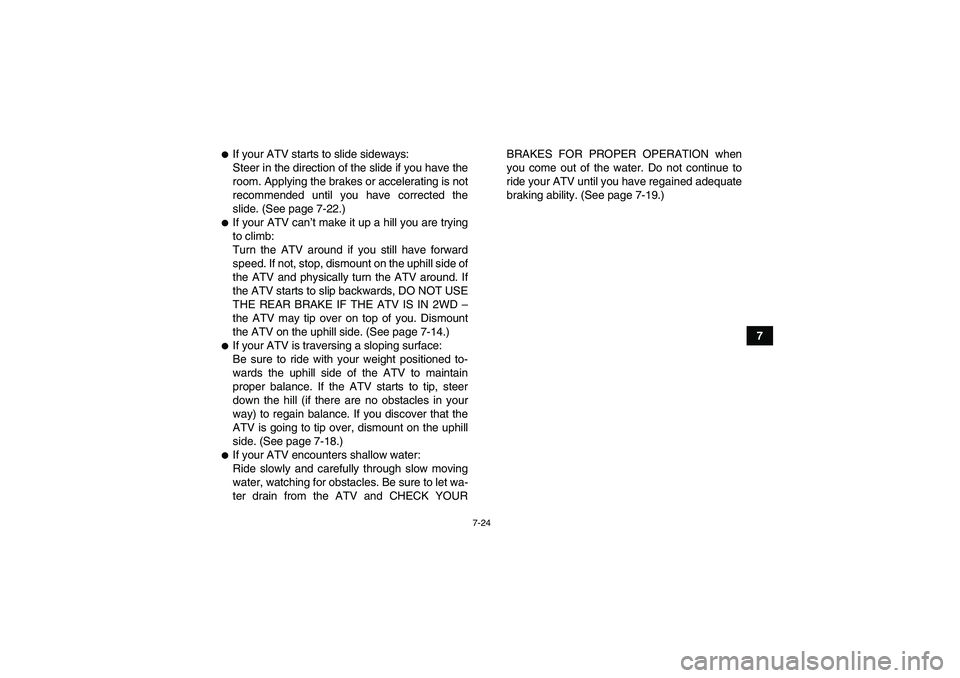

If your ATV starts to slide sideways:
Steer in the direction of the slide if you have the
room. Applying the brakes or accelerating is not
recommended until you have corrected the
slide. (See page 7-22.)
If your ATV can’t make it up a hill you are trying
to climb:
Turn the ATV around if you still have forward
speed. If not, stop, dismount on the uphill side of
the ATV and physically turn the ATV around. If
the ATV starts to slip backwards, DO NOT USE
THE REAR BRAKE IF THE ATV IS IN 2WD –
the ATV may tip over on top of you. Dismount
the ATV on the uphill side. (See page 7-14.)
If your ATV is traversing a sloping surface:
Be sure to ride with your weight positioned to-
wards the uphill side of the ATV to maintain
proper balance. If the ATV starts to tip, steer
down the hill (if there are no obstacles in your
way) to regain balance. If you discover that the
ATV is going to tip over, dismount on the uphill
side. (See page 7-18.)
If your ATV encounters shallow water:
Ride slowly and carefully through slow moving
water, watching for obstacles. Be sure to let wa-
ter drain from the ATV and CHECK YOURBRAKES FOR PROPER OPERATION when
you come out of the water. Do not continue to
ride your ATV until you have regained adequate
braking ability. (See page 7-19.)
U43P60E0.book Page 24 Tuesday, May 20, 2008 5:33 PM

8-1
8
EBU28782

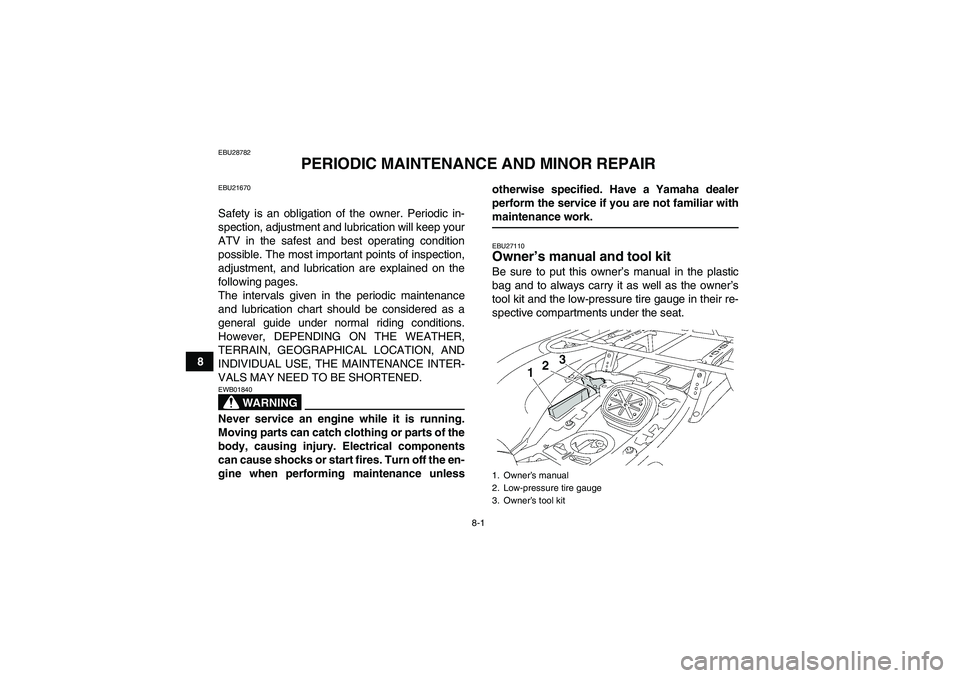

PERIODIC MAINTENANCE AND MINOR REPAIR
EBU21670Safety is an obligation of the owner. Periodic in-
spection, adjustment and lubrication will keep your
ATV in the safest and best operating condition
possible. The most important points of inspection,
adjustment, and lubrication are explained on the
following pages.
The intervals given in the periodic maintenance
and lubrication chart should be considered as a
general guide under normal riding conditions.
However, DEPENDING ON THE WEATHER,
TERRAIN, GEOGRAPHICAL LOCATION, AND
INDIVIDUAL USE, THE MAINTENANCE INTER-
VALS MAY NEED TO BE SHORTENED.
WARNING
EWB01840Never service an engine while it is running.
Moving parts can catch clothing or parts of the
body, causing injury. Electrical components
can cause shocks or start fires. Turn off the en-
gine when performing maintenance unlessotherwise specified. Have a Yamaha dealer
perform the service if you are not familiar with
maintenance work.EBU27110Owner’s manual and tool kit Be sure to put this owner’s manual in the plastic
bag and to always carry it as well as the owner’s
tool kit and the low-pressure tire gauge in their re-
spective compartments under the seat.1. Owner’s manual
2. Low-pressure tire gauge
3. Owner’s tool kit
U43P60E0.book Page 1 Tuesday, May 20, 2008 5:33 PM

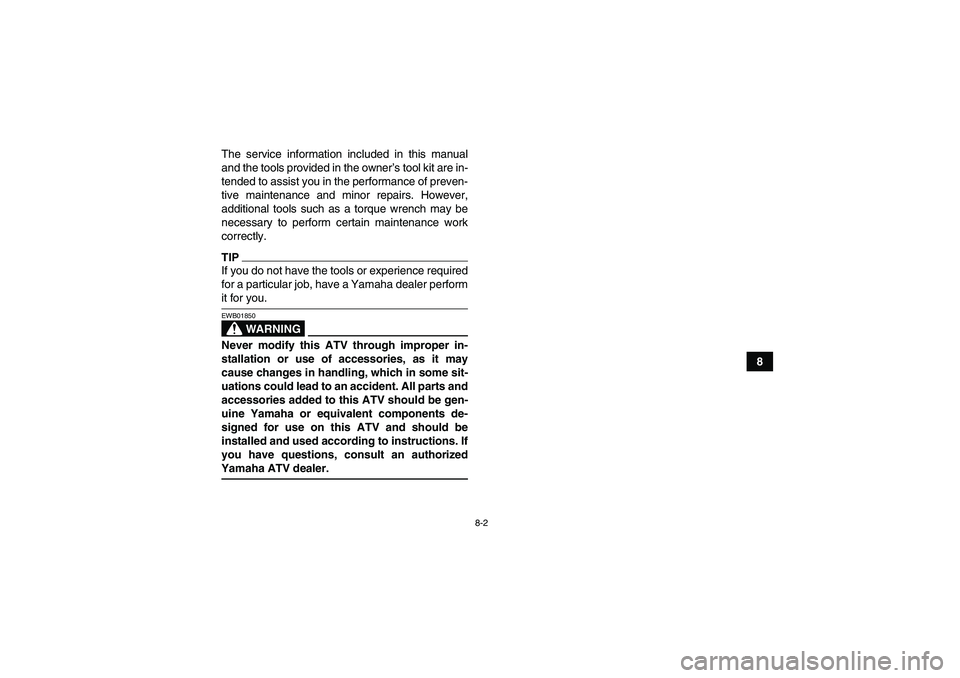

8-2
8 The service information included in this manual
and the tools provided in the owner’s tool kit are in-
tended to assist you in the performance of preven-
tive maintenance and minor repairs. However,
additional tools such as a torque wrench may be
necessary to perform certain maintenance work
correctly.
TIPIf you do not have the tools or experience required
for a particular job, have a Yamaha dealer performit for you.
WARNING
EWB01850Never modify this ATV through improper in-
stallation or use of accessories, as it may
cause changes in handling, which in some sit-
uations could lead to an accident. All parts and
accessories added to this ATV should be gen-
uine Yamaha or equivalent components de-
signed for use on this ATV and should be
installed and used according to instructions. If
you have questions, consult an authorizedYamaha ATV dealer.U43P60E0.book Page 2 Tuesday, May 20, 2008 5:33 PM

8-3
8

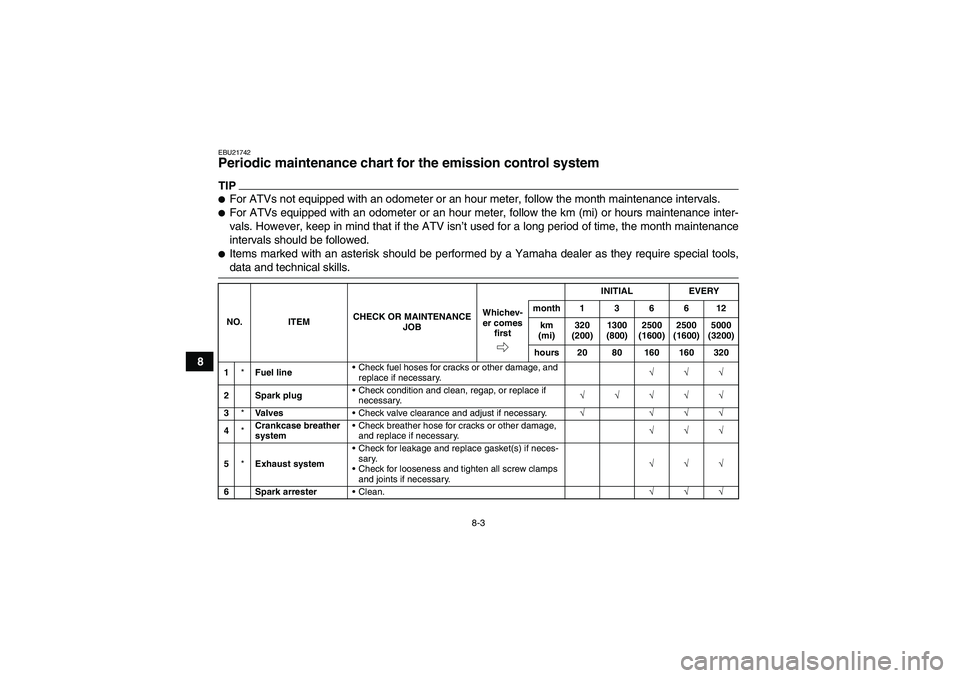

EBU21742Periodic maintenance chart for the emission control system TIP
For ATVs not equipped with an odometer or an hour meter, follow the month maintenance intervals.
For ATVs equipped with an odometer or an hour meter, follow the km (mi) or hours maintenance inter-
vals. However, keep in mind that if the ATV isn’t used for a long period of time, the month maintenance
intervals should be followed.
Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools,data and technical skills.NO. ITEMCHECK OR MAINTENANCE
JOBINITIAL EVERY
Whichev-
er comes
firstmonth136612
km
(mi)320
(200)1300
(800)2500
(1600)2500
(1600)5000
(3200)
hours 20 80 160 160 320
1*Fuel lineCheck fuel hoses for cracks or other damage, and
replace if necessary.√√√
2 Spark plugCheck condition and clean, regap, or replace if
necessary.√√√√√
3*ValvesCheck valve clearance and adjust if necessary.√ √√√
4*Crankcase breather
systemCheck breather hose for cracks or other damage,
and replace if necessary.√√√
5*Exhaust systemCheck for leakage and replace gasket(s) if neces-
sary.
Check for looseness and tighten all screw clamps
and joints if necessary.√√√
6 Spark arresterClean.√√√
U43P60E0.book Page 3 Tuesday, May 20, 2008 5:33 PM

8-4
8

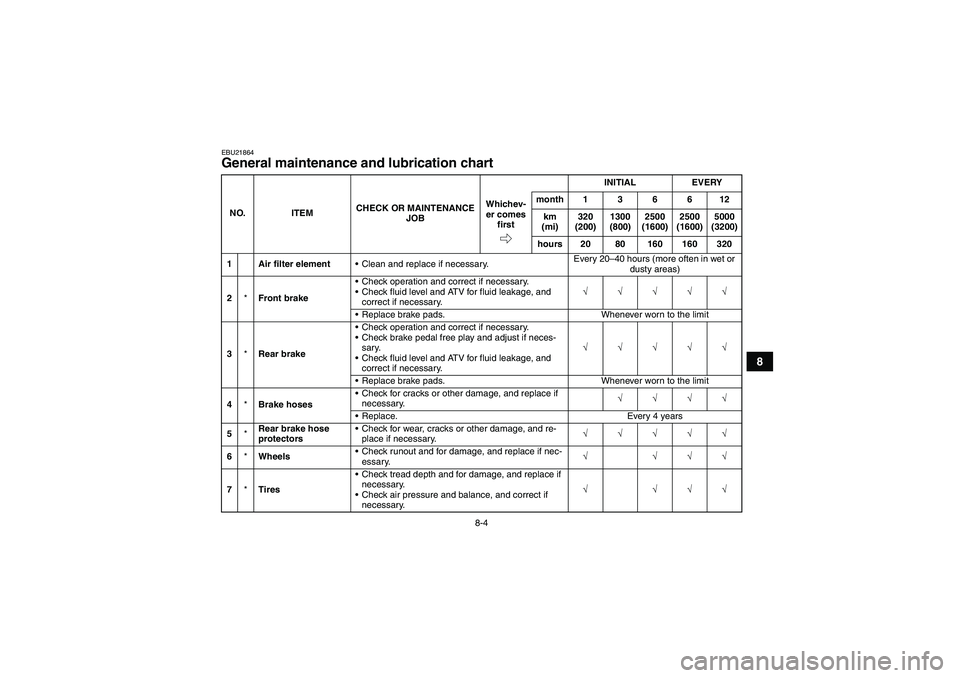

EBU21864General maintenance and lubrication chart NO. ITEMCHECK OR MAINTENANCE
JOBINITIAL EVERY
Whichev-
er comes
firstmonth136612
km
(mi)320
(200)1300
(800)2500
(1600)2500
(1600)5000
(3200)
hours 20 80 160 160 320
1 Air filter elementClean and replace if necessary.Every 20–40 hours (more often in wet or
dusty areas)
2*Front brakeCheck operation and correct if necessary.
Check fluid level and ATV for fluid leakage, and
correct if necessary.√√√√√
Replace brake pads. Whenever worn to the limit
3*Rear brakeCheck operation and correct if necessary.
Check brake pedal free play and adjust if neces-
sary.
Check fluid level and ATV for fluid leakage, and
correct if necessary.√√√√√
Replace brake pads. Whenever worn to the limit
4*Brake hosesCheck for cracks or other damage, and replace if
necessary.√√√√
Replace. Every 4 years
5*Rear brake hose
protectorsCheck for wear, cracks or other damage, and re-
place if necessary.√√√√√
6*WheelsCheck runout and for damage, and replace if nec-
essary.√ √√√
7*TiresCheck tread depth and for damage, and replace if
necessary.
Check air pressure and balance, and correct if
necessary.√ √√√
U43P60E0.book Page 4 Tuesday, May 20, 2008 5:33 PM

8-5
8

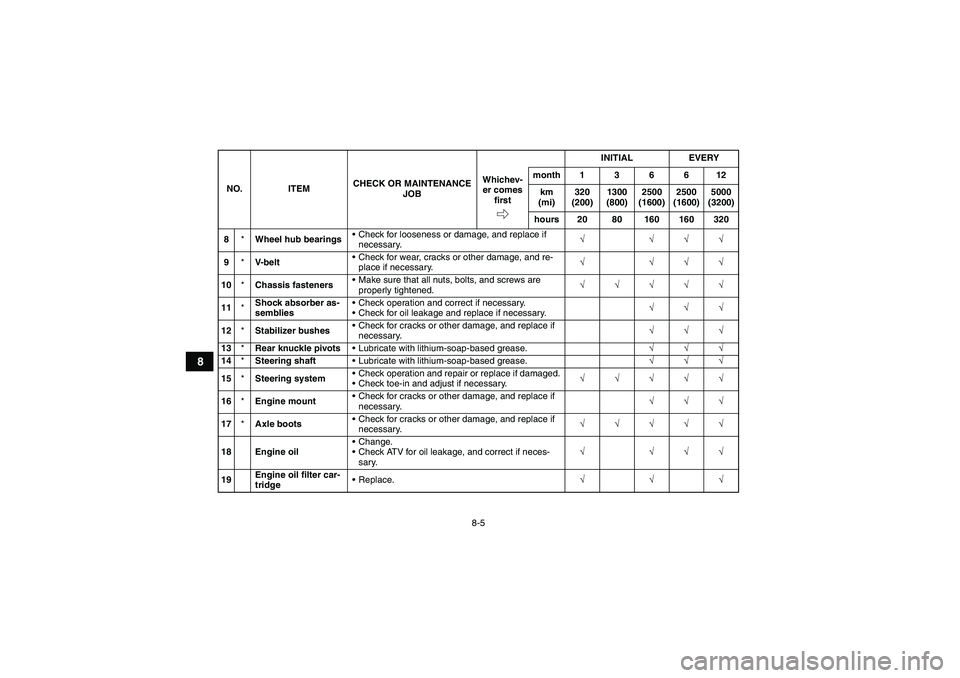

8*Wheel hub bearingsCheck for looseness or damage, and replace if
necessary.√ √√√
9*V- b e l tCheck for wear, cracks or other damage, and re-
place if necessary.√ √√√
10*Chassis fastenersMake sure that all nuts, bolts, and screws are
properly tightened.√√√√√
11*Shock absorber as-
sembliesCheck operation and correct if necessary.
Check for oil leakage and replace if necessary.√√√
12*Stabilizer bushesCheck for cracks or other damage, and replace if
necessary.√√√
13*Rear knuckle pivotsLubricate with lithium-soap-based grease.√√√
14*Steering shaftLubricate with lithium-soap-based grease.√√√
15*Steering systemCheck operation and repair or replace if damaged.
Check toe-in and adjust if necessary.√√√√√
16*Engine mountCheck for cracks or other damage, and replace if
necessary.√√√
17*Axle bootsCheck for cracks or other damage, and replace if
necessary.√√√√√
18 Engine oilChange.
Check ATV for oil leakage, and correct if neces-
sary.√ √√√
19Engine oil filter car-
tridgeReplace.√√√ NO. ITEMCHECK OR MAINTENANCE
JOBINITIAL EVERY
Whichev-
er comes
firstmonth136612
km
(mi)320
(200)1300
(800)2500
(1600)2500
(1600)5000
(3200)
hours 20 80 160 160 320U43P60E0.book Page 5 Tuesday, May 20, 2008 5:33 PM
