YAMAHA GRIZZLY 700 2012 Owners Manual

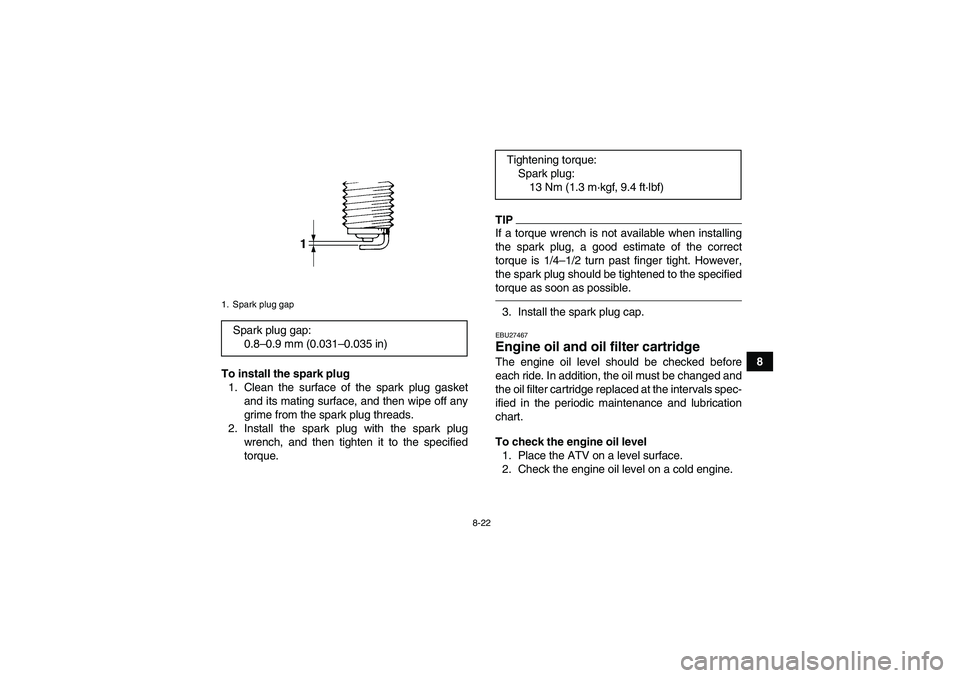

8-22
8
To install the spark plug
1. Clean the surface of the spark plug gasket
and its mating surface, and then wipe off any
grime from the spark plug threads.
2. Install the spark plug with the spark plug
wrench, and then tighten it to the specified
torque.
TIPIf a torque wrench is not available when installing
the spark plug, a good estimate of the correct
torque is 1/4–1/2 turn past finger tight. However,
the spark plug should be tightened to the specified
torque as soon as possible.3. Install the spark plug cap.EBU27467Engine oil and oil filter cartridge The engine oil level should be checked before
each ride. In addition, the oil must be changed and
the oil filter cartridge replaced at the intervals spec-
ified in the periodic maintenance and lubrication
chart.
To check the engine oil level
1. Place the ATV on a level surface.
2. Check the engine oil level on a cold engine.
1. Spark plug gapSpark plug gap:
0.8–0.9 mm (0.031–0.035 in)
Tightening torque:
Spark plug:
13 Nm (1.3 m·kgf, 9.4 ft·lbf)
U1HP60E0.book Page 22 Monday, April 11, 2011 7:56 PM

8-23
8
TIPIf the engine was started before checking the oil
level, be sure to warm up the engine sufficiently,
and then wait at least 10 minutes until the oil settles
for an accurate reading.3. Remove the access cover by turning it coun-
terclockwise.
4. Remove the engine oil dipstick, and then wipe
it off with a clean rag.5. Insert the dipstick completely into the oil filler
hole, and then remove it again to check the oil
level.
TIPThe engine oil should be between the minimum
and maximum level marks.
1. Access cover
1. Engine oil dipstick
U1HP60E0.book Page 23 Monday, April 11, 2011 7:56 PM

8-24
8 6. If the engine oil is at or below the minimum
level mark, add sufficient oil of the recom-
mended type to raise it to the correct level.
NOTICE: Be sure the engine oil is at the
correct level, otherwise engine damage
may result.
[ECB00851]
7. Insert the dipstick completely into the oil filler
hole.
8. Install the access cover by turning it clock-
wise.To change the engine oil (with or without oil fil-
ter cartridge replacement)
1. Place the ATV on a level surface.
2. Remove the access cover by turning it coun-
terclockwise.
3. Place an oil pan under the engine to collect
the used oil.
4. Remove the dipstick, and then remove the en-
gine oil drain bolt and its gasket to drain the oil
from the crankcase.1. Maximum level mark
2. Minimum level mark
1. Engine oil drain bolt
2. Gasket
12
U1HP60E0.book Page 24 Monday, April 11, 2011 7:56 PM

8-25
8
TIPSkip steps 5–9 if the oil filter cartridge is not being
replaced.5. Remove panel F. (See page 8-10.)
6. Remove the oil filter cartridge with an oil filter
wrench.TIPAn oil filter wrench is available at a nearby Yamaha
dealer.7. Apply a thin coat of engine oil to the O-ring of
the new oil filter cartridge.
TIPMake sure that the O-ring is properly seated.8. Install the new oil filter cartridge with an oil fil-
ter wrench, and then tighten it to the specified
torque with a torque wrench.
1. Oil filter cartridge
2. Oil filter wrench
1. O-ring
U1HP60E0.book Page 25 Monday, April 11, 2011 7:56 PM

8-26
8
9. Install panel F.
10. Install the engine oil drain bolt and its new
gasket, and then tighten the bolt to the speci-
fied torque.11. Refill with the specified amount of the recom-
mended engine oil, and then insert the dip-
stick completely into the oil filler hole.
TIPBe sure to wipe off spilled oil on any parts after the
engine and exhaust system have cooled down.NOTICEECB00300
In order to prevent clutch slippage (since the
engine oil also lubricates the clutch), do not
mix any chemical additives. Do not use oils
with a diesel specification of “CD” or oils of
a higher quality than specified. In addition,
do not use oils labeled “ENERGY CONSERV-
ING II” or higher.
1. Torque wrenchTightening torque:
Oil filter cartridge:
17 Nm (1.7 m·kgf, 12 ft·lbf)
Tightening torque:
Engine oil drain bolt:
30 Nm (3.0 m·kgf, 22 ft·lbf)
Recommended oil:
See page 10-1.
Oil quantity:
Without oil filter cartridge replacement:
2.00 L (2.11 US qt, 1.76 Imp.qt)
With oil filter car tridge replacement:
2.10 L (2.22 US qt, 1.85 Imp.qt)
U1HP60E0.book Page 26 Monday, April 11, 2011 7:56 PM

8-27
8

Make sure that no foreign material enters the
crankcase.12. Start the engine, and then let it idle for several
minutes while checking it for oil leakage. If oil
is leaking, immediately turn the engine off and
check for the cause.
13. Turn the engine off, wait at least ten minutes,
and then check the oil level and correct it if
necessary.
14. Install the access cover by turning it clock-
wise.EBU27306Final gear oil The final gear case must be checked for oil leak-
age before each ride. If any leakage is found, have
a Yamaha dealer check and repair the ATV. In ad-
dition, the final gear oil level must be checked and
the oil changed as follows at the intervals specified
in the periodic maintenance and lubrication chart.
To check the final gear oil level
1. Place the ATV on a level surface.2. Remove the final gear oil level check bolt and
its gasket, and then check the oil level in the
final gear case. The oil level should be at the
brim of the check hole.
3. If the oil is below the brim of the check hole,
remove the final gear oil filler bolt and its gas-
ket, and then add sufficient oil of the recom-
mended type to raise it to the correct level.
1. Final gear oil
2. Gasket
3. Final gear oil level check bolt
4. Correct oil level
1
243
U1HP60E0.book Page 27 Monday, April 11, 2011 7:56 PM

8-28
8 4. Check the gaskets for damage, and replace
them if necessary.
5. Install the oil level check bolt, the oil filler bolt
and their gasket, and then tighten the bolts to
the specified torques.To change the final gear oil
1. Place the ATV on a level surface.
2. Place an oil pan under the final gear case to
collect the used oil.
3. Remove the final gear oil filler bolt, the final
gear oil level check bolt, the final gear oil drain
bolt and their gasket to drain the oil from the
final gear case.
4. Install the drain bolt and its new gasket, and
then tighten the bolt to the specified torque.
1. Final gear oil filler bolt
2. GasketTightening torques:
Final gear oil level check bolt:
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
Final gear oil filler bolt:
23 Nm (2.3 m·kgf, 17 ft·lbf)
12
1. Final gear oil drain bolt
2. Gasket
12
U1HP60E0.book Page 28 Monday, April 11, 2011 7:56 PM

8-29
85. Refill with the recommended final gear oil to
the brim of the check hole as shown. NOTICE:
Be sure no foreign material enters the final
gear case.
[ECB00421]
6. Check the oil level check bolt gasket and the
oil filler bolt gasket for damage, and replace
them if necessary.
7. Install the oil level check bolt, the oil filler bolt
and their gasket, and then tighten the bolts to
the specified torques.
8. Check the final gear case for oil leakage. If oil
is leaking, check for the cause.EBU23426Differential gear oil The differential gear case must be checked for oil
leakage before each ride. If any leakage is found,
have a Yamaha dealer check and repair the ATV.
In addition, the differential gear oil level must be
checked and the oil changed as follows at the in-
tervals specified in the periodic maintenance and
lubrication chart. Tightening torque:
Final gear oil drain bolt:
23 Nm (2.3 m·kgf, 17 ft·lbf)
1. Final gear oil
2. Gasket
3. Final gear oil level check bolt
4. Correct oil levelRecommended final gear oil:
See page 10-1.
1
243
Tightening torques:
Final gear oil level check bolt:
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
Final gear oil filler bolt:
23 Nm (2.3 m·kgf, 17 ft·lbf)
U1HP60E0.book Page 29 Monday, April 11, 2011 7:56 PM

8-30
8 To check the differential gear oil level
1. Place the ATV on a level surface.
2. Remove the differential gear oil filler bolt and
its gasket, and then check the oil level in the
differential gear case. The oil level should be
at the brim of the filler hole.
3. If the oil is below the brim of the filler hole, add
sufficient oil of the recommended type to raise
it to the correct level.
4. Check the gasket for damage, and replace it if
necessary.5. Install the oil filler bolt and its gasket, and then
tighten the bolt to the specified torque.
To change the differential gear oil
1. Place the ATV on a level surface.
2. Place an oil pan under the differential gear
case to collect the used oil.
3. Remove the differential gear oil filler bolt, the
differential gear oil drain bolt and their gasket
to drain the oil from the differential gear case.
1. Differential gear oil filler bolt
2. Gasket
3. Differential gear oil
4. Correct oil level
1
2
3
4
Tightening torque:
Differential gear oil filler bolt:
23 Nm (2.3 m·kgf, 17 ft·lbf)
U1HP60E0.book Page 30 Monday, April 11, 2011 7:56 PM

8-31
84. Install the drain bolt and its new gasket, and
then tighten the bolt to the specified torque.
5. Refill with the recommended differential gear
oil to the brim of the filler hole as shown.
NOTICE: Be sure no foreign material en-
ters the differential gear case.
[ECB00411]
6. Check the oil filler bolt gasket for damage, and
replace it if necessary.
7. Install the oil filler bolt and its gasket, and then
tighten the bolt to the specified torque.
1. Differential gear oil drain bolt
2. GasketTightening torque:
Differential gear oil drain bolt:
9.8 Nm (0.98 m·kgf, 7.1 ft·lbf)
12
1. Differential gear oil filler bolt
2. Gasket
3. Differential gear oil
4. Correct oil levelRecommended differential gear oil:
See page 10-1.
Tightening torque:
Differential gear oil filler bolt:
23 Nm (2.3 m·kgf, 17 ft·lbf)
1
2
3
4
U1HP60E0.book Page 31 Monday, April 11, 2011 7:56 PM
