8-65
8
3. Lower the ATV to the ground.
4. Tighten the wheel nuts to the specified
torques.
EBU25740Troubleshooting Although Yamaha ATVs receive a thorough in-
spection before shipment from the factory, trouble
may occur during operation. Any problem in the fu-
el, compression, or ignition systems, for example,
can cause poor starting and loss of power.
The following troubleshooting charts represent
quick and easy procedures for checking these vital
systems yourself. However, should your ATV re-
quire any repair, take it to a Yamaha dealer, whose
skilled technicians have the necessary tools, expe-
rience, and know-how to service the ATV properly.
Use only genuine Yamaha replacement parts. Im-
itation parts may look like Yamaha parts, but they
are often inferior, have a shorter service life and
can lead to expensive repair bills.
WARNING
EWB02280Do not smoke when checking the fuel system.
Fuel can ignite or explode, causing severe inju-
ry or property damage. Make sure there are no
open flames or sparks in the area, including pi-
lot lights from water heaters or furnaces.

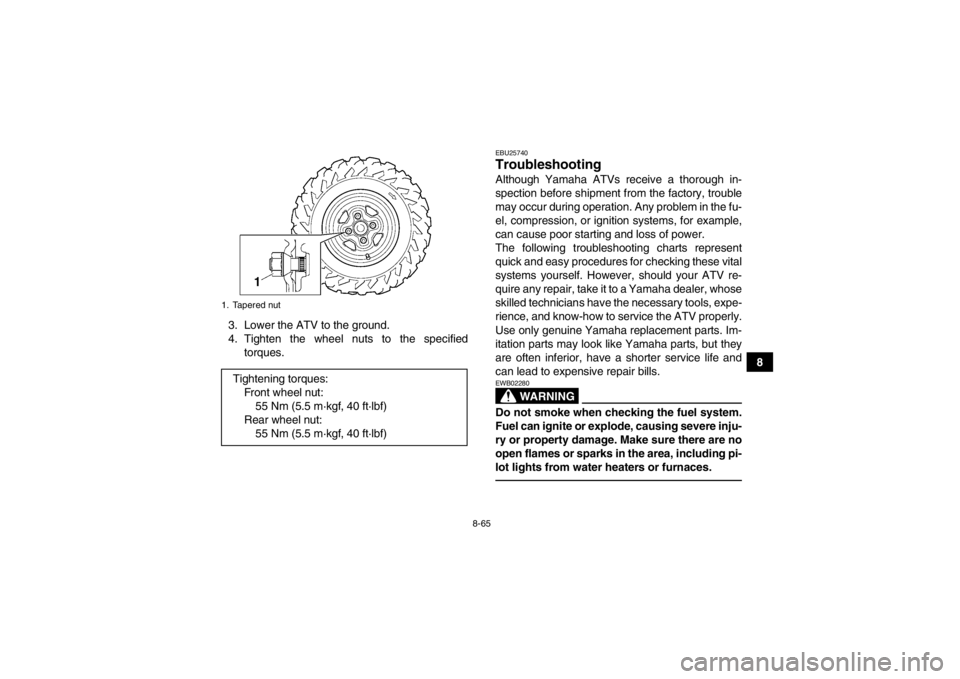

1. Tapered nutTightening torques:Front wheel nut:55 Nm (5.5 m·kgf, 40 ft·lbf)
Rear wheel nut: 55 Nm (5.5 m·kgf, 40 ft·lbf)
U2BG60E0.book Page 65 Monday, May 20, 2013 3:04 PM

10-1
10
EBU25961
SPECIFICATIONS
Dimensions:Overall length:2065 mm (81.3 in)
Overall width: 1180 mm (46.5 in)
Overall height:
1240 mm (48.8 in)
Seat height: 905 mm (35.6 in)
Wheelbase: 1250 mm (49.2 in)
Ground clearance:
275 mm (10.8 in)
Minimum turning radius: 3200 mm (126 in)Weight:Curb weight:
294.0 kg (648 lb)Noise and vibration level:Noise level (77/311/EEC):YFM700DE 79.0 dB(A)@3125 r/min
YFM700PE 79.0 dB(A)@3125 r/min (EUR)(FRA)(GBR)
YFM700PHE 79.0 dB(A)@3125 r/min
YFM700PLE 79.0 dB(A)@3125 r/min (EUR)(FRA)(GBR)
YFM700PSE 79.0 dB(A)@3125 r/min (EUR)(FRA)(GBR) Vibration on seat (EN1032, ISO5008):
YFM700DE Will not exceed 0.5 m/s²
YFM700PE Will not exceed 0.5 m/s² (EUR)(FRA)(GBR)
YFM700PHE Will not exceed 0.5 m/s²
YFM700PLE Will not exceed 0.5 m/s² (EUR)(FRA)(GBR)
YFM700PSE Will not exceed 0.5 m/s² (EUR)(FRA)(GBR)
Vibration on handlebar (EN1032, ISO5008):
YFM700DE Will not exceed 2.5 m/s²
YFM700PE Will not exceed 2.5 m/s² (EUR)(FRA)(GBR)
YFM700PHE Will not exceed 2.5 m/s²
YFM700PLE Will not exceed 2.5 m/s² (EUR)(FRA)(GBR)
YFM700PSE Will not exceed 2.5 m/s² (EUR)(FRA)(GBR)
Engine:Engine type:Liquid cooled 4-stroke, SOHC
Cylinder arrangement: Single cylinder
Displacement:
686 cm³
Bore × stroke:
102.0 × 84.0 mm (4.02 × 3.31 in)
Compression ratio: 10.00 : 1
Starting system:
Electric starter
Lubrication system: Wet sump
