YAMAHA GRIZZLY 700 2015 Owners Manual

8-10
8
EBU23091Removing and installing panelsThe panels shown need to be removed to perform
some of the maintenance jobs described in this
chapter. Refer to this section each time a panel
needs to be removed and installed.
EBU27388Panel A
To remove the panelPull upward on the areas shown.
1. Panel A
2. Panel B
3. Panel C
4. Panel D
5. Panel F
1
2
3
5
4
1. Panel E
2. Panel G
3. Panel H
1
3
2
UB3860E0.book Page 10 Monday, July 14, 2014 10:34 AM

8-11
8To install the panel
Place the panel in the original position. Panel B
To remove the panel
1. Remove panel A.

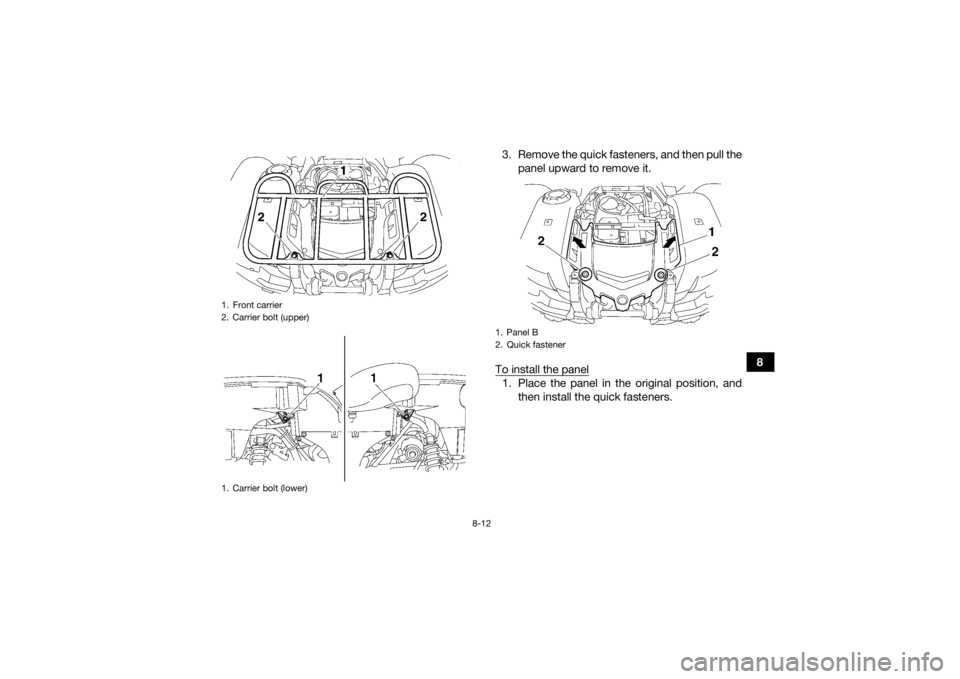

2. Remove the front carrier by removing the
bolts.
1. Panel A
1. Carrier bolt (under the fenders)
UB3860E0.book Page 11 Monday, July 14, 2014 10:34 AM

8-12
8
3. Remove the quick fasteners, and then pull the
panel upward to remove it.
To install the panel
1. Place the panel in the original position, and then install the quick fasteners.
1. Front carrier
2. Carrier bolt (upper)
1. Carrier bolt (lower)
1. Panel B
2. Quick fastener
UB3860E0.book Page 12 Monday, July 14, 2014 10:34 AM

8-13
82. Install the front carrier by installing the bolts
and tightening them to the specified torques.

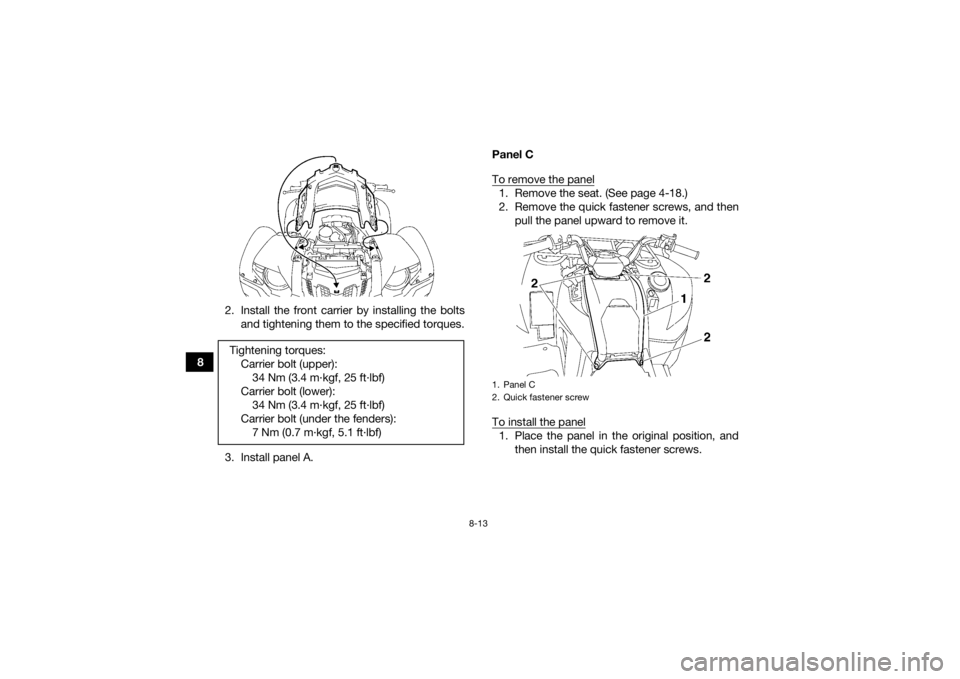

3. Install panel A. Panel C
To remove the panel
1. Remove the seat. (See page 4-18.)
2. Remove the quick fastener screws, and then
pull the panel upward to remove it.
To install the panel1. Place the panel in the original position, and then install the quick fastener screws.
Tightening torques:
Carrier bolt (upper):34 Nm (3.4 m·kgf, 25 ft·lbf)
Carrier bolt (lower): 34 Nm (3.4 m·kgf, 25 ft·lbf)
Carrier bolt (under the fenders): 7 Nm (0.7 m·kgf, 5.1 ft·lbf)1. Panel C
2. Quick fastener screw
UB3860E0.book Page 13 Monday, July 14, 2014 10:34 AM

8-14
8
2. Install the seat.

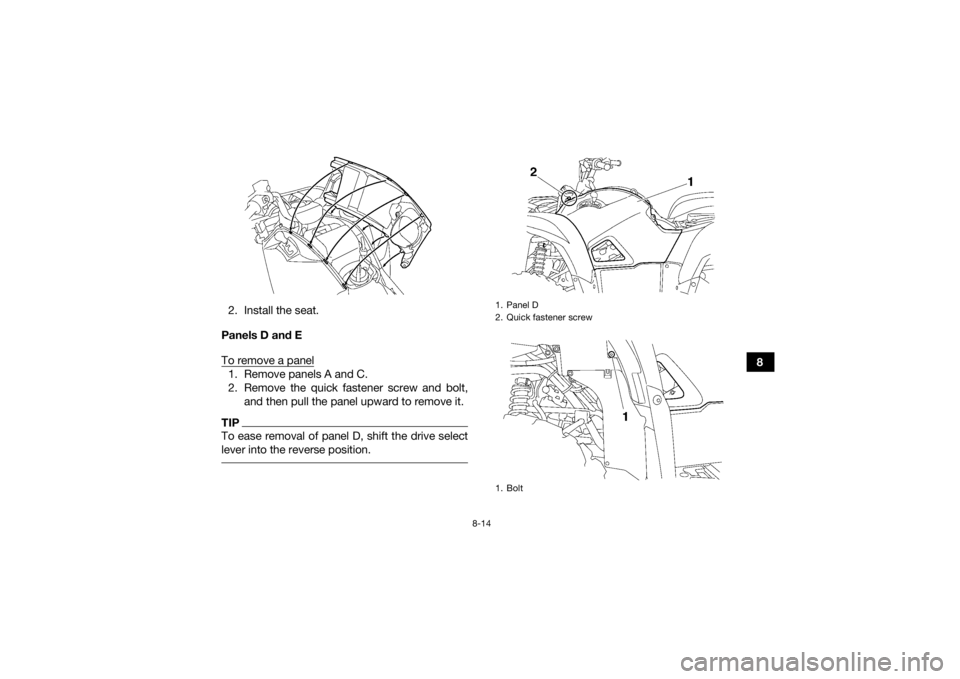

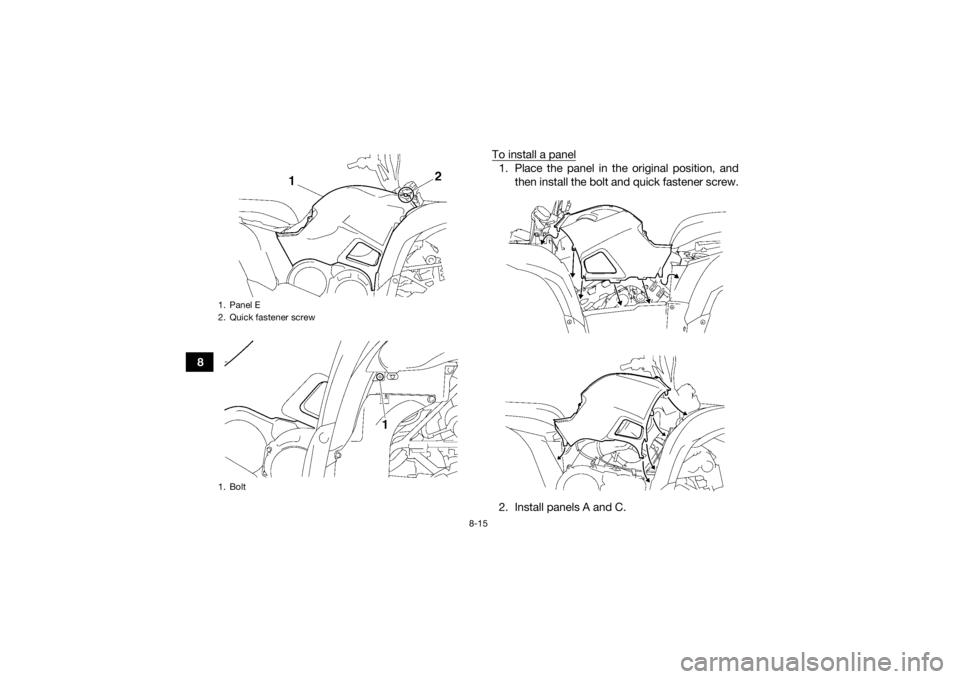

Panels D and E
To remove a panel
1. Remove panels A and C.
2. Remove the quick fastener screw and bolt, and then pull the panel upward to remove it.TIPTo ease removal of panel D, shift the drive select
lever into the reverse position.
1. Panel D
2. Quick fastener screw
1. Bolt
UB3860E0.book Page 14 Monday, July 14, 2014 10:34 AM

8-15
8To install a panel
1. Place the panel in the original position, and
then install the bolt and quick fastener screw.
2. Install panels A and C.
1. Panel E
2. Quick fastener screw
1. BoltUB3860E0.book Page 15 Monday, July 14, 2014 10:34 AM

8-16
8

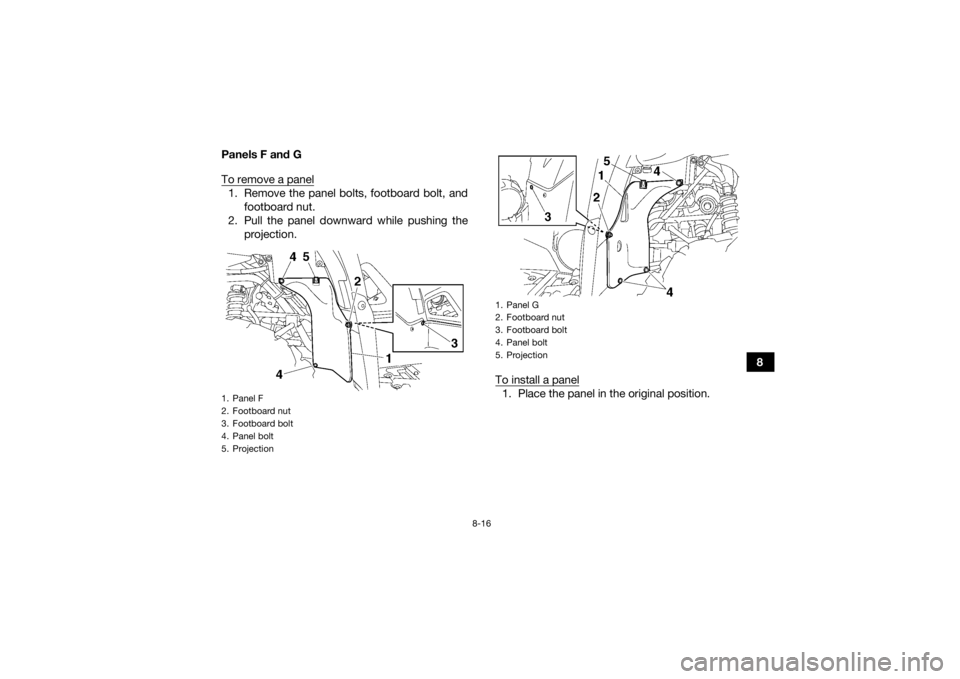

Panels F and G
To remove a panel
1. Remove the panel bolts, footboard bolt, and
footboard nut.
2. Pull the panel downward while pushing the projection.
To install a panel
1. Place the panel in the original position.
1. Panel F
2. Footboard nut
3. Footboard bolt
4. Panel bolt
5. Projection

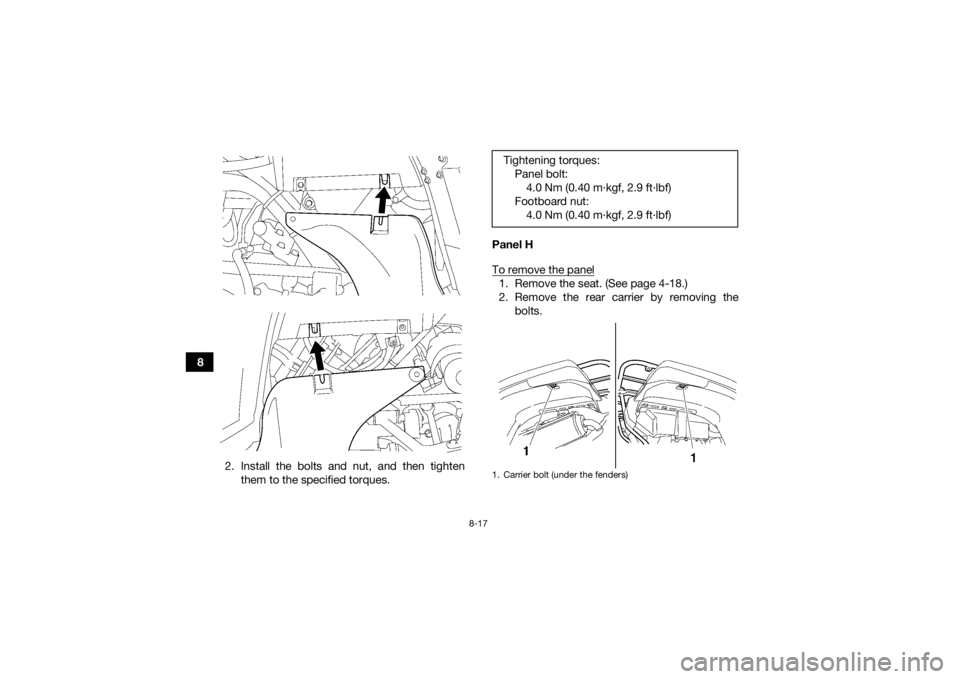

1. Panel G
2. Footboard nut
3. Footboard bolt
4. Panel bolt
5. Projection
UB3860E0.book Page 16 Monday, July 14, 2014 10:34 AM

8-17
82. Install the bolts and nut, and then tightenthem to the specified torques. Panel H
To remove the panel
1. Remove the seat. (See page 4-18.)
2. Remove the rear carrier by removing the
bolts.Tightening torques:Panel bolt:4.0 Nm (0.40 m·kgf, 2.9 ft·lbf)
Footboard nut: 4.0 Nm (0.40 m·kgf, 2.9 ft·lbf)1. Carrier bolt (under the fenders)
UB3860E0.book Page 17 Monday, July 14, 2014 10:34 AM

8-18
8
3. Remove the quick fasteners, and then push
inward on the areas shown.
To install the panel
1. Place the panel in the original position, and then install the quick fasteners.
1. Rear carrier
2. Carrier bolt (upper)
1. Carrier bolt (lower)
1. Panel H
2. Quick fastener
2
1
UB3860E0.book Page 18 Monday, July 14, 2014 10:34 AM

8-19
82. Install the rear carrier by installing the bolts
and tightening them to the specified torques.
3. Install the seat.

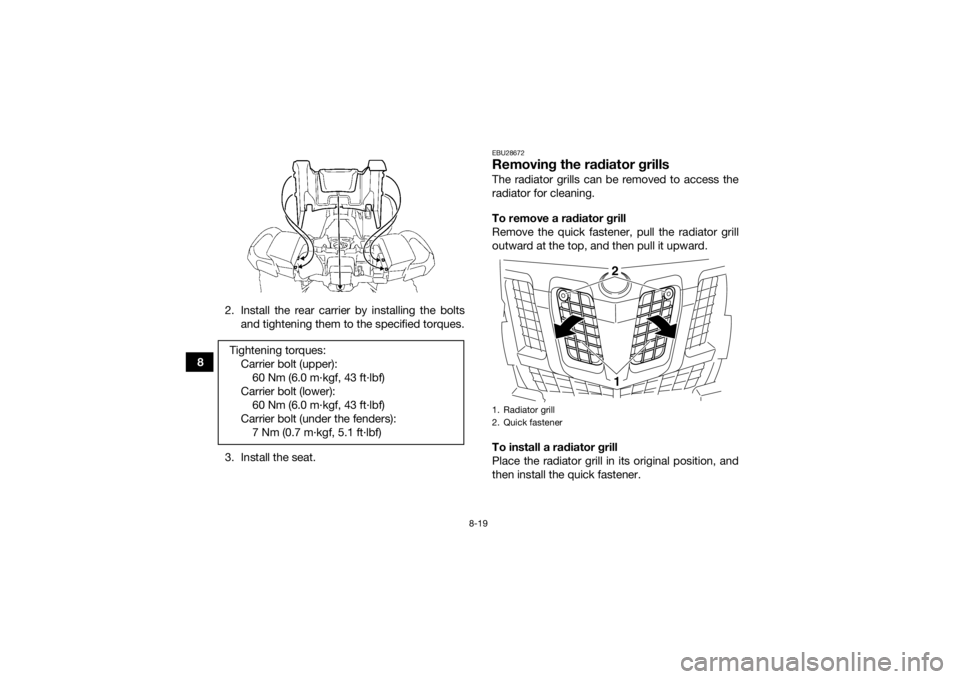

EBU28672Removing the radiator grillsThe radiator grills can be removed to access the
radiator for cleaning.
To remove a radiator grill
Remove the quick fastener, pull the radiator grill
outward at the top, and then pull it upward.
To install a radiator grill
Place the radiator grill in its original position, and
then install the quick fastener.
Tightening torques:
Carrier bolt (upper):60 Nm (6.0 m·kgf, 43 ft·lbf)
Carrier bolt (lower): 60 Nm (6.0 m·kgf, 43 ft·lbf)
Carrier bolt (under the fenders): 7 Nm (0.7 m·kgf, 5.1 ft·lbf)1. Radiator grill
2. Quick fastener
21
