YAMAHA GRIZZLY 700 2015 Owners Manual

8-30
8
5. Install the oil filler bolt and its gasket, and then
tighten the bolt to the specified torque.
To change the differential gear oil 1. Place the ATV on a level surface.
2. Place an oil pan under the differential gear case to collect the used oil.
3. Remove the differential gear oil filler bolt, the differential gear oil drain bolt and their gasket
to drain the oil from the differential gear case. 4. Install the drain bolt and its new gasket, and
then tighten the bolt to the specified torque.
5. Refill with the recommended differential gear oil to the brim of the filler hole as shown.
NOTICE: Be sure no foreign material en-
ters the differential gear case.
[ECB00412]

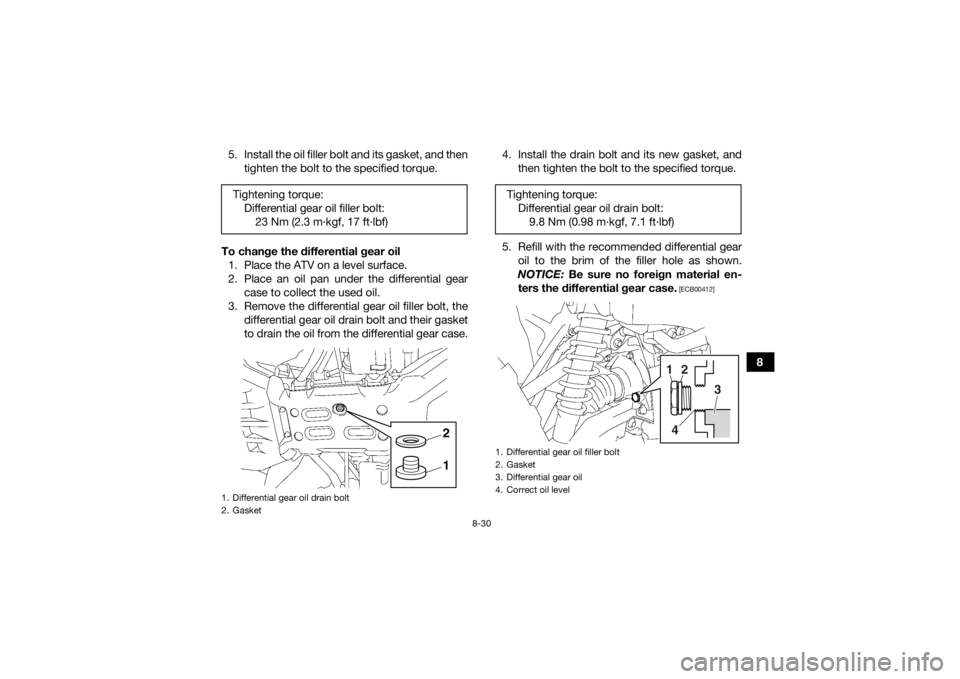

Tightening torque: Differential gear oil filler bolt:23 Nm (2.3 m·kgf, 17 ft·lbf)1. Differential gear oil drain bolt
2. Gasket
12
Tightening torque: Differential gear oil drain bolt:9.8 Nm (0.98 m·kgf, 7.1 ft·lbf)1. Differential gear oil filler bolt
2. Gasket
3. Differential gear oil
4. Correct oil level
1
2
3
4
UB3860E0.book Page 30 Monday, July 14, 2014 10:34 AM

8-31
86. Check the oil filler bolt gasket for damage,
and replace it if necessary.
7. Install the oil filler bolt and its gasket, and then tighten the bolt to the specified torque.
8. Check the differential gear case for oil leak- age. If oil is leaking, check for the cause.
EBU23471CoolantThe coolant level should be checked before each
ride. In addition, the coolant must be changed at
the intervals specified in the periodic maintenance
and lubrication chart.EBU27129To check the coolant level1. Place the ATV on a level surface.

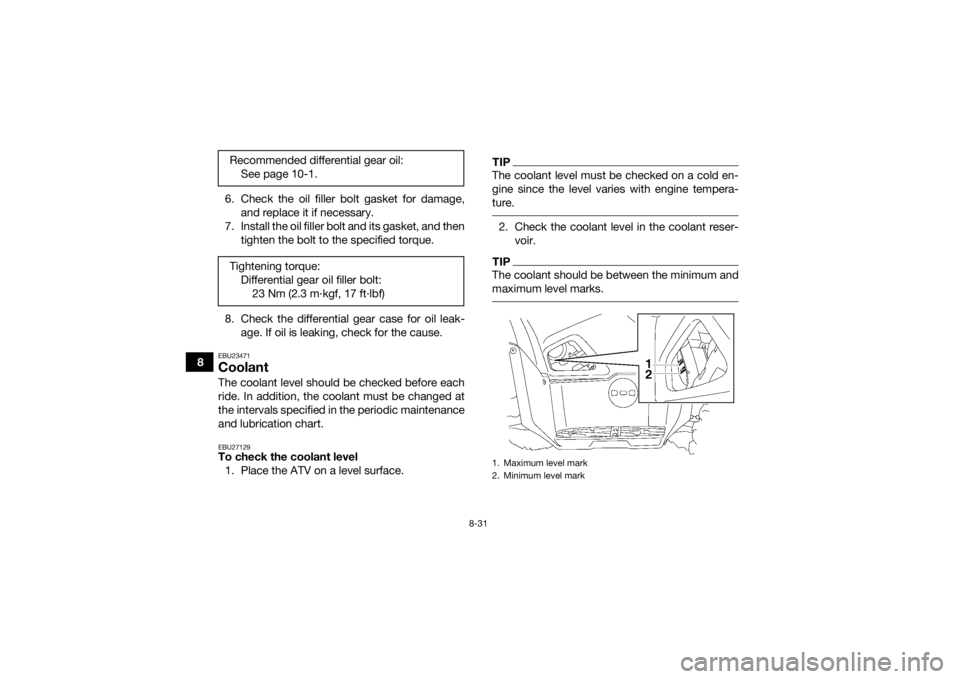

TIPThe coolant level must be checked on a cold en-
gine since the level varies with engine tempera-
ture. 2. Check the coolant level in the coolant reser- voir.TIPThe coolant should be between the minimum and
maximum level marks.
Recommended differential gear oil:See page 10-1.
Tightening torque: Differential gear oil filler bolt:23 Nm (2.3 m·kgf, 17 ft·lbf)
1. Maximum level mark
2. Minimum level mark
UB3860E0.book Page 31 Monday, July 14, 2014 10:34 AM

8-32
8
3. If the coolant is at or below the minimum level
mark, remove panel D to access the coolant
reservoir. (See page 8-10.)
4. Remove the coolant reservoir cap, add cool- ant or distilled water to the maximum level
mark, install the reservoir cap, and then install
the panel. NOTICE: If coolant is not avail-
able, use distilled water or soft tap water
instead. Do not use hard water or salt wa-
ter since they are harmful to the engine. If
water has been used instead of coolant,
replace it with coolant as soon as possible,
otherwise the cooling system will not be
protected against frost and corrosion. If
water has been added to the coolant, have
a Yamaha dealer check the antifreeze con-
tent of the coolant as soon as possible,
otherwise the effectiveness of the coolant
will be reduced.
[ECB01012]
TIP The radiator fan is automatically switched on or
off according to the coolant temperature in the
radiator.
 If the engine overheats, see page 8-67 for fur-
ther instructions. 1. Coolant reservoir cap
2. Maximum level mark
3. Minimum level markCoolant reservoir capacity (up to the maxi-
mum level mark):
0.24 L (0.25 US qt, 0.21 Imp.qt)
2
1
3
UB3860E0.book Page 32 Monday, July 14, 2014 10:34 AM

8-33
8
EBU2776ATo change the coolant

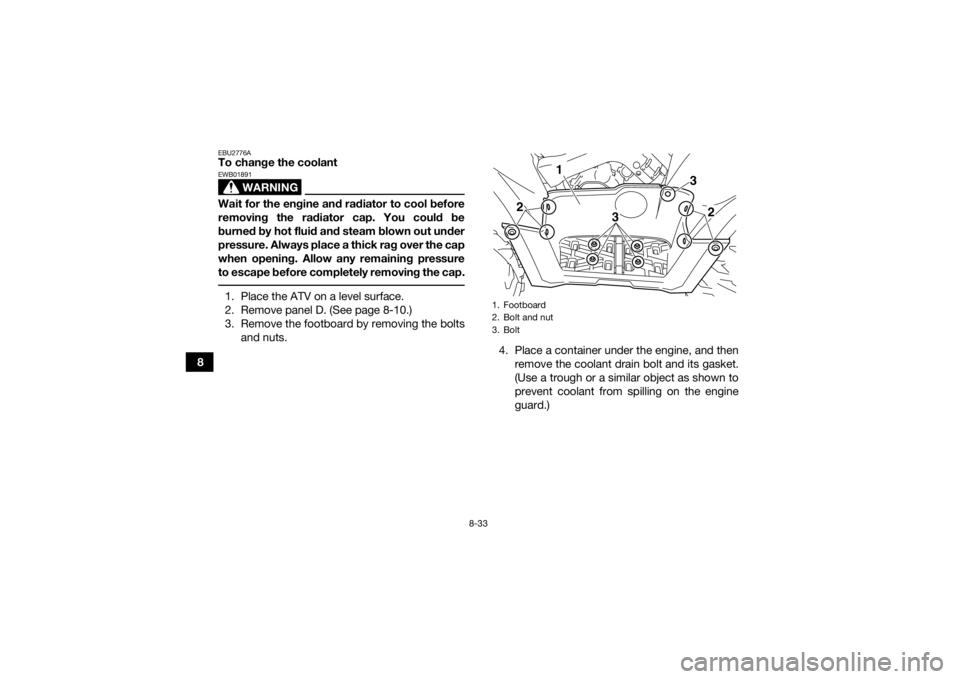

WARNING
EWB01891Wait for the engine and radiator to cool before
removing the radiator cap. You could be
burned by hot fluid and steam blown out under
pressure. Always place a thick rag over the cap
when opening. Allow any remaining pressure
to escape before completely removing the cap. 1. Place the ATV on a level surface.
2. Remove panel D. (See page 8-10.)
3. Remove the footboard by removing the boltsand nuts. 4. Place a container under the engine, and then
remove the coolant drain bolt and its gasket.
(Use a trough or a similar object as shown to
prevent coolant from spilling on the engine
guard.)
1. Footboard
2. Bolt and nut
3. Bolt
3
2
2
3
1
UB3860E0.book Page 33 Monday, July 14, 2014 10:34 AM

8-34
8
5. Remove panel B. (See page 8-10.) 6. Remove the radiator cap.
7. Remove the coolant reservoir cap.
8. Disconnect the coolant reservoir hose on the
coolant reservoir side, and then drain the
coolant from the coolant reservoir.

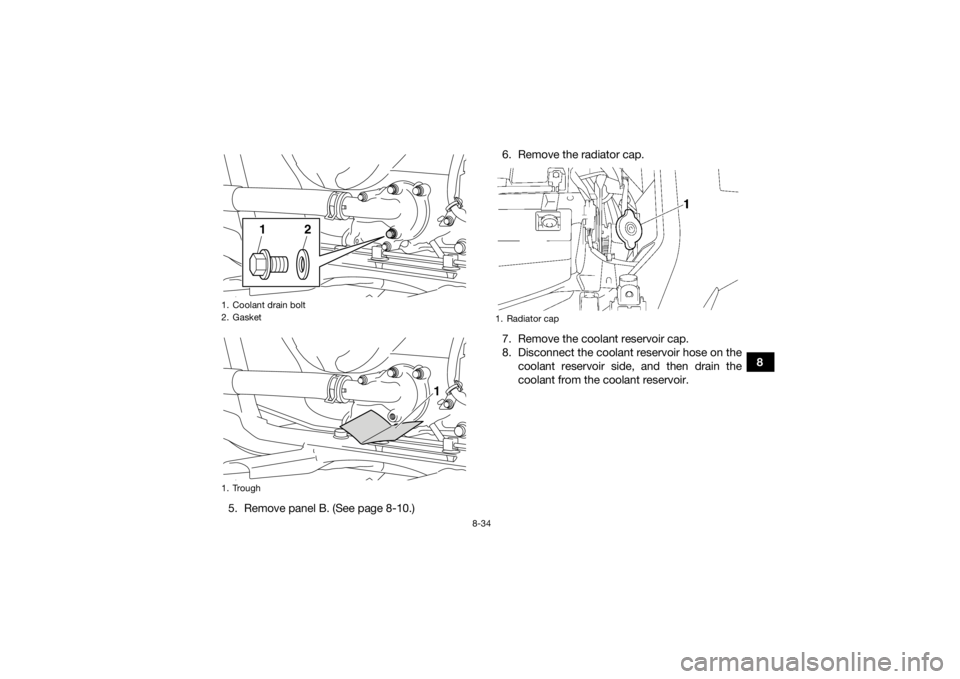

1. Coolant drain bolt
2. Gasket
1. Trough
1
2
1
1. Radiator cap
UB3860E0.book Page 34 Monday, July 14, 2014 10:34 AM

8-35
89. After draining the coolant, thoroughly flush
the cooling system with clean tap water.
10. Install the coolant drain bolt and its new gas- ket, and then tighten the bolt to the specified
torque.
11. Connect the coolant reservoir hose.
12. Pour the recommended coolant into the radi- ator until it is full. 13. Pour the recommended coolant into the res-
ervoir to the maximum level mark, and then
install the reservoir cap. NOTICE: Mix anti-
freeze with distilled water only. However, if
distilled water is not available, soft water
may be used for refilling. Do not use hard
water or salt water since they are harmful
to the engine.
[ECB00992]
14. Loosen the water pump air bleed bolt, with- out removing it, to allow all of the air to es-
cape from the air bleed bolt hole.
1. Coolant reservoir hoseTightening torque:Coolant drain bolt:10 Nm (1.0 m·kgf, 7.2 ft·lbf)
Antifreeze/water mixture ratio:1:1
Recommended antifreeze: High-quality ethylene glycol antifreeze con-
taining corrosion inhibitors for aluminum
engines
Coolant quantity: Radiator (including all routes):1.99 L (2.10 US qt, 1.75 Imp.qt)
Coolant reservoir (up to the maximum level
mark): 0.24 L (0.25 US qt, 0.21 Imp.qt)
UB3860E0.book Page 35 Monday, July 14, 2014 10:34 AM

8-36
8
15. When coolant begins to flow out of the bolt
hole, tighten the water pump air bleed bolt to
the specified torque.
16. Remove panel E. (See page 8-10.)
17. Loosen the clamp screw, and then remove the V-belt cooling duct. 18. Loosen the cylinder head air bleed bolt, with-
out removing it, to allow all of the air to es-
cape from the air bleed bolt hole.

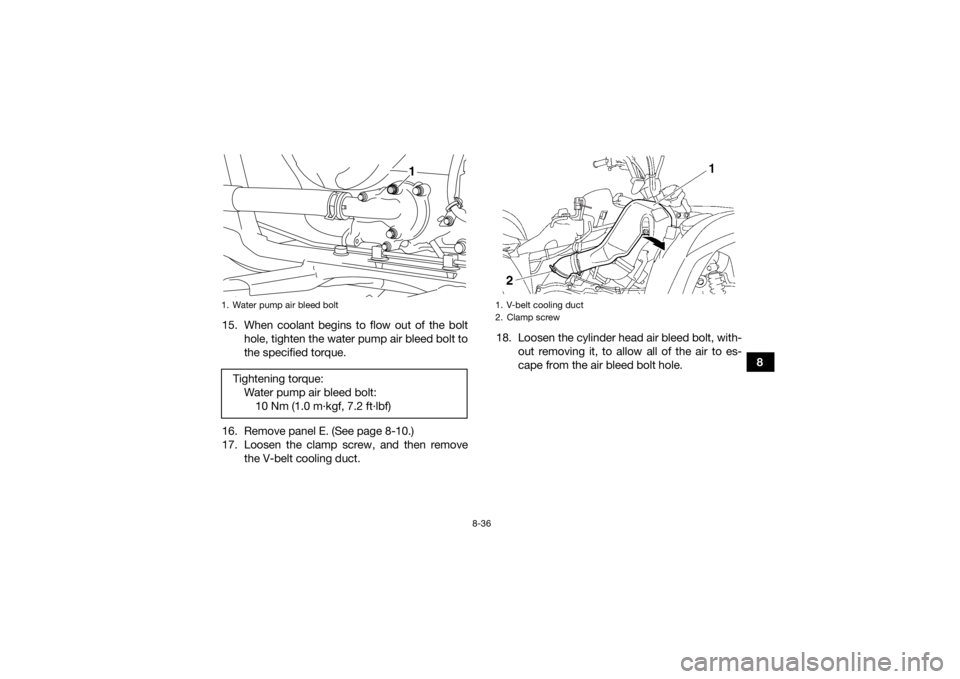

1. Water pump air bleed boltTightening torque:Water pump air bleed bolt:10 Nm (1.0 m·kgf, 7.2 ft·lbf)
1
1. V-belt cooling duct
2. Clamp screw
UB3860E0.book Page 36 Monday, July 14, 2014 10:34 AM

8-37
819. When coolant begins to flow out of the bolt
hole, tighten the cylinder head air bleed bolt
to the specified torque.
20. Start the engine and let it idle for ten minutes.
21. Rev the engine five times.
22. Pour additional coolant into the radiator until it is full. 23. Stop the engine and allow it to cool. If the
coolant level has dropped after the engine
has cooled, add sufficient coolant until it
reaches the top of the radiator, and then in-
stall the radiator cap.
24. Start the engine, and then check for coolant leakage.
TIPIf any leakage is found, have a Yamaha dealer
check the cooling system. 25. Install the V-belt cooling duct, and then tight-en the clamp screw.
26. Install the footboard by installing the bolts and nuts, and then tighten them to the speci-
fied torques.

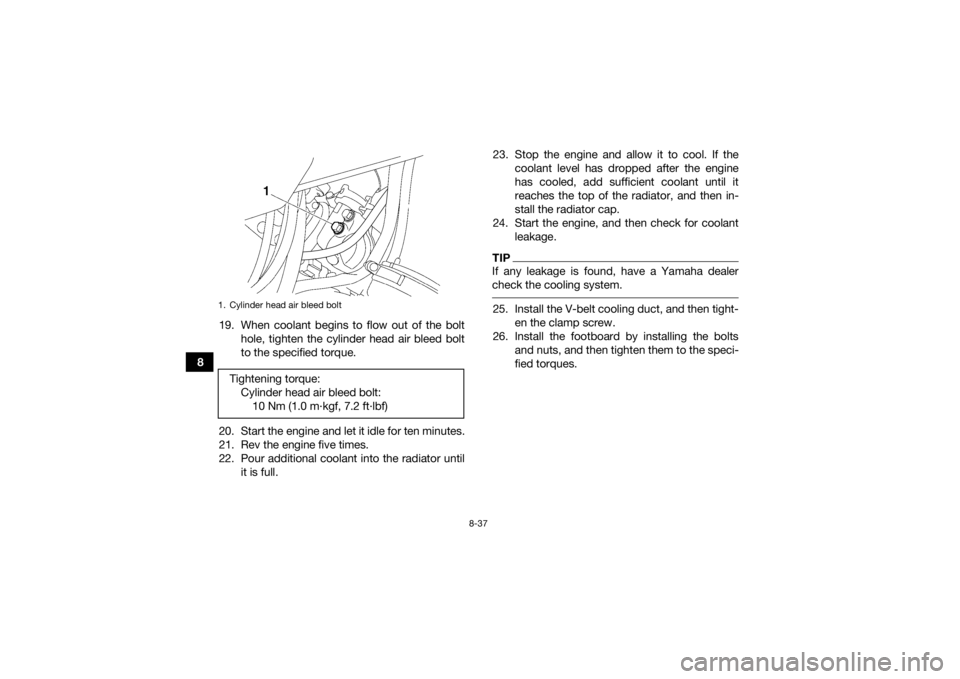

1. Cylinder head air bleed boltTightening torque:Cylinder head air bleed bolt:10 Nm (1.0 m·kgf, 7.2 ft·lbf)
UB3860E0.book Page 37 Monday, July 14, 2014 10:34 AM

8-38
8

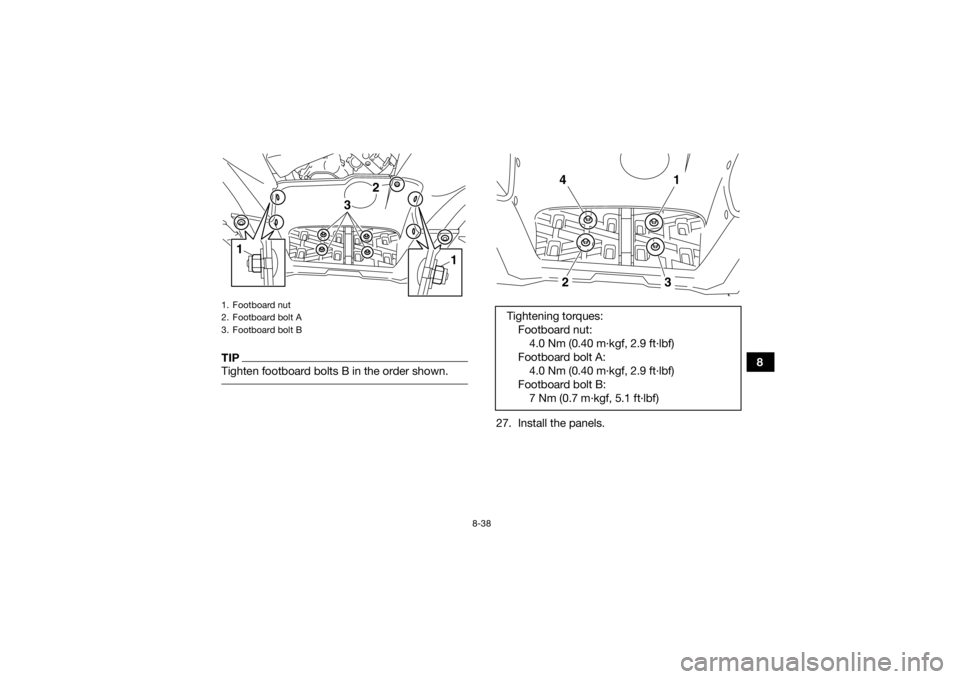

TIPTighten footboard bolts B in the order shown.
27. Install the panels.
1. Footboard nut
2. Footboard bolt A
3. Footboard bolt B
3
1
2
1
Tightening torques:Footboard nut:4.0 Nm (0.40 m·kgf, 2.9 ft·lbf)
Footboard bolt A: 4.0 Nm (0.40 m·kgf, 2.9 ft·lbf)
Footboard bolt B: 7 Nm (0.7 m·kgf, 5.1 ft·lbf)
4
1
2
3
UB3860E0.book Page 38 Monday, July 14, 2014 10:34 AM

8-39
8
EBU27808Cleaning the air filter elementThe air filter element should be cleaned at the in-
tervals specified in the periodic maintenance and
lubrication chart. Clean or, if necessary, replace
the air filter element more frequently if you are rid-

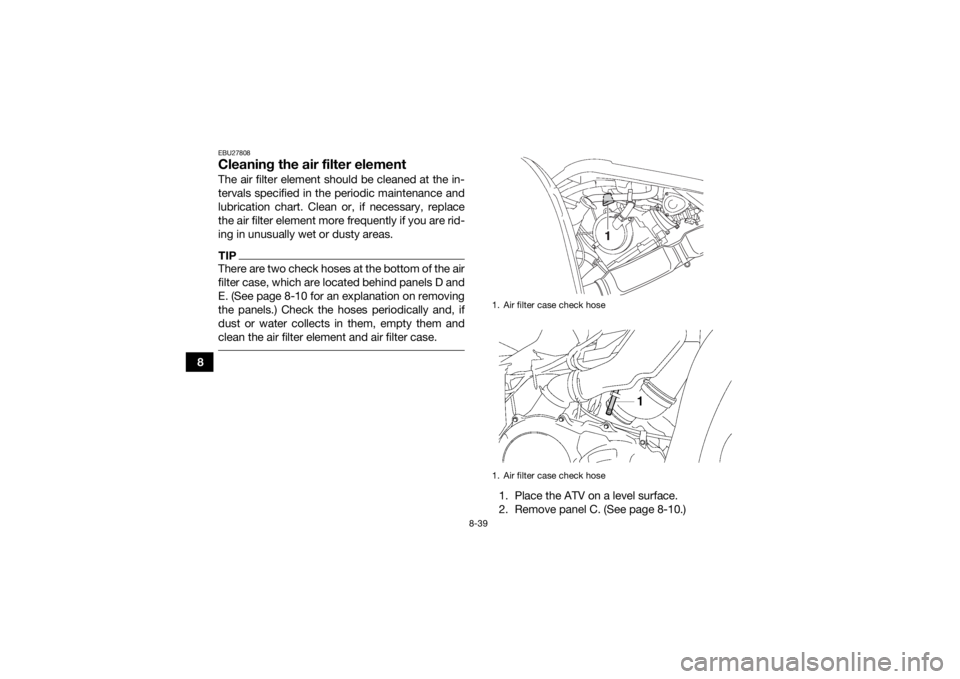

ing in unusually wet or dusty areas.TIPThere are two check hoses at the bottom of the air
filter case, which are located behind panels D and
E. (See page 8-10 for an explanation on removing
the panels.) Check the hoses periodically and, if
dust or water collects in them, empty them and
clean the air filter element and air filter case.
1. Place the ATV on a level surface.
2. Remove panel C. (See page 8-10.)1. Air filter case check hose
1. Air filter case check hose
