Page 111 of 176

YAMAHA GRIZZLY 700 2016  Owners Manual 8-14
8

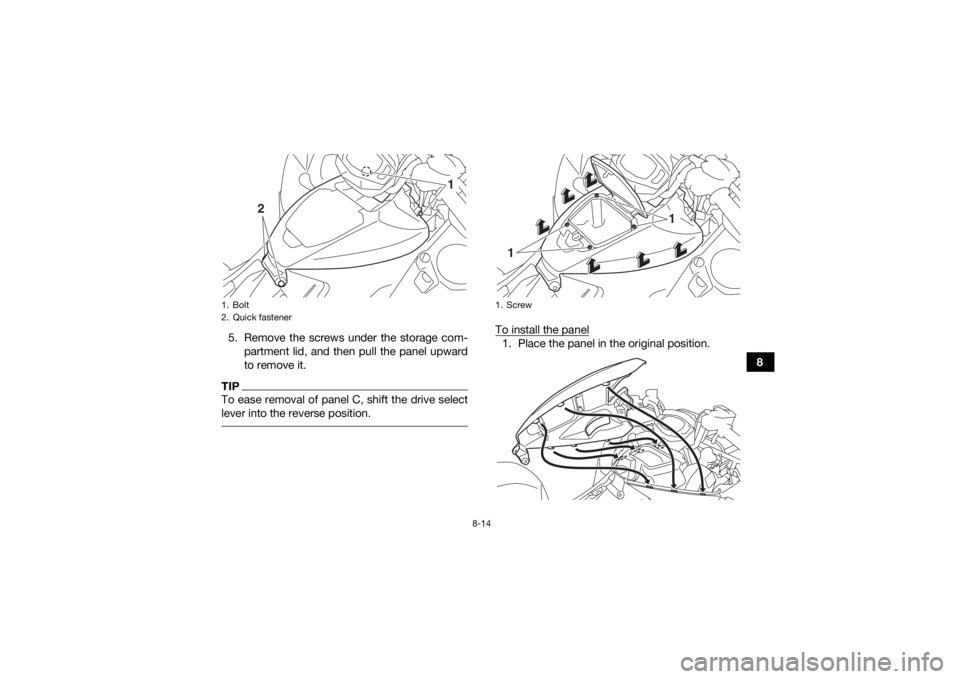

5. Remove the screws under the storage com-
partment lid, and then pull the panel upward
to remove it.
TIPTo ease removal of panel C, shift the drive select
lever into the reverse position.
To

Page 112 of 176

YAMAHA GRIZZLY 700 2016  Owners Manual 8-15

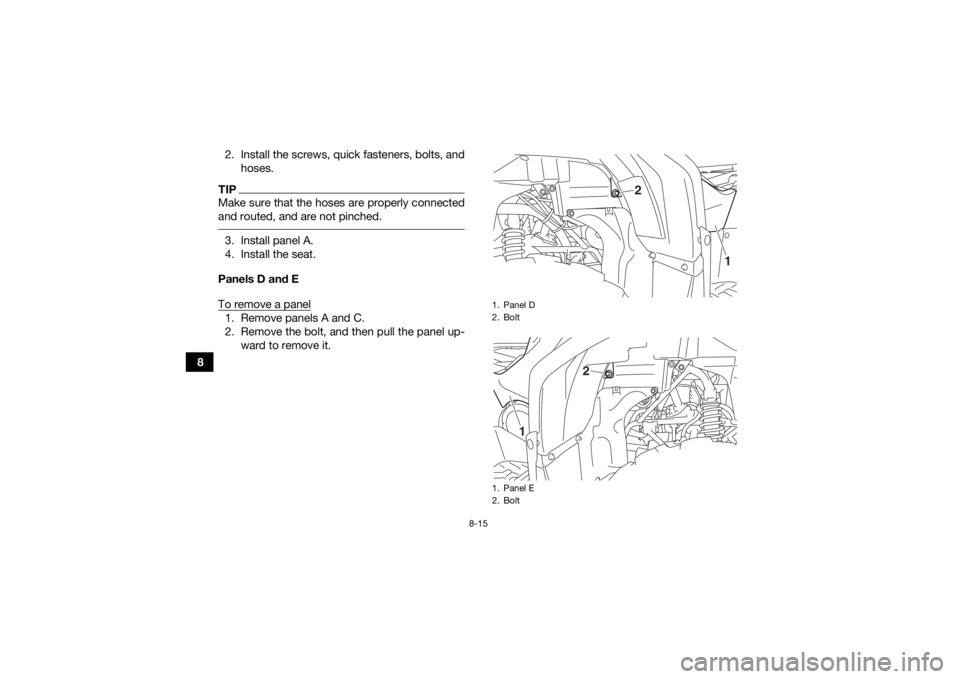

82. Install the screws, quick fasteners, bolts, and
hoses.
TIPMake sure that the hoses are properly connected
and routed, and are not pinched. 3. Install panel A.
4. Install the seat.
Panels D an

Page 113 of 176

YAMAHA GRIZZLY 700 2016  Owners Manual 8-16
8
To install a panel

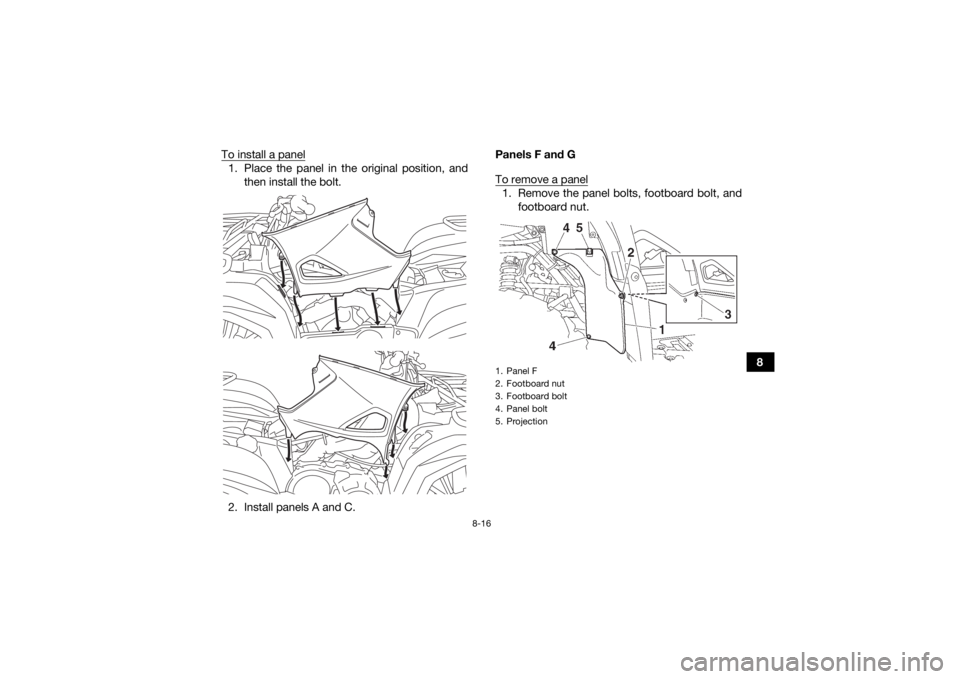

1. Place the panel in the original position, and
then install the bolt.
2. Install panels A and C. Panels F and G
To remove a panel
1. Remove the panel bolts, footboard bolt,

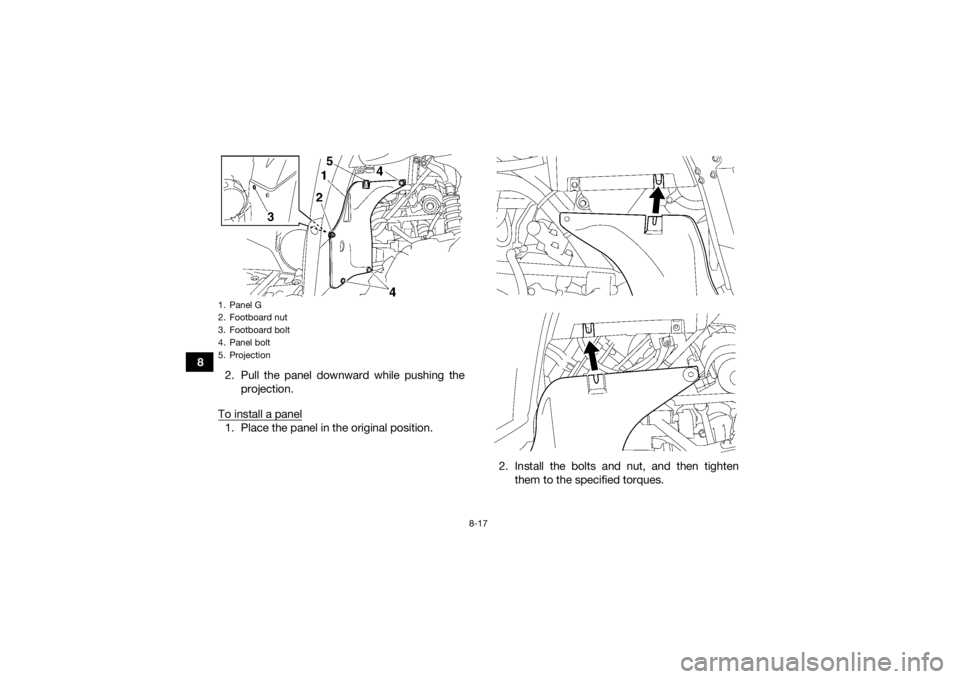

Page 114 of 176

YAMAHA GRIZZLY 700 2016  Owners Manual 8-17
82. Pull the panel downward while pushing the
projection.
To install a panel
1. Place the panel in the original position.
2. Install the bolts and nut, and then tightenthem to the specified torqu

Page 115 of 176

YAMAHA GRIZZLY 700 2016  Owners Manual 8-18
8
EBU34190Checking the spark plugThe spark plug is an important engine component,
which is easy to check. Since heat and deposits
will cause any spark plug to slowly erode, the
spark plug should

Page 116 of 176

YAMAHA GRIZZLY 700 2016  Owners Manual 8-19

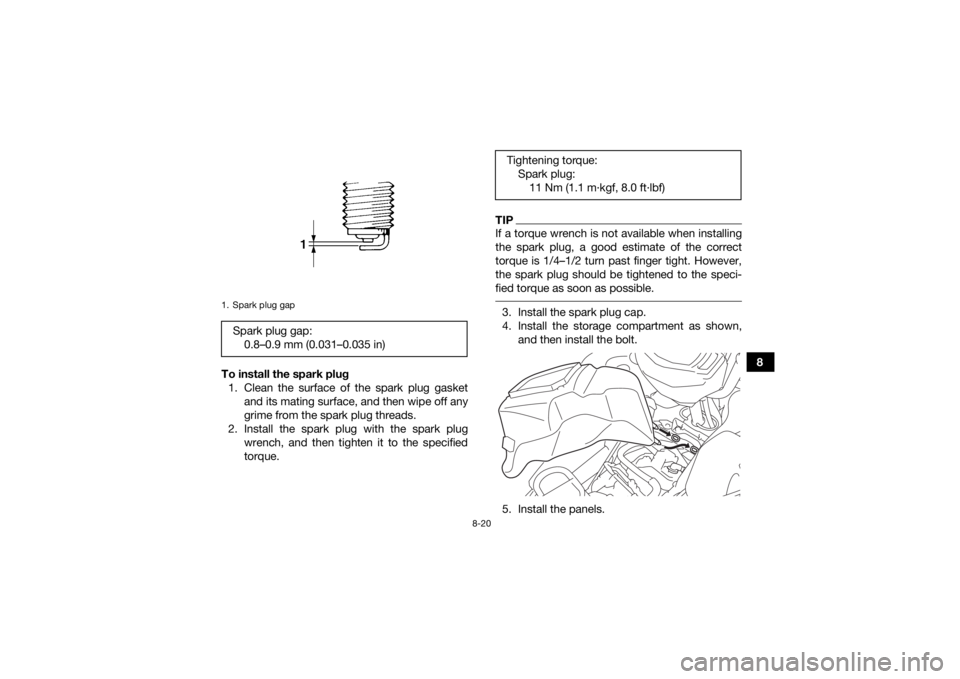

84. Remove the spark plug as shown, with the
spark plug wrench included in the owner’s
tool kit.
To check the spark plug 1. Check that the porcelain insulator around the center electrode of the

Page 117 of 176

YAMAHA GRIZZLY 700 2016  Owners Manual 8-20
8
To install the spark plug
1. Clean the surface of the spark plug gasket and its mating surface, and then wipe off any
grime from the spark plug threads.
2. Install the spark plug with the spark

Page 118 of 176

YAMAHA GRIZZLY 700 2016  Owners Manual 8-21
8
EBU27469Engine oil and oil filter cartridgeThe engine oil level should be checked before
each ride. In addition, the oil must be changed and
the oil filter cartridge replaced at the intervals
s

Page 119 of 176

YAMAHA GRIZZLY 700 2016  Owners Manual 8-22
8
5. Insert the dipstick completely into the oil filler
hole, and then remove it again to check the oil
level.
TIPThe engine oil should be between the minimum
and maximum level marks. 6. If the e

Page 120 of 176

YAMAHA GRIZZLY 700 2016  Owners Manual 8-23
8
TIPSkip steps 6–10 if the oil filter cartridge is not be-
ing replaced. 6. Remove panel F. (See page 8-10.)
7. Remove the oil filter cartridge with an oil filterwrench.
TIPAn oil filter wrenc
