EBU2904DBatteryThe battery is located under panel A. (See page
8-10.)
This model is equipped with a VRLA (Valve Regu-
lated Lead Acid) battery. There is no need to
check the electrolyte or to add distilled water.
However, the battery lead connections need to be
checked and, if necessary, tightened.
WARNING
EWB02161Battery electrolyte is poisonous and danger-
ous, as it contains sulfuric acid, which can
cause severe burns. Avoid contact with skin,
eyes or clothing. Always shield your eyes when
working near batteries.
Antidote:
EXTERNAL: Flush with water.
INTERNAL: Drink large quantities of water or
milk. Follow with milk of magnesia, beaten egg
or vegetable oil. Call a physician immediately.
EYES: Flush with water for 15 minutes and get
prompt medical attention.
Batteries produce explosive gases. Keep
sparks, flame, cigarettes or other sources of
ignition away. Ventilate when charging or using
in an enclosed space.KEEP OUT OF REACH OF CHILDREN.
NOTICEECB00621Never attempt to remove the battery cell seals,
as this would permanently damage the battery. To remove the battery
1. Remove panel A. (See page 8-10.)
2. Remove the front carrier by removing the bolts.1. Front carrier
2. Carrier bolt (upper)
1
2
2
U2UD60E0.book Page 54 Tuesday, April 28, 2015 11:55 AM
Page 152 of 176

8-55
83. Remove the battery holding plate by remov-
ing the nuts.
4. Disconnect the negative battery lead first, then the positive battery lead by removing
their bolt. NOTICE: When removing the bat-
tery, the main switch must be off, and the
negative lead must be disconnected be-
fore the positive lead.
[ECB01002]
5. Pull the battery out of its compartment.
To charge the battery
Have a Yamaha dealer charge the battery as soon
as possible if it seems to have discharged. Keep
in mind that the battery tends to discharge more
quickly if the ATV is equipped with optional elec-
trical accessories.

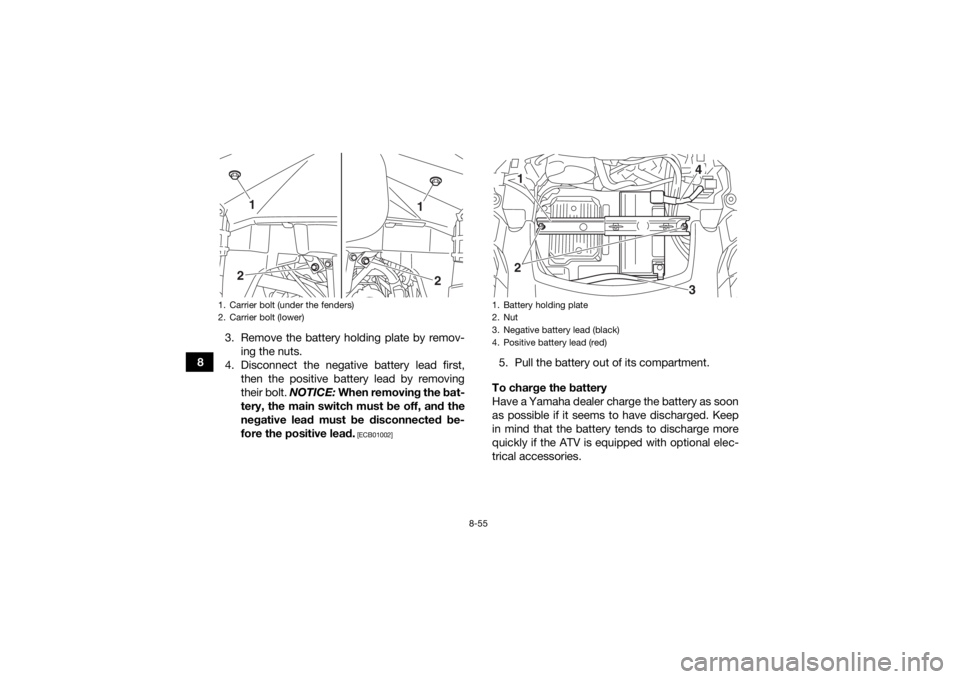

1. Carrier bolt (under the fenders)
2. Carrier bolt (lower)
1
2
2
1
1. Battery holding plate
2. Nut
3. Negative battery lead (black)
4. Positive battery lead (red)
12
43
U2UD60E0.book Page 55 Tuesday, April 28, 2015 11:55 AM
Page 153 of 176

8-56
8
NOTICEECB00932To charge a VRLA (Valve Regulated Lead Acid)
battery, a special (constant-voltage) battery
charger is required. Using a conventional bat-
tery charger will damage the battery. To store the battery
If the ATV will not be used for more than one
month, remove the battery, fully charge it, and
then place it in a cool, dry place.
If the battery will be stored for more than two
months, check it at least once a month and fully
charge it if necessary.NOTICEECB00941Always keep the battery charged. Storing a
discharged battery can cause permanent bat-
tery damage. To install the batteryTIPBe sure the battery is fully charged. 1. Place the battery in its compartment. 2. Connect the positive battery lead first, then
connect the negative battery lead by installing
their bolt. NOTICE: When installing the bat-
tery, the main switch must be off, and the
positive lead must be connected before
the negative lead.
[ECB01111]
3. Install the battery holding plate by installing the nuts.
4. Install the front carrier by installing the bolts and tightening them to the specified torques.1. Positive battery lead (red)
2. Negative battery lead (black)
12
U2UD60E0.book Page 56 Tuesday, April 28, 2015 11:55 AM
Page 154 of 176

8-57
85. Install the panel.
EBU30521Replacing a fuse
Tightening torques:
Carrier bolt (upper):34 Nm (3.4 m·kgf, 25 ft·lbf)
Carrier bolt (lower): 34 Nm (3.4 m·kgf, 25 ft·lbf)
Carrier bolt (under the fenders): 7 Nm (0.7 m·kgf, 5.1 ft·lbf)

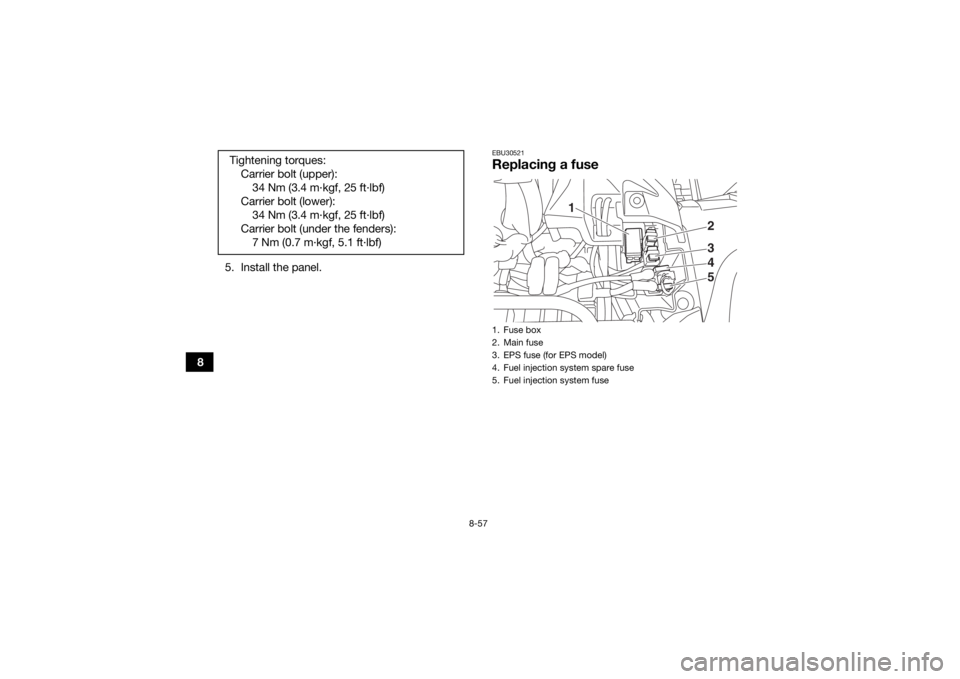

1. Fuse box
2. Main fuse
3. EPS fuse (for EPS model)
4. Fuel injection system spare fuse
5. Fuel injection system fuse
2345
1
U2UD60E0.book Page 57 Tuesday, April 28, 2015 11:55 AM
Page 155 of 176

8-58
8
The main fuse, the fuel injection system fuse, the
EPS fuse, and the fuse box are located under pan-
el A. (See page 8-10.)
If a fuse is blown, replace it as follows. 1. Turn the key to “ ” (off) and turn off all elec- trical circuits.
NOTICEECB00641To prevent accidental short-circuiting, turn off
the main switch when checking or replacing a
fuse. 2. Remove the blown fuse, and then install anew fuse of the specified amperage.
WARNING! Always use a fuse of the spec- ified rating, and never use a substitute ob-
ject in place of the proper fuse. An
improper fuse or a substitute object can
cause damage to the electrical system,
which could lead to a fire.
[EWB02173]

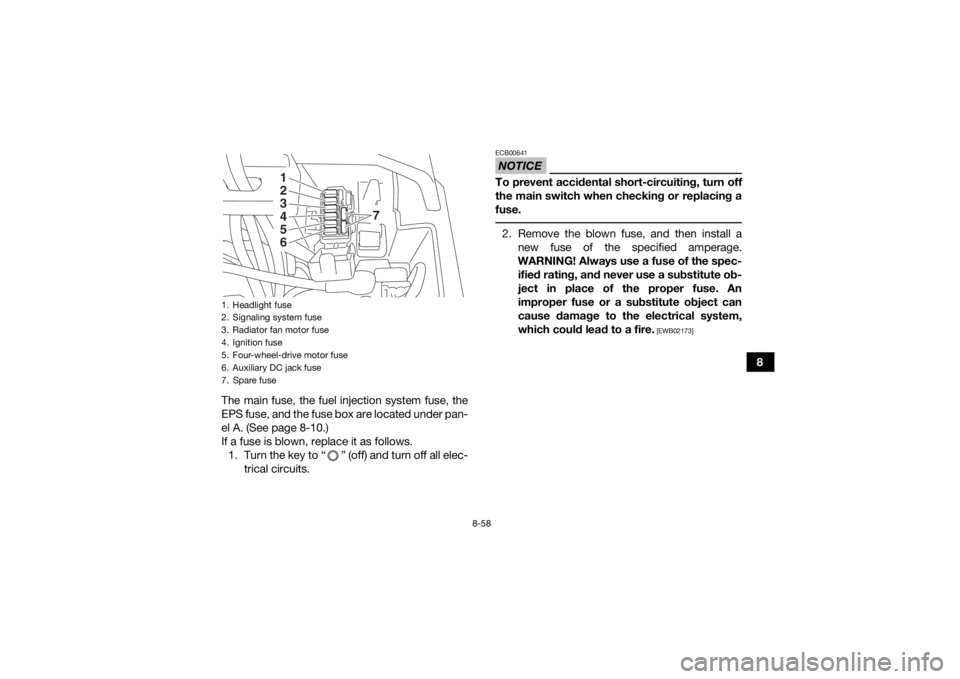

1. Headlight fuse
2. Signaling system fuse
3. Radiator fan motor fuse
4. Ignition fuse
5. Four-wheel-drive motor fuse
6. Auxiliary DC jack fuse
7. Spare fuse
123456
7
U2UD60E0.book Page 58 Tuesday, April 28, 2015 11:55 AM
Page 156 of 176

8-59
83. Turn the key to “ ” (on) and turn on the elec-trical circuits to check if the devices operate.
4. If the fuse immediately blows again, have a Yamaha dealer check the electrical system.
EBU34710Replacing a headlight bulbCenter headlight
If the headlight bulb burns out, replace it as fol-
lows.1. Remove the headlight cover by removing the quick fasteners.
2. Remove the headlight bulb holder cover by pulling it off.
Specified fuses:
Main fuse:40.0 A
Headlight fuse: 10.0 A
Ignition fuse: 10.0 A
Four-wheel-drive motor fuse: 10.0 A
Signaling system fuse: 10.0 A
Auxiliary DC jack fuse: 10.0 A
Radiator fan motor fuse: 20.0 A
Fuel injection system fuse: 15.0 A
EPS fuse: 40.0 A (YFM70GPHG, YFM70GPLG,

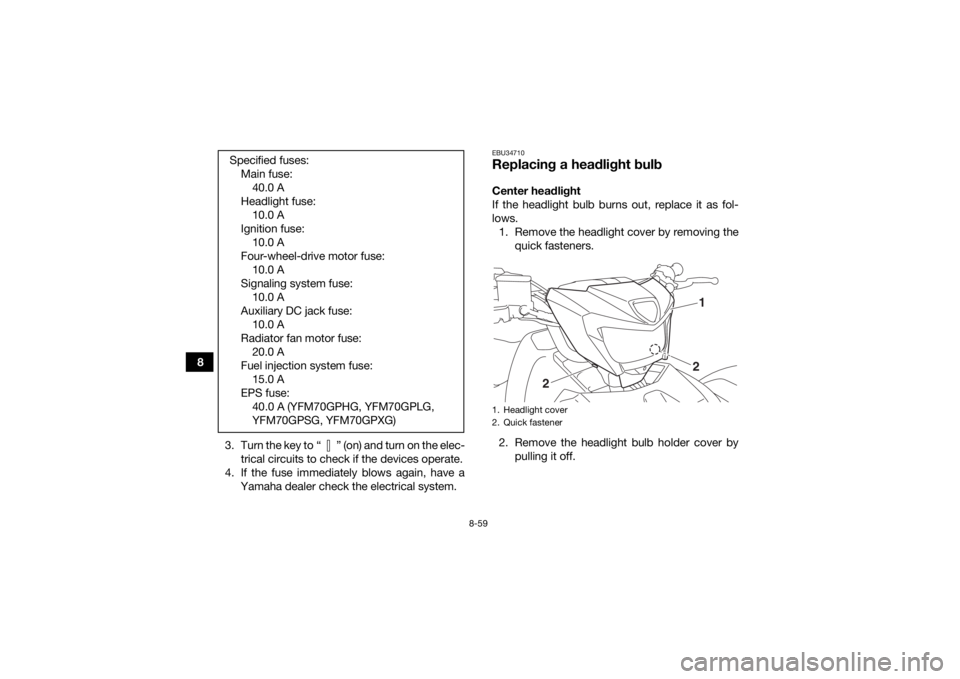

YFM70GPSG, YFM70GPXG)1. Headlight cover
2. Quick fastener
1
2
2
U2UD60E0.book Page 59 Tuesday, April 28, 2015 11:55 AM
Page 157 of 176

8-60
8
3. Remove the headlight bulb holder by pushing
it in and turning it counterclockwise. 4. Remove the burnt-out bulb.
5. Place a new headlight bulb into position.
NOTICE: Do not touch the glass part of the
headlight bulb to keep it free from oil, oth-
erwise the transparency of the glass, the
luminosity of the bulb, and the bulb life will
be adversely affected. Thoroughly clean
off any dirt and fingerprints on the head-
light bulb using a cloth moistened with al-
cohol or thinner.
[ECB00652]
6. Install the bulb holder by pushing it in and turning it clockwise.

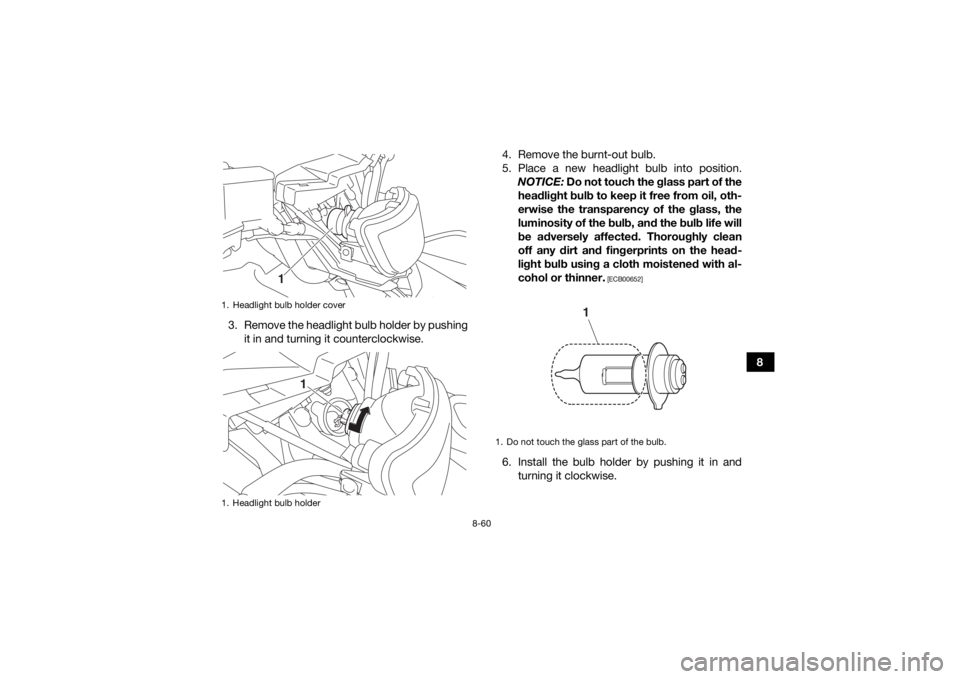

1. Headlight bulb holder cover
1. Headlight bulb holder
1
1
1. Do not touch the glass part of the bulb.
1
U2UD60E0.book Page 60 Tuesday, April 28, 2015 11:55 AM
Page 158 of 176
![YAMAHA GRIZZLY 700 2016 Owners Manual 8-61
87. Install the bulb holder cover.
NOTICE: Make
sure the headlight bulb holder cover is se-
curely fitted over the bulb holder and seat-
ed properly.
[ECB00672]
8. Install the headlight cover a YAMAHA GRIZZLY 700 2016 Owners Manual 8-61
87. Install the bulb holder cover.
NOTICE: Make
sure the headlight bulb holder cover is se-
curely fitted over the bulb holder and seat-
ed properly.
[ECB00672]
8. Install the headlight cover a](/img/51/50455/w960_50455-157.png)
8-61
87. Install the bulb holder cover.
NOTICE: Make
sure the headlight bulb holder cover is se-
curely fitted over the bulb holder and seat-
ed properly.
[ECB00672]
8. Install the headlight cover as shown, and then install the quick fasteners.
9. Adjust the headlight beam if necessary.
Left and right headlights
This model is equipped with LED-type headlights
for the left and right headlights.
If the left or right headlight does not come on, have
a Yamaha dealer check it.
EBU25553Adjusting a headlight beamNOTICEECB00691It is advisable to have a Yamaha dealer make
this adjustment. To raise a headlight beam, turn the headlight
beam adjusting screw in direction (a).
To lower a headlight beam, turn the adjusting
screw in direction (b).

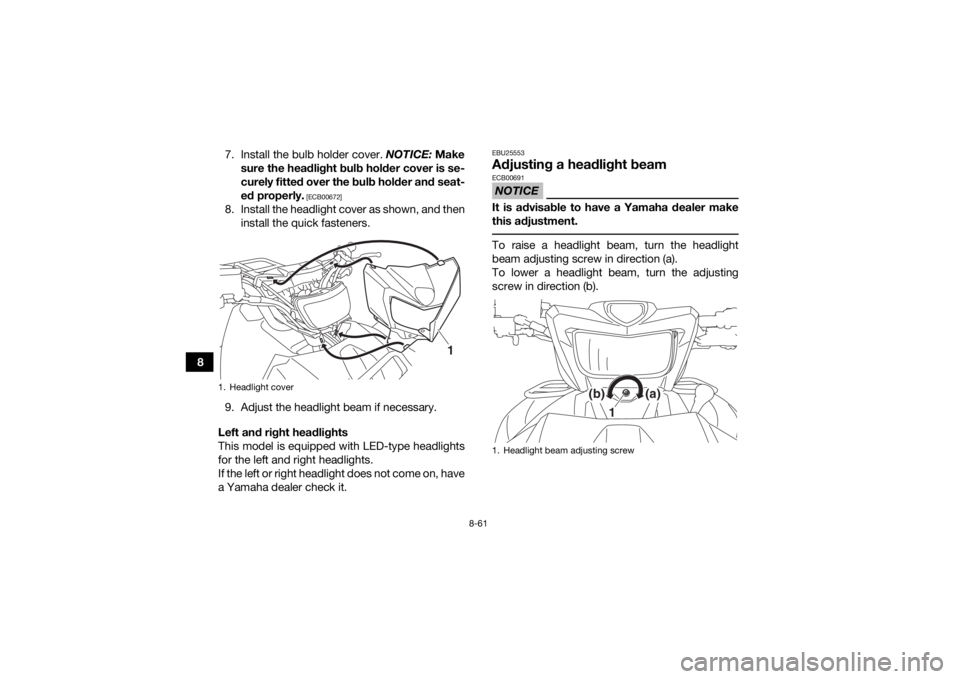

1. Headlight cover
1

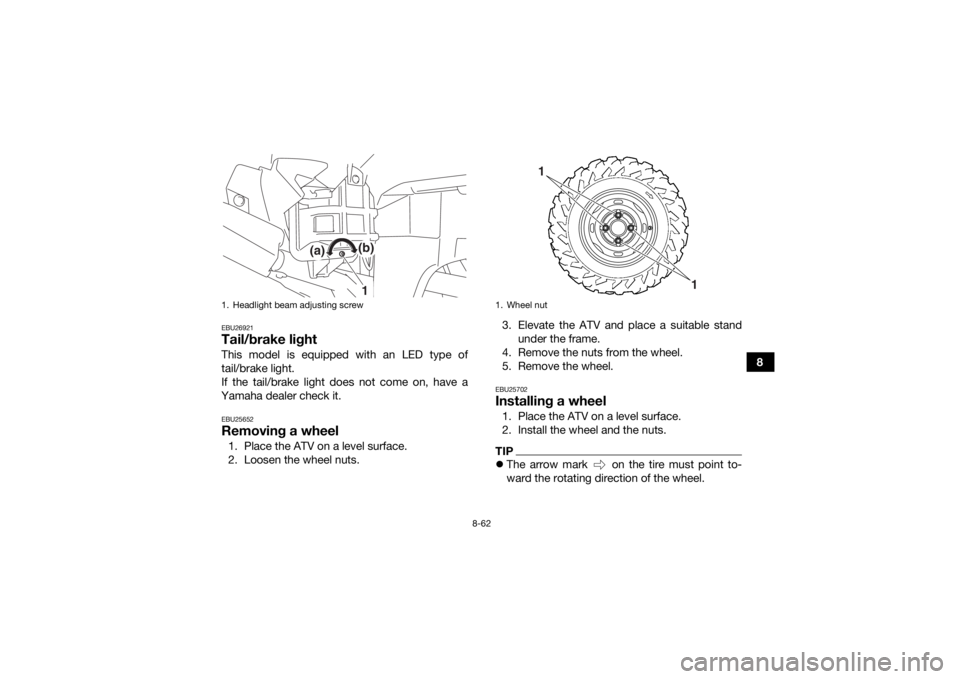

1. Headlight beam adjusting screw
(b)
(a)
1
U2UD60E0.book Page 61 Tuesday, April 28, 2015 11:55 AM
Page 159 of 176

8-62
8
EBU26921Tail/brake lightThis model is equipped with an LED type of
tail/brake light.
If the tail/brake light does not come on, have a
Yamaha dealer check it.EBU25652Removing a wheel1. Place the ATV on a level surface.
2. Loosen the wheel nuts. 3. Elevate the ATV and place a suitable stand
under the frame.
4. Remove the nuts from the wheel.
5. Remove the wheel.
EBU25702Installing a wheel1. Place the ATV on a level surface.
2. Install the wheel and the nuts.TIP The arrow mark on the tire must point to-
ward the rotating direction of the wheel.
1. Headlight beam adjusting screw
(b)
(a)
1
1. Wheel nut
1
1
U2UD60E0.book Page 62 Tuesday, April 28, 2015 11:55 AM
Page 160 of 176

8-63
8
Tapered nuts are used for both the front and
rear wheels. Install the nuts with their tapered
side towards the wheel.
3. Lower the ATV to the ground.
4. Tighten the wheel nuts to the specified
torques.

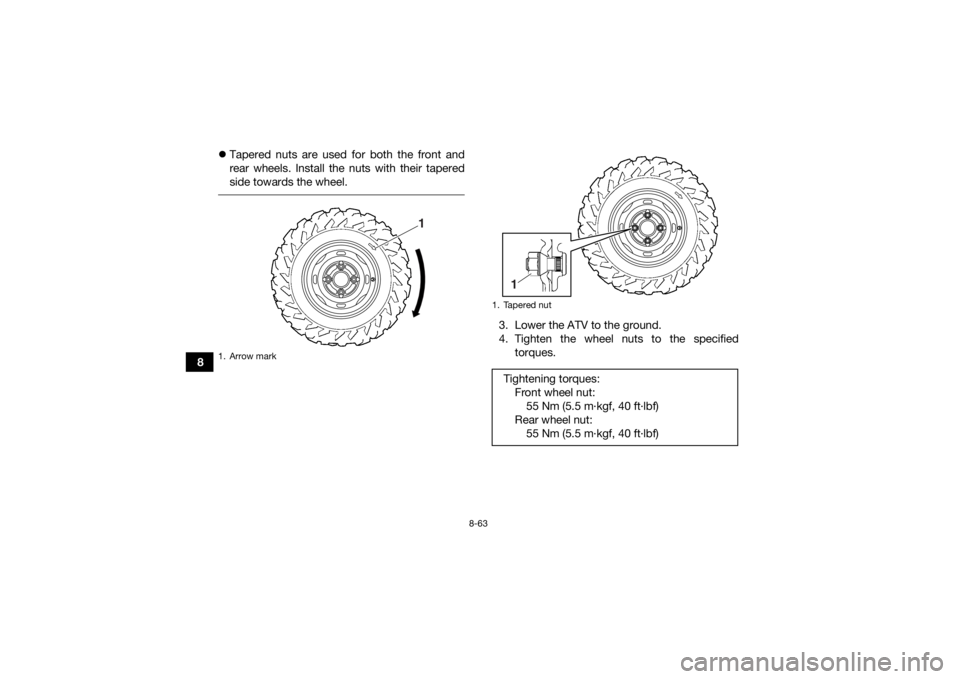

1. Arrow mark
1
1. Tapered nutTightening torques:Front wheel nut:55 Nm (5.5 m·kgf, 40 ft·lbf)
Rear wheel nut: 55 Nm (5.5 m·kgf, 40 ft·lbf)1
