YAMAHA GRIZZLY 700 2016 Workshop Manual 4-18
4

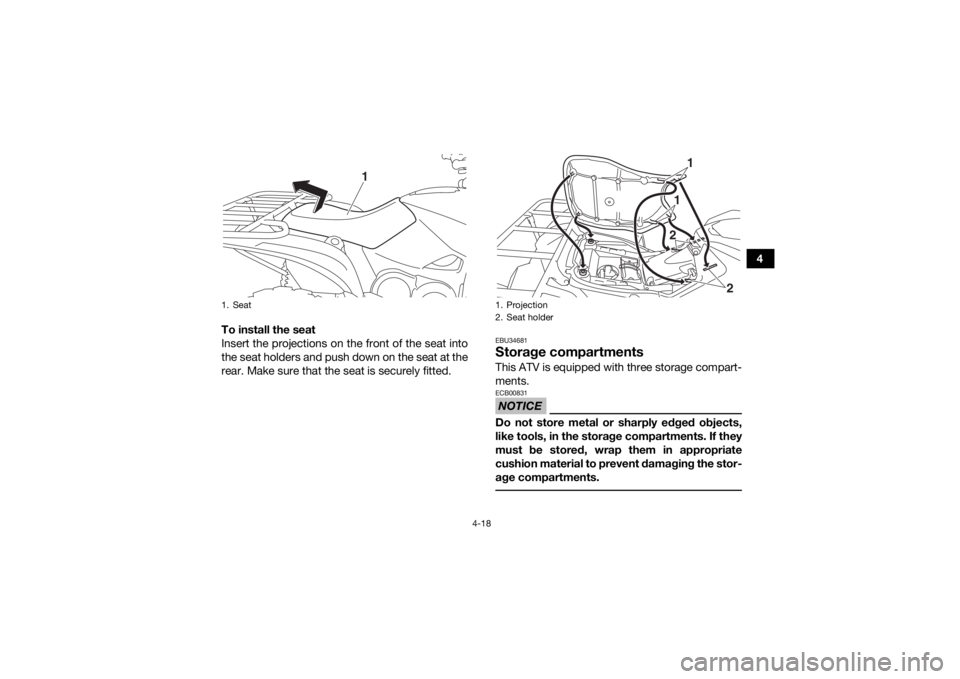

To install the seat
Insert the projections on the front of the seat into
the seat holders and push down on the seat at the
rear. Make sure that the seat is securely fitted.
EBU34681Storage comp

Page 52 of 176

YAMAHA GRIZZLY 700 2016 Workshop Manual 4-19

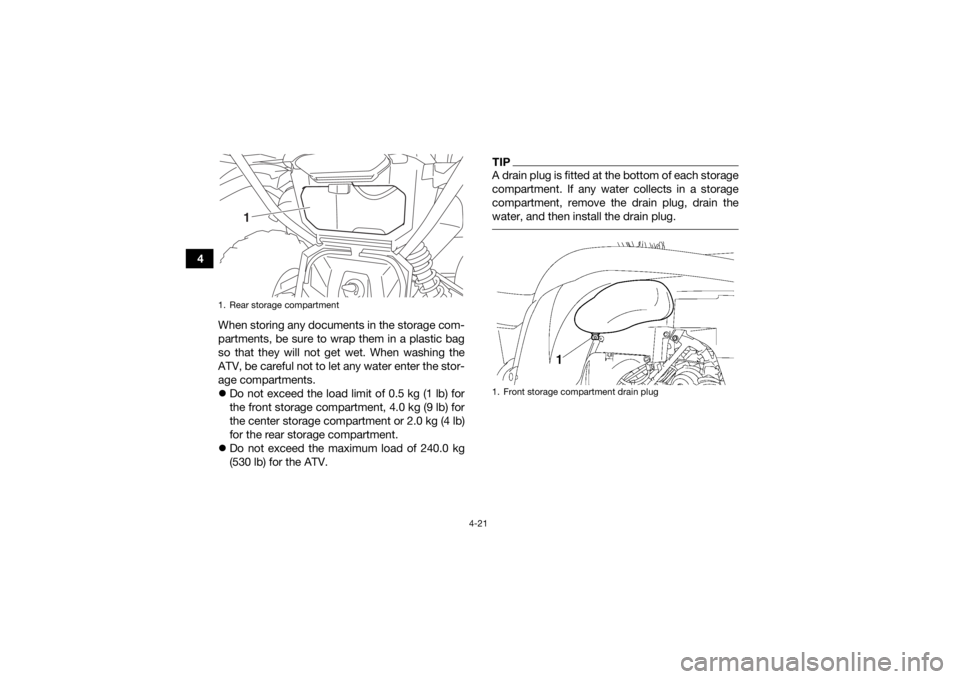

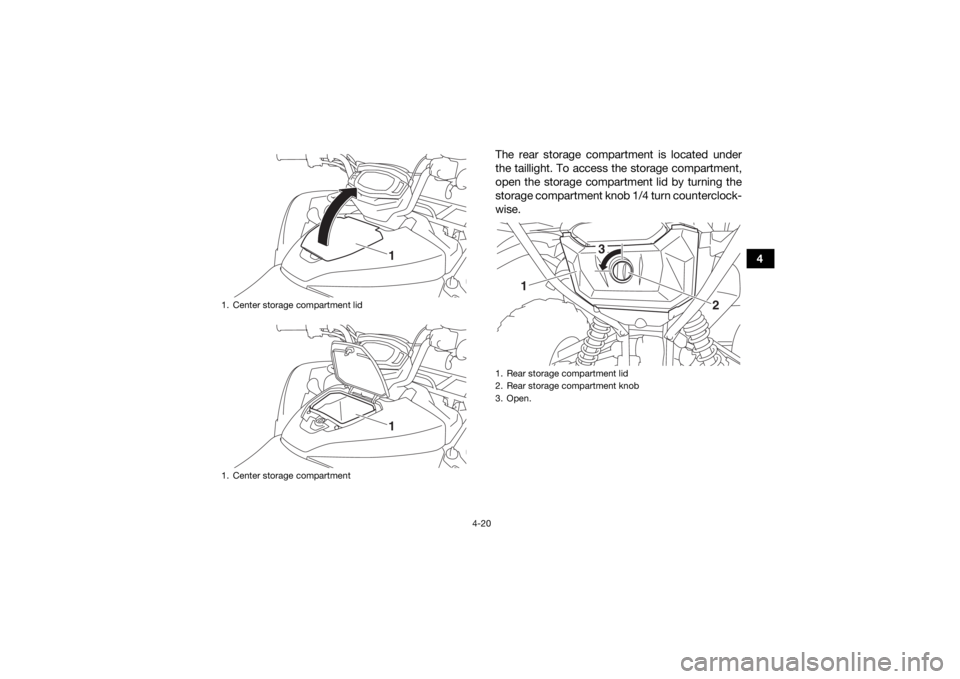

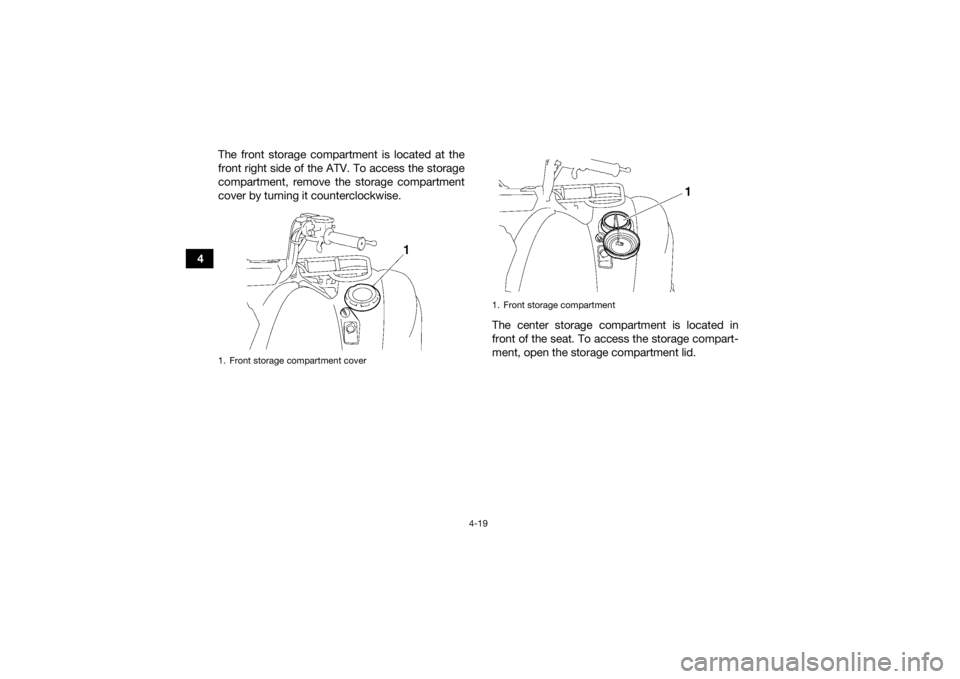

4The front storage compartment is located at the
front right side of the ATV. To access the storage
compartment, remove the storage compartment
cover by turning it counterclockwise.
The center st

Page 53 of 176

YAMAHA GRIZZLY 700 2016 Workshop Manual 4-20
4

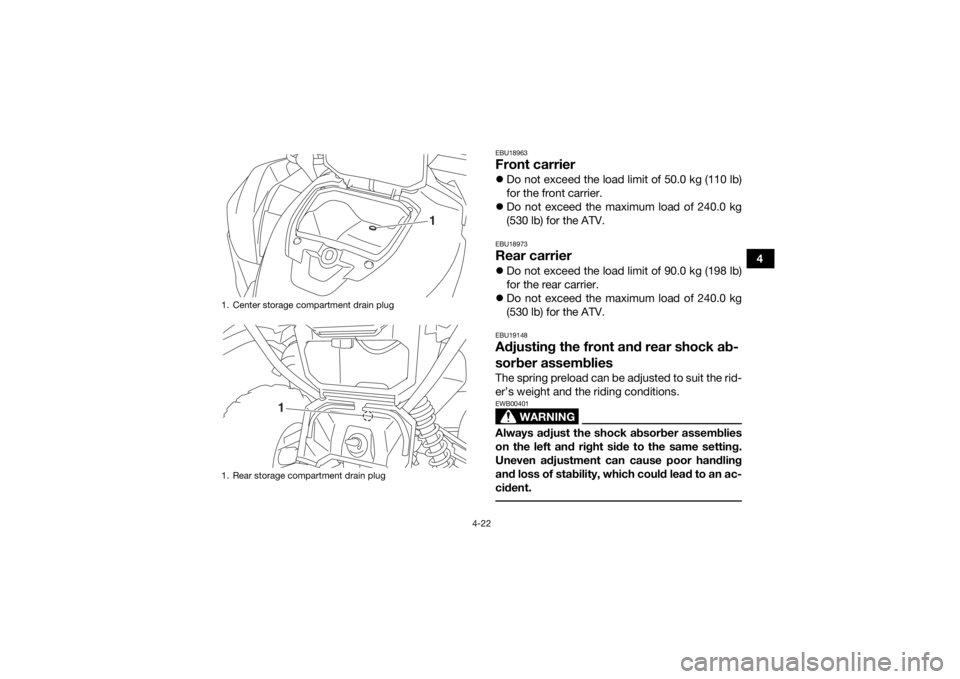

The rear storage compartment is located under
the taillight. To access the storage compartment,
open the storage compartment lid by turning the
storage compartment knob 1/4 turn counterclock-
w

Page 54 of 176

YAMAHA GRIZZLY 700 2016 Workshop Manual 4-21
4When storing any documents in the storage com-
partments, be sure to wrap them in a plastic bag
so that they will not get wet. When washing the
ATV, be careful not to let any water enter the sto

Page 55 of 176

YAMAHA GRIZZLY 700 2016 Workshop Manual 4-22
4
EBU18963Front carrierDo not exceed the load limit of 50.0 kg (110 lb)
for the front carrier.
 Do not exceed the maximum load of 240.0 kg
(530 lb) for the ATV.EBU18973Rear carrierDo not

Page 56 of 176

YAMAHA GRIZZLY 700 2016 Workshop Manual 4-23

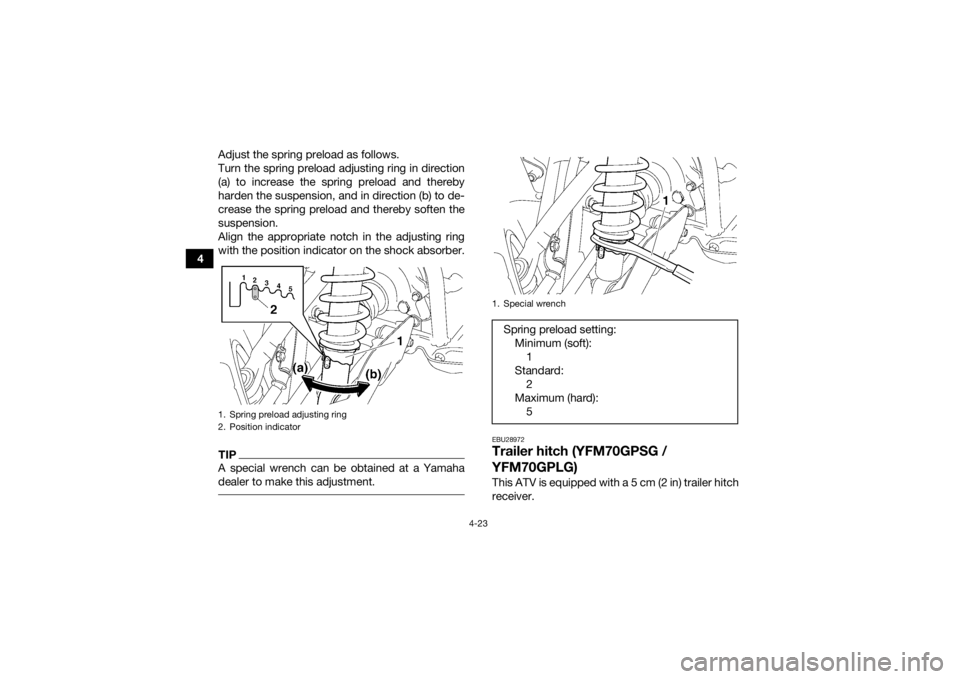

4Adjust the spring preload as follows.
Turn the spring preload adjusting ring in direction
(a) to increase the spring preload and thereby
harden the suspension, and in direction (b) to de-
crease

Page 57 of 176

YAMAHA GRIZZLY 700 2016 Workshop Manual 4-24
4
Trailer towing equipment can be obtained at a
Yamaha dealer. (See page 6-7 for precaution in- formation.)
EBU19184Auxiliary DC jackThe auxiliary DC jack is located at the front right
side of th

Page 58 of 176

YAMAHA GRIZZLY 700 2016 Workshop Manual 4-25
4
NOTICEECB00121Do not use accessories requiring more than
the above maximum capacity. This may
overload the circuit and cause the fuse to
blow.
 If accessories are used without the engine

Page 59 of 176

YAMAHA GRIZZLY 700 2016 Workshop Manual 5-1
5
EBU19203
PRE-OPERATION CHECKS
EBU19226Inspect your vehicle each time you use it to make sure the vehicle is in safe operating condition. Always
follow the inspection and maintenance procedures a

Page 60 of 176

YAMAHA GRIZZLY 700 2016 Workshop Manual 5-2
5
Front brake• Check operation. If soft or spongy, have Yamaha dealer bleed hy-
draulic system.
• Check brake pads for wear, and replace if necessary.
• Check brake fluid level in reservoir,
