YAMAHA GRIZZLY 700 2017 Owners Manual
Manufacturer: YAMAHA, Model Year: 2017, Model line: GRIZZLY 700, Model: YAMAHA GRIZZLY 700 2017Pages: 174, PDF Size: 4.45 MB
Page 1 of 174

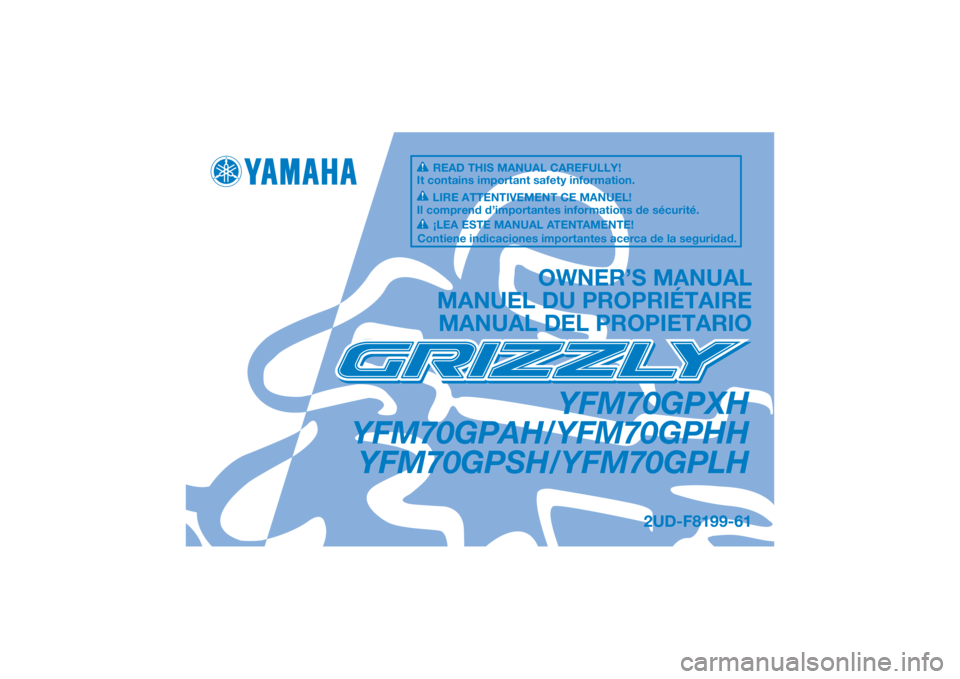

DIC183
YFM70GPXH
YFM70GPAH/YFM70GPHH YFM70GPSH/YFM70GPLH
OWNER’S MANUAL
MANUEL DU PROPRIÉTAIRE MANUAL DEL PROPIETARIO
2UD-F8199-61
READ THIS MANUAL CAREFULLY!
It contains important safety information.
LIRE ATTENTIVEMENT CE MANUEL!
Il comprend d’importantes informations de sécurité.
¡LEA ESTE MANUAL ATENTAMENTE!
Contiene indicaciones importantes acerca de la seguridad.
Page 2 of 174
DIC183
Original instructionsNotice originaleManual original
PRINTED IN USA
2016.05-0.4×1 CR (E,F,S)
Page 3 of 174

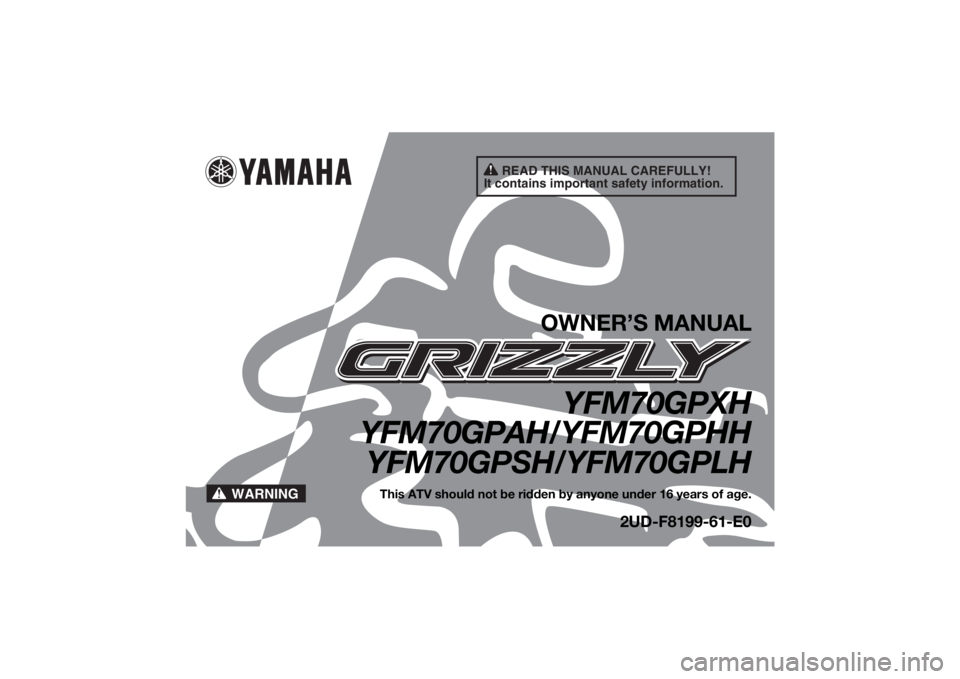

READ THIS MANUAL CAREFULLY!
It contains important safety information.
WARNING
OWNER’S MANUAL
YFM70GPXH
YFM70GPAH/YFM70GPHH
YFM70GPSH/YFM70GPLH
This ATV should not be ridden by anyone under 16 years of age.
2UD-F8199-61-E0
U2UD61E0.book Page 1 Monday, April 25, 2016 10:55 AM
Page 4 of 174
EBU2785F
Read this manual carefully before operating this vehicle. This manual should stay with this ve-
hicle if it is sold.
EN15997, ANSI/SVIA 1-2010
General Manager
Engineering Division
Recreational Vehicle Business Unit
Vehicle & Solution Business Operations
YAMAHA MOTOR CO., LTD.
05 February, 2016
We, YAMAHA MOTOR CO., LTD. 2500 Shingai, Iwata, Japan,
declare in sole responsibility, that the product
(Make, model)
(If applicable)
and to the other relevant Directives of EEC
2014/30/EU
(Title and/or number and date of issue of the other Directives of EEC)
(If applicable)YAMAHA MOTOR EUROPE N.V.
Koolhovenlaan 101, 1119 NC Schiphol-Rijk, The Netherlands
Signature
Akihiro Tsuzuki
Date of Issue
to which this declaration applies, conforms to the essential health and
safety requirements of Directive 2006/42/EC
To effect correct application of the essential health and safety requirements
stated in the Directives of EEC, the following-standards and/or technical
specifications were consulted:
(Title and/or number and date of issue of standards and/or specifications)
Authorized Representative

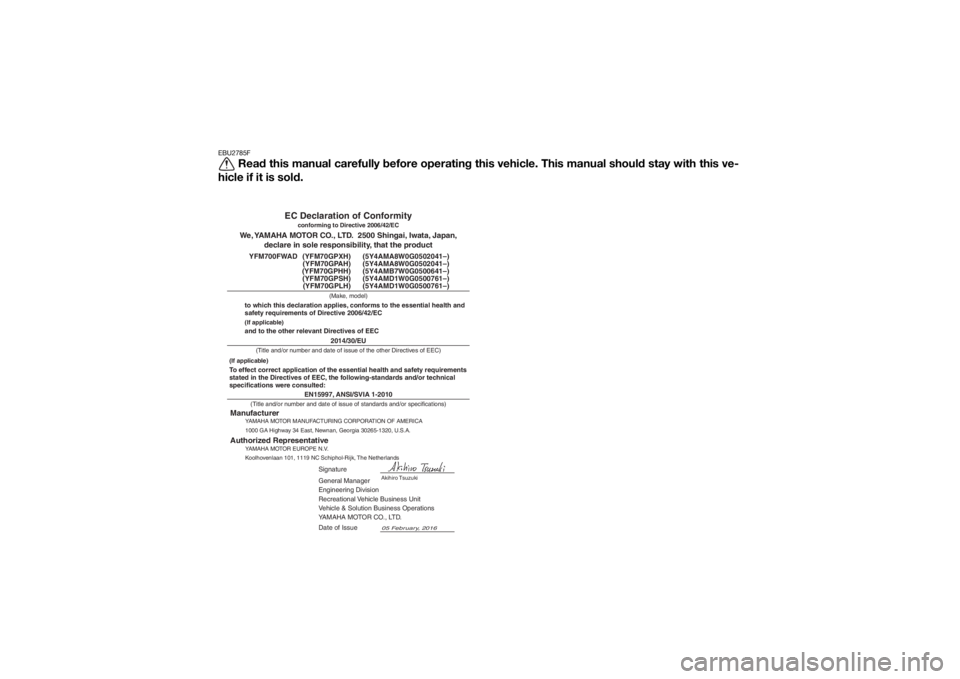

EC Declaration of Conformity
conforming to Directive 2006/42/EC
Manufacturer
YAMAHA MOTOR MANUFACTURING CORPORATION OF AMERICA
1000 GA Highway 34 East, Newnan, Georgia 30265-1320, U.S.A.YFM700FWAD (YFM70GPXH) (5Y4AMA8W0G0502041–)
(YFM70GPAH) (5Y4AMA8W0G0502041–)
(YFM70GPHH) (5Y4AMB7W0G0500641–)
(YFM70GPSH) (5Y4AMD1W0G0500761–)
(YFM70GPLH) (5Y4AMD1W0G0500761–)
U2UD61E0.book Page 1 Monday, April 25, 2016 10:55 AM
Page 5 of 174
EBU17171
INTRODUCTION
EBU17293Congratulations on your purchase of the Yamaha YFM70GPXH / YFM70GPAH / YFM70GPHH /
YFM70GPSH / YFM70GPLH. This ATV represents the result of many years of Yamaha experience in the
production of fine sporting, touring, and pacesetting racing machines. With the purchase of this Yamaha,
you can now appreciate the high degree of craftsmanship and reliability that have made Yamaha a leader
in these fields.
This manual will provide you with a good basic understanding of the features and operation of this ATV.
This manual includes important safety information. It provides information about special techni-
ques and skills necessary to ride the ATV. It also includes basic maintenance and inspection proce-
dures. If you have any questions regarding the operation or maintenance of your ATV, please consult a
Yamaha dealer.
AN IMPORTANT SAFETY MESSAGE:
Read this manual completely before operating your ATV. Make sure you understand all instructions.
Pay close attention to the warning and notice labels on the ATV.
This ATV should not be ridden by anyone under 16 years of age.U2UD61E0.book Page 1 Monday, April 25, 2016 10:55 AM
Page 6 of 174
EBU17331
IMPORTANT MANUAL INFORMATION
EBU17343FAILURE TO FOLLOW THE WARNINGS CONTAINED IN THIS MANUAL CAN RESULT IN SERIOUS IN-
JURY OR DEATH.
Particularly important information is distinguished in this manual by the following notations:
* Product and specifications are subject to change without notice. This is the safety alert symbol. It is used to alert you to potential per-
sonal injury hazards. Obey all safety messages that follow this sym-
bol to avoid possible injury or death.
A WARNING indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
A NOTICE indicates special precautions that must be taken to avoid
damage to the vehicle or other property.
A TIP provides key information to make procedures easier or clearer.
WARNING
NOTICETIPU2UD61E0.book Page 1 Monday, April 25, 2016 10:55 AM
Page 7 of 174
EBU17351
IMPORTANT NOTICE
EBU17373This ATV is designed and manufactured for use on unpaved surfaces only. It is unsafe to operate this ATV
on any paved surface, paved street, paved road or motorway.
Please check your local riding laws and regulations before operating this ATV.
EBU17411
YFM70GPXH / YFM70GPAH
YFM70GPHH / YFM70GPSH / YFM70GPLH OWNER’S MANUAL
©2016 by Yamaha Motor Co., Ltd. 1st edition, February 2016All rights reserved.
Any reprinting or unauthorized use without the written permission of Yamaha Motor Co., Ltd.
is expressly prohibited. Printed in U.S.A.
U2UD61E0.book Page 1 Monday, April 25, 2016 10:55 AM
Page 8 of 174
EBU17421
TABLE OF CONTENTS
LOCATION OF THE WARNING AND
SPECIFICATION LABELS .............................. 1-1
SAFETY INFORMATION ................................ 2-1
DESCRIPTION................................................ 3-1Left view ...................................................... 3-1
Right view.................................................... 3-1
Controls and instruments............................ 3-2
INSTRUMENT AND CONTROL
FUNCTIONS ................................................... 4-1 Main switch ................................................. 4-1
Indicator lights and warning lights .............. 4-2
Multi-function display ................................. 4-5
Handlebar switches .................................... 4-8
Throttle lever ............................................. 4-13
Speed limiter ............................................. 4-14
Front brake lever ....................................... 4-15
Brake pedal and rear brake lever .............. 4-15
Drive select lever ....................................... 4-16
Fuel tank cap............................................. 4-16
Fuel ........................................................... 4-16
Seat ........................................................... 4-18 Storage compartments ............................. 4-19
Front carrier .............................................. 4-23
Rear carrier ............................................... 4-23
Adjusting the front and rear shock
absorber assemblies ............................. 4-23
Trailer hitch (YFM70GPSH / YFM70GPLH).......................................... 4-24
Auxiliary DC jack....................................... 4-24
PRE-OPERATION CHECKS .......................... 5-1 Fuel ............................................................. 5-3
Engine oil .................................................... 5-3
Final gear oil ............................................... 5-3
Differential gear oil ...................................... 5-3
Coolant ....................................................... 5-3
Front and rear brakes ................................. 5-3
Throttle lever ............................................... 5-4
Tires ............................................................ 5-4
Chassis fasteners ....................................... 5-6
Instruments, lights and switches ................ 5-7
OPERATION .................................................. 6-1 Starting the engine ..................................... 6-1U2UD61E0.book Page 1 Monday, April 25, 2016 10:55 AM
Page 9 of 174
Operating the drive select lever and driving in reverse ....................................... 6-2
Engine break-in ........................................... 6-4
Parking ........................................................ 6-5
Parking on a slope ...................................... 6-5
Accessories and loading ............................. 6-5
RIDING YOUR ATV ........................................ 7-1 GETTING TO KNOW YOUR ATV ................ 7-2
RIDE WITH CARE AND GOOD JUDGMENT .............................................. 7-2
BE CAREFUL WHERE YOU RIDE ............. 7-10
TURNING YOUR ATV................................ 7-13
CLIMBING UPHILL ................................... 7-14
RIDING DOWNHILL .................................. 7-16
CROSSING A SLOPE................................ 7-18
CROSSING THROUGH SHALLOW WATER .................................................... 7-19
RIDING OVER ROUGH TERRAIN ............. 7-21
SLIDING AND SKIDDING.......................... 7-22
WHAT TO DO IF... ..................................... 7-23
WHAT TO DO... ......................................... 7-23
PERIODIC MAINTENANCE AND
ADJUSTMENT................................................ 8-1 Owner’s manual and tool kit ....................... 8-2 Periodic maintenance chart for the
emission control system ........................... 8-3
General maintenance and lubrication chart.......................................................... 8-5
Removing and installing panels ................ 8-10
Checking the spark plug........................... 8-18
Engine oil and oil filter cartridge ............... 8-21
Final gear oil ............................................. 8-25
Differential gear oil .................................... 8-28
Coolant ..................................................... 8-30
Cleaning the air filter element ................... 8-38
Cleaning the spark arrester ...................... 8-40
V-belt case drain plug............................... 8-42
Adjusting the throttle lever free play ......... 8-42
Valve clearance......................................... 8-43
Brakes....................................................... 8-43
Checking the front and rear brake pads... 8-43
Checking the brake fluid level .................. 8-44
Changing the brake fluid .......................... 8-46
Checking the front and rear brake lever free play .................................................. 8-46
Adjusting the brake pedal free play .......... 8-47
Axle boots................................................. 8-49
Checking and lubricating the cables ........ 8-49
Checking and lubricating the front and rear brake levers ..................................... 8-50
U2UD61E0.book Page 2 Monday, April 25, 2016 10:55 AM
Page 10 of 174
Checking and lubricating the brake pedal ....................................................... 8-51
Checking the wheel hub bearings............. 8-51
Checking the stabilizer bushes ................. 8-51
Lubricating the rear knuckle pivots ........... 8-52
Lubricating the steering shaft ................... 8-52
Battery....................................................... 8-53
Replacing a fuse ....................................... 8-57
Replacing a headlight bulb ....................... 8-59
Adjusting a headlight beam ...................... 8-61
Tail/brake light........................................... 8-61
Removing a wheel ..................................... 8-61
Installing a wheel....................................... 8-62
Troubleshooting ........................................ 8-63
Troubleshooting charts ............................. 8-64
CLEANING AND STORAGE ........................... 9-1 Cleaning ...................................................... 9-1
Storage........................................................ 9-2
SPECIFICATIONS ........................................ 10-1
CONSUMER INFORMATION ....................... 11-1 Identification numbers .............................. 11-1
INDEX ........................................................... 12-1
