Quantity:0.21 L (0.23 US qt, 0.19 Imp.qt)Coolant quantity:Radiator (including all routes):
1.99 L (2.10 US qt, 1.75 Imp.qt)
Coolant reservoir (up to the maximum level mark): 0.24 L (0.25 US qt, 0.21 Imp.qt)Air filter:Air filter element:
Wet element
Air filter oil grade: Foam air-filter oilFuel:Recommended fuel:
Regular unleaded gasoline only
Minimum research octane: 91
Fuel tank capacity: 18 L (4.8 US gal, 4.0 Imp.gal)
Fuel reserve amount:
4.0 L (1.06 US gal, 0.88 Imp.gal)Throttle body:ID mark:B4F100Spark plug (s):Manufacturer/model:NGK/CPR7EA-9
Spark plug gap: 0.8–0.9 mm (0.031–0.035 in)
Drivetrain:Primary reduction ratio:1.000
Secondary reduction ratio:
10.142 (41/21 x 17/12 x 20/15 x 33/12)
Final drive: Shaft
Clutch type: Wet, centrifugal, shoe
Transmission type:
CVT automatic with reverse
Gear ratio: Transmission ratio:
2.380–0.700 : 1
Reverse gear: 2.000 (23/14 x 28/23)
Low range: 1.938 (31/16)
High range:
1.148 (31/27)Front tire:Size:AT26 x 8-12 (YFM70GPAK, YFM70GPHK, YFM70GPXK)
AT27 x 10-14 (YFM70GPLK)
Manufacturer/model: MAXXIS/MU01 (YFM70GPLK)
MAXXIS/MU05Y (YFM70GPAK, YFM70GPHK,
YFM70GPXK)
UB4F60E0.book Page 3 Wednesday, April 25, 2018 11:52 AM

10-4
10
Rear tire:Size:AT26 x 10-12 (YFM70GPAK, YFM70GPHK,
YFM70GPXK)
AT27 x 10-14 (YFM70GPLK)
Manufacturer/model: MAXXIS/MU01 (YFM70GPLK)
MAXXIS/MU06Y (YFM70GPAK, YFM70GPHK,
YFM70GPXK)Tire air pressure (measured on cold tires):Recommended (For Oceania):Front:
35.0 kPa (0.350 kgf/cm², 5.0 psi)
Rear: 30.0 kPa (0.300 kgf/cm², 4.4 psi)
Minimum (For Oceania): Front: 32.0 kPa (0.320 kgf/cm², 4.6 psi)
Rear: 27.0 kPa (0.270 kgf/cm², 4.0 psi)
No cargo or trailer (For Europe):
Recommended: Front: 35.0 kPa (0.350 kgf/cm², 5.0 psi)
Rear: 30.0 kPa (0.300 kgf/cm², 4.4 psi) (YFM70GPAK,
YFM70GPHK, YFM70GPXK)
35.0 kPa (0.350 kgf/cm², 5.0 psi) (YFM70GPLK)
Minimum: Front:
32.0 kPa (0.320 kgf/cm², 4.6 psi) Rear:
27.0 kPa (0.270 kgf/cm², 4.0 psi) (YFM70GPAK,
YFM70GPHK, YFM70GPXK)
32.0 kPa (0.320 kgf/cm², 4.6 psi) (YFM70GPLK)
With cargo or trailer (For Europe):
Recommended: Front: 50.0 kPa (0.500 kgf/cm², 7.3 psi)
Rear: 50.0 kPa (0.500 kgf/cm², 7.3 psi)
Minimum:
Front: 45.0 kPa (0.450 kgf/cm², 6.5 psi)
Rear:
45.0 kPa (0.450 kgf/cm², 6.5 psi)
Front wheel:Rim size:12 x 6.0 AT (YFM70GPAK, YFM70GPHK, YFM70GPXK)
14 x 8.0 AT (YFM70GPLK)Rear wheel:Rim size:
12 x 7.5 AT (YFM70GPAK, YFM70GPHK, YFM70GPXK)
14 x 8.0 AT (YFM70GPLK)Front brake:Type:Hydraulic disc brakeRear brake:Type:
Hydraulic disc brake
UB4F60E0.book Page 4 Wednesday, April 25, 2018 11:52 AM

10-5
10
Brake fluid:Specified brake fluid:DOT 4Front suspension:Type:Double wishbone
Spring: Coil spring
Shock absorber:
Hydraulic damper
Wheel travel: 193 mm (7.6 in)Rear suspension:Type:
Double wishbone
Spring: Coil spring
Shock absorber: Hydraulic damper
Wheel travel:
232 mm (9.1 in)Electrical system:System voltage:12 V
Ignition system:
TCI
Charging system: AC magnetoBattery:Model:
YTX20L-BS Voltage, capacity:
12 V, 18.0 Ah
Lights:Headlight:
LED
Handlebar-mounted light: T15H, 35.0 W/36.5 W
Brake/tail light: LED
Meter lighting:
LED
Neutral indicator light: LED
High beam indicator light: LED
Reverse indicator light:
LED
Coolant temperature warning light: LED
Park indicator light: LED
Engine trouble warning light:
LED
High-range indicator light: LED
Low-range indicator light: LED
Differential gear lock indicator light:
LED
EPS warning light: LED
UB4F60E0.book Page 5 Wednesday, April 25, 2018 11:52 AM

10-6
10
Battery voltage warning light:LEDFuses:Main fuse:
40.0 A
Headlight fuse: 10.0 A
Signaling system fuse: 10.0 A
Ignition fuse:
10.0 A
Auxiliary DC jack fuse: 10.0 A
Fuel injection system fuse: 15.0 A
Four-wheel-drive motor fuse:
10.0 A
Radiator fan motor fuse: 20.0 A
EPS fuse: 40.0 AEBU30403Noise and vibration levels statement (for Eu-
rope)
The figures quoted are emission levels and are not
necessarily safe working levels. Whilst there is a
correlation between the emission and exposure
levels, this cannot be used reliably to determine whether or not further precautions are required.
Factors that influence the actual level of exposure
of work-force include the characteristics of the
work room, the other sources of noise, etc. i.e. the
number of machines and other adjacent process-
es, and the length of time for which an operator is
exposed to the noise. Also the permissible expo-
sure level can vary from country. This information,
however, will enable the user of the machine to
make a better evaluation of the hazard and risk.UB4F60E0.book Page 6 Wednesday, April 25, 2018 11:52 AM

11-1
11
EBU26001
CONSUMER INFORMATION
EBU28202Identification numbersRecord the vehicle identification number and
model label information in the spaces provided
below for assistance when ordering spare parts
from a Yamaha dealer or for reference in case the
ATV is stolen.
VEHICLE IDENTIFICATION NUMBER:
MODEL LABEL INFORMATION:EBU26031Vehicle identification number
The vehicle identification number is stamped into
the frame.
TIPThe vehicle identification number is used to iden-
tify your ATV. EBU26051Model label

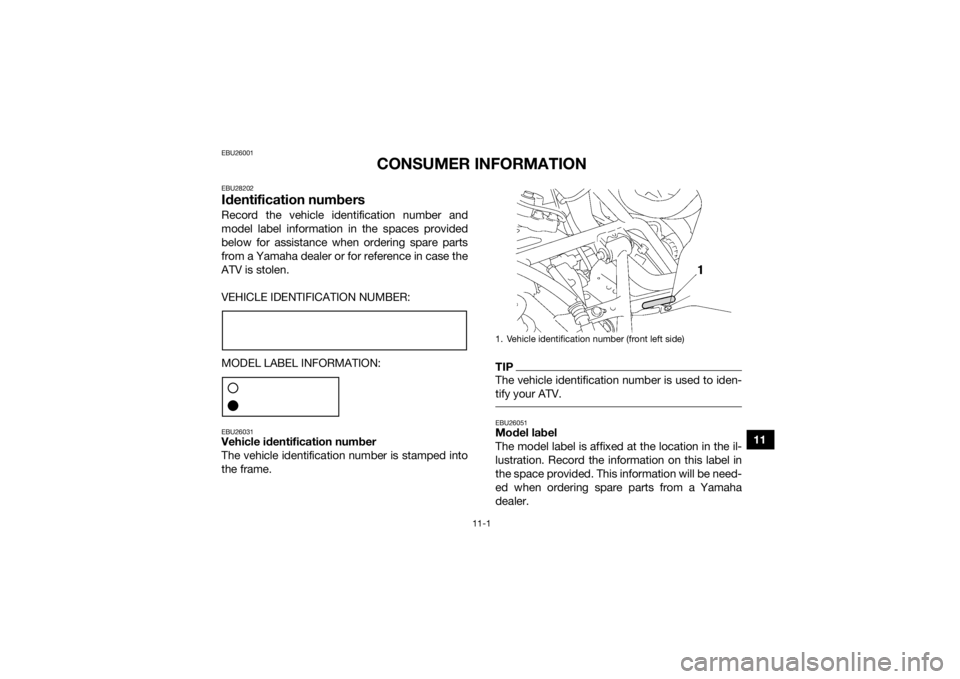

The model label is affixed at the location in the il-
lustration. Record the information on this label in
the space provided. This information will be need-
ed when ordering spare parts from a Yamaha
dealer.1. Vehicle identification number (front left side)
