YAMAHA GRIZZLY 700 2019 Owners Manual

8-41
8
3. Tap the tailpipe lightly, and then use a wire
brush to remove any carbon deposits from
the spark arrester portion of the tailpipe and
inside of the tailpipe housing.
4. Check the gasket for damage. Replace if nec- essary.
5. Install the gasket onto the tailpipe, then insert the tailpipe into the muffler and align the bolt
holes.
6. Install the bolts and tighten to the specified torque.
EBU23932V-belt case drain plugAfter riding in water deep enough to allow it to en-
ter the V-belt case, remove the V-belt case drain
plug to drain the water from the case.TIPIf water drains from the V-belt case after removing
the plug, have a Yamaha dealer check the ATV as
the water may affect other engine parts. Tightening torque:Tailpipe bolt:10 N·m (1.0 kgf·m, 7.4 lb·ft)
1. V-belt case drain plug
1
UB4F60E0.book Page 41 Wednesday, April 25, 2018 11:52 AM

8-42
8

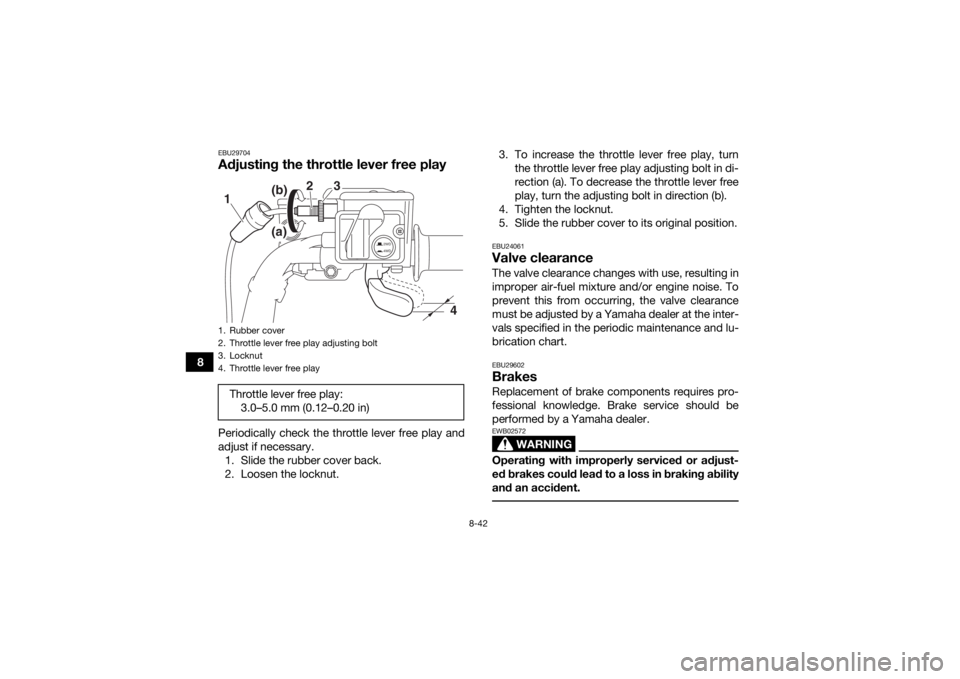

EBU29704Adjusting the throttle lever free playPeriodically check the throttle lever free play and
adjust if necessary.1. Slide the rubber cover back.
2. Loosen the locknut. 3. To increase the throttle lever free play, turn
the throttle lever free play adjusting bolt in di-
rection (a). To decrease the throttle lever free
play, turn the adjusting bolt in direction (b).
4. Tighten the locknut.
5. Slide the rubber cover to its original position.
EBU24061Valve clearanceThe valve clearance changes with use, resulting in
improper air-fuel mixture and/or engine noise. To
prevent this from occurring, the valve clearance
must be adjusted by a Yamaha dealer at the inter-
vals specified in the periodic maintenance and lu-
brication chart.EBU29602BrakesReplacement of brake components requires pro-
fessional knowledge. Brake service should be
performed by a Yamaha dealer.
WARNING
EWB02572Operating with improperly serviced or adjust-
ed brakes could lead to a loss in braking ability
and an accident.
1. Rubber cover
2. Throttle lever free play adjusting bolt
3. Locknut
4. Throttle lever free playThrottle lever free play: 3.0–5.0 mm (0.12–0.20 in)
2WD
4WD
3
2
1
4
(b)
(a)
UB4F60E0.book Page 42 Wednesday, April 25, 2018 11:52 AM

8-43
8

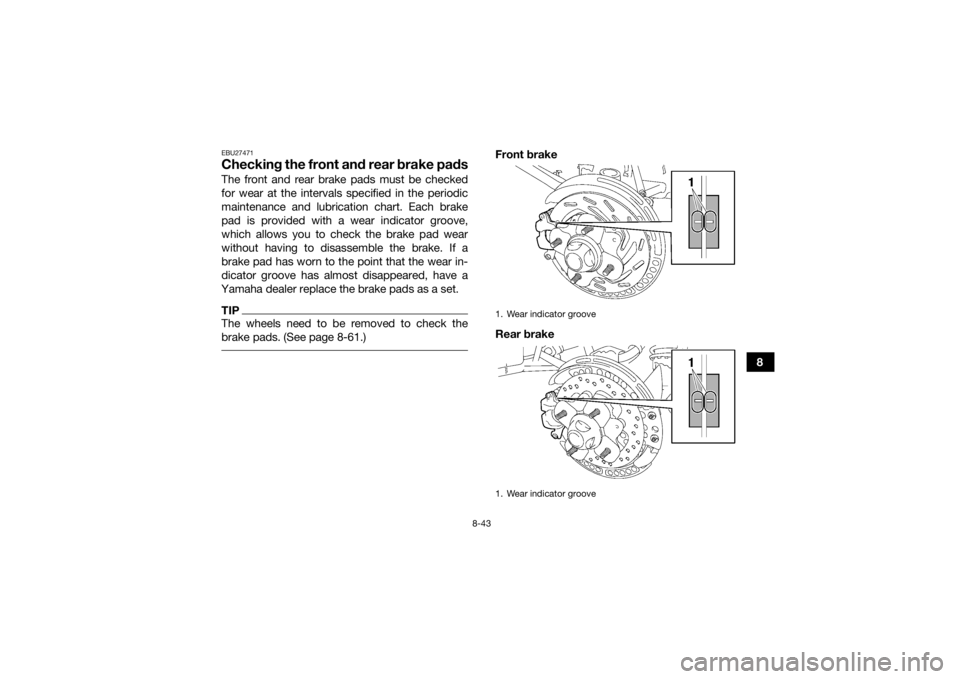

EBU27471Checking the front and rear brake padsThe front and rear brake pads must be checked
for wear at the intervals specified in the periodic
maintenance and lubrication chart. Each brake
pad is provided with a wear indicator groove,
which allows you to check the brake pad wear
without having to disassemble the brake. If a
brake pad has worn to the point that the wear in-
dicator groove has almost disappeared, have a
Yamaha dealer replace the brake pads as a set.TIPThe wheels need to be removed to check the
brake pads. (See page 8-61.)
Front brake
Rear brake1. Wear indicator groove
1. Wear indicator groove
UB4F60E0.book Page 43 Wednesday, April 25, 2018 11:52 AM

8-44
8

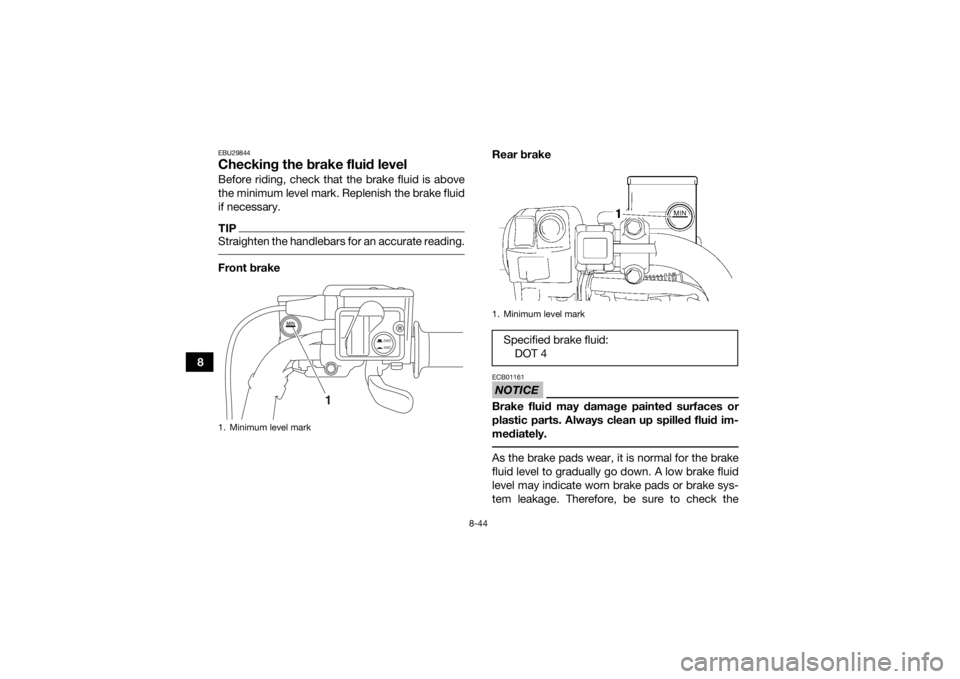

EBU29844Checking the brake fluid levelBefore riding, check that the brake fluid is above
the minimum level mark. Replenish the brake fluid
if necessary.TIPStraighten the handlebars for an accurate reading. Front brakeRear brake
NOTICEECB01161Brake fluid may damage painted surfaces or
plastic parts. Always clean up spilled fluid im-
mediately. As the brake pads wear, it is normal for the brake
fluid level to gradually go down. A low brake fluid
level may indicate worn brake pads or brake sys-
tem leakage. Therefore, be sure to check the
1. Minimum level mark
2WD
4WD
1
1. Minimum level markSpecified brake fluid:
DOT 4
UB4F60E0.book Page 44 Wednesday, April 25, 2018 11:52 AM

8-45
8
brake pads for wear and the brake system for
leakage. If the brake fluid level suddenly goes
down, have a Yamaha dealer the brake system
before further riding.
WARNING
EWB02721Improper maintenance can result in loss of
braking ability. Observe these precautions:

Insufficient brake fluid may allow air to enter
the brake system, reducing braking perfor-
mance.
 Clean the filler cap before removing. Use
only DOT 4 brake fluid from a sealed contain-
er.
 Use only the specified brake fluid; otherwise,
the rubber seals may deteriorate, causing
leakage.
 Refill with the same type of brake fluid. Add-
ing a brake fluid other than DOT 4 may result
in a harmful chemical reaction.
 Be careful that water does not enter the
brake fluid reservoir when refilling. Water will
significantly lower the boiling point of the flu-
id and may result in vapor lock.
EBU24293Changing the brake fluidHave a Yamaha dealer change the brake fluid at
the intervals specified in the periodic maintenance
and lubrication chart. In addition, have the oil seals
of the master cylinders and calipers as well as the
brake hoses replaced at the intervals listed below
or whenever they are damaged or leaking.
Oil seals: Replace every two years.
 Brake hoses: Replace every four years.
UB4F60E0.book Page 45 Wednesday, April 25, 2018 11:52 AM

8-46
8

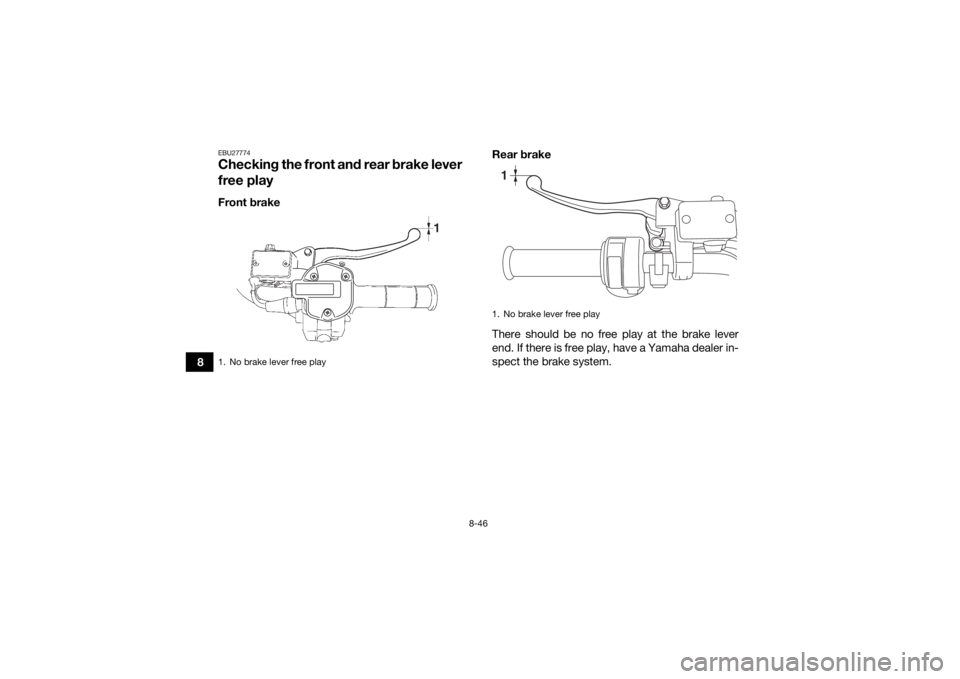

EBU27774Checking the front and rear brake lever
free playFront brakeRear brake
There should be no free play at the brake lever
end. If there is free play, have a Yamaha dealer in-
spect the brake system.1. No brake lever free play
1. No brake lever free play1
UB4F60E0.book Page 46 Wednesday, April 25, 2018 11:52 AM

8-47
8

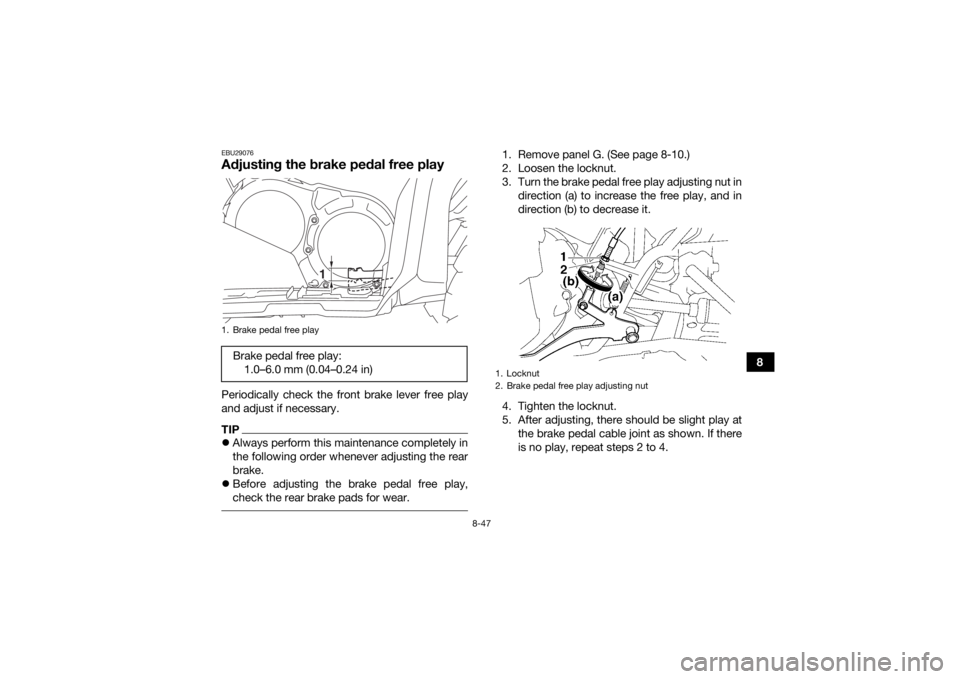

EBU29076Adjusting the brake pedal free playPeriodically check the front brake lever free play
and adjust if necessary.TIPAlways perform this maintenance completely in
the following order whenever adjusting the rear
brake.
 Before adjusting the brake pedal free play,
check the rear brake pads for wear.
1. Remove panel G. (See page 8-10.)
2. Loosen the locknut.
3. Turn the brake pedal free play adjusting nut in
direction (a) to increase the free play, and in
direction (b) to decrease it.
4. Tighten the locknut.
5. After adjusting, there should be slight play at the brake pedal cable joint as shown. If there
is no play, repeat steps 2 to 4.
1. Brake pedal free playBrake pedal free play:1.0–6.0 mm (0.04–0.24 in)
1
1. Locknut
2. Brake pedal free play adjusting nut
UB4F60E0.book Page 47 Wednesday, April 25, 2018 11:52 AM

8-48
86. Install the panel.
If the correct free play cannot be obtained, have a
Yamaha dealer adjust it.
TIPWhen adjusting the brake pedal free play:
 Be sure not to step on the brake pedal.
 Make sure the rear brake lever and brake pedal
do not move.

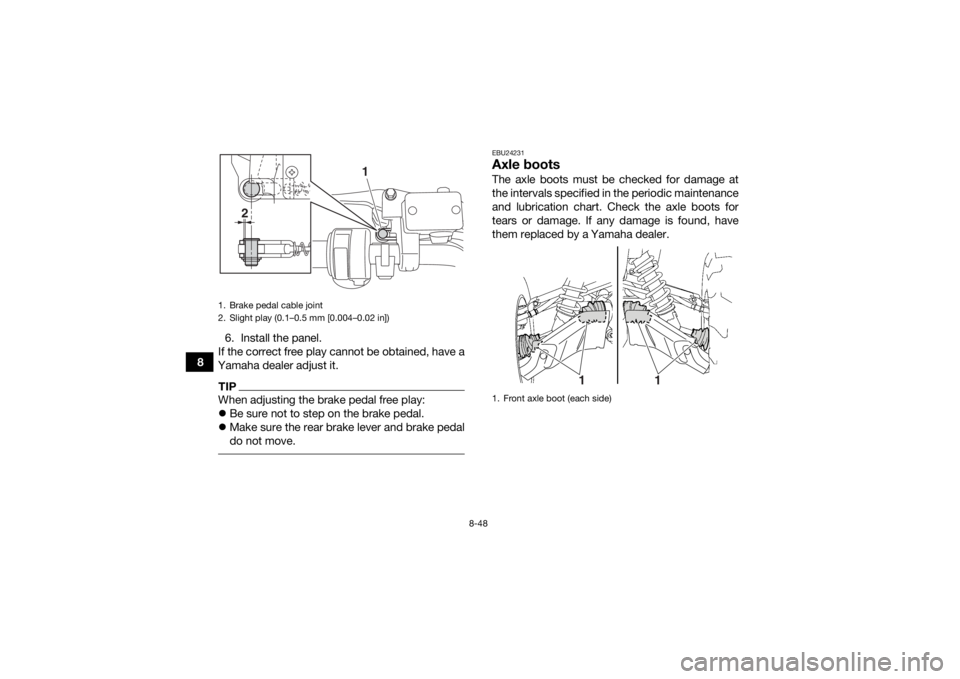

EBU24231Axle bootsThe axle boots must be checked for damage at
the intervals specified in the periodic maintenance
and lubrication chart. Check the axle boots for
tears or damage. If any damage is found, have
them replaced by a Yamaha dealer.
1. Brake pedal cable joint
2. Slight play (0.1–0.5 mm [0.004–0.02 in])
1
2
1. Front axle boot (each side)
1
1
UB4F60E0.book Page 48 Wednesday, April 25, 2018 11:52 AM

8-49
8

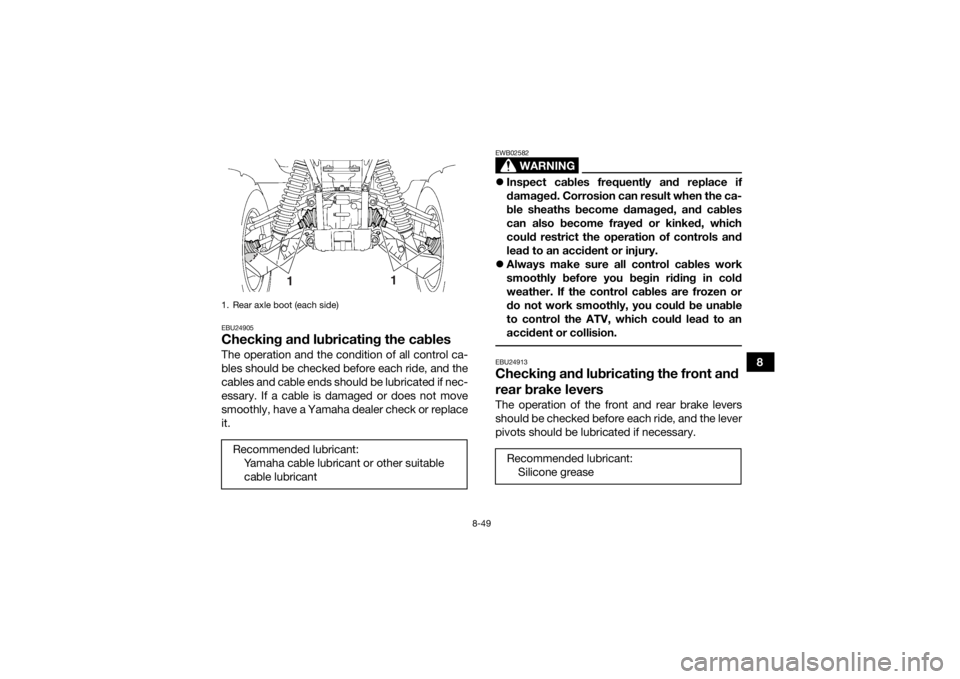

EBU24905Checking and lubricating the cablesThe operation and the condition of all control ca-
bles should be checked before each ride, and the
cables and cable ends should be lubricated if nec-
essary. If a cable is damaged or does not move
smoothly, have a Yamaha dealer check or replace
it.
WARNING
EWB02582Inspect cables frequently and replace if
damaged. Corrosion can result when the ca-
ble sheaths become damaged, and cables
can also become frayed or kinked, which
could restrict the operation of controls and
lead to an accident or injury.
 Always make sure all control cables work
smoothly before you begin riding in cold
weather. If the control cables are frozen or
do not work smoothly, you could be unable
to control the ATV, which could lead to an
accident or collision. EBU24913Checking and lubricating the front and
rear brake leversThe operation of the front and rear brake levers
should be checked before each ride, and the lever
pivots should be lubricated if necessary.
1. Rear axle boot (each side)Recommended lubricant:
Yamaha cable lubricant or other suitable cable lubricant
1
1
Recommended lubricant:
Silicone grease
UB4F60E0.book Page 49 Wednesday, April 25, 2018 11:52 AM

8-50
8Front brake lever
Rear brake lever
EBU28833Checking and lubricating the brake
pedalThe operation of the brake pedal should be
checked before each ride, and the pedal pivot
should be lubricated if necessary.TIPTo access the brake pedal pivot, remove panel G.
(See page 8-10.) Recommended lubricant:
Lithium-soap-based grease
