1-1
1
EBU29681
LOCATION OF THE WARNING AND SPECIFICATION LABELS
EBU37161Read and understand all of the labels on your ATV. These labels contain important information for safe and
proper operation.
Never remove any labels from your ATV. If a label becomes difficult to read or comes off, request a re-
placement label from your Yamaha dealer.UB4F60E0.book Page 1 Wednesday, April 25, 2018 11:52 AM

1-2

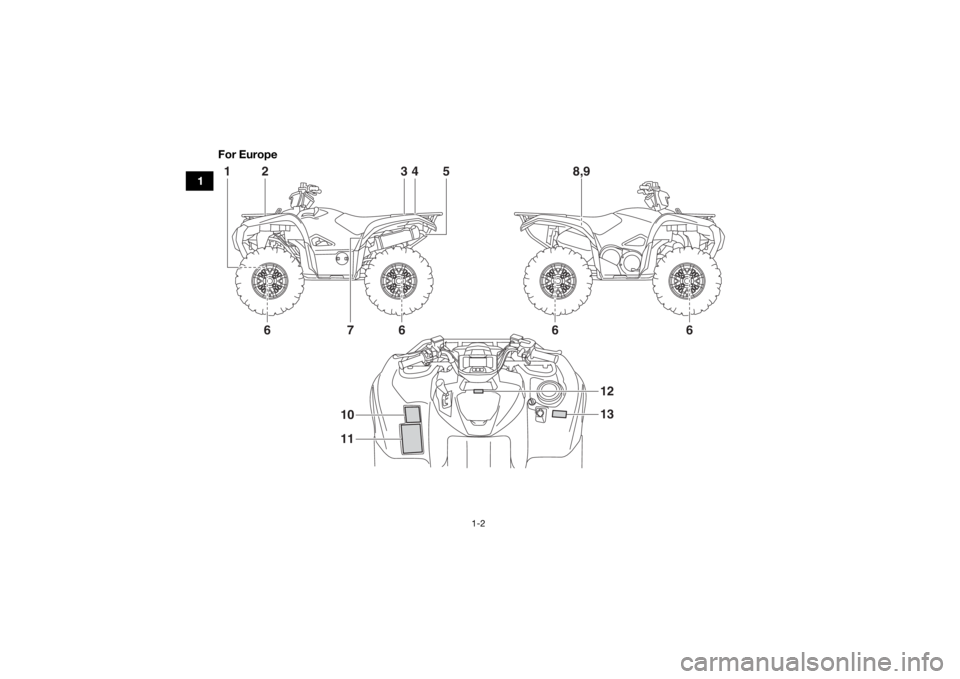

1For Europe
2
13
4
5
7
6
6
8,9
6
6
13
12
10
11
UB4F60E0.book Page 2 Wednesday, April 25, 2018 11:52 AM

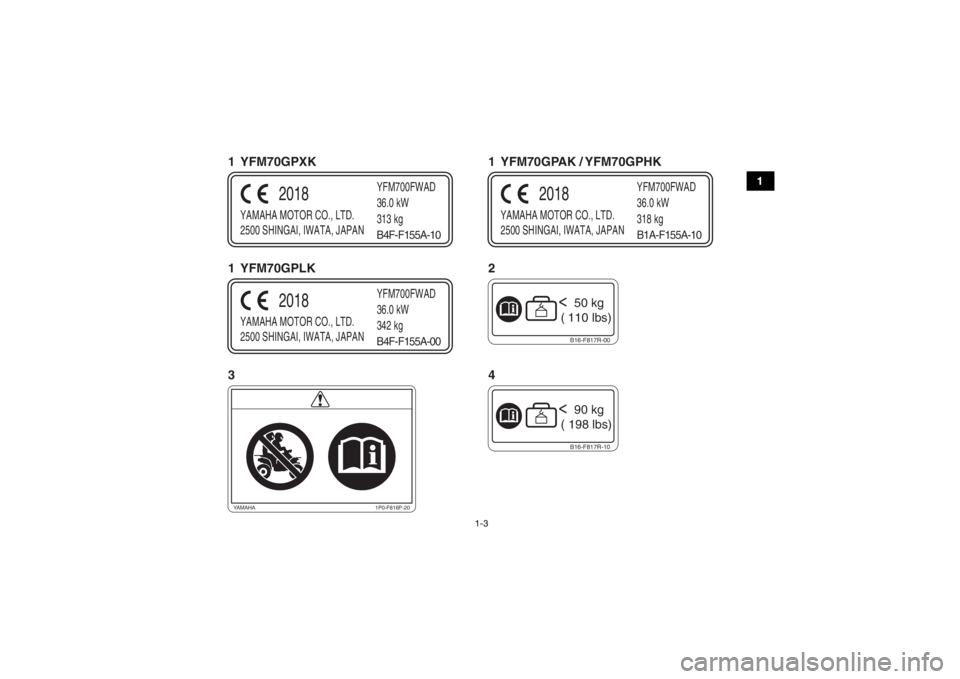

1-3
1
YAMAHA MOTOR CO., LTD.
2500 SHINGAI, IWATA, JAPANYFM700FWAD
36.0 kW
313 kg
2018
B4F-F155A-10
YAMAHA MOTOR CO., LTD.
2500 SHINGAI, IWATA, JAPANYFM700FWAD
36.0 kW
318 kg
2018
B1A-F155A-10
YAMAHA MOTOR CO., LTD.
2500 SHINGAI, IWATA, JAPANYFM700FWAD
36.0 kW
342 kg
2018
B4F-F155A-00
B16-F817R-10< 90 kg
( 198 lbs)B16-F817R-00< 50 kg
( 110 lbs)
1P0-F816P-20
YAMAHA
1 YFM70GPXK 1 YFM70GPAK / YFM70GPHK
1 YFM70GPLK 2
34
UB4F60E0.book Page 3 Thursday, June 7, 2018 10:42 AM

1-4
1
< 5880 N< 600 kgf< 1322 lbf
< 147 N
< 15 kgf
< 33 lbf
37S-F817S-00
1HP-F2259-21
YAMAHA BB5-F816M-M035.0 kPa
0.35 kgf/cm²
5.0 psi30.0 kPa
0.30 kgf/cm²
4.4 psi 50.0 kPa
0.50 kgf/cm²
7.3 psi50.0 kPa
0.50 kgf/cm²
7.3 psi
YAMAHA
B5K-F816M-M035.0 kPa
0.35 kgf/cm²
5.0 psi35.0 kPa
0.35 kgf/cm²
5.0 psi 50.0 kPa
0.50 kgf/cm²
7.3 psi50.0 kPa
0.50 kgf/cm²
7.3 psi
5
7 YFM70GPXK / YFM70GPAK /
YFM70GPHK
7 YFM70GPLK 6UB4F60E0.book Page 4 Wednesday, April 25, 2018 11:52 AM

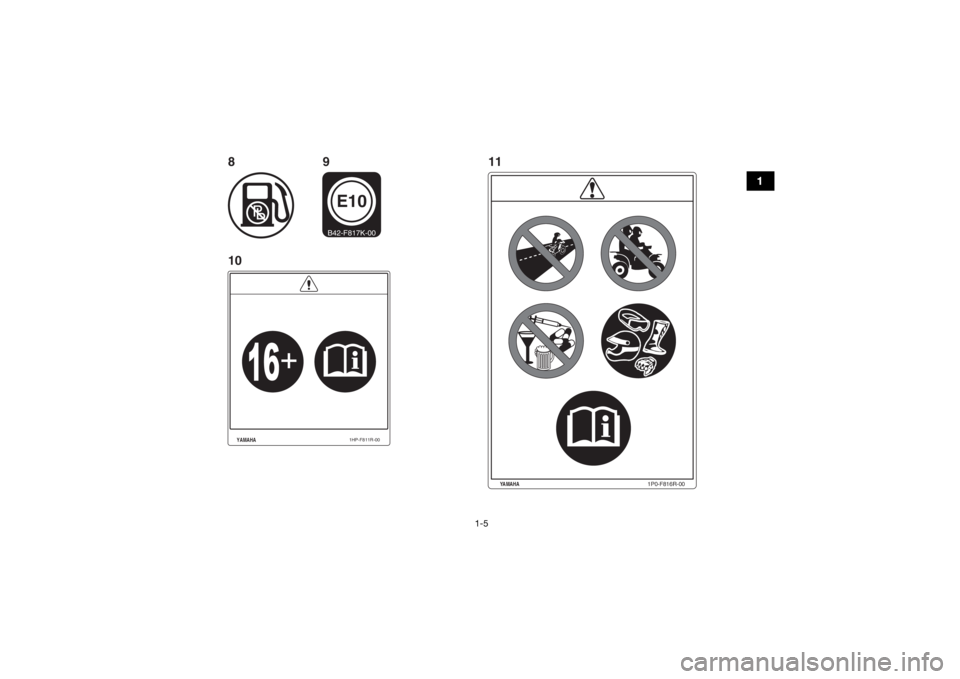

1-5
1
1P0-F816R-00
YAMAHA
YAMAHA
1HP-F811R-00
E10B42-F817K-00
11
10 89
UB4F60E0.book Page 5 Wednesday, April 25, 2018 11:52 AM

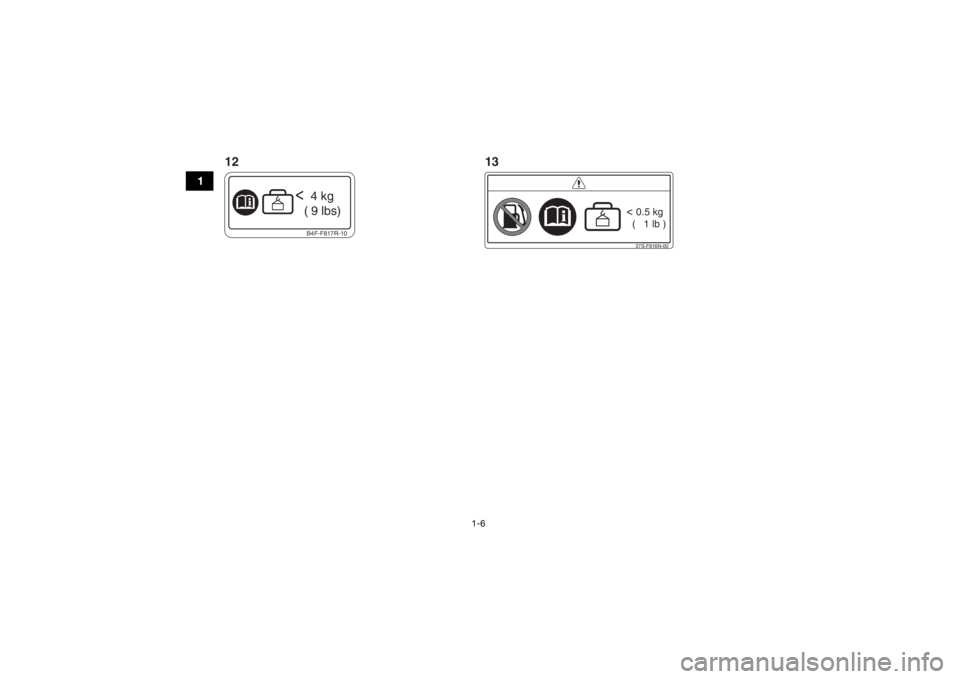

1-6
1
37S-F816N-00< 0.5 kg
( 1 lb )
B4F-F817R-10< 4 kg
( 9 lbs)
12 13UB4F60E0.book Page 6 Wednesday, April 25, 2018 11:52 AM

1-7
1

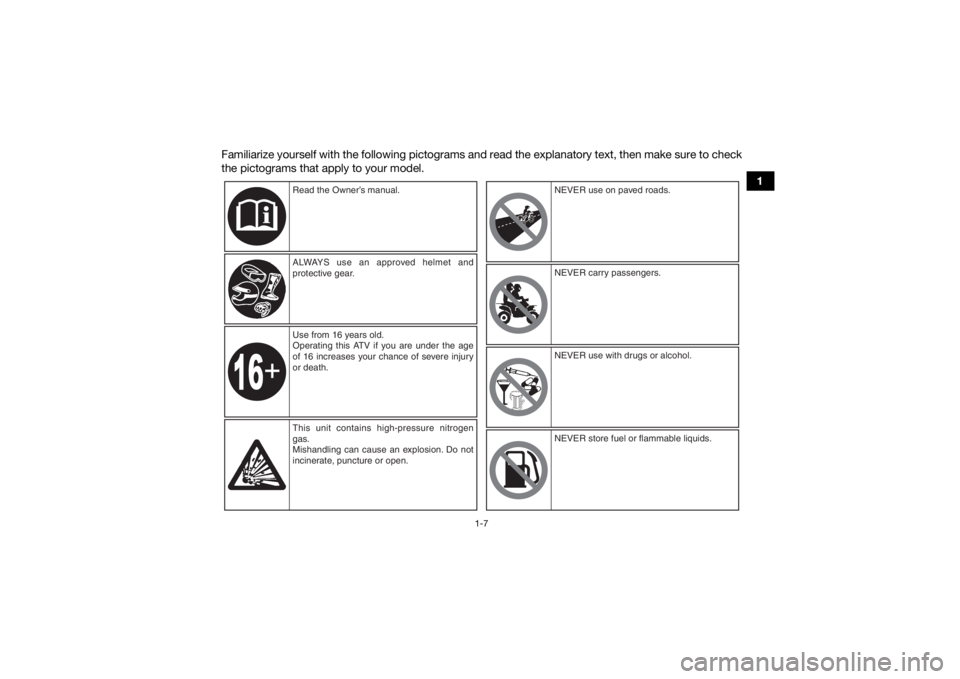

Familiarize yourself with the following pictograms and read the explanatory text, then make sure to check
the pictograms that apply to your model.
Read the Owner’s man
ual.
AL WAY S use an appro ved helmet and
protectiv e gear.
Use from 16 years old.
Operating this ATV if you are under the age
of 16 increases your chance of se vere injury
or death. NEVER use on pa
ved roads.
NEVER carry passengers.
NEVER use with dr ugs or alcohol.
NEVER store fuel or flammab le liquids.
This
unit contains high-press ure nitrogen
gas.
Mishandling can ca use an explosion. Do not
incinerate, puncture or open.
UB4F60E0.book Page 7 Wednesday, April 25, 2018 11:52 AM

1-8
1

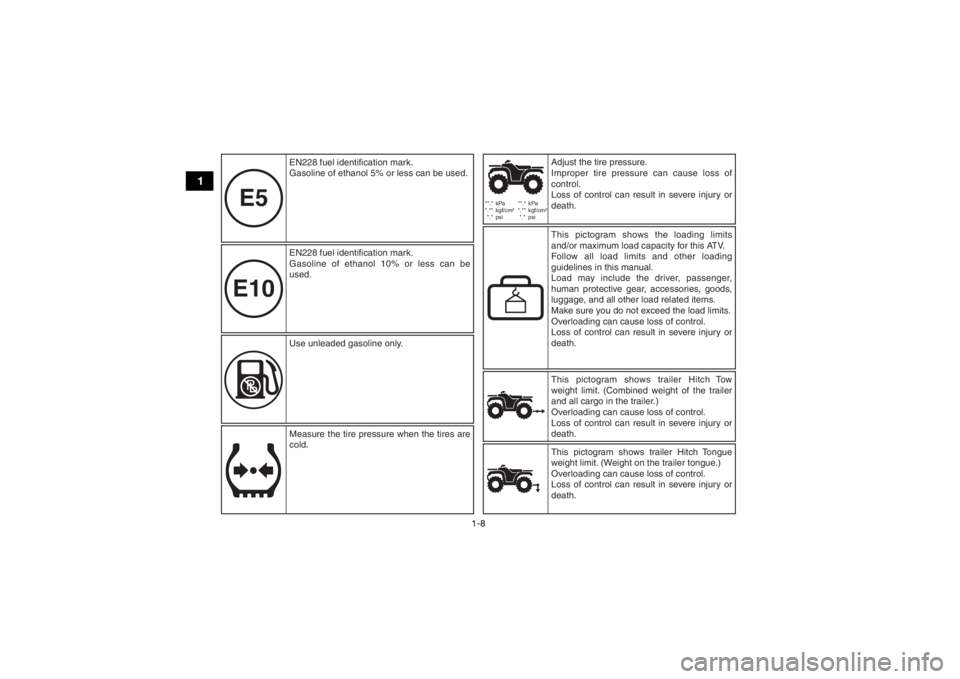

E10E5

**.* kPa
*.** kgf/cm²
*.* psi **.* kPa
*.** kgf/cm²
*.* psi
This pictogram shows trailer Hitch Tow
weight limit. (Combined weight of the trailer
and all cargo in the trailer.)
Overloading can cause loss of control.
Loss of control can result in severe injury or
death.
EN228 fuel identification mark.
Gasoline of ethanol 10% or less can be
used. EN228 fuel identification mark.
Gasoline of ethanol 5% or less can be used.
Use unleaded gasoline only.
Measure the tire pressure when the tires are
cold. Adjust the tire pressure.
Improper tire pressure can cause loss of
control.
Loss of control can result in severe injury or
death.
This pictogram shows the loading limits
and/or maximum load capacity for this ATV.
Follow all load limits and other loading
guidelines in this manual.
Load may include the driver, passenger,
human protective gear, accessories, goods,
luggage, and all other load related items.
Make sure you do not exceed the load limits.
Overloading can cause loss of control.
Loss of control can result in severe injury or
death.
This pictogram shows trailer Hitch Tongue
weight limit. (Weight on the trailer tongue.)
Overloading can cause loss of control.
Loss of control can result in severe injury or
death.
UB4F60E0.book Page 8 Wednesday, April 25, 2018 11:52 AM

1-9
1

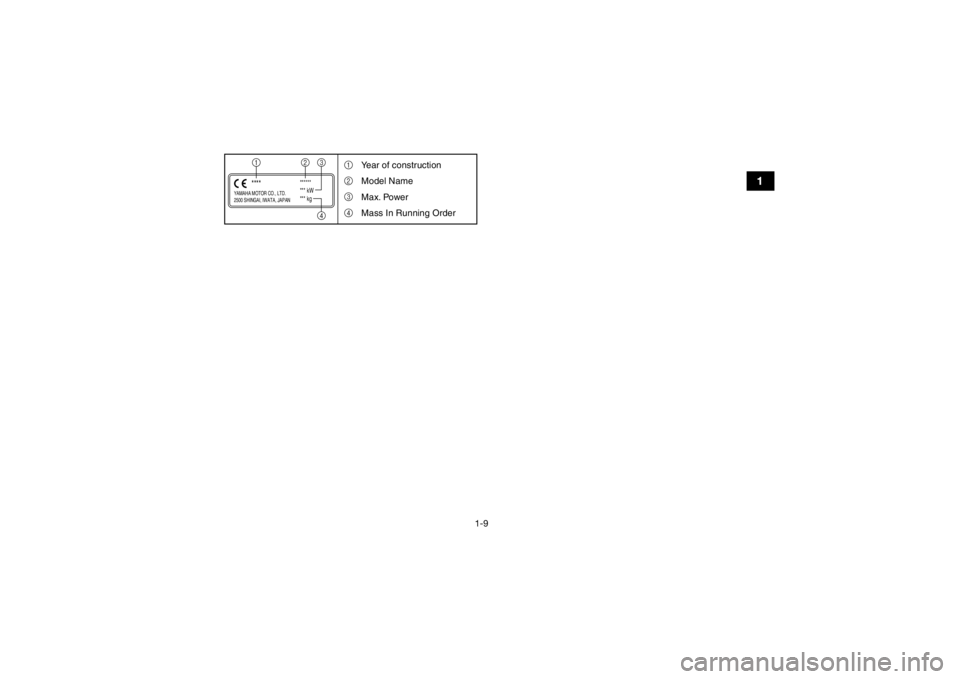

YAMAHA MOTOR CO., LTD.
2500 SHINGAI, IWATA, JAPAN
******
*** kW
*** kg
****1
2
341
2
3
4
Year of constr
uction
Model Name
Max. Po wer
Mass In Running Order
UB4F60E0.book Page 9 Wednesday, April 25, 2018 11:52 AM

1-10

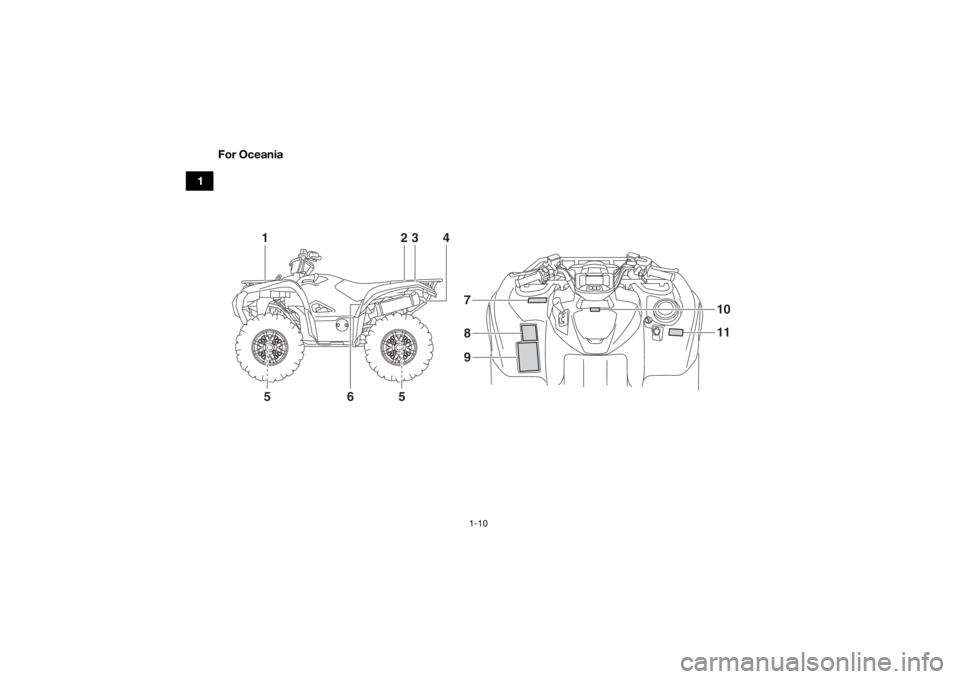

1For Oceania
12
3
4
6 11
10
7
8
9
5
5
