EBU34213To change the coolant
WARNING
EWB01891Wait for the engine and radiator to cool before
removing the radiator cap. You could be
burned by hot fluid and steam blown out under
pressure. Always place a thick rag over the cap
when opening. Allow any remaining pressure
to escape before completely removing the cap. 1. Park the ATV on a level surface.
2. Remove panels A, B, C, and D. (See page9-10.)
3. Remove the footboard by removing the bolts and nuts. 4. Remove the radiator cap.

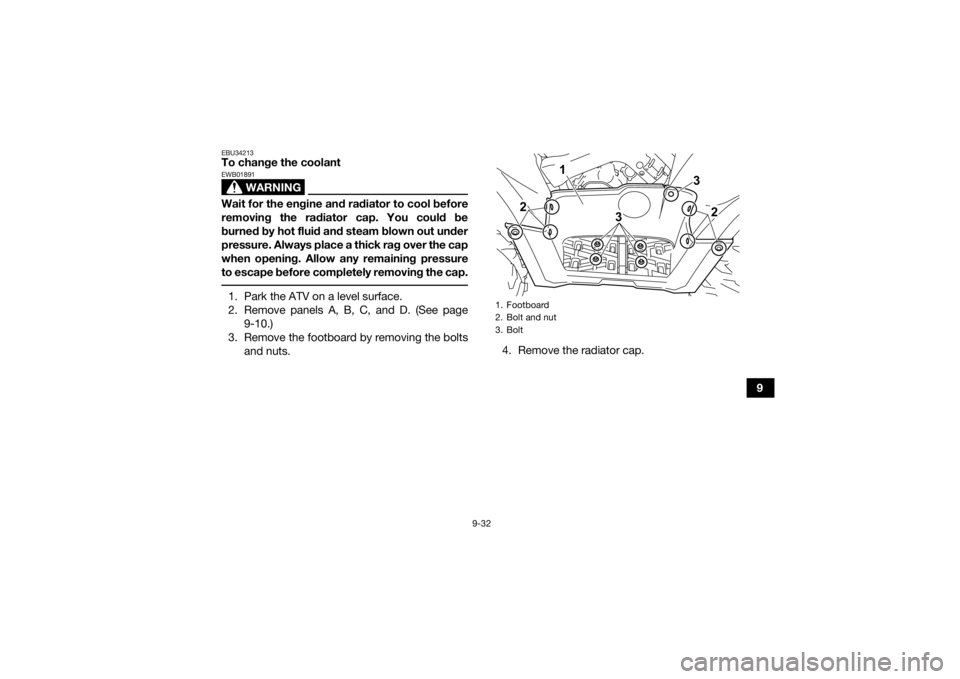

1. Footboard
2. Bolt and nut
3. Bolt
3
2
2
3
1
UBFE60E0.book Page 32 Tuesday, August 18, 2020 10:50 AM

9-33
95. Place a container under the engine, and then
remove the coolant drain bolt and its gasket.
(Use a trough or a similar object as shown to
prevent coolant from spilling on the engine
guard.)

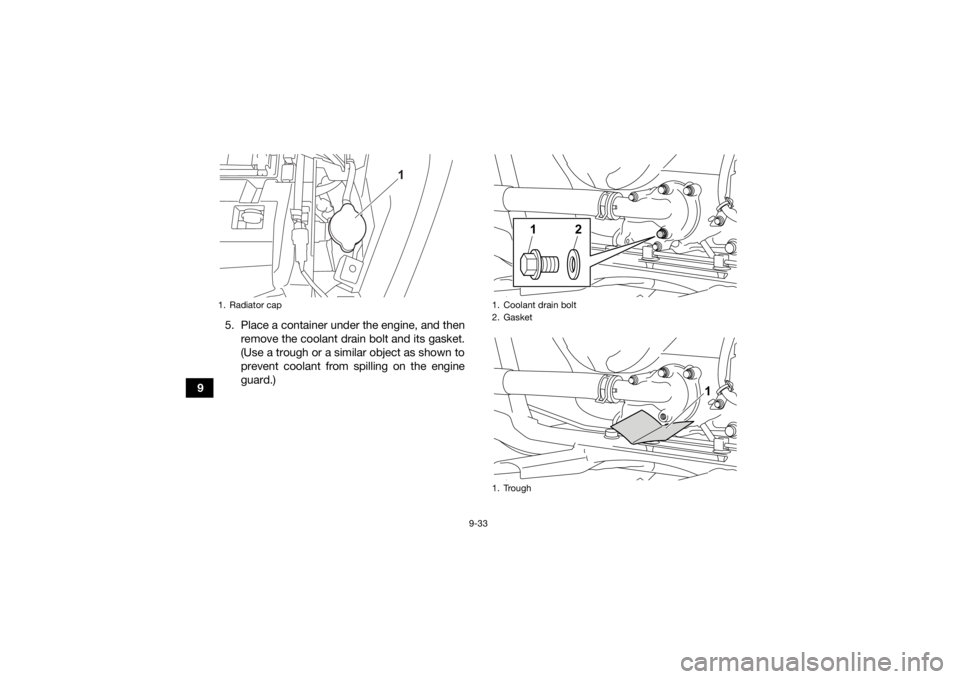

1. Radiator cap
1
1. Coolant drain bolt
2. Gasket
1. Trough
1
2
1
UBFE60E0.book Page 33 Tuesday, August 18, 2020 10:50 AM

9-34
9
6. Place a container under the coolant reservoir
to collect the used coolant.
7. Remove the coolant reservoir cap.
8. Disconnect the coolant reservoir hose on the coolant reservoir side, and then drain the
coolant from the coolant reservoir.
9. After draining the coolant, thoroughly flush the cooling system with clean tap water.
10. Install the coolant drain bolt and its new gas- ket, and then tighten the bolt to the specified
torque. 11. Connect the coolant reservoir hose.
12. Pour the recommended coolant into the radi-
ator until it is full.
13. Pour the recommended coolant into the res- ervoir to the maximum level mark, and then
install the reservoir cap.
14. Loosen the water pump air bleed bolt, with- out removing it, to allow all of the air to es-
cape from the air bleed bolt hole.

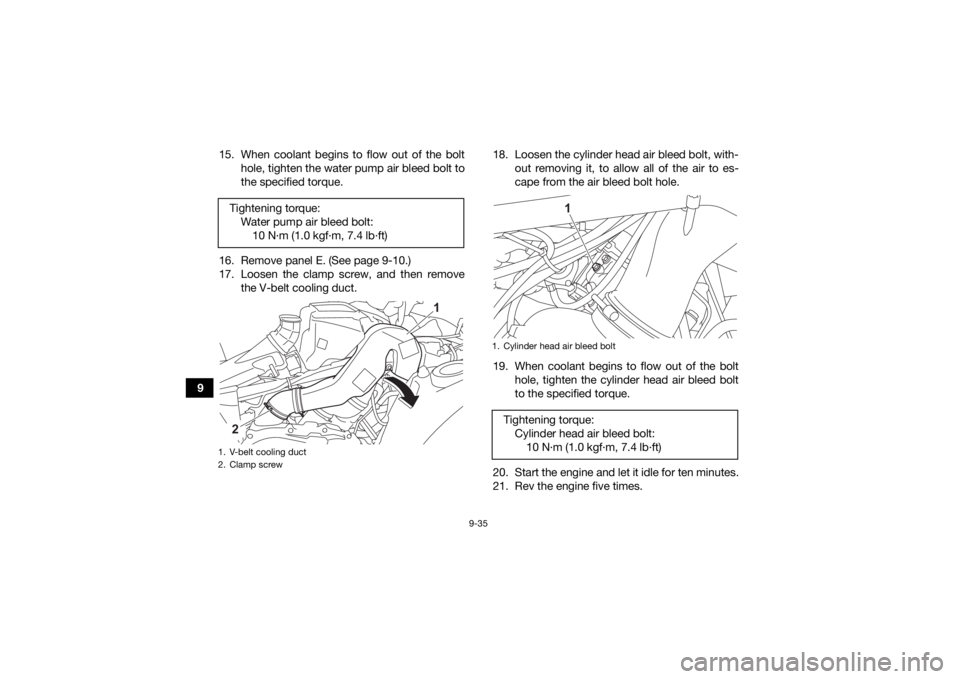

1. Coolant reservoir hose
Tightening torque:Coolant drain bolt:10 N·m (1.0 kgf·m, 7.4 lb·ft)1. Water pump air bleed bolt
1
UBFE60E0.book Page 34 Tuesday, August 18, 2020 10:50 AM

9-35
915. When coolant begins to flow out of the bolt
hole, tighten the water pump air bleed bolt to
the specified torque.
16. Remove panel E. (See page 9-10.)
17. Loosen the clamp screw, and then remove the V-belt cooling duct. 18. Loosen the cylinder head air bleed bolt, with-
out removing it, to allow all of the air to es-
cape from the air bleed bolt hole.
19. When coolant begins to flow out of the bolt hole, tighten the cylinder head air bleed bolt
to the specified torque.
20. Start the engine and let it idle for ten minutes.
21. Rev the engine five times.
Tightening torque:
Water pump air bleed bolt:10 N·m (1.0 kgf·m, 7.4 lb·ft)
1. V-belt cooling duct
2. Clamp screw
1
2
1. Cylinder head air bleed boltTightening torque:Cylinder head air bleed boltW10 N

9-36
9
22. Pour additional coolant into the radiator until
it is full.
23. Stop the engine and allow it to cool. If the coolant level has dropped after the engine
has cooled, add sufficient coolant until it
reaches the top of the radiator, and then in-
stall the radiator cap.
24. Start the engine, and then check for coolant leakage.
TIPIf any leakage is found, have a Yamaha dealer
check the cooling system. 25. Install the V-belt cooling duct, and then tight-en the clamp screw.
26. Install the footboard by installing the bolts and nuts, and then tighten them to the speci-
fied torques.

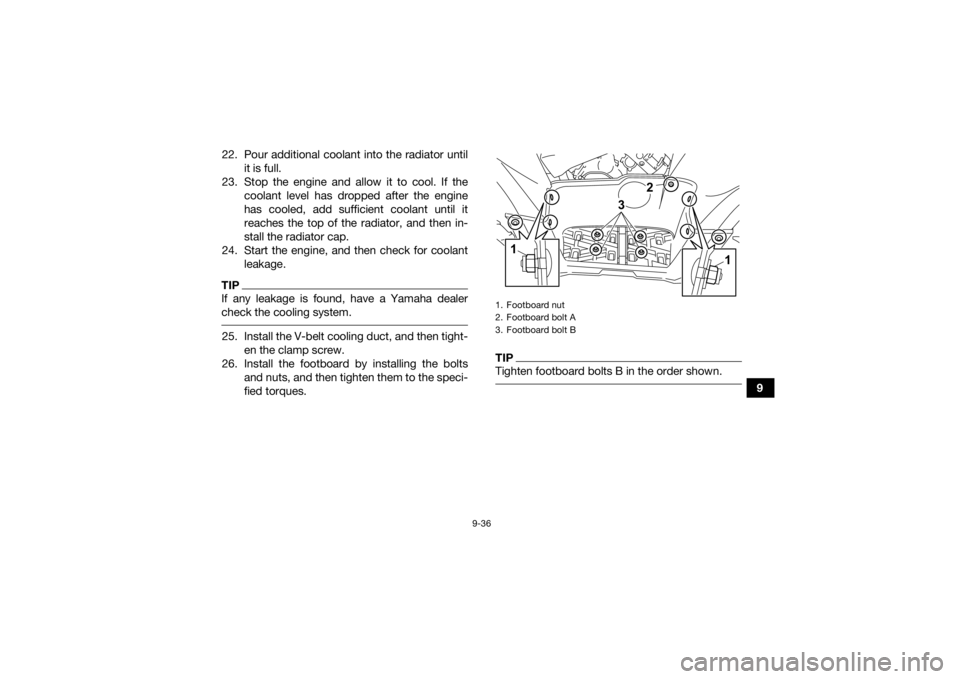

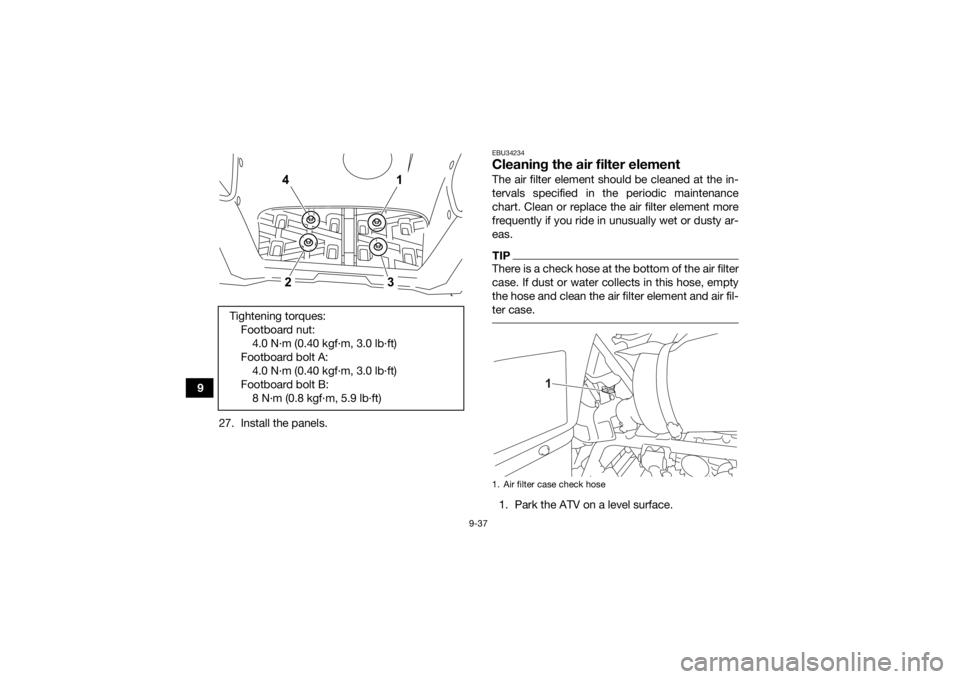

TIPTighten footboard bolts B in the order shown. 1. Footboard nut
2. Footboard bolt A
3. Footboard bolt B
3
1
2
1
UBFE60E0.book Page 36 Tuesday, August 18, 2020 10:50 AM

9-37
927. Install the panels.
EBU34234Cleaning the air filter elementThe air filter element should be cleaned at the in-
tervals specified in the periodic maintenance
chart. Clean or replace the air filter element more
frequently if you ride in unusually wet or dusty ar-
eas.TIPThere is a check hose at the bottom of the air filter
case. If dust or water collects in this hose, empty
the hose and clean the air filter element and air fil-
ter case. 1. Park the ATV on a level surface.
Tightening torques:
Footboard nut:4.0 N

9-38
9
2. Remove the seat. (See page 5-21.)
3. Remove the air filter case cover by unhooking
the air filter case cover holders.
4. Pull the air filter element out of the air filter case. 5. Pull off the air filter element lock plate, and
then remove the sponge material from the air
filter element frame.

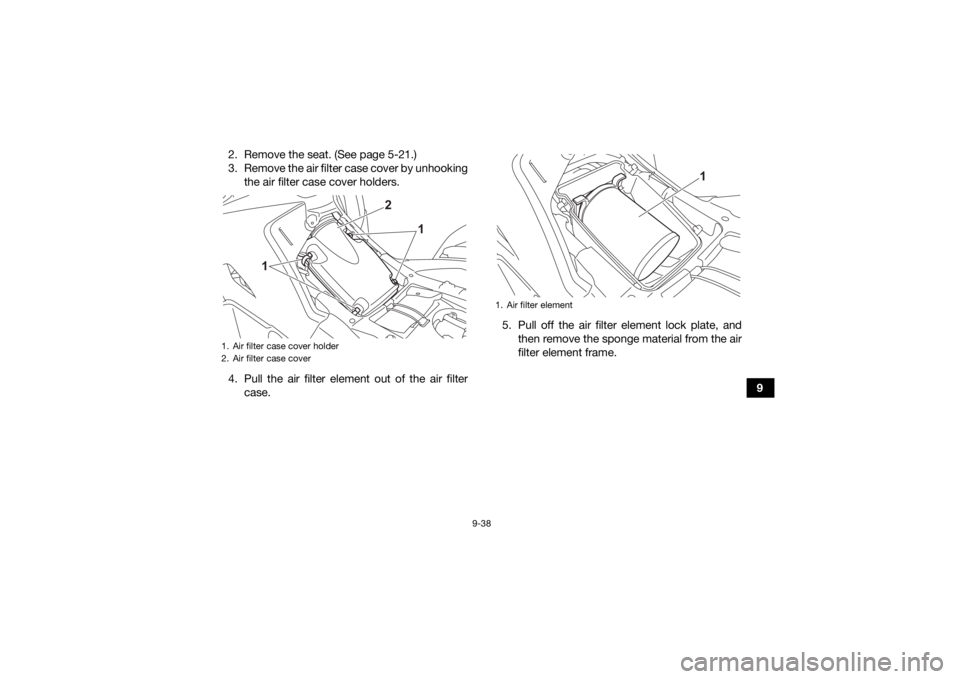

1. Air filter case cover holder
2. Air filter case cover
1 2
1
1. Air filter element
1
UBFE60E0.book Page 38 Tuesday, August 18, 2020 10:50 AM

9-39
96. Wash the sponge material gently but thor-
oughly in solvent. WARNING! Always use
parts cleaning solvent. Never use low-
flash-point solvents or gasoline because
the engine could catch fire or explode.
[EWB01943]
7. Squeeze the excess solvent out of the sponge material and let it dry. NOTICE: Do
not twist the sponge material when
squeezing it.
[ECB00442]
8. Check the sponge material and replace it if damaged.
9. Apply Yamaha foam air filter oil or other qual- ity foam air filter oil to the sponge material.TIPThe sponge material should be wet but not drip-
ping. 10. Pull the sponge material over the air filter ele- ment frame, and then install the lock plate.
11. Insert the air filter element into the air filter case, and then install the air filter case cover
by hooking the holders onto the air filter case.
NOTICE: Make sure that the air filter ele-
ment is properly seated in the air filter

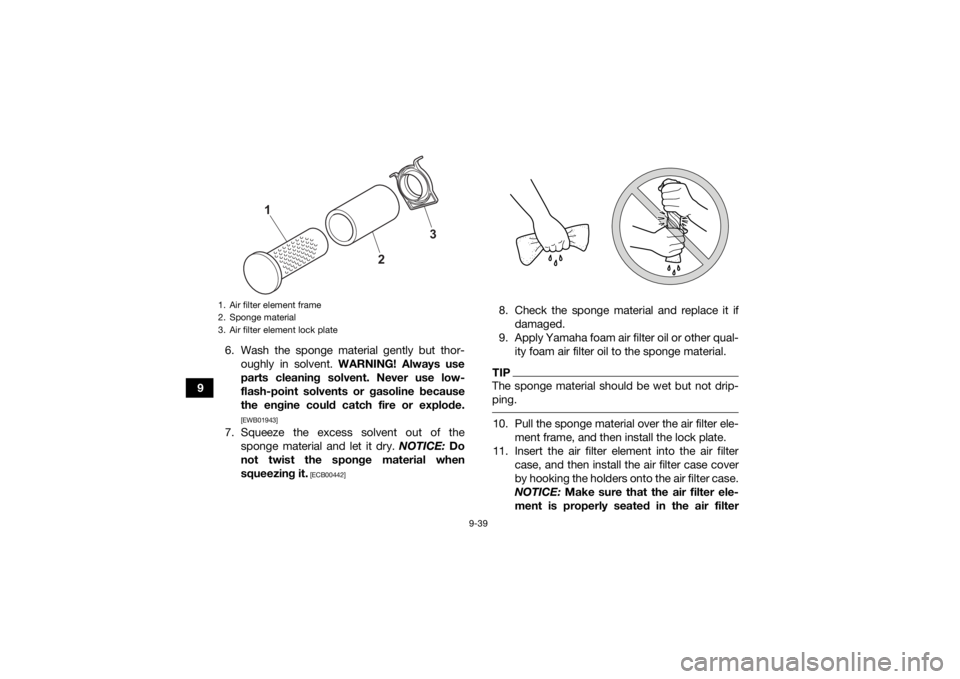

1. Air filter element frame
2. Sponge material
3. Air filter element lock plate
3
2
1
UBFE60E0.book Page 39 Tuesday, August 18, 2020 10:50 AM

9-40
9
case. Never operate the engine with the air
filter element removed. Doing so would al-
low unfiltered air to enter the engine, caus-
ing rapid engine wear and possible engine
damage. Additionally, the fuel injection
system would be affected resulting in poor
engine performance and possible over-
heating.
[ECB00763]
12. Install the seat.TIPEach time the air filter element maintenance is
performed, check the air inlet of the air filter case
for obstructions. Check the air filter case rubber
joint to the throttle body and the rubber joint man-
ifold fittings for an air-tight seal. Tighten all fittings
securely to avoid the possibility of unfiltered air
entering the engine. EBU28905Cleaning the spark arresterBe sure the exhaust pipe and muffler are cool be-
fore cleaning the spark arrester.
WARNING
EWB02342Always let the exhaust system cool prior to
touching exhaust components.
Do not start the engine with the spark arrester
removed. Sparks or exhaust particulate can
cause eye injury, burns, or start a fire. 1. Remove the tailpipe bolts.
2. Remove the tailpipe by pulling it out of the

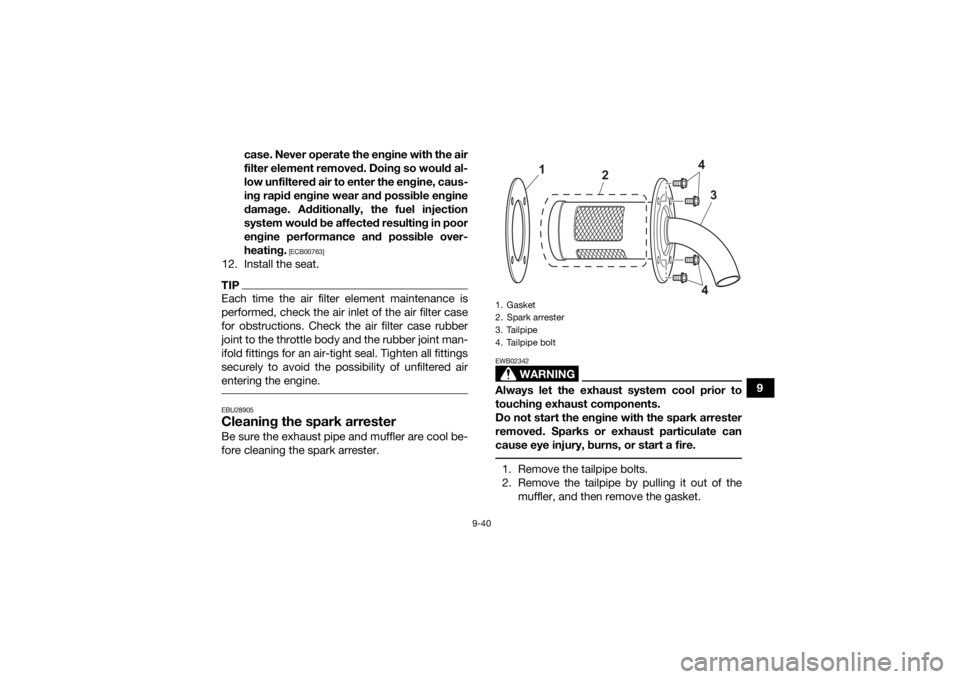

muffler, and then remove the gasket.1. Gasket
2. Spark arrester
3. Tailpipe
4. Tailpipe bolt
3
2
4
1
4
UBFE60E0.book Page 40 Tuesday, August 18, 2020 10:50 AM

9-41
93. Tap the tailpipe lightly, and then use a wire
brush to remove any carbon deposits from
the spark arrester portion of the tailpipe and
inside of the tailpipe housing.
4. Check the gasket for damage. Replace if nec- essary.
5. Install the gasket onto the tailpipe, then insert the tailpipe into the muffler and align the bolt
holes.
6. Install the bolts and tighten to the specified torque.

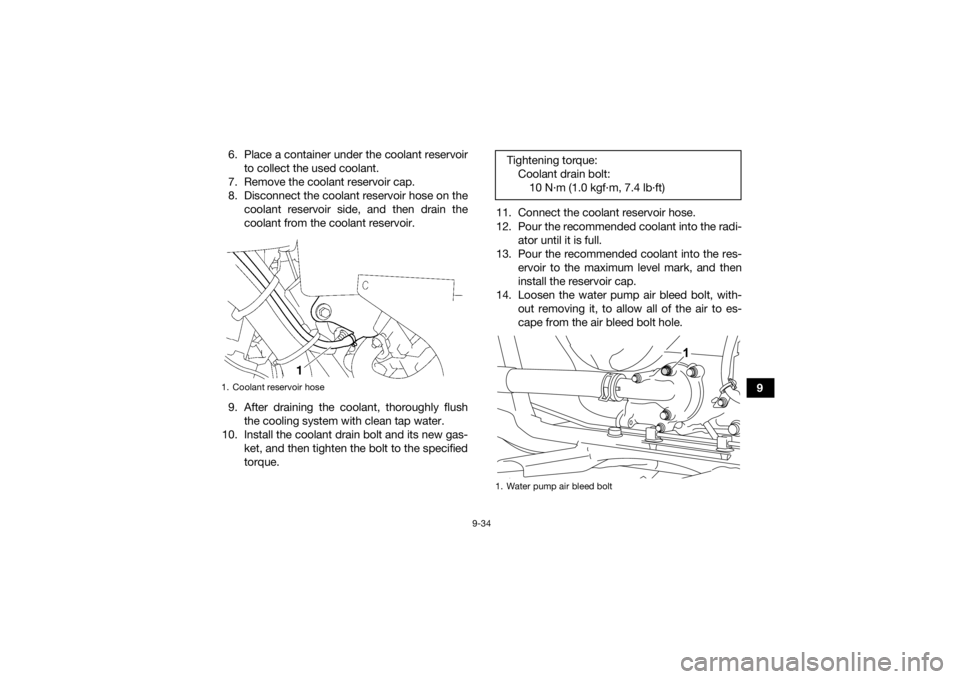

EBU23932V-belt case drain plugAfter riding in water deep enough to allow it to en-
ter the V-belt case, remove the V-belt case drain
plug to drain the water from the case.TIPIf water drains from the V-belt case after removing
the plug, have a Yamaha dealer check the ATV as
the water may affect other engine parts. Tightening torque:Tailpipe bolt:10 N
