VEHICLE IDENTIFICATION
EBU28205Identification numbersRecord the vehicle identification number and
model label information in the spaces provided
below.
VEHICLE IDENTIFICATION NUMBER:
MODEL LABEL INFORMATION:EBU26032Vehicle identification number
The vehicle identification number is stamped into
the frame. This 17-digit number is used to identify
your individual ATV.
EBU26053Model label
The model label is affixed at the location shown.1. Vehicle identification number (front left side)
UBLT60E0.book Page 1 Tuesday, July 13, 2021 9:16 AM

1-2
1Your specific model can be identified by checking
the model type code found on the model label.
1. Model label
1. Model type code
2. Production code
3. Color code
1*
****
-
***1
3
2
UBLT60E0.book Page 2 Tuesday, July 13, 2021 9:16 AM

2-1
2
EBU29681
LOCATION OF THE WARNING AND SPECIFICATION LABELS
EBU37262Read and understand all of the labels on your ATV. These labels contain important information for safe and
proper operation.
Never remove any labels from your ATV. If a label becomes difficult to read or comes off, request a re-
placement label from your Yamaha dealer.UBLT60E0.book Page 1 Tuesday, July 13, 2021 9:16 AM

2-2
2
3

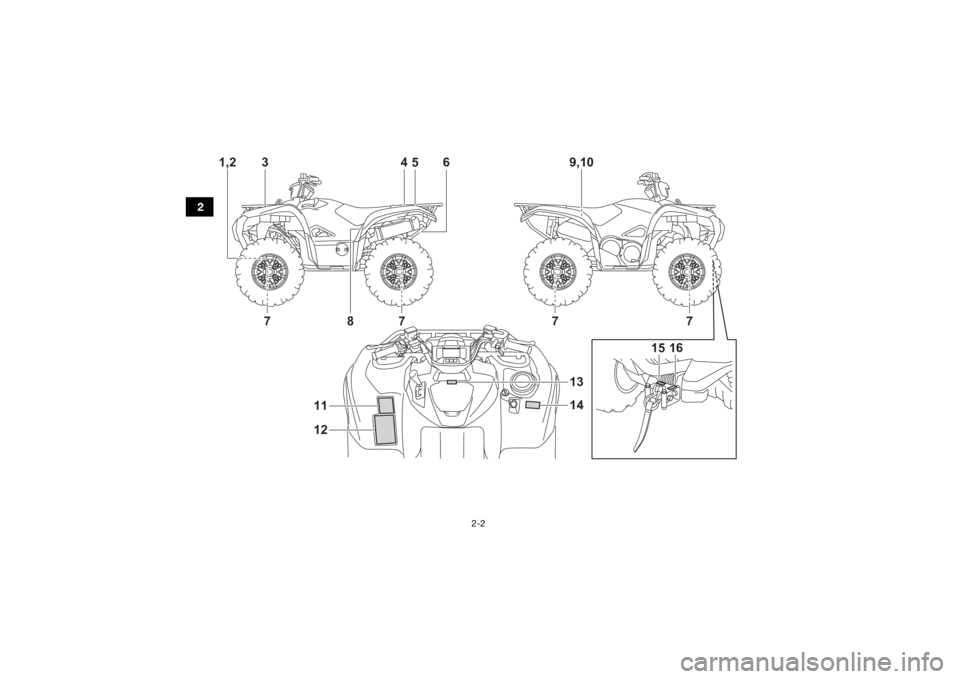

1,24 5 6
8
7
7
9,10
7
7
14
13
11
12
15 16
UBLT60E0.book Page 2 Tuesday, July 13, 2021 9:16 AM

2-3
2
YAMAHA MOTOR CO., LTD.
2500 SHINGAI, IWATA, JAPANYFM700FWAD
36.0 kW
331 kg
2021
BFE-F155A-20
YAMAHA MOTOR CO., LTD.
2500 SHINGAI, IWATA, JAPANYFM700FWAD
36.0 kW
355 kg
2021
BFE-F155A-30
B16-F817R-10< 90 kg
( 198 lbs)B16-F817R-00< 50 kg
( 110 lbs)
1P0-F816P-20
YAMAHA
B16-F811S-01
1 2 BLT5 / BLT8
2 BLTE 3
45
UBLT60E0.book Page 3 Tuesday, July 13, 2021 9:16 AM

2-4
2
< 5880 N< 600 kgf< 1322 lbf
< 147 N
< 15 kgf
< 33 lbf
37S-F817S-00
BB5-F2259-20
YAMAHA BB5-F816M-M035.0 kPa
0.35 kgf/cm²
5.0 psi30.0 kPa
0.30 kgf/cm²
4.4 psi 50.0 kPa
0.50 kgf/cm²
7.3 psi50.0 kPa
0.50 kgf/cm²
7.3 psi
YAMAHA
B5K-F816M-M035.0 kPa
0.35 kgf/cm²
5.0 psi35.0 kPa
0.35 kgf/cm²
5.0 psi 50.0 kPa
0.50 kgf/cm²
7.3 psi50.0 kPa
0.50 kgf/cm²
7.3 psi
6
8 BLT5 / BLT8
8 BLTE 7UBLT60E0.book Page 4 Tuesday, July 13, 2021 9:16 AM

2-5
2
YAMAHA
1HP-F811R-00
E10
E5
B4F-F817K-00
11
9
10
UBLT60E0.book Page 5 Tuesday, July 13, 2021 9:16 AM

2-6
2
37S-F816N-00< 0.5 kg
( 1 lb )
B4F-F817R-10< 4 kg
( 9 lbs)
1P0-F816R-00
YAMAHA
13
14
12
15
UBLT60E0.book Page 6 Tuesday, July 13, 2021 9:16 AM

2-7
2
BAS-F8459-00
16
UBLT60E0.book Page 7 Tuesday, July 13, 2021 9:16 AM

2-8
2Familiarize yourself with the following pictograms and read the explanatory text, then make sure to check
the pictograms that apply to your model.
Read the Owner’s manual.
ALWAYS use an approved helmet and
protective gear.
Use from 16 years old.
Operating this ATV if you are under the age
of 16 increases your chance of severe injury
or death. NEVER use on paved roads.
NEVER carry passengers.
NEVER use with drugs or alcohol.
NEVER store fuel or flammable liquids.
This unit contains high-pressure nitrogen
gas.
Mishandling can cause an explosion. Do not
incinerate, puncture or open.
