To check the coolant level
1. Place the vehicle on a level surfa-
ce and hold it in an upright posi-
tion.
NOTE:
The coolant level must be chec-
ked on a cold engine since the
level varies with engine tempera-
ture.
Make sure that the vehicle is
positioned straight up when
checking the coolant level. A
slight tilt to the side can result in
a false reading.
1. Coolant level gauge window
2. Check the coolant level through
the check window.
NOTE:
The coolant should be between the
minimum and maximum level marks.
1. Coolant reservoir
3. If the coolant is at or below the
minimum level mark, remove the
front cowling by removing the
screws.
4. Open the reservoir cap, and then
add coolant to the maximum
level mark.
ECA10470
CAUTION
If coolant is not available, use
distilled water or soft tap water
instead. Do not use hard water
or salt water since it is harmful
to the engine.
If water has been used instead
of coolant, replace it with coo-
lant as soon as possible, other-
wise the engine may not be
sufficiently cooled and the coo-
ling system will not be protec-
ted against frost and corrosion.
If water has been added to the
coolant, have a Yamaha dealer
check the antifreeze content of
the coolant as soon as possi-
ble, otherwise the effective-
ness of the coolant will be
reduced.
5. Close the reservoir cap, and then
install the front cowling by insta-
lling the screws.Coolant reservoir capacity:
0,380 L (0,00103 Imp.qt)
kbajdzc4050
30
10 2060
70
80
0:
6
PERIODIC MAINTENANCE AND MINOR REPAIR
6-7
11
5RW-F8199-E3.qxd 08/09/2005 18:07 Página 34

ECA10480
CAUTION
Make sure that the air filter ele-
ment is properly seated in the
air filter case.
The engine should never be
operated without the air filter
element installed, otherwise
the piston(s) and/or cylinder(s)
may become excessively worn.
7. Install the air filter case cover by
installing the screws.
8. Install the screw clamp and the
screws that fasten the air filter
case to the crankcase.
EAU21300
Adjusting the carburetor
The carburetor is an important part of
the engine and requires very sophisti-
cated adjustment. Therefore, all car-
buretor adjustments should be left to
a Yamaha dealer, who has the neces-
sary professional knowledge and
experience.
EAU21370
Adjusting the throttle cable
free play
The throttle cable free play should
measure 2 ~ 5 mm (0,8 ~ 0,20 in) at
the throttle grip. Periodically check
the throttle cable free play and, if
necessary, adjust it as follows.
NOTE:
The engine idling speed must be
correctly adjusted before checking
and adjusting the throttle cable free
play.
1. Locknut
2. Adjuster
3. Free play
1. Loosen the locknut.
2. To increase the throttle cable free
play, turn the adjusting nut in
direction (a). To decrease the
throttle cable free play, turn the
adjusting nut in direction (b).
3. Tighten the locknut.
EAU33600
Tires
To maximize the performance, durabi-
lity, and safe operation of your vehi-
cle, note the following points regar-
ding the specified tires.
Tire air pressure
The tire air pressure should be chec-
ked and, if necessary, adjusted befo-
re each ride.
6
PERIODIC MAINTENANCE AND MINOR REPAIR
6-9
21 b
a3
5RW-F8199-E3.qxd 08/09/2005 18:07 Página 36

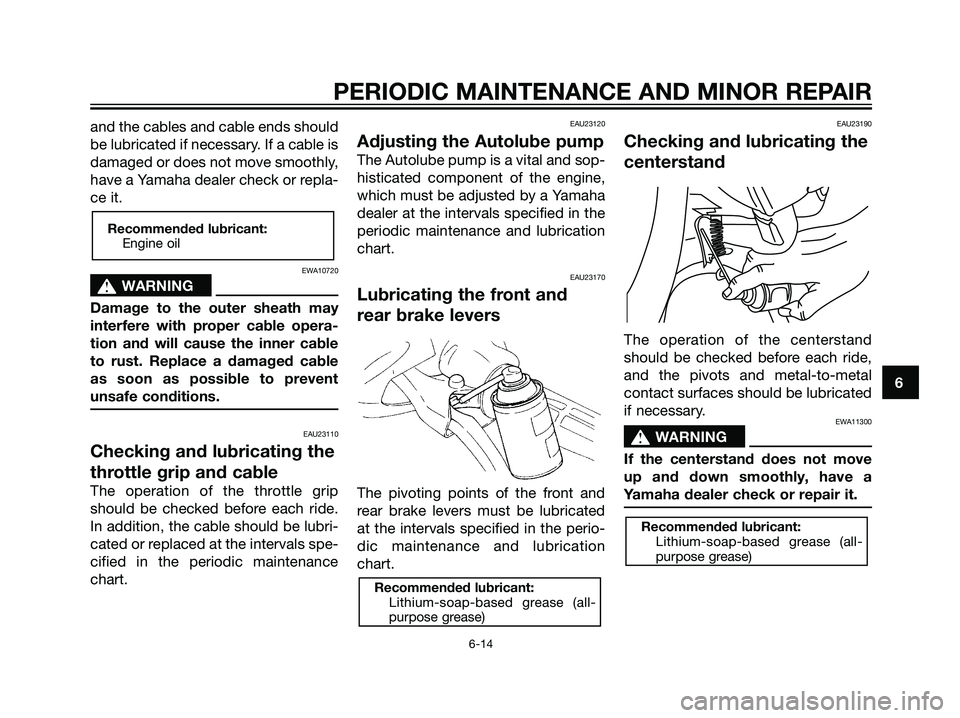

and the cables and cable ends should
be lubricated if necessary. If a cable is
damaged or does not move smoothly,
have a Yamaha dealer check or repla-
ce it.
EWA10720
s s
WARNING
Damage to the outer sheath may
interfere with proper cable opera-
tion and will cause the inner cable
to rust. Replace a damaged cable
as soon as possible to prevent
unsafe conditions.
EAU23110
Checking and lubricating the
throttle grip and cable
The operation of the throttle grip
should be checked before each ride.
In addition, the cable should be lubri-
cated or replaced at the intervals spe-
cified in the periodic maintenance
chart.
EAU23120
Adjusting the Autolube pump
The Autolube pump is a vital and sop-
histicated component of the engine,
which must be adjusted by a Yamaha
dealer at the intervals specified in the
periodic maintenance and lubrication
chart.
EAU23170
Lubricating the front and
rear brake levers
The pivoting points of the front and
rear brake levers must be lubricated
at the intervals specified in the perio-
dic maintenance and lubrication
chart.
EAU23190
Checking and lubricating the
centerstand
The operation of the centerstand
should be checked before each ride,
and the pivots and metal-to-metal
contact surfaces should be lubricated
if necessary.
EWA11300
s s
WARNING
If the centerstand does not move
up and down smoothly, have a
Yamaha dealer check or repair it.
Recommended lubricant:
Lithium-soap-based grease (all-
purpose grease)
Recommended lubricant:
Lithium-soap-based grease (all-
purpose grease)
Recommended lubricant:
Engine oil
6
PERIODIC MAINTENANCE AND MINOR REPAIR
6-14
5RW-F8199-E3.qxd 08/09/2005 18:07 Página 41

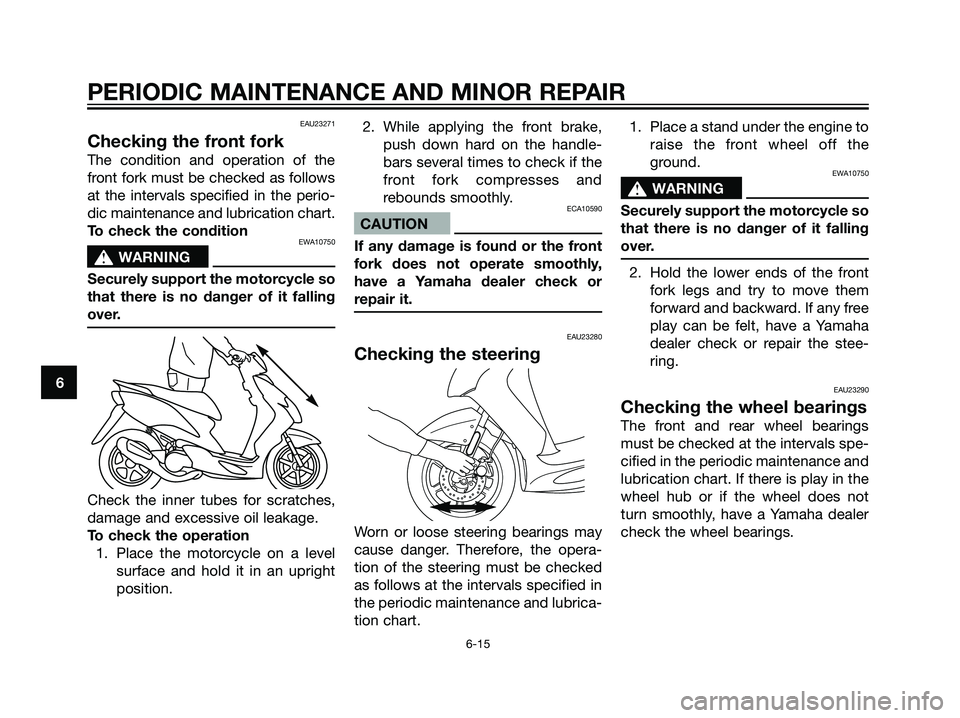

EAU23271
Checking the front fork
The condition and operation of the
front fork must be checked as follows
at the intervals specified in the perio-
dic maintenance and lubrication chart.
To check the condition
EWA10750
s s
WARNING
Securely support the motorcycle so
that there is no danger of it falling
over.
Check the inner tubes for scratches,
damage and excessive oil leakage.
To check the operation
1. Place the motorcycle on a level
surface and hold it in an upright
position.2. While applying the front brake,
push down hard on the handle-
bars several times to check if the
front fork compresses and
rebounds smoothly.
ECA10590
CAUTION
If any damage is found or the front
fork does not operate smoothly,
have a Yamaha dealer check or
repair it.
EAU23280
Checking the steering
Worn or loose steering bearings may
cause danger. Therefore, the opera-
tion of the steering must be checked
as follows at the intervals specified in
the periodic maintenance and lubrica-
tion chart.1. Place a stand under the engine to
raise the front wheel off the
ground.
EWA10750
s s
WARNING
Securely support the motorcycle so
that there is no danger of it falling
over.
2. Hold the lower ends of the front
fork legs and try to move them
forward and backward. If any free
play can be felt, have a Yamaha
dealer check or repair the stee-
ring.
EAU23290
Checking the wheel bearings
The front and rear wheel bearings
must be checked at the intervals spe-
cified in the periodic maintenance and
lubrication chart. If there is play in the
wheel hub or if the wheel does not
turn smoothly, have a Yamaha dealer
check the wheel bearings.
6
PERIODIC MAINTENANCE AND MINOR REPAIR
6-15
5RW-F8199-E3.qxd 08/09/2005 18:07 Página 42

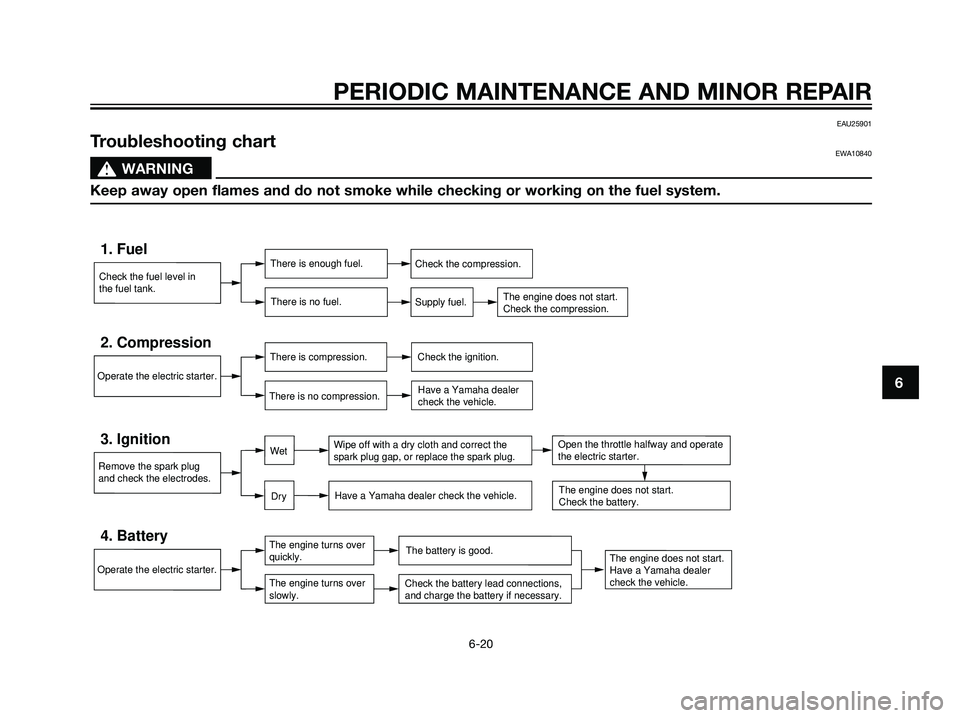

PERIODIC MAINTENANCE AND MINOR REPAIR
6-20
6
Check the fuel level in
the fuel tank.
1. FuelThere is enough fuel.
There is no fuel.Check the compression.
Supply fuel.
The engine does not start.
Check the compression.
Operate the electric starter.
2. CompressionThere is compression.
There is no compression.Check the ignition.
Have a Yamaha dealer
check the vehicle.
Remove the spark plug
and check the electrodes.
3. IgnitionWipe off with a dry cloth and correct the
spark plug gap, or replace the spark plug.
Have a Yamaha dealer check the vehicle.
The engine does not start.
Have a Yamaha dealer
check the vehicle.
The engine does not start.
Check the battery.
Operate the electric starter.
4. BatteryThe engine turns over
quickly.
The engine turns over
slowly.The battery is good.
Check the battery lead connections,
and charge the battery if necessary.
Dry
WetOpen the throttle halfway and operate
the electric starter.
EAU25901
Troubleshooting chartEWA10840
s s
WARNING
Keep away open flames and do not smoke while checking or working on the fuel system.
5RW-F8199-E3.qxd 08/09/2005 18:07 Página 47

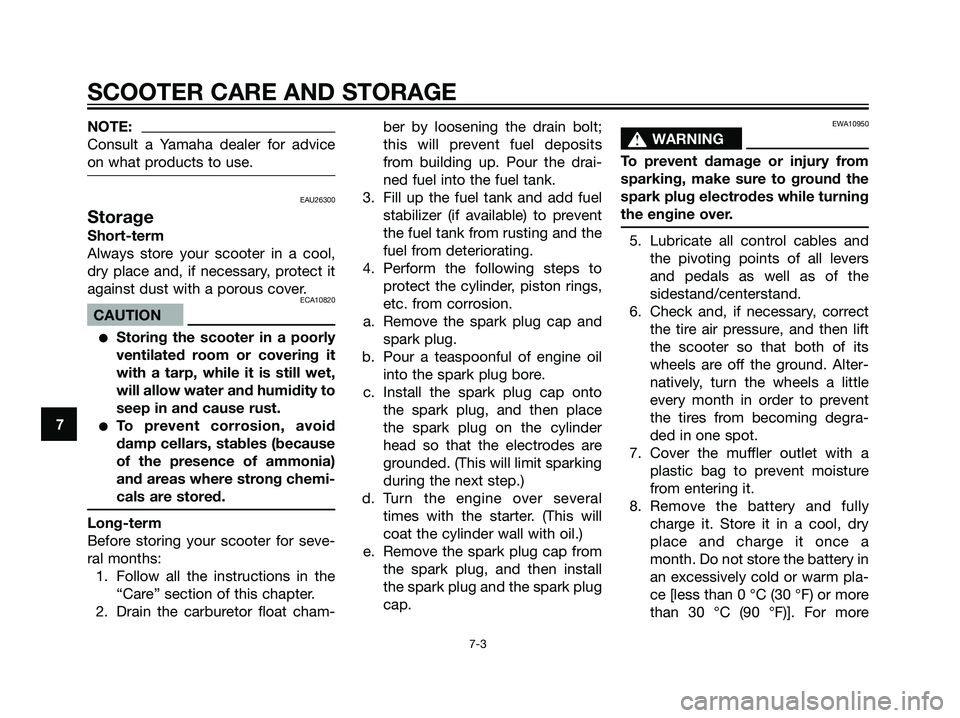

NOTE:
Consult a Yamaha dealer for advice
on what products to use.
EAU26300
Storage
Short-term
Always store your scooter in a cool,
dry place and, if necessary, protect it
against dust with a porous cover.
ECA10820
CAUTION
Storing the scooter in a poorly
ventilated room or covering it
with a tarp, while it is still wet,
will allow water and humidity to
seep in and cause rust.
To prevent corrosion, avoid
damp cellars, stables (because
of the presence of ammonia)
and areas where strong chemi-
cals are stored.
Long-term
Before storing your scooter for seve-
ral months:
1. Follow all the instructions in the
“Care” section of this chapter.
2. Drain the carburetor float cham-ber by loosening the drain bolt;
this will prevent fuel deposits
from building up. Pour the drai-
ned fuel into the fuel tank.
3. Fill up the fuel tank and add fuel
stabilizer (if available) to prevent
the fuel tank from rusting and the
fuel from deteriorating.
4. Perform the following steps to
protect the cylinder, piston rings,
etc. from corrosion.
a. Remove the spark plug cap and
spark plug.
b. Pour a teaspoonful of engine oil
into the spark plug bore.
c. Install the spark plug cap onto
the spark plug, and then place
the spark plug on the cylinder
head so that the electrodes are
grounded. (This will limit sparking
during the next step.)
d. Turn the engine over several
times with the starter. (This will
coat the cylinder wall with oil.)
e. Remove the spark plug cap from
the spark plug, and then install
the spark plug and the spark plug
cap.
EWA10950
s s
WARNING
To prevent damage or injury from
sparking, make sure to ground the
spark plug electrodes while turning
the engine over.
5. Lubricate all control cables and
the pivoting points of all levers
and pedals as well as of the
sidestand/centerstand.
6. Check and, if necessary, correct
the tire air pressure, and then lift
the scooter so that both of its
wheels are off the ground. Alter-
natively, turn the wheels a little
every month in order to prevent
the tires from becoming degra-
ded in one spot.
7. Cover the muffler outlet with a
plastic bag to prevent moisture
from entering it.
8. Remove the battery and fully
charge it. Store it in a cool, dry
place and charge it once a
month. Do not store the battery in
an excessively cold or warm pla-
ce [less than 0 °C (30 °F) or more
than 30 °C (90 °F)]. For more
7
SCOOTER CARE AND STORAGE
7-3
5RW-F8199-E3.qxd 08/09/2005 18:07 Página 50

22-stroke engine oil .....................................3-5
AAcceleration and deceleration ...................5-2
Adjusting the Autolube pump ..................6-14
Adjusting the brake lever free play ..........6-11
Adjusting the carburetor ............................6-9
Adjusting the rear brake lever free play ...6-11
Adjusting the throttle cable free play .........6-9
BBattery......................................................6-17
Braking .......................................................5-2
CCare............................................................7-1
Changing the brake fluid..........................6-13
Checking and lubricating the cables .......6-13
Checking and lubricating the
centerstand ............................................6-14
Checking and lubricating the throttle
grip and cable ........................................6-14
Checking the front brake fluid level .........6-13
Checking the front brake pads and rear
brake shoes ...........................................6-12
Checking the front fork ............................6-15
Checking the spark plug ............................6-5
Checking the steering ..............................6-15
Checking the wheel bearings ..................6-15
Cleaning the air filter element ....................6-8
Clock ..........................................................3-3
Controls and instruments ..........................2-3
Coolant (only for liquid-cooled models).....6-6
EEngine break-in ..........................................5-2
FFinal transmission oil .................................6-6
Front brake lever ........................................3-4
Fuel ............................................................3-5
Fuel and 2-stroke engine oil tank caps .....3-4
Fuel gauge .................................................3-3
HHandlebar switches ...................................3-3
IIdentification numbers ...............................9-1
Indicator lights ...........................................3-1
KKickstarter ..................................................3-6
LLeft view .....................................................2-1
Lubricating the front and rear brake
levers .....................................................6-14
MMain switch/steering lock ..........................3-1
PParking .......................................................5-2
Periodic maintenance and lubrication
chart .........................................................6-2
Pre-operation check list .............................4-2
RRear brake lever .........................................3-4
Replacing a turn signal light bulb or the
tail/brake light bulb ................................6-16
Replacing the fuse ...................................6-18
Replacing the headlight bulb or a front
turn signal light bulb ..............................6-16
Replacing the license plate light bulb......6-17
Right view ..................................................2-2
SSeat ............................................................3-6
Speedometer unit ......................................3-2
Starting a cold engine ................................5-1
Starting off .................................................5-1
Storage.......................................................7-3
Storage compartment ................................3-6
TTires ...........................................................6-9
Troubleshooting .......................................6-19
Troubleshooting chart ..............................6-20
INDEX
5RW-F8199-E3.qxd 08/09/2005 18:07 Página 55
