EAU10132
Particularly important information is distinguished in this manual by the following notations:
IMPORTANT MANUAL INFORMATION
This is the safety alert symbol. It is used to alert you to potential personal injury
hazards. Obey all safety messages that follow this symbol to avoid possible
injury or death.
A WARNING indicates a hazardous situation which, if not avoided, could result
in death or serious injury.
A NOTICE indicates special precautions that must be taken to avoid damage to
the vehicle or other property.
A TIP provides key information to make procedures easier or clearer.
TIP
NOTICE
WARNING

Troubleshooting charts ...................6-26
SCOOTER CARE AND STORAGE.....7-1
Matte color caution...........................7-1
Care ..................................................7-1
Storage .............................................7-3
SPECIFICATIONS...............................8-1
CONSUMER INFORMATION.............9-1
Identification numbers ......................9-1
Key identification number .................9-1
Vehicle identification number............9-1
Model label .......................................9-2
TABLE OF CONTENTS

INSTRUMENT AND CONTROL FUNCTIONS
3-1
3
EAU10460
Main switch/steering lock
The main switch/steering lock con-
trols the ignition and lighting systems,
and is used to lock the steering. The
various positions are described
below.
EAU10640
“” ON
All electrical circuits are supplied with
power, and the engine can be started.
The key cannot be removed.
TIP
The headlight, meter lighting and tai-
llight come on automatically when the
engine is started.
EAU10661
“” OFF
All electrical systems are off. The key
can be removed.
EWA10061
sWARNING
Never turn the key to “ ” or “ ”
while the vehicle is moving. Other-
wise the electrical systems will be
switched off, which may result in
loss of control or an accident.
EAU10670
The 2-stroke engine oil level warning
light should come on. (See page 3-2).
EAU10681
“ ” LOCK
The steering is locked, and all electri-
cal systems are off. The key can be
removed.T
o lock the steering
1. Push.
2. Turn.
1. Turn the handlebars all the way to
the left.
2. Push the key in from the “ ”
position, and then turn it to “ ”
while still pushing it.
3. Remove the key.

To unlock the steering
1. Push.
2. Turn.
1. Push the key in, and then turn it
to “ ” while still pushing it.
EAU11003
Indicator and warning lights
1. Left turn signal indicator light “ ”
2. Oil level warning light “ ”
3. High beam indicator light “ ”
4. Right turn signal indicator light “ ”1. Left turn signal indicator light “ ”
2. Coolant temperature warning light “ ”
3. Oil level warning light “ ”
4. High beam indicator light “ ”
5. Right turn signal indicator light “ ”
EAU11030
Turn signal indicator lights “ ”
and “ ”
The corresponding indicator light flas-
hes when the turn signal switch is
pushed to the left or right.
EAU11080
High beam indicator light “ ”
This indicator light comes on when
the high beam of the headlight is swit-
ched on.
km/h
01020304050607080
14
3 25
CS50Z
km/h
01020304050607080
143 2
CS50/CS50M1
2
INSTRUMENT AND CONTROL FUNCTIONS
3-2
3

EAU11181
Oil level warning light “ ”
This warning light comes on when the
key is in the “ ” position or if the oil
level in the 2-stroke engine oil tank is
low during operation. If the warning
light comes on during operation, stop
immediately and fill the oil tank with
Yamalube 2 or equivalent 2-stroke
engine oil of either JASO grade “FC”
or ISO grades “EG-C” or “EG-D”. The
warning light should go off after the 2-
stroke engine oil tank has been refi-
lled.
TIP
If the warning light does not come on
when the key is in the “ ” position
or does not go off after the 2-stroke
engine oil tank has been refilled, have
a Yamaha dealer check the electrical
circuit.
ECA16291
NOTICE
Do not operate the vehicle until you
know that the engine oil level is suf-
ficient.
EAUS1530
Speedometer
1. Speedometer
1. Speedometer
1. Speedometer
1. Speedometer
The speedometer shows the riding
speed.
k m/hmph
0
10
203040
50
01020304050 6 0 7 0 8 0
1
CS50Z (for UK only)
k m/hmph
0
10
203040
50
01020304050 6 0 7 0 8 0
1
CS50/CS50M (for UK only)
k m/h
010
20
30405060
70
80
1
CS50Z
k m/h
010
20
30405060
70
80
1
CS50/CS50M
INSTRUMENT AND CONTROL FUNCTIONS
3-3
3

EAUS1424
Multi-function display
1. Select button
2. Odometer/tripmeter
3. Clock
4. Fuel meter
EWA12312
sWARNING
Be sure to stop the vehicle before
making any setting changes to the
multi-function display. Changing
settings while riding can distract
the operator and increase the risk
of an accident.
The multi-function display is equip-
ped with the following:
●a digital clock
●an odometer (which shows the
total distance traveled)
●a tripmeter (which shows the dis-
tance traveled since it was last
set to zero)
●a fuel gauge
●a self-diagnosis device
●a function button (which selects,
sets and resets various modes of
the multi-function display)
TIP
●Be sure to turn the key to “ ”
before using the button.
●For the U.K. only: The odometer
and tripmeter are displayed in
miles.
To set the clock:
1. Select the odometer and push
the button for at least two
seconds.
2. When the hour digits start flas-
hing, push the button to set the
hours.3. To change the ten-minute digit,
push the button for at least two
seconds.
4. When the ten-minute digit starts
flashing, push the button to set it.
5. To change the one-minute digit,
push the button for at least two
seconds.
km/h
01020304050607080
1
43 2
INSTRUMENT AND CONTROL FUNCTIONS
3-4
3

6. When the one-minute digit starts
flashing, push the button to set it.
7. Push the button for at least two
seconds to start the clock.
TIP
After setting the clock, be sure to
push the button for at least two
seconds before turning the key to
“ ”, otherwise the clock will not be
set.
Odometer and tripmeter modes
Pushing the button switches the dis-
play between the odometer mode
“ODO” and the tripmeter “TRIP” in
the following order:
ODO TRIP ODO
1. Odometer
2. Tripmeter
To reset the tripmeter, select it by
pushing the button, and then push it
again for at least two seconds.
Fuel gauge
The fuel gauge indicates the amount
of fuel in the fuel tank. The display
segments of the fuel gauge disappear
towards “E” (Empty) as the fuel level
decreases. When only one segment is
left near “E”, refuel as soon as possi-
ble.
Self-diagnosis device
This model is equipped with a self-
diagnosis device for the fuel electrical
circuit.
If a problem is detected in the fuel
electrical circuit, all LCD segments ofthe fuel gauge will flash. If this occurs,
have a Yamaha dealer check the vehi-
cle.
PRESS
BUTTON
PRESS
BUTTON
INSTRUMENT AND CONTROL FUNCTIONS
3-5
3

EAU14160
Rider seat
To open the rider seat
1. Place the scooter on the centers-
tand.
2. Insert the key into the main
switch, and then turn it counter-
clockwise.
1. Open.
TIP
Do not push inward when turning the
key.
3. Fold the rider seat up.
1. Seat
To close the rider seat
1. Fold the rider seat down, and
then push it down to lock it in
place.
2. Remove the key from the main
switch if the scooter will be left
unattended.
TIP
Make sure that the seat is properly
secured before riding.
EAU14510
Storage compartment
1. Storage compartment
There is a storage compartment
under the seat. (See page 3-11).
EWA10960
sWARNING
●Do not exceed the load limit of
3.5 kg (7.7 lb) for the storage
compartment.
●Do not exceed the maximum
load of CS50/CS50M 169 kg
(373 lb) CS50Z 166 kg (366 lb)
for the vehicle.
1
1
1
INSTRUMENT AND CONTROL FUNCTIONS
3-11
3

EAU15951
Read the Owner’s Manual carefully to
become familiar with all controls. If
there is a control or function you do
not understand, ask your Yamaha
dealer.
EWA10271
sWARNING
Failure to familiarize yourself with
the controls can lead to loss of
control, which could cause an acci-
dent or injury.
EAU16562
Starting a cold engineECA10250
NOTICE
See page 5-4 for engine break-in
instructions prior to operating the
vehicle for the first time.
1. Turn the key to “ ”, and when
the oil level warning light comes
on, turn it to “ ”.
ECA10240
NOTICE
If the oil level warning light does
not come on, have a Yamaha dealer
check the electrical circuit.
2. Close the throttle completely.3. While applying the front or rear
brake, start the engine by pus-
hing the start switch or by pus-
hing the kickstarter lever down.
NOTICE: For maximum engine
life, never accelerate hard
when the engine is cold!
[ECA11041]
If the engine fails to start by pus-
hing the start switch, release the
switch, wait a few seconds, and
then try again. Each starting
attempt should be as short as
possible to preserve the battery.
Do not crank the engine more
than 5 seconds on any one
attempt. If the engine does not
start with the starter motor, try
using the kickstarter.
ZAUM0367
OPERATION AND IMPORTANT RIDING POINTS
5-1
5

EAU16830

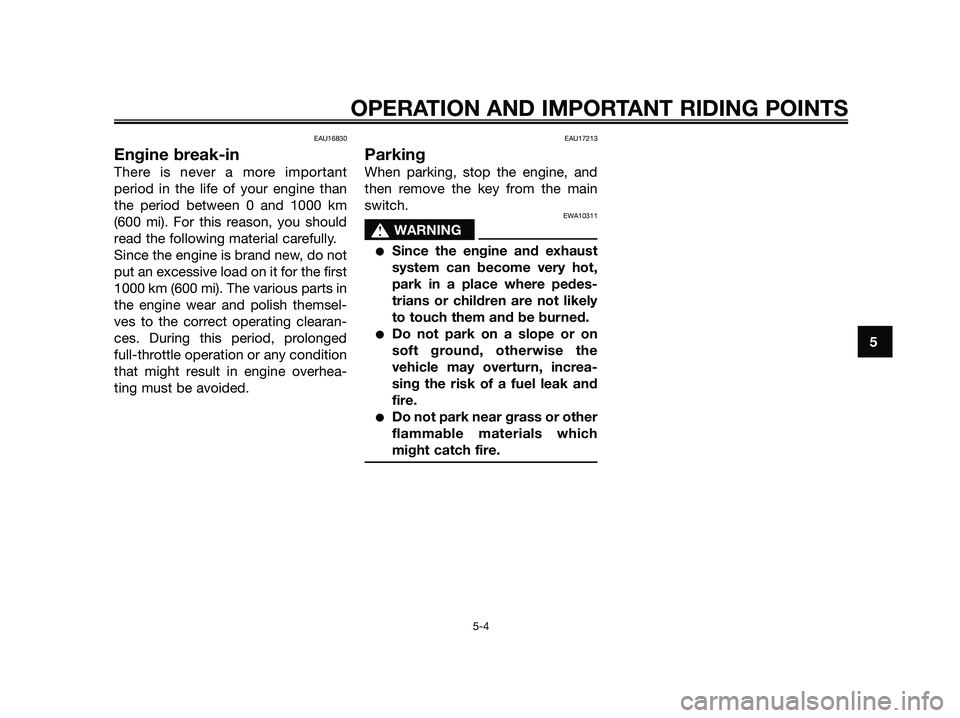

Engine break-in
There is never a more important
period in the life of your engine than
the period between 0 and 1000 km
(600 mi). For this reason, you should
read the following material carefully.
Since the engine is brand new, do not
put an excessive load on it for the first
1000 km (600 mi). The various parts in
the engine wear and polish themsel-
ves to the correct operating clearan-
ces. During this period, prolonged
full-throttle operation or any condition
that might result in engine overhea-
ting must be avoided.
EAU17213
Parking
When parking, stop the engine, and
then remove the key from the main
switch.
EWA10311
sWARNING
●Since the engine and exhaust
system can become very hot,
park in a place where pedes-
trians or children are not likely
to touch them and be burned.
●Do not park on a slope or on
soft ground, otherwise the
vehicle may overturn, increa-
sing the risk of a fuel leak and
fire.
●Do not park near grass or other
flammable materials which
might catch fire.
OPERATION AND IMPORTANT RIDING POINTS
5-4
