brake YAMAHA KODIAK 400 2003 Manuale de Empleo (in Spanish)

EBU00015

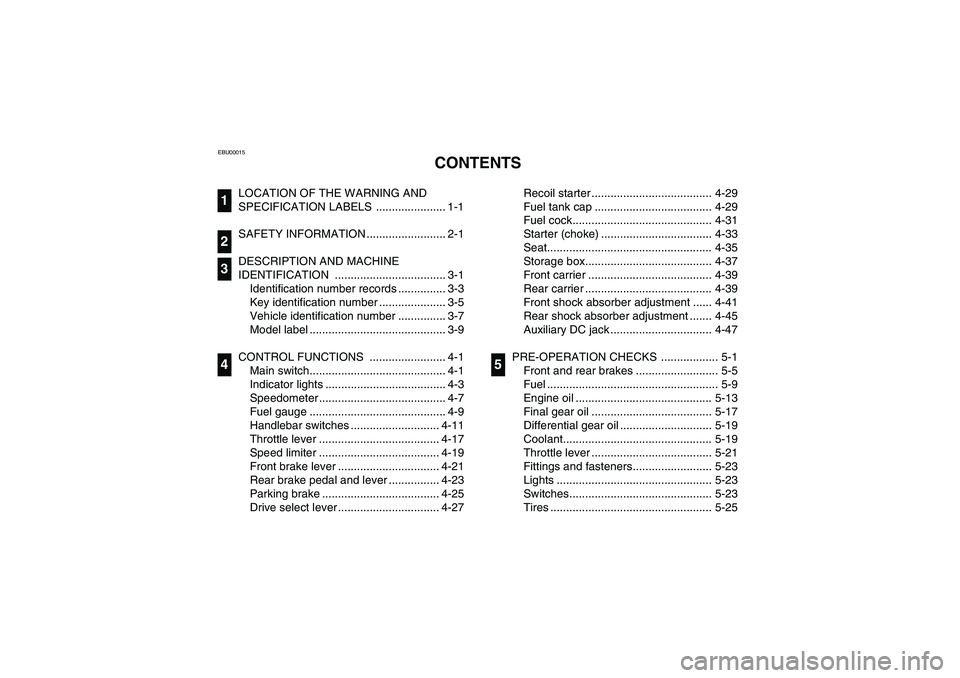

1-CONTENTS
LOCATION OF THE WARNING AND
SPECIFICATION LABELS ...................... 1-1
SAFETY INFORMATION ......................... 2-1
DESCRIPTION AND MACHINE
IDENTIFICATION ................................... 3-1
Identification number records ............... 3-3
Key identification number ..................... 3-5
Vehicle identification number ............... 3-7
Model label ........................................... 3-9
CONTROL FUNCTIONS ........................ 4-1
Main switch........................................... 4-1
Indicator lights ...................................... 4-3
Speedometer ........................................ 4-7
Fuel gauge ........................................... 4-9
Handlebar switches ............................ 4-11
Throttle lever ...................................... 4-17
Speed limiter ...................................... 4-19
Front brake lever ................................ 4-21
Rear brake pedal and lever ................ 4-23
Parking brake ..................................... 4-25
Drive select lever ................................ 4-27
1234
Recoil starter ...................................... 4-29
Fuel tank cap ..................................... 4-29
Fuel cock............................................ 4-31
Starter (choke) ................................... 4-33
Seat.................................................... 4-35
Storage box........................................ 4-37
Front carrier ....................................... 4-39
Rear carrier ........................................ 4-39
Front shock absorber adjustment ...... 4-41
Rear shock absorber adjustment ....... 4-45
Auxiliary DC jack ................................ 4-47
PRE-OPERATION CHECKS .................. 5-1
Front and rear brakes .......................... 5-5
Fuel ...................................................... 5-9
Engine oil ........................................... 5-13
Final gear oil ...................................... 5-17
Differential gear oil ............................. 5-19
Coolant............................................... 5-19
Throttle lever ...................................... 5-21
Fittings and fasteners......................... 5-23
Lights ................................................. 5-23
Switches............................................. 5-23
Tires ................................................... 5-25
5
U5TE60.book Page 1 Monday, June 10, 2002 8:47 AM

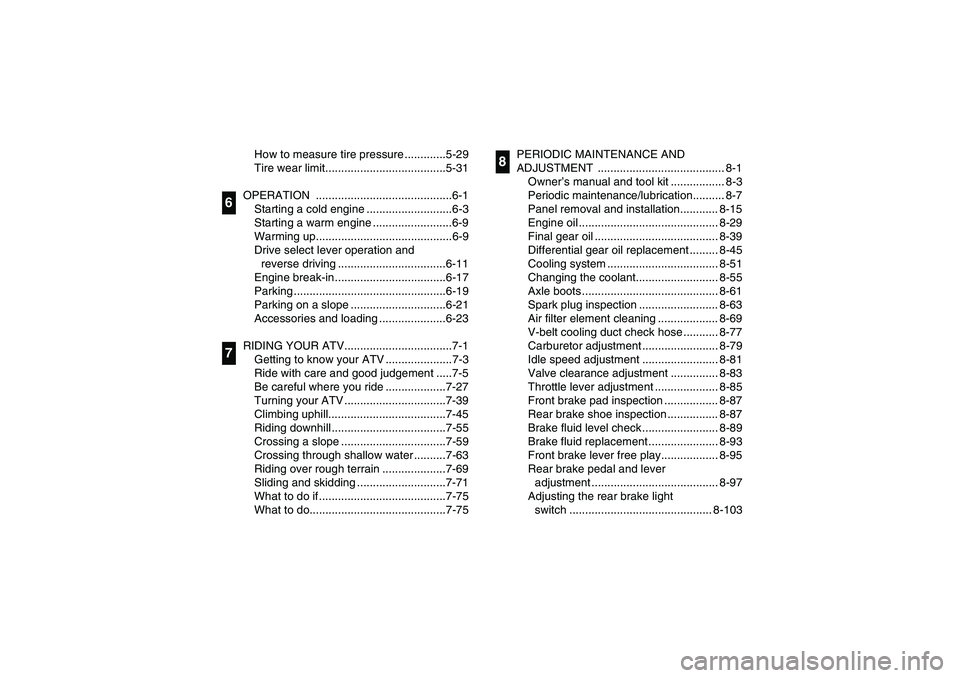

How to measure tire pressure .............5-29
Tire wear limit......................................5-31
OPERATION ...........................................6-1
Starting a cold engine ...........................6-3
Starting a warm engine .........................6-9
Warming up...........................................6-9
Drive select lever operation and
reverse driving ..................................6-11
Engine break-in ...................................6-17
Parking ................................................6-19
Parking on a slope ..............................6-21
Accessories and loading .....................6-23
RIDING YOUR ATV..................................7-1
Getting to know your ATV .....................7-3
Ride with care and good judgement .....7-5
Be careful where you ride ...................7-27
Turning your ATV ................................7-39
Climbing uphill.....................................7-45
Riding downhill ....................................7-55
Crossing a slope .................................7-59
Crossing through shallow water ..........7-63
Riding over rough terrain ....................7-69
Sliding and skidding ............................7-71
What to do if ........................................7-75
What to do...........................................7-75
67
PERIODIC MAINTENANCE AND
ADJUSTMENT ........................................ 8-1
Owner’s manual and tool kit ................. 8-3
Periodic maintenance/lubrication.......... 8-7
Panel removal and installation............ 8-15
Engine oil ............................................ 8-29
Final gear oil ....................................... 8-39
Differential gear oil replacement ......... 8-45
Cooling system ................................... 8-51
Changing the coolant.......................... 8-55
Axle boots ........................................... 8-61
Spark plug inspection ......................... 8-63
Air filter element cleaning ................... 8-69
V-belt cooling duct check hose ........... 8-77
Carburetor adjustment ........................ 8-79
Idle speed adjustment ........................ 8-81
Valve clearance adjustment ............... 8-83
Throttle lever adjustment .................... 8-85
Front brake pad inspection ................. 8-87
Rear brake shoe inspection ................ 8-87
Brake fluid level check ........................ 8-89
Brake fluid replacement ...................... 8-93
Front brake lever free play.................. 8-95
Rear brake pedal and lever
adjustment ........................................ 8-97
Adjusting the rear brake light
switch ............................................. 8-103
8
U5TE60.book Page 2 Monday, June 10, 2002 8:47 AM

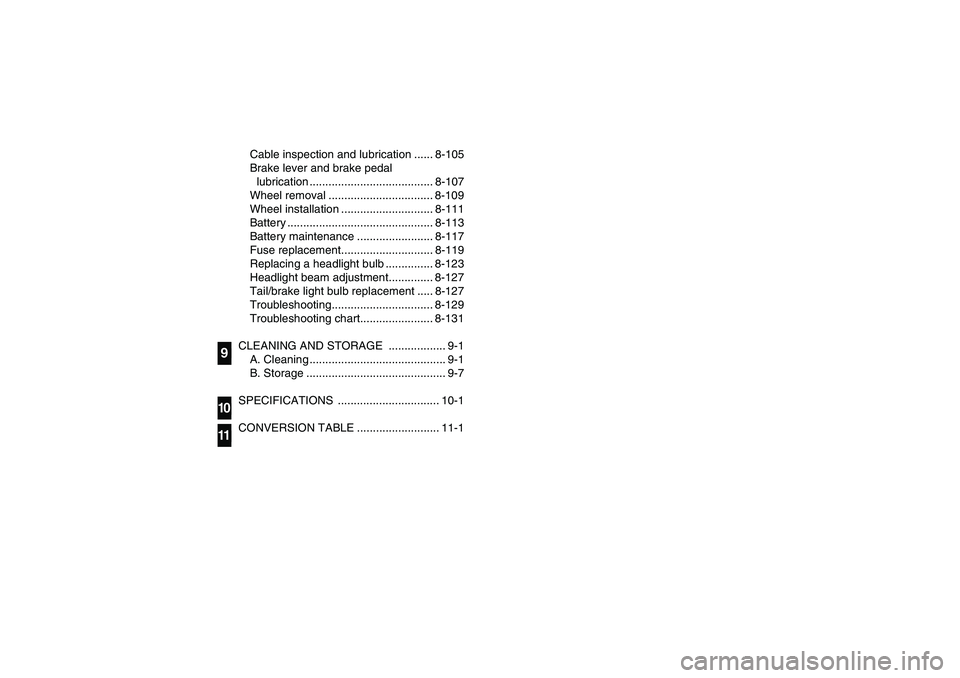

Cable inspection and lubrication ...... 8-105
Brake lever and brake pedal
lubrication ....................................... 8-107
Wheel removal ................................. 8-109
Wheel installation ............................. 8-111
Battery .............................................. 8-113
Battery maintenance ........................ 8-117
Fuse replacement............................. 8-119
Replacing a headlight bulb ............... 8-123
Headlight beam adjustment.............. 8-127
Tail/brake light bulb replacement ..... 8-127
Troubleshooting................................ 8-129
Troubleshooting chart....................... 8-131
CLEANING AND STORAGE .................. 9-1
A. Cleaning ........................................... 9-1
B. Storage ............................................ 9-7
SPECIFICATIONS ................................ 10-1
CONVERSION TABLE .......................... 11-1
91011U5TE60.book Page 3 Monday, June 10, 2002 8:47 AM

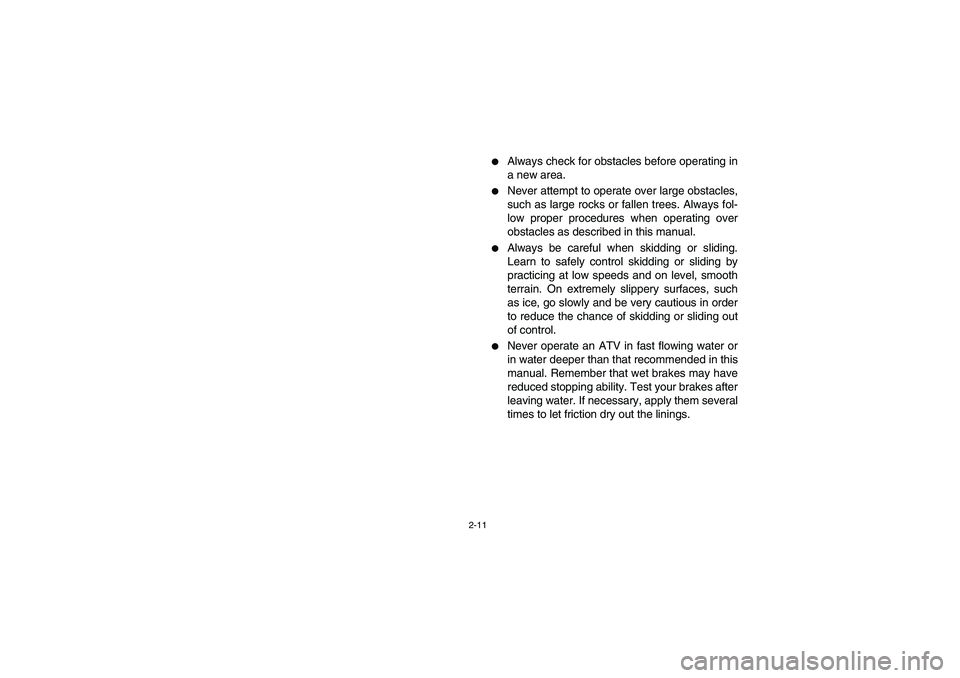

2-11

Always check for obstacles before operating in
a new area.


Never attempt to operate over large obstacles,
such as large rocks or fallen trees. Always fol-
low proper procedures when operating over
obstacles as described in this manual.


Always be careful when skidding or sliding.
Learn to safely control skidding or sliding by
practicing at low speeds and on level, smooth
terrain. On extremely slippery surfaces, such
as ice, go slowly and be very cautious in order
to reduce the chance of skidding or sliding out
of control.


Never operate an ATV in fast flowing water or
in water deeper than that recommended in this
manual. Remember that wet brakes may have
reduced stopping ability. Test your brakes after
leaving water. If necessary, apply them several
times to let friction dry out the linings.
U5TE60.book Page 11 Monday, June 10, 2002 8:47 AM

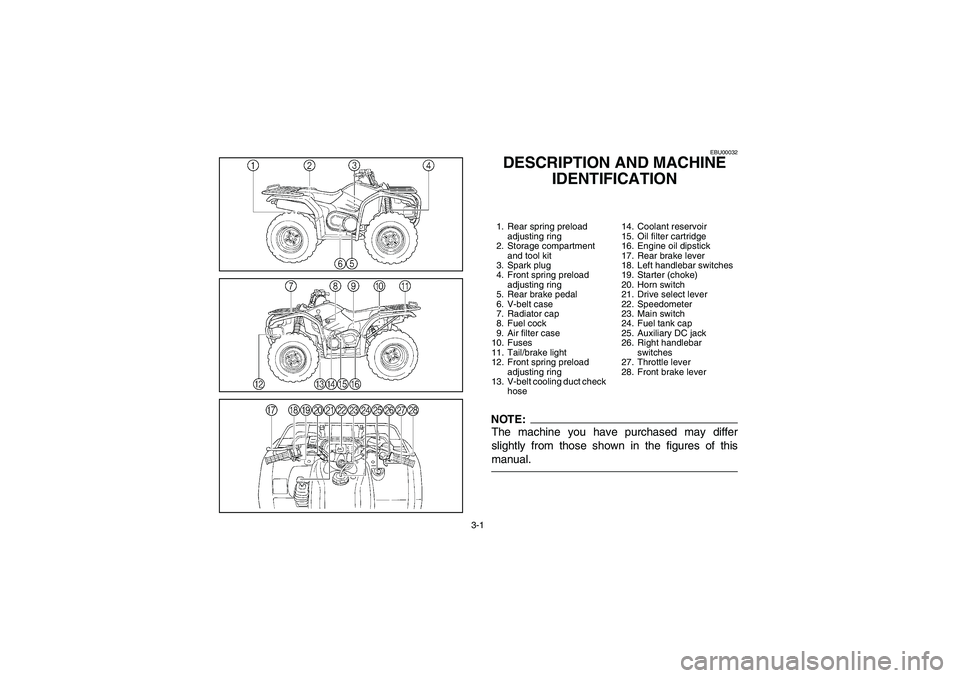

3-1
EBU00032
DESCRIPTION AND MACHINE
IDENTIFICATION1. Rear spring preload
adjusting ring
2. Storage compartment
and tool kit
3. Spark plug
4. Front spring preload
adjusting ring
5. Rear brake pedal
6. V-belt case
7. Radiator cap
8. Fuel cock
9. Air filter case
10. Fuses
11. Tail/brake light
12. Front spring preload
adjusting ring
13. V-belt cooling duct check
hose14. Coolant reservoir
15. Oil filter cartridge
16. Engine oil dipstick
17. Rear brake lever
18. Left handlebar switches
19. Starter (choke)
20. Horn switch
21. Drive select lever
22. Speedometer
23. Main switch
24. Fuel tank cap
25. Auxiliary DC jack
26. Right handlebar
switches
27. Throttle lever
28. Front brake leverNOTE:The machine you have purchased may differ
slightly from those shown in the figures of this
manual.
U5TE60.book Page 1 Monday, June 10, 2002 8:47 AM

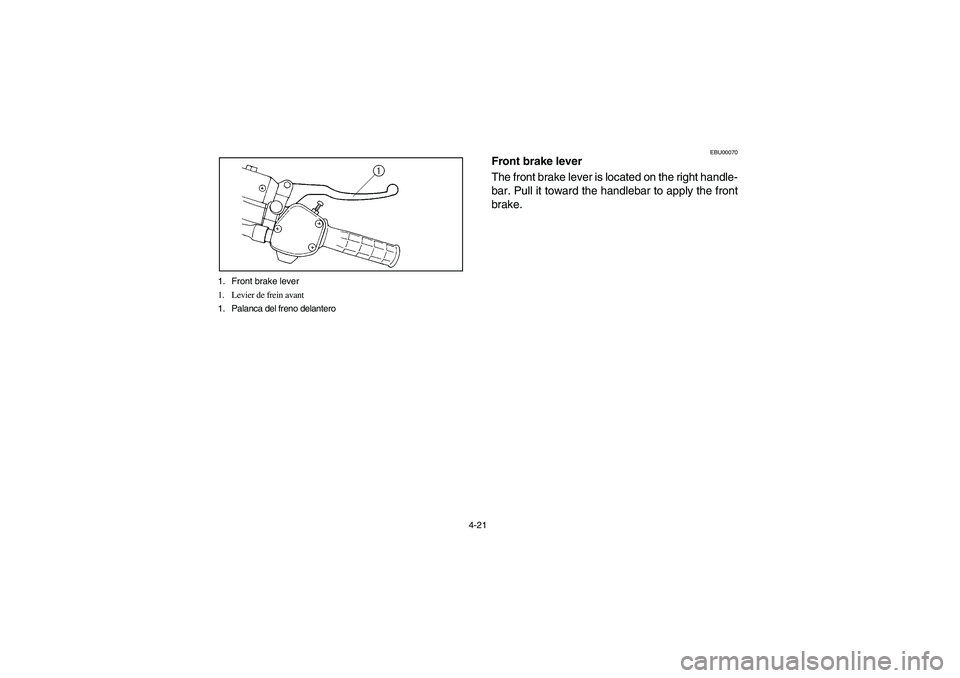

4-21 1. Front brake lever
1. Levier de frein avant
1. Palanca del freno delantero
EBU00070
Front brake lever
The front brake lever is located on the right handle-
bar. Pull it toward the handlebar to apply the front
brake.
U5TE60.book Page 21 Monday, June 10, 2002 8:47 AM

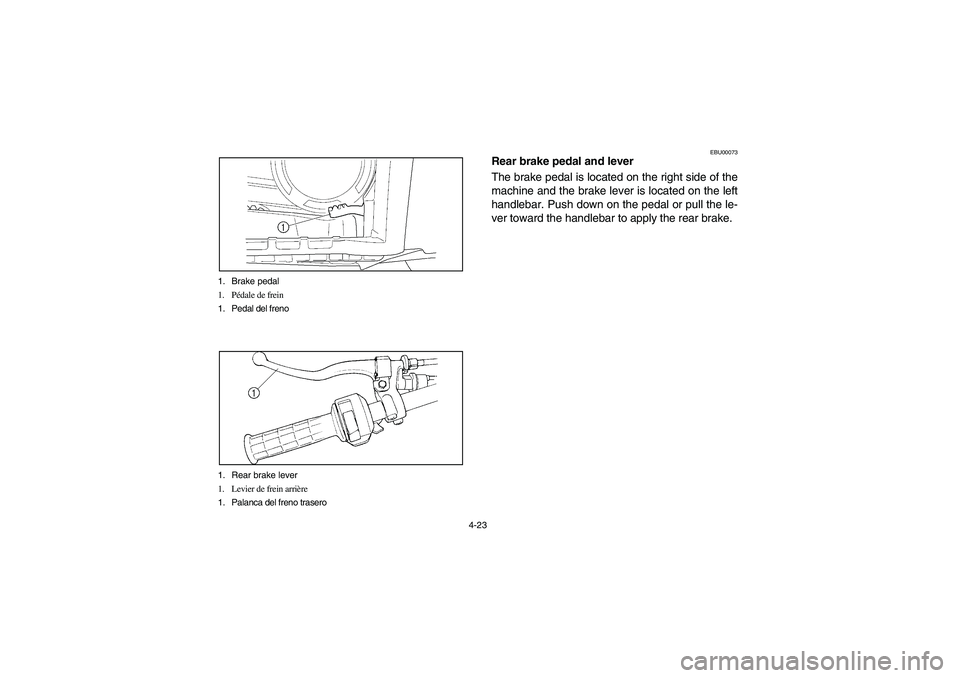

4-23 1. Brake pedal
1. Pédale de frein
1. Pedal del freno
1. Rear brake lever
1. Levier de frein arrière
1. Palanca del freno trasero
EBU00073
Rear brake pedal and lever
The brake pedal is located on the right side of the
machine and the brake lever is located on the left
handlebar. Push down on the pedal or pull the le-
ver toward the handlebar to apply the rear brake.
U5TE60.book Page 23 Monday, June 10, 2002 8:47 AM

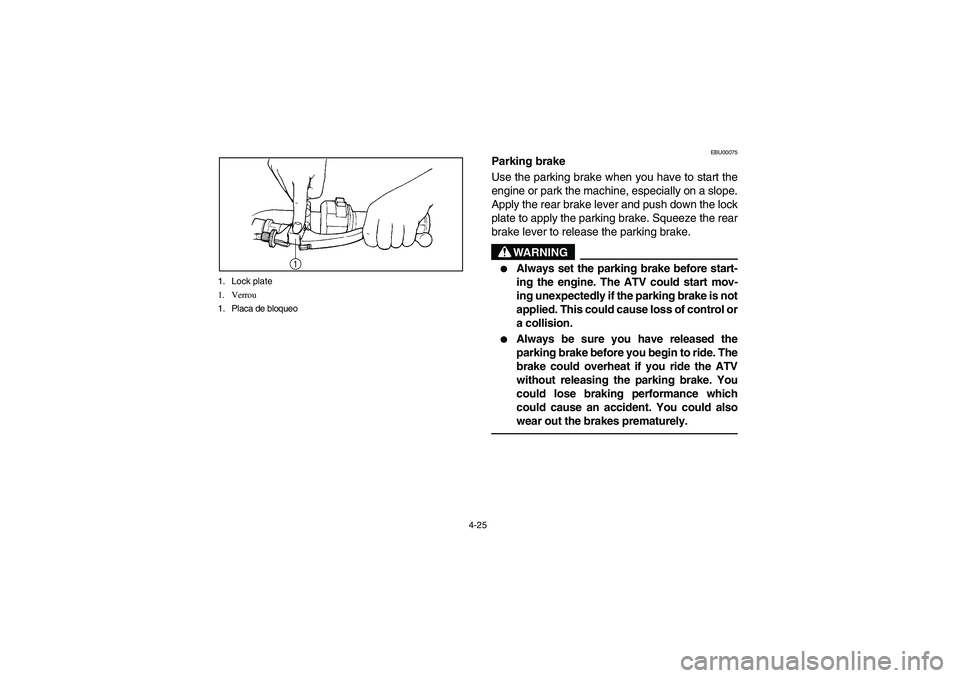

4-25 1. Lock plate
1. Verrou
1. Placa de bloqueo
EBU00075
Parking brake
Use the parking brake when you have to start the
engine or park the machine, especially on a slope.
Apply the rear brake lever and push down the lock
plate to apply the parking brake. Squeeze the rear
brake lever to release the parking brake.
WARNING
_

Always set the parking brake before start-
ing the engine. The ATV could start mov-
ing unexpectedly if the parking brake is not
applied. This could cause loss of control or
a collision.


Always be sure you have released the
parking brake before you begin to ride. The
brake could overheat if you ride the ATV
without releasing the parking brake. You
could lose braking performance which
could cause an accident. You could also
wear out the brakes prematurely.
_
U5TE60.book Page 25 Monday, June 10, 2002 8:47 AM

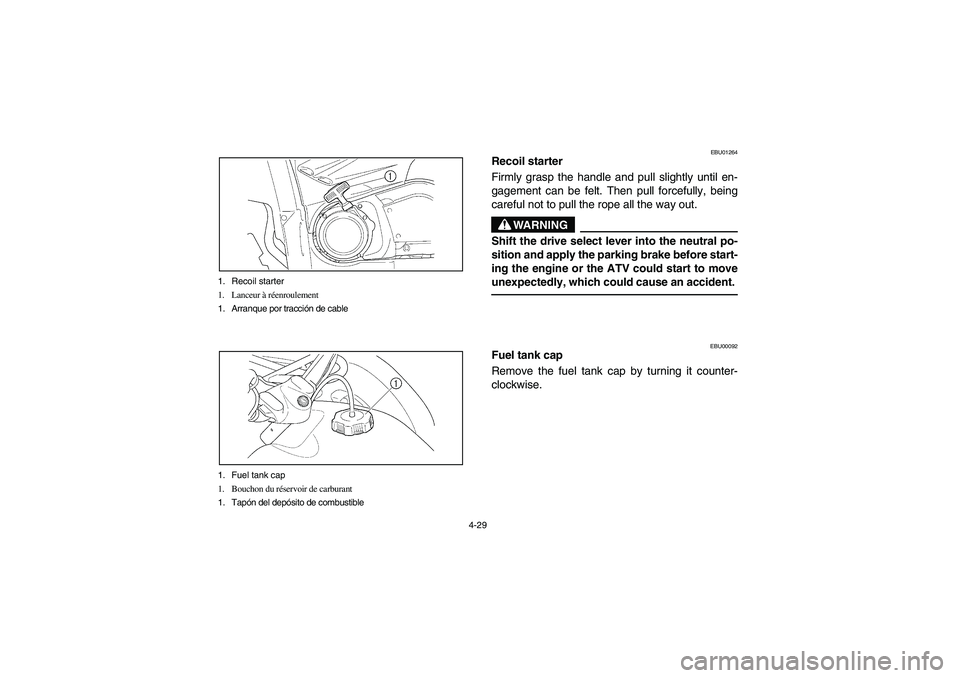

4-29 1. Recoil starter
1. Lanceur à réenroulement
1. Arranque por tracción de cable
1. Fuel tank cap
1. Bouchon du réservoir de carburant
1. Tapón del depósito de combustible
EBU01264
Recoil starter
Firmly grasp the handle and pull slightly until en-
gagement can be felt. Then pull forcefully, being
careful not to pull the rope all the way out.
WARNING
_ Shift the drive select lever into the neutral po-
sition and apply the parking brake before start-
ing the engine or the ATV could start to move
unexpectedly, which could cause an accident. _
EBU00092
Fuel tank cap
Remove the fuel tank cap by turning it counter-
clockwise.
U5TE60.book Page 29 Monday, June 10, 2002 8:47 AM

5-1
EBU00113

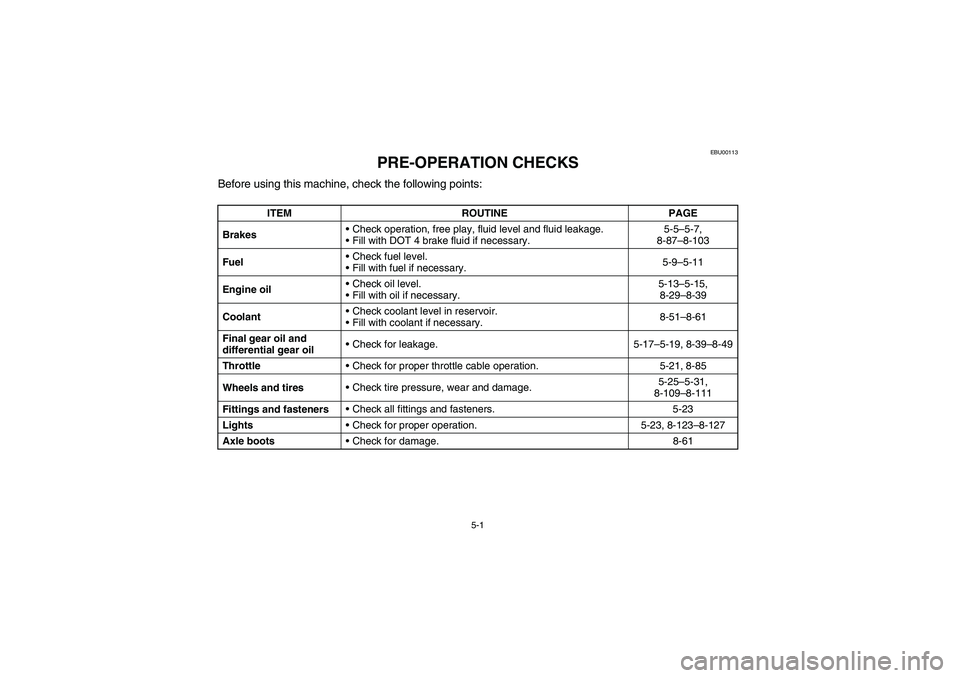

PRE-OPERATION CHECKS
Before using this machine, check the following points:
ITEM ROUTINE PAGE
BrakesCheck operation, free play, fluid level and fluid leakage.
Fill with DOT 4 brake fluid if necessary.5-5–5-7,
8-87–8-103
FuelCheck fuel level.
Fill with fuel if necessary.5-9–5-11
Engine oilCheck oil level.
Fill with oil if necessary.5-13–5-15,
8-29–8-39
CoolantCheck coolant level in reservoir.
Fill with coolant if necessary.8-51–8-61
Final gear oil and
differential gear oilCheck for leakage. 5-17–5-19, 8-39–8-49
ThrottleCheck for proper throttle cable operation. 5-21, 8-85
Wheels and tiresCheck tire pressure, wear and damage.5-25–5-31,
8-109–8-111
Fittings and fastenersCheck all fittings and fasteners. 5-23
LightsCheck for proper operation. 5-23, 8-123–8-127
Axle bootsCheck for damage. 8-61
U5TE60.book Page 1 Monday, June 10, 2002 8:47 AM
