battery YAMAHA KODIAK 400 2003 Owners Manual

Adjusting the rear brake light
switch ............................................... 8-97
Cable inspection and lubrication ........ 8-99
Lubricating the brake levers and
brake pedal .................................... 8-101
Wheel removal ................................. 8-103
Wheel installation ............................. 8-105
Battery .............................................. 8-107
Battery maintenance ........................ 8-111
Fuse replacement............................. 8-113
Replacing a headlight bulb ............... 8-117
Headlight beam adjustment.............. 8-121
Tail/brake light bulb replacement ..... 8-121
Troubleshooting................................ 8-123
Troubleshooting chart....................... 8-125
CLEANING AND STORAGE .................. 9-1
A. Cleaning ........................................... 9-1
B. Storage ............................................ 9-7
SPECIFICATIONS ................................ 10-1
CONVERSION TABLE .......................... 11-1
91011U5VH60.book Page 3 Wednesday, August 7, 2002 12:00 PM

4-11 1. Light switch “//OFF”
2. Engine stop switch “/”
3. Start switch “”
4. Horn switch “”
1. Contacteur d’éclairage “//OFF”
2. Coupe-circuit du moteur “/”
3. Contacteur du démarreur “”
4. Contacteur de l’avertisseur “”
1. Interruptor de luces “//OFF”
2. Interruptor de paro del motor “/”
3. Interruptor de arranque “”
4. Interruptor de la bocina “”
EBU00053
Handlebar switches
EBU01251
Light switch “/ /OFF”
Set the switch to “” to turn on the low beams,
the taillight and the meter lighting.
Set the switch to “” to turn on the high beams,
the taillight and the meter lighting.
Set the switch to “OFF” to turn off all the lights.CAUTION:_ Do not use the headlights with the engine
turned off for more than thirty minutes. The
battery may discharge to the point that the
starter motor will not operate properly. If this
should happen, remove the battery and re-
charge it. _
EBU01205
Engine stop switch “/”
Make sure that the engine stop switch is set to
“” before starting the engine. The engine stop
switch controls ignition and can be used at all
times to stop the engine, especially in an emer-
gency. The engine will not start or run when the
engine stop switch is set to “”.
U5VH60.book Page 11 Wednesday, August 7, 2002 12:00 PM

4-45
CAUTION:_

Do not use accessories requiring more
than the above maximum capacity. This
may overload the circuit and cause the
fuse to blow.


If accessories are used without the engine
running or with the headlights turned on,
the battery will lose its charge and engine
starting may become difficult.


Do not use an automotive cigarette lighter
or other accessories with a plug that gets
hot because the jack can be damaged.
_
U5VH60.book Page 45 Wednesday, August 7, 2002 12:00 PM

6-7 a. Starter (choke)
1. Fully open
2. Half open
3. Closed
a. Starter (enrichisseur)
1. Complètement ouvert
2. Mi-ouvert
3. Fermé
a. Arrancador (choke)
1. Abre completamente
2. Semiabierto
3. Cerrado
NOTE:_

If the engine fails to start, release the start
switch, then push the start switch again.
Pause a few seconds before the next at-
tempt. Each cranking should be as short as
possible to preserve battery energy. Do not
crank the engine more than 10 seconds on
each attempt.


If the battery is discharged, pull the recoil
starter to start the engine.
_7. If the engine is started with the starter (choke)
in position
1, the starter (choke) should be
returned to position
2 to warm up the en-
gine. If the engine is started with the starter
(choke) in position
2, keep the starter
(choke) in this position to warm up the en-
gine.
8. Continue warming up the engine until it idles
smoothly and return the starter (choke) to po-
sition
3 before riding.CAUTION:_ See the “Engine break-in” section prior to op-
erating the engine for the first time. _
U5VH60.book Page 7 Wednesday, August 7, 2002 12:00 PM

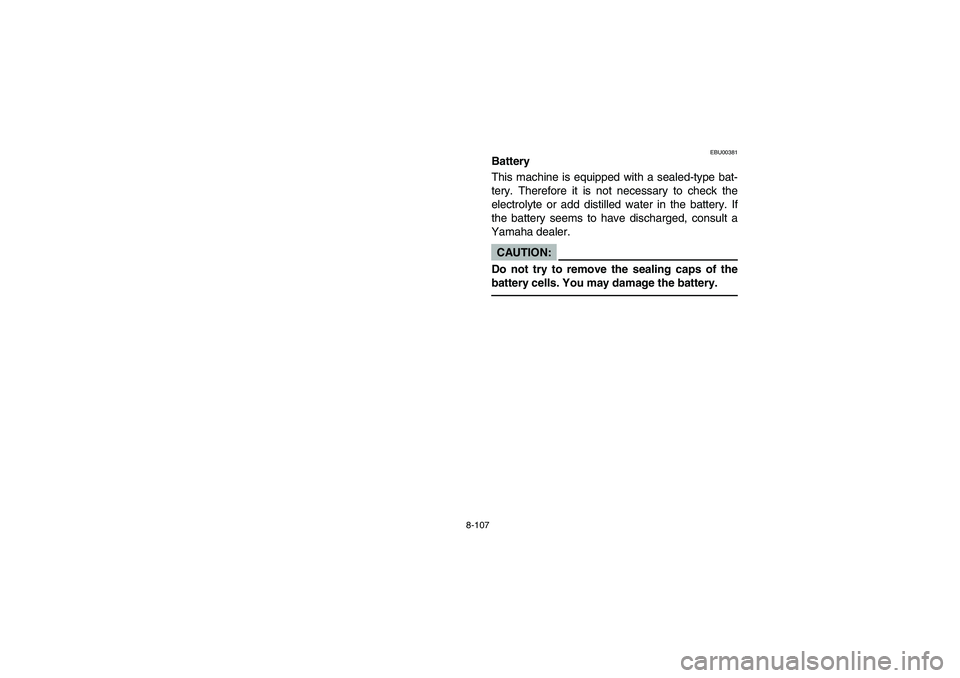

8-107
EBU00381
Battery
This machine is equipped with a sealed-type bat-
tery. Therefore it is not necessary to check the
electrolyte or add distilled water in the battery. If
the battery seems to have discharged, consult a
Yamaha dealer.CAUTION:
Do not try to remove the sealing caps of the
battery cells. You may damage the battery.
U5VH60.book Page 107 Wednesday, August 7, 2002 12:00 PM

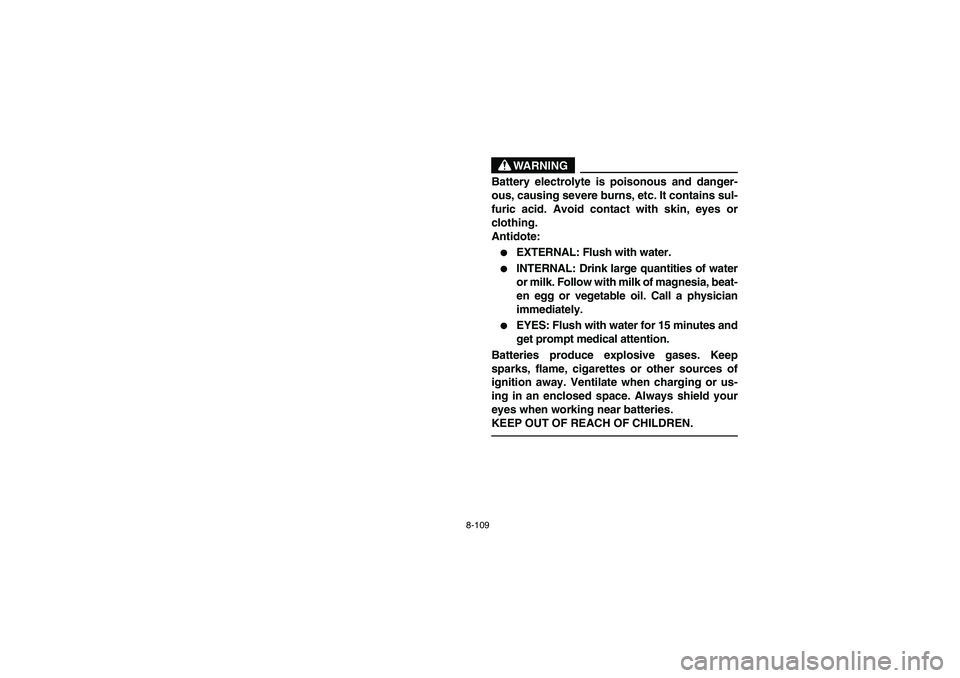

8-109
WARNING
Battery electrolyte is poisonous and danger-
ous, causing severe burns, etc. It contains sul-
furic acid. Avoid contact with skin, eyes or
clothing.
Antidote:

EXTERNAL: Flush with water.


lNTERNAL: Drink large quantities of water
or milk. Follow with milk of magnesia, beat-
en egg or vegetable oil. Call a physician
immediately.


EYES: Flush with water for 15 minutes and
get prompt medical attention.
Batteries produce explosive gases. Keep
sparks, flame, cigarettes or other sources of
ignition away. Ventilate when charging or us-
ing in an enclosed space. Always shield your
eyes when working near batteries.
KEEP OUT OF REACH OF CHILDREN.
U5VH60.book Page 109 Wednesday, August 7, 2002 12:00 PM

8-111
EBU00385
Battery maintenance
1. When the machine is not used for a month or
longer, remove the battery and store it in a
cool, dark place. Completely recharge the
battery before reinstallation.CAUTION:
A special battery charger (constant voltage/
ampere or constant voltage) is required for re-
charging a sealed-type battery. Using a con-
ventional battery charger may shorten the
battery life.2. Always make sure the connections are cor-
rect when putting the battery back in the ma-
chine.
U5VH60.book Page 111 Wednesday, August 7, 2002 12:00 PM

8-125
EBU00724Troubleshooting chart
Starting problems or poor engine performance1. Fuel
Check if there is fuel
in the fuel tank.There is fuel.Turn the fuel cock
lever to “OFF”.No fuel.Fuel cock is
clogged.
Clean the
fuel cock. Some fuel.Turn the fuel cock
lever to “RES”.Restart the engine.
No fuel.Supply fuel.
2. Compression
Use the electric
starter to see if
there is compression.There is compression.
Compression normal.
No compression.Ask a Yamaha dealer to
inspect.
3. Ignition
Remove the
spark plug and
check electrodes.WetWipe clean with dry cloth.
DryAttach spark plug cap and
ground to chassis.Use the
electric starter.Spark is good.Ignition system is
normal.
Spark is weak.
Adjust the spark plug gap
or replace the spark plug. No spark.
Ask a Yamaha dealer to
inspect. 4. Battery
Use the electric starter.Engine turns over
quickly.Battery is good.
Engine turns over
slowly.Check the connections.Check the
fuel flow.
Turn the fuel cock
lever to “ON”.
Remove the fuel hose
from the fuel cock.
U5VH60.book Page 125 Wednesday, August 7, 2002 12:00 PM

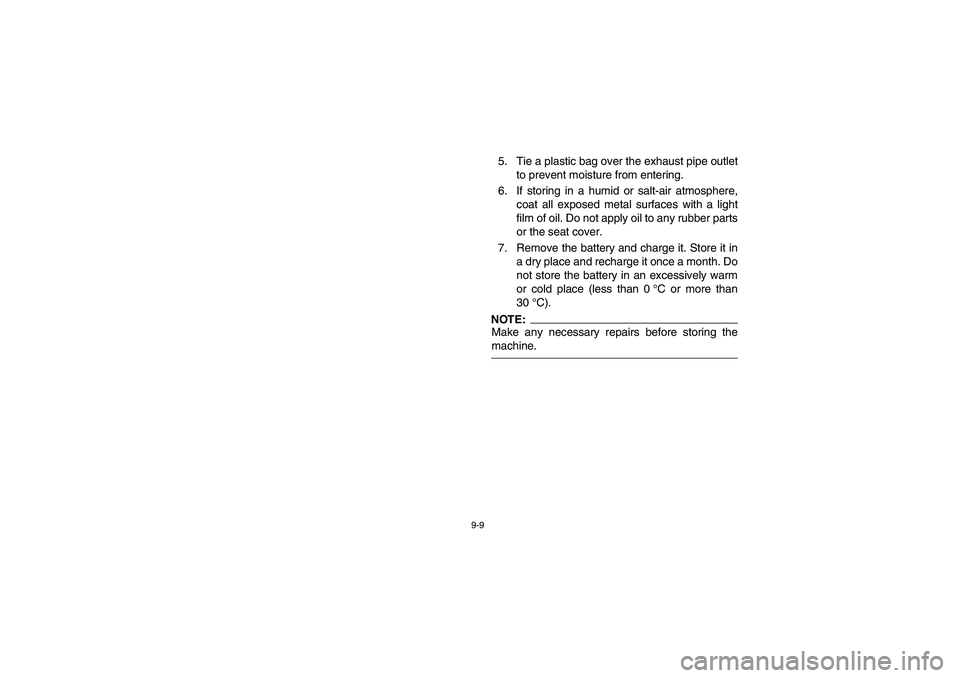

9-9
5. Tie a plastic bag over the exhaust pipe outlet
to prevent moisture from entering.
6. If storing in a humid or salt-air atmosphere,
coat all exposed metal surfaces with a light
film of oil. Do not apply oil to any rubber parts
or the seat cover.
7. Remove the battery and charge it. Store it in
a dry place and recharge it once a month. Do
not store the battery in an excessively warm
or cold place (less than 0°C or more than
30°C).NOTE:Make any necessary repairs before storing the
machine.
U5VH60.book Page 9 Wednesday, August 7, 2002 12:00 PM

10-5
Brake:
Front brake type Dual disc brake
operation Right hand operation
Rear brake type Drum brake
operation Left hand and right foot operation
Suspension:
Front suspension Double wishbone
Rear suspension Swingarm (monocross)
Shock absorber:
Front shock absorber Coil spring / oil damper
Rear shock absorber Coil spring / oil damper
Wheel travel:
Front wheel travel 160 mm
Rear wheel travel 180 mm
Electrical:
Ignition system DC-C.D.I.
Generator system A.C. magneto
Battery type YTX14AH (For Europe)
YTX20L-BS (For Oceania)
Battery voltage, capacity 12 V, 12 Ah (For Europe)
12 V, 18 Ah (For Oceania)
Headlight type: Krypton bulbModel YFM400A
U5VH60.book Page 5 Wednesday, August 7, 2002 12:00 PM
