fuses YAMAHA KODIAK 450 2019 Owners Manual

3-1
3
EBU17681

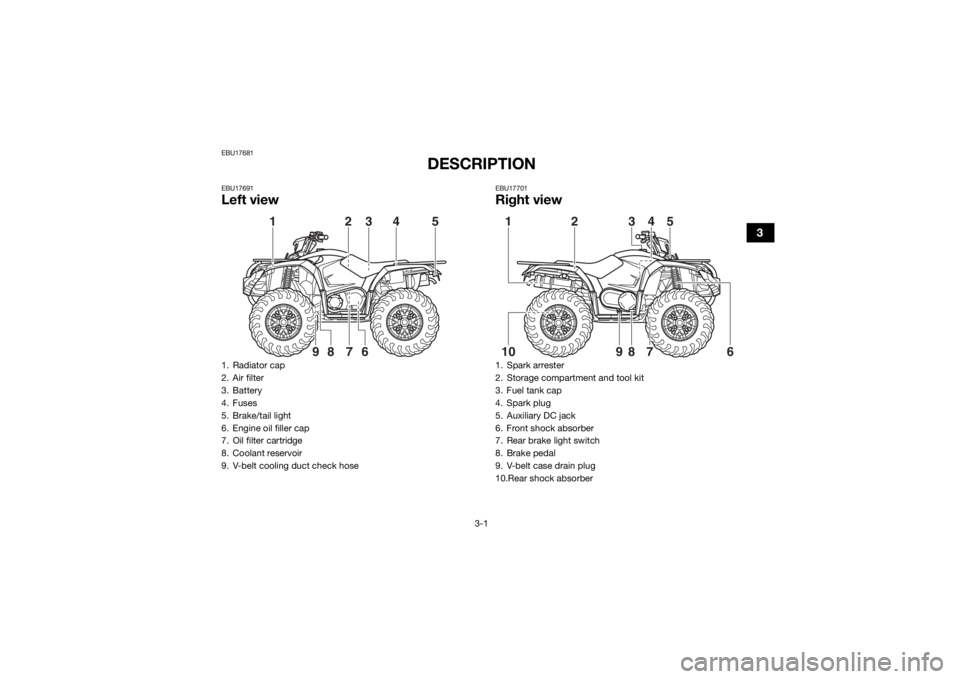

DESCRIPTION
EBU17691Left view
EBU17701Right view
1. Radiator cap
2. Air filter
3. Battery
4. Fuses
5. Brake/tail light
6. Engine oil filler cap
7. Oil filter cartridge
8. Coolant reservoir
9. V-belt cooling duct check hose
1
2
3
4
5
9
7
8
6
1. Spark arrester
2. Storage compartment and tool kit
3. Fuel tank cap
4. Spark plug
5. Auxiliary DC jack
6. Front shock absorber
7. Rear brake light switch
8. Brake pedal
9. V-belt case drain plug
10.Rear shock absorber110
6
2
3
4
5
7
9
8
UBB561E0.book Page 1 Monday, March 26, 2018 11:15 AM

8-58
8
4. Turn on the main switch, start the engine, and then turn on the circuit in question.
5. If the fuse immediately blows again, have a Yamaha dealer check the vehicle.
EBU34223Replacing a headlight bulbIf a headlight bulb burns out, replace it with the
specified bulb as follows.

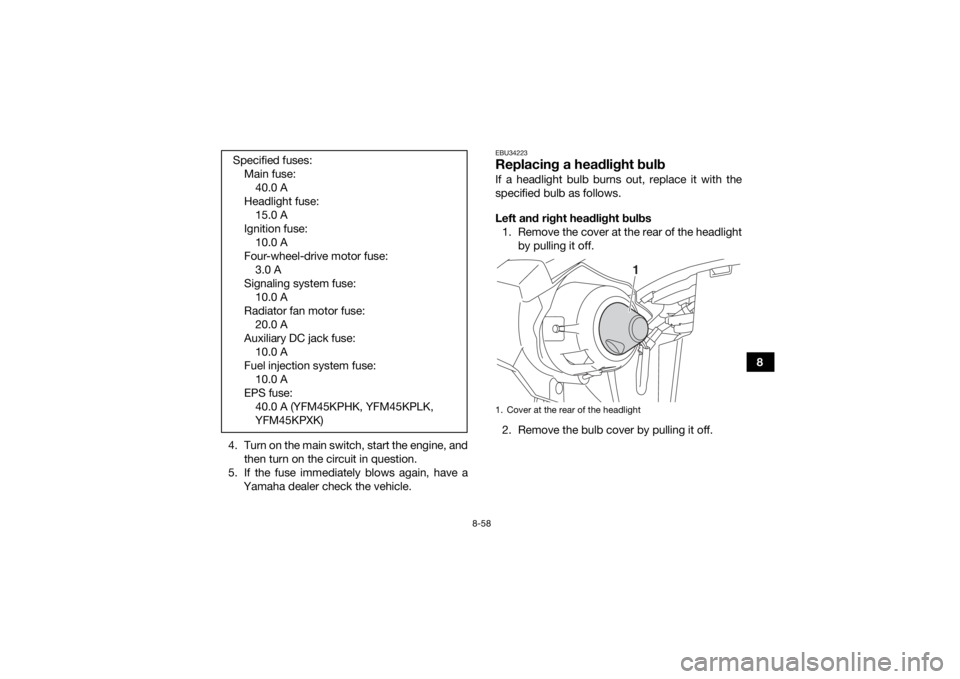

Left and right headlight bulbs1. Remove the cover at the rear of the headlight by pulling it off.
2. Remove the bulb cover by pulling it off.
Specified fuses:
Main fuse:40.0 A
Headlight fuse: 15.0 A
Ignition fuse: 10.0 A
Four-wheel-drive motor fuse: 3.0 A
Signaling system fuse: 10.0 A
Radiator fan motor fuse: 20.0 A
Auxiliary DC jack fuse: 10.0 A
Fuel injection system fuse: 10.0 A
EPS fuse: 40.0 A (YFM45KPHK, YFM45KPLK,
YFM45KPXK)1. Cover at the rear of the headlight
1
UBB561E0.book Page 58 Monday, March 26, 2018 11:15 AM

10-5
10
Electrical system:System voltage:12 V
Ignition system:
TCI
Charging system: AC magnetoBattery:Model:
YTX20L-BS
Voltage, capacity: 12 V, 18.0 AhLights:Headlight:
T19L, 30.0 W/30.0 W
Handlebar-mounted light: T15H, 35.0 W/36.5 W (YFM45KPHK, YFM45KPLK,
YFM45KPXK)
Brake/tail light: 21.0 W/5.0 W
Meter lighting: LED
Neutral indicator light:
LED
Reverse indicator light: LED
Coolant temperature warning light: LED
Parking brake indicator light:
LED
Four-wheel-drive indicator light: LED Engine trouble warning light:
LED
EPS warning light: LED (YFM45KPHK, YFM45KPLK, YFM45KPXK)
Fuses:Main fuse:40.0 A
Headlight fuse: 15.0 A
Signaling system fuse:
10.0 A
Ignition fuse: 10.0 A
Auxiliary DC jack fuse: 10.0 A
Fuel injection system fuse:
10.0 A
Four-wheel-drive motor fuse: 3.0 A
Radiator fan motor fuse: 20.0 A
EPS fuse:
40.0 A (YFM45KPHK, YFM45KPLK, YFM45KPXK)EBU30403Noise and vibration levels statement (for Eu-
rope)
The figures quoted are emission levels and are not
necessarily safe working levels. Whilst there is a
correlation between the emission and exposure
UBB561E0.book Page 5 Monday, March 26, 2018 11:15 AM

12-1
12
INDEX
AAccessories and loading ................................................ 6-5
Accessories, DC jack ...................................................4-18
Air filter, cleaning ......................................................... 8-32
Axle boots .................................................................... 8-46BBattery .......................................................................... 8-52
Brake fluid, changing ...................................................8-41
Brake fluid level, checking ........................................... 8-39
Brake lever free play, checking the front ..................... 8-41
Brake lever, front ............................................................ 4-9
Brake levers, checking and lubricating ........................ 8-48
Brake light switches ..................................................... 8-47
Brake pads and friction plates, checking ..................... 8-39
Brake pedal and rear brake lever ................................... 4-9
Brake pedal, checking and lubricating ........................ 8-49
Brakes .......................................................................... 8-38
Brakes, front and rear .................................................... 5-3
Brake/tail light bulb, replacing ..................................... 8-62CCables, checking and lubricating ................................. 8-48
Carrier, front ................................................................. 4-15
Carrier, rear .................................................................. 4-15
Chassis fasteners ........................................................... 5-7
Cleaning ......................................................................... 9-1
Coolant ................................................................. 5-3, 8-28
Coolant temperature warning light ................................. 4-2DDifferential gear oil ......................................................... 5-3Differential gear oil, changing ...................................... 8-27
Display unit .................................................................... 4-4
Drive select lever .......................................................... 4-10
Drive select lever and driving in reverse ........................ 6-2
Drive shaft universal joint, lubricating .......................... 8-50
EEngine break-in .............................................................. 6-4
Engine oil ....................................................................... 5-3
Engine oil and oil filter cartridge .................................. 8-19
Engine stop switch ......................................................... 4-6
Engine trouble warning light .......................................... 4-2
EPS warning light (for EPS model) ................................. 4-3FFinal gear oil ......................................................... 5-3, 8-24
Four-wheel drive indicator light ..................................... 4-3
Four-wheel drive switch (On-Command 4WD) .............. 4-7
Fuel ...................................................................... 4-12, 5-3
Fuel tank cap ............................................................... 4-11
Fuses, replacing ........................................................... 8-55HHandlebar switches ....................................................... 4-6
Headlight beam, adjusting ........................................... 8-61
Headlight bulb, replacing ............................................. 8-58
Horn switch .................................................................... 4-7IIdentification numbers ................................................. 11-1
Indicator lights and warning lights ................................. 4-1
Instruments, lights and switches ................................... 5-7
